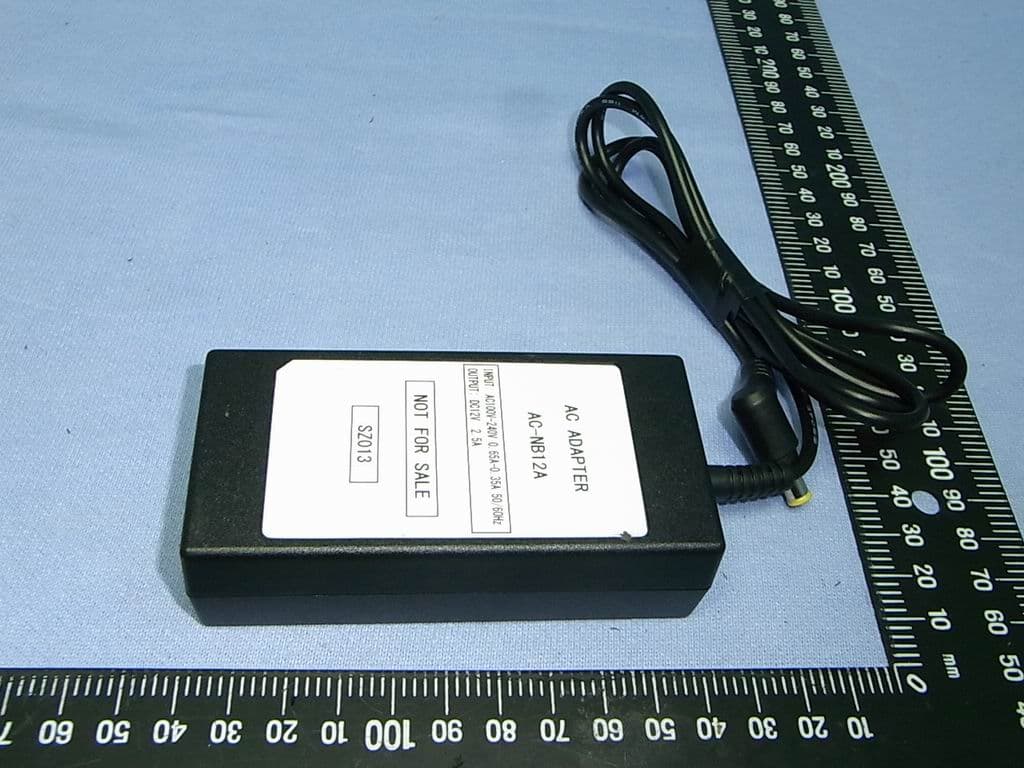

SONY CORPORATION Personal Content StationFCC ID. : AK8LLS201 IC: 409B-LLS201 EUT External Photos Figure 1 Personal Content Station (Front View) Figure 2 Personal Content Station (Back View) SONY CORPORATION Personal Content StationFCC ID. : AK8LLS201 IC: 409B-LLS201 Figure 3 Personal Content Station (Side View) Figure 4 Personal Content Station (Bottom View) SONY CORPORATION Personal Content StationFCC ID. : AK8LLS201 IC: 409B-LLS201 Figure 5 AC Adapter (Front View) Figure 6 AC Adapter (Back View)

SONY CORPORATION Personal Content StationFCC ID. : AK8LLS201 IC: 409B-LLS201 FCC ID & IC Label Location z Label Placement Location z FCC ID & IC Label Format FCC ID & IC Label Placement Location

SONY CORPORATION Personal Content StationFCC ID. : AK8LLS201 IC: 409B-LLS201 EUT Internal Photos Figure 7 Internal View (Removed Cover) Figure 8 Internal View (RC-S801 Board, Back View) SONY CORPORATION Personal Content StationFCC ID. : AK8LLS201 IC: 409B-LLS201 Figure 9 Internal View (RC-S801 Board, Front View) Figure 10 Internal View (Removed Shielded Cover) SONY CORPORATION Personal Content StationFCC ID. : AK8LLS201 IC: 409B-LLS201 Figure 11 Internal View (Main Board, Front View) Figure 12 Internal View SONY CORPORATION Personal Content StationFCC ID. : AK8LLS201 IC: 409B-LLS201 Figure 13 Internal View (HDD) Figure 14 Internal View (Removed Shielded Cover) SONY CORPORATION Personal Content StationFCC ID. : AK8LLS201 IC: 409B-LLS201 Figure 15 Internal View (Main Board, Back View) Figure 16 Internal View (WiFi Module and ANT) ANT 2 ANT 1 SONY CORPORATION Personal Content StationFCC ID. : AK8LLS201 IC: 409B-LLS201 Figure 17 Internal View (WiFi Module, Front View) Figure 18 Internal View (WiFi Module, Back View) SONY CORPORATION Personal Content StationFCC ID. : AK8LLS201 IC: 409B-LLS201 Figure 19 Personal Content Station (Back View)

Maximum Permissive Exposure FCC ID: AK8LLS201 IC : 409B-LLS201 Product Name: Personal Content Station Model No: LLS-201 2.4GHz band: Sony Corporation declares that the product described above has been evaluated and found to comply with the RF exposure limits for humans, as specified based on ANSI/FCC recommendation. Based on safety distance 20cm, the antenna gain of 2.4GHz is 0.8 dBi, and the power output is 152.0547mW, the power density is 0.03636 mW/cm^2. RF Exposure Calculations: S = (P * G) / (4* * r^2) or r = (P * G) / (4 * * S) Where S = Power Density in mW/cm^2 P = 21.82dBm =152.0547mW G = 0.8 dBi = 1.202 Numerical r = 20cm S = 152.0547*1.202 / 4** 20^2 = 0.03636mW/cm^2 5.2GHz band: Sony Corporation declares that the product described above has been evaluated and found to comply with the RF exposure limits for humans, as specified based on ANSI/FCC recommendation. Based on safety distance 20cm, the antenna gain of 2.4GHz is 3.3 dBi, and the power output is 8.8715mW, the power density is 0.00377 mW/cm^2. RF Exposure Calculations: S = (P * G) / (4* * r^2) or r = (P * G) / (4 * * S) Where S = Power Density in mW/cm^2 P = 9.48dBm =8.8715mW G = 3.3 dBi = 2.1379 Numerical r = 20cm S = 8.8715*2.1379 / 4** 20^2 = 0.00377mW/cm^2 Sincerely Yours, ____________________________________ Mr. Ben Cheng Manager AUDIX Technology Corporation

FCC ID: AK8LLS201 IC: 409B-LLS201 Page 1 of 76 AUDIX Technology Corporation Report No. EM-F1010955 APPLICATION FOR CERTIFICATION On Behalf of SONY CORPORATION Personal Content Station Model No. : LLS-201 FCC ID : AK8LLS201 IC: 409B-LLS201 Brand : SONY Prepared for : SONY CORPORATION 1-7-1 Konan, Minato-ku, Tokyo, 108-0075, Japan Prepared by : AUDIX Technology Corporation EMC Department No. 53-11, Dingfu, Linkou Dist., New Taipei City 244, Taiwan, R.O.C. Tel : (02) 2609-9301, 2609-2133 Fax: (02) 2609-9303 File Number ： C1M1211100 Report Number ： EM-F1010955 Date of Test ： Nov. 12 ~ Dec. 04, 2012 Date of Report ： Jan. 18, 2013 FCC ID: AK8LLS201 IC: 409B-LLS201 Page 2 of 76 AUDIX Technology Corporation Report No. EM-F1010955 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION ................................................................................................ 4 1. GENERAL INFORMATION .................................................................................................. 5 1.1. Description of Device (EUT)........................................................................................................... 5 1.2. Data Rate Relative to Output Power................................................................................................ 6 1.3. Test Configuration for Each Test Item ............................................................................................ 7 1.4. Tested Supporting System Details ................................................................................................... 7 1.5. Description of Test Facility ............................................................................................................. 8 1.6. Measurement Uncertainty................................................................................................................ 9 2. CONDUCTED EMISSION MEASUREMET...................................................................... 10 2.1. Test Equipment .............................................................................................................................. 10 2.2. Block Diagram of Test Setup......................................................................................................... 10 2.3. Powerline Conducted Emission Limit §15.207, Class B, RSS-Gen §7.2.2/Table 2] ................. 10 2.4. Operating Condition of EUT ......................................................................................................... 11 2.5. Test Procedure ............................................................................................................................... 11 2.6. Conducted Emission Measurement Results................................................................................... 11 3. RADIATED EMISSION MEASUREMENT ....................................................................... 14 3.1. Test Equipment .............................................................................................................................. 14 3.2. Test Setup ...................................................................................................................................... 14 3.3. Radiated Emission Limits (§15.209, RSS-210 §2.7/Table 2)........................................................ 16 3.4. Operating Condition of EUT ......................................................................................................... 16 3.5. Test Procedure ............................................................................................................................... 17 3.6. Test Results.................................................................................................................................... 18 4. 6dB BANDWIDTH MEASUREMENT ................................................................................ 29 4.1. Test Equipment .............................................................................................................................. 29 4.2. Block Diagram of Test Setup......................................................................................................... 29 4.3. Specification Limits [§15.247(a)(2), RSS-210 §A8.2 (a)] ............................................................ 29 4.4. Operating Condition of EUT ......................................................................................................... 29 4.5. Test Procedure ............................................................................................................................... 29 4.6. Test Results.................................................................................................................................... 29 5. MAXIMUM PEAK O UTPUT POWER MEASUREMENT ............................................. 29 5.1. Test Equipment .............................................................................................................................. 29 5.2. Block Diagram of Test Setup......................................................................................................... 29 5.3. Specification Limits (§15.247(b)-(3))............................................................................................ 29 5.4. Operating Condition of EUT ......................................................................................................... 29 5.5. Test Procedure ............................................................................................................................... 29 5.6. Test Results.................................................................................................................................... 29 6. EMISSION LIMITATIONS MEASUREMENT ................................................................. 29 7. BAND EDGES MEASUREMENT........................................................................................ 29 7.1. Test Equipment ........................................................…

Text truncated - open the document above for the full version.

FCC ID: AK8LLS201 IC: 409B-LLS201 Page 74 of 76 AUDIX Technology Corporation Report No. EM-F1010955 10. PHOTOGRAPHS 10.1. Photos of Conducted Disturbance Measurement FRONT VIEW OF CONDUCTED MEASUREMENT BACK VIEW OF CONDUCTED MEASUREMENT FCC ID: AK8LLS201 IC: 409B-LLS201 Page 75 of 76 AUDIX Technology Corporation Report No. EM-F1010955 10.2. Photos of Radiated Measurement at Semi-Anechoic Chamber 10.2.1.Frequency Below 1GHz 10.2.2. Frequency Above 1GHz FCC ID: AK8LLS201 IC: 409B-LLS201 Page 76 of 76 AUDIX Technology Corporation Report No. EM-F1010955 10.3. Photo of Section RF Conducted Measurement
