MDR-100ABN 4-582-886-11(1) English WARNING To reduce the risk of electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. Information FOR UNITED STATES CUSTOMERS. NOT APPLICABLE IN CANADA, INCLUDING IN THE PROVINCE OF QUEBEC. POUR LES CONSOMMATEURS AUX ÉTATS-UNIS. NON APPLICABLE AU CANADA, Y COMPRIS LA PROVINCE DE QUÉBEC. CAUTION: Risk of Fire and Burns. Do Not Open, Crush, Heat Above 140°F or Incinerate. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. This equipment must not be co-located or operated in conjunction with any other antenna or transmitter. Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference; including interference that may cause undesired operation of the device. This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that is deemed to comply without testing of specific absorption rate (SAR). The LDAC™ name and logo is a trademark of Sony Corporation. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. The N-Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries. Microsoft, Windows and Windows Vista are registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Mac and Mac OS are trademarks of Apple Inc., registered in the U.S. and other countries. iPhone is a trademark of Apple Inc., registered in the U.S. and other countries. The aptX® mark and the aptX logo are trade marks of CSR plc or one of its group companies and may be registered in one or more jurisdictions. Other trademarks and trade names are those of their respective owners. Precautions On BLUETOOTH communications • BLUETOOTH wireless technology operates within a range of about 10 m (30 feet). Maximum communication range may vary depending on obstacles (human body, metal, wall, etc.) or electromagnetic environment. • The antenna is built into the unit as illustrated in the dotted line. The sensitivity of the BLUETOOTH communications will improve by turning the direction of the built-in antenna to the connected BLUETOOTH device. When obstacles are between the antenna of the connected device and the built-in antenna of this unit, noise or audio dropout may occur, or communications may be disabled. • BLUETOOTH communications may be disabled, or noise or audio dropout may occur under the following conditions. – There is a human body between the unit and the BLUETOOTH device. This situation may be improved by placing the BLUETOOTH device facing the antenna of the unit. – There is an obstacle, such as metal or wall, between the unit and the BLUETOOTH device. – A device using 2.4 GHz frequency, such as a Wi-Fi device, cordless telephone, or microwave oven, is in use near this unit. • Because BLUETOOTH devices and Wi-Fi (IEEE802.11b/g/n) use the same frequency (2.4 GHz), microwave interference may occur resulting in noise or audio dropout or communications being disabled if this unit is used near a Wi-Fi device. In such a case, perform the following. – Use this unit at least 10 m (30 feet) away from the Wi-Fi device. – If this unit is used within 10 m (30 feet) of a Wi-Fi device, turn off the Wi-Fi device. – Install this unit and the BLUETOOTH device as near to each other as possible. • Microwaves emitting from a BLUETOOTH device may affect the operation of electronic medical devices. Turn off this unit and other BLUETOOTH devices in the following locations, as it may cause an accident: – where inflammable gas is present, in a hospital, or a petrol station – near automatic doors or a fire alarm • Do not use the unit on an airplane. Radio waves may affect instruments, causing an accident due to malfunction. • Due to the characteristic of BLUETOOTH wireless technology, the sound played on this unit is slightly delayed from the sound played on the BLUETOOTH device during talking on the telephone or listening to the music. • This unit supports security capabilities that comply with the BLUETOOTH standard to provide a secure connection when the BLUETOOTH wireless technology is used, but security may not be eno…

Text truncated - open the document above for the full version.

Request for Short-Term Confidentiality Date: October 22, 2015 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID : AK8MDR100ABN Applicant : Sony Corporation To whom it may concern: Please be advised that the following information is to be held in confidence for 36 days from the date of the Grant of Equipment Authorization and behalf of us, referring to the FCC rules 0.457 and 0.459: External Photos Internal Photos Test Setup Photos User Manual The application contains technical information, which we deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, ____________________________________ Kazunaga Kinjo Sony Corporation

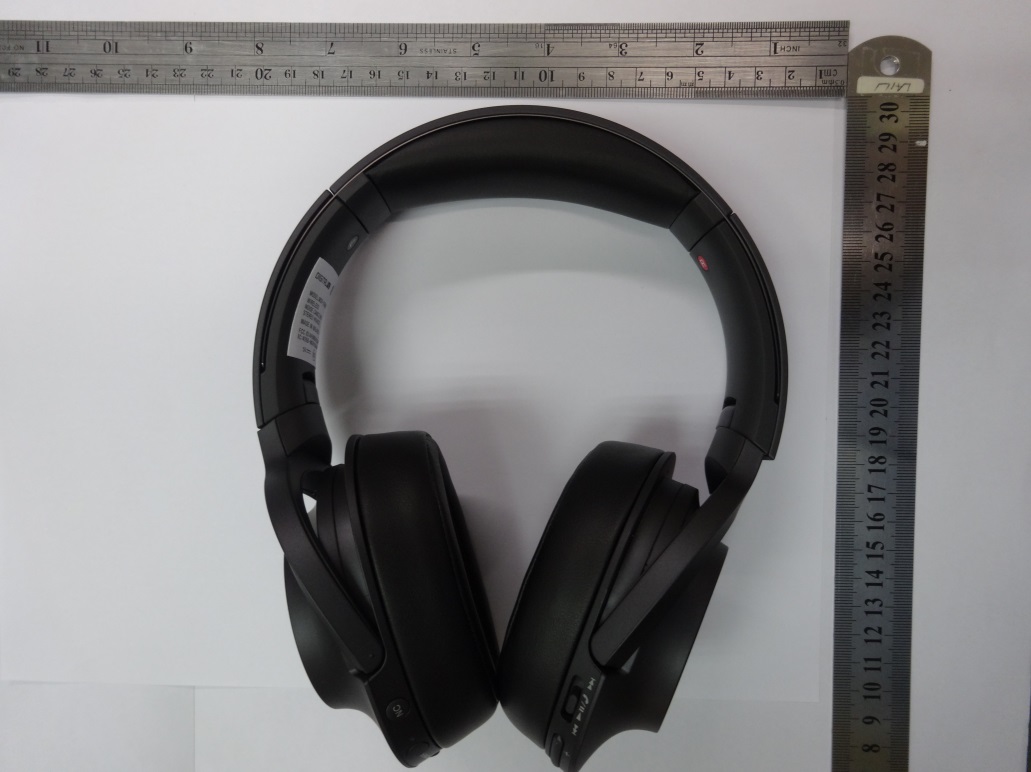

PHOTOS Model No. MDR-100ABN Exterior Front Back TOP Bottom Side

MDR-100ABN Name Plate Printing Location Version: UC MDR-100ABN SET Name Plate (L) Model Name Name Plate

Interior Main PWB Bluetooth IC Chip Antenna Note: Antenna connector for the function checking. PHOTOS Model No. MDR-100ABN R-Switch PWB L-Jack PWB NFC tag PWB Battery PWB PWB without cabinet L-ch R-ch

UL Japan, Inc. Kashima EMC Lab 1614 Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan T:: +81.478.88.6500 / F:: +81.478.88.3373 / W:: ul.com/jp November 17, 2015 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID: AK8MDR100ABN To whom it may concern, We, UL Japan, Inc, hereby declare that Wireless Noise Canceling Stereo Headset, model: MDR- 100ABN (FCC ID: AK8MDR100ABN) of Sony Corporation is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in KDB 447498D01(v06). KDB 447498D01(v06) has the following exclusion for portable devices: The 1g and 10g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ӊ50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·>¥I *+] @”for 1-J6$5DQG”IRU-g extremity SAR, where ͌f(GHz) is the RF channel transmit frequency in GHz ͌Power and distance are rounded to the nearest mW and mm before calculation ͌The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ӊ50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. This device has f = 2.48 GHz and distance = 5 mm (minimum separation distance: 5 mm was used in the calculation) and the maximum average output power was 1 mW So for this device: 1 mW[maximum average output power]/5 mm[minimum separation distance]*Ҁ2.48 = 0.3 *This is less than 3.0, so no SAR is required. Even taking into account the tolerance, this device can be satisfied with the limits. Thank you for your attention to this matter. Masanori Nishiyama Manager of Kashima EMC Lab. Consumer Technology Division UL Japan, Inc.

Test report No. : 10994201M-A-R1 Page : 1 of 46 Issued date : November 17, 2015 Revised date : November 18, 2015 FCC ID : AK8MDR100ABN UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone: +81-478-88-6500 Facsimile: +81-478-82-3373 13-EM-F0429 RADIO TEST REPORT Test Report No. : 10994201M-A-R1 Applicant : Sony Corporation Type of Equipment : Wireless Noise Canceling Stereo Headset Model No. : MDR-100ABN FCC ID : AK8MDR100ABN Test regulation : FCC Part 15 Subpart C: 2015 Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the above regulation. 4. The test results in this report are traceable to the national or international standards. 5. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. 6. This test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable) 7. This report is a revised version of 10994201M-A. 10994201M-A is replaced with this report. Date of test: October 20, 21, 28, November 1, 3, 2015 Representative test engineer: Kazuhiro Ando Engineer Consumer Technology Division Approved by: Masanori Nishiyama Manager Consumer Technology Division The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". TESTING CERTIFICATE 1266.01 Test report No. : 10994201M-A-R1 Page : 2 of 46 Issued date : November 17, 2015 Revised date : November 18, 2015 FCC ID : AK8MDR100ABN UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone: +81-478-88-6500 Facsimile: +81-478-82-3373 13-EM-F0429 REVISION HISTORY Original Test Report No.: 10994201M-A-R1 Revision Test report No. Date Page revised Contents - (Original) 10994201M-A November 17, 2015 - - 1 10994201M-A-R1 November 18, 2015 P.24, 27, 29, 32 Modification of explanation of the waveform chart Test report No. : 10994201M-A-R1 Page : 3 of 46 Issued date : November 17, 2015 Revised date : November 18, 2015 FCC ID : AK8MDR100ABN UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone: +81-478-88-6500 Facsimile: +81-478-82-3373 13-EM-F0429 CONTENTS PAGE SECTION 1: Customer information....................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ......................................................................................... 4 SECTION 3: Test specification, procedures & results.......................................................................... 5 SECTION 4: Operation of E.U.T. during testing .................................................................................. 8 SECTION 5: Radiated Spurious Emission .......................................................................................... 10 SECTION 6: Antenna Terminal Conducted Tests .............................................................................. 11 APPENDIX 1: Test data ........................................................................................................................ 12 20dB Bandwidth and Carrier Frequency Separation ......................................................................... 12 Number of Hopping Frequency ........................................................................................................ 15 Dwell time ......................................................................................................................................... 17 Maximum Peak Output Power .......................................................................................................... 20 Average Output Power ...................................................................................................................... 21 Radiated Spurious Emission ............................................................................................................. 23 Conducted Spurious Emission .......................................................................................................... 34 Conducted Emission Band Edge compliance ................................................................................... 40 99%Occupied Bandwidth ................................................................................................................. 42 APPENDIX 2: Test instruments ........................................................................................................... 44 APPENDIX 3: Photographs of test setup ............................................................................................. 45 Radiated Spurious Emission ............................................................................................................. 45 Worst Case Position (Y-axis) ............................................................................................................ 46 Test report No. : 10994201M-A-R1 Page : 4 of 46 Issued date : November 17, 2015 Revised date : November 18, 2015 FCC ID : AK8MDR100ABN UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone: +81-478-88-6500 Facsimile: +81-478-82-3373 13-EM-F0429 SECTION 1: Customer information Company Name : Sony Corporation Address : 2-10-1 Osaki, Shinagawa-ku, Tokyo 141-8610 Japan Telephone Number : +81 50 3750 7634 Facsimile Number : +81 50 3750 6574 Contact Person : Shigeru Higai SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Wireless Noise Canceling Stereo Headset Model No. : MDR-100ABN Serial No. : Refer to Section 4, Clause 4.2 Rating : DC 3.6 V, Rechargeble Battery Receipt Dat…

Text truncated - open the document above for the full version.

Test report No. : 10994201M-A-R1 Page : 45 of 46 Issued date : November 17, 2015 Revised date : November 18, 2015 FCC ID : AK8MDR100ABN UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone: +81-478-88-6500 Facsimile: +81-478-82-3373 13-EM-F0429 APPENDIX 3: Photographs of test setup Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 10994201M-A-R1 Page : 46 of 46 Issued date : November 17, 2015 Revised date : November 18, 2015 FCC ID : AK8MDR100ABN UL Japan, Inc. Kashima EMC Lab. 1614, Mushihata, Katori-shi, Chiba-ken, 289-0341 Japan Telephone: +81-478-88-6500 Facsimile: +81-478-82-3373 13-EM-F0429 Worst Case Position (Y-axis) X-axis Y-axis Z-axis End of Report
