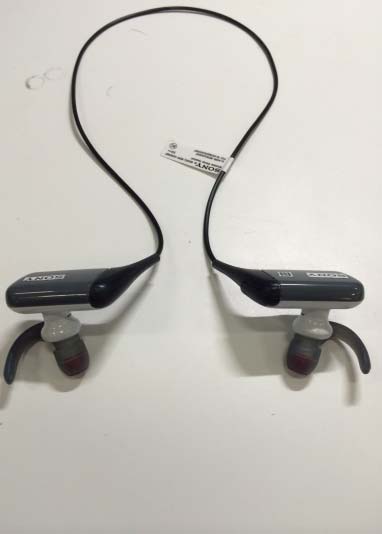

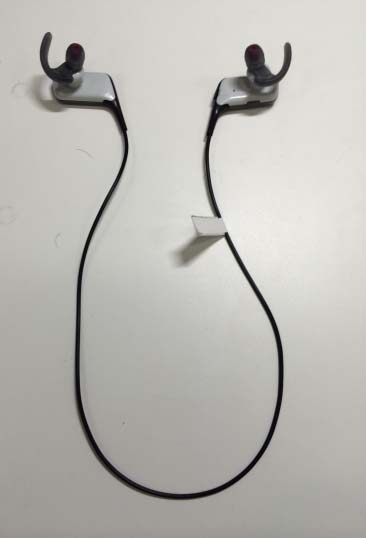

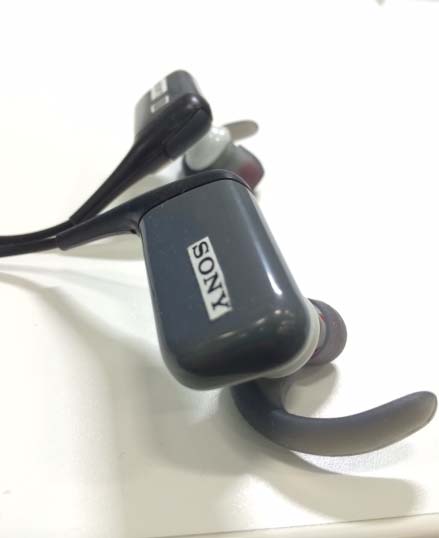

AK8MDRAS600BTWireless Stereo Headset

MDR-AS600BT 4-548-971-11(1) Wireless Stereo Headset Casque stéréo sans fil Auriculares estéreo inalámbricos Reference GuideUS Guide de référenceFR Guía de referenciaES http://www.sony.net/ ©2015 Sony Corporation Printed in China English WARNING To reduce the risk of electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. Do not install the appliance in a confined space, such as a bookcase or built-in cabinet. Do not expose the batteries (battery pack or batteries installed) to excessive heat such as sunshine, fire or the like for a long time. Information FOR UNITED STATES CUSTOMERS. NOT APPLICABLE IN CANADA, INCLUDING IN THE PROVINCE OF QUEBEC. POUR LES CONSOMMATEURS AUX ÉTATS-UNIS. NON APPLICABLE AU CANADA, Y COMPRIS LA PROVINCE DE QUÉBEC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. This equipment must not be co-located or operated in conjunction with any other antenna or transmitter. Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ēRe orient or relocate the receiving antenna. ēIncr ease the separation between the equipment and receiver. ēConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. ēConsult the dealer or an experienced radio/TV technician for help. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption rate (SAR). The Bl UET OOTH word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. The N Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries. Microsoft, Windows and Windows Vista are registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Mac and Mac OS are trademarks of Apple Inc., registered in the U.S. and other countries. iPhone is a trademark of Apple Inc., registered in the U.S. and other countries. Other trademarks and trade names are those of their respective owners. Precautions On BLUETOOTH communications ˎ BlUETOOTH wireless technology operates within a range of about 10 m (30 feet). Maximum communication range may vary depending on obstacles (human body, metal, wall, etc.) or electromagnetic environment. ˎ The ant enna is built into the unit as illustrated in the dotted line. The sensitivity of the BlUETOOTH communications will improve by turning the direction of the built-in antenna to the connected BlUETOOTH device. When obstacles are between the antenna of the connected device and the built-in antenna of this unit, noise or audio dropout may occur, or communications may be disabled. ˎ BlUETOOTH communications may be disabled, or noise or audio dropout may occur under the following conditions. ēThere is a human body between the unit and the BlUETOOTH device. This situation may be improved by placing the B lUETOOTH device facing the antenna of the unit. ēTher e is an obstacle, such as metal or wall, between the unit and the B lUETOOTH device. ēA device using 2.4 GHz frequency, such as a Wi-Fi device, cordless telephone, or microwave oven, is in use near this unit. ˎ Because BlUETOOTH devices and Wi-Fi (IEEE802.11b/g/n) use the same frequency (2.4 GHz), microwave interference may occur resulting in noise or audio dropout or communications being disabled if this unit is used near a Wi -Fi device. In such a case, perform the following. ēUse this unit at least 10 m (30 feet) away from the Wi-Fi device. ēIf this unit is used within 10 m (30 feet) of a Wi-Fi device, turn off the Wi-Fi device. ēInstall this unit and the BlUETOOTH device as near to each other as possible. ˎ Micr owaves emitting from a Bl UET OOTH device may affect the operation of electronic medical devices. Turn off this unit and other Bl UETOOTH devices in the following locations, as it may cause an accident: ēwhere inflammable gas is present, in a hospital, or a petrol station ēnear automatic doors or a fire alarm ˎ Do not use the unit on an airplane. Radio waves may affect instruments, causing an accident due to malfunction. ˎ This unit supports security capabilities that comply with the Bl UETOOTH standard to provide a secure connection when the BlUETOOTH wireless technology is used, but security may not be enough depending on the setting. Be careful when communicating using Bl UETOOTH wirele…

Text truncated - open the document above for the full version.

Model: MDR ‐ AS600BT

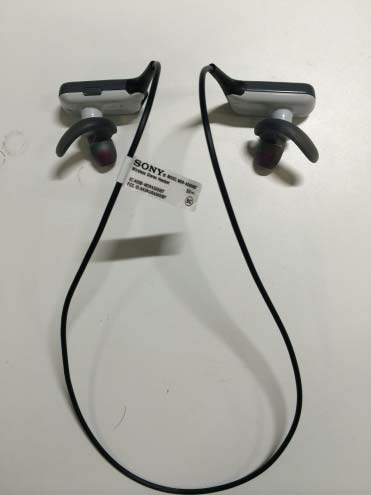

Model: MDR-AS600BT Nameplate drawing Dimension 72mm 9mm 11mm The label is folded in two and adhered. Material Sony Corporation, declare that nameplate label is able to last the expected lifetime of the equipment in the environment in which the equipment will be operated and isn't readily detachable.

Main PWB TOP Model: MDR ‐ AS600BT Main PWB BTM Antenna PWB TOP Antenna PWB BTM Position relation with a product 1 Position relation with a product 2 ANT

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 2014/10/22 UL Japan, Inc. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN FCC ID: AK8MDRAS600BT To whom it may concern, We, UL Japan, Inc., hereby declare that Wireless Stereo Headset, model : MDR-AS600BT (FCC ID: AK8MDRAS600BT) of Sony Corporation is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in FCC Part 2 §2.1093. KDB 447498D01(v05r02) has the following exclusion for portable devices: The 1g and 10g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances < 50 mm are determined by: [(maximum average output power with tolerance (mW))/(Minimum separation distance(mm))]•[ √ f (GHz)] < 3.0 for 1g SAR and < 7.5 for 10g extremity SAR where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are a pplicable only when the minimum test separation distance is < 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. This device f = 2.48 GHz, distance = 5mm (minimum separation distance: 5 mm was used in the calculation) and the maximum average output power with tolerance was 3 mW So for this device: 3 mW [maximum average output power with tolerance ] / 5 mm [minimum separation distance] * ( √ 2.48) = 0.9 *This is less than 3.0, so no SAR is required. Thank you for your attention to this matter. Toyokazu Imamura Leader Consumer Technology Division

Test report No. : 10489568S-A Page : 1 of 44 Issued date : October 22, 2014 Revised date : October 31, 2014 FCC ID : AK8MDRAS600BT UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 RADIO TEST REPORT Test Report No.: 10489568S-A Applicant : Sony Corporation Type of Equipment : Wireless Stereo Headset Model No. : MDR-AS600BT FCC ID : AK8MDRAS600BT Test regulation : FCC Part15 Subpart C: 2014 Test result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. Date of test: September 29 to 30, 2014 Tested by: Kenichi Adachi Engineer Consumer Technology Division Approved by : Toyokazu Imamura Leader Consumer Technology Division RTL02610 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". 13-EM-F0429 Test report No. : 10489568S-A Page : 2 of 44 Issued date : October 22, 2014 Revised date : October 31, 2014 FCC ID : AK8MDRAS600BT UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 REVISION HISTORY Original Test Report No.: 10489568S-A Revision Test report No. Date Page revisedContents - (Original) 10489568S-A October 22, 2014- - 1 10489568S-A October 29, 20144 Correction of Supplied voltage information 2 10489568S-A October 31, 20144 Correction of Supplied voltage information Test report No. : 10489568S-A Page : 3 of 44 Issued date : October 22, 2014 FCC ID : AK8MDRAS600BT UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Contents Page SECTION 1: Customer information ..................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ........................................................................ 4 SECTION 3: Test specification, procedures & results ........................................................ 5 SECTION 4: Operation of E.U.T. during testing ................................................................. 8 SECTION 5: Carrier frequency separation ........................................................................ 10 SECTION 6: 20dB bandwidth & Occupied bandwidth (99%) ......................................... 10 SECTION 7: Number of hopping frequency ...................................................................... 10 SECTION 8: Dwell time ....................................................................................................... 10 SECTION 9: Maximum peak output power ....................................................................... 10 SECTION 10: Spurious emissions (Antenna port conducted) .......................................... 10 SECTION 11: Radiated emission ......................................................................................... 11 Contents of APPENDIXES ...................................................................................................... 13 APPENDIX 1: Data of radio tests ........................................................................................ 14 APPENDIX 2: Test instruments .......................................................................................... 42 APPENDIX 3: Photographs of test setup ............................................................................ 43 Test report No. : 10489568S-A Page : 4 of 44 Issued date : October 22, 2014 Revised date : October 31, 2014 FCC ID : AK8MDRAS600BT UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 SECTION 1: Customer information Company name : Sony Corporation Brand name : SONY Address : 2-10-1 Osaki, Shinagawa-ku, Tokyo 141-8610 Japan Telephone Number : +81-50-3750-7634 Contact Person : Shigeru Higai SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Wireless Stereo Headset Model Number : MDR-AS600BT Serial Number : Refer to Clause 4.2 Rating : DC3.7V Country of Mass-production : China Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Receipt Date of Sample : September 22, 2014 Modification of EUT : No modification by the test lab. 2.2 Product description Model: MDR-AS600BT (referred to as the EUT in this report) is a Wireless Stereo Headset. Clock frequencies: Bluetooth: 26MHz Bluetooth specification: Equipment type :Transceiver Frequency of operation :2402-2480MHz Bandwidth / Channel spacing :1MHz / 1MHz Type of modulation :FHSS (GFSK, π/4-DQPSK, 8DPSK) Antenna type :Pattern antenna Antenna connector type :Integral Antenna gain :-1.74 dBi ITU code :F1D, G1D Operation temperature range :0 to +40 deg.C FCC 15.31 (e) The EUT is a battery-operated device and test was performed with the full-charged battery. Therefore, the EUT complies with the requirement. FCC 15.203 The equipment and its antenna comply with the requirement since the antenna is built in the equipment and it cannot be replaced by end users. Test report No. : 10489568S-A Page : 5 of 44 Issued date : October 22, 2014 FCC ID : AK8MDRAS600BT UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN T…

Text truncated - open the document above for the full version.

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Radiated emission (Front) (Rear, below 1GHz) (Rear, above 1GHz) Test Report No. : 10489568S-A 43 of 44 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-check of the worst position X-axis Y-axis Z-axis END OF REPORT Test Report No. : 10489568S-A 44 of 44
