AK8MEXGS610BTBluetooth Audio System

MEX-N5000BT/MEX-GS610BT 4-480-657-11(1) Bluetooth® Audio System Owner’s Record The model and serial numbers are located on the bottom of the unit. Record these numbers in the spaces provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product. Model No. Serial No. Operating Instructions GB Mode d’emploi FR To cancel the demonstration (DEMO) display, see page 17. Pour annuler l’affichage de démonstration (DEMO), reportez- vous à la page 19. 2GB Warning This device complies with Part 15 of the FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20 cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). CAUTION The use of optical instruments with this product will increase eye hazard. For the State of California, USA only Perchlorate Material – special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate Perchlorate Material: Lithium battery contains perchlorate Note on the lithium battery Do not expose the battery to excessive heat such as direct sunlight, fire or the like. Be sure to install this unit in the dashboard of the car for safety. For installation and connections, see the supplied installation/connections manual. FOR THE CUSTOMERS IN THE USA. NOT APPLICABLE IN CANADA, INCLUDING IN THE PROVINCE OF QUEBEC. POUR LES CLIENTS AUX ÉTATS-UNIS. NON APPLICABLE AU CANADA, Y COMPRIS LA PROVINCE DE QUÉBEC. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. Warning if your car’s ignition has no ACC position Be sure to set the AUTO OFF function (page 17). The unit will shut off completely and automatically in the set time after the unit is turned off, which prevents battery drain. If you do not set the AUTO OFF function, press and hold OFF until the display disappears each time you turn the ignition off. 3GB Caution IN NO EVENT SHALL SONY BE LIABLE FOR ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR OTHER DAMAGES INCLUDING, WITHOUT LIMITATION, LOSS OF PROFITS, LOSS OF REVENUE, LOSS OF DATA, LOSS OF USE OF THE PRODUCT OR ANY ASSOCIATED EQUIPMENT, DOWNTIME, AND PURCHASER’S TIME RELATED TO OR ARISING OUT OF THE USE OF THIS PRODUCT, ITS HARDWARE AND/OR ITS SOFTWARE. IMPORTANT NOTICE! Safe and efficient use Changes or modifications to this unit not expressly approved by Sony may void the user’s authority to operate the equipment. Please check for exceptions, due to national requirement or limitations, in usage of BLUETOOTH equipment before using this product. Driving Check the laws and regulations on the use of cellular phones and handsfree equipment in the areas where you drive. Always give full attention to driving and pull off the road and park before making or answering a call if driving conditions so require. Connecting to other devices When connecting to any other device, please read its user guide for detailed safety instructions. Radio frequency exposure RF signals may affect improperly installed or inadequately shielded electronic systems in cars, such as electronic fuel injection systems, electronic antiskid (antilock) braking systems, electronic speed control systems or air bag systems. For installation or service of this device, please consult with the manufacturer or its representative of your car. Faulty installation or service may be dangerous and may invalidate any warranty that may apply to this device. Consult with the manufacturer of your car to ensure that the use of your cellular phone in the car will not affect its electronic system. Check regularly that all wireless device equipment in your car is mounted and operating properly. Emergency calls This BLUETOOTH car h…

Text truncated - open the document above for the full version.

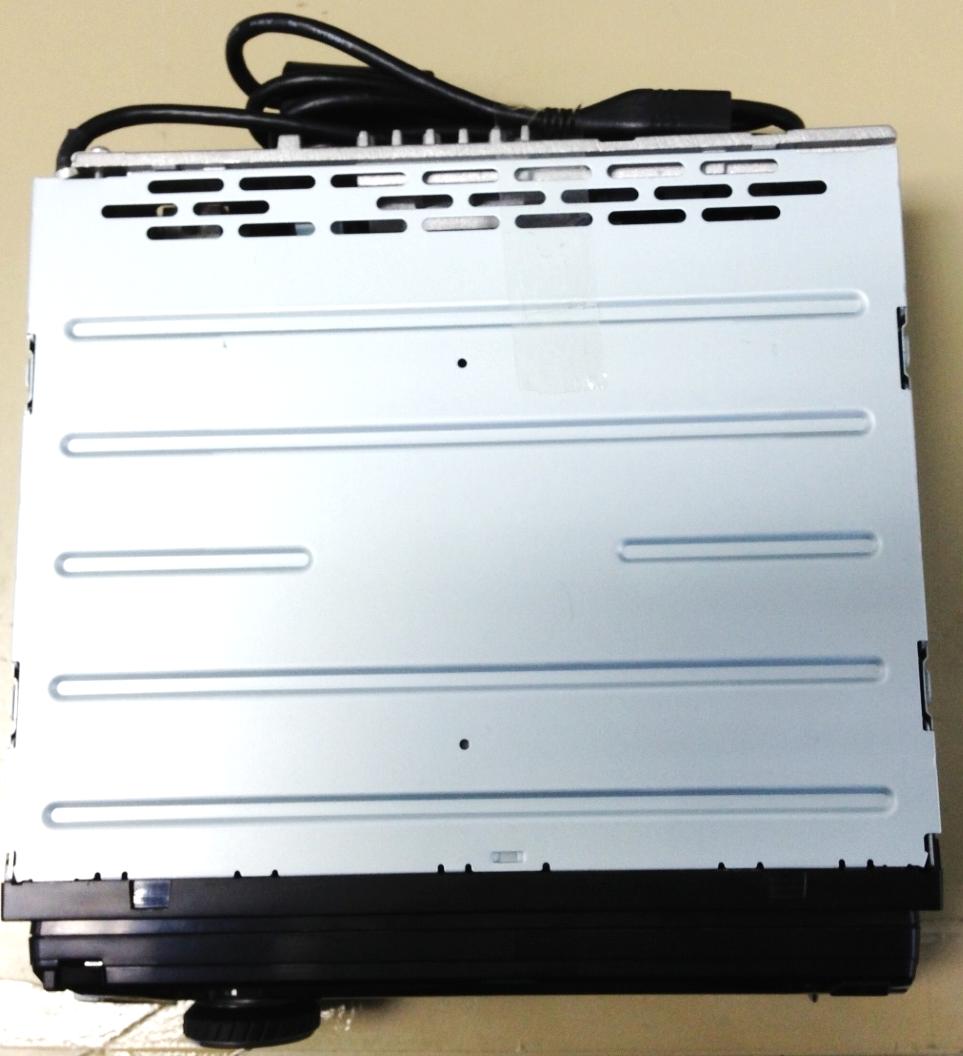

MEX-GS610BT//Q(UC) Front side Back side Rear side Top side Bottom side

Internal BT module Internal BT module Without shield case BT module Bottom of BT module

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Applicant: Sony Corporation T ype of Equipment : Bluetooth Audio System M odel No. : MEX-GS610BT FCC ID: AK8MEXGS610BT Sony Corporation declares that M odel : Bluetooth Audio System complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091. RF Exposure Calculations: T h e followin g in form ation provides th e m in im um separation distan ce for th e h igh est gain antenna provided with the “MEX-GS610BT“ as calculated from FCC Part 1, §1.1310, TABLE 1 (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system , considering m aximum power and antenna gain, and considering a 1.0m W/cm ^2 uncontrolled exposure limit. The Friis form ula used was: S = (P * G) / (4* π * r 2 ) Where P = 1.00 mW (M aximum peak output power) G = 1.24 N umerical A ntenna gain; equal to0.93dBi r =20.0 cm For: M EX-GS610BTS =0.00025 mW/cm 2 No. : 10103669S-A RF Exposure / SAR Statement

Test report No. : 10103669S-A Page : 1 of 50 Issued date : November 28, 2013 Revised date : December 20, 2013 FCC ID : AK8MEXGS610BT UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 RADIO TEST REPORT Test Report No.: 10103669S-A Applicant : Sony Corporation Type of Equipment : Bluetooth Audio System Model No. : MEX-GS610BT FCC ID : AK8MEXGS610BT Test regulation : FCC Part15 Subpart C: 2013 Test result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. Date of test: November 16 to 18 and December 5, 2013 Tested by: Tatsuya Arai Engineer of WiSE Japan, UL Verification Service Approved by : Toyokazu Imamura Leader of WiSE Japan, UL Verification Service RTL02610 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". 13-EM-F0429 Test report No. : 10103669S-A Page : 2 of 50 Issued date : November 28, 2013 Revised date : December 20, 2013 FCC ID : AK8MEXGS610BT UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 REVISION HISTORY Original Test Report No.: 10103669S-A Revision Test report No. Date Page revised Contents - (Original) 10103669S-A November 28, 2013 - - 1 10103669S-A December 4, 2013 8 Addition of comment to 4.1 2 10103669S-A December 5, 2013 5, 22-25 - Correction of typo - Update of dwell time data 3 10103669S-A December 20, 2013 8, 28 - Correction of remarks - Correction of data Test report No. : 10103669S-A Page : 3 of 50 Issued date : November 28, 2013 FCC ID : AK8MEXGS610BT UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Contents Page SECTION 1: Customer information .................................................................................. 4 SECTION 2: Equipment under test (E.U.T.) ..................................................................... 4 SECTION 3: Test specification, procedures & results ...................................................... 5 SECTION 4: Operation of E.U.T. during testing .............................................................. 8 SECTION 5: Carrier frequency separation ..................................................................... 11 SECTION 6: 20dB bandwidth & Occupied bandwidth (99%) ....................................... 11 SECTION 7: Number of hopping frequency ................................................................... 11 SECTION 8: Dwell time.................................................................................................... 11 SECTION 9: Maximum peak output power .................................................................... 11 SECTION 10: Spurious emissions (Antenna port conducted) ........................................ 11 SECTION 11: Radiated emission ..................................................................................... 12 Contents of APPENDIXES .................................................................................................. 14 APPENDIX 1: Data of radio tests..................................................................................... 15 APPENDIX 2: Test instruments ....................................................................................... 49 APPENDIX 3: Photographs of test setup ......................................................................... 50 Test report No. : 10103669S-A Page : 4 of 50 Issued date : November 28, 2013 FCC ID : AK8MEXGS610BT UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 SECTION 1: Customer information Company Name : Sony Corporation Address : Sony City Osaki, 2-10-1 Osaki, Shinagawa-ku, Tokyo 141-8610 Japan Telephone Number : +81 50 3750 7634 Facsimile Number : +81 50 3750 6574 Contact Person : Toshihiro Maeda SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Bluetooth Audio System Model Number : MEX-GS610BT Serial Number : Refer to 4.2 of this report. Rating : DC12V (car battery) Country of Mass-production : Thailand Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Receipt Date of Sample : November 15, 2013 Modification of EUT : No modification by the test lab. 2.2 Product description Model: MEX-GS610BT (referred to as the EUT in this report) is a Bluetooth Audio System. Clock frequency(ies) in the system : 48.000MHz, 36.480MHz, 26.000MHz, 16.9344MHz, 13.333MHz, 32.768kHz Bluetooth specification: Equipment type : Transceiver Frequency of operation : 2402-2480MHz Bandwidth & channel spacing : 79MHz & 1MHz Type of modulation : FHSS Operation temperature range : -20 to +60 deg.C. Antenna type : Meander Monopole Antenna connector type : U-FL Type Interchangeability Antenna gain : 0.929dBi (Peak) ITU code : F1D, G1D FCC 15.31 (e) The equipment provides the wireless transmitter with stable power supply (DC3.3V). Therefore, the equipment complies with the requirement. FCC 15.203 The equipment and its antenna comply with the requirement since the antenna is built in the equipment and it cannot be replaced by end users. Test report …

Text truncated - open the document above for the full version.

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Radiated emission Front view Rear view (below 1GHz) Rear view (above 1GHz) END OF REPORT Test Report No 10103669S-A 50 of 50
