AK8MEXM70BTBluetooth Audio System

G:\DATA\4489404111\4489404111MEXM70BTUC\01GB-MEXM70BTUC\010COV.fmmasterpage: Cover MEX-M70BT 4-489-404-11(1) MEX-M70BT 4-489-404-11(1) Bluetooth® Audio System Owner’s Record The model and serial numbers are located on the bottom of the unit. Record the serial number in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product. Model No. MEX-M70BT Serial No. Operating Instructions GB Mode d’emploi FR Manual de instrucciones ES To switch the FM/AM tuning step, see page 8. To cancel the demonstration (DEMO) display, see page 19. Pour commuter l’intervalle de syntonisation FM/AM, reportez- vous à la page 8. Pour annuler l’affichage de démonstration (DEMO), reportez- vous à la page 21. Para cambiar el paso de sintonización de FM/AM, consulte la página 8. Para cancelar la pantalla de demostración (DEMO), consulte la página 20. 010COV.book Page 1 Monday, December 9, 2013 5:53 PM 2GB G:\DATA\4489404111\4489404111MEXM70BTUC\01GB-MEXM70BTUC\020INT.fmmasterpage: Left MEX-M70BT 4-489-404-11(1) Warning This device complies with Part 15 of the FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20 cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). CAUTION The use of optical instruments with this product will increase eye hazard. Laser Diode Properties !Emission Duration: Continuous !Laser Output: Less than 53.3 μW (This output is the value measurement at a distance of 200 mm from the objective lens surface on the Optical Pick-up Block with 7 mm aperture.) For the State of California, USA only Perchlorate Material – special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate Perchlorate Material: Lithium battery contains perchlorate Made in Thailand The nameplate indicating operating voltage, etc., is located on the bottom of the chassis. Hereby, Sony Corp., declares that this MEX-M70BT is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For details, please access the following URL: http://www.compliance.sony.de/ Be sure to install this unit in the dashboard of the boat for safety. For installation and connections, see the supplied installation/connections manual. FOR THE CUSTOMERS IN THE USA. NOT APPLICABLE IN CANADA, INCLUDING IN THE PROVINCE OF QUEBEC. POUR LES CLIENTS AUX ÉTATS-UNIS. NON APPLICABLE AU CANADA, Y COMPRIS LA PROVINCE DE QUÉBEC. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: "Reorient or relocate the receiving antenna. "Increase the separation between the equipment and receiver. "Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. "Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. 010COV.book Page 2 Monday, December 9, 2013 5:53 PM 3GB G:\DATA\4489404111\4489404111MEXM70BTUC\01GB-MEXM70BTUC\020INT.fmmasterpage: Right MEX-M70BT 4-489-404-11(1) Notice for customers: the following information is only applicable to equipment sold in countries applying EU Directives Manufacturer: Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan For EU product compliance: Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany Disposal of waste batteries and electrical and electronic equipment (applicable in the European Union and other European countries with separate collection systems) This symbol on the product, the battery or on the packaging indicates that the product and the battery shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead. By ensuring these products and batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could…

Text truncated - open the document above for the full version.

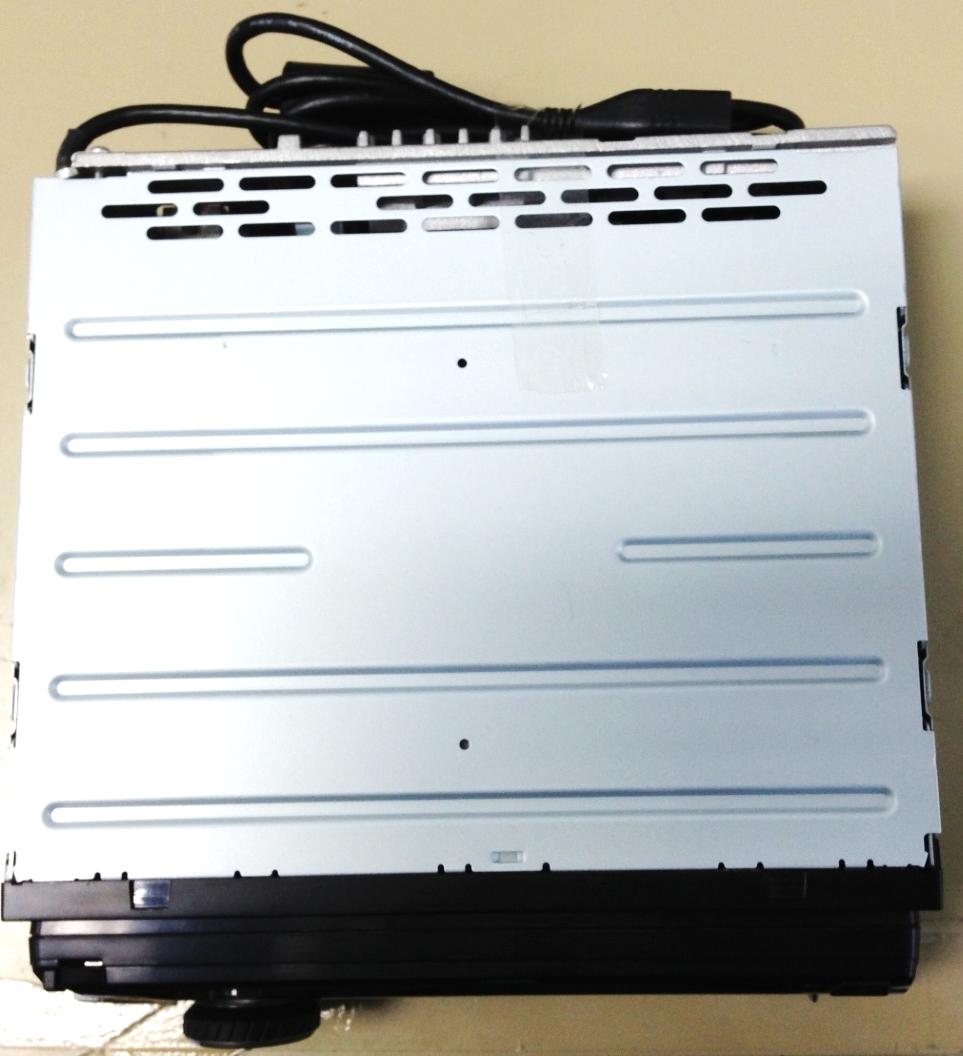

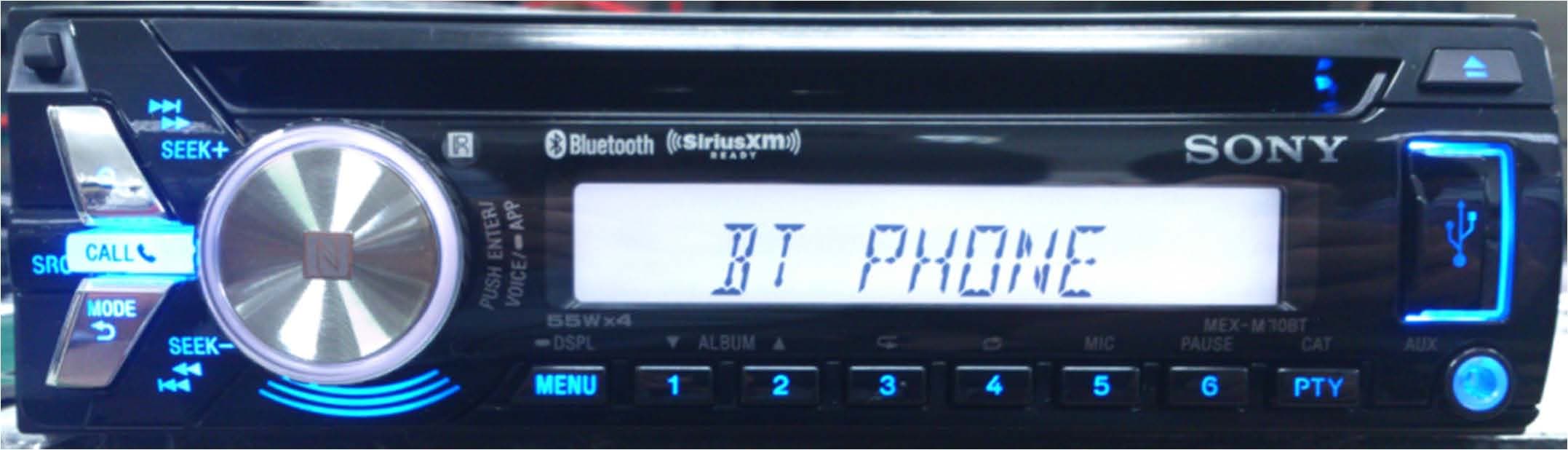

MEX-M70BT//Q(UC) Front side Back side Right side Left side Top side Bottom side

Internal BT module Internal BT module Without shield case BT module Bottom of BT module

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Applicant: Sony Corporation T ype of Equipment : Bluetooth Audio System M odel No. : MEX-M 70BT FCC ID: AK8MEXM70BT Sony Corporation declares that M odel : Bluetooth Audio System complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091. RF Exposure Calculations: T h e followin g in form ation provides th e m in im um separation distan ce for th e h igh est gain antenna provided with the “MEX-M70BT“ as calculated from FCC Part 1, §1.1310, TABLE 1 (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system , considering m aximum power and antenna gain, and considering a 1.0m W/cm ^2 uncontrolled exposure limit. The Friis form ula used was: S = (P * G) / (4* π * r 2 ) Where P = 1.25 mW (M aximum peak output power) G = 1.24 N umerical A ntenna gain; equal to0.93dBi r =20.0 cm For: M EX-M 70BTS =0.00031 mW/cm 2 No. : 10115902S-G RF Exposure / SAR Statement

Test report No. : 10115902S-G Page : 1 of 50 Issued date : December 26, 2013 FCC ID : AK8MEXM70BT UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 RADIO TEST REPORT Test Report No.: 10115902S-G Applicant : Sony Corporation Type of Equipment : Bluetooth Audio System Model No. : MEX-M70BT FCC ID : AK8MEXM70BT Test regulation : FCC Part15 Subpart C: 2013 Test result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. Date of test: December 3 to 8, 2013 Tested by: Kenichi Adachi Engineer of WiSE Japan, UL Verification Service Approved by : Toyokazu Imamura Leader of WiSE Japan, UL Verification Service RTL02610 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". 13-EM-F0429 Test report No. : 10115902S-G Page : 2 of 50 Issued date : December 26, 2013 FCC ID : AK8MEXM70BT UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 REVISION HISTORY Original Test Report No.: 10115902S-G Revision Test report No. Date Page revised Contents - (Original) 10115902S-G December 26, 2013 - - Test report No. : 10115902S-G Page : 3 of 50 Issued date : December 26, 2013 FCC ID : AK8MEXM70BT UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Contents Page SECTION 1: Customer information .................................................................................. 4 SECTION 2: Equipment under test (E.U.T.) ..................................................................... 4 SECTION 3: Test specification, procedures & results ...................................................... 5 SECTION 4: Operation of E.U.T. during testing .............................................................. 8 SECTION 5: Carrier frequency separation ..................................................................... 11 SECTION 6: 20dB bandwidth & Occupied bandwidth (99%) ....................................... 11 SECTION 7: Number of hopping frequency ................................................................... 11 SECTION 8: Dwell time.................................................................................................... 11 SECTION 9: Maximum peak output power .................................................................... 11 SECTION 10: Spurious emissions (Antenna port conducted) ........................................ 11 SECTION 11: Radiated emission ..................................................................................... 12 Contents of APPENDIXES .................................................................................................. 14 APPENDIX 1: Data of radio tests..................................................................................... 15 APPENDIX 2: Test instruments ....................................................................................... 49 APPENDIX 3: Photographs of test setup ......................................................................... 50 Test report No. : 10115902S-G Page : 4 of 50 Issued date : December 26, 2013 FCC ID : AK8MEXM70BT UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 SECTION 1: Customer information Company Name : Sony Corporation Address : Sony City Osaki, 2-10-1 Osaki, Shinagawa-ku, Tokyo 141-8610 Japan Telephone Number : +81 50 3750 7634 Facsimile Number : +81 50 3750 6574 Contact Person : Toshihiro Maeda SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Bluetooth Audio System Model Number : MEX-M70BT Serial Number : Refer to 4.2 of this report. Rating : DC12V (car battery) Country of Mass-production : Thailand Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Receipt Date of Sample : November 22, 2013 Modification of EUT : No modification by the test lab. 2.2 Product description Model: MEX-M70BT (referred to as the EUT in this report) is a Bluetooth Audio System. Clock frequency(ies) in the system : 48.000MHz, 36.480MHz, 26.000MHz, 16.9344MHz, 13.333MHz, 32.768kHz, 30.000MHz Bluetooth specification: Equipment type : Transceiver Frequency of operation : 2402-2480MHz Bandwidth & channel spacing : 79MHz & 1MHz Type of modulation : FHSS Operation temperature range : -20 to +60 deg.C. Antenna type : Meander Monopole Antenna connector type : U-FL Type Interchangeability Antenna gain : 0.929dBi (Peak) ITU code : F1D, G1D FCC 15.31 (e) The equipment provides the wireless transmitter with stable power supply (DC3.3V). Therefore, the equipment complies with the requirement. FCC 15.203 The equipment and its antenna comply with the requirement since the antenna is built in the equipment and it cannot be replaced by end users. Test report No. : 10115902S-G Page : 5 of 50 Issued date : December 26, 2013 FCC ID : AK8MEXM70BT UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 SECTION 3: Test specification, procedures & results 3.1 Test specification Test spe…

Text truncated - open the document above for the full version.

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Radiated emission Front view Rear view (below 1GHz) Rear view (above 1GHz) END OF REPORT Test Report No. : 10115902S-G 50 of 50
