AK8MHSTS55MOBILE HD SNAP CAMERA

© 2012 Sony Corporation4-412-628-11(1) US Handbook Mobile HD Snap Camera MHS-TS55 Table of contents Operation Search Settings Search Index 2 US Table of contents Operation Search Settings Search Index How to use this handbook Click on a button on the right to jump to the corresponding page. This is convenient when searching for a function you want to view. Search for information by function. Search for information by operation. Search for information in a listing of Settings items. Search for information by keyword. Marks and notations used in this handbook Table of contents Operation Search Settings Search Index In this handbook, the sequence of operations is shown by arrows (t). Operate the camera in the order indicated. Marks are shown as they appear in the camera’s default setting. The default setting is indicated by . Indicates cautions and limitations relevant to the correct operation of the camera. z Indicates information that is useful to know. 3 US Table of contents Operation Search Settings Search Index Notes on using the camera Internal memory back up Be sure to make a backup copy to protect your data. Notes on recording/playback and connection • Before you start recording, make a trial recording to make sure that the camera is working correctly. • The camera is neither dust-proof, nor splash- proof, nor water-proof. Read “Precautions” (page 71) before operating the camera. • Avoid exposing the camera to water. If water enters inside the camera, a malfunction may occur. In some cases, the camera cannot be repaired. • Do not aim the camera at the sun or other bright light. • Do not use the camera near a location that generates strong radio waves or emits radiation. Otherwise, the camera may not properly record or play back images. • Using the camera in sandy or dusty locations may cause malfunctions. • If moisture condensation occurs, remove it before using the camera (page 71). • Do not shake or strike the camera. It may cause a malfunction and you may not be able to record images. Furthermore, the recording media may become unusable or image data may be damaged. • When connecting your camera to another device with a cable, be sure to insert the connector plug in the correct way. Pushing the plug forcibly into the terminal will damage the terminal and may result in a malfunction of your camera. • Playback of movies other than those shot, edited or composed on this camera is not guaranteed. On camera’s temperature The camera may get warm due to continuous use, but it is not a malfunction. On the overheat protection Depending on the camera and battery temperature, you may be unable to record movies or the power may turn off automatically to protect the camera. A message will be displayed on the LCD screen before the power turns off or you can no longer record movies. Notes on the battery pack • The battery pack is built into the camera. Charge the camera before using for the first time. • You can charge the battery pack even if it is not completely discharged. In addition, even if the battery pack is not fully charged, you can use the partially charged capacity of the battery pack as is. • For details on the usable battery pack, see page 70. Notes on the LCD screen and lens • The LCD screen is manufactured using extremely high-precision technology so over 99.99% of the pixels are operational for effective use. However, some tiny black and/or bright dots (white, red, blue or green) may appear on the LCD screen. These dots are a normal result of the manufacturing process and do not affect the recording. • Exposing the LCD screen or the lens to direct sunlight for long periods may cause malfunctions. Be careful when placing the camera near a window or outdoors. • Do not press against the LCD screen. The screen may be discolored and that may cause a malfunction. • Images may trail across on the LCD screen in a cold location. This is not a malfunction. Black, white, red, blue or green dots Continued r 4 US Table of contents Operation Search Settings Search Index On image data compatibility • This camera supports “MP4 format” as movie file format. Therefore, movies recorded by this camera cannot be played on devices that do not support “MP4 format”. • This camera does not support “AVCHD format” and therefore is not compatible with the playback and recording of movies in “AVCHD format” like a Digital HD Video camera recorder. • Still images recorded by this camera are compressed/recorded in JPEG format. The file extension is “.JPG”. • The camera conforms with DCF (Design rule for Camera File system) universal standard established by JEITA (Japan Electronics and Information Technology Industries Association). • Sony does not guarantee that the camera will play back images recorded or edited with other equipment, or that other equipment will play back images recorded with the camera. Warning on copyright Television programs, films, videotapes, and other materials may be copyrighted. Unauthorized recording of such materials may be contrary to the provisions of the copyright laws. No compensation for damaged content or recording failure Sony cannot compensate for failure to record or loss or damage of recorded content due to a malfunction of the camera or recording media, etc. The images used in this handbook • The images used as examples in this handbook are reproduced images, and are not actual images shot using the camera. • Design and specifications are subject to change without notice. Notes on playing back movies on other devices The camera is compatible with MPEG-4 AVC/ H.264 Main Profile. Therefore, you cannot play back images on the camera with the devices which are not compatible with the MPEG-4 AVC/H.264. On wireless network function • The wireless network function built into this camera has been confirmed to conform with Wi- Fi specifications set forth by the Wi-Fi Alliance (WFA). • Depending on the region, access to a wireless LAN may not be available, may require a separate s…

Text truncated - open the document above for the full version.

Sony Corporation FCC ID: AK8MHSTS55 26 th Oct., 2011 Supersede Request To: Federal Communication Commission Authorization and Evaluation Division FCC ID: AK8MHSTS55 Product: Mobile HD Snap Camera Model: MHS-TS55 We had requested confidential treatment of schematics, block diagram, operation description, external photo, internal photo, test setup photo and user manual to the granted ID AK8MHSTS55. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. But we found that the documents of label location and label sample were placed into product photo. It is relevant to our business confidentiality to exhibit product photo in the FCC website within the confidential term. We request to supersede these two documents with the product electronic drawing. 1-7-1 Konan, Minato-ku, Toyko, 108-0075 Japan Tel: +81-438-37-4704

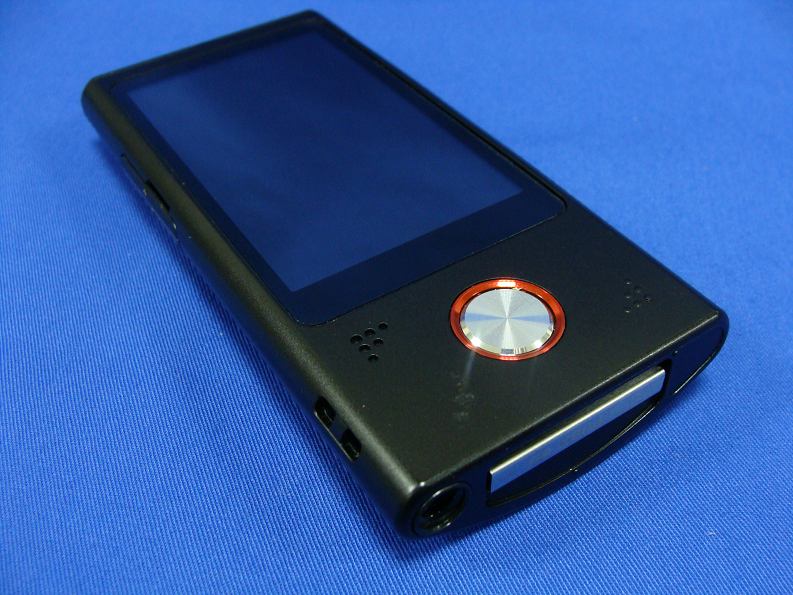

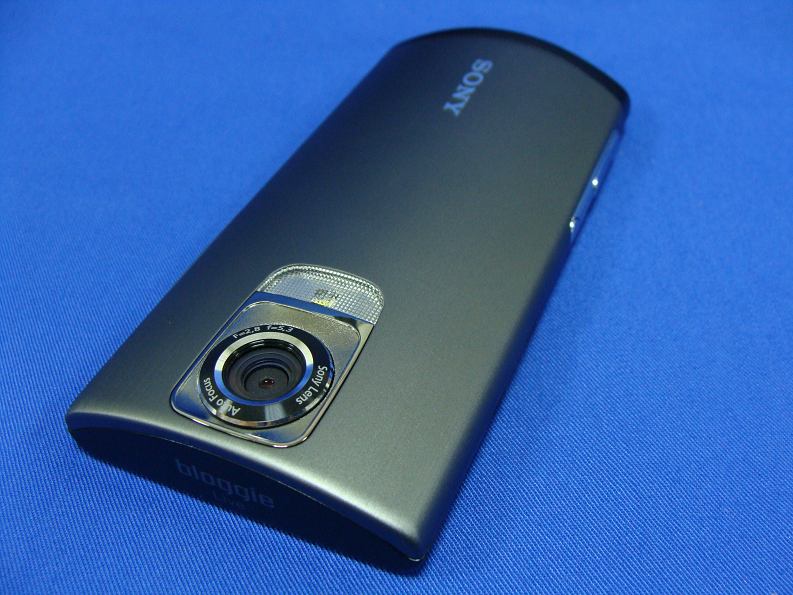

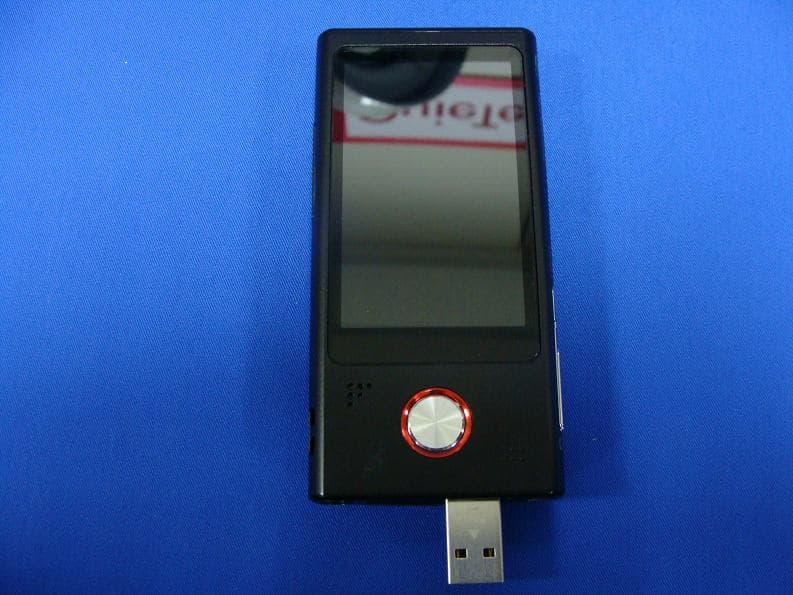

Report No.: 119121R-RFUSP42V01 Page : 1 of 18 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 119121R-RFUSP42V01 Page : 2 of 18 (3) EUT Photo (4) EUT Photo Report No.: 119121R-RFUSP42V01 Page : 3 of 18 (5) EUT Photo (6) EUT Photo

Report No.: 119121R-RFUSP42V01 Page : 4 of 18 (7) EUT Photo (8) EUT Photo Report No.: 119121R-RFUSP42V01 Page : 5 of 18 (9) EUT Photo (10) EUT Photo Report No.: 119121R-RFUSP42V01 Page : 6 of 18 (11) EUT Photo (12) EUT Photo Report No.: 119121R-RFUSP42V01 Page : 7 of 18 (13) EUT Photo (14) EUT Photo Report No.: 119121R-RFUSP42V01 Page : 8 of 18 (15) EUT Photo (16) EUT Photo Report No.: 119121R-RFUSP42V01 Page : 9 of 18 (17) EUT Photo (18) EUT Photo Antenna Report No.: 119121R-RFUSP42V01 Page : 10 of 18 (19) EUT Photo (20) EUT Photo Report No.: 119121R-RFUSP42V01 Page : 11 of 18 (21) EUT Photo (22) EUT Photo Report No.: 119121R-RFUSP42V01 Page : 12 of 18 (23) EUT Photo (24) EUT Photo Report No.: 119121R-RFUSP42V01 Page : 13 of 18 (25) EUT Photo (26) EUT Photo Chip Antenna Report No.: 119121R-RFUSP42V01 Page : 14 of 18 (27) EUT Photo (28) EUT Photo Report No.: 119121R-RFUSP42V01 Page : 15 of 18 (29) EUT Photo (30) EUT Photo Report No.: 119121R-RFUSP42V01 Page : 16 of 18 (31) EUT Photo (32) EUT Photo Report No.: 119121R-RFUSP42V01 Page : 17 of 18 (33) EUT Photo (34) EUT Photo Report No.: 119121R-RFUSP42V01 Page : 18 of 18 (35) EUT Photo

Report No：119121R-HPUSP09V01 Page: 1 of 24 SAR Test Report Product Name ：Mobile HD Snap Camera Model No. ：MHS-TS55 Applicant ： Sony Corporation Address ： 1-7-1 Konan, Minato-ku, Tokyo, 108-0075 Japan Date of Receipt ：2011/09/01 Issued Date ：2011/09/09 Report No. ：119121R-HPUSP09V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：119121R-HPUSP09V01 Page: 2 of 24 Test Report Certification Issued Date: 2011/09/09 Report No.:119121R-HPUSP09V01 Product Name ： Mobile HD Snap Camera Applicant ： Sony Corporation Address ： 1-7-1 Konan, Minato-ku, Tokyo, 108-0075 Japan Manufacturer ： ABILITY ENTERPRISE CO., LTD. Model No. ： MHS-TS55 Trade Name ： SONY Applicable Standard ： FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003 47CFR § 2.1093 Measurement procedures ： KDB 447498 ,KDB 248227 Test Result ： Max. SAR Measurement (1g) 0.885 W/kg Application Type ： Certification The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By ： (Adm. Assistant / April Chen ) Tested By ： (Engineer / Wen Lee) Approved By ： (Manager / Vincent Lin) Report No：119121R-HPUSP09V01 Page: 3 of 24 TABLE OF CONTENTS Description Page 1. General Information.......................................................................................5 1.1 EUT Description ............................................................................................................5 1.2 Test Environment ...........................................................................................................6 2. SAR Measurement System..........................................................................7 2.1 DASY5 System Description .......................................................................................... 7 2.1.1 Applications ................................................................................................................ 8 2.1.2 Area Scans................................................................................................................... 8 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 8 2.1.4 Uncertainty of Inter-/Extrapolation and Averaging .................................................... 8 2.2 DASY5 E-Field Probe ................................................................................................... 9 2.2.1 Isotropic E-Field Probe Specification ......................................................................... 9 2.3 Boundary Detection Unit and Probe Mounting Device ............................................... 10 2.4 DATA Acquisition Electronics (DAE) and Measurement Server ............................... 10 2.5 Robot ............................................................................................................................ 11 2.6 Light Beam Unit........................................................................................................... 11 2.7 Device Holder ..............................................................................................................12 2.8 SAM Twin Phantom .................................................................................................... 12 3. Tissue Simulating Liquid...........................................................................13 3.1 The composition of the tissue simulating liquid .......................................................... 13 3.2 Tissue Calibration Result ............................................................................................. 13 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 14 4. SAR Measurement Procedure..................................................................15 4.1 SAR System Validation................................................................................................ 15 4.1.1 Validation Dipoles..................................................................................................... 15 4.1.2 Validation Result ....................................................................................................... 15 4.2 SAR Measurement Procedure ...................................................................................... 16 5. SAR Exposure Limits..................................................................................17 6. Test Equipment List.....................................................................................18 7. Measurement Uncertainty..........................................................................21 8. Average Conducted Power Measurement............................................22 9. Test Results....................................................................................................23 9.1 SAR Test Results Summary ......................................................................................... 23 Appendix ............................................................................................................................ 24 Report No：119121R-HPUSP09V01 Page: 4 of 24 Appendix A. SAR System Validation Data Appendix B. SAR measurement Data Appendix C. Test Setup Photographs & EUT Photographs Appendix D. Probe Calibration Data Appendix E. Dipole Calibration Data Report No：119121R-HPUSP09V01 Page: 5 of 24 1. General Information 1.1 EUT Description Product Name Mobile HD Snap Camera Trade Name SONY Model No. MHS-TS55 FCC ID AK8MHSTS55 TX Frequency 2412MHz ~ 2462MHz Number of Channel 11 Type of Modulation DSSS/OFDM Device Category Portable RF Exposure Environment Uncontrolled Max. Output Power (Conducted) 802.11b: 18.02 dBm 802.11g: 21.69 dBm Antenna List No. Manufacturer Part No. Antenna Type Peak Gain 1 INPAQ ACA-2012-A1-CC-S Chip Antenna 1.72 dBi for…

Text truncated - open the document above for the full version.

Report No. 119121R-RFUSP42V01 Page : 1 of 91 Test Report Product Name Mobile HD Snap Camera Model No MHS-TS55 FCC ID. AK8MHSTS55 Applicant Sony Corporation Address 1-7-1 Konan, Minato-ku, Tokyo, 108-0075 Japan Date of Receipt Sep. 01, 2011 Issue Date Sep. 29, 2011 Report No. 119121R-RFUSP42V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 119121R-RFUSP42V01 Page : 2 of 91 Test Report Certification Issue Date: Sep. 29, 2011 Report No.: 119121R-RFUSP42V01 Product Name Mobile HD Snap Camera Applicant Sony Corporation Address 1-7-1 Konan, Minato-ku, Tokyo, 108-0075 Japan Manufacturer ABILITY ENTERPRISE CO., LTD. Model No. MHS-TS55 FCC ID. AK8MHSTS55 EUT Rated Voltage AC 100-240V, 50-60Hz EUT Test Voltage AC 120V/60Hz Trade Name SONY Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2010 ANSI C63.4: 2009 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Adm. Specialist / Rita Huang ) Tested By : ( Engineer / Jack Hsu ) Approved By : ( Manager / Vincent Lin ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 119121R-RFUSP42V01 Page : 3 of 91 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................11 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................14 3.1. Test Equipment............................................................................................................................14 3.2. Test Setup ....................................................................................................................................14 3.3. Limits ..........................................................................................................................................14 3.4. Test Procedure .............................................................................................................................14 3.5. Uncertainty ..................................................................................................................................14 3.6. Test Result of Peak Power Output...............................................................................................15 4. Radiated Emission .....................................................................................................................18 4.1. Test Equipment............................................................................................................................18 4.2. Test Setup ....................................................................................................................................19 4.3. Limits ..........................................................................................................................................20 4.4. Test Procedure .............................................................................................................................21 4.5. Uncertainty ..................................................................................................................................21 4.6. Test Result of Radiated Emission................................................................................................22 5. RF antenna conducted test........................................................................................................34 5.1. Test Equipment............................................................................................................................34 5.2. Test Setup ....................................…

Text truncated - open the document above for the full version.

Report No. 119121R-RFUSP42V01 Page: 54 of 97 6. Band Edge 6.1. Test Equipment RF Conducted Measurement The following test equipments are used during the band edge tests: Equipment Manufacturer Model No./Serial No. Last Cal. Spectrum Analyzer R&S FSP40 / 100170 Jun, 2011 Spectrum Analyzer Agilent E4407B / US39440758 Jun, 2011 X Spectrum Analyzer Agilent N9010A / MY48030495 Apr., 2011 Note: 1. All equipments are calibrated with traceable calibrations. Each calibration is traceable to the national or international standards. 2. The test instruments marked with “X” are used to measure the final test results. RF Radiated Measurement: The following test equipments are used during the band edge tests: Test Site Equipment Manufacturer Model No./Serial No. Last Cal. Bilog Antenna Schaffner Chase CBL6112B/2673 Sep., 2011 X Horn Antenna Schwarzbeck BBHA9120D/D305 Sep., 2011 Horn Antenna Schwarzbeck BBHA9170/208 Jul., 2011 X Pre-Amplifier Agilent 8447D/2944A09549 Sep., 2011 X Spectrum Analyzer Agilent E4407B / US39440758 May, 2011 Test Receiver R & S ESCS 30/ 825442/018 Sep., 2011 X Coaxial Cable QuieTek QTK-CABLE/ CAB5 Feb., 2011 X Controller QuieTek QTK-CONTROLLER/ CTRL3 N/A Site # 3 X Coaxial Switch Anritsu MP59B/6200265729 N/A Note: 1. All instruments are calibrated every one year. 2. The test instruments marked by “X” are used to measure the final test results. Report No. 119121R-RFUSP42V01 Page: 55 of 97 6.2. Test Setup RF Conducted Measurement RF Radiated Measurement: 6.3. Limits Emissions radiated outside of the specified frequency bands, except for harmonics, shall be attenuated by at least 20dB below the level of the fundamental or to the general radiated emission limits in paragraph 15.209, whichever is the lesser attenuation. EUT FRP Dome The height of broad band or Dipole Antenna was scanned from 1M to 4M. The distance between antenna and turn table was 3M regards to the standard ado pted. 3m 80cm To Receiver Pre- Amplifier SMA EUT Spectrum Analyzer RF Cable Report No. 119121R-RFUSP42V01 Page: 56 of 97 6.4. Test Procedure The EUT was setup according to ANSI C63.4, 2009 and tested according to DTS test procedure of Mar. 2005 KDB558074 for compliance to FCC 47CFR 15.247 requirements. The EUT is placed on a turn table which is 0.8 meter above ground. The turn table is rotated 360 degrees to determine the position of the maximum emission level. The EUT was positioned such that the distance from antenna to the EUT was 3 meters. The antenna is scanned from 1 meter to 4 meters to find out the maximum emission level. This is repeated for both horizontal and vertical polarization of the antenna. In order to find the maximum emission, all of the interface cables were manipulated according to ANSI C63.4:2009 on radiated measurement. 6.5. Uncertainty ± 3.9 dB above 1GHz ± 3.8 dB below 1GHz Report No. 119121R-RFUSP42V01 Page: 57 of 97 6.6. Test Result of Band Edge Product : Mobile HD Snap Camera Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) RF Radiated Measurement (Horizontal): Channel No. Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Emission Level (dBuV/m) Peak Limit (dBuV/m) Arerage Limit (dBuV/m) Result 01 (Peak) 2390.000 31.739 24.199 55.938 74.00 54.00 Pass 01 (Average) 2390.000 31.739 11.918 43.657 74.00 54.00 Pass Figure Channel 01: Horizontal (Peak) Note: RBW=1MHz, VBW=1MHz, Sweep=500ms Report No. 119121R-RFUSP42V01 Page: 58 of 97 Figure Channel 01: Horizontal (Average) Note: RBW=1MHz, VBW=10Hz, Sweep=500ms Report No. 119121R-RFUSP42V01 Page: 59 of 97 RF Radiated Measurement (Vertical): Channel No. Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Emission Level (dBuV/m) Peak Limit (dBuV/m) Arerage Limit (dBuV/m) Result 01 (Peak) 2390.000 30.267 24.269 54.536 74.00 54.00 Pass 01 (Average) 2390.000 30.267 11.551 41.818 74.00 54.00 Pass Figure Channel 01: Vertical (Peak) Note: RBW=1MHz, VBW=1MHz, Sweep=500ms Report No. 119121R-RFUSP42V01 Page: 60 of 97 Figure Channel 01: Vertical (Average) Note: RBW=1MHz, VBW=10Hz, Sweep=500ms Report No. 119121R-RFUSP42V01 Page: 61 of 97 Product : Mobile HD Snap Camera Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 1: Transmit (802.11b 1Mbps) RF Radiated Measurement (Horizontal): Channel No. Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Emission Level (dBuV/m) Peak Limit (dBuV/m) Arerage Limit (dBuV/m) Result 11 (Peak) 2483.500 31.951 24.506 56.456 74.00 54.00 Pass 11 (Average) 2483.500 31.951 13.024 44.974 74.00 54.00 Pass Figure Channel 11: Horizontal (Peak) Note: RBW=1MHz, VBW=1MHz, Sweep=500ms Figure Channel 11: Horizontal (Average) Note: RBW=1MHz, VBW=10Hz, Sweep=500ms Report No. 119121R-RFUSP42V01 Page: 62 of 97 RF Radiated Measurement (Vertical): Channel No. Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Emission Level (dBuV/m) Peak Limit (dBuV/m) Arerage Limit (dBuV/m) Result 11 (Peak) 2483.500 30.586 23.633 54.218 74.00 54.00 Pass 11 (Average) 2483.500 30.586 11.705 42.290 74.00 54.00 Pass Figure Channel 11: Vertical (Peak) Note: RBW=1MHz, VBW=1MHz, Sweep=500ms Figure Channel 11: Vertical (Average) Note: RBW=1MHz, VBW=10Hz, Sweep=500ms Report No. 119121R-RFUSP42V01 Page: 63 of 97 Product : Mobile HD Snap Camera Test Item : Band Edge Data Test Site : No.3 OATS Test Mode : Mode 2: Transmit (802.11g 6Mbps) RF Radiated Measurement (Horizontal): Channel No. Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Emission Level (dBuV/m) Peak Limit (dBuV/m) Arerage Limit (dBuV/m) Result 01 (Peak) 2390.000 31.509 34.694 66.203 74.00 54.00 Pass 01 (Average) 2390.000 31.509 17.678 49.187 74.00 54.00 Pass Figure Channel 01: Horizontal (Peak) Note: RBW=1MHz, VBW=1MHz, Sweep=500ms Report No. 119121R-RFUSP42V01 Page: 64 of 97 Figure Channel 01: Horizontal (Average) Note: RBW=1MHz, VBW=10Hz, Sweep=500ms Report No. 119121R-RFUSP42V01 Page: 65 of 97 RF Radiated Measurement (Vertical): Channel No. Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Emission …

Text truncated - open the document above for the full version.

Report No.: 119121R-RFUSP42V01 Page : 1 of 3 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 119121R-RFUSP42V01 Page : 2 of 3 Front View of Radiated Test Back View of Radiated Test Report No.: 119121R-RFUSP42V01 Page : 3 of 3 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)

Report NoǺ119121R-HPUSP09V01 Page: 1 of 9 Appendix C. Test Setup Photographs & EUT Photographs Test Setup Photographs EUT Top EUT Front Touch Touch Report NoǺ119121R-HPUSP09V01 Page: 2 of 9 EUT Back Touch Report NoǺ119121R-HPUSP09V01 Page: 3 of 9 Depth of the liquid in the phantom-Zoom In Note: The positions used in the measurements were according to IEEE 1528-2003.
