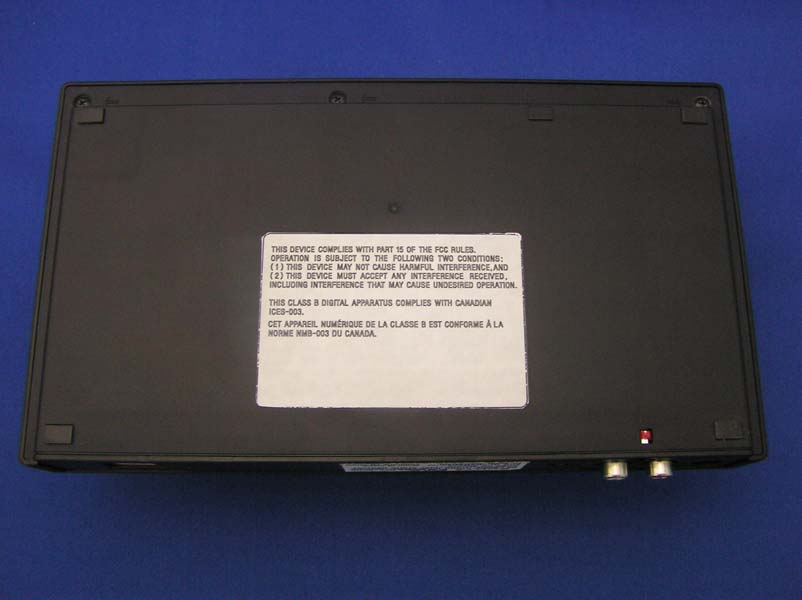

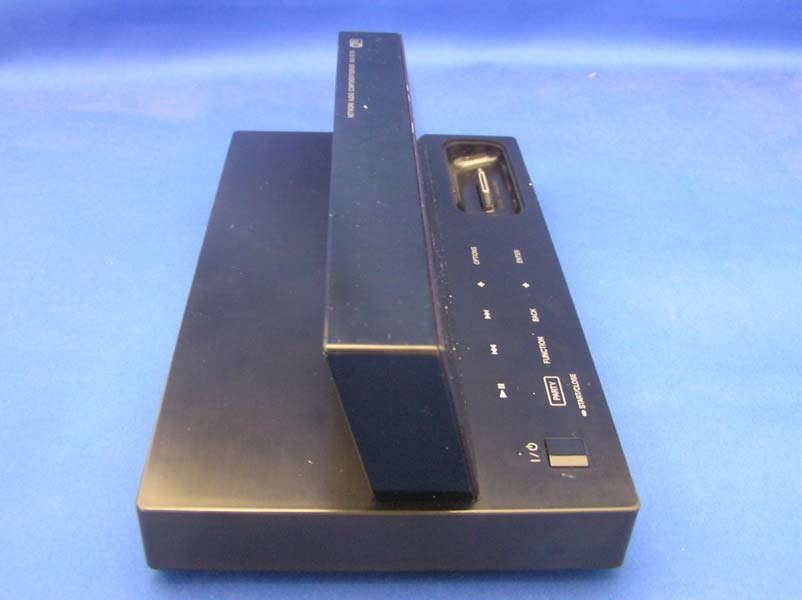

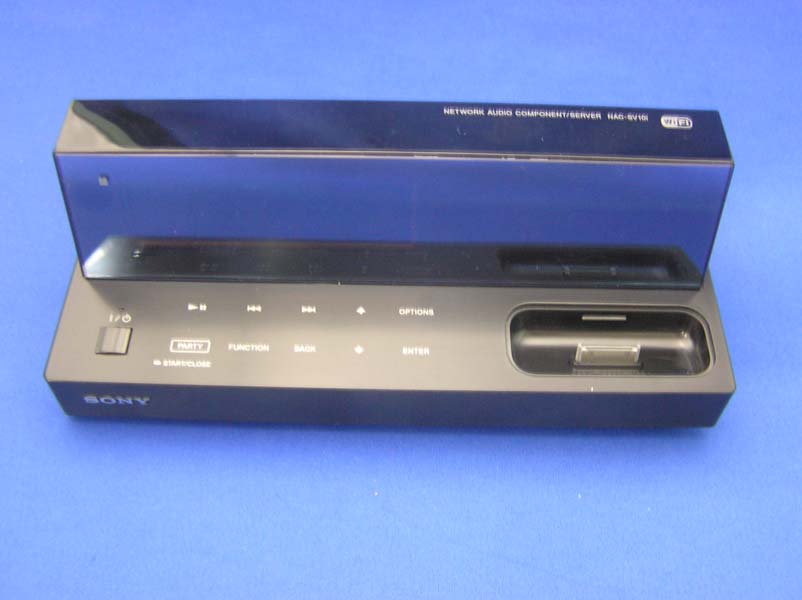

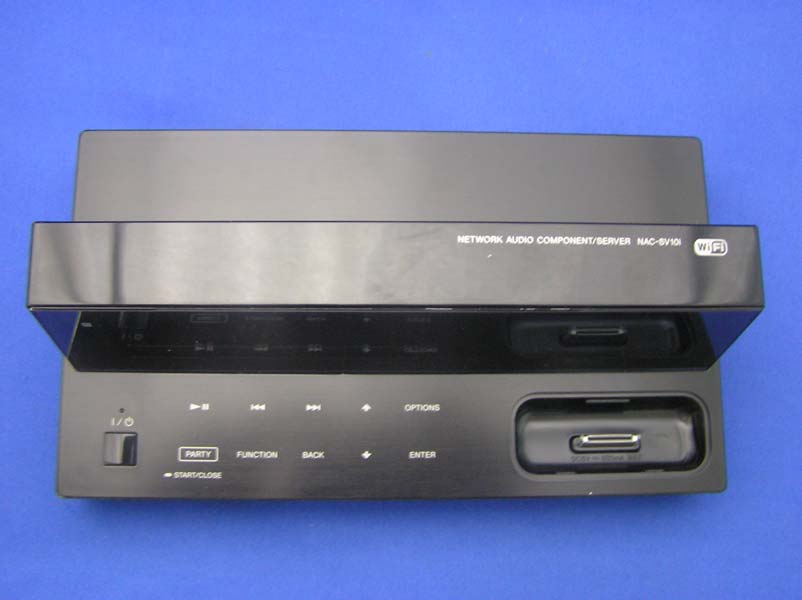

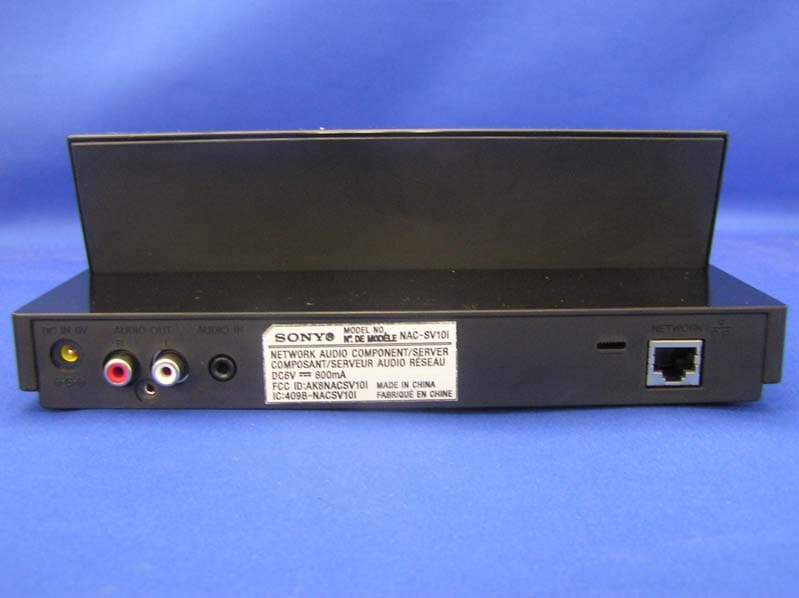

External Photo Sony Corporation Network Audio Component/Server [Model: NAC-SV10i] Front Rear External Photo Sony Corporation Network Audio Component/Server [Model: NAC-SV10i] Top Bottom External Photo Sony Corporation Network Audio Component/Server [Model: NAC-SV10i] Right Left

Internal Photo Sony Corporation Network Audio Component/Server [Model: NAC-SV10i] Front Rear Internal Photo Sony Corporation Network Audio Component/Server [Model: NAC-SV10i] Antenna Part RF module without shield Internal Photo Sony Corporation Network Audio Component/Server [Model: NAC-SV10i] Location

UL Japan, Inc. Yamakita EMC Lab. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 Applicant: Sony EM CS Corporation Kisarazu TEC Type of Equipment : Network Audio Component/Server Model No. : NAC-SV10i FCC ID: AK8NACSV10I Sony EMCS Corporation Kisarazu TEC declares that Model : Network Audio Component/Server complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091. The “NAC-SV10i“ has 189.23 mW of conducted Peak Output power and 337.29 mW of EIRP. This equipment is considered as a mobile device so that SAR testing is excluded. The Following calculation is the reference data for 20cm distance. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “NAC-SV10i“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exp o su re lim it. T he F riis fo rm u la u sed w as: S = (P * G) / (4* π * r 2 ) Where P = 189.23 mW (M aximum peak output power) G = 1.78 Numerical Antenna gain; equal 2.51 dBi r =20.0 cm For: NAC-SV10iS = 0.06710 mW/cm 2 No. : 30IE0012-YK-01-B RF Exposure / SAR Statement

FCC ID : AK8NACSV10I Test report No. : 30IE0012-YK-01-B Page : 1 of 55 Issued date : June 14, 2010 Revised date : July 12, 2010 UL Japan, Inc. Yamakita EMC Lab. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 RADIO TEST REPORT Test Report No.: 30IE0012-YK-01-B Applicant : Sony EMCS Corporation Kisarazu TEC Type of Equipment : Network Audio Component/Server Model No. : NAC-SV10i FCC ID : AK8NACSV10I Test regulation : FCC Part15 Subpart C: 2010 Test result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. Date of test: April 14, 16, 19 and 20, 2010 Representative test engineer: Akira Sato Engineer of EMC Service Approved by: Toyokazu Imamura Manager of EMC Service MF060b (06.08.09) FCC ID : AK8NACSV10I Test report No. : 30IE0012-YK-01-B Page : 2 of 55 Issued date : June 14, 2010 UL Japan, Inc. Yamakita EMC Lab. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 Table of Contents Page 1 Applicant information 3 2 Equipment under test (E.U.T.) 3 3 Test specification, procedures and results 4 4 System test configuration 7 5 Conducted emission 8 6 6dB bandwidth & Occupied bandwidth (99%) 8 7 Maximum peak output power 8 8 Out of band emissions (Antenna port conducted) 8 9 Out of band emissions (Radiated) 9 10 Peak power density 9 Contents of Appendixes 10 APPENDIX 1: Photographs of test setup 11 APPENDIX 2: Test data 13 APPENDIX 3: Test instruments 55 FCC ID : AK8NACSV10I Test report No. : 30IE0012-YK-01-B Page : 3 of 55 Issued date : June 14, 2010 UL Japan, Inc. Yamakita EMC Lab. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 1 Applicant information Company Name : SONY EMCS Corporation Kisarazu TEC Address : Shinagawa INTERCITY C Tower, 2-15-3 Konan, Minato-ku, Tokyo, 108-6201 Japan Telephone Number : +81-3-5769-5640 Facsimile Number : +81-3-5769-5915 Contact Person : Shigeru Higai Sony EMCS Corporation Kisarazu TEC is on behalf of the applicant: Sony corporation. 2 Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Network Audio Component/Server Model No. : NAC-SV10i Serial No. : 3 Rating : DC6V (AC Adaptor: AC120V/60Hz) Country of Mass-production : China Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. Receipt Date of Sample : April 8, 2010 2.2 Product description Model: NAC-SV10i (referred to as the EUT in this report) is a Network Audio Component/Server. Clock frequency : Real time clock: 32.768kHz, Audio clock: 11.2896MHz, LAN control: 25MHz & 100MHz, Wireless Module: 38.4MHz, USB Controller: 26MHz & 60MHz & 480MHz, Main CPU: 500MHz, DD converter: 2.25MHz & 400kHz & 700kHz & 500kHz, Oscillator circuit: 11.2896MHz, AD converter: 11.2896MHz, Mi-com: 4.194MHz, DA converter: 11.2896MHz, Touch SW: 1.6MHz & 20kHz Equipment type : Transceiver Frequency of operation : 2412-2462MHz Bandwidth & channel spacing : 20MHz & 5MHz Type of modulation : IEEE802.11b: DSSS (DBPSK, DQPSK, CCK) IEEE802.11g: OFDM (BPSK, QPSK, 16QAM, 64QAM) Antenna type : Chip Antenna connector type : None Antenna gain : 2.51dBi ITU code : D1D, G1D Operation temperature range : 0 ~ +40 deg.C. FCC 15.31 (e) This EUT provides stable voltage (DC1.8V and DC3.3V) constantly to RF transmitter regardless of input voltage. Therefore, this EUT complies with the requirement. FCC Part 15.203 The antenna is not removable from the EUT. Therefore, the equipment complies with the antenna requirement. FCC ID : AK8NACSV10I Test report No. : 30IE0012-YK-01-B Page : 4 of 55 Issued date : June 14, 2010 UL Japan, Inc. Yamakita EMC Lab. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 3 Test specification, procedures and results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2010, final revised on January 22, 2010 and effective March 1, 2010 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.209 Radiated emission limits, general requirements Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz The EUT complies with FCC Part 15 Subpart B: 2010. Refer to the test report 30IE0012-YK-01-A. 3.2 Procedures & Results ItemTest Procedure SpecificationRemarksDeviationWorst Margin Results Conducted emission ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC 15.207 -N/A 12.9dB (0.2067MHz, QP, Tx 2437MHz, IEEE802.11b) Complied 6dB bandwidth "Guidance on Measurement for Digital Transmission Systems Section 15.247" & ANSI C63.4:2003 13. Measurement of intentional radiators FCC 15.247 (a)(2) ConductedN/A Complied Maximum peak Output power "Guidance on Measurement for Digital Transmission Systems Section 15.247" & ANSI C63.4:2003 13. Measurement of intentional radiators FCC 15.247 (b)(3) ConductedN/A - Complied Out of band emission & Restricted band edges "Guidance on Measurement for Digital Transmission Systems Section 15.247" & ANSI C63.4:2003 13. Measurement of intentional radiators FCC 15.109, 15.247 (d) & 15.209 Conducted / Radiated N/A 4.1dB (2390.0MHz, AV, Vertical, IEEE802.11g, Tx 2412MHz) Complied Power density "Guidance on Measurement for Digital Transmission Systems Section 15.247" & ANSI C63.4:2003 13. Measurement of intentional radiators FCC 15.247 (e) ConductedN/A - Complied Note: UL Japan’s EMI Work Procedures No.QPM05 and QPM15. FCC ID : AK…
