NAS-SV20i/SV20Di 4-192-583-11(1) NAS-SV20i/SV20DiNetwork Audio System/Server Operating Instructions Getting startedEnjoying audio contentEnjoying Sony Multiple-Room ProductsAdditional informationTroubleshootingPrecautions/SpecificationsNetwork connections ©2010 Sony Corporation Printed in China 4-192-583- 11 (1) NAS-SV20i/SV20Di 4-192-583-11(1) 2 GB To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.To reduce the risk of fire, do not cover the ventilation opening of the apparatus with newspapers, tablecloths, curtains, etc.Do not place the naked flame sources such as lighted candles on the apparatus.To reduce the risk of fire or electric shock, do not expose this apparatus to dripping or splashing, and do not place objects filled with liquids, such as vases, on the apparatus.As the main plug is used to disconnect the unit from the mains, connect the unit to an easily accessible AC outlet. Should you notice an abnormality in the unit, disconnect the main plug from the AC outlet immediately.Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.Do not expose batteries or apparatus with battery-installed to excessive heat such as sunshine, fire or the like.The unit is not disconnected from the mains as long as it is connected to the AC outlet, even if the unit itself has been turned off.The nameplate is located on the bottom exterior of the main unit (NAS-SV20i/SV20Di).For customers in the United StatesOwner’s RecordThe model and serial numbers are located on the bottom of the unit. Record these numbers in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product.Model No. Serial No. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.The following indications are located on the bottom exterior of the main unit (NAS-SV20i/SV20Di). Important Safety Instructions1) Read these instructions.2) Keep these instructions.3) Heed all warnings.4) Follow all instructions.5) Do not use this apparatus near water. 6) Clean only with dry cloth.7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11) Only use attachments/ accessories specified by the manufacturer. 12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13) Unplug this apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. The following FCC statement applies only to the version of this model manufactured for sale in the U.S.A. Other versions may not comply with FCC technical regulations.NOTE:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined WARNING C:\_Work\Netjuke\Luke\IM\4192583111NASSV20i\01GB-NASSV20i\020REG.fm masterpage: Right_3col NAS-SV20i/SV20Di 4-192-583-11(1) 3 GB by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. CAUTION You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. Properly shielded and grounded cables and connectors must be used for connection to host computers and / or peripherals in order to meet FCC emission limits. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment must not be co- located or operated in conjunction with any other antenna or transmitter. This eq…

Text truncated - open the document above for the full version.

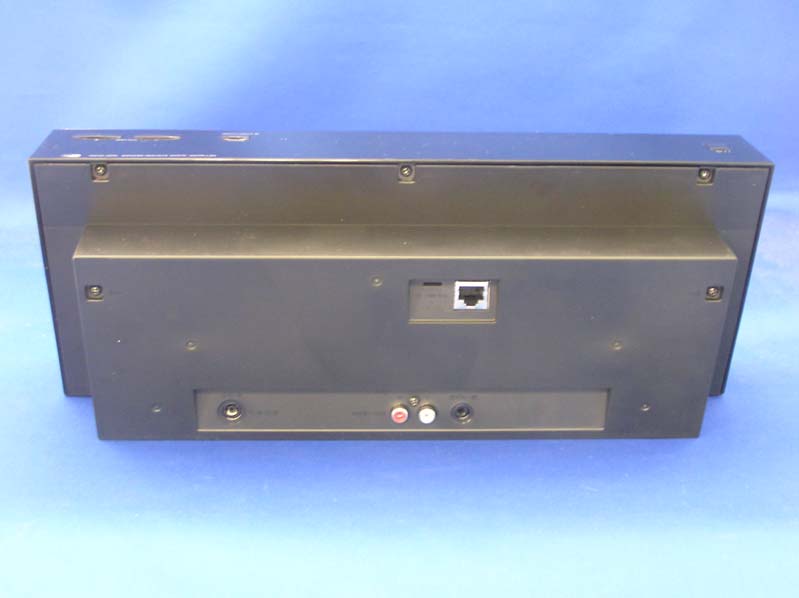

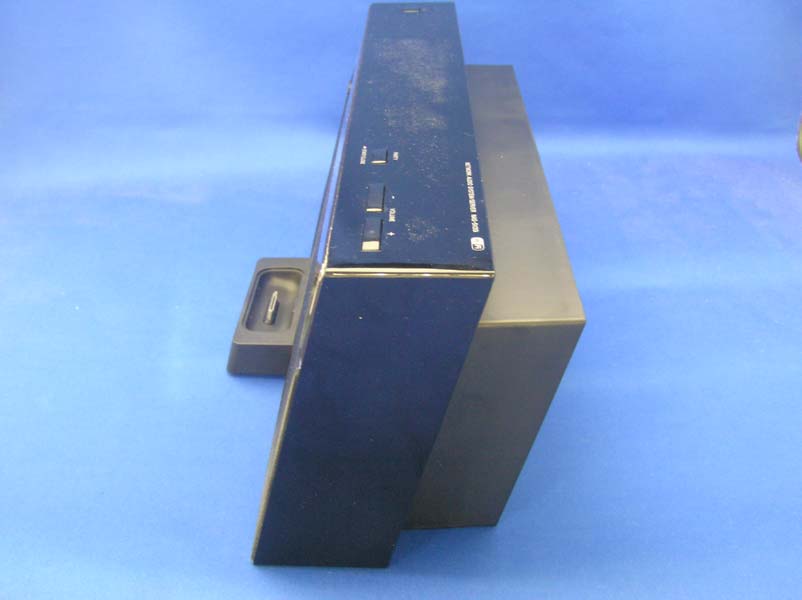

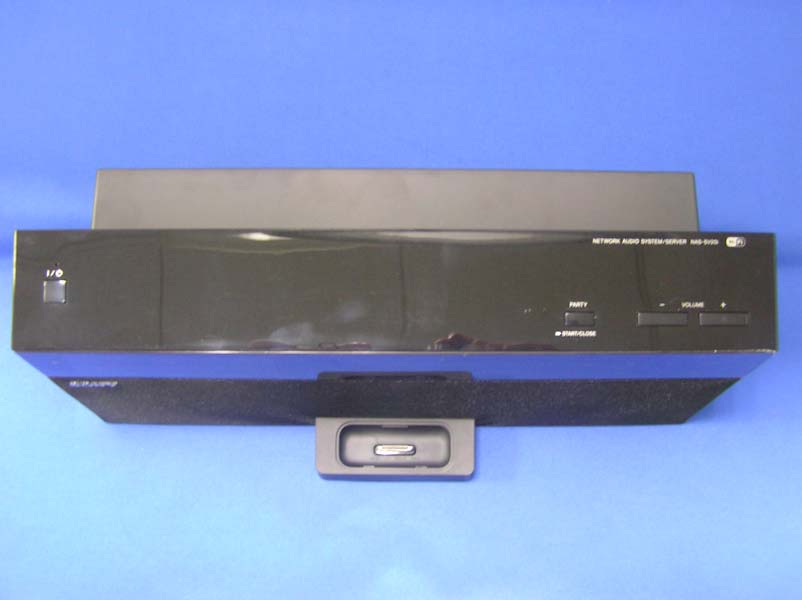

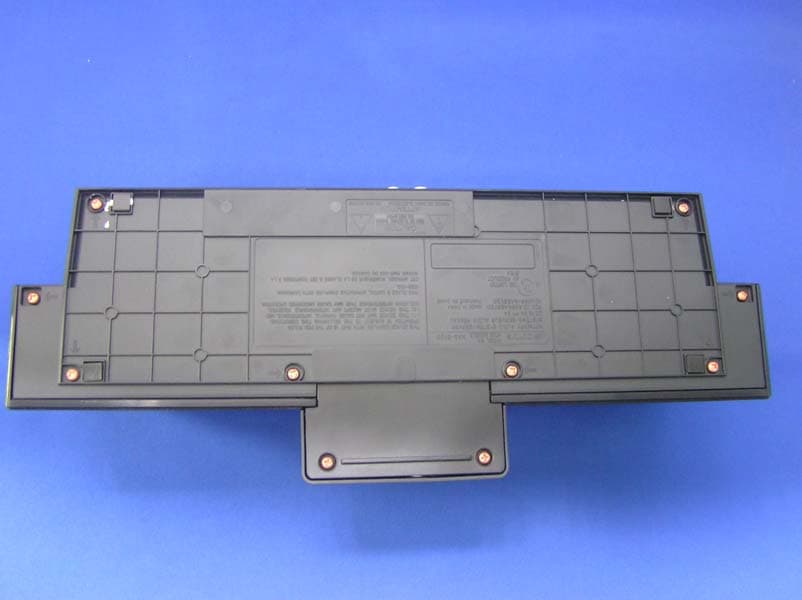

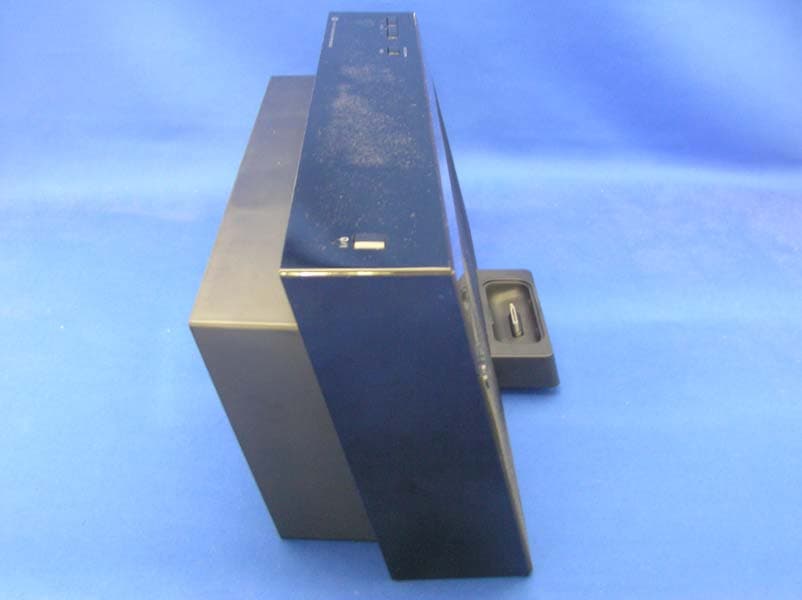

External Photo Sony Corporation Network Audio System/Server [Model: NAS-SV20i] Front Rear External Photo Sony Corporation Network Audio System/Server [Model: NAS-SV20i] Top Bottom External Photo Sony Corporation Network Audio System/Server [Model: NAS-SV20i] Right Left

Internal Photo Sony Corporation Network Audio System/Server [Model: NAS-SV20i] Front Rear 1 Internal Photo Sony Corporation Network Audio System/Server [Model: NAS-SV20i] Rear 2 Rear 3 Internal Photo Sony Corporation Network Audio System/Server [Model: NAS-SV20i] RF module without shield Internal Photo Sony Corporation Network Audio System/Server [Model: NAS-SV20i] Location

Test report No. : 30IE0014-YK-01-A-R1 Page : 1 of 34 Issued date : July 12, 2010 UL Japan, Inc. Yamakita EMC Lab. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 EMI TEST REPORT Test Report No. : 30IE0014-YK-01-A-R1 Applicant: Sony EMCS Corporation Kisarazu TEC Type of Equipment: Network Audio System / Server Model No.: NAS-SV20i Test regulation: FCC Part15 Subpart B: 2010, Class B Test result: Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. 7. This report is a revised version of 30IE0014-YK-01-A. 30IE0014-YK-01-A is replaced with this report. Date of test: April 21 and July 12, 2010 Representative test engineer: Minoru Nakatake Engineer of EMC Service Approved by: Toyokazu Imamura Manager of EMC Service The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". RTL02610 MF060e (06.08.09) Test report No. : 30IE0014-YK-01-A-R1 Page : 2 of 34 Issued date : July 12, 2010 UL Japan, Inc. Yamakita EMC Lab. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 CONTENTS PAGE SECTION 1: Customer information 3 SECTION 2: Equipment under test (E.U.T.) 3 SECTION 3: Test specification, procedures and results 4 SECTION 4: Operation of E.U.T. during testing 6 SECTION 5: Conducted emission 8 SECTION 6: Radiated emission 9 Contents of appendixes 10 APPENDIX 1: Photographs of test setup 11 APPENDIX 2: Data of EMI test 13 APPENDIX 3: Test instruments 34 Test report No. : 30IE0014-YK-01-A-R1 Page : 3 of 34 Issued date : July 12, 2010 UL Japan, Inc. Yamakita EMC Lab. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 SECTION 1: Customer information Company Name : SONY EMCS Corporation Kisarazu TEC Address : Shinagawa INTERCITY C Tower, 2-15-3 Konan, Minato-ku, Tokyo, 108-6201 Japan Telephone Number : +81-3-5769-5640 Facsimile Number : +81-3-5769-5915 Contact Person : Shigeru Higai Sony EMCS Corporation Kisarazu TEC is on behalf of the applicant: Sony corporation. SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Network Audio System/Server Model No. : NAS-SV20i Serial No. : 81 Rating : DC19.5V (AC adaptor: AC120V/60Hz) Country of Mass-production : China Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. Receipt Date of Sample : April 8, 2010 2.2 Product description Model: NAS-SV20i (referred to as the EUT in this report) is a Network Audio System/Server. Clock frequency : Real time clock: 32.768kHz, Audio clock: 11.2896MHz, LAN control: 25MHz & 100MHz, Wireless Module: 38.4MHz, USB Controller: 26MHz & 60MHz & 480MHz, Main CPU: 500MHz, DD converter: 2.25MHz & 400kHz & 700kHz & 300kHz, Oscillator circuit: 11.2896MHz, AD converter: 11.2896MHz, Mi-com: 4.194MHz, DA converter: 11.2896MHz, Digital Amp: 24.576MHz, Touch SW: 1.6MHz & 20kHz Equipment type : Transceiver Frequency of operation : 2412-2462MHz Bandwidth & channel spacing : 20MHz & 5MHz Type of modulation : IEEE802.11b: DSSS (DBPSK, DQPSK, CCK) IEEE802.11g: OFDM (BPSK, QPSK, 16QAM, 64QAM) Antenna type : Chip Antenna connector type : None Antenna gain : 2.51dBi ITU code : D1D, G1D Operation temperature range : 0 ~ +40 deg.C. Test report No. : 30IE0014-YK-01-A-R1 Page : 4 of 34 Issued date : July 12, 2010 UL Japan, Inc. Yamakita EMC Lab. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 SECTION 3: Test specification, procedures and results 3.1 Test specification EMI Test Specification : FCC Part 15 Subpart B: 2010, final revised on January 22, 2010 and effective March 1, 2010 Title : FCC 47CFR Part 15 Radio Frequency Device Subpart B Unintentional Radiators 3.2 Procedures & results Item Test Procedure Limits Worst margin Result Conducted emission ANSI C63.4: 2003 7. AC powerline conducted emission measurements Class B 18.0dB: Audio Play by Audio In Source mode (0.1500MHz, L1, QP) Complied Radiated emission ANSI C63.4: 2003 8. Radiated emission measurements Class B 3.5dB: Audio Play by Audio In source mode (98.31MHz, Vertical) Complied Note: UL Japan's EMI Work Procedures No. QPM05 3.3 Additions to standards No addition, deviation or exclusion has been made from standards. 3.4 Confirmation UL Japan, Inc. hereby confirms that E.U.T., in the configuration tested, complies with the specifications FCC Part15 Subpart B: 2010. Test report No. : 30IE0014-YK-01-A-R1 Page : 5 of 34 Issued date : July 12, 2010 UL Japan, Inc. Yamakita EMC Lab. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 3.5 Uncertainty EMI The following uncertainties have been calculated to provide a confidence level of 95% using a coverage factor k=2. No.1 open site ( ± ) No.2 open site ( ± ) No.1 anechoic chamber ( ± ) Conducted emission 150kHz-30MHz 3.5 dB 3.5 dB 3.5 dB Radiated emission (3m) 30-300MHz 4.4 dB 4.5 dB 4.6 dB 300-1000MHz 4.6 dB 4.7 dB 4.7 dB 1GHz< 3.8 dB 4.2 dB 4.5 dB Conducted Emission Test The data listed in this test report has enough margin, …

Text truncated - open the document above for the full version.

Data of Conducted Disturbance Test UL Japan, Inc. YAMAKITA No.1 Shielded room Report No.: 30IE0014-YK-01-A Applicant : Sony EMCS Corporation Kisarazu TEC Type of Equipment : Network Audio System/Server Model No. : NAS-SV20i Serial No. : 81 Power : AC120V/60Hz Mode : Audio Play by Wired LAN Remarks : - Date : 7/12/2010 Phase : Single Phase Temperature : 22 °C Engineer : Takahiro Suzuki Humidity : 63 ％ Limit : FCC Part15B CLASS B(CISPR Pub.22 ) No. FREQ. READING(N) READING(L1) LISN CABLE ATTEN. RESULT LIMITS MARGIN QP AV QP AV FACTOR LOSS QP AV QP AV QP AV [MHz] [dBμV] [dBμV] [dB] [dB] [dB] [dB] [dBμV] [dBμV] [dB] ------------------------------------------------------------------------------------------- 1. 0.1500 33.2 - 32.7 - 0.1 0.1 13.0 46.4 - 66.0 56.0 19.6 - 2. 0.2026 25.8 - 25.4 - 0.1 0.1 13.0 39.0 - 63.5 53.5 24.5 - 3. 0.4272 22.2 - 20.8 - 0.1 0.2 13.0 35.5 - 57.3 47.3 21.8 - 4. 0.5241 18.8 - 18.4 - 0.1 0.2 13.0 32.1 - 56.0 46.0 23.9 - 5. 4.8399 16.9 - 15.6 - 0.2 0.6 13.0 30.7 - 56.0 46.0 25.3 - 6. 6.2444 20.5 - 20.3 - 0.3 0.7 13.0 34.5 - 60.0 50.0 25.5 - ------------------------------------------------------------------------------------------- CALCULATION: READING + LISN FACTOR + CABLE LOSS + ATTEN. ■LISN:KLS-01(NSLK8126)■COAXIAL CABLE:KCC-14/15/16/18 ■PULSE LIMTTER:KPL-01 ■EMI RECEIVER:KTR-02 Data of Conducted Disturbance Test UL Japan, Inc. YAMAKITA No.1 Shielded room Report No.: 30IE0014-YK-01-A Applicant : Sony EMCS Corporation Kisarazu TEC Type of Equipment : Network Audio System/Server Model No. : NAS-SV20i Serial No. : 81 Power : AC120V/60Hz Mode : Audio Play by Wired LAN Remarks : - Date : 7/12/2010 Phase : Single Phase Temperature : 22 °C Engineer : Takahiro Suzuki Humidity : 63 ％ Limit : FCC Part15B CLASS B(CISPR Pub.22 ) [dBμV] Frequency [MHz] □Quasi-Peak×Average 0 10 20 30 40 50 60 70 1 10 30 Data of Conducted Disturbance Test UL Japan, Inc. YAMAKITA No.1 Shielded room Report No.: 30IE0014-YK-01-A Applicant : Sony EMCS Corporation Kisarazu TEC Type of Equipment : Network Audio System/Server Model No. : NAS-SV20i Serial No. : 81 Power : AC120V/60Hz Mode : Audio Play by Wired LAN Remarks : - Date : 7/12/2010 Phase : Single Phase Temperature : 22 °C Engineer : Takahiro Suzuki Humidity : 63 ％ Limit 1 : FCC Part15B CLASS B(CISPR Pub.22 ) Limit 2 : None Emission Level [dBμV] PHASE:N Frequency [MHz] 0 10 20 30 40 50 60 70 0.15 1 10 30 Emission Level [dBμV] PHASE:L1 Frequency [MHz] 0 10 20 30 40 50 60 70 0.15 1 10 30 Data of Conducted Disturbance Test UL Japan, Inc. YAMAKITA No.1 Shielded room Report No.: 30IE0014-YK-01-A Applicant : Sony EMCS Corporation Kisarazu TEC Type of Equipment : Network Audio System/Server Model No. : NAS-SV20i Serial No. : 81 Power : AC120V/60Hz Mode : Audio Play by iPod Remarks : - Date : 7/12/2010 Phase : Single Phase Temperature : 22 °C Engineer : Takahiro Suzuki Humidity : 63 ％ Limit : FCC Part15B CLASS B(CISPR Pub.22 ) No. FREQ. READING(N) READING(L1) LISN CABLE ATTEN. RESULT LIMITS MARGIN QP AV QP AV FACTOR LOSS QP AV QP AV QP AV [MHz] [dBμV] [dBμV] [dB] [dB] [dB] [dB] [dBμV] [dBμV] [dB] ------------------------------------------------------------------------------------------- 1. 0.1500 32.4 - 33.3 - 0.1 0.1 13.0 46.5 - 66.0 56.0 19.5 - 2. 0.2042 25.6 - 25.7 - 0.1 0.1 13.0 38.9 - 63.4 53.4 24.5 - 3. 0.4202 21.3 - 22.9 - 0.1 0.2 13.0 36.2 - 57.4 47.4 21.2 - 4. 0.5345 17.8 - 18.2 - 0.1 0.2 13.0 31.5 - 56.0 46.0 24.5 - 5. 4.8354 16.0 - 16.6 - 0.2 0.6 13.0 30.4 - 56.0 46.0 25.6 - 6. 6.2821 19.5 - 19.3 - 0.3 0.7 13.0 33.5 - 60.0 50.0 26.5 - ------------------------------------------------------------------------------------------- CALCULATION: READING + LISN FACTOR + CABLE LOSS + ATTEN. ■LISN:KLS-01(NSLK8126)■COAXIAL CABLE:KCC-14/15/16/18 ■PULSE LIMTTER:KPL-01 ■EMI RECEIVER:KTR-02 Data of Conducted Disturbance Test UL Japan, Inc. YAMAKITA No.1 Shielded room Report No.: 30IE0014-YK-01-A Applicant : Sony EMCS Corporation Kisarazu TEC Type of Equipment : Network Audio System/Server Model No. : NAS-SV20i Serial No. : 81 Power : AC120V/60Hz Mode : Audio Play by iPod Remarks : - Date : 7/12/2010 Phase : Single Phase Temperature : 22 °C Engineer : Takahiro Suzuki Humidity : 63 ％ Limit : FCC Part15B CLASS B(CISPR Pub.22 ) [dBμV] Frequency [MHz] □Quasi-Peak×Average 0 10 20 30 40 50 60 70 1 10 30 Data of Conducted Disturbance Test UL Japan, Inc. YAMAKITA No.1 Shielded room Report No.: 30IE0014-YK-01-A Applicant : Sony EMCS Corporation Kisarazu TEC Type of Equipment : Network Audio System/Server Model No. : NAS-SV20i Serial No. : 81 Power : AC120V/60Hz Mode : Audio Play by iPod Remarks : - Date : 7/12/2010 Phase : Single Phase Temperature : 22 °C Engineer : Takahiro Suzuki Humidity : 63 ％ Limit 1 : FCC Part15B CLASS B(CISPR Pub.22 ) Limit 2 : None Emission Level [dBμV] PHASE:N Frequency [MHz] 0 10 20 30 40 50 60 70 0.15 1 10 30 Emission Level [dBμV] PHASE:L1 Frequency [MHz] 0 10 20 30 40 50 60 70 0.15 1 10 30 Data of Conducted Disturbance Test UL Japan, Inc. YAMAKITA No.1 Shielded room Report No.: 30IE0014-YK-01-A Applicant : Sony EMCS Corporation Kisarazu TEC Type of Equipment : Network Audio System/Server Model No. : NAS-SV20i Serial No. : 81 Power : AC120V/60Hz Mode : Audio Play by Audio In source Remarks : - Date : 7/12/2010 Phase : Single Phase Temperature : 22 °C Engineer : Takahiro Suzuki Humidity : 63 ％ Limit : FCC Part15B CLASS B(CISPR Pub.22 ) No. FREQ. READING(N) READING(L1) LISN CABLE ATTEN. RESULT LIMITS MARGIN QP AV QP AV FACTOR LOSS QP AV QP AV QP AV [MHz] [dBμV] [dBμV] [dB] [dB] [dB] [dB] [dBμV] [dBμV] [dB] ------------------------------------------------------------------------------------------- 1. 0.1500 34.5 - 34.8 - 0.1 0.1 13.0 48.0 - 66.0 56.0 18.0 - 2. 0.1665 32.0 - 32.5 - 0.1 0.1 13.0 45.7 - 65.1 55.1 19.4 - 3. 0.4127 17.6 - 21.6 - 0.1 0.2 13.0 34.9 - 57.6 47.6 22.7 - 4. 0.5396 17.2 - 17.8 - 0.1 0.2 13.0 31.1 - 56.0 46.0 24.9 - 5. 4.9038 14.7 - 15.0 - 0.2 0.6 13.0 28.8 - 56.0 46.0 27.2 - 6. 5.4783 16.7 - 18.9 - 0.2 0.7 13.0 32.8 - 60…
