C:\4437511111NEX5RU2\01GB-NEX5RUC2\010COV.fm master: Right NEX-5R 4-437-511-11(1) 4-437-511-11(1) NEX-5R Interchangeable Lens Digital Camera Instruction Manual E-mount Preparing the camera Mastering the basic operation Using the recording functions Using the playback functions Checking the functions available Importing images to the computer Adding functions to the camera Connecting the camera to a network Others ©2012 Sony Corporation Printed in Thailand NEX-5R 4-437-511-11(1) C:\4437511111NEX5RU2\00COV-NEX5RUC2\100BCO.fm master: Left NEX-5R Printed using VOC (Volatile Organic Compound)-free vegetable oil based ink. Additional information on this product and answers to frequently asked questions can be found at our Customer Support Website. GB 2 NEX-5R 4-437-511-11(1) C:\4437511111NEX5RU2\01GB-NEX5RUC2\020REG.fm master: Left Owner’s Record The model and serial numbers are located on the bottom. Record the serial number in the space provided below. Refer to these numbers whenever you call your Sony dealer regarding this product. Model No. NEX-5R Serial No. ______________________________ Model No. AC-UB10/AC-UB10B/AC-UB10C/AC-UB10D Serial No. ______________________________ To reduce fire or shock hazard, do not expose the unit to rain or moisture. IMPORTANT SAFETY INSTRUCTIONS -SAVE THESE INSTRUCTIONS DANGER -TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the proper configuration for the power outlet. [Battery pack If the battery pack is mishandled, the battery pack can burst, cause a fire or even chemical burns. Observe the following cautions. • Do not disassemble. • Do not crush and do not expose the battery pack to any shock or force such as hammering, dropping or stepping on it. • Do not short circuit and do not allow metal objects to come into contact with the battery terminals. • Do not expose to high temperature above 60°C (140°F) such as in direct sunlight or in a car parked in the sun. English WARNING CAUTION GB 3 NEX-5R 4-437-511-11(1) C:\01GB-NEX5RUC2\020REG.fm master: Right • Do not incinerate or dispose of in fire. • Do not handle damaged or leaking lithium ion batteries. • Be sure to charge the battery pack using a genuine Sony battery charger or a device that can charge the battery pack. • Keep the battery pack out of the reach of small children. • Keep the battery pack dry. • Replace only with the same or equivalent type recommended by Sony. • Dispose of used battery packs promptly as described in the instructions. [AC Adaptor Use the nearby wall outlet (wall socket) when using the AC Adaptor. Disconnect the AC Adaptor from the wall outlet (wall socket) immediately if any malfunction occurs while using the apparatus. The power cord (mains lead), if supplied, is designed specifically for use with this camera only, and should not be used with other electrical equipment. [RECYCLING LITHIUM-ION BATTERIES Lithium-Ion batteries are recyclable. You can help preserve our environment by returning your used rechargeable batteries to the collection and recycling location nearest you. For more information regarding recycling of rechargeable batteries, call toll free 1-800-822-8837, or visit http://www.rbrc.org/ Caution: Do not handle damaged or leaking Lithium-Ion batteries. [Battery pack and lens (If lens supplied) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption ratio (SAR). For Customers in the U.S.A. and Canada 010COV.book Page 3 Monday, July 30, 2012 4:55 PM GB 4 NEX-5R 4-437-511-11(1) C:\01GB-NEX5RUC2\020REG.fm master: Left UL is an internationally recognized safety organization. The UL Mark on the product means it has been UL Listed. If you have any questions about this product, you may call: Sony Customer Information Center 1-800-222-SONY (7669) The number below is for the FCC related matters only. [Regulatory Information This equipment must not be co-located or operated in conjunction with any other antenna or transmitter. [CAUTION You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. [Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. For Customers in the U.S.A. Declaration of Conformity Trade Name: SONY Model No.: NEX…

Text truncated - open the document above for the full version.

NEX-5R 4-437-511-11(1) C:\01GB-NEX5RUC2\050REC.fm master: Right GB 51 Using the recording functions x Aperture Priority You can adjust the range in focus, or defocuses the background. 1 Select A (Aperture Priority) (page 47). 2 Turn the control dial to select the desired value. Or, touch / on the screen to select the desired value. • You can record a movie with a value adjusted with [Aperture Priority]. zShutter speed When a faster shutter speed is used, a moving subject such as a running person, cars, and sea spray appears as if they are stopped. When a slower shutter speed is used, a trailing image of the movement of the subject is captured to make more natural and dynamic image. 010COV.book Page 51 Monday, July 30, 2012 4:55 PM NEX-5R 4-437-511-11(1) C:\01GB-NEX5RUC2\050REC.fm master: Left GB 52 xProgram Auto/Superior Auto In [Superior Auto] mode, the camera shoots with higher quality than [Intelligent Auto] mode and perform composite shooting as necessary. In [Program Auto] mode, you can shoot after adjusting various functions, such as white balance, ISO, etc. • In [Superior Auto] mode, the recording process takes longer, since the camera must make a composite image. 1 Select (Program Auto) or (Superior Auto) (page 47). 2 Point the camera to the subject, focus on the subject, and then record an image. Shooting modeYour purpose (Intelligent Auto) • Select this mode to easily recognize the scene and shoot continuous images. (Program Auto) • Select this mode to shoot with various functions other than the exposure (shutter speed and aperture) adjusted. (Superior Auto) • Select this mode to shoot scenes under difficult circumstances, such as when you have dark scenes, or back-lit subjects. • Select this mode to shoot a higher quality image than that offered by [Intelligent Auto]. Notes 010COV.book Page 52 Monday, July 30, 2012 4:55 PM NEX-5R 4-437-511-11(1) C:\01GB-NEX5RUC2\050REC.fm master: Right GB 53 Using the recording functions Zooming With the [Zoom] feature of the camera, you can increase the magnification to a scale greater than that of the optical zoom scale of the lens. When using a lens with a power zoom, operate the optical zoom of the lens and then the camera shifts automatically to the [Zoom] feature of the camera. When using a lens that is not equipped with a power zoom, follow the instruction below after magnifying using the optical zoom. 1 Select MENU t [Camera] t [Zoom] t desired value. zThe [Zoom] features available with this camera The [Zoom] feature of the camera provides higher magnification by combining various zoom features. The icon displayed on the LCD screen changes as follows, according to the selected zoom feature. 1 : The [Zoom] feature of the camera is not used. (×1.0 is indicated.) 2 Smart Zoom: You can magnify images by trimming them partially. (Available only when [Image Size] is set to [M] or [S].) 3 Clear Image Zoom: You can magnify images using high-resolution image processing. 4 Digital Zoom: You can magnify images using image processing. (The default setting is [Off].) Zoom scale (low) Zoom scale (high) 010COV.book Page 53 Monday, July 30, 2012 4:55 PM NEX-5R 4-437-511-11(1) C:\01GB-NEX5RUC2\050REC.fm master: Left GB 54 Selecting the flash mode • When the camera is charging the flash, blinks on the LCD screen. You cannot press the shutter button when this icon is blinking. 1 Attach the flash and raise it (page 26). 2 Select MENU t [Camera] t [Flash Mode]. 3 Turn the control wheel to select the desired mode, and press the center. Or, slide your finger across the screen upward or downward to move the desired mode to the center of the screen, then touch the desired mode. (Flash Off): Does not fire even if the flash is raised. (Autoflash): Fires in dark environments or when shooting towards bright light. (Fill-flash): Fires every time you trigger the shutter. (Slow Sync.): Fires every time you trigger the shutter. Slow sync shooting allows you to shoot a clear image of both the subject and the background. (Rear Sync.): Fires right before the exposure is completed every time you trigger the shutter. A trailing image of the movement of the subject is captured to make more natural image. • The selectable items of the flash mode depends on the shooting mode (page 70). Notes 010COV.book Page 54 Monday, July 30, 2012 4:55 PM NEX-5R 4-437-511-11(1) C:\01GB-NEX5RUC2\050REC.fm master: Right GB 55 Using the recording functions The flash range The range of the flash depends on the ISO sensitivity and aperture value. Setting using the Fn (Function) button F2.8F3.5F5.6 ISO1001 m – 2.5 m (3.3 feet – 8.2 feet) 1 m – 2 m (3.3 feet – 6.6 feet) 1 m – 1.25 m (3.3 feet – 4.1 feet) ISO32005.6 m – 14 m (18.3 feet – 46 feet) 4.5 m – 11.2 m (14.7 feet – 36.7 feet) 2.8 m – 7 m (9.1 feet – 22.9 feet) 1 Press the Fn (Function) button. 2 Select a desired function by pressing the right/left side of the control wheel. Or, touch the desired setting. 3 Turn the control wheel to select the desired settings. Or, touch the desired function to change. Fn (Function) button zHow to assign other functions to the Fn (Function) button The following functions are assigned to the Fn (Function) button by the default settings. (AF/MF Select)/ (Autofocus Mode)/ (Autofocus Area)/ (White Balance)/ (Metering Mode)/ (Picture Effect) You can change the functions assigned to the Fn (Function) button by selecting MENU t [Setup] t [Function Menu Settings]. 010COV.book Page 55 Monday, July 30, 2012 4:55 PM NEX-5R 4-437-511-11(1) C:\01GB-NEX5RUC2\050REC.fm master: Left GB 56 Selecting the image size/record setting The image size determines the size of the image file that is recorded when you take an image. The larger the image size, the more detail will be reproduced when the image is printed on large format paper. The smaller the image size, the more images can be recorded. In the case of movies, the larger the bit-rate, the higher the image quality. Movie * 1080 60i-compatible device ** 1080 50i-compatible …

Text truncated - open the document above for the full version.

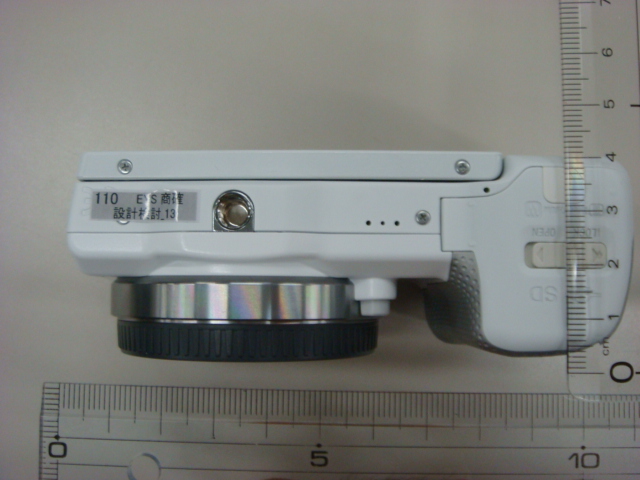

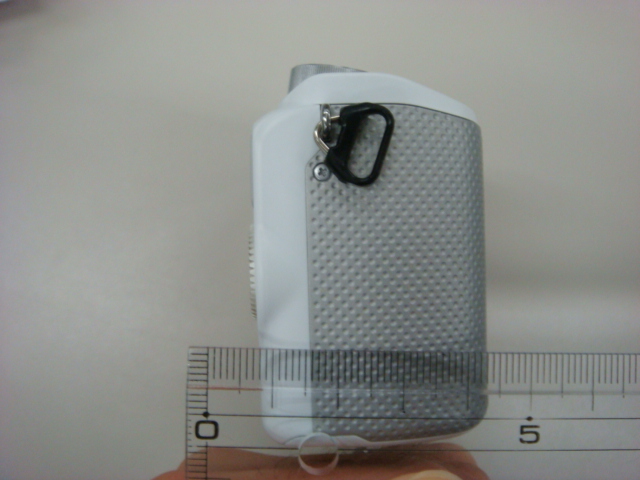

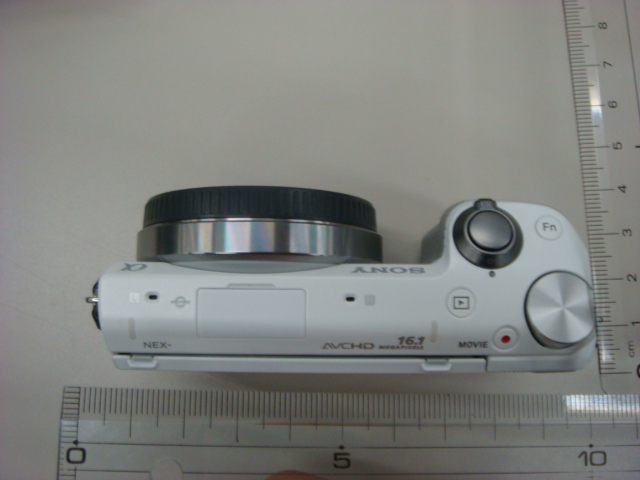

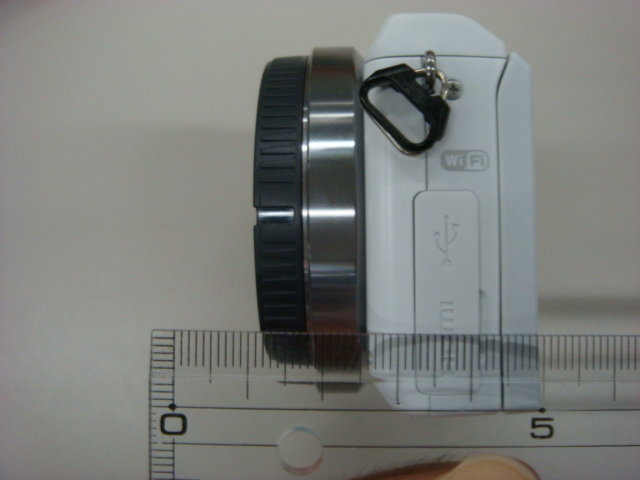

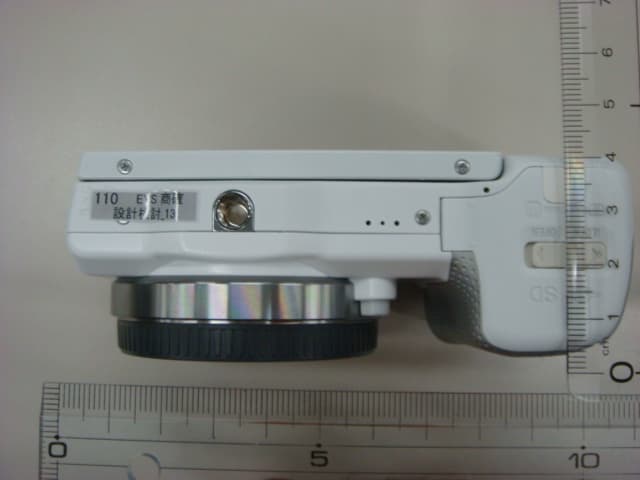

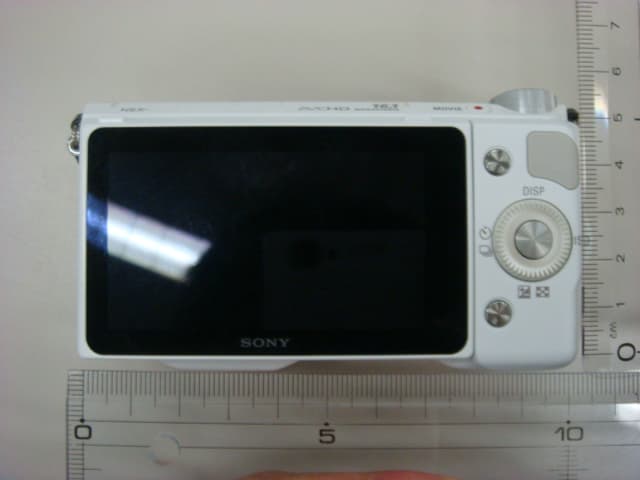

External Photo Sony Corporation NEX-5R Front Rear External Photo Sony Corporation NEX-5R Top Bottom External Photo Sony Corporation NEX-5R Right Side Left side

NEX-5R Label Position To p Bottom [Rear side of LCD panel] Certification No. Label Lens Front Back Nameplate Label [Bottom surface] DIG AMC DIV 08/01/2012 M.KISHI PI&S CORE MD5 07/31/2012 K.IZUMI

Internal Photo Sony Corporation NEX-5R Front (antenna) Rear (antenna) NEX-5R Antenna Confidential Murata Manufacturing Co., Ltd LBWA1AMTPZ with Shielded Resin mold without Shielded Resin mold WLAN Module Confidential NEX-5R The location of RF part

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 September 7, 2012 UL Japan, Inc. FCC ID: AK8NEX5R To whom it may concern, We, UL Japan, Inc, hereby declare that Interchangeable Lens Digital Camera, model: NEX- 5R (FCC ID: AK8NEX5R) of Sony Corporation is exempt from RF exposure SAR evaluation as its AV output power meets the exclusion limits stated in FCC Part 2 §2.1093 and FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. Thank you for your attention to this matter. Sincerely, Toyokazu Imamura Leader of WiSE Japan, UL Verification Service UL Japan, Inc.

Test report No. : 32JE0016-SH-01-C-R1 Page : 1 of 68 Issued date : July 27, 2012 Revised date : September 7, 2012 FCC ID : AK8NEX5R UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 RADIO TEST REPORT Test Report No.: 32JE0016-SH-01-C-R1 Applicant : Sony Corporation Type of Equipment : Interchangeable Lens Digital Camera Model No. : NEX-5R FCC ID : AK8NEX5R Test regulation : FCC Part15 Subpart C: 2012 Test result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. 7. This report is a revised version of 32JE0016-SH-01-C. 32JE0016-SH-01-C is replaced with this report. Date of test: June 18 to July 9, 2012 Tested by: Kenichi Adachi Engineer of WiSE Japan, UL Verification Service Approved by : Toyokazu Imamura Leader of WiSE Japan, UL Verification Service RTL02610 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". 13-EM-F0429 Test report No. : 32JE0016-SH-01-C-R1 Page : 2 of 68 Issued date : July 27, 2012 Revised date : September 7, 2012 FCC ID : AK8NEX5R UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 32JE0016-SH-01-C Revision Test report No. Date Page revised Contents - (Original) 32JE0016-SH-01-C July 24, 2012 - - 1 32JE0016-SH-01-C-R1 July 27, 2012 - (Full-revision) - Addition of the data of Average output power - Correction of clock frequency 2 32JE0016-SH-01-C-R1 September 7, 2012 1-2, 10 P1-2: Update P10: Correction of VBW description Test report No. : 32JE0016-SH-01-C-R1 Page : 3 of 68 Issued date : July 27, 2012 FCC ID : AK8NEX5R UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ........................................................................................ 4 SECTION 2: Equipment under test (E.U.T.) .......................................................................... 4 SECTION 3: Test specification, procedures & results ............................................................ 5 SECTION 4: Operation of E.U.T. during testing .................................................................... 7 SECTION 5: Conducted emission ........................................................................................... 9 SECTION 6: 6dB bandwidth & Occupied bandwidth (99%) ................................................ 9 SECTION 7: Maximum peak output power ......................................................................... 10 SECTION 8: Radiated emission ............................................................................................ 10 SECTION 9: Spurious emissions (Antenna port conducted) ................................................ 12 SECTION 10: Peak power density ......................................................................................... 12 Contents of APPENDIXES ...................................................................................................... 13 APPENDIX 1: Data of radio tests .......................................................................................... 14 APPENDIX 2: Test instruments ............................................................................................ 63 APPENDIX 3: Photographs of test setup .............................................................................. 65 Test report No. : 32JE0016-SH-01-C-R1 Page : 4 of 68 Issued date : July 27, 2012 FCC ID : AK8NEX5R UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : Sony Corporation Address : Shinagawa INTERCITY C Tower 2-15-3, Konan Minato-ku, Tokyo, Japan Telephone Number : +81-3-5769-5605 Facsimile Number : +81-3-5769-5996 Contact Person : Keizo Tsuneki SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Interchangeable Lens Digital Camera Model Number : NEX-5R Serial Number : Refer to clause 4.2 Rating : DC7.6V Country of Mass-production : Thailand Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Receipt Date of Sample : June 2, 2012 Modification of EUT : No modification by the test lab. 2.2 Product description Model: NEX-5R (referred to as the EUT in this report) is an Interchangeable Lens Digital Camera. Clock frequency(ies) in the system : 32.768kHz, 10MHz, 12MHz, 33MHz Radio specification Equipment type : Transceiver Frequency of operation : 2412-2462MHz Bandwidth & channel spacing : 20MHz & 5MHz Type of modulation : DSSS: CCK, DQPSK, DBPSK OFDM: 64QAM, 16QAM, QPSK, BPSK ITU code : D1D, G1D Antenna type : Inverted F Antenna connector type : None Antenna gain : -6.36 dBi Operation temperature range : 0 to 40 deg.C. FCC 15.31 (e) The RF transmitter is constantly provided voltage (DC1.8V and DC3.3V) through the regulator regardless of input voltage. Therefore, this EUT complies with the requirement. FCC 15.203 It is impossible for end users to replace the antenna, because the antenna is mounted i…

Text truncated - open the document above for the full version.

Test report No. : 32JE0016-SH-01-C-R1 Page : 65 of 68 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Conducted emission Front view Side view Test report No. : 32JE0016-SH-01-C-R1 Page : 66 of 68 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radiated emission Front view Rear view (below 1GHz) Rear view (above 1GHz) Test report No. : 32JE0016-SH-01-C-R1 Page : 67 of 68 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-check of the worst position (EUT) X-axis Y-axis Z-axis Test report No. : 32JE0016-SH-01-C-R1 Page : 68 of 68 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-check of the worst position (Display) Normal position (0 deg.) Tilted position (90 deg.)
