AK8NWZX100Digital Media Player

NW-ZX100/ZX100HN 4-573-374-21(1) NW-ZX100/ZX100HN ©2015 Sony Corporation Printed in Malaysia 4-573-374-21(1) English Instruction Manual About the manuals 1. Instruction Manual (this manual) 2. (Startup Guide) The Startup Guide describes the following: • Basic operating instructions of your WALKMAN® • How to access the “Help Guide”, which contains all of the operating instructions and explanations of customer support websites ,etc. • How to access useful PC applications websites on the internet While browsing is free, you may be charged a communication fee according to your carrier contract. Notes for using Walkman Note for battery • To prevent battery deterioration, charge the battery at least once every six months or every year. About volume operation (Only for countries/areas complying with European Directives) An alarm (beep) and a warning [Check the volume level] are meant to protect your ears when you turn the volume up to a level that is harmful for your ears for the first time. You can cancel the alarm and warning by pressing any button. Note • You can turn up the volume after canceling the alarm and warning. • After the initial warning, the alarm and warning repeat every 20 cumulative hours that the volume is set to a level that is harmful for your ears. When this happens, the volume is turned down automatically. • If the volume is set to a level that is harmful for your ears and you turn off the Walkman, the volume is turned down to a level that is safe for your ears automatically. Bluetooth capabilities You can listen to music stored on your Walkman from Bluetooth audio devices such as headphones or speakers. Pairing (first time the device is used) 1. Set the Bluetooth audio device to pairing mode. (Refer to the device’s instruction manual.) 2. From the Home menu of your Walkman, select [Bluetooth] - [Add Device (Pairing)] - the Bluetooth audio device to pair with. After pairing is completed, the Bluetooth connection is made automatically. Connecting (subsequent uses) 1. Turn on the paired Bluetooth audio device and set it to standby. 2. From the Home menu of your Walkman, select [Bluetooth] - [Connect to Audio Device] - the paired Bluetooth audio device to connect with. Disconnecting From the Home menu of your Walkman, select [Bluetooth] - [Disconnect Audio Device]. Symptom & Remedy Your Walkman cannot charge the battery or is not recognized on your computer. • The USB cable (supplied) is not connected to a USB connector on your computer properly. Disconnect the USB cable, and then reconnect it. • When you use your Walkman for the first time, or if you have not used the Walkman for a long time, it may take a few minutes to be recognized by the computer. Check that the computer recognizes the Walkman after you have connected it to the computer for about 10 minutes. Your Walkman does not operate or the power does not turn on. • You cannot operate your Walkman while it is connected to a computer. Disconnect the Walkman from a computer. Compliance & Information Information on laws and trademarks For information on laws, regulations and trademark rights, refer to “Important Information” contained in the supplied software. To install it, open [WALKMAN] folder in your WALKMAN’s memory after connecting to your computer. Windows user: [FOR_WINDOWS] - [Help_Guide_Installer(.exe)] Mac user: [FOR_MAC] - [Help_Guide_Installer_for_mac] After installing the software, double-click the shortcut or the alias icon generated on your desktop. About the in-ear headphones The earbuds seal your ears. Therefore, be aware that there is a risk of damage to your ears or eardrums if strong pressure is applied to the earbuds or the earbuds are suddenly removed from your ears. After use, be sure to take the earbuds off your ears gently. About the headphones • Avoid playing the unit at so loud a volume that extended play might affect your hearing. • At a high volume outside sounds may become inaudible. Avoid listening to the unit in situations where hearing must not be impaired, for example, while driving or cycling. • As the headphones are of open-air design, sounds go out through the headphones. Remember not to disturb those close to you. Design and specifications are subject to change without notice. Español Manual de instrucciones REPRODUCTOR DE MÚSICA DIGITAL POR FAVOR LEA DETALLADAMENTE ESTE MANUAL DE INSTRUCCIONES ANTES DE CONECTAR Y OPERAR ESTE EQUIPO. RECUERDE QUE UN MAL USO DE SU APARATO PODRÍA ANULAR LA GARANTÍA Glosario de términos Ordenador: Computadora Acerca de los manuales 1. Manual de instrucciones (este manual) 2. (Guía de inicio) En la Guía de inicio se explica lo siguiente: • Instrucciones de funcionamiento básico del WALKMAN® • Cómo se accede a la “Guía de Ayuda” donde se incluyen todas las instrucciones de funcionamiento y explicaciones sobre los sitios web de asistencia al cliente, etc. • Cómo se accede a útiles sitios web de aplicaciones para PC en Internet Aunque la navegación es gratuita, puede cobrarse una tarifa de comunicación según lo estipulado en el contrato del operador. Notas sobre la utilización del Walkman Nota sobre la batería • Para evitar que la batería se deteriore, cárguela al menos una vez cada seis meses o cada año. Funciones Bluetooth Puede escuchar la música que tenga almacenada en su Walkman a través de dispositivos de audio Bluetooth, como auriculares o altavoces. Emparejamiento (la primera vez que se usa el dispositivo) 1. Active el modo de emparejamiento del dispositivo de audio Bluetooth. (Consulte el manual de instrucciones del dispositivo). 2. En el menú Inicio de su Walkman, seleccione [Bluetooth] - [Añadir disp. (emparejar)] - dispositivo de audio Bluetooth que se va a emparejar. Una vez finalizado el emparejamiento, la conexión Bluetooth se establece automáticamente. Conexión (usos posteriores) 1. Encienda el dispositivo de audio Bluetooth emparejado y póngalo en estado En espera. 2. En el menú Inicio de su Walkman, seleccione [Bluetooth] - [Conectar a d…

Text truncated - open the document above for the full version.

Digital Music Player NW-ZX100/ZX100NH The following FCC statement applies only to the version of this model manufactured for sale in the USA. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ・Reorient or relocate the receiving antenna. ・Increase the separation between the equipment and receiver. ・Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ・Consult the dealer or an experienced radio/TV technician for help. The following FCC statement applies only to the version of this model manufactured for sale in the USA. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment The following FCC statement applies only to the version of this model manufactured for sale in the USA. If you have any questions about this product: Visit: www.sony.com/walkmansupport Contact: Sony Customer Information Service Center at 1-(866)-456-7669 Write: Sony Customer Information Service Center 12451 Gateway Blvd., Fort Myers, FL 33913 Declaration of Conformity Trade Name: SONY Model No.: NW-ZX100 Responsible Party: Sony Electronics Inc. Address: 16535 Via Esprillo, San Diego, CA 92127 U.S.A Telephone Number: 858-942-2230 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The following FCC statement applies only to the version of this model manufactured for sale in the USA. This equipment must not be co-located or operated in conjunction with any other antenna or transmitter. The following FCC statement applies only to the version of this model manufactured for sale in the USA. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption rate(SAR). Notice for customers: the following information is only applicable to equipment sold in countries applying EU directives Manufacturer: Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan For EU product compliance: Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany Disposal of waste batteries and electrical and electronic equipment (applicable in the European Union and other European countries with separate collection systems) This symbol on the product, the battery or on the packaging indicates that the product and the battery shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead. By ensuring these products and batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling. The recycling of the materials will help to conserve natural resources. In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery and the electrical and electronic equipment will be treated properly, hand over these products at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries. For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product or battery. Applicable accessories: Headphones For users in Canada Listening for a Lifetime Selecting fine audio equipment such as the unit you’ve just purchased is only the start of your musical enjoyment. Now it’s time to consider how you can maximize the fun and excitement your equipment offers. This manufacturer, the Consumer Electronics Association (CEA)® and the American Speech-Language-Hearing Association (ASHA) want you to get the most out of your equipment by playing it at a safe level; a level that lets the sound come through clearly without annoying blaring or distortion and, most importantly, without damaging your sensitive hearing. Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of sound. So what sounds “normal” can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts. TO ESTABLISH A SAFE LEVEL: ・Set your volume control to the lowest level where you can hear the music comfortably and clearly. Prolonged exposure to anything over 85 decibels can cause gradual hearing loss. ・Once you have established a sound level where you can hear the audio…

Text truncated - open the document above for the full version.

Sony EMCS Corporation, Kisarazu SITE 8-4 Shiomi Kisarazu City, Chiba Pref., 292-0834 Japan Letter of Authorization Date: May 14, 2015 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID : AK8NWZX100 Applicant : Sony Corporation To whom it may concern: Please be advised we authorize Yoshihisa Maeda of Consumer Technology Division, UL Japan, Inc. to act on our behalf, until otherwise notified, for applications submitted for Federal Communication Commission Radio equipment applications submitted to UL Japan, Inc. We certify that we are not subject to denial of federal benefits, t hat includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. The application for the subject equipment has not been submitted to another TCB for certification. Thank you for your attention to this matter. Sincerely, Hideo Nomura Sony EMCS Corporation

Sony EMCS Corporation, Kisarazu SITE 8-4 Shiomi Kisarazu City, Chiba Pref., 292-0834 Japan Request for Confidentiality Date: May 14, 2015 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID : AK8NWZX100 Applicant : Sony Corporation To whom it may concern: Please be advised that the following information is to be held confidential on behalf of us, referring to the FCC rules 0.457 and 0.459: Block Diagram Theory of Operation Schematics Parts List The application contains technical information which we deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Hideo Nomura Sony EMCS Corporation

Sony EMCS Corporation, Kisarazu SITE 8-4 Shiomi Kisarazu City, Chiba Pref., 292-0834 Japan Request for Short-Term Confidentiality Date: May 14, 2015 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID : AK8NWZX100 Applicant : Sony Corporation To whom it may concern: Please be advised that the following information is to be held in confidence till September 5, 2015 and behalf of us, referring to the FCC rules 0.457 and 0.459: External Photos Internal Photos Test Setup Photos User Manual The application contains technical information, which we deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, ____________________________________ Hideo Nomura Sony EMCS Corporation

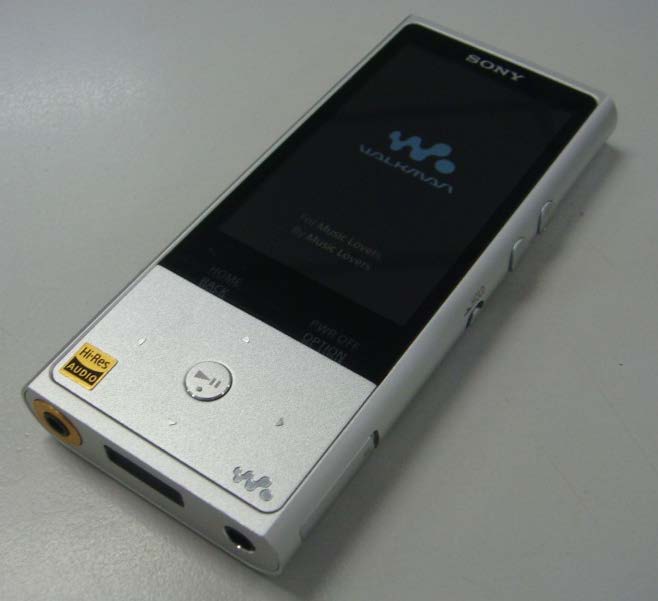

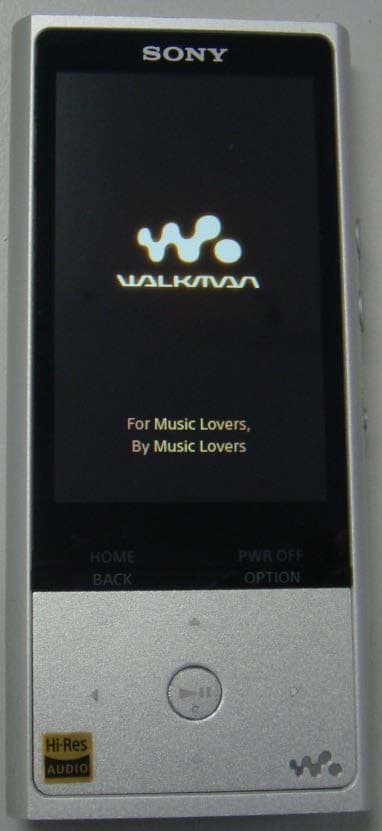

1 NW-ZX100 Set outline view 119.5 53.8 14.8 ■Mass：145g 12.6

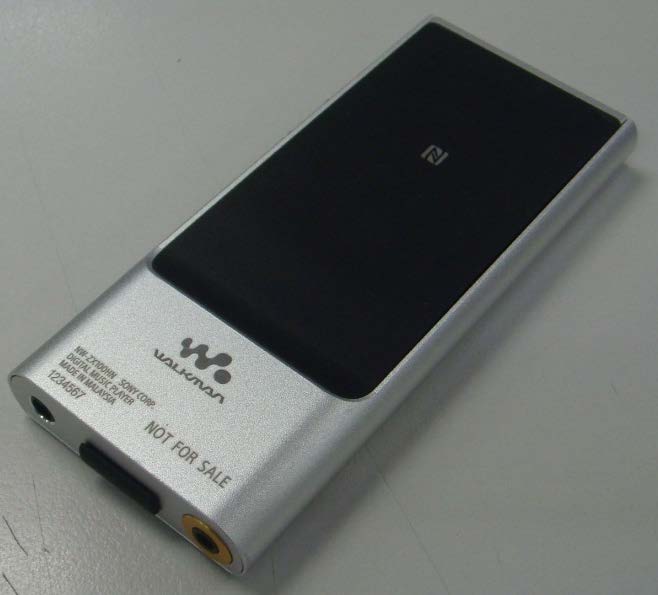

Back side of product NW-ZX100 Label placement figure Mention contents It is carved a seal in the back side bottom of NW-ZX100.

NW ‐ ZX100 Bluetooth Antenna Position ANTENNA MODULE ANTENNA MODULE Antenna PWB FRONT Side Antenna PWB BACK Side TOP BOTTOM NW ‐ ZX100 Bluetooth module photo BT MODULE (LBMA15Q1BX ‐ 744)

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 May 15, 2015 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID: AK8NWZX100 To whom it may concern, We, UL Japan, Inc., hereby declare that Digital Music Player, model : NW-ZX100 (FCC ID: AK8NWZX100) of Sony Corporation is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in FCC Part 2 §2.1093. KDB 447498D01(v05r02) has the following exclusion for portable devices: The 1g and 10g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances < 50 mm are determined by: [(measured maximum average output power(mW))/(Minimum separation distance(mm))]•[ √ f (GHz)] < 3.0 for 1g SAR and < 7.5 for 10g extremity SAR where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is < 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. This device f = 2.48 GHz, distance = 5mm (minimum separation distance: 5 mm was used in the calculation) and the measured maximum average output power was 7 mW So for this device: 7 mW [measured maximum average output power] / 5 mm [minimum separation distance] * ( √ 2.48) = 2.2 *This is less than 3.0, so no SAR is required. Even taking into account the tolerance, this device can be satisfied with the limits. Thank you for your attention to this matter. Toyokazu Imamura Leader Consumer Technology Division UL Japan, Inc.

Test report No. : 10768225S-A Page : 1 of 44 Issued date : May 12, 2015 Revised date : May 18, 2015 FCC ID : AK8NWZX100 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 RADIO TEST REPORT Test Report No.: 10768225S-A Applicant : Sony Corporation Type of Equipment : Digital Music Player Model No. : NW-ZX100 FCC ID : AK8NWZX100 Test regulation : FCC Part15 Subpart C: 2015 Test result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. Date of test: April 24 to May 2, 2015 Representative test engineer: Shinichi Takano Engineer Consumer Technology Division Approved by : Toyokazu Imamura Leader Consumer Technology Division RTL02610 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". 13-EM-F0429 Test report No. : 10768225S-A Page : 2 of 44 Issued date : May 12, 2015 Revised date : May 18, 2015 FCC ID : AK8NWZX100 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 REVISION HISTORY Original Test Report No.: 10768225S-A Revision Test report No. Date Page revisedContents - (Original) 10768225S-A May 12, 2015- - 1 10768225S-A May 18, 20154 Change of the Clock frequency description Test report No. : 10768225S-A Page : 3 of 44 Issued date : May 12, 2015 FCC ID : AK8NWZX100 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Contents Page SECTION 1: Customer information ..................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ........................................................................ 4 SECTION 3: Test specification, procedures & results ........................................................ 6 SECTION 4: Operation of E.U.T. during testing ................................................................. 9 SECTION 5: Carrier frequency separation ........................................................................ 11 SECTION 6: 20dB bandwidth & Occupied bandwidth (99%) ......................................... 11 SECTION 7: Number of hopping frequency ...................................................................... 11 SECTION 8: Dwell time ....................................................................................................... 11 SECTION 9: Maximum peak output power ....................................................................... 11 SECTION 10: Radiated emission ......................................................................................... 12 SECTION 11: Spurious emissions (Antenna port conducted) .......................................... 14 Contents of APPENDIXES ...................................................................................................... 15 APPENDIX 1: Data of radio tests ........................................................................................ 16 APPENDIX 2: Test instruments .......................................................................................... 42 APPENDIX 3: Photographs of test setup ............................................................................ 43 Test report No. : 10768225S-A Page : 4 of 44 Issued date : May 12, 2015 Revised date : May 18, 2015 FCC ID : AK8NWZX100 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 SECTION 1: Customer information Company Name : Sony EMCS Corporation Address : 8-4 Shiomi, Kisarazu-shi, Chiba, 292-0834 Japan Telephone Number : +81 438 37 3982 SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of equipment : Digital Music Player Model No. : NW-ZX100 Serial No. : Refer to 4.2. Rating : DC3.7V Country of Mass-production : Malaysia Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Receipt Date of Sample : April 22, 2015 2.2 Product description Model: NW-ZX100 (referred to as the EUT in this report) is a Digital Music Player. The Clock frequency(ies) used in the system :26MHz(Crystal and oscillator), 533MHz (Max. in others) Test report No. : 10768225S-A Page : 5 of 44 Issued date : May 12, 2015 FCC ID : AK8NWZX100 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Radio Specification: Bluetooth: Equipment type : Transceiver Frequency of operation : 2402-2480MHz Bandwidth : 79MHz Channel spacing : 1MHz Type of modulation : FHSS Antenna type : Monopole (Chip) Antenna connector type : None Antenna gain with cable loss : 1.6dBi ITU code : F1D, G1D NFC: Equipment type : Transceiver Frequency of operation : 13.56MHz Type of modulation : ASK Antenna type : Loop (Pattern) ITU code : A1D * For NFC part, refer to the test report: 10768225S-B. FCC 15.31 (e) The EUT is a battery-operated device and test was performed with the full-charged battery, therefore the EUT complies with the requirement. FCC 15.203 It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore the EUT com…

Text truncated - open the document above for the full version.

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Radiated emission Front view Rear view (below 1GHz) Rear view (above 1GHz) Test report No.: 10768225S-A 43 of 44 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-check of the worst position X-axis Y-axis Z-axis END OF REPORT Test report No.: 10768225S-A 44 of 44
