AK8NWZX2Digital Media Player

Important Information Digital Media PlayerNW-ZX2 Important product information The following FCC statement applies only to the version of this model manufactured for sale in the USA. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.• The following FCC statement applies only to the version of this model manufactured for sale in the USA. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. The following FCC statement applies only to the version of this model manufactured for sale in the USA. If you have any questions about this product: Visit: www.sony.com/walkmansupport Contact: Sony Customer Information Service Center at 1-(866)-456-7669 Write: Sony Customer Information Service Center 12451 Gateway Blvd., Fort Myers, FL 33913 Declaration of Conformity Trade Name: SONY Model No.: NW-ZX2 Responsible Party: Sony Electronics Inc. Address: 16530 Via Esprillo, San Diego, CA 92127 U.S.A Telephone Number: 858-942-2230 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The following FCC statement applies only to the version of this model manufactured for sale in the USA. This equipment must not be co-located or operated in conjunction with any other antenna or transmitter. The following FCC statement applies only to the version of this model manufactured for sale in the USA. Compliance with FCC requirement 15.407(c) Data transmission is always initiated by software, which is the passed down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets are initiated by the MAC. These are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets is being transmitted. In other words, this device automatically discontinue transmission in case of either absence of information to transmit or operational failure. The following FCC statement applies only to the version of this model manufactured for sale in the USA. Frequency Tolerance: ±20 ppm The following FCC/IC statement applies only to the version of this model manufactured for sale in the USA and Canada. The available scientific evidence does not show that any health problems are associated with using low power wireless devices. There is no proof, however, that these low power wireless devices are absolutely safe. Low power Wireless devices emit low levels of radio frequency energy (RF) in the microwave range while being used. Whereas high levels of RF can produce health effects (by heating tissue), exposure of low-level RF that does not produce heating effects causes no known adverse health effects. Many studies of low-level RF exposures have not found any biological effects. Some studies have suggested that some biological effects might occur, but such findings have not been confirmed by additional research. These models have been tested and found to comply with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meet the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. Notice for customers: the following information is only applicable to equipment sold in countries applying EU directives Manufacturer: Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan For EU product compliance: Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany Disposal of waste batteries and electrical and electronic equipment (applicable in the European Union and other European countries with separate collection systems) This symbol on the product, the battery or on the packaging indicates that the product and the battery shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead. By ensuring these products and batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling. The recycling of the materials will help to conserve natural resources. In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery and the electrical and electronic equipment will be treated properly, hand over these products at end-of-life to the applicable collection point for the recycling of electri…

Text truncated - open the document above for the full version.

Digital Media Player NW-ZX2 Use this manual when you have troubles or when you need to know how to use your WALKMAN ® . This “Help Guide” is an excerpted version that contains basic operations only. For details on other operations, see the full version by clicking the banner below. An Internet connection is required to see the full version. “Help Guide” (Full) For complete information on this Walkman, see the online “Help Guide” (Full). Getting Started Basic Operations Transferring Content Bluetooth NFC Wi-Fi (Wireless LAN) Announcement Specifications Troubleshooting Help Guide How to Use Troubleshooting Q&A How to Use Troubleshooting en-11(1) Copyright 2015 Sony Corporation List of Topics Digital Media Player NW-ZX2 Getting Started Customer Registration Website Before Use Parts and Controls Power/Charging Flow of Initial Settings en-11(1) Copyright 2015 Sony Corporation Help Guide How to Use Digital Media Player NW-ZX2 Basic Operations How to Use the Buttons How to Use the Touch Screen microSD Card Home Screen Connecting Your Walkman to Your Computer Initializing/Updating en-11(1) Copyright 2015 Sony Corporation Help Guide How to Use Digital Media Player NW-ZX2 Transferring Content Installing Media Go Installing Content Transfer Importing Content to the Software Transferring Content to Your Walkman en-11(1) Copyright 2015 Sony Corporation Help Guide How to Use Digital Media Player NW-ZX2 Bluetooth Connecting with Bluetooth Audio Devices Making a Bluetooth Connection from the [Settings] Menu en-11(1) Copyright 2015 Sony Corporation Help Guide How to Use Digital Media Player NW-ZX2 NFC Connecting with One Touch (NFC) en-11(1) Copyright 2015 Sony Corporation Help Guide How to Use Digital Media Player NW-ZX2 Wi-Fi (Wireless LAN) What Is Wi-Fi Communications? Connecting to a Wi-Fi Network en-11(1) Copyright 2015 Sony Corporation Help Guide How to Use Digital Media Player NW-ZX2 Announcement Precautions Customer Support Website en-11(1) Copyright 2015 Sony Corporation Help Guide How to Use Digital Media Player NW-ZX2 Specifications Specifications en-11(1) Copyright 2015 Sony Corporation Help Guide How to Use Digital Media Player NW-ZX2 Troubleshooting What Can I Do to Solve a Problem? en-11(1) Copyright 2015 Sony Corporation Help Guide Troubleshooting Digital Media Player NW-ZX2 Q&A Operation Sound Power Connection to a Computer Bluetooth Wi-Fi microSD Card en-11(1) Copyright 2015 Sony Corporation Help Guide Troubleshooting Digital Media Player NW-ZX2 How to Use Getting Started Customer Registration Website Customer registration website Before Use Before first use Parts and Controls Parts and controls Power/Charging Turning the power on Turning the power off Turning the screen on and off Charging the battery Flow of Initial Settings Flow of initial settings Basic Operations How to Use the Buttons Using “Play/Pause,” “Next” and “Previous” buttons Using the volume “+” and “-” buttons Volume operation (Only for countries/areas complying with European Directives) How to Use the Touch Screen How to use the touch screen Notes on the touch screen microSD Card Inserting a microSD card Removing a microSD card Selecting the storage to use Formatting a microSD card Notes on microSD cards Home Screen Home screen Help Guide List of Topics Basic operation keys Switching Home screens Displaying the notification panel and shortcuts from the status bar Connecting Your Walkman to Your Computer Connecting to a computer Notes on connecting your Walkman to a computer Initializing/Updating Resetting your Walkman Formatting the storage of your Walkman Updating your Walkman Transferring Content Installing Media Go Installing Media Go Installing Content Transfer Installing Content Transfer Importing Content to the Software Importing and transferring content from media using Media Go Transferring Content to Your Walkman Transferring content using Media Go Transferring iTunes content using Media Go Transferring content using Content Transfer Transferring content using Explorer Transferring content using the Finder Bluetooth Connecting with Bluetooth Audio Devices Making a Bluetooth connection using the NFC function Making a Bluetooth Connection from the [Settings] Menu Turning the Bluetooth function on/off Pairing a Bluetooth audio device Connecting to a Bluetooth audio device NFC Connecting with One Touch (NFC) Making a Bluetooth connection using the NFC function Wi-Fi (Wireless LAN) What Is Wi-Fi Communications? What is Wi-Fi? Connecting to a Wi-Fi Network Turning Wi-Fi on/off Connecting to a Wi-Fi network Connecting to a Wi-Fi network from the settings screen Connecting to a Wi-Fi network using the WPS button Checking the Wi-Fi network status Announcement Precautions Notes on handling your Walkman Notes on headphones Notes on the software Maintenance of your Walkman Customer Support Website Customer support website Specifications Specifications Specifications Battery life Maximum recordable number of songs and time (Approx.) Maximum recordable time of videos (Approx.) Supported formats System requirements Contents en-11(1) Copyright 2015 Sony Corporation Digital Media Player NW-ZX2 Troubleshooting Troubleshooting What Can I Do to Solve a Problem? What can I do to solve a problem? Customer support website Q&A Operation Your Walkman does not operate or the power does not turn on. You want your Walkman screen to stay on longer before it turns off automatically. A drink (water, coffee, etc.) was spilled on your Walkman, or the Walkman was washed in the washing machine. An alarm (beep) is heard and the message [Check the volume level] is displayed. Sound There is no sound. Volume cannot be turned up, or the volume remains low when the playback volume is turned up. Power The rechargeable battery needs to be replaced. The battery life is short. Connection to a Computer The computer does not recognize your Walkman. The computer does not recognize a microSD card inserted in your Walkman. You cannot install software to your c…

Text truncated - open the document above for the full version.

For the following information Ref. File No.: C1M1410080 Product Digital Media Player Model Number NW-ZX2 Brand Name SONY Applicant Sony Corporation Standards FCC 47 CFR Part 15 Subpart B/Oct. 2013 and CISPR 22/1997 and ICES-003 (Class B Limit) We hereby certify that the above product has been tested by us and complied with the FCC and IC official limits. The product might be marketed in US in accordance with the standard CFR 47 Part 2 and Part 15 Subpart B class B equipment regulations under FCC Rules. The test was performed according to the procedures mentioned in ANSI C63.4-2009. The test data and results were issued on the test report no.EM-F140628. Signature __________________________________ Allen Wang/Assistant General Manager Date: 2014. 10. 20 Test Laboratory: AUDIX Technology Corporation, EMC Department NVLAP Lab. Code: 200077-0 FCC OET Designation: TW1004 Web Site: www.audixtech.com The statement is based on a single evaluation of one sample of the above-mentioned products. It does not imply an assessment of the whole production and does not permit the use of the test lab logo. NVLAP Lab Code 200077-0

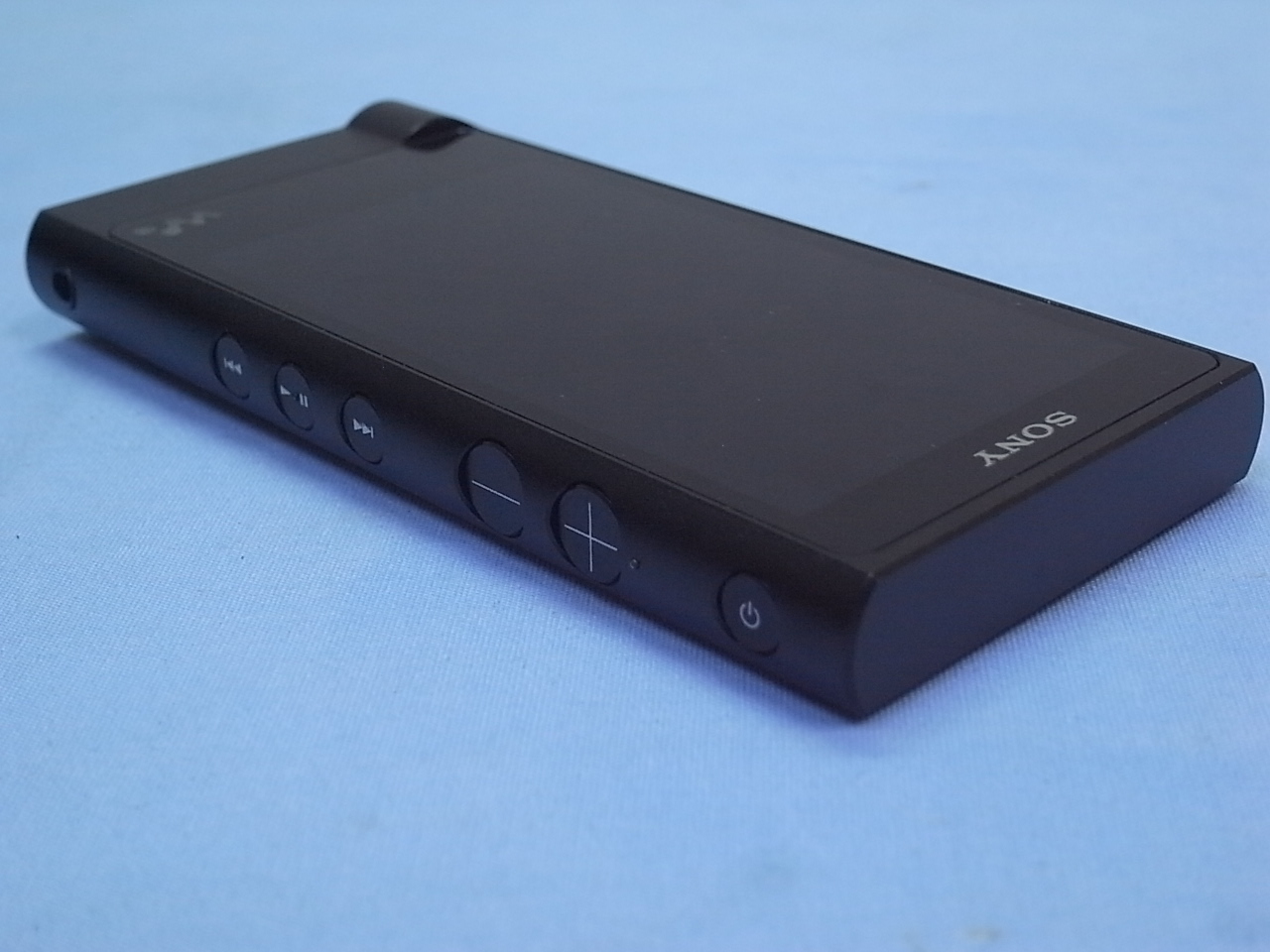

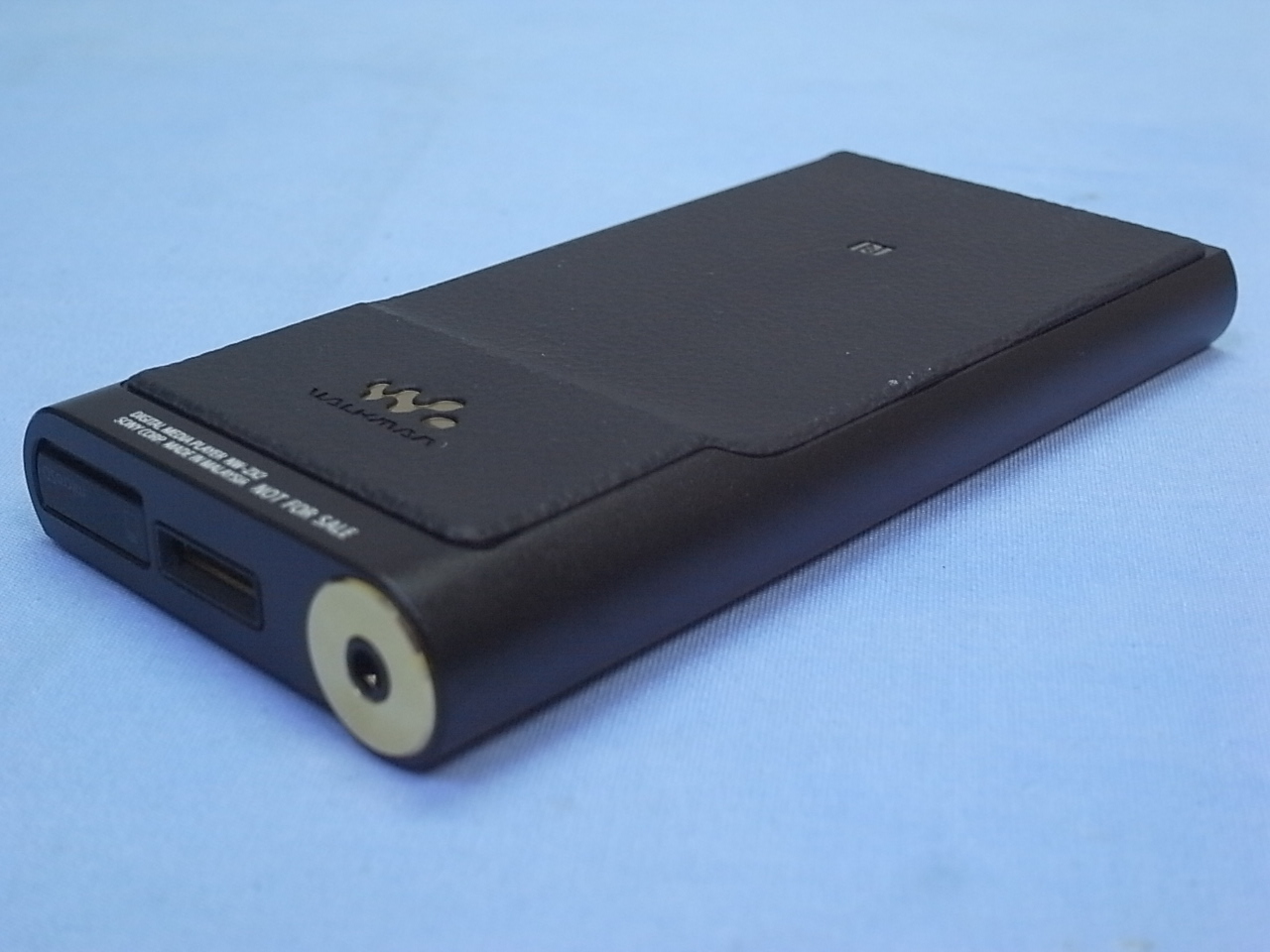

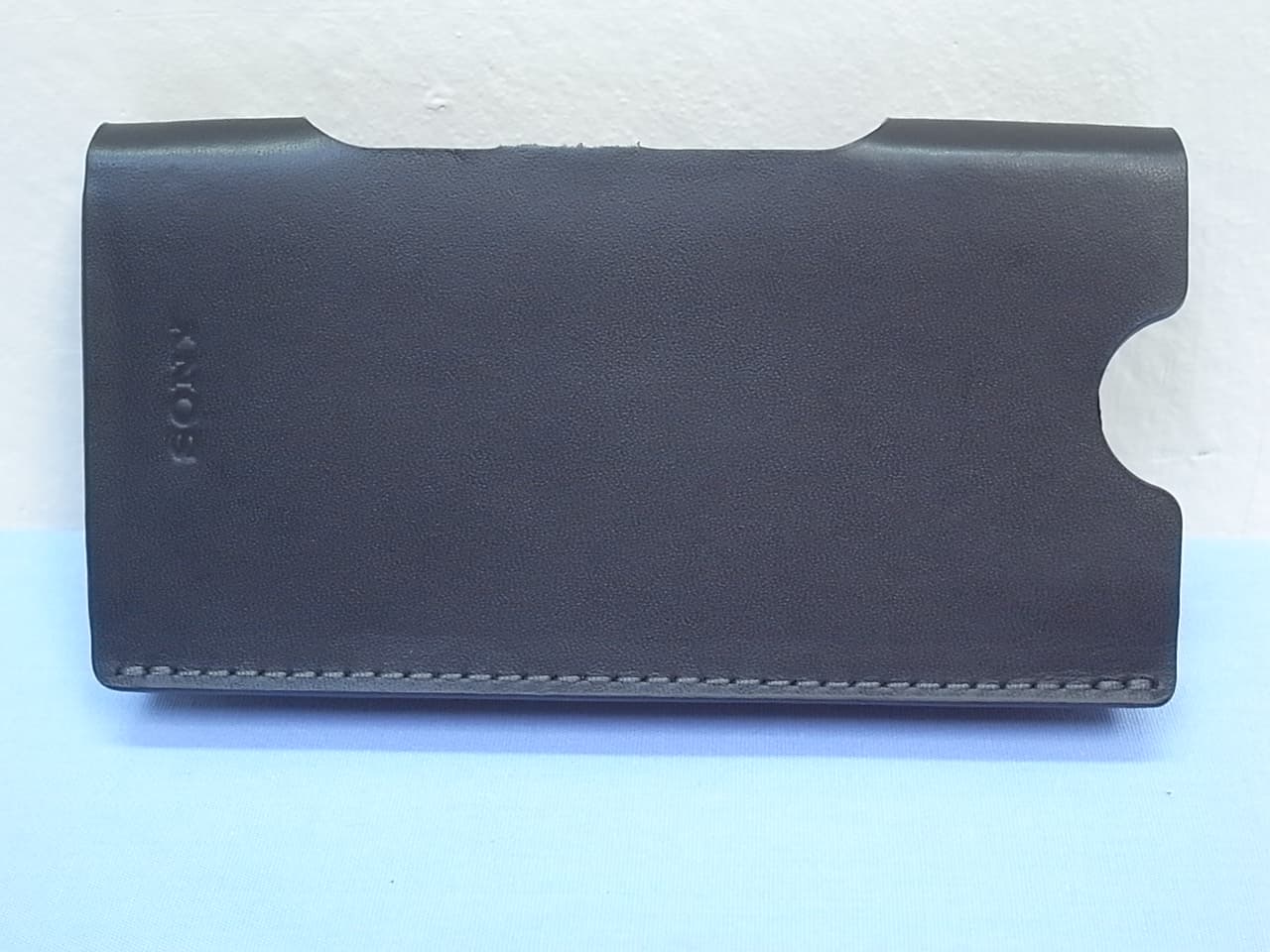

Sony Corporation Digital Media Player FCC ID. : AK8NWZX2 IC: 409B-NWZX2 EUT External Photos Figure 1 General Appearance (Top & Front & Side View) Figure 2 General Appearance (Bottom & Back & Side View) Sony Corporation Digital Media Player FCC ID. : AK8NWZX2 IC: 409B-NWZX2 Figure 3 USB Cable Figure 4 Case

Sony Corporation Digital Media Player FCC ID. : AK8NWZX2 IC: 409B-NWZX2 FCC ID & IC Label Location z Label Placement Location z FCC ID & IC Label Format FCC ID & IC Label Placement Location

BT/WiFi chip is reverse side of the PWB Back side of the set Internal Photo WiFi/BT GPS Antenna Without Antenna With Antenna WiFi/BT GPS Antenna NFC Antenna PWB Position Internal Photo PWB Top view PWB Bottom View BT/WiFi module Terminal to GPS Antenna GPS module NFC module Terminal to WI-Fi/BTAntenna Connector to relay PWB connecting to NFC antenna

Audix Technology Corporation EMC Department: No. 53-11, Dingfu, Linkou Dist., New Taipei City, Taiwan, R.O.C. Tel: 886-2-26099301 / 26092133 Fax: 886-2-26099303 E-mail: [email protected] Statement of Due Date for Dipole Calibration We have defined that the calibration interval of following dipole which use for SAR system is 3 years. Please note that the Cal Interval may be other than 1 year, e.g. 2 years or 3 years. Also we have determined that the original calibration result of these instruments are not significantly affected before the first-time use of them, when they are stored in good condition. According to the above reasons, the dipole calibration Due Date described as below: Example: Date tested at SPEAG: May 9, 2012 Example Calibration Interval: 3 Years First-Time Use of Instrument: September 13, 2012 First-Time Use + Selected Interval = Date for Next Calibration ------------------------------------------------------------------------------------------------------- September 13, 2012 + 3 Years = September 12, 2015 Leon Liu / Quality Manager SPEAG D1750V2 1065 SPEAG D900V2 1d133 SPEAG D750V3 1056 SPEAG D835V2 4d136 SPEAG D1900V2 5d156 SPEAG D2000V2 1061 SPEAG D2450V2 888 SPEAG D2600V2 1048 SPEAG D5GHzV2 1124 SPEAG CD2450V3 1161 SPEAG CD1880V3 1173 SPEAG CD835V3 1187 Dipole Verified Data Model Name: D2450V2 SN:888 Pursuant to KDB 865664 D01 V01r01 section 3.2.2 that the reference dipole calibration can be extended to 3 years if Lab. does a confirmation on return loss and impedance annually, and compliance with following conditions, 1. Return loss deviates by less than 20% from the previous measurement and have 20 dB minimum return-loss requirement 2. The real or imaginary parts of the impedance, measured at least annually, deviates by less than 5 Ω from the previous measurement. Antenna Parameters with Head Tissue Item Verified on 7/1 5 , 2014 Original Cal. Result Deviation Impedance, transformed to feed point 51.099+4.93j 53.8+3.3j < 5 Return Loss ‐26.19 dB ‐26.3 dB 0.42% Antenna Parameters with Body Tissue Item Verified on 7/1 5 , 2014 Original Cal. Result Deviation Impedance, transformed to feed point 49.527+3.87j 50.2+4.7j < 5 Return Loss ‐23.31 dB ‐26.6 dB 12.37% Plot for Antenna Parameters with Head Tissue Plot for Antenna Parameters with Body Tissue Dipole Verified Data Model Name: D2450V2 SN:888 Pursuant to KDB 865664 D01 V01r01 section 3.2.2 that the reference dipole calibration can be extended to 3 years if Lab. does a confirmation on return loss and impedance annually, and compliance with following conditions, 1. Return loss deviates by less than 20% from the previous measurement and have 20 dB minimum return-loss requirement 2. The real or imaginary parts of the impedance, measured at least annually, deviates by less than 5 Ω from the previous measurement. Antenna Parameters with Head Tissue Item Verified on 7/15, 2013 Original Cal. Result Deviation Impedance, transformed to feed point 51.096Ω+4.93jΩ 53.8Ω+3.3jΩ < 5Ω Return Loss ‐26.196 dB ‐26.3 dB 0.39% Antenna Parameters with Body Tissue Item Verified on 7/15, 2013 Original Cal. Result Deviation Impedance, transformed to feed point 49.528Ω+3.87jΩ 50.2Ω+4.7jΩ < 5Ω Return Loss ‐23.31 dB ‐26.6 dB 12.37% Plot for Antenna Parameters with Head Tissue Plot for Antenna Parameters with Body Tissue

Dipole Verified Data Model Name: D5GHzV2 SN:1124 Pursuant to KDB 865664 D01 V01r01 section 3.2.2 that the reference dipole calibration can be extended to 3 years if Lab. does a confirmation on return loss and impedance annually, and compliance with following conditions, 1. Return loss deviates by less than 20% from the previous measurement and have 20 dB minimum return-loss requirement 2. The real or imaginary parts of the impedance, measured at least annually, deviates by less than 5 Ω from the previous measurement. Antenna Parameters with Body Tissue (5200MGz) Item Verified on 9/13, 2013 Original Cal. Result Deviation Impedance, transformed to feed point 50.161Ω2.5014jΩ 48.4Ω‐1.6jΩ < 5Ω Return Loss ‐29.799 dB ‐32.7 dB 8.87% Antenna Parameters with Body Tissue (5500MGz) Item Verified on 9/13, 2013 Original Cal. Result Deviation Impedance, transformed to feed point 47.513Ω4.9997jΩ 54Ω5jΩ < 5Ω Return Loss ‐21.985 dB ‐24.3 dB 9.53% Antenna Parameters with Body Tissue (5800MGz) Item Verified on 9/13, 2013 Original Cal. Result Deviation Impedance, transformed to feed point 52.803Ω‐13.623jΩ 57.8Ω1.2jΩ < 5Ω Return Loss ‐20.742 dB ‐22.7 dB 8.63% Plot for Antenna Parammeters witth Body Tiissue Dipole Verified Data Model Name: D5GHzV2 SN:1124 Pursuant to KDB 865664 D01 V01r01 section 3.2.2 that the reference dipole calibration can be extended to 3 years if Lab. does a confirmation on return loss and impedance annually, and compliance with following conditions, 1. Return loss deviates by less than 20% from the previous measurement and have 20 dB minimum return-loss requirement 2. The real or imaginary parts of the impedance, measured at least annually, deviates by less than 5 Ω from the previous measurement. Antenna Parameters with Body Tissue (5200MGz) Item Verified on 10/13, 2014 Original Cal. Result Deviation Impedance, transformed to feed point 48.388Ω1.3144jΩ 48.4Ω‐1.6jΩ < 5Ω Return Loss ‐30.246 dB ‐32.7 dB 7.5% Antenna Parameters with Body Tissue (5500MGz) Item Verified on 10/13, 2014 Original Cal. Result Deviation Impedance, transformed to feed point 52.178Ω4.3881jΩ 54Ω5jΩ < 5Ω Return Loss ‐22.241 dB ‐24.3 dB 8.47% Antenna Parameters with Body Tissue (5800MGz) Item Verified on 10/13, 2014 Original Cal. Result Deviation Impedance, transformed to feed point 52.896Ω‐10.383jΩ 57.8Ω1.2jΩ < 5Ω Return Loss ‐20.637 dB ‐22.7 dB 9.09% Plot for Antenna Parameters with Body Tissue

FCC ID: AK8NWZX2 IC: 409B-NWZX2 APPENDIX I AUDIX Technology Corporation Report No. EM-SR140007 APPENDIX I Test Equipment Calibration Data

FCC ID: AK8NWZX2 IC: 409B-NWZX2 Page 1 of 81 AUDIX Technology Corporation Report No. EM-SR140007 SAR TEST REPORT FOR Sony Corporation Digital Media Player Model No.: NW-ZX2 FCC ID : AK8NWZX2 IC: 409B-NWZX2 Brand: SONY Prepared for : Sony Corporation 1-7-1 Konan Minato-ku, Tokyo, Japan 108-0075 Prepared By : AUDIX Technology Corporation EMC Department No. 53-11, Dingfu, Linkou Dist., New Taipei City 244, Taiwan, R.O.C. Tel : (02) 2609-9301, 2609-2133 Fax : (02) 2609-9303 File Number C1M1410080 Report Number EM-SR140007 Date of Test 2014. 10. 29 ~ 11. 12 Date of Report 2014. 11. 12 FCC ID: AK8NWZX2 IC: 409B-NWZX2 Page 2 of 81 AUDIX Technology Corporation Report No. EM-SR140007 TABLE OF CONTENTS Description Page Test Report Verification ............................................................................................................................. 3 1. DESCRIPTION OF Revision history .................................................................................................... 4 2. summary of Maximum sar value ........................................................................................................... 5 3. GENERAL INFORMATION ........................................................................................................................ 6 3.1.Description of Device (EUT) ........................................................................................................... 6 3.2.Antenna Information ........................................................................................................................ 8 3.3.Test Environment ............................................................................................................................. 8 3.4.Description of Test Facility .............................................................................................................. 8 3.5.Measurement Uncertainty ................................................................................................................ 9 4. Test Equipment .................................................................................................................................... 10 5. sar Measurement system ...................................................................................................................... 11 5.1.Definition of Specific Absorption Rate (SAR) .............................................................................. 11 5.2.SPEAG DASY System .................................................................................................................. 11 5.3.SAR System Verification ............................................................................................................... 19 5.4.SAR Measurement Procedure ........................................................................................................ 27 6. SAR Measurement Evaluation ............................................................................................................. 30 6.1.EUT Configuration and Setting ...................................................................................................... 30 6.2.EUT Testing Position ..................................................................................................................... 31 6.3.Tissue Calibration Result ............................................................................................................... 32 6.4.SAR Exposure Limits .................................................................................................................... 33 6.5.Conducted Power Measurement ..................................................................................................... 34 6.6.Exposure Positions Consideration .................................................................................................. 36 6.7.SAR Test Result ............................................................................................................................. 37 7. Photographs of Measurement .............................................................................................................. 78 APPENDIX I (Test Equipment Calibration Data) FCC ID: AK8NWZX2 IC: 409B-NWZX2 Page 3 of 81 AUDIX Technology Corporation Report No. EM-SR140007 TEST REPORT VERIFICATION Applicant : Sony Corporation EUT Description : Digital Media Player FCC ID : AK8NWZX2 IC : 409B-NWZX2 (A) Model No. : NW-ZX2 (B) Serial No. : N/A (C) Brand : SONY (D) Power Supply : DC 3.7V (Battery) or DC 5V (USB) Measurement Standards Used: FCC 47 CFR Part 2 (2.1093) IEEE 1528-2003 FCC OET Bulletin 65 Supplement C, June 2001 Industry Canada Rules and Regulations RSS-102 (Issue 4), March 2010 (Measurement: KDB 248227, KDB 447498 D01 05r02, KDB 865664 D01 v01r03) The device described above was tested by AUDIX Technology Corporation. The measurement results were contained in this test report and AUDIX Technology Corporation was assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT to be technically compliance with the Industry Canada RSS-102 (Issue 4) & FCC OET Bulletin 65 Supplement C & IEEE 1528 requirements. This report applies to above tested sample only and shall not be reproduced in part without written approval of AUDIX Technology Corporation. Date of Test: 2014. 10. 29 ~ 11. 12 Date of Report: 2014. 11. 12 Producer: (Annie Yu/Administrator) Signatory: (Ben Cheng/Manager) FCC ID: AK8NWZX2 IC: 409B-NWZX2 Page 4 of 81 AUDIX Technology Corporation Report No. EM-SR140007 1. DESCRIPTION OF REVISION HISTORY Edition No. Date of Revision Revision Summary Report Number 0 2014. 11. 12 Original Report. EM-SR140007 FCC ID: AK8NWZX2 IC: 409B-NWZX2 Page 5 of 81 AUDIX Technology Corporation Report No. EM-SR140007 2. SUMMARY OF MAXIMUM SAR VALUE Mode Highest Reported Body SAR 1g Scale SAR WLAN 2.4G 0.202(W/kg) 0.2363(W/kg) WLAN 5G 1.270(W/kg) 1.4605(W/kg) Note: 1. The SAR limit (SAR…
