AK8PCG21111LNotebook PC

Por favor lea detalladamente este manual de instrucciones antes de conectar y operar este equipo. Recuerde que un mal uso de su aparato podría anular la garantía. IMPORTANTE! ! Safety Information Renseignements relatifs à la sécurité Información de Seguridad Informações sobre Segurança Personal Computer / Ordinateur personnel / Computadora Personal / Computador Pessoal VPCX11 Series 4860_LegalSafety.fm Page 1 Thursday, June 25, 2009 4:39 PM 2 For customers in USA and Canada Pour les utilisateurs aux Etats-Unis et au Canada Owner’s Record The model number and serial number are located on the bottom, the back panel, or inside the battery compartment of your Sony VAIO ® computer. Record the model and serial numbers in the space provided here, and keep in a secure location. Refer to the model and serial numbers when you call your Sony Service Center. Notice © 2009 Sony Electronics Inc. Reproduction in whole or in part without written permission is prohibited. All rights reserved. This manual and the software described herein, in whole or in part, may not be reproduced, translated, or reduced to any machine-readable form without prior written approval. SONY ELECTRONICS INC. PROVIDES NO WARRANTY WITH REGARD TO THIS MANUAL, THE SOFTWARE, OR OTHER INFORMATION CONTAINED HEREIN AND HEREBY EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE WITH REGARD TO THIS MANUAL, THE SOFTWARE, OR SUCH OTHER INFORMATION. IN NO EVENT SHALL SONY ELECTRONICS INC. BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, OR SPECIAL DAMAGES, WHETHER BASED ON TORT, CONTRACT, OR OTHERWISE, ARISING OUT OF OR IN CONNECTION WITH THIS MANUAL, THE SOFTWARE, OR OTHER INFORMATION CONTAINED HEREIN OR THE USE THEREOF. SONY CANNOT WARRANT THAT THE FUNCTIONS DESCRIBED IN THIS GUIDE WILL BE UNINTERRUPTED OR ERROR-FREE. SONY ALSO ASSUMES NO RESPONSIBILITY, AND SHALL NOT BE LIABLE FOR ANY DAMAGES TO, OR VIRUSES THAT MAY INFECT, YOUR COMPUTER EQUIPMENT, OR OTHER PROPERTY ON ACCOUNT OF YOUR ACCESS TO, USE OF, OR BROWSING IN ANY DESCRIBED WEB SITE, OR YOUR DOWNLOADING OF ANY MATERIALS, DATA, TEXT, IMAGES, VIDEO, OR AUDIO FROM ANY DESCRIBED WEB SITE. WEB SITE INFORMATION IS OBTAINED FROM VARIOUS SOURCES AND MAY BE INACCURATE. COPIES OF COPYRIGHTED INFORMATION MAY ONLY BE MADE FOR LEGALLY PERMISSIBLE PURPOSES. Sony Electronics Inc. reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein is governed by the terms of a separate user license agreement. This product contains software owned by Sony and licensed by third parties. Use of such software is subject to the terms and conditions of license agreements enclosed with this product. Some of the software may not be transported or used outside the United States. Software specifications are subject to change without notice and may not necessarily be identical to current retail versions. Model Number: Serial Number: 4860_LegalSafety.fm Page 2 Thursday, June 25, 2009 4:39 PM 3 Certain product(s) included with this computer may include features such as copy protection and content management technology. USE OF THE SOFTWARE PRODUCT(S) REQUIRES AGREEMENT TO APPLICABLE END USER AGREEMENTS AND FULL COMPLIANCE WITH APPLICABLE PRODUCT ACTIVATION PROCEDURES. Product activation procedures and privacy policies will be detailed during initial launch of the software product(s), or upon certain reinstallations of the software product(s), or reconfigurations of the computer, and may be completed by Internet or telephone (toll charges may apply). Updates and additions to software may require an additional charge. Subscriptions to online service providers may require a fee and credit card information. Financial services may require prior arrangements with participating financial institutions. Important information for Canadian customers: Your new VAIO ® computer includes certain software versions or upgrades, and Internet services or offers that are available to U.S. customers only. i.LINK is a trademark of Sony Corporation used only to designate that a product contains an IEEE 1394 connection. The i.LINK connection may vary, depending on the software applications, operating system, and compatible i.LINK devices. All products with an i.LINK connection may not communicate with each other. Please refer to the documentation that came with your compatible i.LINK device for information on operating conditions and proper connection. Before connecting compatible i.LINK PC peripherals to your system, such as a CD-RW or hard disk drive, confirm their operating system compatibility and required operating conditions. Sony, VAIO, and the VAIO logo are trademarks or registered trademarks of Sony Corporation. All other trademarks are trademarks or registered trademarks of their respective owners. Reverse engineering or disassembly is prohibited. End User / Product Activation Requirements Certain software product(s) included with this computer may include features such as copy protection and content management technology. Use of the software product(s) requires agreement to applicable end user agreements and full compliance with applicable product activation procedures. Product activation procedures and privacy policies will be detailed during initial launch of the software product(s), or upon certain reinstallations of the software product(s) or reconfiguration of the computer, and may be completed by Internet or telephone (toll charges may apply). The Wireless LAN functionality, which is incorporated into selected models only, has passed Wi-Fi certification and complies with the interoperability specifications established by WFA (Wi-Fi Alliance). 4860_LegalSafety.fm Page 3 Thursday, June 25, 2009 4:39 PM 4 Safety Information and Caution For questions regarding your product or for the Sony Service Center nearest you, visit the Sony online support Web site at http://esupport.sony.com/EN/VAIO/ fo…

Text truncated - open the document above for the full version.

N Operating Instructions - Hardware GuideUser GuideHardware GuideUser GuideOperating Instructions - Hardware GuideUser Guide 2 nN > Personal Computer VPCX SeriesVPCX SeriesVPCX seriesVPCX SeriesVPCX Series 3 nN Contents Before Use .......................................................................... 5 Finding More about Your VAIO Computer .................... 6 Ergonomic Considerations .......................................... 12 Getting Started.................................................................. 15 Locating Controls and Ports ........................................ 15 About the Indicator Lights ........................................... 22 Connecting a Power Source ....................................... 23 Using the Battery Pack................................................ 24 Shutting Down Your Computer Safely ........................ 30 Using the Power Saving Modes .................................. 30 Updating Your Computer ............................................ 32 Using Your VAIO Computer.............................................. 33 Using the Keyboard..................................................... 33 Using the Touch Pad................................................... 35 Using the Built-in Camera ........................................... 37 Using "Memory Stick".................................................. 38 Using Other Modules / Memory Cards ........................ 43 Using the Internet ........................................................ 46 Using the Network (LAN) ............................................ 48 Using the Wireless LAN .............................................. 49 Using the Wireless WAN ............................................. 56 Using the Bluetooth Function ...................................... 60 Using the GPS Function ..............................................65 Using Peripheral Devices ..................................................67 Connecting an Optical Disc Drive ................................67 Connecting External Speakers or Headphones ..........69 Connecting an External Display ..................................70 Selecting Display Modes .............................................72 Using the Multiple Monitors Function ..........................73 Connecting a USB Device ...........................................74 Customizing Your VAIO Computer....................................76 Setting the Password...................................................76 Using Intel VT ..............................................................82 Using the VAIO Control Center ...................................83 Using the VAIO Power Management...........................84 Precautions .......................................................................86 Safety Information .......................................................86 Care and Maintenance Information .............................90 Handling Your Computer .............................................91 Handling the LCD Screen ............................................93 Using the Power Source ..............................................94 Handling the Built-in Camera.......................................95 Handling Discs.............................................................95 Using the Battery Pack ................................................96 4 nN Handling "Memory Stick"............................................. 97 Handling the Built-in Storage Device .......................... 97 Troubleshooting ................................................................ 99 Computer .................................................................. 100 System Security ........................................................ 109 Battery ....................................................................... 110 Built-in Camera ......................................................... 111 Networking ................................................................ 113 Bluetooth Technology ............................................... 117 GPS........................................................................... 121 Display ...................................................................... 122 Printing ...................................................................... 125 Speakers ................................................................... 125 Touch Pad ................................................................. 127 Keyboard ................................................................... 128 Floppy Disks.............................................................. 128 Audio/Video ............................................................... 129 Memory Cards........................................................... 131 Peripherals ................................................................ 132 Trademarks..................................................................... 134 Notice.............................................................................. 140 5 nN Before Use > Before Use Congratulations on your purchase of this Sony VAIO ® computer, and welcome to the on-screen User Guide. Sony has combined leading-edge technology in audio, video, computing, and communications to provide a state-of-the-art personal computing experience. ! External views illustrated in this manual may look slightly different from those of your computer. How to find specifications Some features, options, and supplied items may not be available on your computer. US model_BGN To find out about the configuration of your computer, visit the Sony online support web site at the following URLs: ❑For customers in USA http://esupport.sony.com/EN/VAIO/ ❑For customers in Canada http://www.sony.ca/support/ ❑For customers in Spanish-speaking Latin American countries or areas http://esupport.sony.com/LA/ ❑For customers in Brazil http://esupport.sony.com/BR/ US model_END Euro model_BGN To find out about the confi…

Text truncated - open the document above for the full version.

Sony Corporation 1-7-1 Konan, Minato-ku, Tokyo, 108-0075 Japan Request for Permanent Confidentiality Date: 2009/7/20 Attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: Certification Application FCC ID: AK8PCG21111L This letter serves as an official request for confidentiality under FCC rules Section 0.459. Please be advised that all the files, containing “Permanent Confidential” in the file name with the following information needs to be held confidential on behalf of Sony Corporation. Such files include: All Block Diagrams files All Schematics/Circuit Diagrams files and overall device dimensions All Theory of Operation files (including all operation descriptions and all antenna information) The application contains technical information which Sony Corporation deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Michio Kobayashi Assistant Manager Quality Assurance Department SONY Corporation

Sony Corporation 1-7-1 Konan, Minato-ku, Tokyo, 108-0075 Japan Request for Temporary Confidentiality Date: 2009/7/20 Federal Communications Commission Equipment Authorization branch 7435 Oakland Mills Road Columbia, MD 21046 RE: Certification Application FCC ID: AK8PCG21111L Please be advised that all the files, containing “Temporary Confidential” in the file name needs to be held confidential on behalf of Sony Corporation by the date: 2009/9/3 Such files include: All Photographs (Internal/External Photos, Test Setup Photos) All User Manuals (User Manual and Safety Guide) The application contains technical information which Sony Corporation deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Michio Kobayashi Assistant Manager Quality Assurance Department SONY Corporation Sony Corporation 1-7-1 Konan, Minato-ku, Tokyo, 108-0075 Japan Date: 2009/9/3 Federal Communications Commission Equipment Authorization branch 7435 Oakland Mills Road Columbia, MD 21046 RE: Certification Application FCC ID: AK8PCG21111L Please be advised that all the files, containing “Temporary Confidential” in the file name needs to be held confidential on behalf of Sony Corporation by the date: 2009/10/18 Such files include: All Photographs (Internal/External Photos, Test Setup Photos) All User Manuals (User Manual and Safety Guide) The application contains technical information which Sony Corporation deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Michio Kobayashi Assistant Manager Quality Assurance Department SONY Corporation Sony Corporation 1-7-1 Konan, Minato-ku, Tokyo, 108-0075 Japan Date: 2009/10/18 Federal Communications Commission Equipment Authorization branch 7435 Oakland Mills Road Columbia, MD 21046 RE: Certification Application FCC ID: AK8PCG21111L Please be advised that all the files, containing “Temporary Confidential” in the file name needs to be held confidential on behalf of Sony Corporation by the date: 2009/11/11 Such files include: All Photographs (Internal/External Photos, Test Setup Photos) All User Manuals (User Manual and Safety Guide) The application contains technical information which Sony Corporation deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Michio Kobayashi Assistant Manager Quality Assurance Department SONY Corporation

Sony Temporary Confidential Internal Photos PCG-21111L

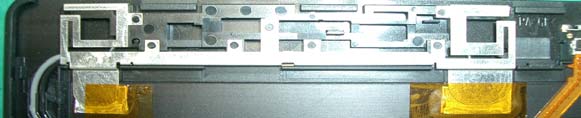

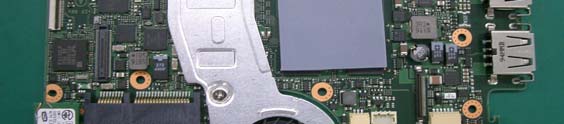

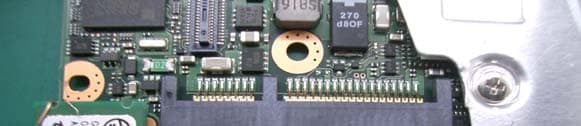

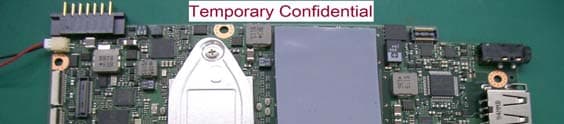

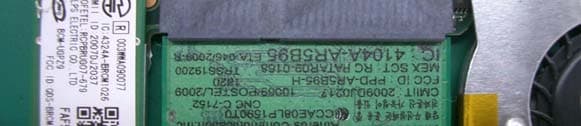

Compliance Certification Services Inc. Report No.: 81029005 Date of Issue: December 9, 2008 Page 5 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT HALF LENGTH BOARD Compliance Certification Services Inc. Report No.: 81029005 Date of Issue: December 9, 2008 Page 6 Rev. 00 FULL LENGTH BOARD Compliance Certification Services Inc. Report No.: 81029005 Date of Issue: December 9, 2008 Page 7 Rev. 00 Compliance Certification Services Inc. Report No.: 81029005 Date of Issue: December 9, 2008 Page 8 Rev. 00

SAR Test Report No: SAR_SONYE_033_Rev3 Date of Report: 2009-08-27 Appendix C Page 1 of 3 Tissue Parameters 850MHz Body Liquid: Recipe: The following recipe is provided in percentage by weight. 49.8% water 41.3% DGBE 8.9% salt SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy Date (MHz) Perm. (S/m) 08/25/2009 836.52 54.04 1.012 1900MHz Body Liquid: Recipe: The following recipe is provided in percentage by weight. 69.17% water 30.29% DGBE 0.54% salt SAR measurements were made within 24 hours of the measurement of liquid parameters. Freq. Rel. Condy Date (MHz) Perm. (S/m) 07/21/2009 1880 52.97 1.513 SAR Test Report No: SAR_SONYE_033_Rev3 Date of Report: 2009-08-27 Appendix C Page 2 of 3 2450MHz Body Liquid: Recipe: 73.3% water 12.88% DGBE 12.88% triton X-100 0.94% salt SAR measurements were made within 24 hours of the measurement of liquid parameters. Date Freq. Rel. Condy (MHz) Perm. (S/m) 07/21/2009 2437 49.33 1.958 SAR Test Report No: SAR_SONYE_033_Rev3 Date of Report: 2009-08-27 Appendix C Page 3 of 3 Test Equipment Test Equipment Model Serial Instrument description Supplier / Manufacturer Model Serial No. Calibration (date) Calibration Due (date) Bench top Robot Mitsubishi supplied by IndexSAR RV-E2 EA1030108 N/A N/A SAM Phantom Upright shell phantom made by Antennessa digitized and mounted by IndexSAR SAM 03FT26 04/03 N/A Flat Phantom IndexSAR HeadBox_1 N/A N/A N/A Software IndexSAR SARA2 v0.420 N/A N/A N/A 850 MHz Body Tissue Simulant Cetecom Inc. 850 Body N/A 7/22/2009 N/A 1900 MHz Body Tissue Simulant Cetecom Inc. 1900 Body N/A 7/21/2009 N/A 2450 MHz Body Tissue Simulant Cetecom Inc. 2450 Body N/A 7/21/2009 N/A 835 MHz Dipole IndexSAR – IEEE 1528 design IXDA-083 0016 02/13/2009 02/13/2010 1900 MHz Dipole IndexSAR – IEEE 1528 design IXDA-188 0016 02/13/2009 02/13/2010 2450 MHz Dipole IndexSAR – IEEE 1528 design IXD-245 0016 02/13/2009 02/13/2010 Directional coupler Werlatone C6529 11249 N/A N/A RF Amplifier Vectawave VTL5400 N/A N/A N/A SAR Probe IndexSAR IXP-030 S/N M0024 2/05/2009 2/05/2010 Dielectric Measurement Kit IndexSAR Di-Line N/A N/A N/A

SAR Test Report No.: SAR_SONYE_033_Rev3 Date of Report: 2009-08-27 Appendix A Plots Page 1 of 7 System / software: SARA2 / 2.54 VPM coloc Input Power Drift: Date / Time: 8/25/2009 3:45:06 PM DUT Battery Model/No: Filename: 1850_back_1ts.txt Probe Serial Number: M0024 Ambient Temperature: 22.0°C Liquid Simulant: 850 Device Under Test: Sony O3 Relative Permittivity: 54.04 Relative Humidity: 45% Conductivity: 1.012 Phantom S/No: Head04_37.csv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR X-axis Location: 38.00 mm DUT Position: Lap Max SAR Y-axis Location: 26.00 mm Antenna Configuration: Integral Max E Field: 5.08 V/m Test Frequency: 836.52MHz SAR 1g: 0.025 W/kg Air Factors: 2573 / 2262 / 2365 SAR 10g: Conversion Factors: .395 / .395 / .395 SAR Start: 0.002 W/kg Type of Modulation: SAR End: 0.002 W/kg Modn. Duty Cycle: SAR Drift during Scan: -4.46 % Diode Compression Factors (V*200): 20 / 20 / 20 Probe battery last changed: 08/19/09 Input Power Level: All bits up Extrapolation: poly4 SAR Test Report No.: SAR_SONYE_033_Rev3 Date of Report: 2009-08-27 Appendix A Plots Page 2 of 7 System / software: SARA2 / 2.54 VPM coloc Input Power Drift: Date / Time: 7/21/2009 3:37:16 PM DUT Battery Model/No: Filename: 1880_lap.txt Probe Serial Number: M0024 Ambient Temperature: 22.0°C Liquid Simulant: 1900 Device Under Test: PCG21111L Relative Permittivity: 52.97 Relative Humidity: 45% Conductivity: 1.513 Phantom S/No: Head04_37.csv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR X-axis Location: 25.83 mm DUT Position: Lap Max SAR Y-axis Location: 50.00 mm Antenna Configuration: Integral Max E Field: 5.68 V/m Test Frequency: 1880MHz SAR 1g: 0.022 W/kg Air Factors: 2573 / 2262 / 2365 SAR 10g: Conversion Factors: .476 / .476 / .476 SAR Start: 0.004 W/kg Type of Modulation: SAR End: 0.004 W/kg Modn. Duty Cycle: SAR Drift during Scan: 4.42 % Diode Compression Factors (V*200): 20 / 20 / 20 Probe battery last changed: 07/21/09 Input Power Level: Power control bits all up Extrapolation: poly4 SAR Test Report No.: SAR_SONYE_033_Rev3 Date of Report: 2009-08-27 Appendix A Plots Page 3 of 7 System / software: SARA2 / 2.54 VPM coloc Input Power Drift: Date / Time: 7/21/2009 10:02:39 AM DUT Battery Model/No: Filename: 2437_b_lap.txt Probe Serial Number: M0024 Ambient Temperature: 22.0°C Liquid Simulant: 2450 Device Under Test: PCG21111L Relative Permittivity: 49.33 Relative Humidity: 45% Conductivity: 1.958 Phantom S/No: Head04_37.csv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR X-axis Location: -50.00 mm DUT Position: Lap Max SAR Y-axis Location: 0.00 mm Antenna Configuration: Integral Max E Field: 2.87 V/m Test Frequency: 2437MHz SAR 1g: 0.002 W/kg Air Factors: 2573 / 2262 / 2365 SAR 10g: 0.000 W/kg Conversion Factors: .487 / .487 / .487 SAR Start: 0.000 W/kg Type of Modulation: SAR End: 0.000 W/kg Modn. Duty Cycle: SAR Drift during Scan: % Diode Compression Factors (V*200): 20 / 20 / 20 Probe battery last changed: 07/21/09 Input Power Level: Set by software Extrapolation: poly4 SAR Test Report No.: SAR_SONYE_033_Rev3 Date of Report: 2009-08-27 Appendix A Plots Page 4 of 7 System / software: SARA2 / 2.54 VPM coloc Input Power Drift: Date / Time: 7/21/2009 11:10:20 AM DUT Battery Model/No: Filename: 2437_n_h20_lap.txt Probe Serial Number: M0024 Ambient Temperature: 22.0°C Liquid Simulant: 2450 Device Under Test: PCG21111L Relative Permittivity: 49.33 Relative Humidity: 45% Conductivity: 1.958 Phantom S/No: Head04_37.csv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR X-axis Location: -20.00 mm DUT Position: Lap Max SAR Y-axis Location: -10.00 mm Antenna Configuration: Integral Max E Field: 2.07 V/m Test Frequency: 2437, n mode H20MHz SAR 1g: 0.002 W/kg Air Factors: 2573 / 2262 / 2365 SAR 10g: 0.000 W/kg Conversion Factors: .487 / .487 / .487 SAR Start: 0.000 W/kg Type of Modulation: SAR End: 0.000 W/kg Modn. Duty Cycle: SAR Drift during Scan: % Diode Compression Factors (V*200): 20 / 20 / 20 Probe battery last changed: 07/21/09 Input Power Level: Set by software Extrapolation: poly4 SAR Test Report No.: SAR_SONYE_033_Rev3 Date of Report: 2009-08-27 Appendix A Plots Page 5 of 7 System / software: SARA2 / 2.54 VPM coloc Input Power Drift: Date / Time: 8/25/2009 4:36:49 PM DUT Battery Model/No: Filename: 836_lap.txt Probe Serial Number: M0024 Ambient Temperature: 22.0°C Liquid Simulant: 850 Device Under Test: System Relative Permittivity: 54.07 Relative Humidity: 45% Conductivity: 1.012 Phantom S/No: Head04_37.csv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR X-axis Location: 0.83 mm DUT Position: 15mm Max SAR Y-axis Location: -8.00 mm Antenna Configuration: Dipole Max E Field: 95.69 V/m Test Frequency: 835MHz SAR 1g: 9.299 W/kg Air Factors: 2573 / 2262 / 2365 SAR 10g: 6.230 W/kg Conversion Factors: .395 / .395 / .395 SAR Start: 2.851 W/kg Type of Modulation: SAR End: 2.871 W/kg Modn. Duty Cycle: SAR Drift during Scan: 0.70 % Diode Compression Factors (V*200): 20 / 20 / 20 Probe battery last changed: 08/19/09 Input Power Level: 1W Extrapolation: poly4 SAR Test Report No.: SAR_SONYE_033_Rev3 Date of Report: 2009-08-27 Appendix A Plots Page 6 of 7 System / software: SARA2 / 2.54 VPM coloc Input Power Drift: Date / Time: 7/21/2009 10:41:45 AM DUT Battery Model/No: Filename: 2437_n_h20_lap.txt Probe Serial Number: M0024 Ambient Temperature: 22.0°C Liquid Simulant: 2450 Device Under Test: PCG21111L Relative Permittivity: 49.33 Relative Humidity: 45% Conductivity: 1.958 Phantom S/No: Head04_37.csv Liquid Temperature: 22.0°C Phantom Rotation: 0° Max SAR X-axis Location: 36.25 mm DUT Position: Lap Max SAR Y-axis Location: 11.00 mm Antenna Configuration: Integral Max E Field: 3.64 V/m Test Frequency: 2437, n mode H40MHz SAR 1g: 0.005 W/kg Air Factors: 2573 / 2262 / 2365 SAR 10g: 0.001 W/kg Conversion Factors: .487 / .487 / .487 SAR Start: 0.000 W/kg Type of Modulation: SAR End: 0.002 W/kg Modn. Duty Cycle: SAR Drift during Scan: % Diode Compression Factors (V*200): 20 / 20 / 20 Probe …

Text truncated - open the document above for the full version.

Page 1 of 25 IMMERSIBLE SAR PROBE CALIBRATION REPORT Part Number: IXP – 030 S/N M0024 February 2009 Indexsar Limited Oakfield House Cudworth Lane Newdigate Surrey RH5 5BG Tel: +44 (0) 1306 632 870 Fax: +44 (0) 1306 631 834 e-mail: [email protected] Reproduction of this report is authorized by Indexsar Ltd provided the report is reproduced in its entirety . Page 2 of 25 Indexsar Limited Oakfield House Cudworth Lane Newdigate Surrey RH5 5BG Tel: +44 (0) 1306 632 870 Fax: +44 (0) 1306 631 834 e-mail: [email protected] Calibration Certificate 0902/M0024 Date of Issue: 5 th February 2008 Immersible SAR Probe Type: IXP-030 Manufacturer: IndexSAR, UK Serial Number: M0024 Place of Calibration: IndexSAR, UK Date of Receipt of Probe: 14 th January 2009 Calibration Dates: 21 st January — 4 th February 2009 Customer: Cetecom IndexSAR Ltd hereby declares that the IXP-030 Probe named above has been calibrated for conformity to the IEEE 1528 and BSEN 62209-1 standards using the methods described in this calibration document. Where applicable, the standards used in the calibration process are traceable to the UK’s National Physical Laboratory. Calibrated by: Technical Manager Approved by: Director Please keep this certificate with the calibration document. When the probe is sent for a calibration check, please include the calibration document. Page 3 of 25 INTRODUCTION This Report presents measured calibration data for a particular Indexsar SAR probe (S/N M0024) only and describes the procedures used for characterisation and calibration. Indexsar probes are characterised using procedures that, where applicable, follow the recommendations of BSEN 622009-1 [Ref 1] & IEEE [Ref 2] standards. The procedures incorporate techniques for probe linearisation, isotropy assessment and determination of liquid factors (conversion factors). Calibrations are determined by comparing probe readings with analytical computations in canonical test geometries (waveguides) using normalised power inputs. Each step of the calibration procedure and the equipment used is described in the sections below. CALIBRATION PROCEDURE 1. Objectives The calibration process comprises four stages 1) Determination of the channel sensitivity factors which optimise the probe’s overall rotational isotropy in 2450MHz brain fluid 2) Determination of the channel sensitivity factors and angular offset of the X channel which together optimise the probe’s spherical isotropy in 2450MHz brain fluid 3) Numerical combination of the two sets of channel sensitivity factors to give both acceptable rotational isotropy and acceptable spherical isotropy values 4) At each frequency of interest, application of these channel sensitivity factors to model the exponential decay of SAR in a waveguide fluid cell, and hence derive the liquid conversion factors at that frequency 2. Probe output The probe channel output signals are linearised in the manner set out in Refs [1] and [2]. The following equation is utilized for each channel: U lin = U o/p + U o/p 2 / DCP (1) where U lin is the linearised signal, U o/p is the raw output signal in mV and DCP is the diode compression potential in similar voltage units. DCP is determined from fitting equation (1) to measurements of U lin versus source feed power over the full dynamic range of the probe. The DCP is a characteristic of the Schottky diodes used as the sensors. For the IXP-030 probes with CW signals the DCP values are typically 100mV. Conventionally, when used in conjunction with the SARA2 test jig, all measured voltages and voltage-derived values are quoted in units of V*200 Page 4 of 25 eg a DCP value of 100mV corresponds to 20 in V*200 units. Conversely, in the SARA C and HACSAR measurement systems, unmodified mV values are used throughout. As a consequence, the cal factors for this probe are listed in two tables, one for SARA2 and one for SARA C / HACSAR. In turn, measurements of E-field are determined using the following equation (where output voltages are also in units of mV): E liq 2 (V/m) = U linx * Air Factor x * Liq Factor x + U liny * Air Factor y * Liq Factor y + U linz * Air Factor z * Liq Factor z (2) Here, “Air Factor” represents each channel’s sensitivity, while “Liq Factor” represents the enhancement in signal level when the probe is immersed in tissue-simulant liquids at each frequency of interest. 3. Selecting channel sensitivity factors to optimise isotropic response After manufacture, the first stage of the calibration process is to balance the three channels’ Air Factor values, thereby optimising the probe’s overall axial response (“rotational isotropy”). To do this, a 2450MHz waveguide containing head-fluid simulant is selected. Like all waveguides used during probe calibration, this particular waveguide contains two distinct sections: an air-filled launcher section, and a liquid cell section, separated by a dielectric matching window designed to minimise reflections at the air-liquid interface. The waveguide stands in an upright position and the liquid cell section is filled with 2450MHz brain fluid to within 10 mm of the open end. The depth of liquid ensures there is negligible radiation from the waveguide open top and that the probe calibration is not influenced by reflections from nearby objects. During the measurement, a TE 01 mode is launched into the waveguide by means of an N-type-to-waveguide adapter. The probe is then lowered vertically into the liquid until the tip is exactly 10mm above the centre of …

Text truncated - open the document above for the full version.
