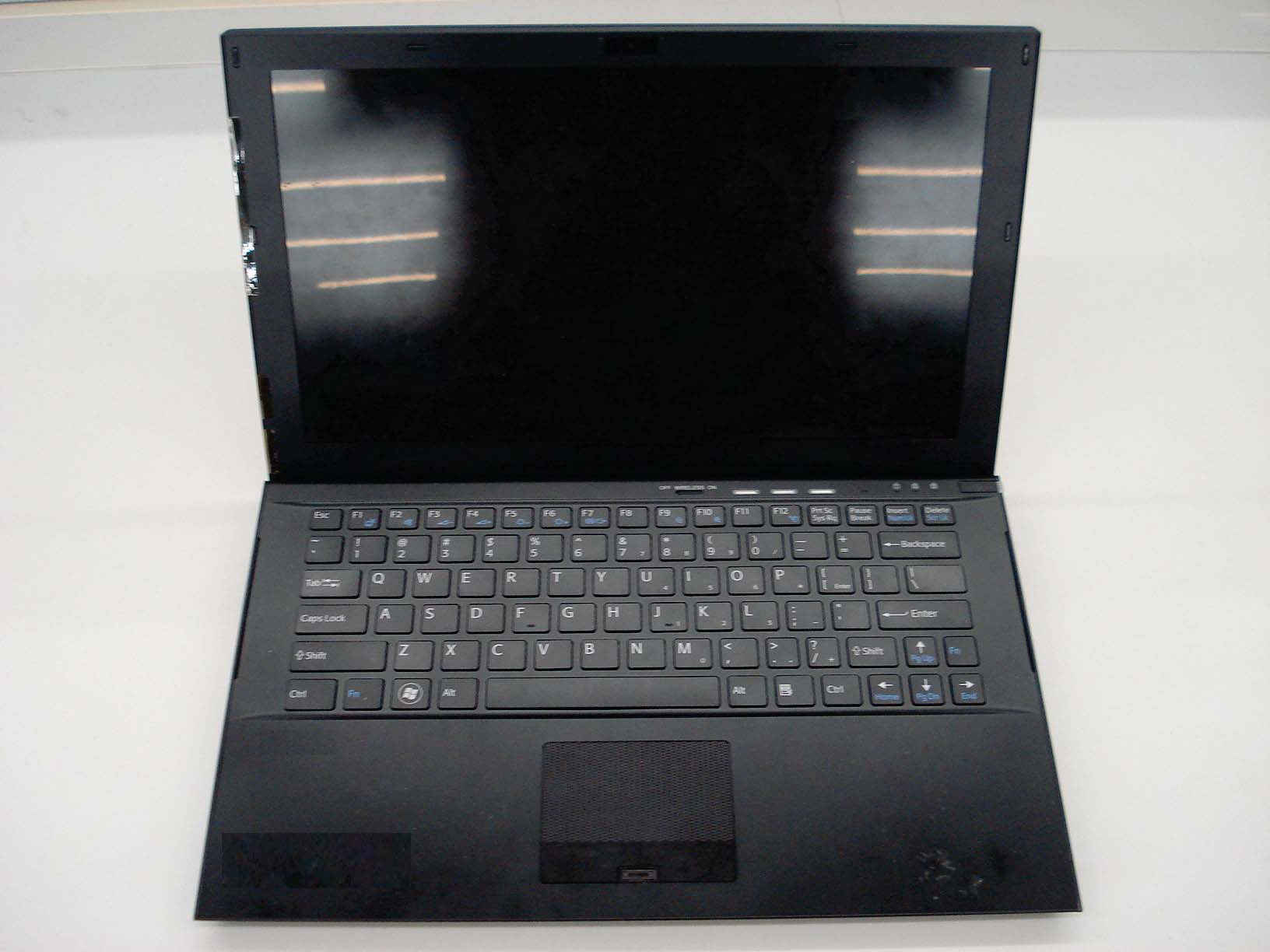

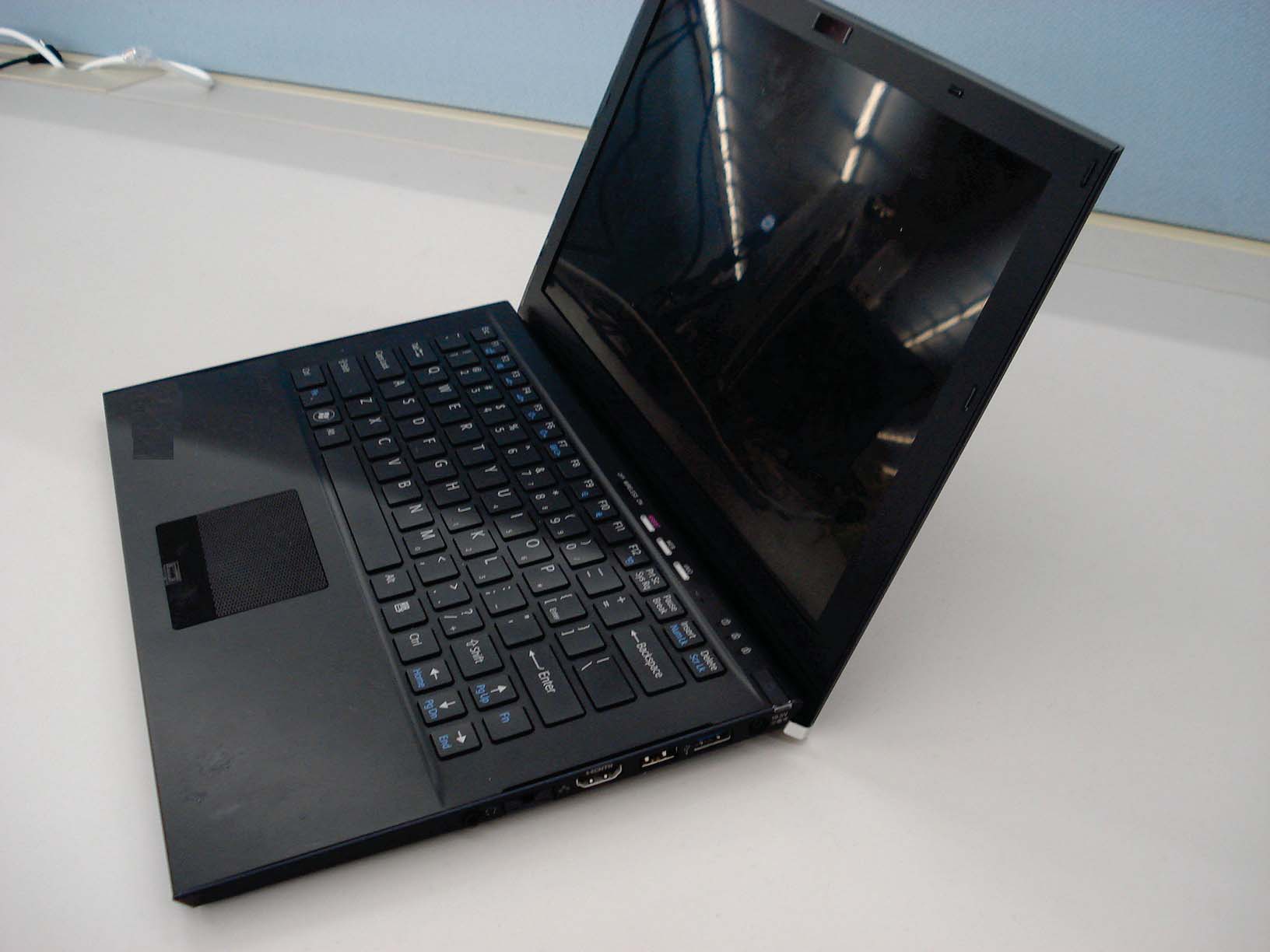

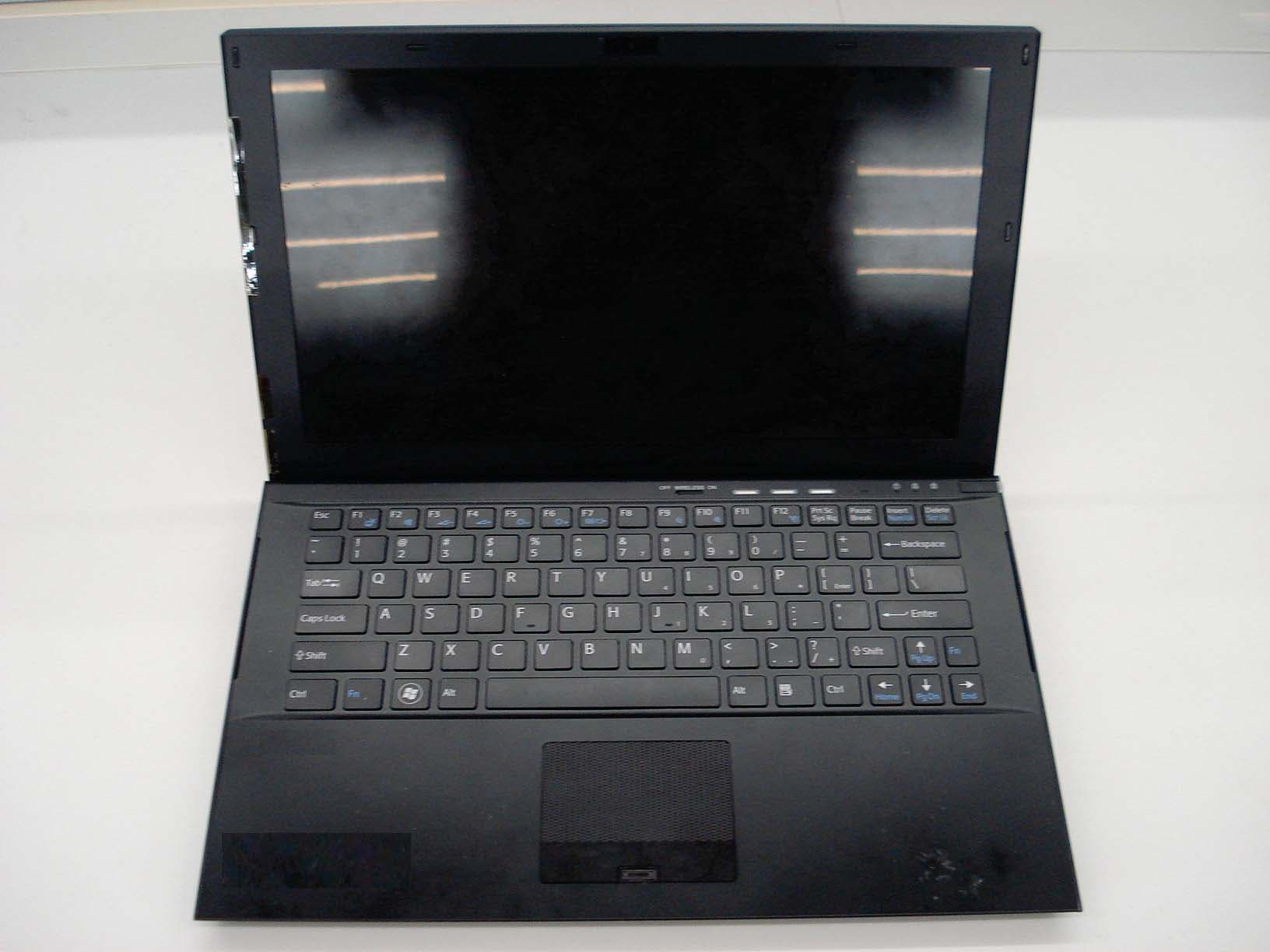

AK8PCG41311LLaptop PC with WWAN, WLAN and Bluetooth

Safety Information Renseignements relatifs à la sécurité Información de Seguridad Informações sobre Segurança Personal Computer / Ordinateur personnel / Computadora Personal / Computador Pessoal VPCZ2 Series IMPORTANTE! Por favor lea detalladamente este manual de instrucciones antes de conectar y operar este equipo. Recuerde que un mal uso de su aparato podría anular la garantía. 2 For customers in USA and Canada Pour les utilisateurs aux Etats-Unis et au Canada Owner’s Record The model number and serial number are located on the bottom, the back panel, or inside the battery compartment of your VAIO ® computer. Record the model and serial numbers in the space provided here, and keep in a secure location. Refer to the model and serial numbers when you call your Sony Service Center. Model Number: Serial Number: Notice © 2011 Sony Electronics Inc. Reproduction in whole or in part without written permission is prohibited. All rights reserved. This manual and the software described herein, in whole or in part, may not be reproduced, translated, or reduced to any machine-readable form without prior written approval. SONY ELECTRONICS INC. PROVIDES NO WARRANTY WITH REGARD TO THIS MANUAL, THE SOFTWARE, OR OTHER INFORMATION CONTAINED HEREIN AND HEREBY EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE WITH REGARD TO THIS MANUAL, THE SOFTWARE, OR SUCH OTHER INFORMATION. IN NO EVENT SHALL SONY ELECTRONICS INC. BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, OR SPECIAL DAMAGES, WHETHER BASED ON TORT, CONTRACT, OR OTHERWISE, ARISING OUT OF OR IN CONNECTION WITH THIS MANUAL, THE SOFTWARE, OR OTHER INFORMATION CONTAINED HEREIN OR THE USE THEREOF. SONY CANNOT WARRANT THAT THE FUNCTIONS DESCRIBED IN THIS GUIDE WILL BE UNINTERRUPTED OR ERROR-FREE. SONY ALSO ASSUMES NO RESPONSIBILITY, AND SHALL NOT BE LIABLE FOR ANY DAMAGES TO, OR VIRUSES THAT MAY INFECT, YOUR COMPUTER EQUIPMENT, OR OTHER PROPERTY ON ACCOUNT OF YOUR ACCESS TO, USE OF, OR BROWSING IN ANY DESCRIBED WEB SITE, OR YOUR DOWNLOADING OF ANY MATERIALS, DATA, TEXT, IMAGES, VIDEO, OR AUDIO FROM ANY DESCRIBED WEB SITE. WEB SITE INFORMATION IS OBTAINED FROM VARIOUS SOURCES AND MAY BE INACCURATE. COPIES OF COPYRIGHTED INFORMATION MAY ONLY BE MADE FOR LEGALLY PERMISSIBLE PURPOSES. Sony Electronics Inc. reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein is governed by the terms of a separate user license agreement. This product contains software owned by Sony and licensed by third parties. Use of such software is subject to the terms and conditions of license agreements enclosed with this product. Some of the software may not be transported or used outside the United States. Software specifications are subject to change without notice and may not necessarily be identical to current retail versions. 3 Certain product(s) included with this computer may include features such as copy protection and content management technology. USE OF THE SOFTWARE PRODUCT(S) REQUIRES AGREEMENT TO APPLICABLE END USER AGREEMENTS AND FULL COMPLIANCE WITH APPLICABLE PRODUCT ACTIVATION PROCEDURES. Product activation procedures and privacy policies will be detailed during initial launch of the software product(s), or upon certain reinstallations of the software product(s), or reconfigurations of the computer, and may be completed by Internet or telephone (toll charges may apply). Updates and additions to software may require an additional charge. Subscriptions to online service providers may require a fee and credit card information. Financial services may require prior arrangements with participating financial institutions. Important information for Canadian customers: Your new VAIO ® computer includes certain software versions or upgrades, and Internet services or offers that are available to U.S. customers only. Sony, VAIO, and the VAIO logo are trademarks or registered trademarks of Sony Corporation. All other trademarks are trademarks or registered trademarks of their respective owners. The Wireless LAN functionality, which is incorporated into selected models only, has passed Wi-Fi certification and complies with the interoperability specifications established by WFA (Wi-Fi Alliance). Reverse engineering or disassembly is prohibited. End User / Product Activation Requirements Certain software product(s) included with this computer may include features such as copy protection and content management technology. Use of the software product(s) requires agreement to applicable end user agreements and full compliance with applicable product activation procedures. Product activation procedures and privacy policies will be detailed during initial launch of the software product(s), or upon certain reinstallations of the software product(s) or reconfiguration of the computer, and may be completed by Internet or telephone (toll charges may apply). 4 Safety Information and Caution For questions regarding your product or for the Sony Service Center nearest you, visit the Sony online support Web site at http://esupport.sony.com/EN/VAIO/ for customers in USA or at http://www.sony.ca/support/ for customers in Canada. ❑ To prevent fire or shock hazard, do not expose your computer to rain or moisture. ❑ To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. ❑ Turning off your computer with the power button or the power switch does not disconnect the computer completely from mains voltage. To disconnect it completely, unplug the AC adapter or the power cable from mains. The socket-outlet shall be installed near the equipment and shall be easily accessible. ❑ Do not use your computer directly on your lap. The temperature of the base of the unit will rise during normal operation and over time could result in discomfort or burns. ❑ Do not place the AC adapter in contact with your skin. Remove the AC adapter awa…

Text truncated - open the document above for the full version.

PCTEST Engineering Laboratory Inc. 6660 Dobbin Road Suite B Columbia, Maryland 21045-4844 Tel.: 410-290-6652 / Fax: 410-290-6654 © 2011 PCTEST Engineering Laboratory Inc. D ATE: MAY 12, 2011 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Attestation Statement Sony Corporation FCC ID: AK8PCG41311L Original Certification Laptop Product To whom it may concern: On behalf of Sony Corporation, we attest that the attached NII/DTS/DSS power levels provided by Intel (FCC ID: PD962230ANH) are the tuned levels that will be implemented in the Sony product, FCC ID: AK8PCG41311L. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely,

Sony Corpor ation 1-7-1 Konan, Minato-ku, Tokyo, 108-0075 Japan Date: 04/11/201 1 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: AK8PCG41311L To Whom It May Concern: Pursuant to sections 0.457 and 0. 459 of the Commission’s Rules (CFR 47) and section 552 (b) (4) of the Freedom of Information Act, Sony Corporation hereby request confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. We also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Sony Corporation temporary confidentiality of commercially sensitive information prior to product release. The requested permanent and temporary confidential items are listed as follows: PERMANENT AND SHORT-TERM CONFIDEN TIALITY LIST Term Description PERMANENT CONFIDENTIALITY All Bloc k D iagr am s All Sc he matic s All P art Li st s and Tu ne Up Pr oce dur es All O per ati on al De scri pti on s All Ante n na In fo rm ati o n SHORT-TERM CONFIDENTIALITY All E xter nal Ph oto s All Intern al Ph oto s All T est-S etu p P h oto s All SA R Te st-Setu p Ph ot os All User' s Man u al and S afet y Gui de The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the grant for this application. Regards, Ryui Tatsumi Senior Manager Quality Assurance Department. No 1 CS & Quality Division VAIO & Mo bile Business Group SONY Co rporation.

Sony Corporation 1-7-1 Konan, Minato-ku, Tokyo, 108-0075 Japan Date:!04/11/2011! ! Federal!Communications!Commission! 7435!Oakland!Mills!Road! Columbia,!MD!21046! ! RE:!Letter!or!Authorization!for!FCC!ID:!AK8PCG41311L! ! To!Whom!It!May!Concern:! ! We!the!undersigned,!hereby!authorize!PCTEST!Engineering!Laboratory!Inc.!to!act!on!our!behalf!in!all! manners!relating!to!application!for!equipment!authorization,!including!signing! of!all!documents!related!to! these!matters.! Any!and!all!acts!carried!out!by!PCTEST!Engineering!Laboratory!Inc.,!on!our!behalf!shall!have!the!same!effect! as!acts!of!our!own.! ! This!authorization!from!Sony!Corporation!is!valid!for!120!days!from!the!date!of!the!letter.!! ! ! ! Regards,! ! ! ! ! !!!! ! Ryui!Tatsumi! Senior!Manager! Quality!Assurance!Department.!No1! CS!&!Quality!Division! VAIO!&!Mobile!Business!Group! SONY!Corporation.! ! ! !

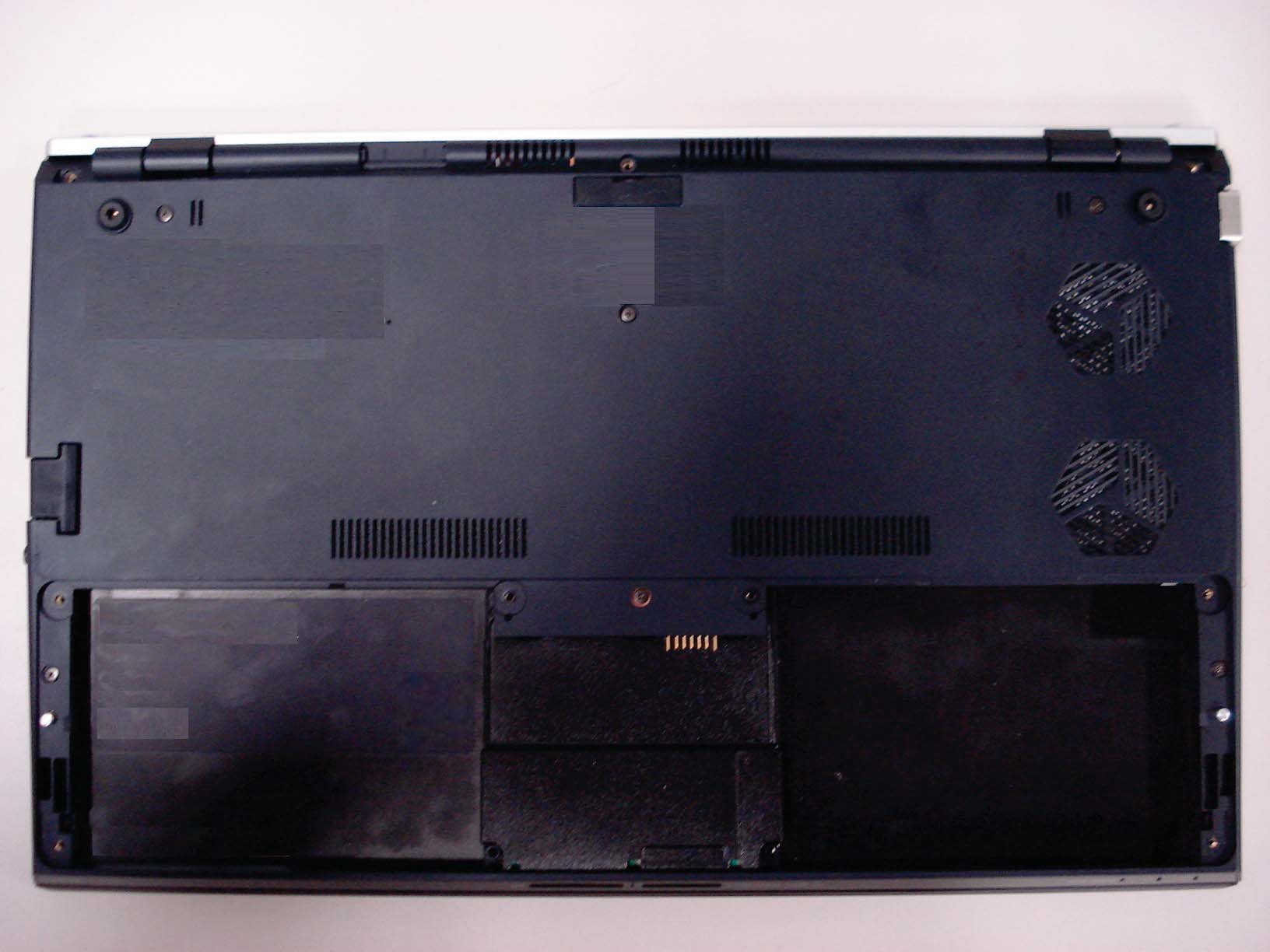

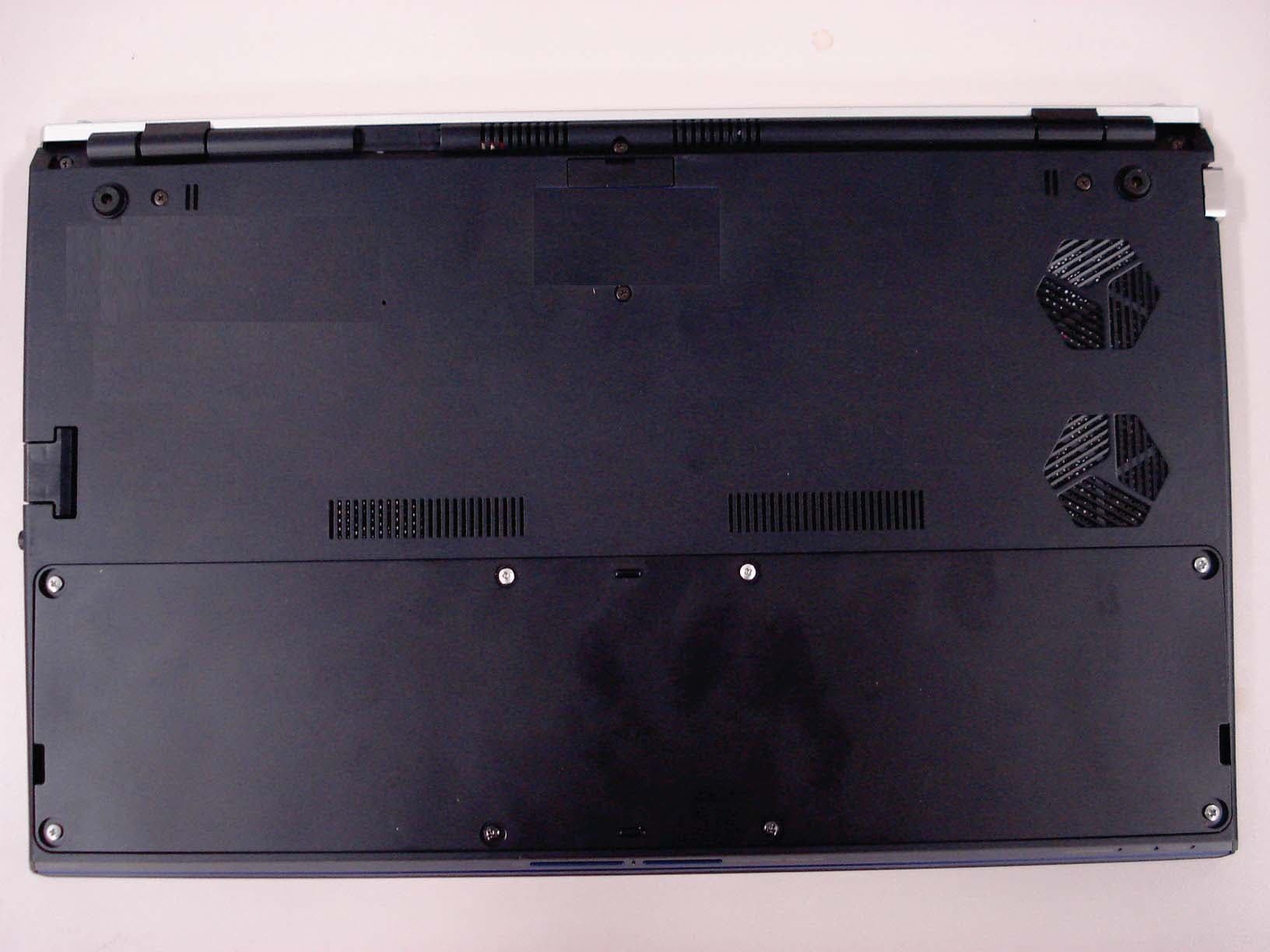

LABEL ID AND LOCATION Label on the bottom of the device

Gobi3000™ Module Regulatory Internal Photos 80-N2162-206 Rev. A July 14, 2010 Submit technical questions to: [email protected] QUALCOMM is a registered trademark of QUALCOMM Incorporated in the United States and may be registered in other countries. Other product and brand names may be trademarks or registered trademarks of their respective owners. CDMA2000 is a registered certification mark of the Telecommunications Industry Association, used under license, ARM is a registered trademark of ARM Limited. QDSP is a registered trademark of QUALCOMM Incorporated in the United States and other countries. This technical data may be subject to U.S. and international export, re-export, or transfer (“export”) laws. Diversion contrary to U.S. and international law is strictly prohibited. QUALCOMM Incorporated 5775 Morehouse Drive San Diego, CA 92121-1714 U.S.A. Copyright © 2010 QUALCOMM Incorporated. All rights reserved. 80-N2162-206 Rev. A ii MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION July 14, 2010 Gobi3000™ Module Regulatory Internal Photos 80-N2162-206 Rev. A Gobi3000™ Module Regulatory Internal Photos Revision History 80-N2162-206 Rev. A iii MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION Revision History Date Change Description Revision Editor(s) 07/14/2010 Initial Release A Paul Jayne Gobi3000™ Module Regulatory Internal Photos Internal Photos 80-N2162-206 Rev. A 1 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION Figure 1 Gobi3000 Module Top View Internal Photograph (Shield Removed) Figure 2 Gobi3000 Module Bottom View External Photograph (Label Removed)

FCC ID: AK8PCG41311L SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 1 of 36 0Y1103150529.AK8 03/28/11 - 04/07/11 Laptop PC with WWAN, WLAN and Bluetooth © 2011 PCTEST Engineering Laboratory, Inc. REV 8.9M 03/14/2011 Applicant Name: Date of Testing: Sony Corporation 03/28/11 - 04/07/11 1-7-1 Konan Minato-ku Test Site/Location: Tokyo PCTEST Lab, Columbia, MD, USA Japan, 108-0075 Test Report Serial No.: 0Y1103150529.AK8 F C C I D : AK 8 P CG 4 1 3 1 1 L AP P L I C AN T : S O N Y C O RP O R AT IO N EUT Type: Laptop PC with WWAN, WLAN and Bluetooth Application Type: Certification FCC Rule Part(s): Model(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] PCG-41311L Tx Frequency: 824.20 - 848.80 MHz (GSM 850) / 1850.20 - 1909.80 MHz (GSM 1900) 826.40 - 846.60 MHz (UMTS V) / 1852.4 - 1907.6 MHz (UMTS II) 824.70 - 848.31 MHz (Cellular CDMA) / 1851.25 - 1908.75 MHz (PCS CDMA) 2412 - 2462 MHz (WLAN 802.11b/g/n) 5180 - 5240 MHz (WLAN 802.11a/n) / 5260 - 5320 MHz (WLAN 802.11a/n) 5500 - 5700 MHz (WLAN 802.11 a/n) / 5745 - 5825 MHz (WLAN 802.11a/n) Conducted Power: 32.31 dBm GSM 850 / 29.35 dBm GSM 1900 23.87 dBm UMTS V / 24.19 dBm UMTS II 23.92 dBm Cell. CDMA / 24.31 dBm PCS CDMA 15.78 dBm 2.4 GHz WLAN 16.02 dBm 5.2 GHz WLAN 802.11a / 16.06 dBm 5.3 GHz WLAN 802.11a 16.86 dBm 5.5 GHz WLAN 802.11a / 15.01 dBm 5.8 GHz WLAN 802.11a Max. SAR Measurement: 0.11 W/kg GSM 850 Body SAR / 0.12 W/kg GSM 1900 Body SAR 0.07 W/kg UMTS V Body SAR / 0.09 W/kg UMTS II Body SAR 0.06 W/kg Cell. CDMA Body SAR / 0.13 W/kg PCS CDMA Body SAR 0.03 W/kg 2.4 GHz WLAN Body SAR 0.05 W/kg 5.2 GHz WLAN 802.11a / 0.03 W/kg 5.3 GHz WLAN 802.11a 0.06 W/kg 5.5 GHz WLAN 802.11a / 0.09 W/kg 5.8 GHz WLAN 802.11a Test Device Serial No.: Pre-Production [S/N: DVT15590 1800006] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6554 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT FCC ID: AK8PCG41311L SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 2 of 36 0Y1103150529.AK8 03/28/11 - 04/07/11 Laptop PC with WWAN, WLAN and Bluetooth © 2011 PCTEST Engineering Laboratory, Inc. REV 8.9M 03/14/2011 T A B L E O F C O N T E N T S 1 INTRODUCTION .............................................................................................................................. 3 2 TEST SITE LOCATION.................................................................................................................... 4 3 SAR MEASUREMENT SETUP ........................................................................................................ 5 4 DASY E-FIELD PROBE SYSTEM ................................................................................................... 7 5 PROBE CALIBRATION PROCESS ................................................................................................. 8 6 PHANTOM AND EQUIVALENT TISSUES ...................................................................................... 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS ................................................................... 10 8 FCC RF EXPOSURE LIMITS ........................................................................................................ 11 9 FCC 2G/3G MEASUREMENT PROCEDURES............................................................................. 12 10 SAR TESTING WITH IEEE 802.11 TRANSMITTERS .................................................................. 15 11 SAR TEST CONFIGURATIONS .................................................................................................... 20 12 SAR DATA SUMMARY .................................................................................................................. 22 13 SIMULTANEOUS ANALYSIS ........................................................................................................ 24 14 SYSTEM VERIFICATION .............................................................................................................. 26 15 EQUIPMENT LIST ......................................................................................................................... 28 16 MEASUREMENT UNCERTAINTIES ............................................................................................. 29 17 CONCLUSION ............................................................................................................................... 31 18 REFERENCES ............................................................................................................................... 32 19 SAR TEST SETUP PHOTOGRAPHS ........................................................................................... 34 FCC ID: AK8PCG41311L SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 3 of 36 0Y1103150529.AK8 03/28/11 - 04/07/11 Laptop PC with WWAN, WLAN and Bluetooth …

Text truncated - open the document above for the full version.

APPENDIX A: SAR TEST DATA PCTEST ENGINEERING LABORATORY, INC. DUT: PCG-41311L; Type: Laptop PC with WWAN, WLAN and Bluetooth Serial: DVT15590 1800006 Communication System: GSM850 GPRS; 2 Tx slots; Frequency: 836.6 MHz;Duty Cycle: 1:4.15 Medium: 835 Body Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.947 mho/m; ε r = 53.8; ρ = 1000 kg/m 3 Phant om section: Flat Section; Space: 0.0 cm Test Date: 04-07-2011; Ambient Temp: 23.7°C; Tissue Temp: 21.9°C Probe: EX3DV4 - SN3561; ConvF(8.09, 8.09, 8.09); Calibrated: 8/19/2010 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 2/21/2011 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1406 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: GPRS 850, Body SAR, Laptop, Mid.ch, 2 Tx Slots Area Scan (7x17x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Refer ence Value = 11.9 V/m Peak SAR (extrapolated) = 0.178 W/kg SAR(1 g) = 0.108 mW/g; SAR(10 g) = 0.069 mW/g 0 dB = 0.118mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: PCG-41311L; Type: Laptop PC with WWAN, WLAN and Bluetooth Serial: DVT15590 1800006 Communication System: GSM850 GPRS; 2 Tx slots; Frequency: 836.6 MHz;Duty Cycle: 1:4.15 Medium: 835 Body Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.947 mho/m; ε r = 53.8; ρ = 1000 kg/m 3 Phant om section: Flat Section; Space: 0.0 cm Test Date: 04-07-2011; Ambient Temp: 23.7°C; Tissue Temp: 21.9°C Probe: EX3DV4 - SN3561; ConvF(8.09, 8.09, 8.09); Calibrated: 8/19/2010 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 2/21/2011 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1406 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: GPRS 850, Body SAR, Laptop, Mid.ch, 2 Tx Slots Area Scan (7x17x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Refer ence Value = 11.9 V/m Peak SAR (extrapolated) = 0.178 W/kg SAR(1 g) = 0.108 mW/g; SAR(10 g) = 0.069 mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: PCG -41311L; Type: Laptop PC with WWAN, WLAN and Bluetooth Serial: DVT15590 180000 6 Communication System: GSM1900 GPRS; 2 Tx slots; Frequency: 1880 MHz;Duty Cycle: 1:4.15 Medium: 1900 Body; Medium parameters used: f = 1880 MHz; σ = 1.54 mho/m; ε r = 50.9; ρ = 1000 kg/m 3 P hantom section: Flat Section; Space: 0.0. cm Test Date: 03-28-2011; Ambient Temp: 23.9 °C; Tissue Temp: 22.5 °C Probe: EX3DV4 - SN3550; ConvF(6.77, 6.77, 6.77); Calibrated: 2/14/2011 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn859; Calibrated: 7/8/2010 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1357 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: GPRS 1900, Body SAR, Laptop Position, Mid.ch, 2 T x S l o t s Area Scan (7x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Referen ce Value = 8.65 V/m Peak SAR (extrapolated) = 0.213 W/kg SAR(1 g) = 0.116 mW/g; SAR(10 g) = 0.057 mW/g 0 dB = 0.139mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: PCG-41311L; Type: Laptop PC with WWAN, WLAN and Bluetooth Serial: DVT15590 1800006 Communication System: WCDMA850; Frequency: 826.4 MHz;Duty Cycle: 1:1 Medium: 835 Body Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.935 mho/m; ε r = 53.7; ρ = 1000 kg/m 3 Phant om section: Flat Section; Space: 0.0 cm Test Date: 04-07-2011; Ambient Temp: 23.7°C; Tissue Temp: 21.9°C Probe: EX3DV4 - SN3561; ConvF(8.09, 8.09, 8.09); Calibrated: 8/19/2010 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 2/21/2011 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1406 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: WCDMA 850, Body SAR, Laptop, Low ch Area Scan (7x17x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Refer ence Value = 8.84 V/m Peak SAR (extrapolated) = 0.111 W/kg SAR(1 g) = 0.069 mW/g; SAR(10 g) = 0.044 mW/g 0 dB = 0.075mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: PCG-41311L; Type: Laptop PC with WWAN, WLAN and Bluetooth Serial: DVT15590 1800006 Communication System: WCDMA1900; Frequency: 1907.6 MHz;Duty Cycle: 1:1 Medium: 1900 Body Medium parameters used (interpolated): f = 1907.6 MHz; σ = 1.569 mho/m; ε r = 50.8; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 0.0 cm Test Date: 03-28-2011; Ambient Temp: 23.9 °C; Tissue Temp: 22.5 °C Probe: EX3DV4 - SN3550; ConvF(6.77, 6.77, 6.77); Calibrated: 2/14/2011 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn859; Calibrated: 7/8/2010 Phantom: SAM Sub; Type: SAM 4.0; Serial: TP-1357 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: WCDMA 1900, Body SAR, Laptop Position, High.ch Area Scan (7x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.24 V/m Peak SAR (extrapolated) = 0.155 W/kg SAR(1 g) = 0.091 mW/g; SAR(10 g) = 0.050 mW/g 0 dB = 0.105mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: PCG-41311L; Type: Laptop PC with WWAN, WLAN and Bluetooth Serial: DVT15590 1800006 Communication System: Cellular CDMA; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: 835 Body Medium parameters used (interpolated): f = 824.7 MHz; σ = 0.934 mho/m; ε r = 53.7; ρ = 1000 kg/m 3 Phanto m section: Flat Section; Space: 0.0 cm Test Date: 04-07-2011; Ambient Temp: 23.7°C; Tissue Temp: 21.9°C Probe: EX3DV4 - SN3561; ConvF(8.09, 8.09, 8.09); Calibrated: 8/19/2010 Sensor-Surface: 4mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 2/21/2011 Phantom: SAM Main; Type: SAM 4.0; Serial: TP-1406 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Mode: Cellular EVDO, Body SAR, Laptop, Low.ch Ar ea Scan (7x17x1): Measurement grid: dx=15mm, dy=15mm Zoom Sc…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: AK8PCG41311L FCC Pt. 22/24 GSM/EDGE/CDMA/WCDMA TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1103150530.AK8 Mar. 28 - May 5, 2011 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA/CDMA/EvDO Laptop with Bluetooth and WLAN Page 1 of 80 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.4GCWFI 10/26/2010 Applicant Name: Date of Testing: Sony Corporation Mar. 28 - May 5, 2011 1-7-1 Konan Test Site/Location: Minato-ku PCTEST Lab., Columbia, MD, USA 108-0075 Test Report Serial No.: Japan 0Y1103150530.AK8 FCC ID: AK8PCG41311L IC CERTIFICATION NO.: 409B-PCG41311L APPLICANT: SONY CORPORATION Application Type: Certification FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §2; §22(H), §24(E) IC Specification(s): RSS-132 Issue 2; RSS-133 Issue 5 EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA/CDMA/EvDO Laptop with Bluetooth and WLAN Model(s): PCG-41311L Tx Frequency Range: 824.20 - 848.80MHz (Cell. GSM) / 1850.20 - 1909.80MHz (PCS GSM) 826.40 - 846.60MHz (Cell. WCDMA) / 1852.4 - 1907.6MHz (PCS WCDMA) 824.70 - 848.31MHz (Cell. CDMA) / 1851.25 - 1908.75MHz (PCS CDMA) Max. RF Power: 1.172 W ERP Cell. GSM (30.69 dBm) / 1.009 W EIRP PCS GSM (30.039 dBm) 0.168 W ERP Cell. WCDMA (22.25 dBm) / 0.411 W EIRP PCS WCDMA (26.139 dBm) 0.153 W ERP Cell. CDMA (21.84 dBm) / 0.341 W EIRP PCS CDMA (25.329 dBm) 0.3 W ERP EDGE850 (24.77 dBm) 0.413 W EIRP EDGE1900 (26.159 dBm) Em. Designator(s): 244KGXW (Cellular GSM), 243KGXW (PCS GSM) 243KG7W (EDGE850), 245KG7W (EDGE1900) 4M11F9W (Cellular WCDMA), 4M17F9W (PCS WCDMA) 1M28F9W (Cellular CDMA), 1M28F9W (PCS CDMA) Test Device S/N: identical prototype [S/N: DVT155901800006] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the be st of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22 & 24 / IC RSS-132/RSS-133 Reviewed by: FCC ID: AK8PCG41311L FCC Pt. 22/24 GSM/EDGE/CDMA/WCDMA TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1103150530.AK8 Mar. 28 - May 5, 2011 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA/CDMA/EvDO Laptop with Bluetooth and WLAN Page 2 of 80 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.4GCWFI 10/26/2010 T ABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT............................................................................3 1.0 INTRODUCTION....................................................................................................................4 1.1 SCOPE..................................................................................................................................................................4 1.2 TESTING FACILITY............................................................................................................................................4 2.0 PRODUCT INFORMATION.....................................................................................................5 2.1 EQUIPMENT DESCRIPTION...........................................................................................................................5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS....................................................................................5 2.3 LABELING REQUIREMENTS...........................................................................................................................5 3.0 DESCRIPTION OF TESTS......................................................................................................6 3.1 MEASUREMENT PROCEDURE......................................................................................................................6 3.2 OCCUPIED BANDWIDTH EMISSION LIMITS...............................................................................................6 3.3 CELLULAR - BASE FREQUENCY BLOCKS.................................................................................................6 3.4 CELLULAR - MOBILE FREQUENCY BLOCKS.............................................................................................7 3.5 PCS - BASE FREQUENCY BLOCKS..............................................................................................................7 3.6 PCS - MOBILE FREQUENCY BLOCKS.........................................................................................................7 3.7 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL...................................................7 3.8 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS...............................................................8 3.9 PEAK-AVERAGE RATIO...................................................................................................................................8 3.10 FREQUENCY STABILITY / TEMPERATURE VARIATION.........................................................................9 4.0 TEST EQUIPMENT CALIBRATION DATA.............................................................................10 5.0 SAMPLE CALCULATIONS....................................................................................................11 6.0 TEST RESULTS..................................…

Text truncated - open the document above for the full version.

Sony Corporation FCC ID: AK8PCG41311L Model: PCG-41311L Test Set-Up Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA/CDMA/EvDO Laptop with Bluetooth and WLAN Page 1 of 2 © 2011 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Sony Corporation FCC ID: AK8PCG41311L Model: PCG-41311L Test Set-Up Photos EUT Type: 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA/CDMA/EvDO Laptop with Bluetooth and WLAN Page 2 of 2 © 2011 PCTEST Engineering Laboratory Inc.

FCC ID: AK8PCG41311L SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 34 of 36 0Y1103150529.AK8 03/28/11 - 04/07/11 Laptop PC with WWAN, WLAN and Bluetooth © 2011 PCTEST Engineering Laboratory, Inc. REV 8.9M 03/14/2011 19 SAR TEST SETUP PHOTOGRAPHS FCC ID: AK8PCG41311L SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename:…

Text truncated - open the document above for the full version.
