AK8PCG481LNotebook Personal Computer with Mini PCI WLAN

REVIEW COVER SHEET IRX-2390 Documentation: Draft 2 Review Product Title: VAIO® Notebook Documentation Coordinator: Karen Biederman Phone Number: 408-955-5095 Fax Number: 408-955-6287 E-mail: [email protected] Alternate Contact: Johan Rindegård E-mail: [email protected] Please review and return your changes no later than: Thursday, April 17 @ 5:00pm (PDT) Distribute to: • Alioto, Gina • Araki, Michiko • Capobianco, Anthony • Demps, Sherman • Garay, Rommel • Gregorio, Myla • Iio, Sakurako • Jenkins, Eric • Joaquin, Michael • Nakajima, Akiko • Okamoto, Mariko • Poon, Winston • Rindegard, Johan • Shimizu, Takashi (Gon) • Takizawa, Tatsuya Approved as is: Approved with changes as noted: Signature: ________________ Date: ___________________ Comments: ______________ ________________________ ________________________ ________________________ ________________________ ________________________ ________________________ ________________________ ________________________ ________________________ ________________________ ________________________ VAIO® Computer Quick Start PCG-TR1A Series VAIO Computer Quick Start 2 3 Contents Notice to Users ............................................5 Setting Up ..................................................15 Unpacking Your Computer .......................................16 Applying Ergonomics ...............................................18 Locating Controls and Ports ......................................19 Getting Started ..........................................25 Turning On Your Computer ......................................27 Using the Touch Pad .................................................31 Registering Your Computer ......................................32 Locating Your VAIO Computer User Guide ............32 Setting Up A Dial-Up Connection ............................34 Turning Off Your Computer .....................................35 Expanding Your Computing Power .........37 Upgrading Memory ...................................................38 Locating Preinstalled Programs ................................38 Caring for Your Computer ........................39 Storing Your Computer .............................................40 Using Cables and Connections..................................40 VAIO Computer Quick Start 4 Cleaning Your Computer .......................................... 41 Handling the LCD Screen ......................................... 41 Using the Application Recovery and System Recovery CDs ..............................43 Application and System Recovery CDs.................... 44 Using Your Recovery CDs ....................................... 44 Troubleshooting........................................51 Computer .................................................................. 52 5 Notice to Users © 2003 Sony Electronics Inc. All rights reserved. This manual and the software described herein, in whole or in part, may not be reproduced, translated, or reduced to any machine-readable form without prior written approval. SONY ELECTRONICS INC. PROVIDES NO WARRANTY WITH REGARD TO THIS MANUAL, THE SOFTWARE, OR OTHER INFORMATION CONTAINED HEREIN AND HEREBY EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE WITH REGARD TO THIS MANUAL, THE SOFTWARE, OR SUCH OTHER INFORMATION. IN NO EVENT SHALL SONY ELECTRONICS INC. BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, OR SPECIAL DAMAGES, WHETHER BASED ON TORT, CONTRACT, OR OTHERWISE, ARISING OUT OF OR IN CONNECTION WITH THIS MANUAL, THE SOFTWARE, OR OTHER INFORMATION CONTAINED HEREIN OR THE USE THEREOF. Sony Electronics Inc. reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein is governed by the terms of a separate user license agreement. This product contains software owned by Sony and licensed by third parties. Use of such software is subject to the terms and conditions of license agreements enclosed with this product. Some of the software may not be transported or used outside the United States. Software specifications are subject to change without notice and may not necessarily be identical to current retail versions. Updates and additions to software may require an additional charge. Subscriptions to online service providers may require a fee and credit card information. Financial services may require prior arrangements with participating financial institutions. The International ENERGY STA R ® O ff i c e Equipment Program is an international program that promotes energy saving through the use of computers and other office equipment. The program backs the development and dissemination of products with functions that effectively reduce energy consumption. It is an open system in which business proprietors can participate voluntarily. The targeted products are office equipment such as computers, displays, printers, facsimiles and copiers. Their standards and logos are uniform among participating nations. ENERGY STA R i s a U . S . registered mark. As an ENERGY STAR® Partner, Sony Corporation has determined that this product meets the ENERGY STA R ® guidelines for energy efficiency. VAIO Computer Quick Start 6 Sony, DVgate Plus, Handycam, i.LINK, Mavica, MagicGate™ Memory Stick, Memory Stick, VAIO, and the VAIO logo are trademarks of Sony Corporation. Microsoft, Windows Media, Windows, Windows NT, and the Windows logo are registered trademarks of Microsoft Corporation. Intel, SpeedStep, and Pentium are trademarks or registered trademarks of Intel Corporation. PS/2 is a registered trademark of IBM. Acrobat Reader, Photoshop, Photoshop Elements, and Premiere are trademarks of Adobe Systems Incorporated. PowerPanel is a trademark of Phoenix Technologies Ltd. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovisi…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 May 7, 2003 RE: FCC ID: AK8PCG481L Attention: Keijiro Kumagai I have a few comments on this Application. 1. Please note that you have not provided the actual FCC ID label drawing. Please provide an FCC ID label drawing with the actual FCC ID number on it. 2. Please note, the antenna for the WLAN is in the upper portion of the LCD. This means that under normal use the antenna will be ore than 20cm from the body. Unless the device transmits when the LCD screen is closed, there is not need for SAR measurements to be made for this device. Please verify that the device is capable of transmitting when the LCD is in the closed position. 3. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

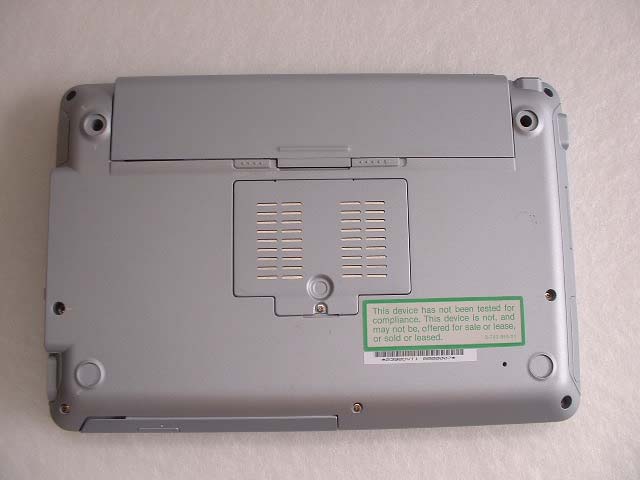

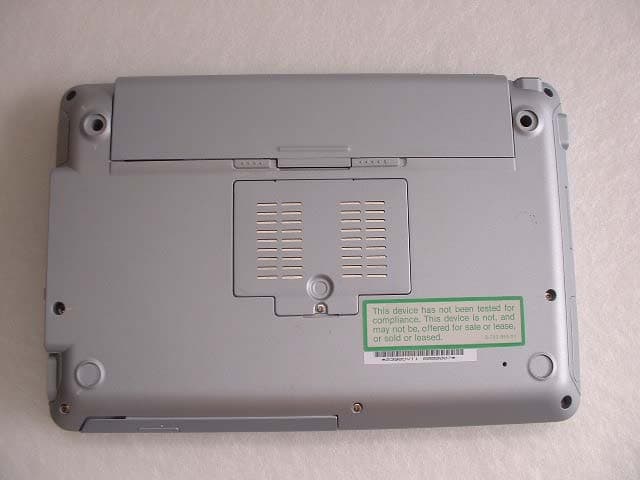

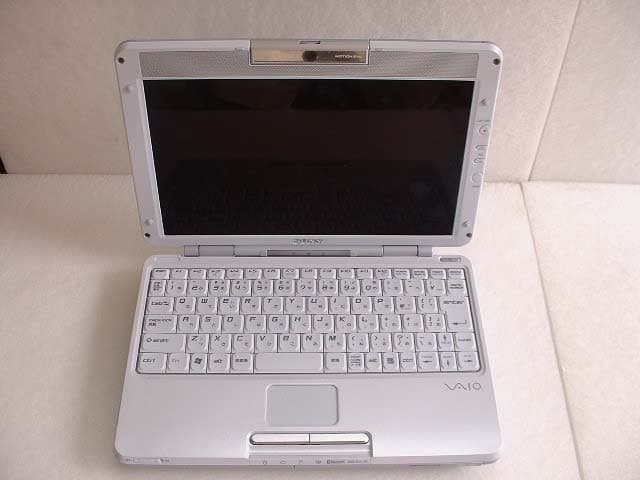

External Photo Sony Corporation Model Name: PCG-481L FCC ID: AK8PCG481L Open View Open View (Back) External Photo Sony Corporation Model Name: PCG-481L FCC ID: AK8PCG481L To p Vi e w Bottom View External Photo Sony Corporation Model Name: PCG-481L FCC ID: AK8PCG481L Left Hand Side Right Hand Side External Photo Sony Corporation Model Name: PCG-481L FCC ID: AK8PCG481L Close View (Front) Close View (Back)

Internal Photo Sony Corporation Model Name: PCG-481L FCC ID: AK8PCG481L Top View with RF Shield Top View without RF Shield Internal Photo Sony Corporation Model Name: PCG-481L FCC ID: AK8PCG481L Bottom View Top View with Label Internal Photo Sony Corporation Model Name: PCG-481L FCC ID: AK8PCG481L Bottom View with Label

Test report No. : 23HE0112-HO-1 Page : 2 of 56 Issued date : April 30,2003 FCC ID : AK8PCG481L UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 CONTENTS PAGE SECTION 1 : Client information 3 SECTION 2 : Equipment under test (E.U.T.) 3 SECTION 3 : Requirements for compliance testing defined by the FCC 4 SECTION 4 : Dosimetric assessment setup 4 SECTION 5 : Test system specifications 7 SECTION 6 : Test setup of EUT 8 SECTION 7 : Measurement uncertainty 10 SECTION 8 : Simulated tissue liquid parameter 11 SECTION 9 : System validation data 12 SECTION 10 : Evaluation procedure 13 SECTION 11 : Exposure limit 14 SECTION 12 : SAR Measurement results 15 SECTION 13 : Equipment & calibration information 16 SECTION 14 : References 17 SECTION 15 : APPENDIX 17 APPENDIX 1 : Photographs of test setup APPENDIX 2 : SAR Measurement data APPENDIX 3 : Validation Measurement data APPENDIX 4 : System Validation Dipole (D2450V2,S/N: 713) APPENDIX 5 : Dosimetric E-Field Probe Calibration(ET3DV6,S/N: 1684) Test report No. : 23HE0112-HO-1 Page : 3 of 56 Issued date : April 30,2003 FCC ID : AK8PCG481L UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 1 : Client information Company Name : Sony Corporation Brand Name : SONY Address : 6-7-35 Kita-Sinagawa Sinagawa –ku Tokyo, Japan Telephone Number : +81-3-5795-8033 Facsimile Number : +81-3-5795-8346 Contact Person : Genshi Yoshioka SECTION 2 : Equipment under test (E.U.T.) 2.1 Identification of E.U.T. APPLICANT : Sony Corporation Type of Equipment : Notebook Personal Computer Model No. : PCG-481L Serial No. : JA003 Rating : DC3.3V+/-0.1V Country of Manufacture : Japan Receipt Date of Sample : April 17,2003 Condition of EUT : Enginieering prototype Tx Frequency : 2412MHz ~2462MHz Modulation : DSSS [DBPSK(1M), DQPSK(2M),CCK(5.5.M-11M)] Max.Output Power Tested : 16.15dBm Peak Conducted Antenna Type : λ/4-Monopole Antenna Position of antenna : See Photograph of right Battery option : Only one model with EUT Category Identified : Portable device Antenna of W-LAN Test report No. : 23HE0112-HO-1 Page : 4 of 56 Issued date : April 30,2003 FCC ID : AK8PCG481L UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 3 : Requirements for compliance testing defined by the FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996. The order requires routine SAR evaluation prior to equipment authorization of portable transmitter devices, including portable telephones. For consumer products, the applicable limit is 1.6 mW/g for an uncontrolled environment and 8.0 mW/g for an occupational/controlled environment as recommended by the ANSI/IEEE standard C95.1-1992. According to the Supplement C of OET Bulletin 65 “Evaluating Compliance with FCC Guide-lines for Human Exposure to Radio frequency Electromagnetic Fields", released on Jun 29, 2001 by the FCC, the device should be evaluated at maximum output power (radiated from the antenna) under “worst-case” conditions for normal or intended use, incorporating normal antenna operating positions, device peak performance frequencies and positions for maximum RF energy coupling. 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. SECTION 4 : Dosimetry assessment setup These measurements were performed with the automated near-field scanning system DASY3 from Schmid & Partner Engineering AG (SPEAG). The system is based on a high precision robot (working range greater than 0.9 m), which positions the probes with a positional repeatability of better than +/- 0.02 mm. Special E- and H-field probes have been developed for measurements close to material discontinuity, the sensors of which are directly loaded with a Schottky diode and connected via highly resistive lines to the data acquisition unit. The SAR measurements were conducted with the dosimetry probe ET3DV6, SN: 1684 (manufactured by SPEAG), designed in the classical triangular configuration and optimized for dosimetric evaluation. The probe has been calibrated according to the procedure described in [2] with accuracy of better than +/-10%. The spherical isotropy was evaluated with the procedure described in [3] and found to be better than +/-0.25 dB. The phantom used was the SAM Twin Phantom as described in FCC supplement C, IEE P1528 and CENELEC EN50361. Test report No. : 23HE0112-HO-1 Page : 5 of 56 Issued date : April 30,2003 FCC ID : AK8PCG481L UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 4.1 Configuration and peripherals The DASY3 system for performing compliance tests consist of the following items: 1. A standard high precision 6-axis robot (Stäubli RX family) with controller and software. 2. An arm extension for accommodating the data acquisition electronics (DAE). 3. A dosimetric probe, i.e., an isotropic E-field probe optimized and calibrated for usage in tissue simulating liquid. The probe is equipped with an optical surface detector system. 4. A data acquisition electronic (DAE), which performs the signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection, etc. The unit is battery powered with standard or rechargeable batteries. The signal is optically transmitted to the EOC. 5. A unit to operate the optical surface detector, which is connected to the EOC. 6. The Electro-optical coupler (EOC) performs the c…

Text truncated - open the document above for the full version.

Test report No. : 23HE0112-HO-1 Page : 23 of 56 Issued date : April 30,2003 FCC ID : AK8PCG481L UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 2 : SAR Measurement data

Test report No. : 23HE0112-HO-1 Page : 31 of 56 Issued date : April 30,2003 FCC ID : AK8PCG481L UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 MF058b(10.04.03) APPENDIX 3 : Validation Measurement data

Test report No. : 23HE0112-HO-1 Page : 33 of 56 Issued date : April 30,2003 FCC ID : AK8PCG481L UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 4 : System Validation Dipole (D2450V2,S/N: 713)

Test report No. : 23HE0112-HO-1 Page : 43 of 56 Issued date : April 30,2003 FCC ID : AK8PCG481L UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 5 : Dosimetric E-Field Probe Calibration(ET3DV6,S/N: 1684)

FCC ID : AK8PCG481L Test report No. : 23HE0003-YK-2 Page : 2 of 41 Issued date : March 31, 2003 A-Pex International Co., Ltd. YAMAKITA LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(23.04.02) Table of Contents Page 1 GENERAL INFORMATION 3 1.1 Tested Methodology 3 1.2 Test Facility 3 2 PRODUCT DESCRIPTION 4 3 SYSTEM TEST CONFIGURATION 5 3.1 Justification 5 3.2 Configuration of Tested System 6 4 MEASUREMENT UNCERTAINTY 7 5 SUMMARY OF TEST 8 5.1 §15.207 Conducted Emissions 8 5.2 §15.247(a)(2) 6dB Bandwidth (Antenna Port Conducted) 8 5.3 §15.247(b)(3) Maximum Peak Out Put Power (Antenna port Conducted) 8 5.4 §15.247(c) Out of Band Emissions (Radiated) 9 5.5 §15.247(c) Out of Band Emissions (Antenna Port Conducted) 9 5.6 §15.247(d) Power Density (Antenna Port Conducted) 9 Contents of Appendixes 10 APPENDIX 1: Photographs of test setup 11 APPENDIX 2: Test Data 13 APPENDIX 3: Test instruments 41 FCC ID : AK8PCG481L Test report No. : 23HE0003-YK-2 Page : 3 of 41 Issued date : March 31, 2003 A-Pex International Co., Ltd. YAMAKITA LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(23.04.02) 1 GENERAL INFORMATION Company Name : Sony Corporation Address : 6-7-35 Kita-shinagawa, Shinagawa-ku, Tokyo, 141- 0001 JAPAN Telephone Number : +81 3 5795 8033 Facsimile Number : +81 3 5795 8346 Contact Person : Genshi Yoshioka Type of Equipment : Notebook Personal Computer Model No. : PCG-481L Serial No. : JA003 Rating : AC100-240V, 50/60Hz Country of Manufacture : Japan Receipt Date of Sample : March 31, 2003 Condition of E.U.T. : Engineering prototype Regulation(s) : FCC Part15 Subpart C, Section 15.247 Test Site : A-Pex Yamakita No.1 Open Test Site 1.1 Tested Methodology The measurements were performed according to the procedures in ANSI C63.4 (2001). These tests were also referred to FCC 97-114 “Guidance on Measurement for Direct Sequence Spread Spectrum Systems”. 1.2 Test Facility This site has been fully described in a report submitted to FCC office, and accepted on September 20, 2002 (Registration No.: 95486). NVLAP Lab. code : 200441-0 FCC ID : AK8PCG481L Test report No. : 23HE0003-YK-2 Page : 4 of 41 Issued date : March 31, 2003 A-Pex International Co., Ltd. YAMAKITA LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(23.04.02) 2 PRODUCT DESCRIPTION Model: PCG-481L, referred to as the EUT in this report, is a Notebook Personal Computer. The EUT has a built-in Wireless LAN module. Clock frequencies used in EUT : 900MHz, 133MHz, 66MHz, 48MHz, 33.3MHz, 65MHz, 25MHz, 24.5MHz, 14.3MHz, 12.3MHz and 10MHz Frequency Characteristics : 2412 - 2462MHz Channel Characteristics : 11 channel selectable by 5MHz spacing Modulation : DSSS [DBPSK (1M), DQPSK (2M), CCK (5.5M-11M)] Antenna Type : Internal λ/4 Monopole antenna Antenna Gain : -2.6dBi ITU Emission Code(s) : 26M0G2D Power Supply : DC 3.3V (±0.1) Operation Temperature range : 5 – 35 deg. C. Antenna Connector Type : U.FL connecter (Hirose) *FCC Part15.31 (e) The host device PCG-481L provides the Wireless LAN module with stable power supply (DC3.3V), and the power is not changed when voltage of the personal computer is varied. Therefore, the Notebook Personal Computer complies power supply regulation. *FCC Part 15.203 Antenna requirement The standard type of antenna connector is applied: however, the Notebook Personal Computer complies this requirement since this radio equipment is for professional installation. FCC ID : AK8PCG481L Test report No. : 23HE0003-YK-2 Page : 5 of 41 Issued date : March 31, 2003 A-Pex International Co., Ltd. YAMAKITA LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(23.04.02) 3 SYSTEM TEST CONFIGURATION 3.1 Justification The system was configured in typical fashion (as a customer would normally use it) for testing. Test mode: 1. Transmitting 2412MHz (Low) mode 2. Transmitting 2437MHz (Middle) mode 3. Transmitting 2462MHz (High) mode FCC ID : AK8PCG481L Test report No. : 23HE0003-YK-2 Page : 6 of 41 Issued date : March 31, 2003 A-Pex International Co., Ltd. YAMAKITA LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(23.04.02) 3.2 Configuration of Tested System Front View Top View *Cabling was taken into consideration and test data was taken under worse case conditions. Description of EUT and Support equipment No. Item Model No. Serial No. Manufacturer Remark FCC ID A Notebook Personal Computer PCG-481L JA003 SONY EUT AK8PCG481L B AC Adaptor PCGA-16V6 0302GA SONY - List of cables used No. Name Length (m) Shield Backshell Material 1 AC Power Cable 0.8 Unshielded Polyvinyl chloride 2 DC Cable 2.0 Unshielded Polyvinyl chloride 2 1 2 1 B 1 AC120V/60Hz 2 B A A FCC ID : AK8PCG481L Test report No. : 23HE0003-YK-2 Page : 7 of 41 Issued date : March 31, 2003 A-Pex International Co., Ltd. YAMAKITA LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(23.04.02) 4 MEASUREMENT UNCERTAINTY Conducted emission test The measurement uncertainty (with a 95% confidence level) for this test was ±1.3dB. The data listed in this test report has enough margin, more than site margin. Radiated emission test The measurement uncertainty (with 95% confidence level) for this test using Biconical antenna is ±4.8dB. The measurement uncertainty (with 95% confidence level) for this test using Logperiodic antenna is ±5.2dB. The measurement uncertainty (with 95% confidence level) for this test using Horn antenna is ±6.6dB. The data listed in this test report has enough margin, more than site margin. FCC ID : AK8PCG481L Test r…

Text truncated - open the document above for the full version.

FCC ID : AK8PCG481L Test report No. : 23HE0003-YK-2 Page : 11 of 41 Issued date : March 31, 2003 A-Pex International Co., Ltd. YAMAKITA LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(23.04.02) Conducted emission FCC ID : AK8PCG481L Test report No. : 23HE0003-YK-2 Page : 12 of 41 Issued date : March 31, 2003 A-Pex International Co., Ltd. YAMAKITA LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(23.04.02) Radiated emission
