AK8PCG57ALNotebook Personal Computer with WLAN

REVIEW COVER SHEET Ventana Documentation: Quick Start Review Product Title: VAIO® Notebook Documentation Coordinator: Sandi Garza Phone Number: 408-955-5737 Fax Number: 408-955-6287 E-mail: [email protected] Alternate Contact: Karen Biederman E-mail: [email protected] Please review and return your changes no later than: Monday, Jan. 13, 2003 @ 5 pm (PST). Distribute to: • Alioto, Gina • Aoki, Rumiko • Araki, Michiko • Capobianco, Anthony • Fife, Ed • Garay, Rome • Hayashi, Jucca • Iio, Sakurako • Jenkins, Eric • Joaquin, Michael – • Okamoto, Mariko • Omori, Keith • Rindegard, Johan • Takizawa, Tatsuya • Wang, John Approved as is: Approved with changes as noted: Signature: ________________ Date: ___________________ Comments: ______________ ________________________ ________________________ ________________________ ________________________ ________________________ ________________________ ________________________ ________________________ ________________________ ________________________ ________________________ VAIO® Computer Quick Start PCG-XX Series 3 Contents Notice to Users ............................................5 Setting Up ..................................................15 Unpacking Your Computer .......................................16 Applying Ergonomics ...............................................18 Locating Controls and Ports ......................................19 Getting Started ..........................................25 Turning On Your Computer ......................................26 Using the Touch Pad .................................................30 Registering Your Computer ......................................31 Locating Your VAIO Computer User Guide ............32 Setting Up A Dial-Up Connection ............................34 Turning Off Your Computer .....................................36 Expanding Your Computing Power .........39 Upgrading Memory ...................................................40 Locating Preinstalled Programs ................................40 Using the Application Recovery and System Recovery CDs ..............................41 Application and System Recovery CDs ....................42 VAIO® Computer Quick Start 4 Using Your Recovery CDs ....................................... 42 Caring for Your Computer........................49 Storing Your Computer ............................................ 50 Using Cables and Connections ................................. 50 Cleaning Your Computer.......................................... 51 Handling the LCD Screen ......................................... 51 Troubleshooting........................................53 Troubleshooting Your Computer (Windows XP)..... 54 Troubleshooting Your Computer (Windows 2000) .. 59 Support Options ........................................................ 63 Index...........................................................65 5 Notice to Users © 2003 Sony Electronics Inc. All rights reserved. This manual and the software described herein, in whole or in part, may not be reproduced, translated, or reduced to any machine-readable form without prior written approval. SONY ELECTRONICS INC. PROVIDES NO WARRANTY WITH REGARD TO THIS MANUAL, THE SOFTWARE, OR OTHER INFORMATION CONTAINED HEREIN AND HEREBY EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE WITH REGARD TO THIS MANUAL, THE SOFTWARE, OR SUCH OTHER INFORMATION. IN NO EVENT SHALL SONY ELECTRONICS INC. BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, OR SPECIAL DAMAGES, WHETHER BASED ON TORT, CONTRACT, OR OTHERWISE, ARISING OUT OF OR IN CONNECTION WITH THIS MANUAL, THE SOFTWARE, OR OTHER INFORMATION CONTAINED HEREIN OR THE USE THEREOF. Sony Electronics Inc. reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein is governed by the terms of a separate user license agreement. This product contains software owned by Sony and licensed by third parties. Use of such software is subject to the terms and conditions of license agreements enclosed with this product. Some of the software may not be transported or used outside the United States. Software specifications are subject to change without notice and may not necessarily be identical to current retail versions. Updates and additions to software may require an additional charge. Subscriptions to online service providers may require a fee and credit card information. Financial services may require prior arrangements with participating financial institutions. The International ENERGY STAR® Office Equipment Program is an international program that promotes energy saving through the use of computers and other office equipment. The program backs the development and dissemination of products with functions that effectively reduce energy consumption. It is an open system in which business proprietors can participate voluntarily. The targeted products are office equipment such as computers, displays, printers, facsimiles and copiers. Their standards and logos are uniform among As an ENERGY STAR® Partner, Sony Corporation has determined that this product meets the ENERGY STA R ® guidelines for energy efficiency. VAIO® Computer Quick Start 6 participating nations. ENERGY STAR i s a U.S . registered mark. Sony, DVgate, Handycam, i.LINK, Mavica, MagicGate™ Memory Stick, Memory Stick, MovieShaker, VAIO, and the VAIO logo are trademarks of Sony Corporation. Microsoft, Windows Media, Windows, Windows NT, and the Windows logo are registered trademarks of Microsoft Corporation. Intel, SpeedStep, and Pentium are trademarks or registered trademarks of Intel Corporation. PS/2 is a registered trademark of IBM. Acrobat Reader, Photoshop, Photoshop Elements, and Premiere are trademarks of Adobe Systems Incorporated. PowerPanel is a trademark of Phoenix Technologies Ltd. This product incorporates copyright protection technology that …

Text truncated - open the document above for the full version.

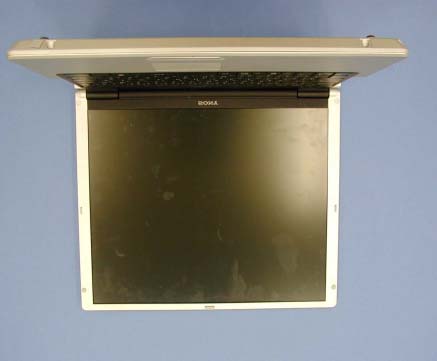

FCC ID : AK8PCG57AL External Photo Front FCC ID : AK8PCG57AL External Photo Back FCC ID : AK8PCG57AL External Photo Left FCC ID : AK8PCG57AL External Photo Right FCC ID : AK8PCG57AL External Photo Top FCC ID : AK8PCG57AL External Photo Bottom

FCC ID : AK8PCG57AL Internal Photo (PWB) Back side FCC ID : AK8PCG57AL Internal Photo (PWB) Front side with shield FCC ID : AK8PCG57AL Internal Photo (PWB) Front side without shield FCC ID : AK8PCG57AL Internal Photo (Module) Front side covered FCC ID : AK8PCG57AL Internal Photo (Module) Back side covered

Test report No. : 23FE0013-HO-3 Page : 2 of 54 Issued date : February 26,2003 FCC ID : AK8PCG57AL A-PEX International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 CONTENTS PAGE SECTION 1 : Client information 3 SECTION 2 : Equipment under test (E.U.T.) 3 SECTION 3 : Requirements for compliance testing defined by the FCC 4 SECTION 4 : Dosimetric assessment setup 4 SECTION 5 : Test system specifications 7 SECTION 6 : Test setup of EUT 8 SECTION 7 : Measurement uncertainty 9 SECTION 8 : Simulated tissue liquid parameter 10 SECTION 9 : System validation data 11 SECTION 10 : Evaluation procedure 12 SECTION 11 : Exposure limit 13 SECTION 12 : SAR Measurement results 14 SECTION 13 : Equipment & calibration information 16 SECTION 14 : References 16 SECTION 15 : APPENDIX 16 APPENDIX 1 : Photographs of test setup APPENDIX 2 : SAR Measurement data APPENDIX 3 : Validation Measurement data APPENDIX 4 : System Validation Dipole (D2450V2,S/N: 713) APPENDIX 5 : Dosimetric E-Field Probe Calibration(ET3DV6,S/N: 1684) Test report No. : 23FE0013-HO-3 Page : 3 of 54 Issued date : February 26,2003 FCC ID : AK8PCG57AL A-PEX International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 1 : Client information Company Name : Sony Corpraton Brand Name : SONY Address : 6-7-35 Kita-Sinagawa Sinagawa –ku Tokyo,141-0001,Japan Telephone Number : +81-3-5795-8033 Facsimile Number : +81-3-5795-8346 Contact Person : Kaoru Ichimura ECTION 2 : Equipment under test (E.U.T.) 2.1 Identification of E.U.T. APPLICANT : Sony Corpration Type of Equipment : Notebook Personal Computer Model No. : PCG-571L Serial No. : JAW-20 Rating : DC3.3V+/-0.1 Country of Manufacture : JAPAN Receipt Date of Sample : January 14,2003 Condition of EUT : Enginieering prototype Tx Frequency : 2412MHz~2462MHz Modulation : DSSS [OBBSK(1M), DQBSK(2M), CCK(5.5.M-11M)] Max.Output Power Tested : 16.10dBm Peak Conducted Antenna Type : λ/4-Monopole Antenna Battery option : Only one model with EUT Category Identified : Portable device Test report No. : 23FE0013-HO-3 Page : 4 of 54 Issued date : February 26,2003 FCC ID : AK8PCG57AL A-PEX International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 3 : Requirements for compliance testing defined by the FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996. The order requires routine SAR evaluation prior to equipment authorization of portable transmitter devices, including portable telephones. For consumer products, the applicable limit is 1.6 mW/g for an uncontrolled environment and 8.0 mW/g for an occupational/controlled environment as recommended by the ANSI/IEEE standard C95.1-1992. According to the Supplement C of OET Bulletin 65 “Evaluating Compliance with FCC Guide-lines for Human Exposure to Radio frequency Electromagnetic Fields", released on Jun 29, 2001 by the FCC, the device should be evaluated at maximum output power (radiated from the antenna) under “worst-case” conditions for normal or intended use, incorporating normal antenna operating positions, device peak performance frequencies and positions for maximum RF energy coupling. 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. SECTION 4 : Dosimetry assessment setup These measurements were performed with the automated near-field scanning system DASY3 from Schmid & Partner Engineering AG (SPEAG). The system is based on a high precision robot (working range greater than 0.9 m), which positions the probes with a positional repeatability of better than +/- 0.02 mm. Special E- and H-field probes have been developed for measurements close to material discontinuity, the sensors of which are directly loaded with a Schottky diode and connected via highly resistive lines to the data acquisition unit. The SAR measurements were conducted with the dosimetry probe ET3DV6, SN: 1684 (manufactured by SPEAG), designed in the classical triangular configuration and optimized for dosimetric evaluation. The probe has been calibrated according to the procedure described in [2] with accuracy of better than +/-10%. The spherical isotropy was evaluated with the procedure described in [3] and found to be better than +/-0.25 dB. The phantom used was the SAM Twin Phantom as described in FCC supplement C, IEE P1528 and CENELEC EN50361. Test report No. : 23FE0013-HO-3 Page : 5 of 54 Issued date : February 26,2003 FCC ID : AK8PCG57AL A-PEX International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 4.1 Configuration and peripherals The DASY3 system for performing compliance tests consist of the following items: 1. A standard high precision 6-axis robot (Stäubli RX family) with controller and software. 2. An arm extension for accommodating the data acquisition electronics (DAE). 3. A dosimetric probe, i.e., an isotropic E-field probe optimized and calibrated for usage in tissue simulating liquid. The probe is equipped with an optical surface detector system. 4. A data acquisition electronic (DAE), which performs the signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection, etc. The unit is battery powered with standard or rechargeable batteries. The signal is optically transmitted to the EOC. 5. A unit to operate the optical surface detector, which is connected to the EOC. 6. The Electro-optical coupler…

Text truncated - open the document above for the full version.

Test report No. : 23FE0013-HO-3 Page : 20 of 54 Issued date : February 26,2003 FCC ID : AK8PCG57AL A-PEX International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 2 : SAR Measurement data

Test report No. : 23FE0013-HO-3 Page : 29 of 54 Issued date : February 26,2003 FCC ID : AK8PCG57AL A-PEX International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 3 : Validation Measurement data

Test report No. : 23FE0013-HO-3 Page : 31 of 54 Issued date : February 26,2003 FCC ID : AK8PCG57AL A-PEX International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 4 : System Validation Dipole (D2450V2,S/N: 713)

Test report No. : 23FE0013-HO-3 Page : 41of 54 Issued date : February 26,2003 FCC ID : AK8PCG57AL A-PEX International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 5 : Dosimetric E-Field Probe Calibration(ET3DV6,S/N: 1684)

Test report No. : 23FE0013-HO-1 Page : 2 of 58 Issued date : February 26, 2003 FCC ID : AK8PCG57AL A-Pex International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Client information 3 SECTION 2: Equipment under test (E.U.T.) 3 SECTION 3: Test specification, procedures and results 5 SECTION 4: Operation of E.U.T. during testing 7 SECTION 5: Conducted emission, Section 15.207 9 SECTION 6: 6dB Bandwidth, Section 15.247 (a) (2) 9 SECTION7: Maximum Peak Output power, Section 15.247 (b) (3) 10 SECTION8: Out of Band Emission, Section 15.247 (c) 11 SECTION9: Restricted Band Edge, Section 15.247 (c) 11 SECTION10: Power Density, Section 15.247 (d) 12 SECTION 11: Spurious Emission, Section 15.247(c) 13 APPENDIX 1: Photographs of test setup 14 APPENDIX 2: Test instruments 14 APPENDIX 3: Data of EMI test 14 Test report No. : 23FE0013-HO-1 Page : 3 of 58 Issued date : February 26, 2003 FCC ID : AK8PCG57AL A-Pex International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Client information Company name : Sony Corporation Address : 6-7-35 Kitashinagawa, Shinagawa-ku, Tokyo, 141-0001 Japan Telephone Number : +81-3-5795-8033 Facsimile Number : +81-3-5795-8346 Contact Person : Kaoru Ichikawa SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Notebook Personal Computer Model No. : PCG-571L Serial No. : JAW-20, JAW-24 Rating : AC120V/60Hz Country of Manufacture : Japan Receipt Date of Sample : January 14, 2002 Condition of EUT : Engineering prototype Test report No. : 23FE0013-HO-1 Page : 4 of 58 Issued date : February 26, 2003 FCC ID : AK8PCG57AL A-Pex International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 2.2 Product Description Sony Corporation Model: PCG-571LM referred to as the EUT in this report is a Notebook Personal Computer with IEEE 802.11b RF module and antenna included. The specification is as following; Equipment Type : Transceiver Clock frequency used in EUT : 1.6GHz, 166.5 MHz, 100MHz, 48MHz, 33.3MHz, 65MHz, 27MHz, 25MH, 14.3MHz, 12.3MHz, 10MHz Frequency characteristics : from 2400MHz to 2483.5MHz, 1MHz Type of modulation : OBBSK (1M), DQBSK (2M), CCK (5.5M-11M) Bandwidth & Channel spacing : 2412MHz-2462MHz, 5 MHz Channel number : 11 Emission Designation (ITU Code) : 22M0P7D Antenna Type : λ/ 4 monopole chip antenna Antenna Gain : -0.53dBi Transmit power : 16dBm Operation temperature range : 5.0 deg. C to 35.0 deg. C Power & Signal Cable Length : ≤ 3m Mode of Operation : Half Duplex *FCC Part 15.31 (e) The host device PCG-571L provide the stable power supply (DC: 3.3V), and Notebook Personal Computer complies power supply regulation. *FCC Part 15.203 Antenna requirement Notebook Personal Computer and its antenna comply with this requirement since they are built in host device PCG-571L when they are put up for sale and they are used with a particular antenna connector. Test report No. : 23FE0013-HO-1 Page : 5 of 58 Issued date : February 26, 2003 FCC ID : AK8PCG57AL A-Pex International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures and results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted Emissions Section 15.247 Operation within the Band 902-928MHz, 2400-2483.5MHz and 5725-5850MHz 3.2 Procedures and results No. Item Test Procedure Specification Remarks Deviation Worst margin Results 1 Conducted emission ANSI C63.4:2001 Section 15.207 - N/A 7.1dB 0.2631MHz,L Complied 2 6dB Bandwidth ANSI C63.4:2001 Section 15.247(a)(2) Conducted N/A - Complied 3 Maximum Peak Output Power ANSI C63.4:2001 Section 15.247(b)(3) Conducted N/A - Complied 4 Out of Band Emission ANSI C63.4:2001 Section 15.247 (c) Radiated N/A 5.5dB 24120MHz, Hor/Ver Complied 5 Restricted Band Edges ANSI C63.4:2001 Section 15.247 (c) Radiated N/A 11.7dB 2390MHz Complied 6 Power Density ANSI C63.4:2001 Section 15.247 (d) Conducted N/A 26.8dB 2437MHz Complied 3.3 Additions to Standards No addition, deviation or exclusion has been made from standards. 3.4 Confirmation A-Pex International Co., Ltd. hereby confirms that E.U.T., in the configuration tested, complies with the specifications FCC Part 15 Subpart C Section 15.207 and 247. Test report No. : 23FE0013-HO-1 Page : 6 of 58 Issued date : February 26, 2003 FCC ID : AK8PCG57AL A-Pex International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 3.5 Uncertainty Conducted Emission Test The measurement uncertainty (with a 95% confidence level) for this test was ±1.3dB. □The data listed in this test report may exceed the test limit because it does not have enough margin. ■The data listed in this test report has enough margin, more than the site margin. Maximum Peak Output power, Out of Band Emission and Restricted Band Edges(Radiated) Test The measurement uncertainty (with a 95% confidence level) for this test using Loop antenna is ±1.9dB. The measurement uncertainty (with a 95% confidence level) for this test using Biconical antenna is ±4.5dB. The measurement uncertainty (with a 95% confidence level) for this test using Logperiodic antenna is ±5.2dB. The measurement uncertainty (with a 95% confidence level) for this test using Horn antenna is ±6.6dB. ■The data listed in this test report may exceed the test limit because it does not have enough margin. □The data listed in this test report has enough margin. 6dB Bandwidth , Maximum Peak Output power, Out of Band Emission …

Text truncated - open the document above for the full version.

Test report No. : 23FE0013-HO-1 Page : 15 of 58 Issued date : February 26, 2003 FCC ID : AK8PCG57AL A-Pex International Co., Ltd. EMC Head Office Division. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Conducted Emission
