A- PEX INTERNATIONAL CO., LTD. •HEAD OFFICE •4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan TEL:0596-24-6717/FAX:0596-24-8020 Date: 29 January, 2002 Re: Sony Corporation FCC ID: AK8PCG631L Dear Mr. Timothy Johnson, Please find the following replies to your comments dated 27 January, 2002; 1) We modified page 11 of Test Report. Please find revised Test Report (22EE0011-YW (Rv)), which we uploaded. 2) We modified page 5 of Test Report. Please find revised Test Report (22EE0011-YE (Rv)), which we uploaded. 3) We corrected the power on Form 731 to 0.0302W. Please refer to revised Form 731. 4) Since the spurious emission seen at 1.69 GHz was a broad band noise (SS clock of System bus), there occurred a large variance between the peak and average readings for it. 5) The EUT has been properly evaluated and tested by Sony Corporation to meet the DoC requirements as a Personal Computer. 6) Please refer to uploaded Test Data (A27-A30). Kanako Sanda A-Pex Int ernational Co., Ltd. KS/yi

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 January 27, 2002 RE: Sony FCC ID: AK8PCG631L After a review of the submitted information, I have a few comments on the above referenced Application. 1) The test report shows measurements up to 24 GHz, yet the test equipment lists does not seem to show any antenna capable of > 18 GHz. Also, please check equipment list given on page 11 of 15. Please comment and/or correct affected items. 2) The information on page 5 of the report states the unit has a PCMCIA-Bus, while the operational description for the radio states it is a mini-PCI card. Please comment and/or correct affected items. 3) The power listed on the 731 was not the maximum given from page A12 (14.8 dBm = 0.0302 W). Please comment and/or provide a corrected 731 form. 4) There appears to be about a 30 dB difference between the peak and average readings for the spurious emission seen at 1.69 GHz. Please comment as to this large variance when most readings only have about a 13 dB variance. 5) The EUT consists of a PC + transmitter integrated together and is subject to the applicable requirements of both. The report provided for certification only covers the transceiver portion of the device. However to meet all the applicable requirements for this device, the laptop should have also been tested (with the transceiver installed) with all ports fully populated (i.e. the additional ethernet, telephone, headphone, etc.) to meet the DoC requirements as a personal computer. Please confirm that the EUT has been properly evaluated and tested in a fully populated configuration (and with the transceiver installed) or provide a copy of the DoC report. 6) The maximum peak radiated power of the fundamental is shown in A9. However, please provide further information to show compliance with the restricted band at the 2.4835 GHz bandedge. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

The ORiNOCO Mini PCI radio card is a full-featured, Wi-Fi-compliant wireless device that uses the Mini PCI form factor. The module functions at 2.4 GHz, with a bandwidth of 11 Mbps, and range of up to 1200 feet. It is fully compatible with the entire ORiNOCO line of infrastructure produces for home, office, outdoor and public hot-spot environments. The Mini PCI radio also works with other Wi-Fi-compliant wireless networking systems. Integration into OEM Devices Ideally suited for notebooks, Web pads, Internet appliances and other mobile data applications, the Mini PCI card is only 51 x 60mm in size and weighs 15 grams. The Mini PCI gives manufacturers a great deal of freedom in system design and antenna placement. It can be embedded or designed to be an optional dealer-added feature. ORiNOCO Mini PCI is supported by a complete set of drivers and networking tools to support operating systems including Windows ME, 98, 2000 and Linux. The card is available in two versions, one with 64 WEP encryption and one with 128 bit RC4 encryption. In the automatic mode, the ARS mechanism will select the best possible speed for every data path. This means that the actual speed the mobile clients will use when talking to an Access Point can be different for different stations within one cell. Integration support Lucent provides extensive technical documentation on integration issues like optimal antenna design, customized drivers and management software as well as multi language support for manuals and help files. Echo robustness The delay spread robustness in the IEEE 11 and 5.5 Mbit/s mode is lower than in the IEEE 2 and 1 Mbit/s modes, because delay spread robustness is traded against more sophisticated modulation techniques. Privacy The ORiNOCO Mini PCI Card supports 64 bit WEP as a standard. This means that 64 WEP is used to encrypt the payload data in a message when the end user chooses to run this level of privacy. WEP, which is defined in the IEEE 802.11b standard, uses a 40 bit secret key and a 24 bit Initialization Vector (IV): a 24 bit value unique to a message, which is included in plain text in that message. The IV is included to make sure that two identical plain text messages result in two different encrypted messages. The ORiNOCO/ Mini PCI Card is also released with 128 RC4. This product uses the RC4 encryption algorithm with a 104 bit secret key and a 24 bit IV. Mini PCI Form Factor Radios for Wireless Networking OEMs ORiNOCO TM Mini PCI THE NEW WAVELAN YOUR MOBILE BROADBAND CONNECTION ORiNOCO Mini PCI Card Specifications Frequency Range2400 2462 mHz Number of Selectable Channels11 Modulation TechniqueDirect Sequence Spread Spectrum (CCK, DQPSK, DBPSK) StandardIEEE 802.11b, Mini PCI V1.0 Security64 WEP or 128 RC4 Spreading11 chip Barker sequence Bit Error rateBetter than 10 -5 Media Access ProtocolCSMA/CA (Collision Avoidance) with ACK InterfaceMiniPCI V1.0 PCB Dimension Length:59.75 mm Width: 50.95mm Range (meter/feet)Standard Low SpeedStandard SpeedMedium SpeedHigh Speed (1 Mbit/s)(2 Mbit/s)(5.5 Mbit/s)(11 Mbit/s) Open environment550 m (1750 ft)400 m (1300 ft)270 m (855 ft)160 m (525 ft) Semi-Open environment115 m (375 ft)90 m (300 ft)70 m (230 ft)50 m (165 ft) Closed environment50 m (165 ft)40 m (130 ft)35 m (115 ft)25 m (80 ft) Transmitter output power15 dBm15 dBm15 dBm15 dBm Min. receive level @BER 10^ -5 -94 dBm-91 dBm-87 dBm-82 dBm Delay spread robustness in nanoseconds500 ns400 ns225 ns65 ns Max. Power ConsumptionDoze Mode 16 mA Receive Mode 250mA Transmit Mode 350 mA EnvironmentalThe ORiNOCO Mini PCI Card passes the environmental tests as specified in “Mini PCI Specification, October 1999, Section 5.6 Thermal Guidelines”. Operating temperature0 to 60°C ambient temperature Storage temperature-20 to 75°C ambient temperature Operating humidity95% maximum (non condensing) Storage humidity95% maximum (non condensing) W ired b ackb o n e Basic ORiNOCO Mini PCI Configuration ORiNOCO Mini PCI Card Specifications(continued) Barometric pressure740 to 1050 HPa (storage and operating) Operating System CompatibilityWindows 98, ME and 2000.(NDIS5 Miniport Driver), Linux WHQLDevice WHQL sytem to be certified in co-operation with the OEM manufacturer RegulationsEurope: R&TTE Dir. 1999/5/EC USA: FCC 47 CFR, Part15.247 Canada:ISC RSS139 EnvironmentDelay Spread Office (one room)30 nsec Office40 – 150 nsec Airport120 nsec Warehouse130 nsec Shopping mall90 – 200 nsec Factory300 – 500 nsec Net Throughput11Mb 11Mb11Mb (payload, excluding headers etc)High SpeedMedium SpeedStandard Speed (11 Mbit/s)(5.5 Mbit/s) (2 Mbit/s) Station-to-station (TCP/IP) Peer to Peer5.04 Mbit/s3.44 Mbit/s1.59 Mbit/s Peer to Peer (+WEP128)4.51 Mbit/s3.44 Mbit/s1.59 Mbit/s via AP (both wireless)2.85 Mbit/s via AP (both wireless) (+WEP128)2.62 Mbit/s via AP (one on Ethernet)4.66 Mbit/s via AP (one on Ethernet) (+WEP128)4.11 Mbit/s Frequency Channels Channel Number12 3 4 5 6 78 91011 Channel Frequencies (MHz) 2412 241724222427243224372442 24472452 24572462 For additional information, please contact your Lucent Technologies Sales Representative. You can also visit our web site at http://www.lucent.com or call 1-800-928-3526. ORiNOCO is a trademark or registered trademark of Lucent Technologies Inc. in the United States and/or other countries. Wi-Fi is a trademark of the Wireless Ethernet Compatibility Alliance, Inc. Windows, Windows CE and Windows ME are registered trademarks of Microsoft Corporation. This document is for planning purposes only and is not intended to modify or supplement any specifications or warranties relating to Lucent Technologies products and services. Copyright © 2000 Lucent Technologies Inc. All rights reserved Printed in U.S.A. Lucent Technologies Inc. Marketing Communications 7026 PJE 11/00 Mechanical Specifications 59.75 mm 30.45 mm 2.60 mm 50.95 mm 42.15 mm 41.4 mm RF_MAINRF_AUX Key Advantages of the Mini PCI Card • Card allows full integration into OEM device • Antennae can be positioned on optimal sp…

Text truncated - open the document above for the full version.

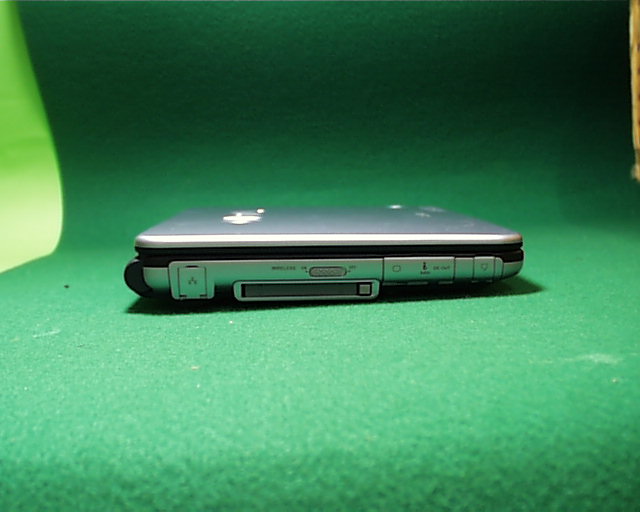

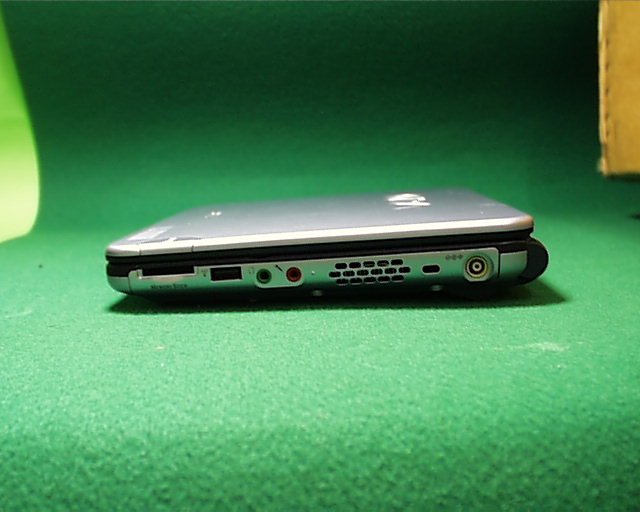

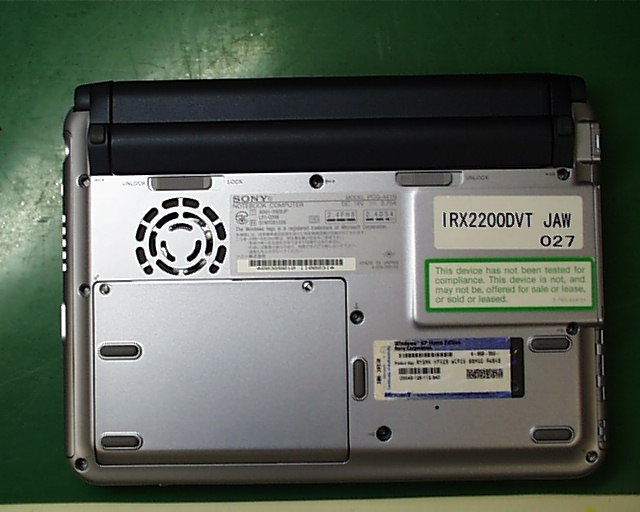

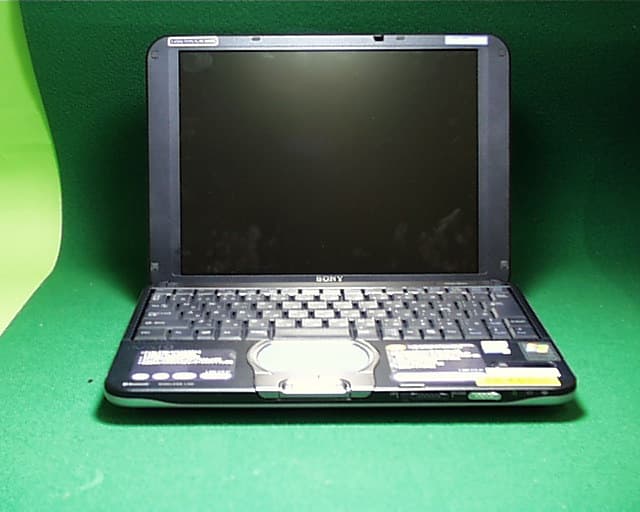

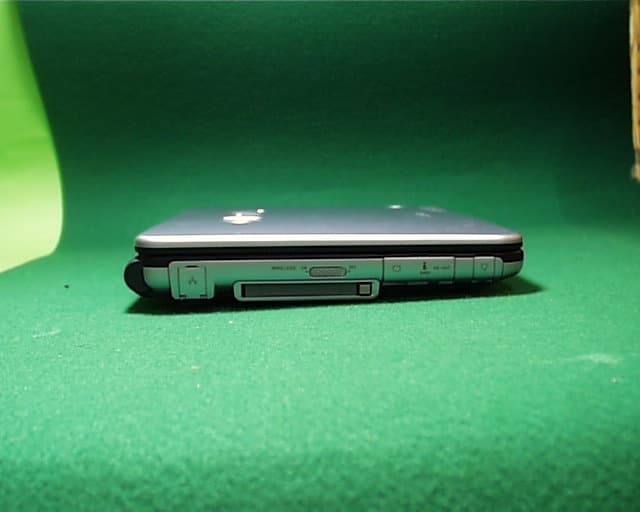

RF Exposure Statement No. : 22EE0011-YW Applicant: Sony Corporation Type of Equipment: Wireless LAN builtin Personal Computer Model No.: PCG-631L FCC ID : AK8PCG631L A-PEX International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 Page 1 FCC Radiation Exposure Statement: Sony Corporation Model : PCG-631L complies with FCC radiation exposure requirement specified in the FCC Rules 15.247(b)(4). Notice in Installation Manual CAUTION This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and body (excluding extremities: hands, wrists and feet) and must not be co-located or operated with any antenna or transmitter. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “PCG-631L” as calculated from FCC OET 65 Appendix B, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0m W/cm^2 uncontrolled exposure limit. The Fires formula used was: S = (P * G) / (4* * r^2) or r = (P * G) / (4 * * S) Where S = 1.0 mW/cm^2 for 2400 MHz P = 14.8 mW (Maximum Conducted Power) G = 1.64(Half wave dipole antenna gain : Converted absolute value) r = Minimum safe distance from antenna (cm) For: PCG-631L r = 1.9 cm

Test report FCC ID : AK8PCG631L Our reference : 22EE0011-YW Page: 2 of 15 Issued date: January 15, 2002 Revised data: January 29, 2002 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 Table of Contents Page 1 GENERAL INFORMATION3 1.1 Tested Methodology4 1.2 Test Facility4 2 PRODUCT DESCRIPTION5 2.1Test system Details5 3 SYSTEM TEST CONFIGURATION6 3.1 Justification6 3.2.Configuration of Tested System6 4 MEASUREMENT UNCERTAINTY7 5 TEST INSTRUMENTS8 6 SUMMARY OF TEST9 6.1 §15.207 Conducted Emissions9 6.2 §15.247(a)(2)6dB Bandwidth9 6.3 §15.247(b) Maximum Peak Out Put Power(Radiated and Conducted)10 6.4 §15.247(c) Out of Band Emissions(Radiated)11 6.5 §15.247(c) Out of Band Emissions(Conducted)11 6.6 §15.247(d) Power Density(Conducted)12 6.7 §15.247(e) Processing Gain12 Photographs of test setup 13-14 APPENDIX15 Test dataA1toA30 Test report FCC ID : AK8PCG631L Our reference : 22EE0011-YW Page: 3 of 15 Issued date: January 15, 2002 Revised data: January 29, 2002 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 1 GENERAL INFORMATION APPLICANT: Sony Corporation ADDRESS: 6-7-35 Kitashinagawa, Shinagawa-ku, Tokyo 141-0001 Japan TEL: 81-3-5795-8716 FAX: 81-3-5795-8981 REGULATION(S): FCC Part15 Subpart C, Section 15.247 MODEL NUMBER: PCG-631L SERIAL NUMBER: 004 (Radiated and AC Main Conducted Emissions tests) KIND OF EQUIPMENT: Notebook Computer (Wireless LAN built in PC) TESTED DATE: December 17 and 20, 2001 RECEIPT DATE OF SAMPLE : December 17, 2001 REPORT FILE NUMBER: 22EE0011-YW TEST SITE: A-PEX Yokowa No.3 Open Test Sites Test report FCC ID : AK8PCG631L Our reference : 22EE0011-YW Page: 4 of 15 Issued date: January 15, 2002 Revised data: January 29, 2002 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 1.1 Tested Methodology The measurement was performed according to the procedures in ANSI C63.4(1992). 1.2 Test Facility The open area site measurement facilities used to collect the radiated data are located at 108, Yokowa-cho, Ise-shi, Mie-ken, 516-1106 Japan. These sites have been fully described in reports submitted to the FCC office. No.1 and No.3 test site has filed to the FCC on September 12, 2000 as number: 90412 and is accepted by Industry Canada on May 01, 2001 as number IC2973-3. Test report FCC ID : AK8PCG631L Our reference : 22EE0011-YW Page: 5 of 15 Issued date: January 15, 2002 Revised data: January 29, 2002 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 2 PRODUCT DESCRIPTION Sony Corporation, Model PCG-631L (referred to as the EUT in this report) is a Notebook Computer. The specification is as following : LAN Module Frequency characteristies: 2412MHz through 2462MHz No. of channels / channel spacing : 11 channels / 5MHz channel spacing Modulation: DSSS:Direct sequence spread spectrum.(IEEE 802.11b) Antenna type: lambda/4 monopole antenna (Integral) Antenna Gain: 2.14dBi (Peak) I/F: mini-PCI card *FccPart15.31(e) The host device PCG-631L provide the LAN Module with stable power supply(DC:3.3V), and the LAN Module complies power supply regulation. *FccPart15.203 Antenna requirement Wireless LAN Module and its antenna comply with this requirement since they are built in host device PCG-631L when they are put up for sale and they are used with a particular antenna connector. 2.1 Test System Details Model FCC ID Description (1)Sony Corporation AK8PCG631LNotebook Computer M/N: PCG-631L(Wireless LAN built in PC) S/N: 004 (Radiated and AC Main Conducted Emissions tests) *FccPart15 Subpart B Class B Digital Device : DOC (2) Sony Corporation DOC AC Adapter M/N: PCGA-AC16V3 S/N: 0110 A 0000069P (Radiated and AC Main Conducted Emissions tests) 0110 A 0000048P (Antenna connector Conducted tests) Test report FCC ID : AK8PCG631L Our reference : 22EE0011-YW Page: 6 of 15 Issued date: January 15, 2002 Revised data: January 29, 2002 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 3 SYSTEM TEST CONFIGURATION 3.1 Justification The system was configured in typical fashion (as a customer would normally use it) for testing. Test mode : Transmitting mode Performed the test about channels 1(low), 6(mid) and 11(high) among 11 channels of all Carrier frequencies. 3.2 Configuration of Tested System AC 120V/60Hz 2 1 Wooden table (1)EUT (2) * Cabling was taken into consideration and test data was taken under worst case conditions. List of cables used No.NameLength (m)ShieldRemark 1AC Power Cable0.75NPolyvinyl chloride 2DC Power Cable2.0NPolyvinyl chloride Test report FCC ID : AK8PCG631L Our reference : 22EE0011-YW Page: 7 of 15 Issued date: January 15, 2002 Revised data: January 29, 2002 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 4 Measurement Uncertainty Conducted Emission Test The measurement uncertainty (with a 95% confidence level) for this test was +2.0dB. The data listed in this test report has enough margin, more than 2.0dB. Radiated Emission Test The measurement uncertainty (with a 95% confidence level) for this test using Biconical antenna is +4.4dB. The measurement uncertainty (with a 95% confidence level) for this test using Logperiodic antenna is +4.8dB. The measurement uncertainty (with a 95% confidence level) for this test using Horn antenna is +5.8dB. The data listed in this test report may exceed the test limit because it does not have enough margin. Test report FCC ID : AK8PCG631L Our reference : 22EE0011-YW Page: 8 of 15 Issued date: January 15, 2002 Revised data: January 29, 2002 A-…

Text truncated - open the document above for the full version.

Sony Corporation / FCC ID : AK8PCG631L / Page : A7 6dB Bandwidth / PCG-631L / 22EE0011-YW 1. 2412MHz(Low) 2. 2437MHz(Mid) 3. 2462MHz(Hi) Peak Out Put Power(Radiated) A-PEX INTERNATIONAL CO., LTD. YOKOWA NO.3 OPEN SITE COMPANY : Sony CorporationREPORT NO : 22EE0011-YW EQUIPMENT : Wireless LAN builtin PCREGULATION : Fcc Part15SubpartC 247(b)(1) MODEL : PCG-631LTEST DISTANCE : 3m FCC ID : AK8PCG631LDATE : 12/19/2001 POWER : AC120V/60HzTemp./Humi. : 20deg.C/43% Mode : Transmitting ENGINEER : Naoki Sakamoto PK DETECT(S/A : RBW 1MHz and VBW 1MHz) ChFREQS/A READINGAllELimitResult HORVERFactorHORVERHORVER(1W)HORVER [GHz][dB][mW] Low2.4120107.1101.86.3113.4108.10.46880.25521000.040.211.9 Mid2.4370106.0102.46.4112.4108.80.41670.27571000.031.813.9 High2.4620106.5103.76.5113.0110.20.44590.32181000.036.418.9 Sample Calculation : All Factor = S/A Reading + ANT Factor - Amp Gain + CABLE LOSS + ATTEN RESULT = (E*d)(E*d)/(30G) E : Converted to V/m d : Test distance(3.0m) G : Antenna Gaine(1.64) P. A8 [dBuV] E1 [mW][dBuV/m][V/m] Sony Corporation / FCC ID : AK8PCG631L / Page : A9 Maximum Peak Out Put Power / PCG-631L / 22EE0011-YW 2412MHz(Low) Horizontal Vertical Sony Corporation / FCC ID : AK8PCG631L / Page : A10 Maximum Peak Out Put Power / PCG-631L / 22EE0011-YW 2437MHz(Mid) Horizontal Vertical Sony Corporation / FCC ID : AK8PCG631L / Page : A11 Maximum Peak Out Put Power / PCG-631L / 22EE0011-YW 2462MHz(Hi) Horizontal Vertical A-PEX INTERNATIONAL CO., LTD. YOKOWA NO.3 OPEN SITE COMPANY : Sony CorporationREPORT NO : 22EE0011-YW EQUIPMENT : Wireless LAN builtin PCREGULATION : Fcc Part15SubpartC 247(b)(1) MODEL : PCG-631LTEST DISTANCE : FCC ID : AK8PCG631LDATE : 12/20/2001 POWER : AC120V/60HzTemp./Humi. : 20deg.C/43% Mode : Transmitting ENGINEER : Naoki Sakamoto CHFREQPM ReadingLimitMARGIN (1W) [GHz][dBm][dBm][dB] Low2.4120014.630.015.4 Mid2.4370014.730.015.3 High2.4620014.830.015.2 P. A12 Peak Out Put Power(Conducted) A-PEX INTERNATIONAL CO., LTD. YOKOWA NO.3 OPEN SITE COMPANY : Sony CorporationREPORT NO : 22EE0011-YW EQUIPMENT : Wireless LAN builtin PCREGULATION : Fcc Part15 SubpartC 247/209 MODEL : PCG-631LTEST DISTANCE : 3m / 1m FCC ID : AK8PCG631LDATE : 12/20/2001 POWER : AC120V/60HzTemp./Humi. : 20deg.C/43% Mode : Transmitting(ch1:2412MHz) ENGINEER : Naoki Sakamoto PK DETECT(S/A : RBW 1MHz and VBW 1MHz) No.FREQS/A READINGANTAMPCABLEH.P.FilterRESULTLimitMARGIN HORVERFactorGAINLOSSHORVERPKHORVER [GHz][dBuV][dBuV][dB][dB][dB][dB][dBuV/m][dBuV/m][dBuV/m][dB][dB] #11.1852554.559.626.335.03.80.049.349.874.024.724.2 #21.6925863.462.831.334.53.40.063.763.074.010.411.0 32.3900053.150.031.134.53.41.254.451.374.019.622.7 44.8240047.545.235.434.58.01.057.455.174.016.718.9 57.2362142.646.939.134.89.41.357.661.974.016.412.1 *69.6480042.142.839.235.011.01.558.859.583.524.724.0 *712.0600042.143.443.534.412.11.164.465.783.519.117.8 *814.4720043.743.342.233.113.51.167.467.083.516.116.5 *916.8840045.146.143.833.414.81.071.372.383.512.311.3 *1019.2960045.044.938.033.415.80.866.266.183.517.317.4 *1121.7080045.245.037.833.016.50.667.166.983.516.416.6 *1224.1200045.845.639.633.215.80.768.768.583.514.815.0 AV DETECT(S/A : RBW 1MHz and VBW 10Hz) No.FREQS/A READINGANTAMPCABLEH.P.FilterRESULTLimitMARGIN HORVERFactorGAINLOSSHORVERAVHORVER [GHz][dBuV][dBuV][dB][dB][dB][dB][dBuV/m][dBuV/m][dBuV/m][dB][dB] #11.1852536.539.626.335.03.80.031.634.754.022.419.3 #21.6925832.733.131.134.53.40.032.833.154.021.220.9 32.3900041.939.131.134.53.41.243.240.354.010.813.7 44.8240035.134.635.434.58.01.045.044.554.09.09.6 57.2362135.435.439.134.89.41.350.450.454.03.63.6 *69.6480032.232.239.235.011.01.548.948.963.514.614.7 *712.0600030.630.943.534.412.11.152.953.263.510.610.3 *814.4720030.030.342.233.113.51.153.754.063.59.89.5 *916.8840032.132.143.833.414.81.058.358.363.55.35.2 *1019.2960032.132.038.033.415.80.853.353.263.510.310.4 *1121.7080032.532.537.833.016.50.654.454.463.59.19.1 *1224.1200032.632.539.633.215.80.755.455.463.58.18.2 Sample Calculation : RESULT=Reading + ANT Factor - Amp Gain + CABLE LOSS + High Pass Filter Except for the above table : All other spurious emissions are more than 20dB below the limit. * Test Distance 1m, 1m Limit=3m Limit(54dB)+20log(3/1) # The point don’t use high pass filter. P. A16 DATA OF SUPURIOUS EMISSIONS(1GHz to 26GHz) A-PEX INTERNATIONAL CO., LTD. YOKOWA NO.3 OPEN SITE COMPANY : Sony CorporationREPORT NO : 22EE0011-YW EQUIPMENT : Wireless LAN builtin PCREGULATION : Fcc Part15 SubpartC 247/209 MODEL : PCG-631LTEST DISTANCE : 3m / 1m FCC ID : AK8PCG631LDATE : 12/20/2001 POWER : AC120V/60HzTemp./Humi. : 20deg.C/43% Mode : Transmitting(ch6:2437MHz) ENGINEER : Naoki Sakamoto PK DETECT(S/A : RBW 1MHz and VBW 1MHz) No.FREQS/A READINGANTAMP CABLEH.P.FilterRESULTLimitMARGIN HORVERFactorGAINLOSSHORVERPKHORVER [GHz][dBuV][dBuV][dB][dB][dB][dB][dBuV/m][dBuV/m][dBuV/m][dB][dB] #11.1933553.459.726.335.03.80.048.554.874.025.519.3 #21.6920562.662.031.134.53.40.062.762.074.011.312.0 34.8740045.344.935.634.57.81.355.555.174.018.518.9 47.3110041.542.239.234.99.41.056.256.974.017.817.1 *59.7480042.244.139.235.011.01.358.760.683.524.822.9 *612.1850043.643.743.434.312.31.566.566.683.517.016.9 *714.6220043.943.042.633.113.61.168.167.283.515.416.3 *817.0590045.143.443.833.214.81.171.669.983.511.913.6 *919.4960044.945.238.033.415.91.466.867.183.516.816.4 *1021.9330044.945.937.833.016.50.666.867.883.516.715.7 *1124.3700045.845.739.533.215.70.568.368.283.515.215.4 AV DETECT(S/A : RBW 1MHz and VBW 10Hz) No.FREQS/A READINGANTAMP CABLEH.P.FilterRESULTLimitMARGIN HORVERFactorGAINLOSSHORVERAVHORVER [GHz][dBuV][dBuV][dB][dB][dB][dB][dBuV/m][dBuV/m][dBuV/m][dB][dB] #11.1933536.440.126.335.03.80.031.535.254.022.518.8 #21.6920532.933.231.134.53.40.032.933.254.021.120.8 34.8740032.632.335.634.57.81.342.842.554.011.211.6 47.3110031.032.639.234.99.41.045.747.354.08.36.7 *59.7480030.931.139.235.011.01.347.447.663.516.216.0 *612.1850030.930.743.434.312.31.553.853.663.59.89.9 *714.6220030.329.942.633.113.61.154.554.163.59.19.5 *817.0590031.731.7…

Text truncated - open the document above for the full version.

Sony Corporation / FCC ID : AK8PCG631L / Page : A19 Out of Band Emissions (Conducted) / PCG-631L / 22EE0011-YW 2412MHz(Low) Sony Corporation / FCC ID : AK8PCG631L / Page : A20 Out of Band Emissions (Conducted) / PCG-631L / 22EE0011-YW Sony Corporation / FCC ID : AK8PCG631L / Page : A21 Out of Band Emissions (Conducted) / PCG-631L / 22EE0011-YW 2437MHz(Mid) Sony Corporation / FCC ID : AK8PCG631L / Page : A22 Out of Band Emissions (Conducted) / PCG-631L / 22EE0011-YW Sony Corporation / FCC ID : AK8PCG631L / Page : A23 Out of Band Emissions (Conducted) / PCG-631L / 22EE0011-YW 2462MHz(Hi) Sony Corporation / FCC ID : AK8PCG631L / Page : A24 Out of Band Emissions (Conducted) / PCG-631L / 22EE0011-YW A-PEX INTERNATIONAL CO., LTD. YOKOWA NO.3 OPEN SITE COMPANY : Sony CorporationREPORT NO : 22EE0011-YW EQUIPMENT : Wireless LAN builtin PCREGULATION : Fcc Part15SubpartC 247 (d) MODEL : PCG-631L FCC ID : AK8PCG631LDATE : 12/20/2001 POWER : AC120V/60HzTemp./Humi. : 20deg.C/43% Mode : Transmitting ENGINEER : Naoki Sakamoto CHFREQS/ALimitMargin Reading(1W) [GHz][dBm][dBm][dB] Low2.41320.58.07.5 Mid2.43500.78.07.3 High2.46200.98.07.1 Sample Calculation : RESULT=Reading(-107:Comverted to dBm) + CABLE LOSS + ATTEN. P. A25 Power Density(Conducted) Sony Corporation / FCC ID : AK8PCG631L / Page : A26 Power Density (Conducted) / PCG-631L / 22EE0011-YW 2412MHz(Low) 2437MHz(Mid) 2462MHz(Hi)

Report No : 22EE0011-YW A 27 Report No : 22EE0011-YW A 28 Report No : 22EE0011-YW A 29 Report No : 22EE0011-YW A 30

Measurement file output name is: 11mbit.cnd Input command file name is: INPUT.CMD Note: 11 Mbit, 9 dB SIR tested for (18 dB SNR - 10.4 + 1 impl. losses). Input CW correction level: 6 dB Takes into account 1 dB of implementation loss (allowed 2 dB). Lowcount is: 1000 messages Only RxD errors are taken into account since these need better SIR then preamble at 1 MBit Highcount is: 50000 messages Attention: Input the red cells for correct spreadsheet calculations! total errors 52 out of 280 measurement points. Rx level DUT is: -53 dBm percentage 18.57% Number of received data errors as a function of frequency and interference level OK? =<20%, OK Not measured combinations listed as "-1" HI JK LMN O P Q R S Uncorrected Interference level dialed at CW generator -60 -59 -58 -57 -56 -55 -54 -53 -52 RxD Errors PDA RxD Errors PDA Both error True CW interference level at receiver input (dBm) detected missing detected missing RxD and -66 -65 -64 -63 -62 -61 -60 -59 -58 full test full test up to CW up to CW PDA J/S ratio (dB) -13 #PDA -12 #PDA -11 #PDA -10 #PDA -9 #PDA -8 #PDA -7 #PDA -6 #PDA -5 #PDA range range =< -62 dBm =< -62 dBm =< -62 dBm Frequency (Hz) (J/S = -9dB) (J/S = -9 dB) time date 2409000000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 49987 OK, 0 RxD error s OK, No PDA err o 0 0 0 12:40:04 1999/4/14 2409050000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 49993 OK, 0 RxD error s OK, No PDA err o 0 0 0 12:38:48 1999/4/14 2409100000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 49984 OK, 0 RxD error s OK, No PDA err o 0 0 0 12:37:32 1999/4/14 2409150000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 999 0 1000 0 49989 OK, 0 RxD error s OK, No PDA err o 0 0 0 12:36:17 1999/4/14 2409200000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 49988 OK, 0 RxD error s OK, No PDA err o 0 0 0 12:35:00 1999/4/14 2409250000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 999 0 1000 0 49990 OK, 0 RxD error s OK, No PDA err o 0 0 0 12:33:44 1999/4/14 2409300000 0 1000 0 1000 0 1000 0 1000 0 999 0 1000 0 999 0 1000 0 49991 OK, 0 RxD error s OK, No PDA err o 0 1 1 12:32:29 1999/4/14 2409350000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 999 0 49983 OK, 0 RxD error s OK, No PDA err o 0 0 0 12:31:13 1999/4/14 2409400000 0 1000 0 1000 0 1000 0 1000 0 1000 0 999 0 1000 0 1000 0 49985 OK, 0 RxD error s OK, No PDA err o 0 0 0 12:29:57 1999/4/14 2409450000 0 1000 0 1000 0 1000 0 1000 0 999 0 1000 0 999 0 1000 0 49987 OK, 0 RxD error s OK, No PDA err o 0 1 1 12:28:41 1999/4/14 2409500000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 49996 OK, 0 RxD error s OK, No PDA err o 0 0 0 12:27:25 1999/4/14 2409550000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 49989 OK, 0 RxD error s OK, No PDA err o 0 0 0 12:26:09 1999/4/14 2409600000 0 1000 0 1000 0 1000 0 1000 0 999 0 1000 0 1000 0 1000 0 49988 OK, 0 RxD error s OK, No PDA err o 0 1 1 12:24:53 1999/4/14 2409650000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 999 0 49991 OK, 0 RxD error s OK, No PDA err o 0 0 0 12:23:37 1999/4/14 2409700000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 999 0 49993 OK, 0 RxD error s OK, No PDA err o 0 0 0 12:22:21 1999/4/14 2409750000 0 1000 0 1000 0 1000 0 1000 0 999 0 1000 0 999 0 1000 0 49986 OK, 0 RxD error s OK, No PDA err o 0 1 1 12:21:05 1999/4/14 2409800000 0 1000 0 1000 0 1000 0 1000 0 999 0 1000 0 1000 0 1000 0 49981 OK, 0 RxD error s OK, No PDA err o 0 1 1 12:19:49 1999/4/14 2409850000 0 1000 0 1000 0 1000 0 1000 0 998 0 1000 0 1000 0 1000 0 49984 OK, 0 RxD error s OK, No PDA err o 0 1 1 12:18:33 1999/4/14 2409900000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 49989 OK, 0 RxD error s OK, No PDA err o 0 0 0 12:17:16 1999/4/14 2409950000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 49990 OK, 0 RxD error s OK, No PDA err o 0 0 0 12:16:00 1999/4/14 2410000000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 49983 OK, 0 RxD error s OK, No PDA err o 0 0 0 12:14:44 04/14/99 2410050000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 999 0 49984 OK, 0 RxD error s OK, No PDA err o 0 0 0 12:13:28 04/14/99 2410100000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 999 0 49989 OK, 0 RxD error s OK, No PDA err o 0 0 0 12:12:11 04/14/99 2410150000 0 1000 0 1000 0 1000 0 1000 0 999 0 1000 0 1000 0 1000 0 49992 OK, 0 RxD error s OK, No PDA err o 0 1 1 12:10:55 04/14/99 2410200000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 49984 OK, 0 RxD error s OK, No PDA err o 0 0 0 12:09:40 04/14/99 2410250000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 49989 OK, 0 RxD error s OK, No PDA err o 0 0 0 12:08:24 04/14/99 2410300000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 999 0 1000 0 49990 OK, 0 RxD error s OK, No PDA err o 0 0 0 12:07:08 04/14/99 2410350000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 49992 OK, 0 RxD error s OK, No PDA err o 0 0 0 12:05:52 04/14/99 2410400000 0 1000 0 1000 0 1000 0 1000 0 1000 0 999 0 1000 0 1000 0 49986 OK, 0 RxD error s OK, No PDA err o 0 0 0 12:04:36 04/14/99 2410450000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 1000 0 49989 OK, 0 RxD error s OK, No PDA err o 0 0 0 12:03:21 04/14/99 2410500…
