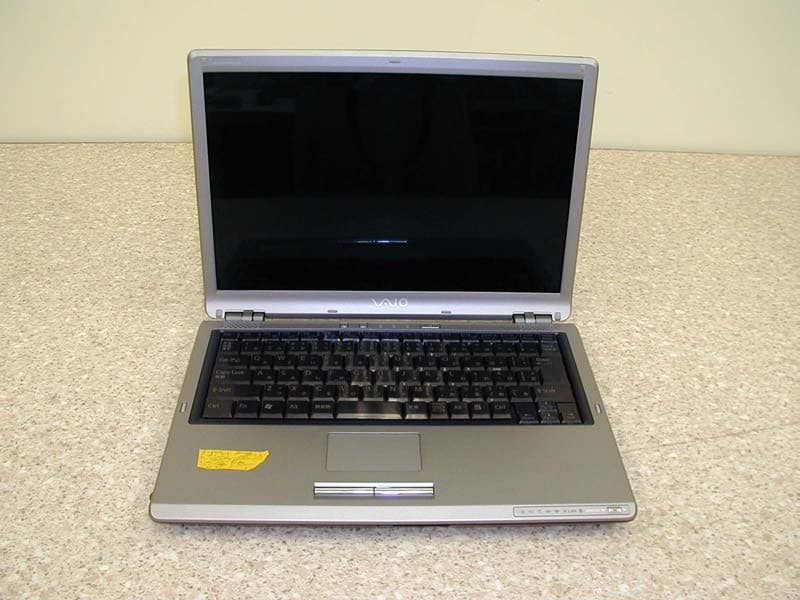

AK8PCG6C1LNotebook Personal Computer with WLAN

Personal Computer VGN-S100 Series Quick Start Draft 2 VAIO® Computer Quick Start 2 Shortcut Menu +F1Displays the VAIO Help and Support Center window. +TabSwitches the selected button on the taskbar. +DDisplays the desktop. +EDisplays the My Computer window. +FDisplays the Search Results window, where you can find a file or folder. This is the equivalent of selecting Search from the Start menu. +Ctrl+FDisplays the Search Results - Computers window, where you can locate other computers. This is the equivalent of selecting Search, and then Computer from the Start menu. +MMinimizes all displayed windows. Shift++MReturns all minimized windows to their previous size. +RDisplays the Run window. This is the equivalent of selecting Run from the Start menu. Fn++InsertDisplays the System Properties window. This is the equivalent of selecting Control Panel, and then System from the Start menu. Fn+F2Toggles the built-in speakers off and on. Fn+F3Decreases the speaker volume. Fn+F4Increases the speaker volume. Fn+F5Decreases the LCD screen brightness. Fn+F6Increases the LCD screen brightness. Fn+F7Toggles the display between the computer screen (LCD), a connected external display, and both the LCD and an external display. Fn+F12Puts the system into Hibernate mode, a power management state. To return the system to normal operating mode, press the power button. Fn+EscPuts the system into Standby mode, a power management state. To return the system to the active state, press any key or the power button. Draft 2 3 Contents Notice to Users ............................................5 Setting Up ..................................................13 Unpacking Your Computer .......................................13 Locating Controls and Ports ......................................15 About the Indicator Lights ........................................21 Getting Started ..........................................23 Turning On Your Computer ......................................23 Using the Touch Pad .................................................28 Registering Your Computer ......................................29 Locating Your VAIO Computer User Guide ............30 Setting Up A Dial-Up Connection ............................32 Turning Off Your Computer .....................................34 VAIO Recovery Wizard Utility...................37 Troubleshooting ........................................39 Support Options.........................................................43 Draft 2 VAIO® Computer Quick Start 4 Draft 2 5 Notice to Users © 2004 Sony Electronics Inc. All rights reserved. This manual and the software described herein, in whole or in part, may not be reproduced, translated, or reduced to any machine-readable form without prior written approval. SONY ELECTRONICS INC. PROVIDES NO WARRANTY WITH REGARD TO THIS MANUAL, THE SOFTWARE, OR OTHER INFORMATION CONTAINED HEREIN AND HEREBY EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE WITH REGARD TO THIS MANUAL, THE SOFTWARE, OR SUCH OTHER INFORMATION. IN NO EVENT SHALL SONY ELECTRONICS INC. BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, OR SPECIAL DAMAGES, WHETHER BASED ON TORT, CONTRACT, OR OTHERWISE, ARISING OUT OF OR IN CONNECTION WITH THIS MANUAL, THE SOFTWARE, OR OTHER INFORMATION CONTAINED HEREIN OR THE USE THEREOF. Sony Electronics Inc. reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein is governed by the terms of a separate user license agreement. This product contains software owned by Sony and licensed by third parties. Use of such software is subject to the terms and conditions of license agreements enclosed with this product. Some of the software may not be transported or used outside the United States. Software specifications are subject to change without notice and may not necessarily be identical to current retail versions. Updates and additions to software may require an additional charge. Subscriptions to online service providers may require a fee and credit card information. Financial services may require prior arrangements with participating financial institutions. The International ENERGY STAR® Office Equipment Program is an international program that promotes energy saving through the use of computers and other office equipment. The program backs the development and dissemination of products with functions that effectively reduce energy consumption. It is an open system in which business proprietors can participate voluntarily. The targeted products are office equipment such as computers, displays, printers, facsimiles and copiers. Their standards and logos are uniform among participating nations. ENERGY STAR is a U.S. registered mark. Sony, Click to DVD, DVgate, DVgate Plus, Handycam, i.LINK, Mavica, MagicGate Memory Stick, Memory Stick, Memory Stick PRO, PictureGear Studio, SonicStage, VAIO, and the VAIO logo are trademarks of Sony Corporation. Microsoft, Windows As an ENERGY STAR® Partner, Sony Corporation has determined that this product meets the ENERGY STAR® guidelines for energy efficiency. The Wireless LAN functionality, which is incorporated into selected models only, has passed Wi-Fi certification and complies with the interoperability specifications established by WFA (Wi-Fi Alliance). Draft 2 VAIO® Computer Quick Start 6 Media, Windows, Windows NT, and the Windows logo are registered trademarks of Microsoft Corporation. Intel, Intel SpeedStep, and Pentium are trademarks or registered trademarks of Intel Corporation. PS/2 is a registered trademark of IBM. Acrobat Reader, Photoshop, Photoshop Elements, and Premiere are trademarks of Adobe Systems Incorporated. Reverse engineering or disassembly is prohibited. i.LINK is a trademark of Sony used only to designate that a product contains an IEEE 1394 connection. The i.LINK connection may vary, depending on the software applications, …

Text truncated - open the document above for the full version.

Bluetooth TM Module UGPZ specification rev 1.1.8 March 28 /2003 ALPS PROPRIETARY INFORMATION CONFIDENTIAL REQUESTED Copyright  2002 ALPS Electric Co.,LTD. page1 User Guide Information to 2.4GHz ALPS Bluetooth TM Module UGPZ series 1. Introduction: The ALPS, UGPZ series with Bluetooth TM wireless technology is a radio device that transmits and receives radio signals in accordance with the spectrum regulations for the 2.4 GHz unlicensed frequency range. The following table shows a major function. Model number Major FunctionRemarks UGPZ1 1. Output Power Bluetooth™ class1(+15dBm / 0.032W max.) compliant 2. On-board Internal dielectric resin antenna (1/4 wavelength, 1.62dBi max.) 3. Voltage regulator built in. Rating of Input voltage: +4.4Vdc +/-0.8V 4. Flash memory (256k bytes) built in 5. Reference oscillator built in 6. Board to board connection through UART (BCSP or H4), USB, PCM interfaces 7.Operating temperature: Nominal; +15 °C to +35 °C 8. Regulatory frequency range USA, Canada, Europe, Japan: 2400 – 2483.5MHz Note: Out door use is prohibited in France. On-board Internal antenna UGPZ2 1. Output Power Bluetooth™ class2(+4dBm / 0.0025W max.) 2. On-board Internal dielectric resin antenna (1/4 wavelength, 1.62dBi max.) , or External ceramic antenna (1/4 wavelength, 1.63dBi max.) connected via antenna connector. 3. Voltage regulator built in. Rating of Input voltage: +3.3Vdc, +/-0.2V 4. Flash memory (256k bytes) built in 5. Reference oscillator built in 6. Board to board connection through UART (BCSP or H4), USB, PCM interfaces 7.Operating temperature: Nominal; +15 °C to +35 °C 8. Regulatory frequency range USA, Canada, Europe, Japan: 2400 – 2483.5MHz Note: Out door use is prohibited in France. On-board Internal antenna or External antenna UGPZ3 1. Output Power; Bluetooth™ class 2(+3dBm / 0.002W max.). 2. External 2 or 3 different ceramic antenna connected via antenna connector. (4dBi max) 3. Voltage regulator built in. Rating of Input voltage: +3.3Vdc, +/-0.2V 4. Flash memory (256k bytes) built in 5. Reference oscillator built in 6. Board to board connection through USB interfaces 7.Operating temperature: Nominal; +15 °C to +35 °C 8. Regulatory frequency range USA, Canada, Europe, Japan: 2400 – 2483.5MHz Note: Out door use is prohibited in France. Three kind of External antenna Bluetooth TM Module UGPZ specification rev 1.1.8 March 28 /2003 ALPS PROPRIETARY INFORMATION CONFIDENTIAL REQUESTED Copyright  2002 ALPS Electric Co.,LTD. page2 Electrical featuresContents Program memory4M bits (256k bytes x 16 bits) Flash momory RAM32k bytes x 16 bits Reference oscillatorBuilt in Sub clock oscillatorBuilt in Audio interfacePCM A-Law, μ-Law (CVSD) Serial data interfaceUART(BCSP or H:4) USB interfaceUSB (v1.1 : OHCI and UHCI) 2. Radio part Bluetooth™ Module, model UGPZ1 has fully integrated 2.4GHz radio transceiver with Class1 power amplifier, receiver and frequency-hopping synthesizer. The model, UGPZ2 is the almost same as UGPZ1, except for output power and no power amplifier in the RF front-end circuit. The model, UGPZ3 is the almost same as UGPZ2, except for output power, no power amplifier in the RF front-end circuit and overall dimensions. In order to facilitate power management, each section of the radio may be powered up and down separately. Various software controllable switches have been implemented to control power to the transmitter, the frequency synthesizer/VCO, the receiver and the LNA, if provided. 3. Base band part Bluetooth™ Module contains link controller, which performs all the real-time functions of the Bluetooth™ baseband protocol layer, including data transfer and connection management. The device also controls states of operation enables sniff, park and hold modes of operation. Real-time functions such as frequency- hopping burst timing and clock synchronization are also implemented in this hardware. Further processing is required to format the data into the Bluetooth™ packet format before it may be applied to the GFSK modulator. On the receive side the controller performs error correction and de-scrambling before de- packetizing the incoming payload and storing it in RX buffers. The link controller hardware also implements the basic, repetitive actions of paging, inquiry, page or inquiry scans and the general Bluetooth™ modes of park and sniff. This ensures that the processor used to implement the Link Manager and other lower layer protocol can be kept inactive. 4. Eligibility requirements for regulatory approval: As a part of regulatory certification, ALPS will provide an approval for certain countries in the form of modular approval (MA) . The regulatory approval is required for each country throughout world where the end-user wishes to use ALPS UGPZ series into entire end product, if no certification program for the modular approval exists in the country. The countries that can accept MA include the USA, Canada, and certain European countries. The conditions for approval of ALPS UGPZ series and related information for each country are described below. ALPS wishes that our customer for end product would contact with us about what module of UGPZ series has been certified for each country. 4.1 USA 4.1.1 Compliance statement to FCC This module complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF exposure compliance This module may be installed into any end product both mobile and portable applications. Because the module only radiates very low power levels, it complies with RF exposure requirements. According to Supplement C, Edition 01-01 to OET Bulletin 65, Edition 97-01 spread spectrum transmitters are categorically excluded from routine environmental evaluation because of the low power level, where there is a high likelihood of compliance with RF exposure standard…

Text truncated - open the document above for the full version.

Intel(R) PRO/Wireless 2200BG User's Guide Your Intel(R) PRO/Wireless 2200BG Network Connection adapter works with either 802.11b or 802.11g wireless standard. Operating at 2.4 GHz frequency at speeds of up to 54 Mbps you can now connect your computer to high-capacity existing 802.11b networks using multiple access points within large or small environments, and also to high-speed 802.11g networks. Your wireless adapter maintains automatic data rate control according to access point location to achieve the fastest possible connection. All your wireless client connections can be easily managed by the Intel(R) PROSet for Wireless utility. Using the Intel(R) PROSet for Wireless Profile Wizard, you can create profiles automatically to suite your specific connection requirements. Enhanced security measures using 802.1x, WPA encryption and authentication, and 128-bit WEP encryption is standard for both 802.11b and 802.11g. Introduction to Wireless Networking Software Installation Using Intel(R) PROSet for Wireless Connecting to a Network Security Overview Setting up Connection Security Troubleshooting Specifications Glossary Customer Support Safety and Regulatory Notices Warranty Adapter Registration Information in this document is subject to change without notice. (c) 2000–2003 Intel Corporation. All rights reserved. Intel Corporation, 5200 N.E. Elam Young Parkway, Hillsboro, OR 97124-6497 USA The copying or reproducing of any material in this document in any manner whatsoever without the written permission of Intel Corporation is strictly forbidden. Intel(R) is a trademark or registered trademark of Intel Corporation or its subsidiaries in the United States and other countries. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Intel disclaims any proprietary interest in trademarks and trade names other than its own. Microsoft and Windows are registered trademarks of Microsoft Corporation. *Other names and brands may be claimed as the property of others. Intel Corporation assumes no responsibility for errors or omissions in this document. Nor does Intel make any commitment to update the information contained herein. September 2003 Back to Contents Page Wireless LAN Overview: Intel(R) PRO/Wireless 2200BG User's Guide About Wireless LAN Technology l Choosing a WLAN l Configuring a WLAN l Identifying a WLAN l Surveying the Site of Your WLAN l Factors Affecting Range A wireless network connects computers without using network cables. Computers use radio communications to send data between each other. You can communicate directly with other wireless computers, or connect to an existing network through a wireless access point. When you set up your wireless adapter, you select the operating mode for the kind of wireless network you want. You can use your wireless adapter to connect to other similar wireless devices that comply with the 802.11 standard for wireless networking. Choosing a Wireless LAN Wireless LANs can operate with or without access points, depending on the number of users in the network. Infrastructure mode uses access points to allow wireless computers to send and receive information. Wireless computers transmit to the access point, the access point receives the information and rebroadcasts it to other computers. The access point can also connect to a wired network or to the Internet. Multiple access points can work together to provide coverage over a wide area. Peer-to-Peer mode, also called Ad Hoc mode, works without access points and allows wireless computers to send information directly to other wireless computers. Ad Hoc Mode is only supported in 802.11b and 802.11g networks. You can use Peer-to-Peer mode to network computers in a home or small office or to set up a temporary wireless network for a meeting. Configuring a Wireless LAN There are three basic components that must be configured for an 802.11 wireless LAN to operate properly: l Network Name: Each wireless network uses a unique Network Name to identify the network. This name is called the Service Set Identifier (SSID). When you set up your wireless adapter, you specify the SSID. If you want to connect to an existing network, you must use the name for that network. If you are setting up your own network you can make up your own name and use it on each computer. The name can be up to 32 characters long and contain letters and numbers. l Profiles: When you set up your computer to access a wireless network, the wireless client manager creates a profile for the wireless settings that you specify. If you want to connect to another network, you can scan for existing networks and make a temporary connection, or create a new profile for that network. After you create profiles, your computer will automatically connect when you change locations. l Security: The 802.11 wireless networks use encryption to help protect your data. Wired equivalent privacy (WEP) uses a 64-bit or 128-bit shared encryption key to scramble data. Before a computer transmits data, it scrambles the data using the secret encryption key. The receiving computer uses this same key to unscramble the data. If you are connecting to an existing network, use the encryption key provided by the administrator of the wireless network. If you are setting up your own network you can make up your own key and use it on each computer. m Wi-Fi Protected Access (WPA) is a security enhancement that strongly increases the level of data protection and access control to a WLAN. WPA mode enforces 802.1x authentication and key-exchange to strengthen data encryption. WPA utilizes its Temporal Key Integrity Protocol (TKIP). TKIP provides important data encryption enhancements that include a per-packet key mixing function, a message integrity check (MIC) named "Michael", an extended initialization vector (IV) with sequencing rules, and a also re-keying mechanism. Using these improvement enhanceme…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 May 6, 2004 RE: FCC ID: AK8PCG6C1L_ATCB001321 Attention: Yoshiko Mizuta I have a few comments on this Application. 1. Please provide the internal photos showing the WLAN device. Please provide photos of this transmitter with shielding removed and both sides of the boards. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

10 May, 2004 Subject : FCC ID: AK8PCG6C1L Dear Mr. Dennis Ward, Regarding to your comment for FCC ID: AK8PCG6C1L on May 6, 2004 please find the following reply; 1. We provide the photos you have required in your comments. Please refer to the uploaded file of Internal Photos(revised). Sincerely yours, Yoshiko Mizuta (Ms.) UL Apex Co., Ltd.

FCC ID : AK8PCG6C1L External Photo Sony Corporation Front Back FCC ID : AK8PCG6C1L External Photo Sony Corporation Right Left FCC ID : AK8PCG6C1L External Photo Sony Corporation AC Adapter

FCC ID : AK8PCG6C1L Internal Photo Sony Corporation Body front Body Back FCC ID : AK8PCG6C1L Internal Photo Sony Corporation Bluetooth Module Wireless LAN Module FCC ID : AK8PCG6C1L Internal Photo Sony Corporation Wireless LAN Module front side without shielding Wireless LAN Module back side

FCC ID : AK8PCG6C1L Test report No. : 24GE0260-YK-1 Issued date : April 23, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) Applicant: Sony Corporation Type of Equipment : Notebook Personal Computer M odel No. : PCG-6C1L FCC ID: AK8PCG6C1L Sony Corporation declares that M odel : Notebook Personal Computer complies with FCC radiation exposure requirement specified in the FCC Rules 2.1093. The “PCG-6C1L“ has 47.64 mW of conducted Peak Output power and 27.1 mW of EIRP. This kind of equipment is below 60/frequency[MHz] W(TCB Exclusion List) so that SAR testing is excluded. Follwing calculation is reference data for 20cm distance. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “PCG-6C1L“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontro Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* ƒÎ * r 2 ) Where P = 47.64 mW (M aximum peak output power) G = 0.57 Numerical Antenna gain; equal -2.5 dBi r =20.0 cm For: PCG-6C1L S = 0.00539 mW/cm 2 No. : 24GE0260-YK-1 RF Exposure / SAR Statement

BABT Segensworth Road Fareham, Hampshire PO15 5RH United Kingdom Telephone: +44 (0)1329 443300 Ref: LO611524 Date: 5 May 2004 Direct Dial: +44 (0)1329 443502 Fax: +44 (0)1329 443421 E-mail: [email protected] Website: www.tuvps.co.uk www.babt.com Alan Binks Claremont House 34 Molesey Road Hersham Walton-on-Thames Surrey KT12 4RQ Dear Alan Class II Permissive Change application - TCB - Symbol Technologies Inc. FCC id H9PMC9062A Please find enclosed one set of zipped files on behalf of Symbol Technologies Inc. The application is for a Class II Permissive Change approval of a Symbol MC9062 Mobile Computer which offers Tri-Band GSM/GPRS 850/1800/1900, 2.4GHz 802.11b Wireless LAN and Bluetooth connectivity. The reason for this Class II Permissive Change application is that the MC9062 now supports simultaneous transmission of the following radio combinations: GSM850 & BT, GSM1900 & BT, GSM850 & RLAN, GSM 1900 & RLAN, RLAN and BT. The three radios have all been previously approved and details of the FCC id’s are contained within the BABT 736. The following documentation is included as directed by Hilton Carr: Attestation statement, Cover letter, authorisation letter, Form 736, EMC reports OR611524-5, OR611524-6, OR611524-7 and SAR report WS611524-002 issue 1. The MC9062 was originally approved by BABT (US000060) and the original TÜV PS job number was 611524. This application is part of a onestop project. The certification number is HA611524. Please do not invoice Symbol directly. The project manager is Maggie Glasspool. If there are any questions please contact Maggie in the first instance. Yours sincerely Phil Dolling Compliance Manager

FCC ID : AK8PCG6C1L Test report No. : 24GE0260-YK-1 Page : 2 of 100 Issued date : April 23, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) Table of Contents Page 1 GENERAL INFORMATION 3 1.1 Tested Methodology 3 1.2 Test Facility 3 2 PRODUCT DESCRIPTION 4 3 SYSTEM TEST CONFIGURATION 5 3.1 Justification 5 3.2.Configuration of Tested System 5 4 MEASUREMENT UNCERTAINTY 7 5 SUMMARY OF TESTS 8 5.1 §15.207 Conducted Emissions 8 5.2 §15.247 (a)(2) 6dB Bandwidth (Antenna Port Conducted) 8 5.3 §15.247 (b)(1) Maximum Peak Output Power (Antenna port Conducted) 8 5.4 §15.247 (c) Out of Band Emissions (Radiated) 9 5.5 §15.247 (c) Out of Band Emissions (Antenna Port Conducted) 9 5.6 §15.247 (d) Power Density (Antenna Port Conducted) 9 Contents of Appendixes 10 APPENDIX 1: Photographs of test setup 11 APPENDIX 2: Test Data 13 APPENDIX 3: Test instruments 100 FCC ID : AK8PCG6C1L Test report No. : 24GE0260-YK-1 Page : 3 of 100 Issued date : April 23, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) 1 GENERAL INFORMATION Applicant Company Name : Sony Corporation Brand Name : SONY Address : 6-7-35 Kita-shinagawa, Shinagawa-ku, Tokyo, 141- 0001 JAPAN Telephone Number : +81 3 5795 8711 Facsimile Number : +81 3 5795 8981 Contact Person : Tsutomu Shibusawa ([email protected]) Type of Equipment : Notebook Personal Computer Model No. : PCG-6C1L Serial No. : XTA004 Rating : DC16V (AC Adaptor: 100-240V/60Hz) Receipt Date of Sample : April 1, 2004 Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Country of manufacture : Japan Regulation(s) : FCC Part15 Subpart C, Section 15.247: 2003 Test Site : UL Apex Yamakita EMC lab. No.1 Anechoic chamber and No. 4 Shielded room 1.1 Tested Methodology The measurements were performed according to the procedures in ANSI C63.4 (2001). These tests were also referred to FCC 97-114 “Guidance on Measurement for Direct Sequence Spread Spectrum Systems”. 1.2 Test Facility This site has been fully described in a report submitted to FCC office, and accepted on November 8, 2002. (No.1 Anechoic chamber Registration No.: 95967) NVLAP Lab. code : 200441-0 FCC ID : AK8PCG6C1L Test report No. : 24GE0260-YK-1 Page : 4 of 100 Issued date : April 23, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) 2 PRODUCT DESCRIPTION Model: PCG-6C1L (referred to as the EUT in this report) is a Notebook Personal Computer with Wireless LAN module (IEEE802.11b, IEEE802.11g) and Bluetooth module, which was certificated (FCC ID: CWTUGPZ5). The antenna is included in the EUT. The clock frequencies used in EUT: 2472MHz, 2000MHz, 330MHz, 230MHz, 100MHz, 66MHz, 65MHz, 48MHz, 33MHz, 27MHz, 25MHz, 24.576MHz, 14.318MHz, 14MHz, 12.288MHz, 10MHz [Wireless LAN Module] Equipment type : Transceiver Frequency of operation : 2412 - 2462 MHz Channel spacing : 5 MHz Channel number : 11 Type of modulation : DSSS Antenna fixing method : Internal Antenna type : 1/4λ Monopole Antenna connector type : U.FL connector <Hirose> Antenna gain : Right (Sub): -2.45 dBi (including 2.42 dB cable loss) Left (Main): -3.43 dBi (including 3.27 dB cable loss) Mode of operation : Duplex Emission Designation : 22M0P7D Operation temperature range: 0 - 35 deg. C. *FCC Part15.31 (e) The host device PCG-6C1L provides the Wireless LAN module with stable power supply (DC3.3V), and the power is not changed when voltage of the notebook personal computer is varied. Therefore, the notebook personal computer complies power supply regulation. *FCC Part 15.203 Antenna requirement The standard type of antenna connector is applied: however, the notebook personal computer complies this requirement since this radio equipment is for professional installation. FCC ID : AK8PCG6C1L Test report No. : 24GE0260-YK-1 Page : 5 of 100 Issued date : April 23, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) 3 SYSTEM TEST CONFIGURATION 3.1 Justification The system was configured in typical fashion (as a customer would normally use it) for testing. Test mode: 12 modes Transmitting (IEEE802.11b (11Mbps)) -2412MHz (Low) -2437MHz (Middle) -2462MHz (High) Transmitting (IEEE802.11g (54Mbps)) -2412MHz (Low) -2437MHz (Middle) -2462MHz (High) Transmitting (IEEE802.11b (11Mbps)) +Bluetooth (Hopping) -2412MHz (Low) -2437MHz (Middle) -2462MHz (High) Transmitting (IEEE802.11g (54Mbps)) +Bluetooth (Hopping) -2412MHz (Low) -2437MHz (Middle) -2462MHz (High) The test was performed with the Main antenna which has the higher antenna gain (since the both main and sub antenna are the same type and set up symmetrically). The EUT has an ability to provide some different modulation and data rates. Some of these modulation and data rates did not change in the spectrum envelopes of the EUT at conducted measurement with the antenna terminal. Therefore, the results of the final measurements were the IEEE 802.11b DSSS (CCK, QPSK, 11Mbps) and IEEE 802.11g OFDM (64QAM, 54Mbps) modulation as the highest data rate. FCC ID : AK8PCG6C1L Test report No. : 24GE0260-YK-1 Page : 6 of 100 Issued date : April 23, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) 3.2 Configuration of Tested System *Cabling was taken into consideration and test data was taken under worse case conditions. Description of EUT and support equipment No. Item Model number Serial number Manufact…

Text truncated - open the document above for the full version.

FCC ID : AK8PCG6C1L Test report No. : 24GE0260-YK-1 Page : 11 of 100 Issued date : April 23, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) Conducted emission FCC ID : AK8PCG6C1L Test report No. : 24GE0260-YK-1 Page : 12 of 100 Issued date : April 23, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) Radiated emission
