AK8PCSRF1Wireless Remote Commander

Sony Group Corporation

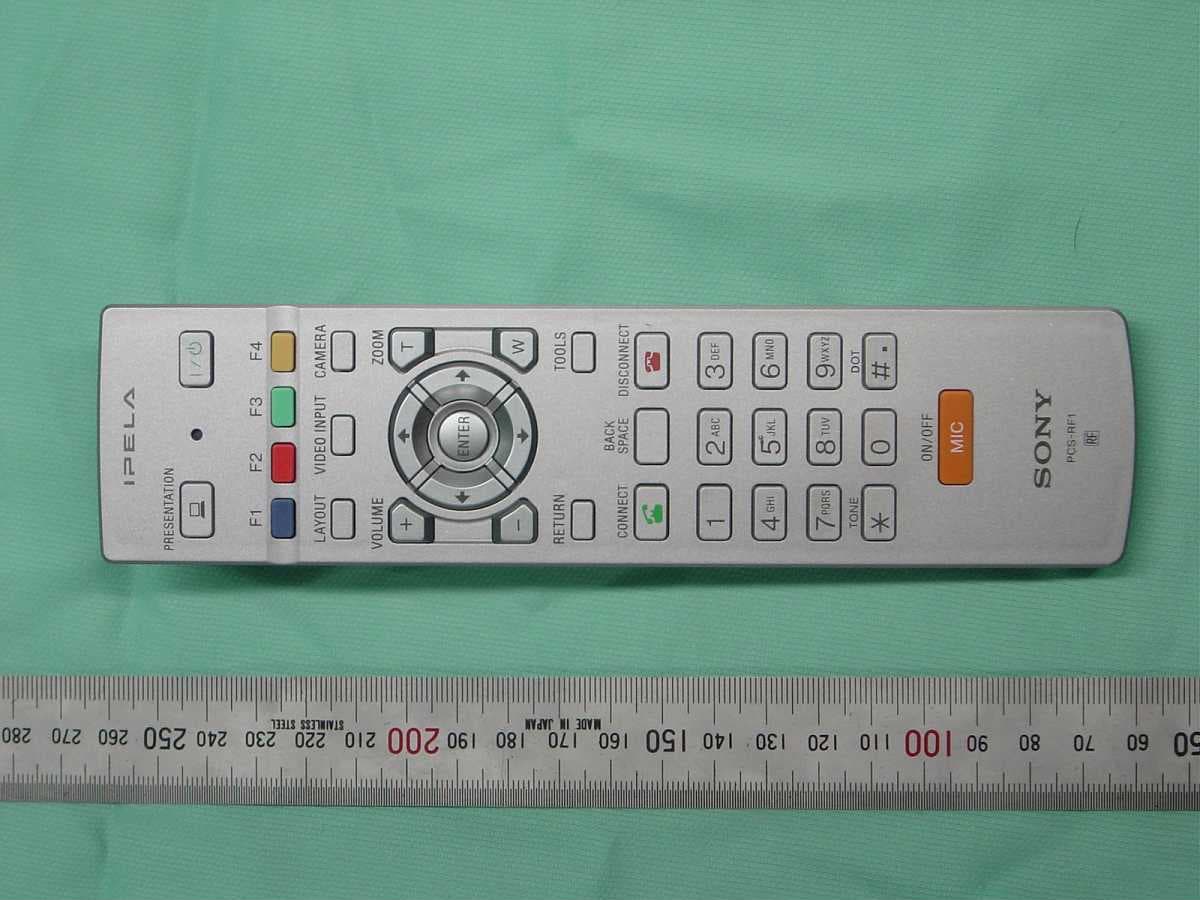

Wireless Remote Commander - FCC ID AK8PCSRF1 - Sony Group Corporation
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jan 22, 2008
Application Purpose
Original Equipment
Date of Application
Jan 22, 2008
Equipment Note
Wireless Remote Commander
Frequency Range
2405.00000000 - 2480.00000000
Company
Sony Group Corporation
Country
Japan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

RF Remote Commander User Manual (Version x.x) Before operating the unit, please read this manual thoroughly and retain it for future references PCS-RF1 © 200x Sony Corporation x-xxx-xxx-xx(x) To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture Installing batteries Two R6 (size AA) batteries are supplied for Remote Commander. To avoid risk of explosion, use R6 (size AA) manganese or alkaline batteries. CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO YOUR LOCAL REGULATIONS. For the customers in the USA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. For the customers in Canada This Class A digital apparatus complies with Canadian ICES-003. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. IC Radiation Exposure Statement: This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Pour les utilisateurs au Canada Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. L’utilisation doit répondre aux deux conditions suivantes : (1) ce matériel ne doit pas provoquer de brouillage et (2) il doit accepter tout brouillage, même celui qui est susceptible d’affecter son fonctionnement. Déclaration d’exposition aux radiations des circuits intégrés : Cet appareil est conforme aux limites d’exposition aux radiations des circuits intégrés RSS-102 établies pour un environnement non contrôlé. Pour l’installation et l’utilisation de cet appareil, il convient de prévoir une distance minimum de 20 cm entre le radiateur et votre corps. Location and Function of Each Part 1) MIC ON/OFF button 2) Volume +/- buttons 3) LAYOUT menu button 4) Back SPACE button 5) Arrow buttons 6) Enter button 7) Return button 8) Number (0-9, #, *) buttons 9) Battery compartment (rear) 10) Power on/off button 11) PRESENTATION button 12) ZOOM (T/W) button T: zoom in W: zoom out 13) VIDEO INPUT SELECT button 14) CAMERA menu button 15) TOOL button 16) CONNECT button 17) DISCONNECT button 18) Function button 19) Indicator Battery Installation 1. Remove the cover 2. Install two AA type batteries. See below polarity of each battery. 3. Attach the cover. SPECIFICTIONS In accordance with IEEE 802.15.4 Middle band: 2405 – 2480MHz( 11ch – 26ch) Output Power: -2 ± 3 dBm Operating Voltage: DC 3 V (2.2 - 3.6 V) Power Supply: AA(R6) size batteries (2 pcs) Dimensions 47 x 47 x 195 mm (W x H x D) (not including projections) http://www.sony.net/ Sony Corporation

Cover Letter(s)

Sony Corporation. 1-7-1 Konan, Minato-ku, Tokyo Japan Tel : +81-3-6748-2569 Fax :+81-3-6748-2574 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 January 15, 2008 Subject: Request for Confidentiality FCC ID: AK8PCSRF1 To Whom It May Concern: In accordance with § 0.459 of CFR 47, SONY CORPORATION requests confidentiality for the following items: 1. Block Diagram 2. Schematic Diagrams 3. Technical Description Required for § 2.1033 (c) These items contain detailed system and equipment description and related information about the product SONY CORPORATION considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, SONY CORPORATION also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Best Regards, Koichi Akama Manager Product Safety Section B&P Quality Strategy Dept. B2B Solutions Business Group

Internal Photos

RF 部拡大

RF Exposure Info

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 Equipment REMOTE COMMANDER PCS-RF1 Manufacturer Sony Corporation where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: -4.60 (dBm) Maximum peak output power at antenna input terminal: 3.47E-01 (mW) Antenna gain(typical): 0 (dBi) Maximum antenna gain: 1 (numeric) Prediction distance: 20 (cm) Prediction frequency: 2440 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.00245043 (mW/cm^2) Power density at prediction frequency: 6.898E-05 (mW/cm^2) Maximum allowable antenna gain: 41.62332762 (dBi) Margin of Compliance: 41.62332762 2 4 R PG S π =

Test Report

Page 2 of 43 Test Report No. R067088-1E Cosmos Corporation Cosmos CorporationCosmos Corporation Cosmos Corporation COS COSCOS COSMOS MOSMOS MOS List ListList List of Contents of Contents of Contents of Contents Page PagePage Page 1. Description of Equipment Under Test .............................................................................................. 4 1.1 Product Description ...................................................................................................................... 4 1.2 Antenna Description..................................................................................................................... 4 2. General Information ............................................................................................................................. 5 2.1 Test Methodology .......................................................................................................................... 5 2.2 Test Facility................................................................................................................................... 5 2.3 Traceability ................................................................................................................................... 5 3. Summary of Test Results ..................................................................................................................... 5 4. Test Configuration ................................................................................................................................ 6 4.1 15. 207 AC Power Conducted Emission in Shield Room ......................................................... 6 4.2 15. 247(c) Transmitter Radiated Emissions and Band Edge (Radiated) in 3m Anechoic Chamber ................................................................................................................................................. 6 4.3 All Other Test Items (Except Maximum Peak Output Power) ............................................... 7 4.4 Maximum Peak Output Power ..................................................................................................7 4.5 Test Mode .................................................................................................................................... 7 5. Measurement Result............................................................................................................................. 8 5.1 15. 247(a)(2) Spectrum Bandwidth of Direct Sequence ........................................................... 8 Spread Spectrum System...................................................................................................................... 8 5.1.1 Setting Remarks.................................................................................................................. 8 5.1.2 Minimum Standard............................................................................................................. 8 5.1.3 Result ................................................................................................................................... 8 5.1.4 Measured Data .................................................................................................................... 8 5.2 15. 247(b) Maximum Peak Output Power .............................................................................. 11 5.2.1 Setting Remarks................................................................................................................ 11 5.2.2 Minimum Standard........................................................................................................... 11 5.2.3 Result ................................................................................................................................. 11 5.2.4 Measured Data .................................................................................................................. 12 5.3 15. 247(c) Transmitter Radiated Emissions (Conducted)...................................................... 13 5.3.1 Setting Remarks................................................................................................................ 13 5.3.2 Minimum Standard........................................................................................................... 13 5.3.3 Result ................................................................................................................................. 13 5.3.4 Measured Data (No emission exceeding the 20dB limit was found) ............................. 14 5.4 15. 247(c) Transmitter Radiated Emissions (Radiated) ........................................................ 16 5.4.1 Setting Remarks................................................................................................................ 16 5.4.2 Minimum Standard........................................................................................................... 17 5.4.3 Result ................................................................................................................................. 17 5.4.4 Measured Data .................................................................................................................. 18 5.5.1 Setting Remarks................................................................................................................ 33 Page 3 of 43 Test Report No. R067088-1E Cosmos Corporation Cosmos CorporationCosmos Corporation Cosmos Corporation COS COSCOS COSMOS MOSMOS MOS 5.5.2 Minimum Standard........................................................................................................... 33 5.5.3 Result ................................................................................................................................. 33 5.5.4 Measured Data .................................................................................................................. 34 5.6 15. 247(c) Band Edge Measurement..................…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Kazuyuki Hori(Chief EMC/RF Compliance Specialist)
[email protected]81-50-3141-6220Fax: 81-50-3750-6540

Technical Contact

Cosmos CorporationYsuhiro Kawahara
[email protected]+81-596-63-0707

EMC Dept. · Mie · Japan

Non-Technical Contact

Cosmos CorporationYsuhiro Kawahara
[email protected]+81-596-63-0707

Test Firm

Cosmos CorporationEiji Asano
[email protected]81-596-37-0190Fax: 81-596-37-3609

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz346.00 µW
Confidentiality
Long Term
Grant Notes
Power listed is peak conducted.
