AK8PCVE21LPersonal Computer

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 October 25, 2004 RE: FCC ID: AK8PCVE21L_ATCB001840 Attention: Hiroka Umeyama I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please provide a separate MPE exhibit. 2. Please note that every application must stand on its own merit. Please provide some information on what the 2402 to 2479MHz ‘Receiver’ is. How does it work, is it a BT device? Is it a DSSS device? If so, how does it meet the SS definition? Is it a hopper? Etc. 3. Please note that the analyzer plots on pages 31, 32, 35 through 40, 72 through 77, 81 to 82, 84 to 85 and 87 to 88 are not clear and do not clearly show the analyzer settings. Please provide clear identifiable plots in the report. 4. Please note that the data tables for radiated emissions include a distance factor that is not included in the formula. Please also note that the data tables say 3/1m. What does this mean? When is it 1 meter and when is it 3 meters? This is confusing. Please show in the tables when and where this distance factor is used and please include this distance factor in your formula for final results. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

October 26, 2004 Subject : FCC ID: AK8PCVE21L Dear Mr. Dennis Ward, Regarding to your comment for the above FCC ID on October 25, 2004 please find the following reply; 1. We have made MPEs. Please refer to the uploaded RF exposure statements. 2. Please refer to the uploaded technical specification (file name: CYWUSB6934) 3. We have replaced the relevant pages to the revised one. Please refer to the uploaded revised test reports for FCC and Industry Canada. 4. Please let us explain, because it might have been difficult to recognize. The formula of factor and explanation of distance has been provided in the table No.1(above ) and No.4 (below). (for example in page 58 of test report) It is also provided in second line of [Radiated] Test procedure, SECTION 8:Spurious Emission, Section 15.247(c) in page 10. Please confirm. *We assume that the uploaded files could clarify all the comments you have provided. Sincerely yours, Yoshiko Mizuta (Ms.) UL Apex Co., Ltd.

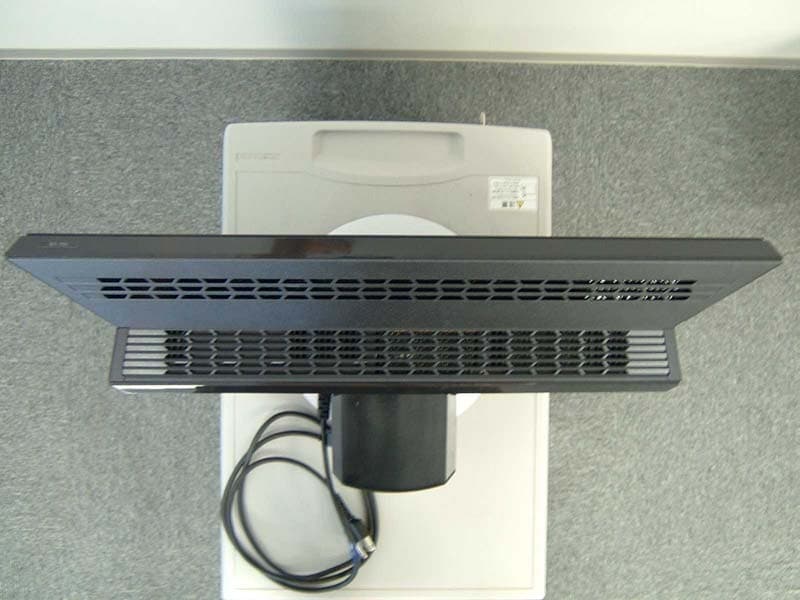

FCC ID : AK8PCVE21L IC Number:409B-PCVE21L External Photo Sony Corporation Front Back FCC ID : AK8PCVE21L IC Number:409B-PCVE21L External Photo Sony Corporation Left Right FCC ID : AK8PCVE21L IC Number:409B-PCVE21L External Photo Sony Corporation Top

UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: Sony Corporation Type of Equipment: Personal Computer Model No. : PCV-E21L IC Number: 409B-PCVE21L RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “PCV-E21L “ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: 1. WLAN S = (P * G) / (4* * r 2 ) Where P = 216.27mW (Maximum peak output power) G = 1.25Numerical Antenna gain; equal to0.98 r =20.0 cm S =0.05392mW/cm 2 No. : 25BE0202-HO-2 RF Exposure / SAR Statement 2. Receiver S = (P * G) / (4* * r 2 ) Where P = 0.91mW (Maximum peak output power) G = 1.64Numerical Antenna gain; equal to2.14 r =20.0 cm S =0.00030mW/cm 2 3. Total ( 1.WLAN + 2.Receiver ) S ( Receiver ) = 0.05392mW/cm 2 S ( WLAN ) = 0.00030mW/cm 2 For: PCV-E21L S ( Total ) = 0.05422mW/cm 2

Test report No. : 25BE0202-HO-1 Page : 1 of 98 Issued date : October 20, 2004 Revised date : October 26, 2004 FCC ID : AK8PCVE21L UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) EMI TEST REPORT Test Report No. : 25BE0202-HO-1 Applicant : Sony Corporation Type of Equipment : Personal Computer Model No. : PCV-E21L Test standard : FCC Part 15 Subpart C Section 15.207, Section 15.247 : 2004 FCC ID : AK8PCVE21L Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with above regulation. We hereby certify that the data contain a true representation of the EMC profile. 4. The test results in this report are traceable to the national or international standards. Date of test: _____________________________ Tested by: ______________________________ ______________________________ Makoto Kosaka Hiroka Umeyama EMC Service EMC Service Approved by : ______________________________ Hironobu Shimoji EMC Service July 5 to October 19, 2004 Test report No. : 25BE0202-HO-1 Page : 2 of 98 Issued date : October 20, 2004 Revised date : October 26, 2004 FCC ID : AK8PCVE21L UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) CONTENTS PAGE SECTION 1: Client information...............................................................................................................3 SECTION 2: Equipment under test (E.U.T.)............................................................................................3 SECTION 3: Test specification, procedures & results..............................................................................5 SECTION 4: Operation of E.U.T. during testing......................................................................................7 SECTION 5: Conducted Emission, Section 15.207...................................................................................9 SECTION 6: 6dB Bandwidth, Section 15.247(a)(2)..................................................................................9 SECTION 7: Maximum Peak Output Power, Section 15.247(b)(3).........................................................9 SECTION 8: Spurious Emission, Section 15.247 (c)...............................................................................10 SECTION 9: Peak Power Density, Section 15.247 (d)............................................................................10 APPENDIX 1: Photographs of test setup................................................................................................11 Conducted Emission..............................................................................................................................................................................11 Spurious Emission (Radiated)..............................................................................................................................................................12 APPENDIX 2:Test instruments................................................................................................................13 APPENDIX 3: Data of EMI test...............................................................................................................14 Conducted Emission..............................................................................................................................................................................14 6dB Bandwidth(DSSS and other forms of modulation)...................................................................................................................30 Maximum Peak OutPut Power (DSSS and other forms of modulation).......................................................................................34 Spurious Emission (Radiated:LAN-11b,Tx2412MHz) below 1GHz..............................................................................................42 Spurious Emission (Radiated:LAN-11b,Tx2437MHz) below 1GHz..............................................................................................43 Spurious Emission (Radiated:LAN-11b,Tx2462MHz) below 1GHz..............................................................................................44 Spurious Emission (Radiated:LAN-11g,Tx2412MHz) below 1GHz..............................................................................................45 Spurious Emission (Radiated:LAN-11g,Tx2437MHz) below 1GHz..............................................................................................46 Spurious Emission (Radiated:LAN-11g,Tx2462MHz) below 1GHz..............................................................................................47 Spurious Emission (Reciever,Tx2402) below 1GHz..........................................................................................................................48 Spurious Emission (Reciever,Tx2440) below 1GHz..........................................................................................................................49 Spurious Emission (Reciever,Tx2479) below 1GHz..........................................................................................................................50 Spurious Emission (Radiated:LAN-11b,Tx2412MHz(Worst)+Reciever,Tx2402) below 1GHz................................................51 Spurious Emission (Radiated:LAN-11b,Tx2412MHz(Worst)+Reciever,Tx2440) below 1GHz................................................52 Spurious Emission (Radiated:LAN-11b,Tx2412MHz(Worst)+Reciever,Tx2479) below 1GHz................................................53 Spurious Emission (Radiated:LAN-11g,Tx2412MHz(Worst)+Reciever,Tx2402) below 1GHz................................................54 Spurious…

Text truncated - open the document above for the full version.

Test report No. : 25BE0202-HO-1 Page : 42 of 98 Issued date : October 20, 2004 Revised date : October 26, 2004 FCC ID : AK8PCVE21L UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Spurious Emission (Radiated:LAN-11b,Tx2412MHz) below 1GHz Test report No. : 25BE0202-HO-1 Page : 43 of 98 Issued date : October 20, 2004 Revised date : October 26, 2004 FCC ID : AK8PCVE21L UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Spurious Emission (Radiated:LAN-11b,Tx2437MHz) below 1GHz Test report No. : 25BE0202-HO-1 Page : 44 of 98 Issued date : October 20, 2004 Revised date : October 26, 2004 FCC ID : AK8PCVE21L UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Spurious Emission (Radiated:LAN-11b,Tx2462MHz) below 1GHz Test report No. : 25BE0202-HO-1 Page : 45 of 98 Issued date : October 20, 2004 Revised date : October 26, 2004 FCC ID : AK8PCVE21L UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Spurious Emission (Radiated:LAN-11g,Tx2412MHz) below 1GHz Test report No. : 25BE0202-HO-1 Page : 46 of 98 Issued date : October 20, 2004 Revised date : October 26, 2004 FCC ID : AK8PCVE21L UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Spurious Emission (Radiated:LAN-11g,Tx2437MHz) below 1GHz Test report No. : 25BE0202-HO-1 Page : 47 of 98 Issued date : October 20, 2004 Revised date : October 26, 2004 FCC ID : AK8PCVE21L UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Spurious Emission (Radiated:LAN-11g,Tx2462MHz) below 1GHz Test report No. : 25BE0202-HO-1 Page : 48 of 98 Issued date : October 20, 2004 Revised date : October 26, 2004 FCC ID : AK8PCVE21L UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Spurious Emission (Reciever,Tx2402) below 1GHz Test report No. : 25BE0202-HO-1 Page : 49 of 98 Issued date : October 20, 2004 Revised date : October 26, 2004 FCC ID : AK8PCVE21L UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Spurious Emission (Reciever,Tx2440) below 1GHz Test report No. : 25BE0202-HO-1 Page : 50 of 98 Issued date : October 20, 2004 Revised date : October 26, 2004 FCC ID : AK8PCVE21L UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Spurious Emission (Reciever,Tx2479) below 1GHz Test report No. : 25BE0202-HO-1 Page : 51 of 98 Issued date : October 20, 2004 Revised date : October 26, 2004 FCC ID : AK8PCVE21L UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Spurious Emission (Radiated:LAN-11b,Tx2412MHz(Worst)+Reciever,Tx2402) below 1GHz Test report No. : 25BE0202-HO-1 Page : 52 of 98 Issued date : October 20, 2004 Revised date : October 26, 2004 FCC ID : AK8PCVE21L UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Spurious Emission (Radiated:LAN-11b,Tx2412MHz(Worst)+Reciever,Tx2440) below 1GHz Test report No. : 25BE0202-HO-1 Page : 53 of 98 Issued date : October 20, 2004 Revised date : October 26, 2004 FCC ID : AK8PCVE21L UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Spurious Emission (Radiated:LAN-11b,Tx2412MHz(Worst)+Reciever,Tx2479) below 1GHz Test report No. : 25BE0202-HO-1 Page : 54 of 98 Issued date : October 20, 2004 Revised date : October 26, 2004 FCC ID : AK8PCVE21L UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Spurious Emission (Radiated:LAN-11g,Tx2412MHz(Worst)+Reciever,Tx2402) below 1GHz Test report No. : 25BE0202-HO-1 Page : 55 of 98 Issued date : October 20, 2004 Revised date : October 26, 2004 FCC ID : AK8PCVE21L UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Spurious Emission (Radiated:LAN-11g,Tx2412MHz(Worst)+Reciever,Tx2440) below 1GHz Test report No. : 25BE0202-HO-1 Page : 56 of 98 Issued date : October 20, 2004 Revised date : October 26, 2004 FCC ID : AK8PCVE21L UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Spurious Emission (Radiated:LAN-11g,Tx2412MHz(Worst)+Reciever,Tx2479) below 1GHz Test report No. : 25BE0202-HO-1 Page : 57of 98 Issued date : October 20, 2004 Revised date : October 26, 2004 FCC ID : AK8PCVE21L UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Spurious Emission (Radiated:LAN-11b,Tx2412MHz) above 1GHz UL Apex Co., Ltd. Head Office EMC Lab. No.2 Semi Anechoic Chamber Company: Sony CorporationREPORT NO: 25BE00202-HO Equipment: Personal ComputerREGULATION: Fcc Part15 Subpart C 15.247(C) Model: PCV-E21LTEST DISTANCE: 3/1m Sample No.: 16DATE: 9/29/20…

Text truncated - open the document above for the full version.

Test report No. : 25BE0202-HO-1 Page : 11 of 89 Issued date : October 20, 2004 FCC ID : AK8PCVE21L UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) APPENDIX 1: Photographs of test setup Conducted Emission Front Rear Test report No. : 25BE0202-HO-1 Page : 12 of 89 Issued date : October 20, 2004 FCC ID : AK8PCVE21L UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Spurious Emission (Radiated) Front Rear
