AK8PCWAC150SWireless LAN PCMCIA Radio Card

Safety Information WARNING •Opening the unit, for whatever reason, could lead to damages that are not covered by the warranty. • Do not use this equipment on hospital premises. Doing so may cause medical devices to malfunction. • If using the equipment near a pacemaker, make sure it is at least 9 inches (22 cm) away from the pacemaker. • Do not use this equipment in an aircraft, as doing so could cause the aircraft's equipment to malfunction. Make sure you remove the equipment from the PC card slot before carrying your computer onto an aircraft. • Do not use this equipment outdoors. • Install and connect this product by following descriptions in its Operating Instructions and Quick Start Guide before using it. •.To comply with the FCC RF exposure compliance requirements, a separation distance of at least 2.5 cm must be maintained between the antenna of this device and all persons. This card may be used in portable or mobile devices such as laptops or handheld PDA’s. The device should not operate in a body worn device or configuration • Indoor use only. • This device is made for use in the USA and Canada only. For the customs in Canada • This class B digital apparatus complies with Canadian ICES-003. Operation is subject to the following two conditions; (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. To prevent radio interference to the lisenced service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing. The term "IC" before the equipment certification number only signifies that Industry Canada technical specifications were met. Pour les utilisateurs au Canada • Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. L'utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l'utilisateur du dispositif doit être prêt a accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif. Pour empêcher que cet appareil cause du brouillage au service faisant l'objet d'une licence, il doit être utilise a l’intérieur et devrait être place loin des fenêtres afin de fournir un écran de blindage maximal. Si le matériel (ou son antenne d’émission) est installe a l’extérieur, il doit faire l'objet d'une licence. Le terme “IC” avant le numéro d’homologation ne signifie seulement que les normes d’Industrie Canada ont été respectées. About the supplied software THE SUPPLIED SOFTWARE IS SUPPLIED PURSUANT TO THE APPLICABLE END-USER LICENSE AGREEMENT. • Copyright laws prohibit reproducing the software or the software manual in whole or in part, or renting the software without the permission of the copyright holder. • In no event will SONY be liable for any financial damage or loss of profits, including claims made by third parties, arising out of the use of the software supplied with this product. • In the event a problem occurs with this software as a result of defective manufacturing, SONY will replace it at SONY’s option or issue a refund; however, SONY bears no other responsibility. • The software provided with this product cannot be used with equipment other than that which is designated for use with. • Please note that, due to continued efforts to improve quality, the software specifications may be changed without notice.

Operating Instructions Wireless LAN PC Card PCWA-C150S A-B6H-100-11(1) © 2002 Sony Corporation 2 WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. Owner’s Record The model and serial numbers are located on the back of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No. PCWA-C150S Serial No.______________ CAUTION Any changes or modifications not expressly approved in this manual could void your warranty. FCC ID: AK8PCWAC150S Exposure to Radio Frequency Radiation. The radiated output power of the Wireless LAN PC Card is far below the FCC radio frequency exposure limits. Nevertheless, the Wireless LAN PC Card shall be used in such a manner that the potential for human contact during normal operation is minimized. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: –Reorient or relocate the receiving antenna. –Increase the separation between the equipment and receiver. –Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. –Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. Only peripherals (computer input/output devices, terminals, printers, etc.) that comply with FCC Class B limits may be attached to this computer product. Operation with non-compliant peripherals is likely to result in interference to radio and television reception. All cables used to connect peripherals must be shielded and grounded. Operation with cables, connected to peripherals, that are not shielded and grounded, may result in interference to radio and television reception. If you have questions about this product, call the Sony Customer Information Service Center at 1-888-476-6972; or write to the Sony Customer Information Service Center at 12451 Gateway Boulevard, Fort Myers, FL 33913. The number below is for FCC-related matters only. Declaration of Conformity Trade Name: Sony Model No: PCWA-C150S Responsible Party: Sony Electronics Inc. Address: 680 Kinderkamack Road, Oradell, NJ 07649 USA Telephone: 201-930-6972 This phone number is for FCC-related matters only. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Safety Information WARNING •Opening the unit, for whatever reason, could lead to damages that are not covered by the warranty. • Do not use this equipment on hospital premises. Doing so may cause medical devices to malfunction. • If using the equipment near a pacemaker, make sure it is at least 9 inches (22 cm) away from the pacemaker. • Do not use this equipment in an aircraft, as doing so could cause the aircraft's equipment to malfunction. Make sure you remove the equipment from the PC card slot before carrying your computer onto an aircraft. • Do not use this equipment outdoors. • Install and connect this product by following descriptions in its Operating Instructions and Quick Start Guide before using it. • This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and body (excluding extremities: hands, wrist and feet). Users are not permitted to make changes or modify the system in any way. • Indoor use only. • This device is made for use in the USA and Canada only. For the customs in Canada • This class B digital apparatus complies with Canadian ICES-003. Operation is subject to the following two conditions; (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. To prevent radio interference to the lisenced service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing. The term "IC" before the equipment certification number only signifies that Industry Canada technical specifications were met. Pour les utilisateurs au Canada • Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. L'utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l'utilisateur du dispositif doit être prêt a accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif. Pour empêcher que cet appareil cause du brouillage au service faisant l'objet d'une licence, il doit être utilise a l’intérieur et devrait être place loin des fenêtres afin de fournir un écran de blindage maximal. Si le matériel (ou son antenne d’émission) est installe a l’extérieur, il doit faire l'objet d'une licence. Le terme “IC” avant le numéro d’homologation ne signifie seulement que les normes d’Industrie Canada ont été respec…

Text truncated - open the document above for the full version.

A- PEX INTERNATIONAL CO., LTD. •EMC HEAD OFFICE DIVISION 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan TEL:0596-24-8116 / FAX:0596-24-8124 Date: Mary 15, 2002 Re: Sony Corporation FCC ID : AK8PCWAC150S Dear Mr. Timothy R. Johnson, Please find the following replies to your comments dated May 4, 2002; 1) The antenna to be connected to center connector of antenna circuit board is the main antenna and there are functions of Transmission and Reception. The antenna to be connected to side connector of antenna circuit board is exclusive use for Reception. At the test of Transmission mode, the antenna was used the one to be connected the center connector. The antenna was used the one to be connected the side connector at the test or Reception property. 2) Please find the re-submitted photos of internal in the filing. 3) Please find the uploaded description of antenna. 4) This product is installed the exclusive antenna with particular connector and sold. The antenna other than this exclusive one is never sold, except for Class II Permissive Change or getting a new FCC ID. 5) Please find submitted the confidential request letter in the filing. 6) Please find the corrected MPE statement of the manual in the filing. 7) Please find the corrected MPE statement of RF Exposure statement in the filing. 8) Please find corrected Form 731 in the filing. Kanako Sanda (Ms.) A-Pex Int ernational Co., Ltd.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 May 4, 2002 RE: Sony Corporation FCC ID: AK8PCWAC150S After a review of the submitted information, I have a few comments on the above referenced Application. 1) The EUT supports diversity. Is the diversity used for receive only, or does is also function for the transmit path? If it does function for the transmit path, was a specific test methodology or engineering judgement made for purposes of determining which antenna path was selected for testing. 2) The 2 internal photographs provided are too dark and the resolution is lower than desired. Please provide new internal photos. 3) Please provide more detail regarding the antenna (type, connectors, etc.). 4) The EUT makes use of an external antenna connector and antenna (see photographs). The only antenna that will be approved with this product is the one documented in the filing. For any antennas that have not been approved the Grantee will have to file a Class II permissive change to approve with the new antenna. However due to MPE issues and concerns, depending on the antenna, it may require a separate ID number. Currently, the device with any other antennas other than the one mentioned in the filing will be considered unauthorized equipment. The Grant will be conditional on acceptance of these terms. Please comment. 5) Their was a few files uploaded as confidential, but a letter requesting confidentiality (which specified which items) was not submitted. Please comment. 6) Please make the recommended changes to the MPE exhibit as discussed in my email. 7) The antenna gain listed on page 5 of 14 of the test report states the antenna gain is -3.6 dBi gain. The MPE exhibit state +1.0 dBi. Which is correct. This information must be consistent throughout all documentation provided. Please correct the affect exhibits, being sure to recalculate the MPE if this is affected. 8) The highest output power (conducted) measured was 14.9 dBm (31 mW). Please correct the 731 form (this should list the maximum conducted power). Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

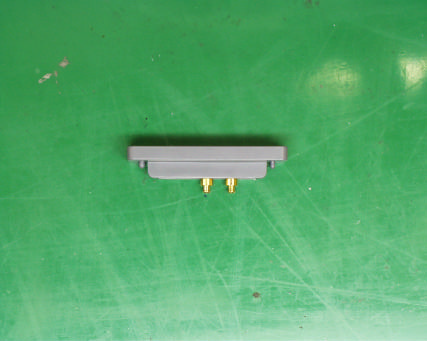

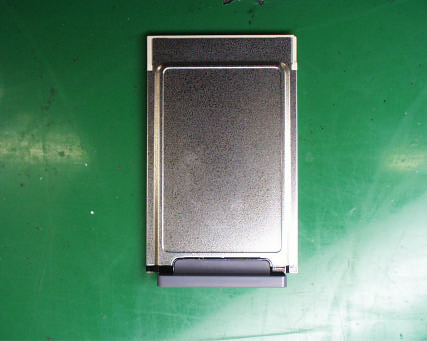

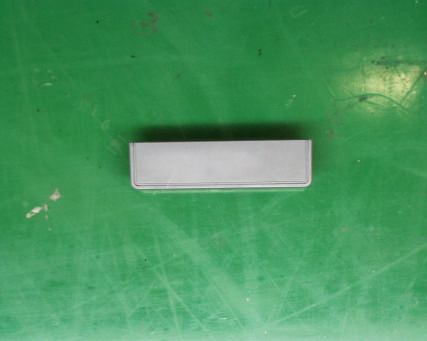

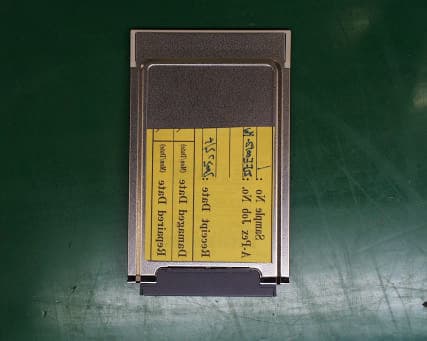

Sony Corporation FCC ID: AK8PCWAC150S External Photos: Front Back Sony Corporation FCC ID: AK8PCWAC150S Top Bottom Sony Corporation FCC ID: AK8PCWAC150S Left Right Sony Corporation FCC ID: AK8PCWAC150S Without Antenna (Top) Without Antenna (Back) Sony Corporation FCC ID: AK8PCWAC150S Antenna (Front) Antenna (Back) Sony Corporation FCC ID: AK8PCWAC150S Antenna (Side)

Sony Corporation FCC ID: AK8PCWAC150S Internal Photos: Top Bottom

DESCRIPTION This PC Card product provides a compatible wireless connection for portable and mobile computers in accordance with IEEE standard 802.11 DSSS. It can work at 11, 5.5, 2 or 1 Mbps. The operation is in accordance with IEEE 802.11. The product, one piece of hardware, contains the following blocks: - PCMCIA interface - Wireless Medium Access Control (WMAC); this chip is used for handshaking with the PCMCIA bus and for handling the IEEE protocol; it also does frequency management and interfaces to FlashROM for parameters on frequencies and Call codes. Here also selection for 11, 5.5, 2 or 1 Mbps is handled. - Digital signal processor takes care of all modulation/demodulation for DSSS for all above rates and can do selection out of 2 receiving antennae - Antenna function, provides connection to optional external antenna. It provides two antenna elements, one for transmitting while one of the two can be selected for reception. Optionally it can be equipped with: - a factory installable data encryption feature (WEP). Block Diagram PCMCIA Interface Connector The technical specification is as follows on the next page. Antenna Conn. WMAC DIGITAL SIGNAL PROCESSOR TECHNICAL SPECIFICATION Data Signalling Rate: 11, 5.5, 2 or 1 Mbit/s Media Access Protocol: According to IEEE 802.11 DSSS, CSMA/CA (Collision Avoidance) Bit Error Rate: Better than 10-8 Base-Band Modulation: - 2 Mbps: Differential Quadrature Phase Shift (before spreading) Keying (DQPSK) 2 bits/symbol - 11 and 5.5 Mbps: Complementary Code Keying Differential Quadrature Phase Shift Keying (DQPSK CCK) Spread Spectrum: Direct Sequence with 11 chips/symbol interval. Pseudo random Barker code sequence: { 1 -1 1 1 -1 1 1 1 -1 -1 -1 } Chipping Rate: 11 Mchips/s Carrier Frequency: Selectable from factory pre-programmed set according to IEEE 802.11: 2412, 2417, 2422, 2427, 2432, 2437, 2442, 2447, 2452, 2457 and 2462 MHz Peak Output Power: < 32 mW rms power (15 dBm) RF Power Density: < 8 dBm/3kHz or <10 dBm/MHz Spurious Emissions etc: - Satisfies the USA Federal Comm. Commission (FCC) rules Part 15.247 - Satisfies the EU requirements to EN 300 328

RF Exposure Statement No. : 22FE0052-YW-2 Applicant: SONY Corporation Type of Equipment : Wireless LAN PC Card Model No.: PCWA-C150S FCC ID: AK8PCWAC150S A-PEX International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 Page 1 FCC Radiation Exposure Statement: SONY Corporation Model : PCWA-C150S complies with FCC radiation exposure requirement specified in the FCC Rules 15.247(b)(4). Notice in Installation Manual CAUTION STATEMENT To comply with the FCC RF exposure compliance requirements, a separation distance of at least 2.5 cm must be maintained between the antenna of this device and all persons. This card may be used in portable or mobile devices such as laptops or handheld PDA’s. The device should not operate in a body worn device or configuration. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “PCWA-C150S” as calculated from FCC OET 65 Appendix B, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0m W/cm^2 uncontrolled exposure limit. The Fires formula used was: S = (P * G) / (4* * r^2) or r = (P * G) / (4 * * S) Where S = 1.0 mW/cm^2 for 2400 MHz P = 30.9mW (Maximum Conducted Power) G = 0.44(Isotropic antenna gain : Converted absolute value) r = Minimum safe distance from antenna (cm) For: PCWA-C150S r = 1.04cm

A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 EMI TEST REPORT Test Report No. : 22FE0052-YW-2 Applicant: SONY Corporation Type of Equipment:Wireless LAN PC Card Model No.:PCWA-C150S FCC ID:AK8PCWAC150S Test standard:FCC Part15 Subpart C, Section 15.247 *Except §15.247(e) Processing Gain Test Result:Complied This report may not be reproduced in full, partial reproduction may only be made with the written consent of the laboratory. The results in this report apply only to the sample tested. Date of test: February 5 and 6, 2002 Issued date: February 21, 2002 Tested by: Approved by: Naoki Sakamoto Kazutoyo Nakanishi Group Leader of EMC section Site Operation Manager of EMC section Test report FCC ID : AK8PCWAC150S Our reference : 22FE0052-YW-2 Page: 2 of 14 Issued date: February 21, 2002 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 Table of Contents Page 1 GENERAL INFORMATION3 1.1 Tested Methodology4 1.2 Test Facility4 2 PRODUCT DESCRIPTION5 2.1Test system Details5 3 SYSTEM TEST CONFIGURATION6 3.1 Justification6 3.2.Configuration of Tested System6 4 MEASUREMENT UNCERTAINTY7 5 TEST INSTRUMENTS8 6 SUMMARY OF TEST9 6.1 §15.207 Conducted Emissions9 6.2 §15.247(a)(2)6dB Bandwidth9 6.3 §15.247(b) Maximum Peak Out Put Power(Conducted)10 6.4 §15.247(c) Out of Band Emissions(Radiated)10 6.5 §15.247(c) Out of Band Emissions(Conducted)11 6.6 §15.247(d) Power Density(Conducted)11 Photographs of test setup 12-13 APPENDIX14 Test dataA1toA31 Test report FCC ID : AK8PCWAC150S Our reference : 22FE0052-YW-2 Page: 3 of 14 Issued date: February 21, 2002 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 1 GENERAL INFORMATION APPLICANT: SONY Corporation ADDRESS: 6-7-35 Kitashinagawa, Shinagawa-ku, Tokyo 141-0001 Japan Tel: +81-3-5795-8716 Fax: +81-3-5795-8981 REGULATION(S): FCC Part15 Subpart C, Section 15.247 *Except §15.247(e) Processing Gain MODEL NUMBER: PCWA-C150S SERIAL NUMBER: 01UT49419208 TYPE OF EQUIPMENT: Wireless LAN Card TESTED DATE: February 5 and 6, 2002 RECEIPT DATE OF SAMPLE: February 5, 2002 REPORT FILE NUMBER: 22FE0052-YW-2 TEST SITE: A-PEX Yokowa No.3 Open Test Site Test report FCC ID : AK8PCWAC150S Our reference : 22FE0052-YW-2 Page: 4 of 14 Issued date: February 21, 2002 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 1.1 Tested Methodology The measurement was performed according to the procedures in ANSI C63.4(1992). 1.2 Test Facility The open area site measurement facilities used to collect the radiated data are located at 108, Yokowa-cho, Ise-shi, Mie-ken, 516-1106 Japan. No.3 test site has been fully described in reports submitted to the FCC office. This test site has filed to the FCC on September 12, 2000 as number: 90412 and is accepted by Industry Canada on May 01,2001 as number IC2973-3. Test report FCC ID : AK8PCWAC150S Our reference : 22FE0052-YW-2 Page: 5 of 14 Issued date: February 21, 2002 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 2 PRODUCT DESCRIPTION SONY Corporation, Model PCWA-C150S (referred to as the EUT in this report) is a Wireless LAN PC Card. The specification is as following : Wireless LAN : Direct sequence spread spectrum.(IEEE 802.11b) 2412 through 2462MHz (11channels / each 5MHz wide) Antenna Type: Inverted-F type Antenna Antenna Connector Type: Proprietary Antenna Gain: -3.6dBi I/F:PCMCIA-bus *FCC Part 15.203 Antenna requirement The antenna connector of Wireless LAN PC Card, model: PCWA-C1505 is a type of proprietary. It is a particular connector so that general end user can not change the antenna and it complies with FCC15.203. 2.1 Test System Details No.ItemModel numberSerial numberManufacturerRemark (FCC ID) AWireless LAN PC Card PCWA-C150S01UT49419208SONYAK8PCWAC150S (EUT) BPCMC1A Adaptor1-800-600-5710-GREYSTONE PERIPHERALS - CNotebook PCPCG-N505VE28303130 3211366SONYDoC DAC AdaptorPCGA-AC5N9939 A 0088416SONYDoC Test report FCC ID : AK8PCWAC150S Our reference : 22FE0052-YW-2 Page: 6 of 14 Issued date: February 21, 2002 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 3 SYSTEM TEST CONFIGURATION 3.1 Justification The system was configured in typical fashion (as a customer would normally use it) for testing. Test mode : Transmitting mode (11Mdps) Performed the test about channels 1(low), 6(mid) and 11(high) among 11 channels of all Carrier frequencies. 3.2 Configuration of Tested System AC 120V/60Hz 1 2 Wooden table A: EUT D B C * Cabling was taken into consideration and test data was taken under worst case conditions. List of cables used No.NameLength (m)ShieldBackshell materialRemark 1DC Power Cable1.8NPolyvinyl chloride- 2AC Power Cable0.8NPolyvinyl chloride- Test report FCC ID : AK8PCWAC150S Our reference : 22FE0052-YW-2 Page: 7 of 14 Issued date: February 21, 2002 A-pex International Co., Ltd. YOKOWA LAB. 108 Yokowa-cho, Ise-shi, Mie-ken 516-1106 JAPAN Telephone:int +81 596 39 1485 Facsimile: int +81 596 39 0232 4 Measurement Uncertainty Conducted Emission Test The measurement uncertainty (with a 95% confidence level) for this test was ±2.0dB. The data listed in this test report has enough margin, more than site margin. Radiated Emission Test The measurement uncertainty (with a 95% confidence level) for this test using Biconical antenna is ±4.4dB. The measurement uncertainty (with a 95% confidence level) for this test using Logperiodic antenna is ±3.2dB. The measurement uncertainty (with a 95% confidence level) for this test using Horn antenna …

Text truncated - open the document above for the full version.
