AK8PEGAMSB1Bluetooth Module

4- 662-841-11 (1) Bluetooth™ Module Operating Instructions  2002 Sony Corporation PEGA-MSB1 2 Owner’s Record The model number and serial number are located at the rear of the product. Record the model number and the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model Number : PEGA-MSB1 Serial Number : __________________ NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 3 FCC Radiation Exposure Statement: This transmitter complies with FCC radiation exposure limits set forth for an uncontrolled environment. To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user. In addition, this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB- 003 du Canada. Warnings •In some situations or environments, the use of the Bluetooth™ technology might be restricted by the proprietor of the building or responsible representatives of the organization, for example on board of airplanes, in hospitals or in any other environment where the risk of interference with other devices or services is perceived or identified as harmful. •If you are uncertain about the policy applying to the use of Bluetooth™ technology in a specific organization or environment, you are encouraged to first ask for authorization prior to switching it on. •Consult your physician or the manufacturer of personal medical devices (pacemakers, hearing aids, etc.) regarding any restrictions on the use of Bluetooth™ technology. 4 •Sony, , CLIÉ, , CLIÉ GEAR, , , Jog Dial and Memory Stick are trademarks of Sony Corporation. •Palm OS and HotSync are registered trademarks of Palm, Inc. or its subsidiaries. Palm Desktop and HotSync logo are trademarks of Palm, Inc. or its subsidiaries. •Microsoft, Windows and Windows NT are registered trademarks of Microsoft Corporation in the United States and/or other countries. •The Bluetooth trademarks are owned by their proprietor and used by Sony Corporation under license. •All other names of systems, products and services are trademarks of their respective owners. In the manual, the TM or ® marks are not specified. Before using the PEGA-MSB1, be sure to read the End User Software License Agreement that accompanies it. • Copyright laws prohibit reproducing the software or the manual accompanying it in whole or in part, or renting the software without the permission of the copyright holder. • In no event will SONY be liable for any financial damages, or loss of profits, including claims made by third parties, arising out of the use of the software supplied with this unit. • If a problem occurs with this product as a result of defective manufacturing, SONY will replace it. However, SONY bears no other responsibility. • The software provided with this unit cannot be used with other units. • Please note that, due to continued efforts to improve quality, the software specifications may be changed without notice. • Operation of this unit with software other than that provided is not covered by the warranty. 5 Table of Contents Introduction ................................................................................................... 6 What You Can Do with this Bluetooth Module ....................................... 7 Names of Parts .............................................................................................. 9 Inserting/Removing this Bluetooth Module .......................................... 10 Installing the Application .......................................................................... 12 Performing a HotSync Operation ............................................................. 14 Performing a HotSync Operation by Bluetooth Communications for the First Time ............................................................................ 14 Performing a HotSync Operation for the Second Time and Thereafter ........................................................................................ 20 Accessing the Internet ................................................................................ 21 Accessing the Internet by Bluetooth Communications for the First Time ........................................................................................ 21 Accessing the Internet for the Second Time and Thereafter ...... 28 Exchanging Information between Two CLIÉ Handhelds ......…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 July 26, 2002 RE: FCC ID: AK8PEGAMSB1 Attention: Toyokazo Imamura / Kanako Sanda I have a few comments on this Application. 1 The sample label must be readable. Please note that the sample label provided is not readable. Please provide a sample label that clearly and unambiguously identifies the ID number of the device. 2 Please note that CFR 47 Part 2.1093 makes no such statement as you claim in the RF exposure document. Please provide an rf exposure statement that refers to the correct sections and the correct values. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

A-PEX INTERNATIONAL CO., LTD. EMC HEAD OFFICE DIVISION4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan TEL:0596-24-8116/FAX:0596-24-8124 July 31, 2002 Re : Sony Corporation FCC ID : AK8PEGAMSB1 Dear Mr. Dennis Ward Please find the following replies to your comments dated July 27, 2002; 1) Please refer to submitted PDF “Revised Label Layout”. 2) Please refer to submitted PDF “Revised RF Exposure Statement”. Keijiro Kumagai A-Pex International Co., Ltd.

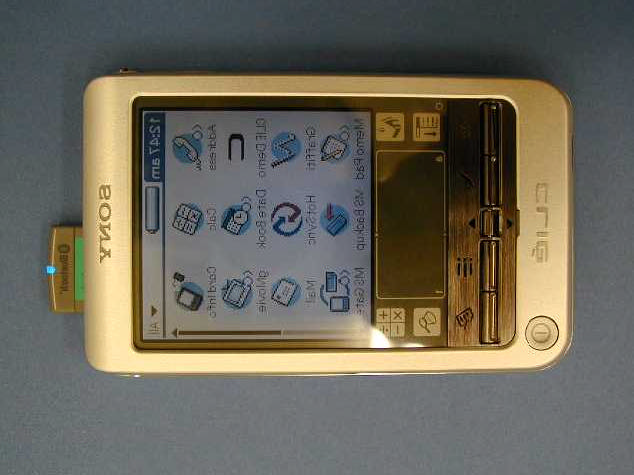

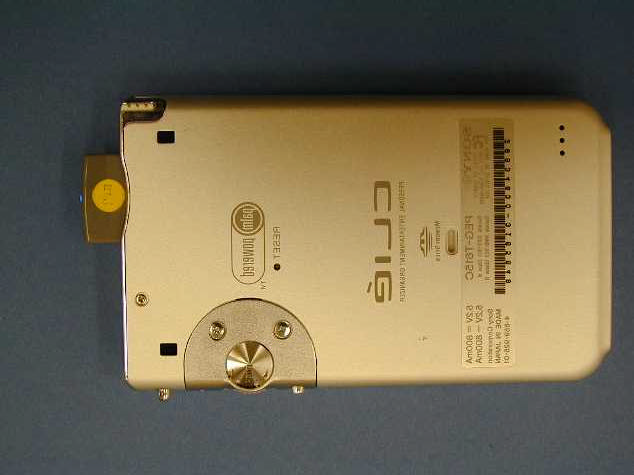

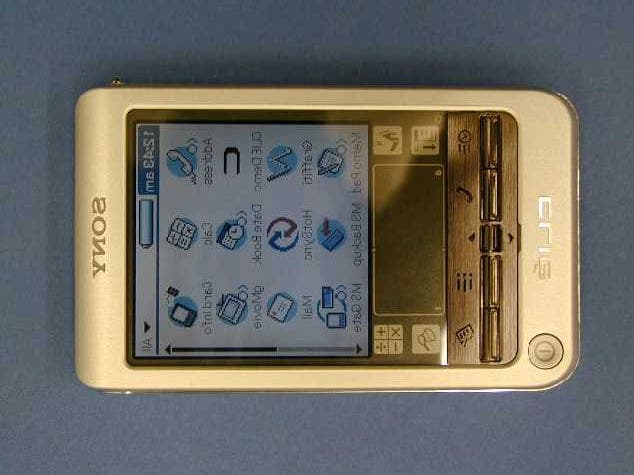

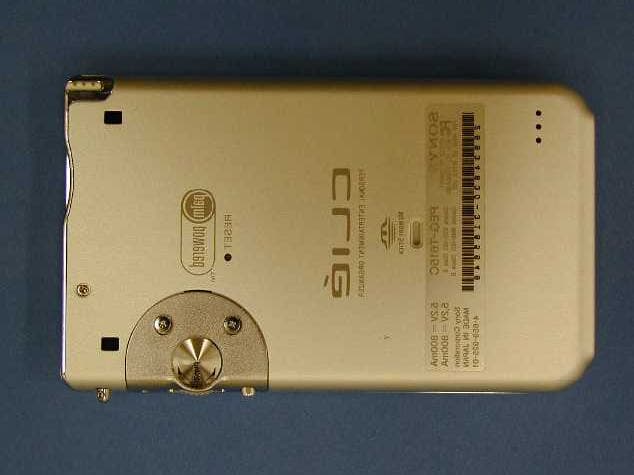

FCC ID: AK8PEGAMSB1 External Photos Bluetooth Module (Front) Bluetooth Module (Back) FCC ID: AK8PEGAMSB1 CLIE and Bluetooth Module (Front) CLIE and Bluetooth Module (Back) FCC ID: AK8PEGAMSB1 CLIE and Bluetooth Module (Top) CLIE (Right) FCC ID: AK8PEGAMSB1 CLIE (Left) CLIE (Top) FCC ID: AK8PEGAMSB1 CLIE (Bottom) CLIE (Front) FCC ID: AK8PEGAMSB1 CLIE (Back)

FCC ID: AK8PEGAMSB1 Internal Photos Module (Front) FCC ID: AK8PEGAMSB1 Module (Back) FCC ID: AK8PEGAMSB1 RF Module (Front) FCC ID: AK8PEGAMSB1 RF Module (Back)

Operational Description

RF Exposure Statement No. : 22JE0004-YK-1 Applicant: Sony Corporation Type of Equipment: Bluetooth Module Model No.: PEGA-MSB1 FCC ID: AK8PEGAMSB1 A-PEX International Co., Ltd. YAMAKITA LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone : int +81 465 77 1011 Facsimile : int +81 465 77 2112 Page 1 RF Exposure Statement: Sony Corporation Model : PEGA-MSB1 complies with FCC radiation exposure requirement specified in the FCC Rules 15.247(b)(4). Sony Model : PEGA-MSB1 has 0.91mW of conducted Peak output power and 2.55mW of EIRP.(Antenna gain : 2.15dBi) According to RF output power of this module transmitter, values for both Conducted peak output power and EIRP are below 5mW.This kind of equipment hardly ever go over SAR value limited of 1.6W/Kg for public resident which is regulated by "OET Bulletin65, Supplement C". Notes in Installation Manual: FCC Radiated Exposure Statement: This transmitter complies with FCC radiation exposure limits set forth for an uncontrolled environment. To comply with the FCC RF exposure compliance requirements, no change to the antenna of device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user. In addition, this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

FCC:ID : AK8PEGAMSB1 Test report No. : 22JE0004-YK-1 Page : 2 of 51 Issued date : June 28, 2002 A-pex International Co., Ltd. YAMAKITA LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: int +81 465 77 1011 Facsimile: int +81 465 77 2112 MF060b(23.04.02) Table of Contents Page 1 GENERAL INFORMATION 3 1.1 Tested Methodology 3 1.2 Test Facility 3 2 PRODUCT DESCRIPTION 4 2.1Test system Details 4 3 SYSTEM TEST CONFIGURATION 5 3.1 Justification 5 3.2.Configuration of Tested System 6 4 MEASUREMENT UNCERTAINTY 8 5 SUMMARY OF TEST 9 5.1 §15.207 Conducted Emissions 9 5.2 §15.247(a)(1)Frequency Hopping System(Antenna Port Conducted) 9 5.3 §15.247(a)(1)(ii)Channel Utilization(Antenna Port Conducted) 9 5.4 §15.247(b) Maximum Peak Out Put Power(Antenna port Conducted) 10 5.5 §15.247(c) Out of Band Emissions(Radiated) 11 5.6 §15.247(c) Out of Band Emissions(Antenna Port Conducted) 11 Contents of Appendixes 12 APPENDIX 1: Photographs of test setup 13 APPENDIX 2: Test Data 17 APPENDIX 3: Test instruments 51 FCC:ID : AK8PEGAMSB1 Test report No. : 22JE0004-YK-1 Page : 3 of 51 Issued date : June 28, 2002 A-pex International Co., Ltd. YAMAKITA LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: int +81 465 77 1011 Facsimile: int +81 465 77 2112 MF060b(23.04.02) 1 GENERAL INFORMATION Company Name : Sony Corporation Brand Name : Sony Address : 6-7-35 kitashinagawa, Shinagawa-ku, Tokyo, 141-0001Japan Telephone Number : +81-3-6409-3669 Facsimile Number : +81-3-6409-3409 Contact Person : Yuji Kumai Type of Equipment : Bluetooth Module Model No. : PEGA-MSB1 Rating : DC3.3V (PDA: AC120V/ 60Hz) Country of Manufacture : Japan Receipt Date of Sample : June 25, 2002 Condition of EUT : Production prototype Regulation(s) : FCC Part15 Subpart C ,Section 15.247 Except FCC 15.247(e) Processing Gaine Test Site : A-PEX Yamakita No.1 Open Test Sites 1.1 Tested Methodology The measurement was performed according to the procedures in ANSI C63.4(2000). 1.2 Test Facility This site has been fully described in a report dated November 24, 1999 submitted to FCC office, and accepted in a letter dated December 8, 2000 (No.1 Open Test Site: 95486). NVLAP Lab. code : 200441-0 FCC:ID : AK8PEGAMSB1 Test report No. : 22JE0004-YK-1 Page : 4 of 51 Issued date : June 28, 2002 A-pex International Co., Ltd. YAMAKITA LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: int +81 465 77 1011 Facsimile: int +81 465 77 2112 MF060b(23.04.02) 2 PRODUCT DESCRIPTION Sony Corporation , Model: PEGA-MSB1 (referred to as the EUT in this report) is a Bluetooth Module. The clock frequency used in EUT is 13MHz. Frequency characteristics: 2402MHz through 2480MHz No. of channels/ channel spacing: 79 channels/ 1MHz channel spacing Modulation: FSK (Low power Frequency Hopping Spread Spectrum (FHSS)) Antenna type : Monopole (Integral) Antenna Gain: 2.15dBi Operating Voltage: DC3.3V *FccPart15.31(e) The host device PEGA-MSB1 provide the Bluetooth Module with stable power supply(DC:3.3V), and the Bluetooth Module complies power supply regulation. *FccPart15.203 Antenna requirement Bluetooth Module and its antenna comply with this requirement since this antenna is built in Bluetooth Module when they are put up for sale and they are used with a particular antenna connector . FCC:ID : AK8PEGAMSB1 Test report No. : 22JE0004-YK-1 Page : 5 of 51 Issued date : June 28, 2002 A-pex International Co., Ltd. YAMAKITA LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: int +81 465 77 1011 Facsimile: int +81 465 77 2112 MF060b(23.04.02) 3 SYSTEM TEST CONFIGURATION 3.1 Justification The system was configured in typical fashion (as a customer would normally use it) for testing. Test mode : 1. Transmitting mode(DH5) : Radiated and Antenna PortConducted tests. Performed the test about channels 2408MHz(Low) and 2480MHz(high) channels of all Carrier frequencies. 2.Hopping mode : Antenna Port Conducted tests. 3. Inquiry mode. : Antenna Port Conducted tests. 4. Page mode: Antenna Port Conducted tests. 5. Receiving mode: Radiated and Antenna Port Conducted tests. FCC:ID : AK8PEGAMSB1 Test report No. : 22JE0004-YK-1 Page : 6 of 51 Issued date : June 28, 2002 A-pex International Co., Ltd. YAMAKITA LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: int +81 465 77 1011 Facsimile: int +81 465 77 2112 MF060b(23.04.02) 3.2 Configuration of Tested System Front View (Radiated emission) *Cabling was taken into consideration and test data was taken under worse case conditions. Top View (Radiated emissions) *Cabling was taken into consideration and test data was taken under worse case conditions. AC100V/50Hz : Ferrite core DC3.3V B A:EUT(Stand Alone) 1 7 3 4 5 D C AC120V/60Hz AC100V/50Hz 6 E 2 F AC120V/60Hz 6 E 7 4 DC3.3V A:EUT C B 5 1 2 F D 3 FCC:ID : AK8PEGAMSB1 Test report No. : 22JE0004-YK-1 Page : 7 of 51 Issued date : June 28, 2002 A-pex International Co., Ltd. YAMAKITA LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: int +81 465 77 1011 Facsimile: int +81 465 77 2112 MF060b(23.04.02) Front View ( Conducted emission) *Cabling was taken into consideration and test data was taken under worse case conditions. Description of EUT and support equipment No. Item Model number Serial number Manufacturer FCC ID A Bluetooth Module PEGA-MSB1 MSBT020625 Sony Corporation AK8PEGAMSB1 B PDA(CLIE) PEG-T615C 28934830-3165648 Sony Corporation DoC C PC(VAIO) PCG-Z505JX 28302500-1106489 Sony Corporation DoC D AC Adaptor PEGA-AC10 A100152 Sony Corporation - E AC Adaptor PCGA-ACX1 9906A0030099 Sony Corporation - F Relay Bard - - Sony Corporation - Meshed column are represented EUT List of cables used No. Name Length (m) Shield Backshell material 1 Flat Cable 0.1 Unshielded Polyvinyl chloride 2 DC Cable 2.1 Unshielded Polyvinyl chloride 3 DC Cable 1.8 Unshielded Polyviny…

Text truncated - open the document above for the full version.

Test Setup Photo Sony Corporation FCC ID: AK8PEGAMSB1 Conducted Emission Test Setup Photo Sony Corporation FCC ID: AK8PEGAMSB1 Radiated Emission Test Setup Photo Sony Corporation FCC ID: AK8PEGAMSB1 Pre Check of worse-case position X axis Y axis Test Setup Photo Sony Corporation FCC ID: AK8PEGAMSB1 Radiated Emission Z axis
