AK8PEGNZ90Personal Entertainment Organizer with Bluetooth

4-670-644-11 (1) Personal Entertainment Organizer PEG-NZ90 © 2003 Sony Corporation Read This First Operating Instructions Checking the package contents Sony CLIÉ ™ handheld components Charging your Sony CLIÉ ™ handheld Performing the initial settings Basic operations of your Sony CLIÉ ™ handheld 1 2 3 4 Enjoying your CLIÉ ™ handheld Using applications Taking images/movies Using your CLIÉ ™ handheld with your computer 5 6 2 About this manual This manual provides an overview of your CLIÉ ™ handheld’s features including information about setting up your CLIÉ ™ handheld and what you can do with your CLIÉ ™ handheld. Checking the package contents Sony CLIÉ™ handheld components Charging your Sony CLIÉ™ handheld Performing the initial settings Basic operations of your Sony CLIÉ™ handheld Using applications Page 10 Make sure that all the accessories are supplied in the package. Page 12 Learn about the parts of your CLIÉ handheld and other accessories. Page 19 Be sure to charge your CLIÉ handheld before you start using it for the first time. Page 23 Configure the initial settings before operating your CLIÉ handheld. Page 29 Learn about the basic operations of your CLIÉ handheld. Page 73 Learn about your CLIÉ handheld’s features. Page 86 Learn about the applications supplied with your CLIÉ handheld. Enjoying your CLIÉ™ handheld Taking images/movies Using your CLIÉ™ handheld with your computer Page 50 Learn about the basic operations of your CLIÉ handheld. Page 65 Use your CLIÉ handheld with your computer. 3 Refer to the following together with this manual. Handbook (A PDF file in the CD-ROM) • When using CLIÉ handheld for the first time The basic features and operations are explained in detail. • CLIÉ handheld advanced operations The convenient features and how to make full use of your CLIÉ handheld are explained in detail. CLIÉ Application Manual (HTML format: Start up on a computer) The manual explains about how to use the supplied applications in detail. For details on using the manual, refer to “Using CLIÉ Application Manual” on page 86 in this manual. Troubleshooting Q&A The manual helps in solving problems that you may face while using your CLIÉ handheld. 4 To prevent fire or shock hazard, do not expose the unit to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. Owner’s Record The model number and serial number are locatedon the back of the product. Record the model number and the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No._____________ Serial No.______________ The socket-outlet shall be installed near the equipment and shall be easily accessible. CAUTION You are cautioned that any changes or modifications not expressly approved in this manual could void your warranty on this equipment. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numerique de la classe B est conforme à la norme NMB-003 du Canada. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by rotating the equipment off and on, the user is encouraged to try to correct the interference using one or more of the following measures: –Reorient or relocate the receiving antenna. –Increase the separation between the equipment and receiver. –Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. –Consult the dealer or an experienced radio/ TV technician for help. If you have a question about this product, call the Sony Customer Information Center at keep on next line 1-877-760-7669; or write to the Sony Customer Information Center at 12451 Gateway Boulevard, Fort Myers, FL 33913. The number below is for FCC-related matters only. The supplied interface cable must be used with the equipment in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules. WARNING For customers in the U.S.A and Canada Declaration of Conformity Trade Name: SONY Model No.: PEG-NZ90/U Responsible Party: Sony Electronics Inc. Address: 680 Kinderkamack Road, Oradell, NJ 07649 USA Telephone No.: 201-930-6972 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 5 IN NO EVENT SHALL SONY BE LIABLE FOR ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR OTHER DAMAGES INCLUDING WITHOUT LIMITATION LOSS OF PROFITS, LOSS OF REVENUE, LOSS OF DATA, LOSS OF USE OF THE PRODUCT OR ANY ASSOCIATED EQUIPMENT, DOWNTIME, AND PURCHASER’S TIME RELATED TO OR ARISING OUT OF THE USE OF THIS PRODUCT, ITS HARDWARE AND/OR ITS SOFTWARE. On the supplied software • Copyright laws prohibit reproducing the software or the software manual in whole or in part or renting the software without the permission of the copyright holder. • In no event will SONY be liable for any financial damage or loss of profits, including claims made by third parties, arising out of the use of the software supplied with this product. • I…

Text truncated - open the document above for the full version.

“Read This First (Operating Instructions)” P.6 This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. Users are not permitted to modify this transmitter device. Any unauthorized modification made on this device could avoid the user’s authority to operate the device. The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health Canada’s website : www.hc-sc.gc.ca/rpb L’installateur du présent matériel radio doit s’assurer que l’antenne est située ou pointée de manière à ce que cette dernière n’émette pas de champs radioélectriques supérieurs aux limites specifiées par Santé Canada pour le grand public; consulter le Code de securité 6, disponible sur le site Web de Santé Canada, a l’adresse suivante : www.hc-sc.gc.ca/rpb Correction “Read This First (Operating Instructions)” P.6 Incorrect Incorrect Incorrect Incorrect Sentence SentenceSentence Sentence “This equipment generates and radiates radio-frequency energy. In order to comply with FCC radio-frequency radiation exposure guidelines for an uncontrolled environment, this equipment has to be installed and operated while maintaining a minimum body to antenna distance of 2.5 cm.Based on continuous exposure of 30 minutes.” P.6 Correct Correct Correct Correct Sentence SentenceSentence Sentence IMPORTANCE NOTICE : To comply with FCC RF exposure compliance requirements, the antenna(s) must not be co-located or operating in conjunction with any other transmitter Correction “Read This First (Operating Instructions)” P.85 Incorrect URL Incorrect URLIncorrect URL Incorrect URL http://www.ita.sel.sony.com/support/clie/sccess/ Correct URL Correct URLCorrect URL Correct URL http://www.ita.sel.sony.com/support/clie/

4-668-080-11 (1) Wireless LAN Card Operating Instructions  2002 Sony Corporation PEGA-WL100 2 Owner’s Record The model number and serial number are located at the rear of the product. Record the model number and the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model Number : PEGA-WL100 Serial Number : __________________ For the customers in USA and Canada : NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 3 Declaration of Conformity Trade Name: SONY Model No.: PEGA-WL100 Responsible Party : Sony Electronics Inc. Address: 1 Sony Drive, Park Ridge, NJ 07656 USA Telephone No.: 201-930-6972 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: This transmitter complies with FCC radiation exposure limits set forth for an uncontrolled environment. To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user. In addition, this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. L’utilisation de ce dispositif est autorisée seulement aux conditions suivantes: (1) il ne doit pas produire de brouillage et (2) l’utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif. Continued on next page 4 To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing. Pour empêcher que cet appareil cause du brouillage au service faisant l’objet d’une licence, il doit être utilisé à l’intérieur et devrait être placé loin des fenêtres afin de fournir un écran de blindage maximal. Si le matériel (ou son antenne d’émission) est installé à l’extérieur, il doit faire l’objet d’une licence. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB- 003 du Canada. For the customers in European countries : Sony hereby declares that this product is in compliance with the essential requirements and other relevant provisions of European Directive 1999/5/EC. In some countries the use of the Wireless LAN Card is restricted. Before using it, make sure you read the regulation leaflet of this product. Warnings •In some situations or environments, the use of the IEEE 802.11b technology might be restricted by the proprietor of the building or responsible representatives of the organization, for example on board of airplanes, in hospitals or in any other environment where the risk of interference with other devices or services is perceived or identified as harmful. •If you are uncertain about the policy applying to the use of IEEE 802.11b technology in a specific organization or environment, you are encouraged to first ask for authorization prior to switching it on. •Consult your physician or the manufacturer of personal medical devices (pacemakers, hearing aids, etc.) regarding any restrictions on the use of IEEE 802.11b technology. 5 •Sony, , CLIÉ, , CLIÉ GEAR, , , Jog Dial and Memory Stick are trademarks of Sony Corporation. •Palm OS and HotSync are registered trademarks of Palm, Inc. or its subsidiaries. Palm Desktop and HotSync logo are trademarks of Palm, Inc. or its subsidiaries. •Microsoft, Windows and Windows NT are registered trademarks of Microsoft Corporation in the United States and/or other countries. •Adobe and Adobe Acrobat Reader are trademarks of Adobe Systems Incorporated. •All other names of systems, products and services are trademarks of their respective owners. In the manual, the TM or ® marks are not specified. Before using the PEGA-WL100, be sure to read the End User Software License Agreement that accompanies it. • Copyright laws prohibit reproducing the software or the manual accompanying it in whole or in part, or renting the software without the permission of the copyright holder. • In no event wi…

Text truncated - open the document above for the full version.

Sony Corporation 6-7-35, Kitashinagawa, Shinagawa-ku, Tokyo, 141-0001, Japan Date: December 4, 2002 Federal Communications Commission Equipment Approval Services Dear Sir/Madame: Pursuant to Section 0.459 of the Commission’s Rules; we, Sony Corporation, hereby request confidentiality as below; 1. Circuit Diagram 2. Block Diagram 3. Part List The reason of Confidentiality request is that trade secrets and proprietary information are enclosed in the above data, and the public disclosure of the data is harmful for us and will be made unjustifiable benefits to competitors. Sincerely, Signature Takayuki Misawa Senior Manager Department No.4 Handheld Computer Company Sony Corporation Mobile Network Company

SONY Part NO. 5.8 7.3 5 10.4 11.9 9.5 13.6 8.3 9.8 20.4 14.6 10.3 11.3 1 29 16.1 16.5 1 Serial NO. BAR-CODE AREA 53.4 0 15.9 -0.2 19.5 8 42.5 0.3 13.5 18.5 FCC ID Label -0.2 0 9

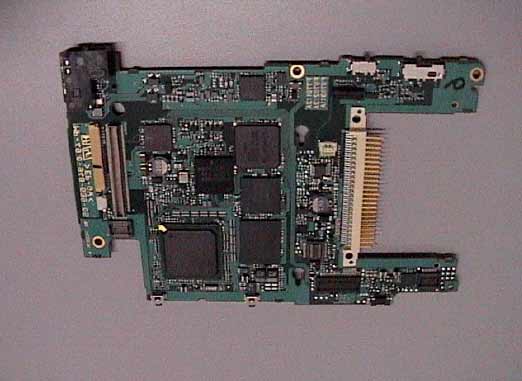

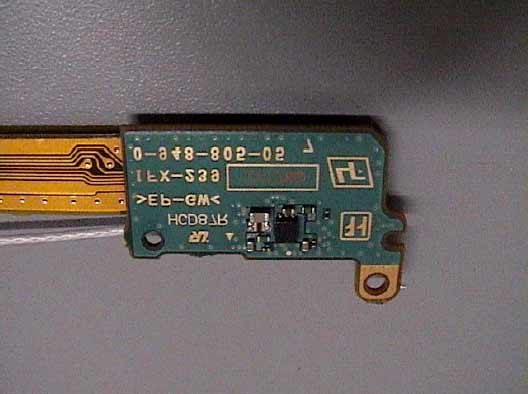

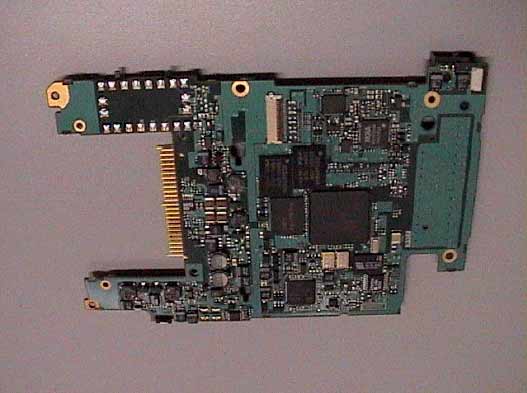

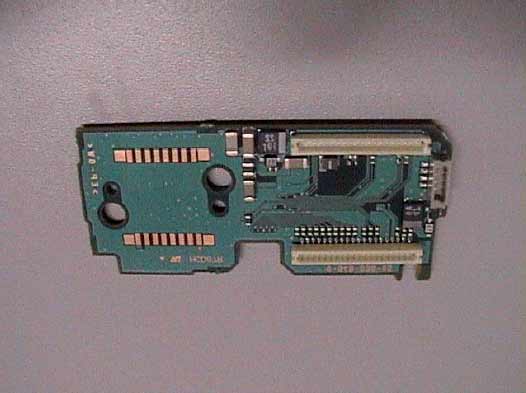

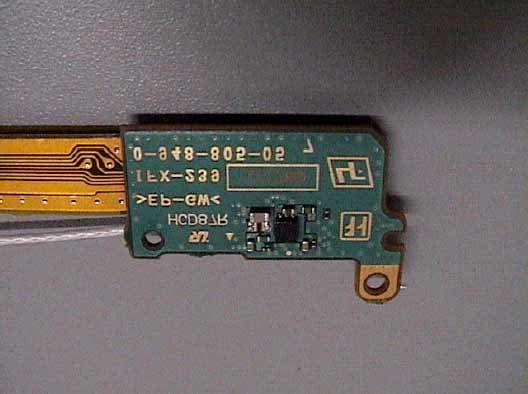

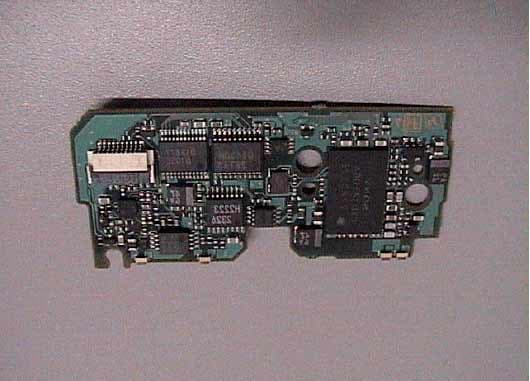

Internal Photo 1: Unit Partially Disassemble-1 Internal Photo 2: Unit Partially Disassemble-2 Internal Photo 3: Camera Unit Disassembled Internal Photo 4: Display Part and Camera Unit Disassembled Internal Photo 5: Board-A Side-A Internal Photo 6: : Board-A Side-B Internal Photo 7: Board-B Side-A Internal Photo 8: Board-B Side-B Internal Photo 9: Bluetooth Module Side-A Internal Photo 10: Bluetooth Module Side-B Internal Photo 11: Bluetooth Module Location Internal Photo 12: Bluetooth Module Shield Cover Removed Internal Photo 13: Antenna Module Side-A Internal Photo 14: Antenna Module Side-B

Operation Description Operation DescriptionOperation Description Operation Description 1. 1.1. 1. Sending SendingSending Sending The sending base-band 1MBps signal is divided two signals, I and Q. DAC and filter remove unnecessary high frequency from signals. Besides, the signal at 2.4GHz after passing the first local oscillator goes through phase converter. And it is transformed phase difference-90 signal, goes into multiplication unit of I and Q. At Addition unit, GFSK-modulation occurs by adding I and Q. The modulated carrier waves go through balanced-unbalanced unit after amplification at amp. And the signal is sent after the harmonic waves from local oscillator and power amp distortion are removed from the signal by band-pass-filter. 2. 2.2. 2. Receiving ReceivingReceiving Receiving At first, the disturbance electric waves outside of used band are removed from the input carrier waves by band-pass-filter. After going through balanced-unbalanced unit, the receiving signal is amplified by low-noise-amp and go into mix unit. And the signal is transformed the middle frequency at 1.5MHz after it is multiplied 1.5MHz lower signal than the carrier waves of 2.4GHz-band that double the frequency from the local oscillator of 1.2GHz-band. The middle frequency signal is removed disturbance electric waves inside used band by passing inside of band- pass-filter. After the signal at 1.5MHz from the second local oscillator is multiplied at multiplication unit, Q and I are added at addition unit. And added signal, Q, and I are demodulated to base-band signal after removing unnecessary high frequency by low –pass-filter. 3. 3.3. 3. Antenna location Antenna locationAntenna location Antenna location There is an antenna inside the Personal Entertainment Organizer. It is impossible to remove the antenna and to change this.

PCTEST ENGINEERING LABORATORY, INC. 6660 — B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.230224088.AK8 Test Dates: Feb 24-25, 2003 EUT Type: Personal Entertainment Organizer w/ WLAN CF Card FCC ID: AK8PEGNZ90 Page 1 of 21 © 2003 PCTEST Engineering Laboratory, Inc. APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: SONY Corporation Dates of Tests: Feb 24-25, 2003 6-7-35 Kitashinagawa Shinagawa-ku Test Report S/N: SAR.230224088.AK8 Tokyo, 141-0001 JAPAN Test Site: PCTEST Lab, Columbia, MD USA Attn: Masaharu Abe Product Safety Manager FCC ID: AK8PEGNZ90 APPLICANT: SONY Corporation EUT Type: Personal Entertainment Organizer w/ WLAN CF Card (FCC ID: PD9WCF2011BM) Tx Frequency: 2402 — 2480 MHz (Bluetooth) 2412 — 2462 MHz (DSSS) Max. RF Output Power: 1 mW (-0.03 dBm) Bluetooth Conducted 89 mW (19.5 dBm) WLAN Conducted Max. SAR Measurement: 1.26 W/kg over 1 gm (WLAN + Bluetooth on) Trade Name/Model(s): SONY PEG-NZ90 FCC Classification: Part 15 Spread Spectrum Transmitter (DSS) FCC Rule Part(s): § 15.247, §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: Handheld (#3002577); WLAN CF Card (#0002B3C3D143) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.5, January 15, 2002). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Output power is conducted. Co-located transmitter operating conditions with FCC ID PD9WCF2011BM have been evaluated as described in this filing. Separate RF exposure evaluation is required for any portable or co-located transmitter conditions other than as evaluated in this filing, and separate equipment certification may be needed depending on co-location configurations and RF exposure conditions. Only those antenna(s)/transmitter as documented in this filing can be used with this device. End-users must be provided with specific operating instructions for satisfying RF exposure compliance requirements. The highest SAR value for this device as reported is 1.26W/kg. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. SAR.230224088.AK8 PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.230224088.AK8 Test Dates: Feb 24-25, 2003 EUT Type: Personal Entertainment Organizer w/ WLAN CF Card FCC ID: AK8PEGNZ90 Page 2 of 21 © 2003 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION........................................................................................ 3 2. SAR MEASUREMENT SETUP ..................................................................................................... 4 3. ALIDX-500 E-FIELD PROBE SYSTEM ......................................................................................... 5 4. PROBE CALIBRATION PROCESS .............................................................................................. 6 5. PHANTOM & EQUIVALENT TISSUES ....................................................................................... 7 6. TEST SYSTEM SPECIFICATIONS ................................................................................................ 8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS..................................................................... 9 8. DEFINITION OF REFERENCE POINTS ..................................................................................... 10 9. TEST CONFIGURATION POSITION........................................................................................ 11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS ...................................................................... 12 11. MEASUREMENT UNCERTAINTIES .......................................................................................... 13 12. SYSTEM VERIFICATION .......................................................................................................... 14 13. SAR TEST DATA SUMMARY ................................................................................................... 15 14. SAR DATA SUMMARY .......................................................................................................16-18 15. SAR TEST EQUIPMENT............................................................................................................ 19 16. CONCLUSION ........................................................................................................................ 20 17. REFERENCES............................................................................................................................ 21 PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.230224088.AK8 Test Dates: Feb 24-25, 2003 EUT Type: Personal Entertainment Organizer w/ WLAN CF Card FCC ID: AK8PEGNZ90 Page 3 of 21 © 2003 PCTEST Engineering Laboratory, Inc. 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used …

Text truncated - open the document above for the full version.

SAR Data Report 03022422 Start : 25-Feb-03 9:17:26 am End : 25-Feb-03 9:22:41 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : Validation Frequency : 2440 MHz Transmit Pwr : 0.050 W Antenna Type : Dipole Measurement Data: Phantom Name : SAM-FLAT-B Phantom Type : Uniphantom Tissue Type : Brain Tissue Dielectric : 39.310 Tissue Conductivity : 1.880 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT003 Probe Type : E Fld Triangle Frequency : 2440 MHz Tissue Type : Brain Calibrated Dielectric : 39.340 Calibrated Conductivity : 1.770 Calibrated Density : 1.300 Probe Offset : 2.400 mm Conversion Factor : 8.800 Probe Sensitivity : 3.026 3.290 3.570 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 1000 Samples NIDAQ Gain: 5 Comments: 2440 MHz Validation CF=1; Amb. Temp= 22.3 'C; Liq. Temp=22.4 'C Area Scan - Max Peak SAR Value at x=-4.0 y=0.0 = 2.36 W/kg Zoom Scan - Max Peak SAR Value at x=-3.0 y=0.0 z=0.0 = 6.07 W/kg Max 1g SAR at x=-3.0 y=1.0 z=0.0 = 2.75 W/kg Max 10g SAR at x=-3.0 y=1.0 z=0.0 = 1.14 W/kg Validation Results at 0.05 W: 1g Nominal = 2.6, Error: 4.92 % 0 1 2 3 4 5 6 7 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:-3.0 y:0.0 1g SAR Values 2.75 2.55 2.36 2.16 1.97 1.77 1.57 1.38 1.18 0.99 0.79

SAR Data Report 03022520 Start : 25-Feb-03 11:57:09 am End : 25-Feb-03 12:04:54 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : SONY Model Number : PEG-NZ90/U Serial Number : 3002577 Frequency : 2412 MHz Transmit Pwr : 0.089 W Antenna Type : Helical Antenna Posn. : Internal Measurement Data: Phantom Name : SAM FLAT Phantom Type : Uniphantom Tissue Type : Muscle Tissue Dielectric : 53.630 Tissue Conductivity : 1.990 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT003 Probe Type : E Fld Triangle Frequency : 2440 MHz Tissue Type : Muscle Calibrated Dielectric : 52.300 Calibrated Conductivity : 1.990 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 9.900 Probe Sensitivity : 2.075 2.820 2.456 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 1000 Samples NIDAQ Gain: 5 Comments: DSS Mode - Low Channel Body CF=1; Amb. Temp= 22.3 'C; Liq. Temp=21.1 'C Area Scan - Max Peak SAR Value at x=0.0 y=-76.0 = 1.15 W/kg Zoom Scan - Max Peak SAR Value at x=-3.0 y=-76.0 z=0.0 = 2.92 W/kg Max 1g SAR at x=0.0 y=-76.0 z=0.0 = 1.26 W/kg Max 10g SAR at x=1.0 y=-76.0 z=0.0 = 0.45 W/kg -1.0 0.0 1.0 2.0 3.0 SAR (mW/g) 102030 Z Distance (mm) SAR - Z Axis at Hotspot x:-3.0 y:-76.0 1g SAR Values 1.26 1.16 1.06 0.96 0.85 0.75 0.65 0.55 0.45 0.34 0.24 SAR Data Report 03022515 Start : 25-Feb-03 11:06:06 am End : 25-Feb-03 11:13:51 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : SONY Model Number : PEG-NZ90/U Serial Number : 3002577 Frequency : 2412 MHz Transmit Pwr : 0.058 W Antenna Type : Helical Antenna Posn. : Internal Measurement Data: Phantom Name : SAM FLAT Phantom Type : Uniphantom Tissue Type : Muscle Tissue Dielectric : 53.630 Tissue Conductivity : 1.990 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT003 Probe Type : E Fld Triangle Frequency : 2440 MHz Tissue Type : Muscle Calibrated Dielectric : 52.300 Calibrated Conductivity : 1.990 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 9.900 Probe Sensitivity : 2.075 2.820 2.456 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 1000 Samples NIDAQ Gain: 5 Comments: DSS Mode - Low Channel Body (Bluetooth Off) CF=1; Amb. Temp= 22.3 'C; Liq. Temp=21.1 'C Area Scan - Max Peak SAR Value at x=-5.0 y=-76.0 = 0.90 W/kg Zoom Scan - Max Peak SAR Value at x=-8.0 y=-76.0 z=0.0 = 2.91 W/kg Max 1g SAR at x=-4.0 y=-76.0 z=0.0 = 1.21 W/kg Max 10g SAR at x=-3.0 y=-77.0 z=0.0 = 0.43 W/kg SAR Data Report 03022519 Start : 25-Feb-03 11:42:52 am End : 25-Feb-03 11:54:25 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : SONY Model Number : PEG-NZ90/U Serial Number : 3002577 Frequency : 2402 MHz Transmit Pwr : 0.001 W Antenna Type : Helical Antenna Posn. : Internal Measurement Data: Phantom Name : SAM FLAT Phantom Type : Uniphantom Tissue Type : Muscle Tissue Dielectric : 53.630 Tissue Conductivity : 1.990 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT003 Probe Type : E Fld Triangle Frequency : 2440 MHz Tissue Type : Muscle Calibrated Dielectric : 52.300 Calibrated Conductivity : 1.990 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 9.900 Probe Sensitivity : 2.075 2.820 2.456 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 1000 Samples NIDAQ Gain: 5 Comments: DSS Mode - Low Channel (Bluetooth Only) Body CF=1; Amb. Temp= 22.3 'C; Liq. Temp=21.1 'C Area Scan - Max Peak SAR Value at x=-30.0 y=55.0 = 0.00 W/kg Zoom Scan - Max Peak SAR Value at x=-46.0 y=46.0 z=0.0 = 0.28 W/kg Max 1g SAR at x=-21.0 y=62.0 z=0.0 = 0.03 W/kg Max 10g SAR at x=-25.0 y=59.0 z=0.0 = 0.01 W/kg SAR Data Report 03022529 Start : 25-Feb-03 04:22:38 pm End : 25-Feb-03 04:27:50 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : SONY Model Number : PEG-NZ90/U Serial Number : 3002577 Frequency : 2412 MHz Transmit Pwr : 0.058 W Antenna Type : Helical Antenna Posn. : Internal Measurement Data: Phantom Name : SAM FLAT Phantom Type : Uniphantom Tissue Type : Muscle Tissue Dielectric : 53.630 Tissue Conductivity : 1.990 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT003 Probe Type : E Fld Triangle Frequency : 2440 MHz Tissue Type : Muscle Calibrated Dielectric : 52.300 Calibrated Conductivity : 1.990 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 9.900 Probe Sensitivity : 2.075 2.820 2.456 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 1000 Samples NIDAQ Gain: 5 Comments: DSS Mode - Low Channel Body (LCD IN) CF=1; Amb. Temp= 22.3 'C; Liq. Temp=21.1 'C Area Scan - Max Peak SAR Value at x=2.0 y=-76.0 = 1.12 W/kg Zoom Scan - Max Peak SAR Value at x=-3.0 y=-76.0 z=0.0 = 2.61 W/kg Max 1g SAR at x=0.0 y=-76.0 z=0.0 = 1.25 W/kg Max 10g SAR at x=2.0 y=-76.0 z=0.0 = 0.45 W/kg SAR Data Report 03022504 Start : 25-Feb-03 09:44:07 am End : 25-Feb-03 09:51:54 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : SONY Model Number : PEG-NZ90/U Serial Number : 3002577 Frequency : 2412 MHz Transmit Pwr : 0.089 W Antenna Type : Helical Antenna Posn. : Internal Measurement Data: Phantom Name : SAM FLAT Phantom Type : Uniphantom Tissue Type : Muscle Tissue Dielectric : 53.630 Tissue Conductivity : 1.990 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT003 Probe Type : E Fld Triangle Frequency : 2440 MHz Tissue Ty…
