AK8PEGUX50Personal Entertainment Organizer w/ Bluetooth
Sony Group Corporation
Click to zoom
Application Details
- Equipment Class
- DSS - Part 15 Spread Spectrum Transmitter
- Date of Grant
- Jul 24, 2003
- Application Purpose
- Original Equipment
- Date of Application
- Jul 24, 2003
- Equipment Note
- Personal Entertainment Organizer w/ Bluetooth
- Frequency Range
- 2402.00000000 - 2480.00000000
- Company
- Sony Group Corporation
- Country
- Japan
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Users Manual
X-XXX-XXX- 11 (1) Sony Personal Entertainment Organizer PEG-UX50/UX00 X-XXX-XXX- 11 (1) Printed in Japan For the latest information on support and accessories, check our official Sony CLIÉ website For customers in the U.S.A. and Canada http://www.sony.com/clie/ For customers in Australia, Hong Kong, Malaysia, Mexico, New Zealand, Singapore, Taiwan and Thailand http://vaio-online.sony.com/clie/ Printed using VOC (Volatile Organic Compound)-freevegetable oil based ink. ReadThisFirst Setting up your CLIÉ™ handheldBasic operations of your CLIÉ™ handheldHave a tryTaking pictures / Recording moviesRecording a voice memoListening to musicManaging schedule events / addressesViewing computer documentsUsing the Bluetooth™ function 124 CLIÉ™ handheld components Personal Entertainment OrganizerPEG-UX50PEG-UX00 Operating Instructions © 2003 Sony Corporation Connecting to the Internet 3 01US01COV for print.fm Page 1 Friday, June 20, 2003 6:39 AM Sony Personal Entertainment Organizer PEG-UX50/UX00 X-XXX-XXX-11 (1) X-XXX-XXX-11 (1) Personal Entertainment Organizer PEG-UX50 PEG-UX00 © 2003 Sony Corporation Read This First Operating Instructions Setting up your CLIÉ™ handheld Basic operations of your CLIÉ™ handheld Have a try Taking pictures / Recording movies Recording a voice memo Listening to music Managing schedule events / addresses Viewing computer documents Using the Bluetooth ® function 1 2 4 CLIÉ™ handheld components Connecting to the Internet 3 01US01COV.fm Page 1 Friday, June 20, 2003 12:20 PM 2 Sony Personal Entertainment Organizer PEG-UX50/UX00 X-XXX-XXX-11 (1) The following manuals are included with your CLIÉ handheld. Refer to the following together with this manual. Before you start using your CLIÉ handheld (This manual) When you want to become more familiar with the basic operations of your CLIÉ handheld When you want to change the settings of your CLIÉ handheld When you want to become more familiar with using the supplied applications When you want to install additional applications When you have problems Read This First (Operating Instructions) Explains the following: • Setting up your CLIÉ handheld and computer • Basic operations • What you can do with the applications For safety use, be sure to read the supplied “Safety & Regulations Guide”. Handbook Using CLIÉ handheld for the first time The basic features and operations are explained in detail. CLIÉ handheld advanced operations Useful and advanced features of your CLIÉ handheld are explained in detail. CLIÉ Application Manual (HTML format: Read via a computer screen) Explains how to use the supplied applications in detail. This manual will be automatically installed on your computer when you install Palm™ Desktop for CLIÉ. For details on using the manual, refer to “Using the CLIÉ Application Manual” on page 72 of this manual. Troubleshooting Q&A Helps in solving common problems that you may have while using your CLIÉ handheld. 01US01COV.book Page 2 Friday, June 20, 2003 6:29 AM 3 Sony Personal Entertainment Organizer PEG-UX50/UX00 X-XXX-XXX-11 (1) Before use Caution IN NO EVENT SHALL SONY BE LIABLE FOR ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR OTHER DAMAGES INCLUDING WITHOUT LIMITATION LOSS OF PROFITS, LOSS OF REVENUE, LOSS OF DATA, LOSS OF USE OF THE PRODUCT OR ANY ASSOCIATED EQUIPMENT, DOWNTIME, AND PURCHASER’S TIME RELATED TO OR ARISING OUT OF THE USE OF THIS PRODUCT, ITS HARDWARE AND/OR ITS SOFTWARE. On the supplied software • Copyright laws prohibit reproducing the software or the software manual in whole or in part or renting the software without the permission of the copyright holder. • In no event will SONY be liable for any financial damage or loss of profits, including claims made by third parties, arising out of the use of the software supplied with this product. • In the event a problem occurs with this software as a result of defective manufacturing, SONY will replace it at SONY’s option or issue a refund. However, SONY bears no other responsibility. • The software provided with this product cannot be used with equipment other than that which it is designated for use with. • Please note that, due to continued efforts to improve quality, the software specifications may be changed without notice. • The software library incorporated in the CLIÉ handheld is based in part on the work of the Independent JPEG Group. NOTES • Sony does not support third party add-on applications. If you have a problem with a third party application, please contact the developer or publisher of that software. • The illustrations in this manual may differ from the actual software. • Explanations in this manual assume that you are familiar with basic operations of Windows ® . For how to use your computer and operating system, please refer to their respective manuals. Program © 2003 Sony Corporation, © 2003 Palm, Inc., or its subsidiaries. All rights reserved. Documentation © 2003 Sony Corporation CAUTION Please contact your nearest Sony dealer regarding any problems you have with your Sony product. 01US01COV.book Page 3 Friday, June 20, 2003 6:29 AM 4 Sony Personal Entertainment Organizer PEG-UX50/UX00 X-XXX-XXX-11 (1) Table of Contents Setting up your CLIÉ™ handheld Confirming the package contents . . . . . . . . . . . . . . . . 6 Setting up your CLIÉ™ handheld . . . . . . . . . . . . . . . . 8 Charging your CLIÉ handheld. . . . . . . . . . . . . 8 Performing the initial setup after turning on your CLIÉ handheld for the first time . . . . . 9 Using your CLIÉ™ handheld with your computer . . . . . . . . . . . .16 Installing the software on your computer. . . 16 Connecting your CLIÉ handheld and computer via the USB cable . . . . . . . . . . . . . . . . . . . 19 Entering a user name for your CLIÉ handheld . . . . . . . . . . . . . . . . . . . . . 20 Synchronizing data between your CLIÉ handheld and computer (the HotSync ® operation) . . . . . . . . . . . . . . . . . . . . . . . . 21 Basic operations of your CLIÉ™ handheld Turning on…
Text truncated - open the document above for the full version.
Users Manual
46 Sony Personal Entertainment Organizer PEG-UX50/UX00 X-XXX-XXX-11 (1) Receiving e-mails You can receive e-mails with CLIE Mail. bFor details on setup, sending or receiving e-mails, refer to “Internet/E-mail” in the “CLIÉ Application Manual” installed on your computer. 1 Tap (Receive) in the CLIE Mail screen. After connecting to the Internet, the Communication Status screen is displayed and you can receive e-mails. 2 Tap [OK]. The received mail is displayed in [Inbox] in the CLIE Mail screen. 3 Tap (On line). (Off line) is displayed when disconnected. 4 Tap the received mail. The text of the received mail is displayed. 01US01COV.book Page 46 Friday, June 20, 2003 6:29 AM 47 Sony Personal Entertainment Organizer PEG-UX50/UX00 X-XXX-XXX-11 (1) Have a try Have a try Enjoying image files You can take pictures and view image files using your CLIÉ handheld as a digital still camera. •Application to be used: – Taking pictures: CLIE Camera – Viewing image files: CLIE Viewer bFor details, refer to “Still images” in the “CLIÉ Application Manual” installed on your computer. Taking pictures 1 Press the CAPTURE/REC button to start CLIE Camera. Tip You can also tap (CLIE Camera) in the CLIE 3D Launcher to start CLIE Camera. Continued on next page • • • • • • • • • • • • • • • • • • • • • 01US01COV.book Page 47 Friday, June 20, 2003 6:29 AM 48 Sony Personal Entertainment Organizer PEG-UX50/UX00 X-XXX-XXX-11 (1) Viewing image files You can view image files using CLIE Viewer. bFor details, refer to “Viewing handwritten memos and image files, and playing back voice memos” on page 55. Tip You can also tap on the CLIE Camera screen to start CLIE Viewer. 2 Point the built-in camera directly at the subject by rotating the camera lens. 3 Position the subject in the viewfinder and press the CAPTURE/REC button. A picture is taken. Tip You can also tap (CAPTURE) on the CLIE Camera screen to take a picture. 01US01COV.book Page 48 Friday, June 20, 2003 6:29 AM 49 Sony Personal Entertainment Organizer PEG-UX50/UX00 X-XXX-XXX-11 (1) Have a try Enjoying image files Getting Ready Taking pictures CLIE Camera................................................................................ page 74 Importing image files from your computer Image Converter ........................................................................... page 76 Viewing/Selecting Viewing/Selecting image files by searching from the list CLIE Viewer ................................................................................ page 74 Utilizing features Organizing image files in albums CLIE Album ................................................................................. page 75 Exporting image files to your computer PictureGear Studio ....................................................................... page 76 Displaying image files one after the other PhotoStand ................................................................................... page 75 Editing image files Photo Editor.................................................................................. page 76 Attaching image files to addresses Address Book ............................................................................... page 81 Sending image files with e-mail messages CLIE Mail .................................................................................... page 80 Transferring image files to your computer Data Import .................................................................................. page 84 01US01COV.book Page 49 Friday, June 20, 2003 6:29 AM 50 Sony Personal Entertainment Organizer PEG-UX50/UX00 X-XXX-XXX-11 (1) Enjoying movies You can record movies using your CLIÉ handheld as you do with digital video camera. Movie files are saved on a “Memory Stick” media. •Applications to be used: – Recording movies: Movie Recorder – Viewing movies: Movie Player or CLIE Viewer bFor details, refer to “Movies” in the “CLIÉ Application Manual” installed on your computer. Recording movies 1 Select (Movie Rec) in the CLIE 3D Launcher to start Movie Recorder. 2 Point the built-in camera directly at the subject by rotating the camera lens. 01US01COV.book Page 50 Friday, June 20, 2003 6:29 AM 51 Sony Personal Entertainment Organizer PEG-UX50/UX00 X-XXX-XXX-11 (1) Have a try Viewing movies You can view movies in CLIE Viewer. bFor details, refer to “Viewing handwritten memos and image files, and playing back voice memos” on page 55. 3 Position the subject in the viewfinder and press the CAPTURE/REC button. Movie recording starts. Tip You can also tap (REC) on the Movie Recorder screen to record. 4 Press the CAPTURE/REC button again to stop recording. 01US01COV.book Page 51 Friday, June 20, 2003 6:29 AM 52 Sony Personal Entertainment Organizer PEG-UX50/UX00 X-XXX-XXX-11 (1) Enjoying movies Getting Ready Recording movies Movie Recorder ............................................................................ page 77 Importing movie files from your computer Image Converter ........................................................................... page 76 Giga Pocket Plugin ....................................................................... page 78 Viewing/Selecting Viewing/Selecting movies by searching from a list CLIE Viewer ................................................................................ page 74 Playing back movies Movie Player ................................................................................ page 77 Sending Sending movies with e-mail messages CLIE Mail..................................................................................... page 80 01US01COV.book Page 52 Friday, June 20, 2003 6:29 AM 53 Sony Personal Entertainment Organizer PEG-UX50/UX00 X-XXX-XXX-11 (1) Have a try Recording a voice memo (Voice Recorder) You can record sounds using the built-in microphone of your CLIÉ handheld. You can also use the voice memo as an alarm sound or attach it to an e-mail. •Applications to be used: – Recording a voice memo: Voice …
Text truncated - open the document above for the full version.
Users Manual
98 Sony Personal Entertainment Organizer PEG-UX50/UX00 X-XXX-XXX-11 (1) CLIÉ™ handheld components This chapter explains each part of your CLIÉ handheld and the supplied accessories. Front panel 01US01COV.book Page 98 Friday, June 20, 2003 6:29 AM 99 Sony Personal Entertainment Organizer PEG-UX50/UX00 X-XXX-XXX-11 (1) CLIÉ™ handheld components ACamera Lens (Pages 48, 50) BPOWER LED (Page 9) Lights or blinks when turned on. The LED shows the status of your CLIÉ handheld by its color. Lights green: The power is on. (It also lights in HOLD mode) Blinks green: Blinks a few moments when you operate any button on your CLIÉ handheld in HOLD mode. Lights orange: The battery is being charged. Blinks orange: Alarm function that notifies you at a preset time if you have set an alarm in an application, such as Date Book. OFF: The power is off. CPOWER/HOLD Switch (Pages 11, 101) Turns your CLIÉ handheld on and off, and sets your CLIÉ handheld to HOLD mode. DIR Port (Page 103) You can beam data between your CLIÉ handheld and another CLIÉ handheld or Palm OS ® PDA. EUSB connector (Page 19) For connecting the supplied USB cable. FStrap Ring GMicrophone (Page 53) Use this to record sounds. HJog Dial™ navigator (Page 26) Use to select and run applications or items. Depending on the application, unique features are assigned. IDisplay Panel (Page 9) JScreen (Page 106) KSilk Screen Area (Page 108) LWireless LAN LED (for PEG-UX50 only) (Page 42) MBluetooth LED (Page 68) NCAPTURE/REC Button Press the CAPTURE/REC button to take pictures, record movies (Pages 48, 51) or to record voice memos (Page 53). OREC LED (Page 53) Lights when you are recording a voice memo. P“Memory Stick” LED (Page 102) Blinks orange while your CLIÉ handheld is writing data to, or reading data from a “Memory Stick” media. QHardware Keyboard (Page 103) RApplication Buttons (Page 28) Even when your CLIÉ handheld is turned off, pressing an application button turns on your CLIÉ handheld and starts that application. SBACK Button Cancels the selection of an item or an operation. Depending on the application, unique features such as restoring to the previous screen are assigned. 01US01COV.book Page 99 Friday, June 20, 2003 6:29 AM 100 Sony Personal Entertainment Organizer PEG-UX50/UX00 X-XXX-XXX-11 (1) Back panel AHeadphone Jack For connecting stereo mini-jack headphones sold separately. B“Memory Stick” Slot (Page 102) Insert a “Memory Stick” media into this slot. CSpeaker DStylus (Page 11) A pointed tool to operate your CLIÉ handheld by touching the screen with it. ERESET Button (Pages 32, 33) Press to restart your CLIÉ handheld. 01US01COV.book Page 100 Friday, June 20, 2003 6:29 AM 101 Sony Personal Entertainment Organizer PEG-UX50/UX00 X-XXX-XXX-11 (1) CLIÉ™ handheld components POWER/HOLD switch Turning on/off your CLIÉ handheld Slide down the POWER/HOLD switch The POWER/HOLD switch will return to the center position after being released. Your CLIÉ handheld powers on, the last screen viewed is displayed, and the POWER LED lights green. To turn off your CLIÉ handheld, slide down the POWER/HOLD switch again and then release. Turning on/off the LCD backlight Slide down the POWER/HOLD switch and hold it for more than two seconds. Turning on/off the HOLD mode Slide up the POWER/HOLD switch Putting your CLIÉ handheld in HOLD mode deactivates the touch screen. If you put the POWER/HOLD switch into the HOLD position while the power is on, the screen display turns off, even during an operation. To release the HOLD mode, slide up the POWER/HOLD switch again and then release. POWER/HOLD Switch 01US01COV.book Page 101 Friday, June 20, 2003 6:29 AM 102 Sony Personal Entertainment Organizer PEG-UX50/UX00 X-XXX-XXX-11 (1) Using “Memory Stick” media Inserting “Memory Stick” media Removing “Memory Stick” media Note Insert a “Memory Stick” media in the right direction. If you forcibly insert a “Memory Stick” media in the wrong direction, the “Memory Stick” slot may be damaged. Note Make sure that your CLIÉ handheld is not writing files/data to, or reading files/data from, a “Memory Stick” media before removing it. (The “Memory Stick” LED blinks when it is reading or writing files/data.) If you remove a “Memory Stick” media while the “Memory Stick” LED is blinking, recorded files/data may be deleted or damaged. The“Memory Stick” LED blinks orange while your CLIÉ handheld is writing data to, or reading data from a “Memory Stick” media. b Pull “Memory Stick” media outPush “Memory Stick” media in 01US01COV.book Page 102 Friday, June 20, 2003 6:29 AM 103 Sony Personal Entertainment Organizer PEG-UX50/UX00 X-XXX-XXX-11 (1) CLIÉ™ handheld components IR port You can beam data or applications between your CLIÉ handheld and another CLIÉ handheld or Palm OS ® PDA. bFor details, refer to “Beaming” in the supplied “Handbook”. Hardware Keyboard You can use the hardware keyboard in the same way as you would use the keyboard of your computer. For details about the key arrangement, check your CLIÉ handheld. Input commands You can perform commands using the hardware keys in combination. Key combinations Example: Ctrl + C t Hold down the Ctrl key and press the character C key. Basic operations CombinationFunction (Blue) + blue character Types the characters in blue. To type them continuously, press (Blue) twice to lock the shift, and press it again to unlock. ShiftTypes capital letters. To type capital letters continuously, press the Shift key twice to lock the shift, and press it again to unlock. *Move your CLIÉ handheld gradually to find the most sensitive direction. Blue key Continued on next page • • • • • • • • • • • • • • • • • • • • • 01US01COV.book Page 103 Friday, June 20, 2003 6:29 AM 104 Sony Personal Entertainment Organizer PEG-UX50/UX00 X-XXX-XXX-11 (1) Edit Functions * You can change this function by selecting Preferences and tapping [Buttons] - [Pen]. Dialogs CombinationFunction Ctrl + CCopies the selected text. Ctrl + DDeletes the selected text. Ctrl + VPastes th…
Text truncated - open the document above for the full version.

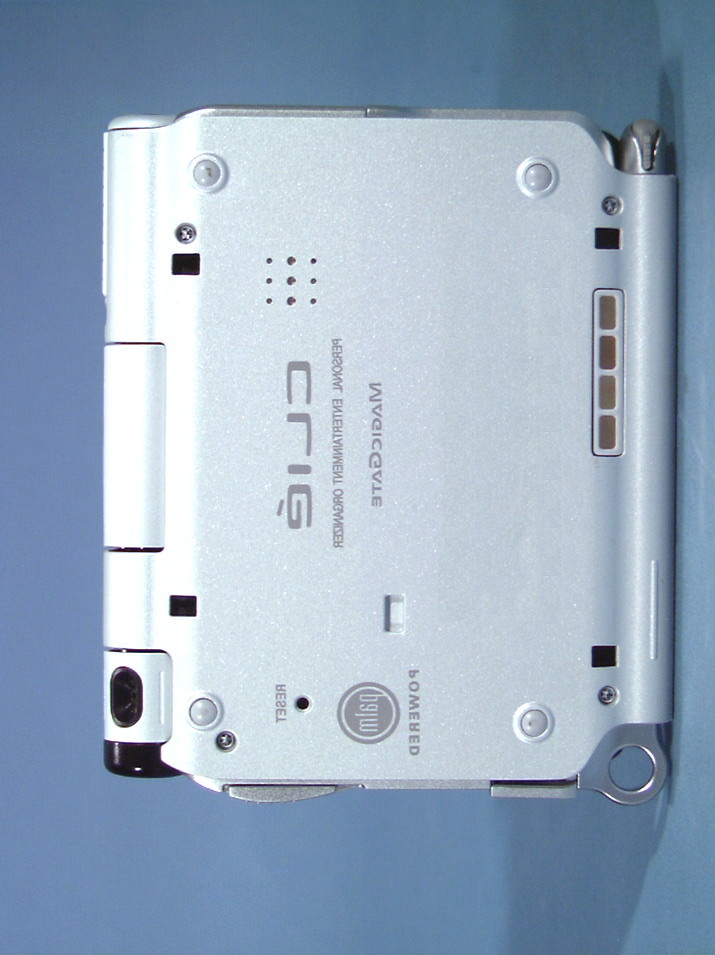

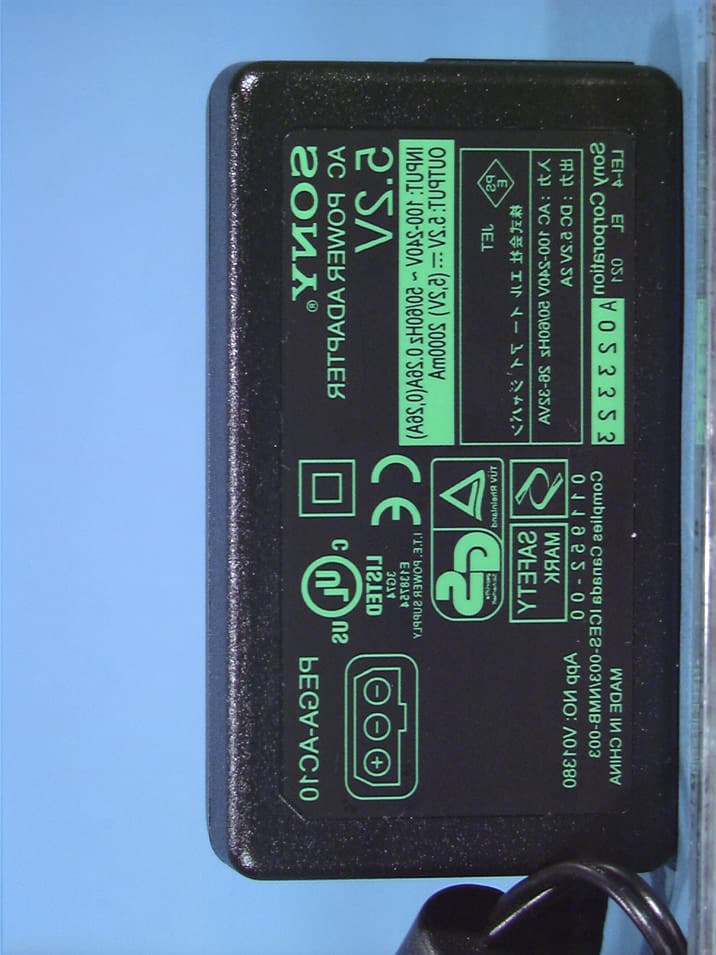

External Photos
SONY FCC ID: AK8PEGUX50 EUT Photographs © 2003 PCTEST Lab. CLIÉ Personal Entertainment Organizer Model: PEG-UX50 SONY FCC ID: AK8PEGUX50 EUT Photographs © 2003 PCTEST Lab. CLIÉ Personal Entertainment Organizer Model: PEG-UX50 SONY FCC ID: AK8PEGUX50 EUT Photographs © 2003 PCTEST Lab. CLIÉ Personal Entertainment Organizer Model: PEG-UX50 SONY FCC ID: AK8PEGUX50 EUT Photographs © 2003 PCTEST Lab. CLIÉ Personal Entertainment Organizer Model: PEG-UX50 SONY FCC ID: AK8PEGUX50 EUT Photographs © 2003 PCTEST Lab. CLIÉ Personal Entertainment Organizer Model: PEG-UX50 SONY FCC ID: AK8PEGUX50 EUT Photographs © 2003 PCTEST Lab. CLIÉ Personal Entertainment Organizer Model: PEG-UX50 SONY FCC ID: AK8PEGUX50 EUT Photographs © 2003 PCTEST Lab. CLIÉ Personal Entertainment Organizer Model: PEG-UX50 SONY FCC ID: AK8PEGUX50 EUT Photographs © 2003 PCTEST Lab. CLIÉ Personal Entertainment Organizer Model: PEG-UX50 SONY FCC ID: AK8PEGUX50 EUT Photographs © 2003 PCTEST Lab. CLIÉ Personal Entertainment Organizer Model: PEG-UX50 SONY FCC ID: AK8PEGUX50 EUT Photographs © 2003 PCTEST Lab. CLIÉ Personal Entertainment Organizer Model: PEG-UX50
ID Label/Location Info
Direct Sequence Spread Spectrum (DSS), FCC Rule Part 15.247 PCTEST LAB TEST REPORT 15.247 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 15.230618296-BT.AK8 Test Dates: June 20-27, 2003 EUT Type: CLIÉ Personal Entertainment Organizer w/ WLAN & Bluetooth FCC ID: AK8PEGUX50 Page 70 of 77 © 2003 PCTEST Engineering Laboratory, Inc. CONFIDENTIAL PROPERTY OF PCTEST EXHIBIT B – Labeling Requirements (Cont.) Sample Label & Location FCC ID Label
Internal Photos
SONY FCC ID: AK8PEGUX50 EUT Photographs © 2003 PCTEST Lab. CLIÉ Personal Entertainment Organizer Model: PEG-UX50 SONY FCC ID: AK8PEGUX50 EUT Photographs © 2003 PCTEST Lab. CLIÉ Personal Entertainment Organizer Model: PEG-UX50 SONY FCC ID: AK8PEGUX50 EUT Photographs © 2003 PCTEST Lab. CLIÉ Personal Entertainment Organizer Model: PEG-UX50 SONY FCC ID: AK8PEGUX50 EUT Photographs © 2003 PCTEST Lab. CLIÉ Personal Entertainment Organizer Model: PEG-UX50 SONY FCC ID: AK8PEGUX50 EUT Photographs © 2003 PCTEST Lab. CLIÉ Personal Entertainment Organizer Model: PEG-UX50 SONY FCC ID: AK8PEGUX50 EUT Photographs © 2003 PCTEST Lab. CLIÉ Personal Entertainment Organizer Model: PEG-UX50
Operational Description
SONY CONFIDENTIAL 8. Operational Description 1. SendingThe sending base-band 1MBps signal is divided two signals, I and Q. DAC and filterremove unnecessary high frequency from signals. Besides, the signal at 2.4GHzafter passing the first local oscillator goes through phase converter. And it istransformed phase difference-90 signal, goes into multiplication unit of I and Q. At Addition unit, GFSK-modulation occurs by adding I and Q. The modulated carrierwaves go through balanced-unbalanced unit after amplification at amp. And thesignal is sent after the harmonic waves from local oscillator and power ampdistortion are removed from the signal by band-pass-filter. Bluetooth SONY Personal Entertainment Organizer PEG-UX50,40 SONY CONFIDENTIAL 2. ReceivingAt first, the disturbance electric waves outside of used band are removed from theinput carrier waves by band-pass-filter. After going through balanced-unbalancedunit, the receiving signal is amplified by low-noise-amp and go into mix unit. Andthe signal is transformed the middle frequency at 1.5MHz after it is multiplied1.5MHz lower signal than the carrier waves of 2.4GHz-band that double thefrequency from the local oscillator of 1.2GHz-band. The middle frequency signal isremoved disturbance electric waves inside used band by passing inside of bandpass-filter. After the signal at 1.5MHz from the second local oscillator is multipliedat multiplication unit, Q and I are added at addition unit. And added signal, Q, andI are demodulated to base-band signal after removing unnecessary high frequencyby low –pass-filter.3. Antenna locationThere is an antenna inside the Personal Entertainment Organizer. It is impossible to remove the antenna and to change this. Bluetooth SONY Personal Entertainment Organizer PEG-UX50,40 SONY CONFIDENTIAL IEEE802.11b 1. SendingThe sending base-band 11MBps signal is divided two signals, I and Q. DAC and filterremove unnecessary high frequency from signals. Besides, the signal at 4.9GHz generated by the local oscillator is divided into 2.45GHz sine and cosine wave by the phase shifter divider. I and Q signals are multiplied with 2.45GHz sine and cosine at the multipliers, and summed together at the adder to obtain the modulated carrier wave.The modulated carrier wave goes through the programmable gain amplifier and the power amplifier.The harmonic waves from local oscillator and the distortion of the power amp are removed by band pass filter after the power amp. After the BPF, transmitting signal goes to the antenna switch through a coaxial cable, and goes to the antenna through a coaxial cable. SONY Personal Entertainment Organizer PEG-UX50 SONY CONFIDENTIAL IEEE802.11b 2. ReceivingReceiving signal from the antenna comes through a coaxial cable, antenna switch and another coaxial cable, into the wireless LAN module.At first, the disturbance electric waves outside of used band are removed from theinput carrier waves by band-pass-filter. After going through balanced-unbalancedunit, the receiving signal is amplified by low-noise-amp and go into multiplication unit. Besides, the signal at 4.9GHz generated by the local oscillator is divided into 2.45GHz sine and cosine wave by the phase shifter divider. They go into the multiplier of I and Q. Q, and I are demodulated to base-band signal after removing unnecessary high frequency by low –pass-filter.3. Antenna locationThere is an antenna inside the Personal Entertainment Organizer. It is impossible to remove the antenna and to change this. SONY Personal Entertainment Organizer PEG-UX50
Parts List/Tune Up Info
SONY CONFIDENTIAL IEEE802.11b Main Parts List SONY Personal Entertainment Organizer PEG-UX50 SyChip WLAN6060EBC2 Wireless LAN Module CP0801 Epson Q13FC255-32.768kHz or Intersil ISL3684AIR Direct Conv. TRX USI MM-LC44.0000MHz Crystal oscillator Murata LFSN25N19c2450B Band Pass Filter KDS DT520-32.768kHz Crystal Epson SG-510SCF 44.0000MHz or Intersil ISL3871 BaseBand/MAC Intersil ISL3984 Power Amp ICSI IC62LV12816L/LL-55 SRAM Intersil ISL3084 VCO MicroChip 24LC08B-I/NS EEPROM Fuji Electric FA7717Q Regulator IC0303 Vendor Part number Part name Ref#
Test Report
Direct Sequence Spread Spectrum (DSS), FCC Rule Part 15.247 PCTEST LAB TEST REPORT 15.247 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 15. 230618296-BT.ACJ Test Dates: June 20-26, 2003 EUT Type: CLIÉ Personal Entertainment Organizer w/ WLAN & Bluetooth FCC ID: AK8PEGUX50 Page i of i © 2003 PCTEST Engineering Laboratory, Inc. CONFIDENTIAL PROPERTY OF PCTEST PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE MANUFACTURER NAME & ADDRESS: DATE & LOCATION OF TESTING: Sony Corporation Mobile Network Company Date(s) of Tests: June 20-26, 2003 2-17-1 Higashigotanda, Shinagawa-ku Test Report S/N: 15.230618296-BT.AK8 Tokyo, 141-0022 JAPAN Test Site: PCTEST Lab, Columbia, MD FCC ID: AK8PEGUX50 APPLICANT: Sony Corporation Mobile Network Company SUMMARY: Model No.: PEG-UX50 Equipment EUT Type: CLIÉ Personal Entertainment Organizer w/ WLAN & Bluetooth Max. Output Power: 0.80 mW Conducted (Bluetooth)/ 23.6mW Conducted (WLAN) Frequency Range: 2402 – 2480 MHz (Bluetooth) FCC Classification: FCC Part 15 Spread Spectrum Transceiver (DSS) FCC Rule Part(s): Parts 15.247; ANSI C-63.4-2001 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2001. Grant Conditions: Power output is conducted. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C. 862. 23032817-R1.ACJ Direct Sequence Spread Spectrum (DSS), FCC Rule Part 15.247 PCTEST LAB TEST REPORT 15.247 FCC CERTIFICATION REPORT Reviewed by: Quality Manager Filename: 15. 230618296-BT.ACJ Test Dates: June 20-26, 2003 EUT Type: CLIÉ Personal Entertainment Organizer w/ WLAN & Bluetooth FCC ID: AK8PEGUX50 Page ii of i © 2003 PCTEST Engineering Laboratory, Inc. CONFIDENTIAL PROPERTY OF PCTEST TABLE OF CONTENTS FOR BLUETOOTH FCC PART 15.247 MEASUREMENT REPORT COVER PAGE.........................................................................................38 1.0 INTRODUCTION.....................................................................................................................................................39 1.1 EVALUATION PROCEDURE....................................................................................................................................................................................................40 1.2 SCOPE.............................................................................................................................................................................................................................................40 1.3 PCTEST TEST LOCATION.........................................................................................................................................................................................................40 2.0 PRODUCT INFORMATION...................................................................................................................................41 2.1 EQUIPMENT DESCRIPTION.....................................................................................................................................................................................................41 2.2 ENCLOSURE..................................................................................................................................................................................................................................41 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS..............................................................................................................................................................41 3.0 DESCRIPTION OF TEST..........................................................................................................................................42 3.1 CONDUCTED EMISSIONS.......................................................................................................................................................................................................42 3.2 RADIATED EMISSIONS..............................................................................................................................................................................................................43 4.0 ANTENNA REQUIREMENTS..................................................................................................................................44 5.0 TEST EQUIPMENT CALIBRATION DATA.............................................................................................................45 6.0 CONCLUSION.........................................................................................................................................................46 EXHIBIT A. SUMMARY OF TEST RESULTS.....................................................................................................................47 EXHIBIT A. 20dB BANDWIDTH MEASUREMENT...............................................................…
Text truncated - open the document above for the full version.
Contact Information
Applicant
Kazuyuki Hori(Chief EMC/RF Compliance Specialist)
Technical Contact
PCTEST Engineering Lab., Inc.Randy Ortanez
[email protected]410-290-6652
6660-B Dobbin Road · Columbia, Maryland · United States
Test Firm
PCTEST Engineering Laboratory, Inc.Randy Ortanez
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.40 GHz - 2.48 GHz | 800.00 µW |
