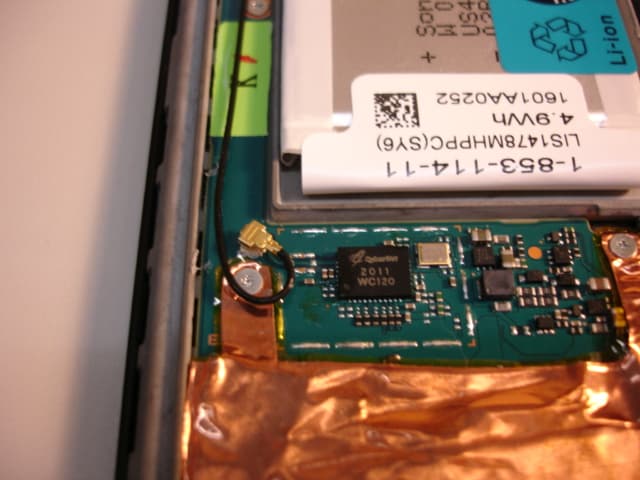

Internal Photo Sony Corporation Digital Book Reader [Model: PRS-T1] Inside of EUT Board(Front) Internal Photo Sony Corporation Digital Book Reader [Model: PRS-T1] Board(Rear) Bottom AntennaPart RFPart Internal Photo Sony Corporation Digital Book Reader [Model: PRS-T1] RF Part

Test report No. : 31KE0212-SH-02-C Page : 30 of 50 Issued date : June 30, 2011 FCC ID : AK8PRST1 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-11: Calibration certificate: Dipole (D2450V2) (sn:822) Test report No. : 31KE0212-SH-02-C Page : 31 of 50 Issued date : June 30, 2011 FCC ID : AK8PRST1 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-11: Calibration certificate: Dipole (D2450V2) (sn:822) (cont’d) Test report No. : 31KE0212-SH-02-C Page : 32 of 50 Issued date : June 30, 2011 FCC ID : AK8PRST1 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-11: Calibration certificate: Dipole (D2450V2) (sn:822) (cont’d) Test report No. : 31KE0212-SH-02-C Page : 33 of 50 Issued date : June 30, 2011 FCC ID : AK8PRST1 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-11: Calibration certificate: Dipole (D2450V2) (sn:822) (cont’d) Test report No. : 31KE0212-SH-02-C Page : 34 of 50 Issued date : June 30, 2011 FCC ID : AK8PRST1 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-11: Calibration certificate: Dipole (D2450V2) (sn:822) (cont’d) Test report No. : 31KE0212-SH-02-C Page : 35 of 50 Issued date : June 30, 2011 FCC ID : AK8PRST1 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-11: Calibration certificate: Dipole (D2450V2) (sn:822) (cont’d) Test report No. : 31KE0212-SH-02-C Page : 36 of 50 Issued date : June 30, 2011 FCC ID : AK8PRST1 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-11: Calibration certificate: Dipole (D2450V2) (sn:822) (cont’d) Test report No. : 31KE0212-SH-02-C Page : 37 of 50 Issued date : June 30, 2011 FCC ID : AK8PRST1 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-11: Calibration certificate: Dipole (D2450V2) (sn:822) (cont’d) Test report No. : 31KE0212-SH-02-C Page : 38 of 50 Issued date : June 30, 2011 FCC ID : AK8PRST1 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-11: Calibration certificate: Dipole (D2450V2) (sn:822) (cont’d) Test report No. : 31KE0212-SH-02-C Page : 39 of 50 Issued date : June 30, 2011 FCC ID : AK8PRST1 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-12: Calibration certificate: E-Field Probe (EX3DV4) (sn:3679) Test report No. : 31KE0212-SH-02-C Page : 40 of 50 Issued date : June 30, 2011 FCC ID : AK8PRST1 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-12: Calibration certificate: E-Field Probe (EX3DV4) (sn:3679) (cont’d) Test report No. : 31KE0212-SH-02-C Page : 41 of 50 Issued date : June 30, 2011 FCC ID : AK8PRST1 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-12: Calibration certificate: E-Field Probe (EX3DV4) (sn:3679) (cont’d) Test report No. : 31KE0212-SH-02-C Page : 42 of 50 Issued date : June 30, 2011 FCC ID : AK8PRST1 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-12: Calibration certificate: E-Field Probe (EX3DV4) (sn:3679) (cont’d) Test report No. : 31KE0212-SH-02-C Page : 43 of 50 Issued date : June 30, 2011 FCC ID : AK8PRST1 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-12: Calibration certificate: E-Field Probe (EX3DV4) (sn:3679) (cont’d) Test report No. : 31KE0212-SH-02-C Page : 44 of 50 Issued date : June 30, 2011 FCC ID : AK8PRST1 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-12: Calibration certificate: E-Field Probe (EX3DV4) (sn:3679) (cont’d) Test report No. : 31KE0212-SH-02-C Page : 45 of 50 Issued date : June 30, 2011 FCC ID : AK8PRST1 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-12: Calibration certificate: E-Field Probe (EX3DV4) (sn:3679) (cont’d) Test report No. : 31KE0212-SH-02-C Page : 46 of 50 Issued date : June 30, 2011 FCC ID : AK8PRST1 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-12: Calibration certificate: E-Field Probe (EX3DV4) (sn:3679) (cont’d) Test report No. : 31KE0212-SH-02-C Page : 47 of 50 Issued date : June 30, 2011 FCC ID : AK8PRST1 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 3-12: Calibration certificate: E-Field Probe (EX3DV4) (sn:3679) (cont’d) Test report No. : 31KE0212-SH-02-C Page : 48 of 50 Issued date : June 30, 2011 FCC ID : AK8PRST1 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumi…

Text truncated - open the document above for the full version.

Test report No. : 31KE0212-SH-02-C Page : 1 of 50 Issued date : June 30, 2011 FCC ID : AK8PRST1 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 SAR TEST REPORT Test Report No. : 31KE0212-SH-02-C Applicant : Sony Corporation Type of Equipment : Digital Book Reader Model No. : PRS-T1 Test Standard : FCC 47CFR §2.1093, Supplement C (Edition 01-01) to OET Bulletin 65 Test Result : Complied Maximum SAR(1g) Value : 0.897 W/kg (2462MHz, IEEE 802.11b(1Mbps, DBPSK/DSSS)) 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above standards. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. Date of test: June 27, 2011 Test engineer: Hiroshi Naka Engineer of WiSE Japan, UL Verification Service Approved by: Toyokazu Imamura Leader of WiSE Japan, UL Verification Service RTL02610 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". Test report No. : 31KE0212-SH-02-C Page : 2 of 50 Issued date : June 30, 2011 FCC ID : AK8PRST1 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 CONTENTS PAGE SECTION 1: Customer information ....................................................................... 3 SECTION 2: Equipment under test (E.U.T) ........................................................... 3 SECTION 3: Test specification, procedures and results ........................................ 4 3.1 Test specification ...................................................................................................... 4 3.2 Exposure limit .......................................................................................................... 4 3.3 Procedure and result ................................................................................................. 4 3.4 Test location ............................................................................................................. 4 3.5 Confirmation before SAR testing .............................................................................. 5 3.6 Confirmation after SAR testing ................................................................................. 5 3.7 Measurement procedure ............................................................................................ 6 3.8 Test setup of EUT ..................................................................................................... 6 SECTION 4: Operation of E.U.T. during testing ................................................... 6 4.1 Operating modes for SAR testing .............................................................................. 6 SECTION 5: Uncertainty assessment (SAR measurement) ......................................... 7 SECTION 6: Confirmation before testing .............................................................. 8 6.1 Assessment for the conducted power of EUT ............................................................. 8 SECTION 7: Measurement results .......................................................................... 9 7.1 SRA for the tablet device .......................................................................................... 9 Contents of appendixes APPENDIX 1: Photographs of test setup .................................................................. 10 Appendix 1-1 Photograph of Wireless LAN module and antenna ..................................................... 10 Appendix 1-2 Outline of the EUT ................................................................................................... 11 Appendix 1-3 EUT and support equipment ..................................................................................... 11 Appendix 1-4 Photograph of test setup ............................................................................................ 12 APPENDIX 2: SAR Measurement data .................................................................... 14 Appendix 2-1 Evaluation procedure ................................................................................................ 14 Appendix 2-2 Measurement data..................................................................................................... 15 APPENDIX 3: Test instruments ................................................................................ 23 Appendix 3-1 Equipment used ........................................................................................................ 23 Appendix 3-2 Dosimetry assessment setup ...................................................................................... 24 Appendix 3-3 Configuration and peripherals ................................................................................... 24 Appendix 3-4 System components .................................................................................................. 25 Appendix 3-5 Test system specification........................................................................................... 26 Appendix 3-6 Simulated tissues composition .................................................................................. 26 Appendix 3-7 Simulated tissues parameter confirmation .................................................................. 27 Appendix 3-8 System check data ..................................................…

Text truncated - open the document above for the full version.

Test report No. : 31KE0212-SH-02-C Page : 14 of 50 Issued date : June 30, 2011 FCC ID : AK8PRST1 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 APPENDIX 2: SAR Measurement data Appendix 2-1: Evaluation procedure The SAR evaluation was performed with the following procedure: Step 1: Measurement of the E-field at a fixed location above the central position of flat phantom was used as a reference value for assessing the power drop. Step 2: The SAR distribution at the exposed side of head or body position was measured at a distance of each device from the inner surface of the shell. The area covered the entire dimension of the antenna of EUT and suitable horizontal grid spacing of EUT. Based on these data, the area of the maximum absorption was determined by splines interpolation. Step 3: Around this point found in the Step 2 (area scan), a volume of 30mm(X axis)30mm(Y axis)30mm(Z axis) was assessed by measuring 777 points under 3GHz. And for any secondary peaks found in the Step2 which are within 2dB of maximum peak and not with this Step3 (Zoom scan) is repeated. On the basis of this data set, the spatial peak SAR value was evaluated under the following procedure: (1) The data at the surface were extrapolated, since the center of the dipoles is 1mm away from the tip of the probe and the distance between the surface and the lowest measuring point is 2mm. The extrapolation was based on a least square algorithm [4]. A polynomial of the fourth order was calculated through the points in z- axes. This polynomial was then used to evaluate the points between the surface and the probe tip. (2) The maximum interpolated value was searched with a straightforward algorithm. Around this maximum the SAR values averaged over the spatial volumes (1g or 10g) were computed by the 3D-Spline interpolation algorithm. The 3D-Spline is composed of three one-dimensional splines with the “Not a knot"-condition (in x, y and z-directions) [4], [5]. The volume was integrated with the trapezoidal-algorithm. One thousand points (101010) were interpolated to calculate the average. (3) All neighboring volumes were evaluated until no neighboring volume with a higher average value was found. Step 4: Re-measurement of the E-field at the same location as in Step 1 for the assessment of the power drift. Step 5: Repeat Step 1-Step 4 with other condition or/and setup of EUT. Test report No. : 31KE0212-SH-02-C Page : 15 of 50 Issued date : June 30, 2011 FCC ID : AK8PRST1 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 2-2: Measurement data Step 1: Worst position search Step 1-1: Front-touch, 2462MHz, 11b(1Mbps) (Worst SAR / Worst position) EUT: Digital Book Reader; Type: PRS-T1; Serial: 463 Communication System: 802.11b/g/n(20HT) supported; Frequency: 2462 MHz; Crest Factor: 1.0 Medium: M2450; Medium parameters used: f = 2450 MHz; σ = 1.97 S/m; ε r = 50.3; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: EX3DV4 - SN3679; ConvF(7.34, 7.34, 7.34); Calibrated: 2011/05/19 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn626; Calibrated: 2011/02/10 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1059; Phantom section: Flat Section - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 r1,frt-touch&d0,11b(1m,13d),m2462/ Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm; Maximum value of SAR (measured) = 1.04 mW/g Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm; Maximum value of SAR (interpolated) = 1.16 mW/g Z Scan (1x1x34): Measurement grid: dx=20mm, dy=20mm, dz=5mm; Maximum value of SAR (measured) = 1.64 mW/g Zoom Scan(30,stp5) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm; Reference Value = 27.4 V/m; Power Drift = -0.196 dB, Maximum value of SAR (measured) = 1.64 mW/g Peak SAR (extrapolated) = 2.81 W/kg SAR(1 g) = 0.897 mW/g (Worst SAR); SAR(10 g) = 0.342 mW/g Additional information: *.position: distance of EUT to phantom: 0mm (2mm to liquid), liquid depth: 158mm *.ambient: 241 deg.C / 505 %RH; liquid temperature: (before) 23.6 deg.C /(after) 23.5 deg.C *.white cubic: zoom scan area, red big cubic: SAR(10g ), red small cubic: SAR(1g) *.Tested by: Hiroshi Naka / Tested place:No.7 shielded room / Date tested: June 27, 2011 Test report No. : 31KE0212-SH-02-C Page : 16 of 50 Issued date : June 30, 2011 FCC ID : AK8PRST1 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 / Facsimile: +81 463 50 6401 Appendix 2-2: Measurement data (cont’d) Step 1: Worst position search Step 1-2: Top-rear-touch, 2462MHz, 11b(1Mbps) EUT: Digital Book Reader; Type: PRS-T1; Serial: 463 Communication System: 802.11b/g/n(20HT) supported; Frequency: 2462 MHz; Crest Factor: 1.0 Medium: M2450; Medium parameters used: f = 2450 MHz; σ = 1.97 S/m; ε r = 50.3; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: EX3DV4 - SN3679; ConvF(7.34, 7.34, 7.34); Calibrated: 2011/05/19 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn626; Calibrated: 2011/02/10 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1059; Phantom section: Flat Section - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 r4,top&rear-touch&d0,11b(1m),m2462/ Area Scan (5x6x1): Measurement grid: dx=15mm, dy=15mm; Maximum value of SAR (measured) = 1.04 mW/g Area Scan (41x51x1): Measurement grid: dx=15mm, dy=15mm; Maximum value of SAR (interpolated) = 1.18 mW/g Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm; Reference Value = 22.6 V/m; Power Drift = 0.20 dB, Maximum value of SAR (measured) = 1.19 mW/g Peak SAR (extrapolated) = 1.92 W/kg SAR(1 g) = 0.629 mW/g; SAR(10 g) = 0.224 mW/g Additional information: *.position: distance of EUT to phantom: 0mm (2mm to liquid), liquid depth: 158mm…

Text truncated - open the document above for the full version.

Test report No. : 31KE0212-SH-02-B Page : 1 of 70 Issued date : July 20, 2011 Revised date : July 28, 2011 FCC ID : AK8PRST1 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 RADIO TEST REPORT Test Report No.: 31KE0212-SH-02-B Applicant : Sony Corporation Type of Equipment : Digital Book Reader Model No. : PRS-T1 FCC ID : AK8PRST1 Test regulation : FCC Part15 Subpart C: 2010 Test result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. Date of test: June 23 to July 9, 2011 Representative test engineer: ______________________________ Hikaru Shirasawa Engineer of WiSE Japan, UL Verification Service Approved by : ______________________________ Ichiro Isozaki Leader of WiSE Japan, UL Verification Service RTL02610 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". 13-EM-F0429 Test report No. : 31KE0212-SH-02-B Page : 2 of 70 Issued date : July 20, 2011 FCC ID : AK8PRST1 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ..................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ....................................................................... 3 SECTION 3: Test specification, procedures & results ......................................................... 4 SECTION 4: Operation of E.U.T. during testing ................................................................. 7 SECTION 5: Conducted emission ......................................................................................... 8 SECTION 6: 6dB bandwidth & Occupied bandwidth (99%) ............................................. 8 SECTION 7: Maximum peak output power ......................................................................... 9 SECTION 8: Spurious emission (Antenna port conducted) ................................................ 9 SECTION 9: Radiated emission .......................................................................................... 10 SECTION 10: Peak Power density ...................................................................................... 11 Contents of APPENDIXES ................................................................................................... 12 APPENDIX 1: Photographs of test setup ............................................................................ 13 APPENDIX 2: Test data ...................................................................................................... 16 APPENDIX 3: Test instruments .......................................................................................... 69 Test report No. : 31KE0212-SH-02-B Page : 3 of 70 Issued date : July 20, 2011 FCC ID : AK8PRST1 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : Sony Corporation Brand Name : SONY Address : Shinagawa INTERCITY C Tower 2-15-3, Konan Minato-ku, Tokyo, 108-6201 Japan Telephone Number : +81 3 5769 5222 Facsimile Number : +81 3 5769 5901 Contact Person : Shinichi Maru SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Digital Book Reader Model Number : PRS-T1 Serial Number : Refer to Section 4.2 Rating : DC 4.2V Country of Mass-production : China Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Receipt Date of Sample : June 23, 2011 Modification of EUT : No modification by the test lab. 2.2 Product description Model: PRS-T1 (referred to as the EUT in this report) is a Digital Book Reader. Clock frequency(ies) in the system : CPU 24MHz, WLAN 26MHz, PMIC 32kHz Equipment type : Transceiver Frequency of operation : 2412-2462MHz Bandwidth & channel spacing : 20MHz & 5MHz Type of modulation : IEEE802.11b: DSSS (DBPSK, DQPSK, CCK) IEEE802.11g/n(20HT): OFDM (BPSK, QPSK, 16QAM, 64QAM) Antenna type : Pattern Antenna gain with cable loss : 1.07dBi (2412MHz), 2.06dBi (2436MHz), 1.25dBi (2472MHz) Antenna connector type : U.FL ITU code : D1D, G1D Operation temperature range : +5 to +35 deg.C. FCC Part15.31 (e) This EUT provides stable voltage (DC3.3V and DC1.8V) constantly to RF Module regardless of input voltage. Therefore, this EUT complies with the requirement. FCC Part15.203 The EUT has a unique coupling/antenna connector (U.FL). Therefore the equipment complies with the requirement of 15.203. Test report No. : 31KE0212-SH-02-B Page : 4 of 70 Issued date : July 20, 2011 FCC ID : AK8PRST1 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 3: Test specification, procedures & results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2010, final revised on December 6, 2010 and effective January 5, 2011 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.209 Radiated emission limits, general requirements Section 15.247 Operation within the bands 902-…

Text truncated - open the document above for the full version.

16 17 18 19 20 21 22 23 24 25 Test Report No.:31KE0212-SH-02-B Test placeUL Japan, Inc. Shonan EMC Lab. No.6 Shilded room Date2011/7/8 Temperature / Humidity25deg.C., 54%RH EngineerMakoto Hosaka ModeIEEE802.11b, 11Mbps Serial Number465 -6dB Bandwidth Freq.-6dB BandwidthLimit [MHz][MHz][MHz] 2412.00009.719> 0.500 2437.00009.820> 0.500 2462.00009.820> 0.500 Transmitting(2412MHz)Transmitting(2437MHz) Transmitting(2462MHz) A RBW 100 kHz VBW 300 kHz SWT 12.5 ms IN1 RF Att 10 dB Unit dB
V Ref Lvl 97 dB
V Ref Lvl 97 dB
V 5 MHz/Center 2.412 GHzSpan 50 MHz 2VIEW2MA 0 1 0 2 0 3 0 4 0 5 0 6 0 7 0 8 0 9 0 - 3 9 7 1 2 1 Delta 1 [T2] 0.44 dB 9.71943888 MHz 2 [T2] 79.73 dB
V 2.40724048 GHz 1 [T2] 0.44 dB 9.71943888 MHz 1 [T2] 85.23 dB
V 2.41174950 GHz D1 79.23 dB
V Date: 8.JUL.2011 09:17:19 A RBW 100 kHz VBW 300 kHz SWT 12.5 ms IN1 Unit dB
V Center 2.437 GHzSpan 50 MHz5 MHz/ Ref Lvl 97 dB
V Ref Lvl 97 dB
V RF Att 10 dB 2VIEW2MA 0 1 0 2 0 3 0 4 0 5 0 6 0 7 0 8 0 9 0 - 3 9 7 1 2 1 Delta 1 [T2] 0.95 dB 9.81963928 MHz 2 [T2] 80.03 dB
V 2.43214028 GHz 1 [T2] 0.95 dB 9.81963928 MHz 1 [T2] 86.09 dB
V 2.43674950 GHz D1 80.09 dB
V Date: 8.JUL.2011 09:25:55 A RBW 100 kHz VBW 300 kHz SWT 12.5 ms IN1 Unit dB
V Center 2.462 GHzSpan 50 MHz5 MHz/ Ref Lvl 97 dB
V Ref Lvl 97 dB
V RF Att 10 dB 2VIEW2MA 0 1 0 2 0 3 0 4 0 5 0 6 0 7 0 8 0 9 0 - 3 9 7 1 2 1 Delta 1 [T2] 1.03 dB 9.81963928 MHz 2 [T2] 80.16 dB
V 2.45714028 GHz 1 [T2] 1.03 dB 9.81963928 MHz 1 [T2] 86.17 dB
V 2.46174950 GHz D1 80.17 dB
V Date: 8.JUL.2011 09:33:11 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 26 Test Report No.:31KE0212-SH-02-B Test placeUL Japan, Inc. Shonan EMC Lab. No.6 Shilded room Date2011/7/8 Temperature / Humidity25deg.C., 54%RH EngineerMakoto Hosaka ModeIEEE802.11g, 6Mbps Serial Number465 -6dB Bandwidth 2462.0000 -6dB Bandwidth Transmitting(2412MHz)Transmitting(2437MHz) Freq. [MHz] 2412.0000 2437.0000 Limit [MHz] > 0.500 > 0.500 Transmitting(2462MHz) [MHz] 16.333 16.333 16.333> 0.500 A RBW 100 kHz VBW 300 kHz SWT 12.5 ms IN1 RF Att 10 dB Unit dB
V Ref Lvl 97 dB
V Ref Lvl 97 dB
V 5 MHz/Center 2.412 GHzSpan 50 MHz 2VIEW2MA 0 1 0 2 0 3 0 4 0 5 0 6 0 7 0 8 0 9 0 - 3 9 7 1 2 1 Marker 2 [T2] 74.66 dB
V 2.40383367 GHz 2 [T2] 74.66 dB
V 2.40383367 GHz 1 [T2] 79.42 dB
V 2.41706012 GHz 1 [T2] 0.60 dB 16.33266533 MHz D1 73.42 dB
V Date: 8.JUL.2011 09:15:31 A RBW 100 kHz VBW 300 kHz SWT 12.5 ms IN1 Unit dB
V Center 2.437 GHzSpan 50 MHz5 MHz/ Ref Lvl 97 dB
V Ref Lvl 97 dB
V RF Att 10 dB 2VIEW2MA 0 1 0 2 0 3 0 4 0 5 0 6 0 7 0 8 0 9 0 - 3 9 7 1 2 1 Delta 1 [T2] 0.62 dB 16.33266533 MHz 2 [T2] 75.11 dB
V 2.42883367 GHz 1 [T2] 0.62 dB 16.33266533 MHz 1 [T2] 80.01 dB
V 2.44206012 GHz D1 74.01 dB
V Date: 8.JUL.2011 09:24:19 A RBW 100 kHz VBW 300 kHz SWT 12.5 ms IN1 Unit dB
V Center 2.462 GHzSpan 50 MHz5 MHz/ Ref Lvl 97 dB
V Ref Lvl 97 dB
V RF Att 10 dB 2VIEW2MA 0 1 0 2 0 3 0 4 0 5 0 6 0 7 0 8 0 9 0 - 3 9 7 1 2 1 Delta 1 [T2] 0.54 dB 16.33266533 MHz 2 [T2] 75.72 dB
V 2.45383367 GHz 1 [T2] 0.54 dB 16.33266533 MHz 1 [T2] 80.37 dB
V 2.45573747 GHz D1 74.37 dB
V Date: 8.JUL.2011 09:39:14 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 27 Test Report No.:31KE0212-SH-02-B Test placeUL Japan, Inc. Shonan EMC Lab. No.6 Shilded room DateJuly 8, 2011 Temperature / Humidity25deg.C., 54%RH EngineerMakoto Hosaka ModeIEEE802.11n, MCS3 Serial Number465 -6dB Bandwidth Freq.-6dB BandwidthLimit [MHz][MHz][MHz] 2412.000017.735> 0.500 2437.000017.735> 0.500 2462.000017.735> 0.500 Transmitting(2412MHz)Transmitting(2437MHz) Transmitting(2462MHz) A RBW 100 kHz VBW 300 kHz SWT 12.5 ms IN1 RF Att 10 dB Unit dB
V Ref Lvl 97 dB
V Ref Lvl 97 dB
V 5 MHz/Center 2.412 GHzSpan 50 MHz 2VIEW2MA 0 1 0 2 0 3 0 4 0 5 0 6 0 7 0 8 0 9 0 - 3 9 7 1 2 1 Delta 1 [T2] 0.66 dB 17.73547094 MHz 2 [T2] 73.27 dB
V 2.40313226 GHz 1 [T2] 0.66 dB 17.73547094 MHz 1 [T2] 78.55 dB
V 2.41706012 GHz D1 72.55 dB
V Date: 8.JUL.2011 09:20:15 A RBW 100 kHz VBW 300 kHz SWT 12.5 ms IN1 Unit dB
V Center 2.437 GHzSpan 50 MHz5 MHz/ Ref Lvl 97 dB
V Ref Lvl 97 dB
V RF Att 10 dB 2VIEW2MA 0 1 0 2 0 3 0 4 0 5 0 6 0 7 0 8 0 9 0 - 3 9 7 1 2 1 Delta 1 [T2] 0.73 dB 17.73547094 MHz 2 [T2] 73.78 dB
V 2.42813226 GHz 1 [T2] 0.73 dB 17.73547094 MHz 1 [T2] 79.21 dB
V 2.44206012 GHz D1 73.21 dB
V Date: 8.JUL.2011 09:22:07 A RBW 100 kHz VBW 300 kHz SWT 12.5 ms IN1 Unit dB
V Center 2.462 GHzSpan 50 MHz5 MHz/ Ref Lvl 97 dB
V Ref Lvl 97 dB
V RF Att 10 dB 2VIEW2MA 0 1 0 2 0 3 0 4 0 5 0 6 0 7 0 8 0 9 0 - 3 9 7 1 2 1 Delta 1 [T2] 0.92 dB 17.73547094 MHz 2 [T2] 74.06 dB
V 2.45313226 GHz 1 [T2] 0.92 dB 17.73547094 MHz 1 [T2] 79.58 dB
V 2.46706012 GHz D1 73.58 dB
V Date: 8.JUL.2011 09:43:05 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 28 Test Report No.: 31KE0212-SH-02-B Issued date : May 14, 2009 FCC ID : FCC-No Test placeUL Japa n, Inc. Shonan EMC Lab. No.3 Shielded Room Date2011/6/23 Temperature / Humidity26deg.C., 50%RH EngineerMakoto Hosaka ModeTx, IEEE802.11bworst antenna : -worst data mode :11 Mbps Serial Number497 ChFr eq.P/M (PK)CableAtten.Margin ReadingLossLoss [MHz][dBm][dB][dB][dBm][mW][dBm][mW][dB] Low2412.0-6.080.7720.1614.8530.5530.00100015.15 Mid2437.0-4.840.7420.1516.0540.273…
