AK8PSLX310BTM2PS-LX310BT

PS-LX310BT.GB (UC2 AU).4-748-755-14 (1) Stereo Turntable System Operating Instructions PS-LX310BT Getting Started Listening to a Vinyl Record Recording a Vinyl Record Maintenance Additional Information 4-748-755-14 (1) PS-LX310BT.GB (UC2 AU).4-748-755-11 (1)PS-LX310BT.GB (UC2 AU).4-748-755-11 (1) 2 Owner’s Record The model number and serial numbers are located at the bottom. Record these numbers in the spaces provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product. Model No. PS-LX310BT Serial No.________________ WARNING To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The AC adaptor is for use in dry, indoor locations. To reduce the risk of fire, do not cover the ventilation opening of the appliance with newspapers, tablecloths, curtains, etc. Do not expose the appliance to naked flame sources (for example, lighted candles). To reduce the risk of fire or electric shock, do not expose this appliance to dripping or splashing, and do not place objects filled with liquids, such as vases, on the appliance. Do not install the appliance in a confined space, such as a bookcase or built-in cabinet. The AC adaptor must not be covered over by anything and should only be used in an ambient temperature of up to 45 °C (113 °F). The unit is not disconnected from the mains as long as it is connected to the AC outlet, even if the unit itself has been turned off. As the main plug of AC power adaptor is used to disconnect the AC power adaptor from the mains, connect it to an easily accessible AC outlet. Should you notice an abnormality in it, disconnect it from the AC outlet immediately. The AC adaptor is not available for repair and its use should be terminated immediately when the AC adaptor is found damaged or defective. CAUTION : RISK OF ELECTRIC SHOCK DRY LOCATION USE ONLY Polarity of DC output of the AC adaptor  For the stereo turntable system The name plate is located on the bottom of the stereo turntable system. About the AC adaptor The model name of the AC adaptor is located at the bottom of the AC adaptor. To check the firmware version of your turntable You can check the firmware version of your turntable on the computer. Update the firmware by downloading updates provided on the Sony Support Page when the updates are available. For the customers in the U.S.A. Important Safety Instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11) Only use attachments/accessories specified by the manufacturer. 12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13) Unplug this apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: –Reorient or relocate the receiving antenna. –Increase the separation between the equipment and receiver. PS-LX310BT.GB (UC2 AU).4-748-755-11 (1)PS-LX310BT.GB (UC2 AU).4-748-755-11 (1) 3 The AC adaptor is not available for repair and its use should be terminated immediately when the AC adaptor is found damaged or defective. CAUTION : RISK OF ELECTRIC SHOCK DRY LOCATION USE ONLY Polarity of DC output of the AC adaptor  For the stereo turntable system The name plate is located on the bottom of the stereo turntable system. About the AC adaptor The model name of the AC adaptor is located at the bottom of the AC adaptor. To check the firmware version of your turntable You can check the firmware version of your turntable on the computer. Update the firmware by downloading updates provided on the Sony Support Page when the updates are available. For the customers in the U.S.A. Important Safety Instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not …

Text truncated - open the document above for the full version.

Covered list attestation FCC application letter Kiwa Page 1 of 2 RF_755_02 15-02-2023 Certification Application Attestation Statements <Company name> SONY Group Corporation <adress>1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan <ZIP / Postcode> Tokyo <city> <country> Japan Subject: FCC ID: AK8PSLX310BTM2 To Whom It May Concern: Statement for 47 CFR section 2.911(d)(5)(i) [ SONY Corporation] certifies that as of the date of the application the equipment for which authorization is sought is not “covered” equipment 1 prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not “covered” equipment. Additional Explanation: <N/A> Statement for 47 CFR section 2.911(d)(5)(ii) [ SONY Corporation] (“the applicant”) certifies that, as of the date of the filing of this application, the applicant - is / - is not (3) identified on the Covered List as an entity producing “covered” equipment. Date: 3 rd of July City: Tokyo, Japan Name (2) : Takeshi, Kobayashi Function: Compliance Manager Telephone number: - Email address: [email protected] Signature: Revision Record Sheet: 1 - The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist . (2): For FCC it must be the Grantee Code “owner” or the authorized agent. (3): double click on the appropriate box and select ‘’checked” then “OK” Covered list attestation FCC application letter Kiwa Page 2 of 2 RF_755_02 15-02-2023 Revision Section number Page number Date Remark(s) issued by 01 07-02-2023 1 st version RvM 02 1 15-02-2023 Changed Applicant to Company and added “Subject: FCC ID: “ RvdM Issued/modified by : Richard van de Meer Function : Certification assessor Revision : 02 Date : 15-02-2023 Verified by : Willem Jan Jong Function : Team Lead Date : 16-02-2023 Released by : Axel Gase Function : Manager Quality Assurance Date of release: : __-02-2023

RF_160_05 Declaration of Authorisation Date of issue 02-01-2023 Declaration of Authorization We Name: SONY Group Corporation Address: 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan City: Tokyo Country: Japan Declare that: Name Representative of agent: Daphne Liang (1) Agent Company name: SGS Compliance Certification Services Inc. Address: No. 168, Ln. 523, Sec. 3, Zhongzheng Rd., City: Rende Dist., Tainan City, 717017, Country Taiwan is authorized to apply for Certification of the following product(s): Product description: Stereo Turntable System Type designation: PS-LX310BT Trademark: SONY Validity/ expiry date: 13 th of July, 2024 on our behalf. Date: ...3rd of July...................... City: ...Tokyo... ........................ Name: ...Takeshi, Kobayashi...... ... (2) Function: ...Compliance Manager....... Signature: ............................... Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent. Revision Record Sheet: Revision Section number Page number Date Remark(s) issued by 02 1 02-01-2023 History sheet added AG Issued/modified by : Axel Gase Function : Quality Manager Revision : 02 Date : 02-01-2023 Verified by : Willem Jan Jong Function : Team Lead Date : 02-01-2023 Released by : Axel Gase Function : Manager Quality Assurance Date of release: : 02-01-2023

FCC, Request for non-disclosure Date: 02-01-2022 RF_501, Issue 10 Company Name: Sony Group Corporation Address : 1-7 -1 Konan Minato-ku Tokyo, 108-0075 Japan City: Tokyo Country: Japan To: Kiwa Netherlands B.V., Dept. FCC TCB Wilmersdorf 50 7327 AC Apeldoorn The Netherlands Subject: Request for confidentiality FCC ID: AK8PSLX310BTM2 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (See notes below): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Date: 3rd of July, 2023 Name and signature of applicant: Takeshi Kobayashi Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! The planned date should state in the RF731 application form. 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Kiwa NL B.V. at least 7 days before date of actual marketing or before expiration of the STC period FCC, Request for non-disclosure Date: 02-01-2023 RF_501, Issue 10 Page 1 of 1 Revision Record Sheet: Revision Section number Page number Date Remark(s) issued by 10 1 02-01-2023 History sheet added AG Issued/modified by : Axel Gase Function : Quality Manager Revision : 10 Date : 02-01-2023 Verified by : Willem Jan Jong Function : Team Lead Date : 02-01-2023 Released by : Axel Gase Function : Manager Quality Assurance Date of release: : 02-01-2023

Sony Group Corporation Special Power of Attorney I, Kazuyuki Hori of Sony Group Corporation, hereby appoint Takeshi Kobayashi of Sony Corporation to represent me to act on my behalf to do any and all of the following. Sign on my behalf the agency, anti-drug and confidentiality cover letters and apply to FCC for the products. The rights, powers and authority in fact to exercise any and all of the rights and powers herein granted shall commence and be in full force from April 1, 2021 and continue to be effective unless specifically terminated by either party. Dated April 1, 2021 Kazuyuki Hori Company: Sony Group Corporation Country: Japan

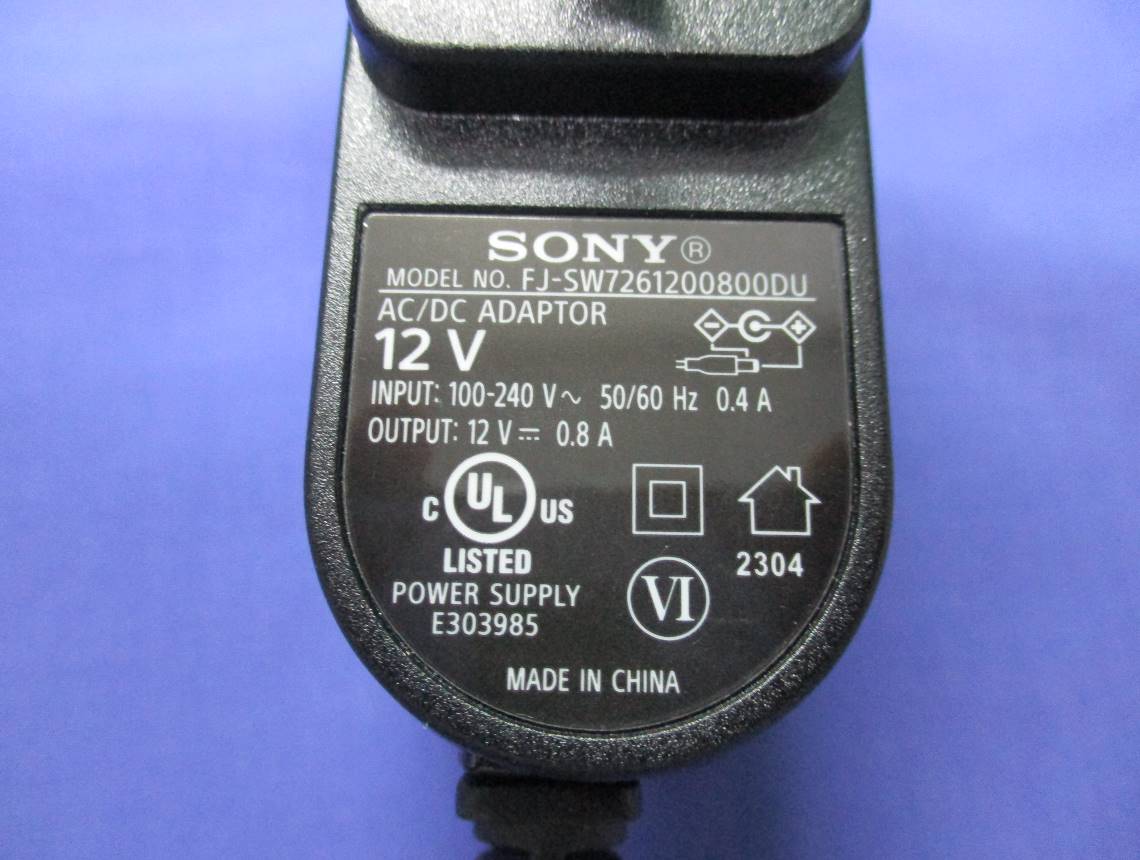

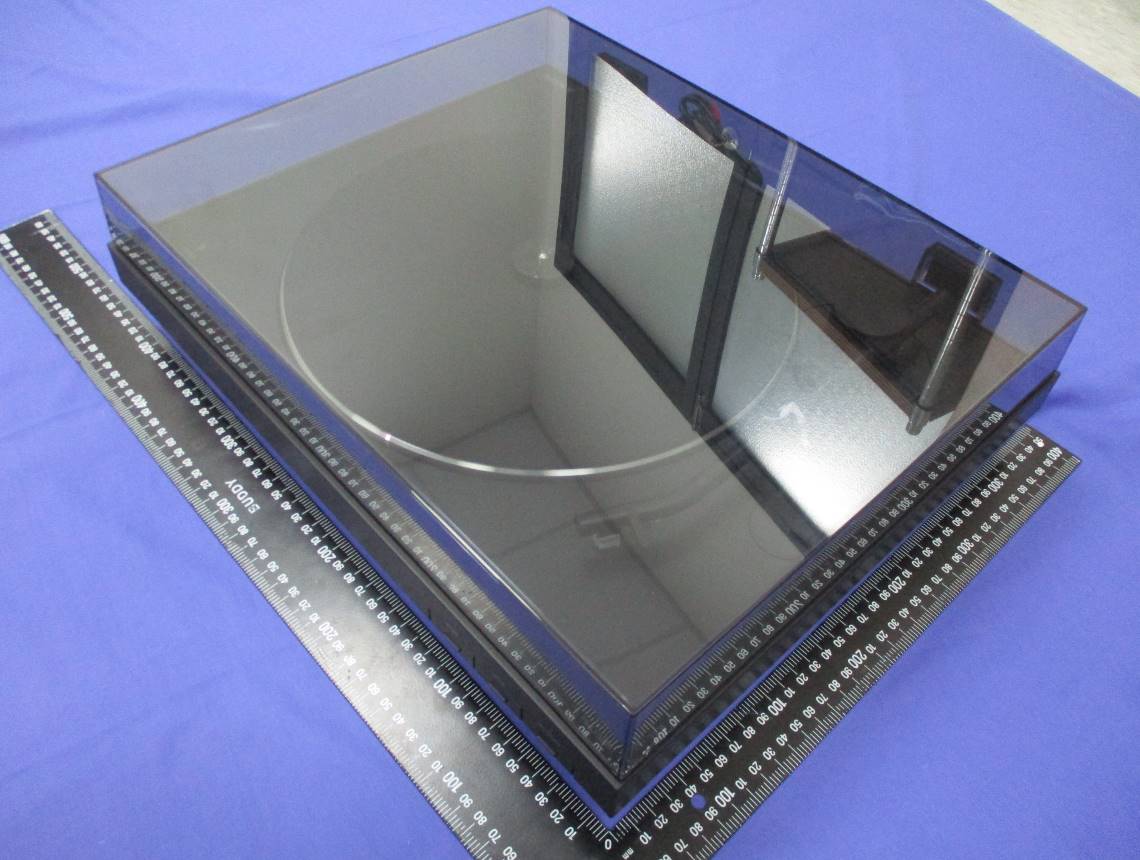

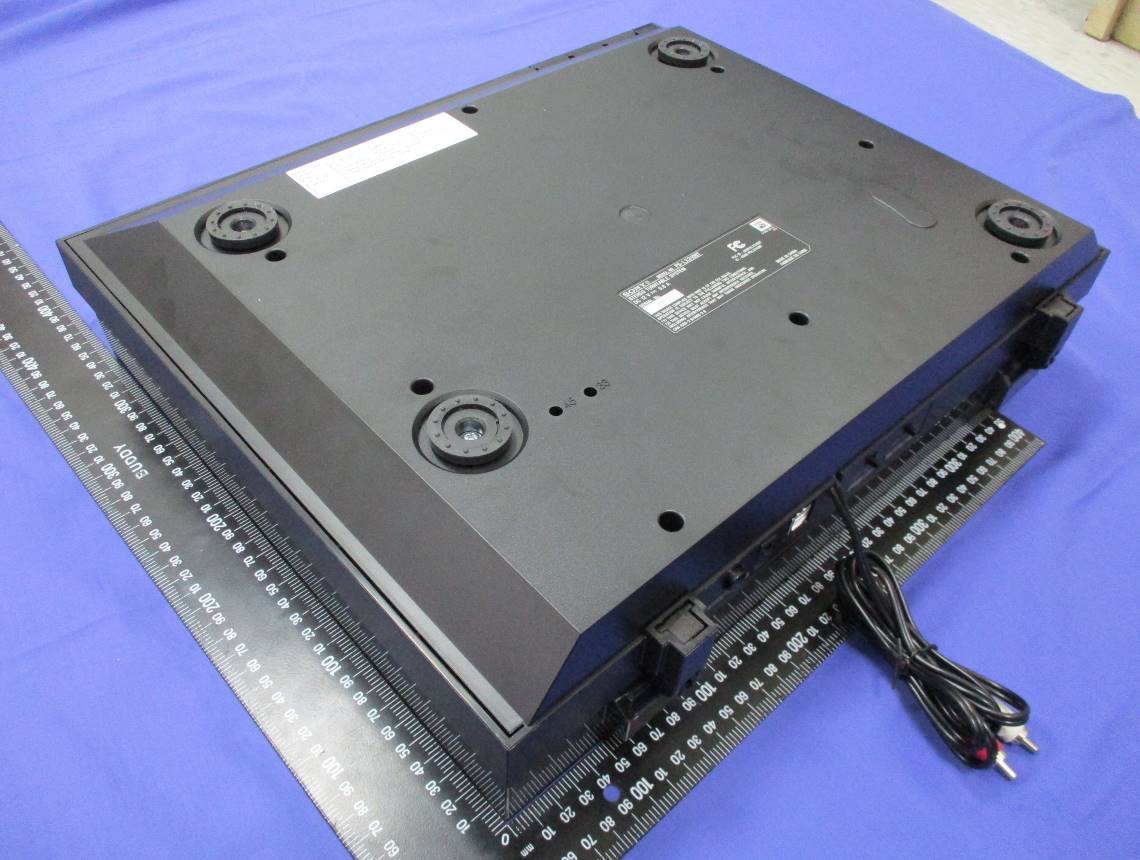

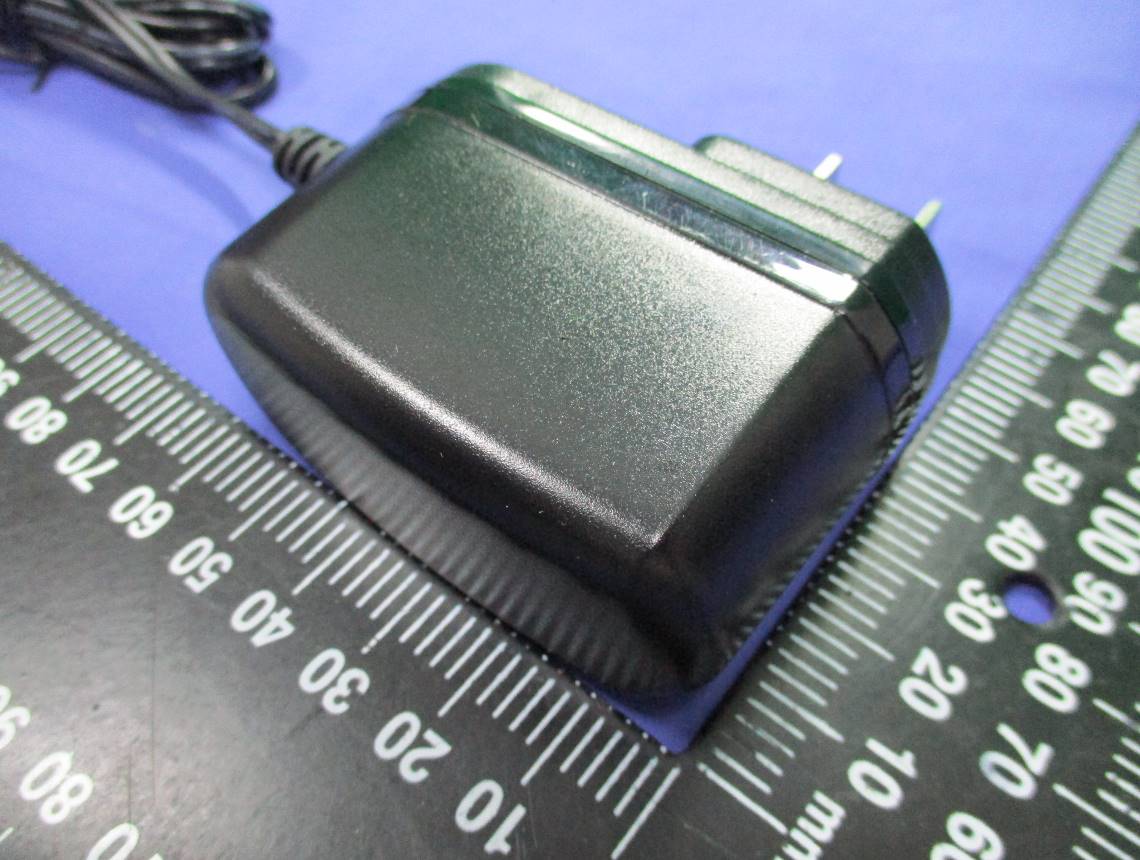

Page: 114 / 123 Re port No.: TMTN2305000661NR Ref. No.: Rev.: 00 APPENDIX II PHOTOGRPHS OF EUT External Photo Model: PS-LX310BT Page: 115 / 123 Re port No.: TMTN2305000661NR Ref. No.: Rev.: 00 Page: 116 / 123 Re port No.: TMTN2305000661NR Ref. No.: Rev.: 00 Page: 117 / 123 Re port No.: TMTN2305000661NR Ref. No.: Rev.: 00

FCC ID : AK8PSLX310BTM2 5-000-939-02

Page: 118 / 123 Re port No.: TMTN2305000661NR Ref. No.: Rev.: 00 Internal Photo Model: PS-LX310BT Page: 119 / 123 Re port No.: TMTN2305000661NR Ref. No.: Rev.: 00 Page: 120 / 123 Re port No.: TMTN2305000661NR Ref. No.: Rev.: 00 Page: 121 / 123 Re port No.: TMTN2305000661NR Ref. No.: Rev.: 00 Page: 122 / 123 Re port No.: TMTN2305000661NR Ref. No.: Rev.: 00 Page: 123 / 123 Re port No.: TMTN2305000661NR Ref. No.: Rev.: 00 Antenna

Project No.: TM-2305000390P FCC ID: AK8PSLX310BTM2 Page: 1 / 13 Report No.: TMWK2305001635KS Rev.: 00 No.11, Wugong 6th Rd., Wugu Dist., New Taipei City , Taiwan /新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2299-9721 www.sgs.com.tw Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group RF Exposure Evaluation Report FCC 47 CFR § 2.1091 for Stereo Turntable System Model Name.: PS-LX310BT Prepared for: SONY Corporation 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan Prepared by Compliance Certification Services Inc. Wugu Lab. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City, Taiwan. (R.O.C.) Issue Date: August 04, 2023 Note: This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Page: 2 / 13 Report No.: TMWK2305001635KS Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Revision History Rev. Issue Date Revisions Revised By 00 August 04, 2023 Initial Issue Gina Lin Page: 3 / 13 Report No.: TMWK2305001635KS Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Table of Contents 1 ATTESTATION OF TEST RESULTS ................................................................... 4 2 TEST SPECIFICATION, METHODS AND PROCEDURES .................................. 5 3 DEVICE UNDER TEST (DUT) INFORMATION .................................................... 6 3.1 DUT DESCRIPTION .............................................................................................................................................. 6 3.2 WIRELESS TECHNOLOGIES .............................................................................................................................. 7 4 MAXIMUM PERMISSIBLE EXPOSURE............................................................... 8 4.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) ............................................................................... 8 4.2 MPE CALCULATION METHOD ............................................................................................................................ 9 4.3 MPE EXEMPTION............................................................................................................................................... 10 4.4 MULTIPLE RF SOURCES .................................................................................................................................. 11 5 MPE EXEMPTION OPTION B ............................................................................ 12 6 FACILITIES ......................................................................................................... 13 Page: 4 / 13 Report No.: TMWK2305001635KS Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 1 Attestation of Test Results Applicant Name SONY Corporation Model Name PS-LX310BT Applicable Standards FCC 47 CFR § 2.1091 FCC 47 CFR § 1.1307 FCC 47 CFR § 1.1310 Published RF exposure KDB procedures Receive EUT Date: May 23, 2023 Compliance Certification Services Inc. , tested the above equipment in accordance with the requirements set forth in the above standards. Determination of compliance is based on the results of the compliance measurement,not taking into account measurement instrumentation uncertainy.All indications of Pass/Fail in this report are opinions expressed by Compliance Certification Services Inc, based on interpretations and/or observations of test results. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Approved & Released By: Sky Zhou Asst. Section Manager Compliance Certification Services Inc. Page: 5 / 13 Report No.: TMWK2305001635KS Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 2 Test Specification, Methods and Procedures The tests documented in this report were performed in accordance with FCC 47 CFR § 2.1091, the following FCC Published RF exposure KDB procedures: o 447498 D04 Interim General RF Exposure Guidance v01 o 865664 D02 RF Exposure Reporting v01r02 Page: 6 / 13 Report No.: TMWK2305001635KS Rev.: 00 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 3 Device Under Test (DUT…

Text truncated - open the document above for the full version.

Pro ject No.: TM-2305000390P FCC ID: AK8PSLX310BTM2 Page: 1 / 123 Report No.: TMTN2305000661NR Rev.: 00 No. 168, Ln. 523, Sec. 3, Zhongzheng Rd., Rende Dist., Tainan City, 717017, Taiwan /台南市仁德區中正路三段523巷168號 t:(886-6) 5802-201 f:(886-6) 5802-202 www.sgs.com.tw Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group FCC 47 CFR PART 15 SUBPART C AND ANSI C63.10: 2013 TEST REPORT ( Class I Permissive Change Report ) For Stereo Turntable System Model: PS-LX310BT Data Applies To: N/A Brand Name: SONY Issued for SONY Corporation 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan Issued By Compliance Certification Services Inc. Tainan Lab. No. 168, Ln. 523, Sec. 3, Zhongzheng Rd., Rende Dist., Tainan Cit y, 717017, Taiwan Issued Date: August 04, 2023 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Page: 2 / 123 Re port No.: TMTN2305000661NR Ref. No.: Rev.: 00 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 August 04, 2023 Initial Issue ALL Gina Lin 02 September 26, 2019 See the following note rev.02 Page 24 Gina Lin Note: ※ Rev.01 Issue Date: August 18, 2020 Update manufacturer. ※ Rev.02 Issue Date: September 26, 2019 Revise the power limit. Page: 3 / 123 Re port No.: TMTN2305000661NR Ref. No.: Rev.: 00 TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION .................................................................................. 4 2. TEST RESULT SUMMARY ............................................................................................ 5 3. EUT DESCRIPTION ....................................................................................................... 6 3.1 DESCRIPTION OF EUT & POWER ...................................................................................... 6 4. DESCRIPTION OF TEST MODES ................................................................................. 7 5. TEST METHODOLOGY ................................................................................................. 9 6. FACILITIES AND ACCREDITATIONS......................................................................... 10 6.1 FACILITIES ......................................................................................................................... 10 6.2 EQUIPMENT ....................................................................................................................... 10 6.3 LABORATORY ACCREDITATIONS LISTINGS .................................................................. 10 6.4 TABLE OF ACCREDITATIONS AND LISTINGS ................................................................ 11 6.5 MEASUREMENT EQUIPMENT USED ............................................................................... 12 6.6 MEASURING INSTRUMENT CALIBRATION ..................................................................... 13 6.7 MEASUREMENT UNCERTAINTY ...................................................................................... 13 7. SETUP OF EQUIPMENT UNDER TEST ...................................................................... 14 7.1 SETUP CONFIGURATION OF EUT ................................................................................... 14 7.2 SUPPORT EQUIPMENT ..................................................................................................... 16 8. APPLICABLE LIMITS AND TEST RESULTS .............................................................. 19 8.1 20DB BANDWIDTH FOR HOPPING ................................................................................... 19 8.2 MAXIMUM PEAK OUTPUT POWER .................................................................................. 25 8.3 HOPPING CHANNEL SEPARATION .................................................................................. 37 8.4 NUMBER OF HOPPING FREQUENCY USED ................................................................... 42 8.5 DWELL TIME ON EACH CHANNEL ................................................................................... 45 8.6 DUTY CYCLE ...................................................................................................................... 59 8.7 CONDUCTED SPURIOUS EMISSION ............................................................................... 64 8.8 RADIATED EMISSIONS .......................................................…

Text truncated - open the document above for the full version.

Page: 42 / 123 Re port No.: TMTN2305000661NR Ref. No.: Rev.: 00 8.4 NUMBER OF HOPPING FREQUENCY USED LIMIT §15.247(a)(1)(iii) For frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels. TEST SETUP TEST PROCEDURE 1 Check the calibration of the measuring instrument (spectrum analyzer) using either an internal calibrator or a known signal from an external generator. 2 Position the EUT as shown in test setup without connection to measurement instrument. Turn on the EUT and connect its antenna terminal to measurement instrument via a low loss cable. Then set it to any one measured frequency within its operating range and make sure the instrument is operated in its linear range. 3 Set the spectrum analyzer on MaxHold Mode, and then keep the EUT in hopping mode. Record all the signals from each channel until each one has been recorded. 4 Set the spectrum analyzer on View mode and then plot the result on spectrum analyzer screen. 5 Repeat above procedures until all frequencies measured were complete. EUT SPECTRUM ANALYZER Page: 43 / 123 Re port No.: TMTN2305000661NR Ref. No.: Rev.: 00 TEST RESULTS Model Name PS-LX310BT Test By Peter Chu Temp & Humidity 25.5°C, 51% Test Date 2023/05/31 Modulation Type: GFSK / DH5 Result(No.of CH) Limit(No.of CH) Result 79 >15 PASS Modulation Type: 8-DPSK / 3-DH5 Result(No.of CH) Limit(No.of CH) Result 79 >15 PASS Page: 44 / 123 Re port No.: TMTN2305000661NR Ref. No.: Rev.: 00 NUMBER OF HOPPING FREQUENCY USED GFSK 8-DPSK Page: 45 / 123 Re port No.: TMTN2305000661NR Ref. No.: Rev.: 00 8.5 DWELL TIME ON EACH CHANNEL LIMIT §15.247(a)(1)(iii) For frequency hopping system operating in the 2400-2483.5MHz band, the average time of occupancy on any frequency shall not be greater than 0.4 second within a 31.6 second period. TEST SETUP TEST PROCEDURE 1. Check the calibration of the measuring instrument using either an internal calibrator or a known signal from an external generator. 2. Position the EUT as shown in test setup without connection to measurement instrument. Turn on the EUT and connect its antenna terminal to measurement instrument via a low loss cable. Then set it to any one measured frequency within its operating range and make sure the instrument is operated in its linear range. 3. Adjust the center frequency of spectrum analyzer on any frequency be measured and set spectrum analyzer to zero span mode. And then, set RBW and VBW of spectrum analyzer to proper value. 4. Measure the time duration of one transmission on the measured frequency. And then plot the result with time difference of this time duration. 5. Repeat above procedures until all frequencies measured were complete. 6. The Bluetooth Headset has 3 type of payload, DH1, DH3, DH5. The hopping rate is 1600 per second. The longer the payload is, the slower the hopping rate is. EUT SPECTRUM ANALYZER Page: 46 / 123 Re port No.: TMTN2305000661NR Ref. No.: Rev.: 00 TEST RESULTS Time of occupancy on the TX channel in 31.6sec = time domain slot length × hop rate ÷ number of hop per channel × 31.6 Refer to the attached graph. The hopping rates of Bluetooth devices change with different types of payload. The longer the payload is, the slower the hopping rate. The hopping rate scenario is defined in Bluetooth core specification. Model Name PS-LX310BT Test By Peter Chu Temp & Humidity 25.5°C, 51% Test Date 2023/05/31 Modulation Type: GFSK / DH5 Transmitting Frequency Packet type Dwell time (ms) Time of occupancy on the TX channel in 31.6sec (ms) Limit for Time of occupancy on the TX channel in 31.6sec (ms) Results 2441MHz DH1 0.400 128.00 400.00 PASS 2441MHz DH3 1.660 265.60 400.00 PASS 2441MHz DH5 2.900 309.33 400.00 PASS 2441MHz AFH 2.900 154.67 400.00 PASS DH1 Dwell tine= 0.400 ms×(1600÷2)÷79×31.6= 128.00 (ms) DH3 Dwell tine= 1.660 ms×(1600÷4)÷79×31.6= 265.60 (ms) DH5 Dwell tine= 2.900 ms×(1600÷6)÷79×31.6= 309.33 (ms) AFH Dwell tine= 2.900 ms×(800÷6)÷20×8= 154.67 (ms) Modulation Type: 8-DPSK / 3-DH5 Transmitting Frequency Packet type Dwell time (ms) Time of occupancy on the TX channel in 31.6sec (ms) Limit for Time of occupancy on the TX channel in 31.6sec (ms) Results 2441MHz 3DH1 0.400 128.00 400.00 PASS 2441MHz 3DH3 1.660 265.60 400.00 PASS 2441MHz 3DH5 2.900 3…

Text truncated - open the document above for the full version.
