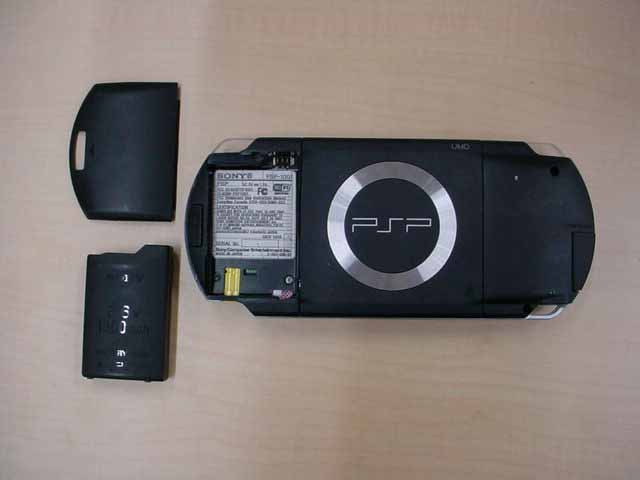

Label Location

Date/Time: 11/01/04 17:15:18 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION File Name: Flat_high_left_1M.da4 Body-worn 11ch (2462MHz) - Left back (with Headphone) DUT: Portable Game; Type: PSP; Serial: 00-27400000-0000100 Program: Flat Communication System: WLAN; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: M2450 (σ = 1.956 mho/m, ε r = 53.19, ρ = 1000 kg/m 3 ) Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1678; ConvF(4.39, 4.39, 4.39); Calibrated: 2004/02/15 zSensor-Surface: 4mm (Mechanical And Optical Surface Detection) zElectronics: DAE3 Sn508; Calibrated: 2004/02/06 zPhantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 zMeasurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Body-worn/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 2.86 V/m Power Drift = 0.002 dB Maximum value of SAR = 0.25 mW/g Body-worn/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 0.574 W/kg SAR(1 g) = 0.238 mW/g; SAR(10 g) = 0.0979 mW/g Reference Value = 2.86 V/m Power Drift = 0.002 dB Maximum value of SAR = 0.262 mW/g 0 dB = 0.262mW/g

JAPAN QUALITY ASSURANCE ORGANIZATION JAPAN QUALITY ASSURANCE ORGANIZATION KITA-KANSAI TESTING CENTER 7-7, Ishimaru 1-Chome, Minoh-shi, Osaka 562-0027 Japan. Phone. +81-72-729-2243/Facsimile. +81-72-728-6848 IssueDate:November4,2004 Page 1 of 20 TEST REPORTEMCSAR - JQA APPLICATION No.: KL80040380 Name of Product: PSP Model/Type No.: PSP-1001 FCC ID / IC: AK8PSP1001 / 409B-PSP1001 : Sony Computer Entertainment Inc.Applicant : 2-6-21 Minami-Aoyama, Minato-ku, Tokyo 107-0062, JapanAddress : Sony Computer Entertainment Inc.Manufacturer : 2-6-21 Minami-Aoyama, Minato-ku, Tokyo 107-0062, JapanAddress November 1, 2004Receive date of EUT: PassedFinal Judgement: are obtained in use of equipment that is traceable to National TEST RESULTS IN THIS REPORT Institute of Advanced Industrial Science and Technology (AIST) under METI Japan, National Institute of Information and Communications Technology (NICT) under MPHPT Japan, and Laboratory for EMF and Microwave Electronics at the Swiss Federal Institute of Technology (ETH) in Zürich, Switzerland. only responds to the test sample. This test report shall not be reproduced THE TEST RESULTS except in full. Authorized by: Takashi Yamanaka, Director JQA KITA-KANSAI Testing Center JAPAN QUALITY ASSURANCE ORGANIZATION Page 2 of 20 DIRECTORY Page A) Documentation Directory2 Test Regulation / General Information3 - 5 SAR Measurement Set-up6 Test Configuration Positions7 Measurement Process8 Measurement Uncertainties9 - 10 Test Conditions11 EUT Tune-up Procedure12 EUT Modification / Deviation from Standard13 Test results14 Summary15 EUT Photographs16 B) Test data Test System Validation17 Tissue Simulant Verification18 SAR Measurement Data19 Appendix20 JQA Application No. : KL80040380Regulation : RSS-102 Model No.: PSP-1001Issue Date : November 4, 2004 FCC ID / IC: AK8PSP1001 / 409B-PSP1001 JAPAN QUALITY ASSURANCE ORGANIZATION JQA Application No. : KL80040380Regulation : RSS-102 Model No.: PSP-1001Issue Date : November 4, 2004 FCC ID / IC: AK8PSP1001 / 409B-PSP1001 Page 3 of 20 TEST REGULATION Industry Canada RSS-102 Issue 1 (Provisional) - September 25, 1999 - Mobile Devices- Occupational/Controlled Exposure{{ - Portable Devices- General Population/Uncontrolled Exposurezz Test procedure: The SAR measurement procedures were specified in FCC/OET Bulletin 65 Supplement C (July, 2001) and IEEE Std 1528 -2003 TM TheexposurelimitswerespecifiedinHealthCanadaSafetyCode6. GENERAL INFORMATION Description of the Equipment Under Test (EUT): 1) Name: PSP 2) Model/Type No.: PSP-1001 3) Product Type: Pre-production 4) Transmitting Frequency: 2412 MHz - 2462 MHz 5) Receiving Frequency: 2412 MHz - 2462 MHz 6) Max. RF Output Power: 9.83 dBm 7) Power Rating: DC 3.6V Definitions for symbols used in this test report: - Black box indicates that the listed condition, standard or equipment is applicablez for this Report. - Blank box indicates that the listed condition, standard or equipment is not applicable{ for this Report. JAPAN QUALITY ASSURANCE ORGANIZATION JQA Application No. : KL80040380Regulation : RSS-102 Model No.: PSP-1001Issue Date : November 4, 2004 FCC ID / IC: AK8PSP1001 / 409B-PSP1001 Page 4 of 20 Description of the Antenna: Type: Print inverted-F antenna Dimensions: Maximum width 7.5 mm Maximum length 18.5 mm Location: Left side (internal) Type: External antenna Dimensions: Maximum width 25.35 mm Maximum length 43.10 mm Location: Right side (internal) Battery Option: Lithium-ion Battery Pack PSP-110 (1800mAh) Probe Specification: Construction: Symmetricaldesign with triangular core Built-in optical fiber for surface detection system Built-in shielding against static changes Calibration: In air form 10 MHz to 2.5 GHz In head tissue simulating liquid (HSL) and muscle tissue simulating liquid 900 MHz (accuracy ± 11.3%; k=2) 1800 MHz (accuracy ± 11.7%; k=2) 2450 MHz (accuracy ± 9.7%; k=2) Frequency: 10MHzto3GHz(dosimetry); Linearity: ±0.2 dB (30 MHz to 3 GHz) Directivity: ± 0.2 dB in HSL (rotation around probe axis) ± 0.4 dB in HSL (rotation normal probe axis) Dynamic Range: 5 μW/g to >100mW/g;Linearity:±0.2dB Surface Detection : ± 0.2 mm repeatability in air and clear liquids over diffuse reflecting surfaces Dimensions: Overall length 330 mm Tip length16 mm Body diameter 12 mm Tip diameter 6.8 mm Distance from probe tip to dipole centers 2.7 mm JAPAN QUALITY ASSURANCE ORGANIZATION JQA Application No. : KL80040380Regulation : RSS-102 Model No.: PSP-1001Issue Date : November 4, 2004 FCC ID / IC: AK8PSP1001 / 409B-PSP1001 Page 5 of 20 Twin SAM Phantom: The shell corresponds to the specifications of the Specific Anthropomorphic Mannequin (SAM) phantom defined in IEEE 1528-200X, CENELEC 50361 and IEC 62209. It enables the dosimetric evaluation of left and right head phone usage as well as body mounted usage at the flat phantom region. A cover prevents evaporation of the liquid. Reference markings on the phantom allow the complete setup of all predefined phantom positions and measurement grids by manually teaching three points with the robot. Shell Thickness: 2 ± 0.2 mm Filling Volume: Volume Approx. 25 liters Dimensions: 810 × 1000 × 500 mm (H × L × W) Mounting Device for Transmitters: The Mounting Device enables the rotation of the mounted transmitter in spherical coordinates, whereby the rotation point is the ear opening. The devices can be easily and accurately positioned according to IEC, IEEE, CENELEC, FCC or other specifications. The device holder can be locked at different phantom locations (left head, right head, flat phantom). Typical Composition of Ingredients for Liquid Tissue: IngredientsFrequency (MHz) (% by weight)83519002450 HeadBodyHeadBodyHeadBody Water41.4552.4054.9040.4062.7073.20 Salt (NaCl)1.451.400.180.500.500.04 Sugar56.0045.000.0058.000.000.00 HEC1.001.000.001.000.000.00 Bactericide 0.100.100.000.100.000.00 Triton X-1000.000.000.000.0036.800.00 DGBE0.000.0044.920.000.0026.70 Salt : 99 % Pure Sodium ChlorideSugar : 98 % Pure Sucrose ++ Water : De-ionized, …

Text truncated - open the document above for the full version.

APPENDIX Exhibit 1 System Validation Plots Date/Time: 11/01/04 10:21:40 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION File Name: Validation_M2450_0401101.da4 System Validation DUT: Dipole 2450 MHz; Type: D2450V2; Serial: 714 Program: Validation Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: M2450 (σ = 1.956 mho/m, ε r = 53.19, ρ = 1000 kg/m 3 ) Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1678; ConvF(4.39, 4.39, 4.39); Calibrated: 2004/02/15 zSensor-Surface: 4mm (Mechanical And Optical Surface Detection) zElectronics: DAE3 Sn508; Calibrated: 2004/02/06 zPhantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 zMeasurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Antenna Input Power 250 mW/Area Scan (5x5x1): Measurement grid: dx=20mm, dy=20mm Reference Value = 92.8 V/m Power Drift = -0.03 dB Maximum value of SAR = 15.3 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 31.2 W/kg SAR(1 g) = 14.1 mW/g; SAR(10 g) = 6.46 mW/g Reference Value = 92.8 V/m Power Drift = -0.03 dB Maximum value of SAR = 15.2 mW/g 0 dB = 15.2mW/g

APPENDIX Exhibit 4 System Validation Dipole - D2450V2, S/N: 714 Calibration Data

APPENDIX Exhibit 3 Dosimetric E-Field Probe - ET3DV6, S/N: 1678 Calibration Data

APPENDIX Exhibit 2 SAR Test Plots Date/Time: 11/01/04 13:24:44 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION File Name: Flat_low_left.da4 Body-worn 1ch (2412MHz) - Left back DUT: Portable Game; Type: PSP; Serial: 00-27400000-0000100 Program: Flat Communication System: WLAN; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: M2450 (σ = 1.956 mho/m, ε r = 53.19, ρ = 1000 kg/m 3 ) Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1678; ConvF(4.39, 4.39, 4.39); Calibrated: 2004/02/15 zSensor-Surface: 4mm (Mechanical And Optical Surface Detection) zElectronics: DAE3 Sn508; Calibrated: 2004/02/06 zPhantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 zMeasurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Body-worn/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 3.04 V/m Power Drift = -0.03 dB Maximum value of SAR = 0.21 mW/g Body-worn/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 0.461 W/kg SAR(1 g) = 0.191 mW/g; SAR(10 g) = 0.079 mW/g Reference Value = 3.04 V/m Power Drift = -0.03 dB Maximum value of SAR = 0.211 mW/g 0 dB = 0.211mW/g Date/Time: 11/01/04 13:45:28 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION File Name: Flat_middle_left.da4 Body-worn 6ch (2437MHz) - Left back DUT: Portable Game; Type: PSP; Serial: 00-27400000-0000100 Program: Flat Communication System: WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: M2450 (σ = 1.956 mho/m, ε r = 53.19, ρ = 1000 kg/m 3 ) Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1678; ConvF(4.39, 4.39, 4.39); Calibrated: 2004/02/15 zSensor-Surface: 4mm (Mechanical And Optical Surface Detection) zElectronics: DAE3 Sn508; Calibrated: 2004/02/06 zPhantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 zMeasurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Body-worn/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 3.15 V/m Power Drift = -0.03 dB Maximum value of SAR = 0.245 mW/g Body-worn/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 0.531 W/kg SAR(1 g) = 0.223 mW/g; SAR(10 g) = 0.0916 mW/g Reference Value = 3.15 V/m Power Drift = -0.03 dB Maximum value of SAR = 0.249 mW/g 0 dB = 0.249mW/g Date/Time: 11/01/04 14:05:38 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION File Name: Flat_high_left.da4 Body-worn 11ch (2462MHz) - Left back DUT: Portable Game; Type: PSP; Serial: 00-27400000-0000100 Program: Flat Communication System: WLAN; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: M2450 (σ = 1.956 mho/m, ε r = 53.19, ρ = 1000 kg/m 3 ) Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1678; ConvF(4.39, 4.39, 4.39); Calibrated: 2004/02/15 zSensor-Surface: 4mm (Mechanical And Optical Surface Detection) zElectronics: DAE3 Sn508; Calibrated: 2004/02/06 zPhantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 zMeasurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Body-worn/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 2.79 V/m Power Drift = 0.01 dB Maximum value of SAR = 0.256 mW/g Body-worn/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 0.576 W/kg SAR(1 g) = 0.239 mW/g; SAR(10 g) = 0.0987 mW/g Reference Value = 2.79 V/m Power Drift = 0.01 dB Maximum value of SAR = 0.263 mW/g 0 dB = 0.263mW/g Date/Time: 11/01/04 12:44:08 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION File Name: Flat_low_right.da4 Body-worn 1ch (2412MHz) - Right back DUT: Portable Game; Type: PSP; Serial: 00-27400000-0000100 Program: Flat Communication System: WLAN; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: M2450 (σ = 1.956 mho/m, ε r = 53.19, ρ = 1000 kg/m 3 ) Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1678; ConvF(4.39, 4.39, 4.39); Calibrated: 2004/02/15 zSensor-Surface: 4mm (Mechanical And Optical Surface Detection) zElectronics: DAE3 Sn508; Calibrated: 2004/02/06 zPhantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 zMeasurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Body-worn/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 3.15 V/m Power Drift = -0.05 dB Maximum value of SAR = 0.0358 mW/g Body-worn/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 0.0976 W/kg SAR(1 g) = 0.0354 mW/g; SAR(10 g) = 0.0185 mW/g Reference Value = 3.15 V/m Power Drift = -0.05 dB Maximum value of SAR = 0.0351 mW/g 0 dB = 0.0351mW/g Date/Time: 11/01/04 11:43:00 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION File Name: Flat_middle_right.da4 Body-worn 6ch (2437MHz) - Right back DUT: Portable Game; Type: PSP; Serial: 00-27400000-0000100 Program: Flat Communication System: WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: M2450 (σ = 1.956 mho/m, ε r = 53.19, ρ = 1000 kg/m 3 ) Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1678; ConvF(4.39, 4.39, 4.39); Calibrated: 2004/02/15 zSensor-Surface: 4mm (Mechanical And Optical Surface Detection) zElectronics: DAE3 Sn508; Calibrated: 2004/02/06 zPhantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 zMeasurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Body-worn/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 3.25 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.0494 mW/g Body-worn/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 0.0925 W/kg SAR(1 g) = 0.0465 mW/g; SAR(10 g) = 0.0242 mW/g Reference Value = 3.25 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.0494 mW/g 0 dB = 0.0494mW/g Date/Time: 11/01/04 …

Text truncated - open the document above for the full version.

JAPAN QUALITY ASSURANCE ORGANIZATION 21-25, KINUTA 1-CHOME, SETAGAYA-KU, TOKYO 157-8573 JAPAN PHONE +81-3-3416-0111, FAX +81-3-3416-9691 JQA APPLICATION NO.: 400-40830 Issue Date : January 7, 2005 Page 1 of 101 EMI TEST REPORT JQA APPLICATION NO. : 400-40830 Model No. : PSP-1001 Type of Equipment : PSP (IEEE802.11b WLAN) Regulations Applied : CFR 47 FCC Rules and Regulations Part 15 : Industry Canada RSS-210 Issue 5(inc. Amendment) FCC ID : AK8PSP1001 IC : 409B-PSP1001 Applicant : Sony Computer Entertainment Inc. Address : 2-6-21 Minami-Aoyama, Minato-ku, Tokyo, 107-0062 Japan Manufacturer : Sony Computer Entertainment Inc. Address : 2-6-21 Minami-Aoyama, Minato-ku, Tokyo, 107-0062 Japan Received date of EUT : October 25, 2004 Final Judgment : Passed Test results in this report are obtained in use of equipment that is traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and National Institute of Information and Communications Technology (NICT) of Japan. The test results only respond to the tested sample. This report should not be reproduced except in full, without the written approval of JQA EMC Engineering Dept. Testing Div. JQA Application No. :400-40830 FCC ID:AK8PSP1001 IC:409B-PSP1001 Model No. :PSP-1001 Issue Date :January 7, 2005 Standard :CFR 47 FCC Rules Part 15 Page 2 of 101 JAPAN QUALITY ASSURANCE ORGANIZATION TABLE OF CONTENTS Page 1 Documentation 1.1 Test Regulation 4 1.2 General Information 4 1.3 Test Condition 5 – 11 1.4 EUT Modifications / Deviation from Standard 12 1.5 Test results 13 - 14 1.6 Summary 15 1.7 Test Configuration / Operation of EUT 16 - 17 1.8 EUT Arrangement (Drawing) 18 1.9 Preliminary Test and Test-setup (Drawings) 19 – 27 1.10 EUT Arrangement (Photographs) 28 - 29 JQA Application No. :400-40830 FCC ID:AK8PSP1001 IC:409B-PSP1001 Model No. :PSP-1001 Issue Date :January 7, 2005 Standard :CFR 47 FCC Rules Part 15 Page 3 of 101 JAPAN QUALITY ASSURANCE ORGANIZATION 2 Test Data 2.1 Channel Separation N/A 2.2 Minimum Hopping Channel N/A 2.3 Occupied Bandwidth 30 - 53 2.4 Dwell Time N/A 2.5 Peak Output Power (Conduction) 54 - 55 2.6 Peak Output Power (Radiation) N/A 2.7 Peak Power Density (Conduction) 56 - 79 2.8 Peak Power Density (Radiation) N/A 2.9 Spurious Emissions (Conduction) 80 - 84 2.10 Spurious Emissions (Radiation) 85 - 90 2.11 AC Power Line Conducted Emissions 91 - 92 2.12 RF Exposure Compliance 93 2.13 Spurious Emissions for Receiver (Radiation) 94 - 95 2.14 AC Power Line Conducted Emissions for Receiver 96 - 97 3 Appendix Test instruments List 98 – 101 JQA Application No. :400-40830 FCC ID:AK8PSP1001 IC:409B-PSP1001 Model No. :PSP-1001 Issue Date :January 7, 2005 Standard :CFR 47 FCC Rules Part 15 Page 4 of 101 JAPAN QUALITY ASSURANCE ORGANIZATION 1 DOCUMENTATION 1.1 TEST REGULATION FCC Rules and Regulations Part 15 Subpart B and C Radiated Spurious Emissions and Industry Canada IC RSS-210 (inc. amendment) Test procedure : The tests were performed with reference to the FCC Public Notice DA 00-705, released March 30, 2000. The test set-up was made in accordance to the general provisions of ANSIC63.4-2003. 1.2 GENERAL INFORMATION 1.2.1 Test facility : 1) Test Facility located at EMC Engineering Dept. Testing Div. : - No.2 and 3 Anechoic Chambers(3 meters Site). - Shielded Enclosure. Expiration date of FCC test facility filing : May 27, 2005 Open Area Test Site Industry Canada No.: IC4126-4 2) EMC Engineering Dept. Testing Div. is recognized under the National Voluntary Laboratory accreditation Program for satisfactory compliance established in title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code : 200189-0 (Effective through : June 30, 2005) 1.2.2 Description of the Equipment Under Test (EUT) : 1) Type of Equipment : PSP (IEEE802.11b WLAN) 2) Product Type : Prototype 3) Category : Transceiver(DSSS type) 4) EUT Authorization : Certification 5) FCC ID : AK8PSP1001 IC : 409B-PSP1001 6) Trade Name : SONY 7) Model No. : PSP-1001 8) Operating Frequency Range : 2412 MHz - 2462 MHz 9) Highest Frequency Used in the EUT : 2462 MHz 10) RF Output Power : 9.91dBm(measured value) 11) Serial No. : 100 12) Date of Manufacture : None 13) Power Rating : 3.6VDC (rechargeable battery) The EUT was also operated with the AC adaptor(Model:PSP-100, Input:100-240VAC 50/60Hz, Output:5.0VDC by Sony Computer Entertainment Inc.) 14) EUT Grounding : None 1.2.3 Definitions for symbols used in this test report : x - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. JQA Application No. :400-40830 FCC ID:AK8PSP1001 IC:409B-PSP1001 Model No. :PSP-1001 Issue Date :January 7, 2005 Standard :CFR 47 FCC Rules Part 15 Page 5 of 101 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3 TEST CONDITION 1.3.1 The measurement of Channel Separation - was performed. x - was not applicable. Used test instruments : Type Number of test instruments (Refer to Appendix) Test Receiver N/A Spectrum Analyzer N/A Cable N/A Attenuator N/A Antenna N/A 1.3.2 The measurement of Minimum Hopping Channel - was performed. x - was not applicable. Used test instruments : Type Number of test instruments (Refer to Appendix) Test Receiver N/A Spectrum Analyzer N/A Cable N/A Attenuator N/A Antenna N/A 1.3.3 The measurement of Occupied Bandwidth x - was performed. - was not applicable. Used test instruments : Type Number of test instruments (Refer to Appendix) Test Receiver TR07 Spectrum Analyzer N/A Cable CA11 Attenuator AU18 Antenna N/A JQA Application No. :400-40830 FCC ID:AK8PSP1001 IC:409B-PSP1001 Model No. :PSP-1001 Issue Date :January 7, 2005 Standard :CFR 47 FCC Rules Part 15 Page 6 of 101 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3.4 The measurement of Dwell Time - was performed. x - was not applicable. Used test instruments : Type Number of test instruments (Refer to Appendix) Test Receiver N/A Spectrum Analyzer N/A Cable N/A Attenuator N/A An…

Text truncated - open the document above for the full version.

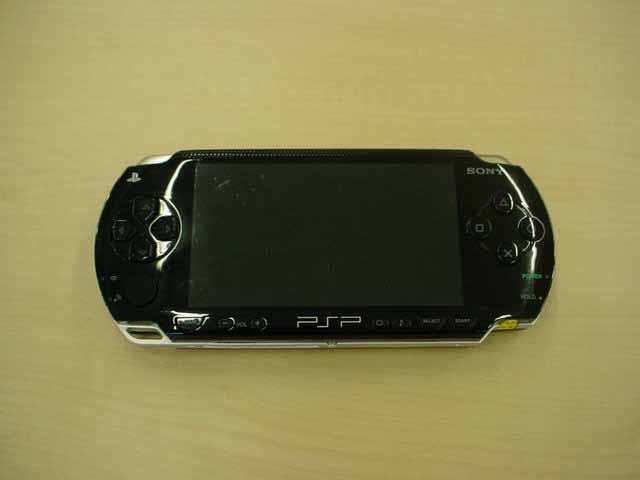

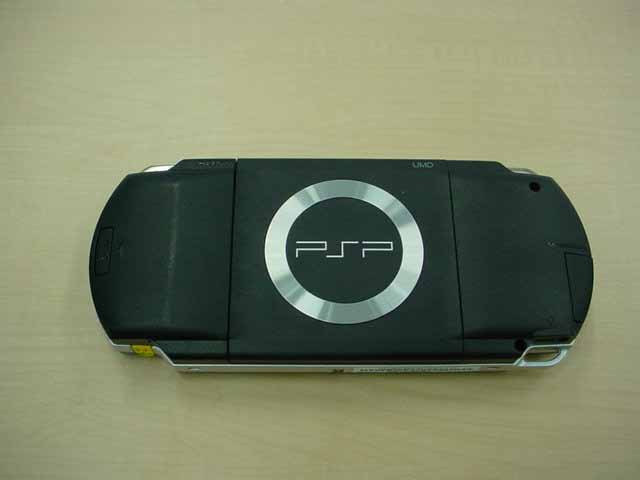

JQA Application No. :400-40830 FCC ID:AK8PSP1001 IC:409B-PSP1001 Model No. :PSP-1001 Issue Date :January 7, 2005 Standard :CFR 47 FCC Rules Part 15 Page 28 of 103 JAPAN QUALITY ASSURANCE ORGANIZATION 1.10 TEST ARRANGEMENT (PHOTOGRAPHS) PHOTOGRAPHS OF EUT CONFIGURATION FOR RADIATED EMISSIONS MEASUREMENT Photograph present configuration with maximum emission - Front view (X axis) - - Rear view (X axis) - JQA Application No. :400-40830 FCC ID:AK8PSP1001 IC:409B-PSP1001 Model No. :PSP-1001 Issue Date :January 7, 2005 Standard :CFR 47 FCC Rules Part 15 Page 29 of 103 JAPAN QUALITY ASSURANCE ORGANIZATION PHOTOGRAPHS OF EUT CONFIGURATION FOR RADIATED EMISSIONS MEASUREMENT Photograph present configuration with maximum emission - Front view (Y axis) - - Rear view (Y axis) - JQA Application No. :400-40830 FCC ID:AK8PSP1001 IC:409B-PSP1001 Model No. :PSP-1001 Issue Date :January 7, 2005 Standard :CFR 47 FCC Rules Part 15 Page 30 of 103 JAPAN QUALITY ASSURANCE ORGANIZATION PHOTOGRAPHS OF EUT CONFIGURATION FOR RADIATED EMISSIONS MEASUREMENT Photograph present configuration with maximum emission - Front view (Z axis) - - Rear view (Z axis) - JQA Application No. :400-40830 FCC ID:AK8PSP1001 IC:409B-PSP1001 Model No. :PSP-1001 Issue Date :January 7, 2005 Standard :CFR 47 FCC Rules Part 15 Page 31 of 103 JAPAN QUALITY ASSURANCE ORGANIZATION PHOTOGRAPHS OF EUT CONFIGURATION FOR AC POWER LINE CONDUCTED EMISSION MEASUREMENT Photograph present configuration with maximum emission - Front view - - Side View -
