AK8PSP1001B2Portable Play Station

2-657-883-12(2) Instruction manual Mode d'emploi PSP-1001 TM filename C:\DataDisk\#Saggyou\1024\835900S PSP1001K_USFR\2649166121_PSP1001K_US\01EN01CO V.fm model name1PSP-1001 2-657-883-12(2) masterpage:Right US FR Encontrará un manual de instrucciones en español en nuestro sitio Web en http://www.us.playstation.com/psp/manuals.aspx 01EN01COV.fm Page 1 Monday, October 24, 2005 1:32 PM masterpage:Left filename C:\DataDisk\#Saggyou\1024\835900S PSP1001K_USFR\2649166121_PSP1001K_US\01EN02WA R.fm model name1PSP-1001 2-657-883-12(2) 2 WARNINGS To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. Use the supplied AC adaptor only. If you use other types, it may cause fire, electrical shocks or a malfunction. For customers in the U.S.A. and Canada Caution Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. The use of optical instruments with this product will increase eye hazard. This appliance is classified as a CLASS 1 LASER product under IEC60825-1: 2001. WARNINGS 01EN02WAR.fm Page 2 Monday, October 24, 2005 1:33 PM 3 filename H:\#Sagyocyu\#10 OCT\1007\2649166121_PSP1001K_US\01EN02WAR.fm US model name1PSP-1001 2-657-883-12(1) WARNINGS masterpage:Right For customers in the U.S.A. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. If you have questions about this product, call our technical support line at 1-800-345-7669, or write to: Sony Computer Entertainment America Consumer Services/Technical Support PO Box 5888, San Mateo, CA 94402-0888 U.S.A. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Declaration of Conformity Trade Name : Model No. : Responsible Party : Address : Telephone No. : SONY PSP-1001 Sony Electronics Inc. 16450 W. Bernardo Dr. San Diego, CA 92127 U.S.A. 858-942-2230 01PSP-1001 EN.book Page 3 Friday, October 7, 2005 6:12 PM masterpage:Left filename H:\#Sagyocyu\#10 OCT\1007\2649166121_PSP1001K_US\01EN02WAR.fm model name1PSP-1001 2-657-883-12(1) 4 WARNINGS You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. FCC Radiation Exposure Statement This transmitter complies with FCC radiation exposure limit set forth for an uncontrolled environment. To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any changes to the antenna or the device could result in the device exceeding the RF exposure requirements and void user authorization to operate the equipment. In addition, this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Owner's Record The model and serial numbers are located inside the battery compartment of the unit. Record the serial number in the space provided below. Refer to the number whenever you call for technical assistance at 1-800-345-7669. Model No. PSP-1001 Serial No.______________ For customers in Canada This Class B digital apparatus complies with Canadian ICES-003. The term "IC" before the equipment certification number only signifies that the Industry Canada technical specifications were met. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. IC Radiation Exposure Statement This transmitter complies with IC radiation exposure limit set forth for an uncontrolled environment. To comply with the IC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any changes to the antenna or the device could result in the device exceeding the RF exposure requirements and void user authorization to operate the equipment. In addition, this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 01PSP-1001 EN.book Page 4 Friday, October 7, 2005 6:12 PM 5 filename H:\#Sagyocyu\#10 OCT\1007\2649166121_PSP1001K_US\01EN02WAR.fm US model name1PSP-1001 2-657-883-12(1) WARNINGS masterpage:Right Photosensitivity A very small percentage of individuals may experience epileptic seizures when exposed to certain light patterns or flashing lights. Exposure to certain patterns or backgrounds on a television screen or while playing video games, including games played on the PSP™ system, may trigger an epileptic seizure in these individuals. Certain conditions may trigger previously undetected epileptic symptoms even in persons who have no history of prior seizures or epilepsy. If you, or anyone in your family, has an epileptic condition, consult your physician prior to playing. If you expe…

Text truncated - open the document above for the full version.

41 filename H:\#Sagyocyu\#10 OCT\1007\2649166121_PSP1001K_US\01EN07BAS.fm Basic operations US model name1PSP-1001 2-657-883-12(1) Battery masterpage:Right Hint The battery pack lifespan varies depending on how it is stored, the conditions of use and environmental factors, such as temperature. For safety reasons, turn off the system and remove the power cord from the electrical outlet before replacing the battery pack. Also read "Battery pack precautions" (page 17) before handling the battery pack. Hint If the system is left unused after the battery pack has been removed, the date and time settings may be reset. If this occurs, the date and time setting screen will be displayed the next time the PSP™ system is turned on. When the system will not be used for an extended period of time, remove the battery pack from the system. Store the battery pack in a cool, dry place out of the reach of children. Replacing the battery pack Storing the battery pack 01PSP-1001 EN.book Page 41 Friday, October 7, 2005 6:12 PM masterpage:Left filename H:\#Sagyocyu\#10 OCT\1007\2649166121_PSP1001K_US\01EN08GAM.fm model name1PSP-1001 2-657-883-12(1) 42 Playing a game 1Select from the home menu. 2Insert a UMD™ (page 33). The UMD™ icon is displayed. 3With the game icon selected, press the button. The game starts. Icons displayed under Game In addition to playing games, the following features are available under Game. Game Playing a game Game Sharing You can use ad hoc mode (page 108) to receive game data from another PSP™ system. For details, refer to the software manual supplied with the game. Saved Data Utility You can copy, delete or view information about saved data on a Memory Stick Duo™ (page 45). UMD™ You can play games. If you select the icon, a thumbnail is displayed. PSP™ Update You can update the system software of the PSP™ system. This icon is displayed only when a UMD™ that contains update data is inserted (page 121). Memory Stick™ You can perform an update by accessing the update data saved on a Memory Stick Duo™ (page 121). 01PSP-1001 EN.book Page 42 Friday, October 7, 2005 6:12 PM 43 filename H:\#Sagyocyu\#10 OCT\1007\2649166121_PSP1001K_US\01EN08GAM.fm Game US model name1PSP-1001 2-657-883-12(1) Playing a game masterpage:Right Hints • If (Restricted Content) is displayed when you select the (UMD™) icon, parental control restrictions have been set on the system. You must enter the password as described below to access the game. See "Parental Control Level" (page 103) for details. 1Select (Restricted Content), and then press the button. 2Enter the 4-digit password using the directional buttons, and then press the button. • If you press the home button during gameplay, you can check the remaining battery power. • Title names and thumbnail images used in this manual are not of actual products. 1Press the home button while playing a game. The message "Do you want to quit the game?" is displayed. 2Select "Yes", and then press the button. The game ends and the home menu is displayed. Quitting a game 01PSP-1001 EN.book Page 43 Friday, October 7, 2005 6:12 PM masterpage:Left filename H:\#Sagyocyu\#10 OCT\1007\2649166121_PSP1001K_US\01EN08GAM.fm model name1PSP-1001 2-657-883-12(1) 44 Game options menu You can view game information or copy or delete saved data by displaying the options menu. 1Select an icon, and then press the button. The options menu is displayed. 2Select a menu item, and then press the button. Closing the options menu Press the button or the button. List of options The options menu items available vary depending on the icon selected. Game options menu StartStarts a game or update data Copy Copies the saved data on a Memory Stick Duo™ to another Memory Stick Duo™ (page 45) DeleteDeletes the data on a Memory Stick Duo™ InformationDisplays information about the selected icon IconsOptions menu 01PSP-1001 EN.book Page 44 Friday, October 7, 2005 6:12 PM 45 filename H:\#Sagyocyu\#10 OCT\1007\2649166121_PSP1001K_US\01EN08GAM.fm Game US model name1PSP-1001 2-657-883-12(1) Copying and deleting saved data masterpage:Right You can copy or delete saved game data that is saved on a Memory Stick Duo™ using the saved data utility. You can copy saved data to another Memory Stick Duo™. It is recommended that important data be copied as a backup. 1Select , and then press the button. 2Select the saved data that you want to copy, and then press the button. The options menu is displayed. 3Select "Copy", and then press the button. 4Follow the on-screen instructions. If there is not enough space available Delete data in the destination Memory Stick Duo™ or replace it with another Memory Stick Duo™. If you display the options menu (page 44), you can delete saved data or check the amount of free space available. Hint Depending on the type of Memory Stick Duo™ used, the file size displayed for the same data item may vary. You can delete saved data on a Memory Stick Duo™ by selecting "Delete" in step 3 of "Copying saved data". Copying and deleting saved data Copying saved data Deleting saved data 01PSP-1001 EN.book Page 45 Friday, October 7, 2005 6:12 PM masterpage:Left model name1PSP-1001 2-657-883-12(1) 46 Watching a video filename H:\#Sagyocyu\#10 OCT\1007\2649166121_PSP1001K_US\01EN09VID.fm \ You can watch UMD™VIDEO and videos saved on a Memory Stick Duo™. 1Select from the home menu. 2Insert a UMD™ or Memory Stick Duo™ (pages 33, 34). An icon for the inserted media is displayed. 3Select the icon, and then press the button. UMD™VIDEO playback begins. If you select , icons for each video data item will be displayed. Select the video that you want to play, and then press the button. Icons displayed under Video Video Watching a video UMD™ You can play UMD™VIDEO. If you select the icon, a thumbnail is displayed. Memory Stick™You can play video saved on a Memory Stick Duo™. 01PSP-1001 EN.book Page 46 Friday, October 7, 2005 6:12 PM 47 Video US model name1PSP-1001 2-657-883-12(1) Watching a video masterpage:Right filen…

Text truncated - open the document above for the full version.

91 Settings US model name1PSP-1001 2-657-883-12(1) Settings for the PSP™ system masterpage:Right filename H:\#Sagyocyu\#10 OCT\1007\2649166121_PSP1001K_US\01EN13SET.fm Icons displayed under Settings Network Update Provides access to updates for the system software (page 115) USB Connection Allows for connection to a PC using a USB cable (page 106) Video Settings Includes settings for UMD™VIDEO Menu Language, Audio Language and Subtitle Language (page 92) Photo Settings Includes settings for adjusting the slideshow speed (page 93) System Settings Includes settings for the System Language and Nickname, and provides an option to format Memory Stick Duo™ media (page 94) Theme Settings Allows the user to change the background color and display an image as wallpaper (page 97) Date & Time Settings Allows the user to set the date and time as well as adjust for daylight saving time (page 98) Power Save Settings Includes settings to automatically turn off the backlight and put the system in sleep mode (page 99) Sound Settings Provides access to settings for AVLS (Automatic Volume Limiter System) and Key Tone (page 101) Security Settings Allows the user to change the password and adjust the level setting for the parental control feature (page 102) Network Settings Provides access to settings for connecting to a wireless local area network (WLAN) (page 108) 01PSP-1001 EN.book Page 91 Friday, October 7, 2005 6:12 PM masterpage:Left model name1PSP-1001 2-657-883-12(1) 92 Video Settings filename H:\#Sagyocyu\#10 OCT\1007\2649166121_PSP1001K_US\01EN13SET.fm You can set the UMD™VIDEO language or boost UMD™VIDEO volume. Notice Depending on the UMD™VIDEO, playback conditions may be set in advance by the software developer. In such cases, certain options may not be available, even if you follow the instructions in this manual. Hint The settings at the time of purchase are as follows: – "Menu Language" and "Subtitle Language" are set to "English". – "Audio Language" is set to "Original Language". – "UMD™Video Volume" is set to "Normal". Video Settings Menu LanguageSelect a language for the UMD™VIDEO menu. Audio LanguageSelect a language for the audio. Subtitle LanguageSelect a language for subtitles. UMD™Video Volume Adjust the volume when UMD™VIDEO output level is low. The volume increases in the following order: "Normal", "+1" and "+2". 01PSP-1001 EN.book Page 92 Friday, October 7, 2005 6:12 PM 93 Settings US model name1PSP-1001 2-657-883-12(1) Photo Settings masterpage:Right filename H:\#Sagyocyu\#10 OCT\1007\2649166121_PSP1001K_US\01EN13SET.fm You can set the Slideshow Speed. The default setting for the menu item is underlined. Photo Settings FastDisplays images at a faster rate Normal Displays images at normal speed SlowDisplays images at a slower rate 01PSP-1001 EN.book Page 93 Friday, October 7, 2005 6:12 PM masterpage:Left model name1PSP-1001 2-657-883-12(1) 94 System Settings filename H:\#Sagyocyu\#10 OCT\1007\2649166121_PSP1001K_US\01EN13SET.fm You can adjust the settings for and display information about the PSP™ system, or format a Memory Stick Duo™. The nickname you selected in the initial setup can be changed. Use the on- screen keyboard to enter a new nickname. For details on entering text, see "How to use the keyboard" (page 118). Sets the language for system menus, such as the home menu. The default setting for the menu item is underlined. System Settings Nickname System Language DeutschDisplays messages in German English Displays messages in English EspañolDisplays messages in Spanish FrançaisDisplays messages in French ItalianoDisplays messages in Italian NederlandsDisplays messages in Dutch PortuguêsDisplays messages in Portuguese PyccкийDisplays messages in Russian Displays messages in Japanese Displays messages in Korean 01PSP-1001 EN.book Page 94 Friday, October 7, 2005 6:12 PM 95 Settings US model name1PSP-1001 2-657-883-12(1) System Settings masterpage:Right filename H:\#Sagyocyu\#10 OCT\1007\2649166121_PSP1001K_US\01EN13SET.fm You can set the character code to be applied to music and other types of files. Usually it is not necessary to adjust this setting. Hint The default setting is "US (437)". You can display information about the system battery. * The number of hours as calculated by the system is shown as an estimate. Hint There may be a slight difference between the display information and actual battery performance. This is due to variations in actual usage conditions and environmental factors (such as temperature). Character Set For File NamesSets the character code to be used in music and other file names For Text in FilesSets the character code for text in m3u and other types of files Battery Information Charge LevelDisplays the battery charge level as a percentage Hours Left * Displays the remaining hours of battery duration (except when charging) Power SourceDisplays the current source of power: "External" or "Battery" Battery Status Displays the status of the battery: "In Use", "Charging" or "Charge Complete" 01PSP-1001 EN.book Page 95 Friday, October 7, 2005 6:12 PM masterpage:Left model name1PSP-1001 2-657-883-12(1) 96 System Settings filename H:\#Sagyocyu\#10 OCT\1007\2649166121_PSP1001K_US\01EN13SET.fm You can format Memory Stick Duo™ media using the system. Follow the on- screen instructions to perform this operation. Notice When you format, all software and data stored on the Memory Stick Duo™ will be deleted and cannot be recovered. Be careful not to accidentally erase important data. You can restore settings to the values as set at the time of purchase. Follow the on-screen instructions to perform this operation. Notices • When the default settings are restored, the current settings will be lost and cannot be recovered. • After an update has been performed, this feature cannot be used to go back to a previous version of the system software. You can display information about the PSP™ system. Displays trademark and copyright information related to software used by …

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 May 15, 2006 RE: FCC ID: AK8PSP1001B2_ATCB003393 Attention: Hiroka Umeyama / Hisayuki Kioka I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that the power output in the report is stated to have been measured using an analyzer. On page 25 of the report the resolution bandwidth of the analyzer is shown to be 1MHz. The 6dB bandwidth of the device is said to be 13.5MHz. Please note that an analyzer is not a good instrument to use to measure power of a WLAN type device. A Peak power meter is a more appropriate instrument. However, while the FCC does allow the use of an analyzer, when the resolution bandwidth is less than the emission bandwidth, a resolution bandwidth correction factor must be used and the measurement procedure is to be inline with method 3 of the accepted DTS measurement procedures. In this case the resolution BW correction factor would be 10 log(EBW/RBW) or about 11.3dB. The correction factor (ATTEN) on the data tables on page 25 does not indicate that it includes this resolution bandwidth correction factor or that the testing was done in accordance with method 3 of the accepted DTS procedures. Please explain and please provide data showing the use of the resolution BW correction factors required under the allowed test procedures. If the analyzer automatically accounts for this condition, please provide this information. Please also note that should the numbers in the EMC report, you will also have to correct the SAR reports to be within 5% of the new numbers. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

18 May, 2006 RE: FCC ID: AK8PSP1001B_ATCB003393 Attention: Mr. Dennis Ward Dear Mr. Dennis Ward, Please find the following our reply to your comments; 1. We are now applying as the new application so that this comment is not applicable. 2. Same answer of above no. 1. 3. Please find the uploaded file, “EMC characteristics of TAPE”. This document shows that the plastic tape does not affect any electrical characteristics during the testing. Thank you very much for your prompt attention. Best regards, Akane Yamamoto (Ms.) EMC Service Division Application Group UL Apex Co., Ltd. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN TEL +81-596-24-8116 FAX +81-596-24-8095 E-mail: [email protected]

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 May 15, 2006 RE: FCC ID: AK8PSP1001B2_ATCB003393 Attention: Hiroka Umeyama / Hisayuki Kioka I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that the power output in the report is stated to have been measured using an analyzer. On page 25 of the report the resolution bandwidth of the analyzer is shown to be 1MHz. The 6dB bandwidth of the device is said to be 13.5MHz. Please note that an analyzer is not a good instrument to use to measure power of a WLAN type device. A Peak power meter is a more appropriate instrument. However, while the FCC does allow the use of an analyzer, when the resolution bandwidth is less than the emission bandwidth, a resolution bandwidth correction factor must be used and the measurement procedure is to be inline with method 3 of the accepted DTS measurement procedures. In this case the resolution BW correction factor would be 10 log(EBW/RBW) or about 11.3dB. The correction factor (ATTEN) on the data tables on page 25 does not indicate that it includes this resolution bandwidth correction factor or that the testing was done in accordance with method 3 of the accepted DTS procedures. Please explain and please provide data showing the use of the resolution BW correction factors required under the allowed test procedures. If the analyzer automatically accounts for this condition, please provide this information. Please also note that should the numbers in the EMC report, you will also have to correct the SAR reports to be within 5% of the new numbers. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

From: [email protected] [mailto:[email protected]] Sent: 05/18/2006 6:00 AM To: Dward ATCB Cc: [email protected] Subject: RE: Sony: PSP (FCC/IC) AK8PSP1001B2_ATCB003393 Dear Dennis, Regarding to this application, we uploaded the FCC/IC test report, Form 731and Test Report Cover Sheet. As for the maximum output power, we stated as "26.06mW". The revised page is from P.25 to P.28 and we put below sentence P.25 and P27: The test was performed according to Method #3 of Power Output Option #2 in ”GuidanceMeasurement of Digital Transmission Systems Operating under Section 15.247”. We will be sending the SAR FCC and IC report as well very soon. Mr. Kioka Hisayuki will contact to you once the reports is completed. Thank you very much for your kind support. Best regards, -------------------------------------------- Akane YAMAMOTO(Ms.) UL Apex Co., Ltd. EMC Service Division Application Group 4383-326 Asama-cho Ise-shi Mie-ken 516-0021 Japan TEL: +81-(0)596-24-8116 FAX: +81-(0)596-24-8095 E-Mail: [email protected] URL: http://www.ulapex.jp --------------------------------------------- ***********************************************************

Label Location Sony Corporation FCC ID: AK8PSP1001B2 IC Number: 409B-PSP1001B2 Label Front View

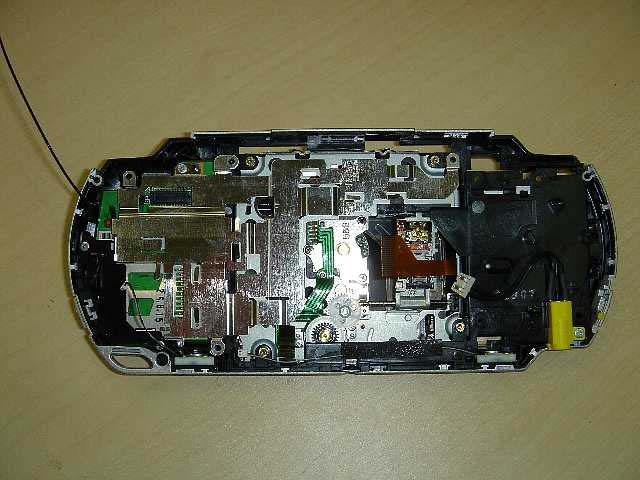

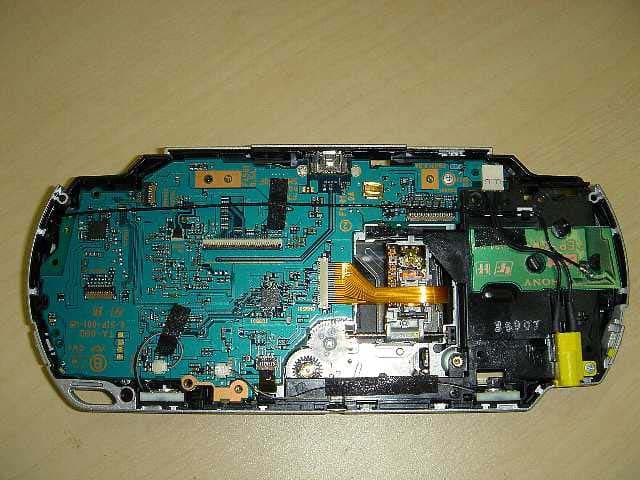

Sony Corporation FCC ID: AK8PSP1001B IC Number: 409B-PSP1001B Internal Photo Model:PSP-1001B WLANAntenna Inside(3/5)/Location of Antenna Inside(4/5) Sony Corporation FCC ID: AK8PSP1001B IC Number: 409B-PSP1001B WLAN Module (UGGZ7-001B& MS-329PWB) Inside(5b/5)/Location of WLAN Module Block (UGGZ7-001B) WLAN Module Block(Alt.)-UGGZ7-001B&MS-329-a Sony Corporation FCC ID: AK8PSP1001B IC Number: 409B-PSP1001B WLAN Module Block(Alt.)-UGGZ7-001B&MS-329-b WLAN Module Block –UGGZ7-001B-a Sony Corporation FCC ID: AK8PSP1001B IC Number: 409B-PSP1001B WLAN Module Block-UGGZ7-001B-b WLAN Module Block-UGGZ7-001B-c

Test report No. : 26HE0182-HO-C-5 Page : 2 of 77 FCC ID : AK8PSP1001B2 Issued date : April 18, 2006 Revised date : May 18, 2006 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1 : Client information............................................................................................................................................ 3 SECTION 2 : Equipment under test (E.U.T.)........................................................................................................................ 3 2.1 Identification of E.U.T. ...................................................................................................................................... 3 2.2 Identification of Wireless LAN Module ............................................................................................................. 4 SECTION 3 : Test standard information............................................................................................................................... 5 3.1 Requirements for compliance testing defined by the FCC ................................................................................. 5 3.2 Exposure limit .................................................................................................................................................... 6 SECTION 4 : Test result ......................................................................................................................................................... 7 4.1 Result of Max. SAR value .................................................................................................................................. 7 4.2 Test Location ...................................................................................................................................................... 7 SECTION 5 : Operation of E.U.T. during testing................................................................................................................. 8 5.1 Operating modes................................................................................................................................................. 8 5.2 Measurement procedure ..................................................................................................................................... 8 5.3 Test setup of EUT............................................................................................................................................... 9 SECTION 6 : Test surrounding.............................................................................................................................................. 10 6.1 Measurement uncertainty...................................................................................................................................... 10 SECTION 7 : Confirmation before testing ............................................................................................................................ 11 7.1 Conducted power .................................................................................................................................................. 11 SECTION 8 : Measurement results........................................................................................................................................ 12 8.1 ANT. UBA-CUW1000 ......................................................................................................................................... 12 8.2 ANT. HFS11-SO01 .............................................................................................................................................. 13 APPENDIX 1 : Photographs of test setup............................................................................................................................ 14 APPENDIX 2 : Test instruments.......................................................................................................................................... 28 Equipment & calibration information ..................................................................................................................... 28 1. Equipment used................................................................................................................................................... 28 2. Dosimetry assessment setup..…

Text truncated - open the document above for the full version.
