AK8PSP3001EPSP

Sony Group Corporation
PSP - FCC ID AK8PSP3001E - Sony Group Corporation
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Apr 25, 2011
Application Purpose
Original Equipment
Date of Application
Apr 25, 2011
Equipment Note
PSP
Frequency Range
2412.00000000 - 2462.00000000
Company
Sony Group Corporation
Country
Japan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

model name1[PSP-3001] [4-115-361-12(2)] masterpage:Right filename[I:\#Sagyou\#04\0418\4115361122\01EN\01EN01COV.fm] Safety and Support Sécurité et support technique PSP-3001 4-115-361-12(2) EN FR 01PSP-1001 EN.book Page 1 Monday, April 18, 2011 3:04 PM masterpage:Left filename[I:\#Sagyou\#04\0418\4115361122\01EN\01EN02WAR.fm] 2 WARNINGS model name1[PSP-3001] [4-115-361-12(2)] To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. For your safety, use only a licensed or genuine Sony AC adaptor or battery charger to charge a battery pack for the PSP ® system. Other types may cause fire, electrical shocks or a malfunc- tion. Caution Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. The use of optical instruments with this product will increase eye hazard. This appliance is classified as a CLASS 1 LASER product under IEC60825-1+A2: 2001. This equipment complies with FCC/IC radiation exposure limits set forth for uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption rate (SAR). This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. WARNINGS For customers in the U.S.A. and Canada 01PSP-1001 EN.book Page 2 Monday, April 18, 2011 3:04 PM 3 WARNINGS model name1[PSP-3001] [4-115-361-12(2)] masterpage:Right filename[I:\#Sagyou\#04\0418\4115361122\01EN\01EN02WAR.fm] EN This Class B digital apparatus complies with Canadian ICES-003. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. If you have questions about this product, call our technical support line at 1-800-345-7669, or write to: Sony Computer Entertainment America LLC Consumer Services/Technical Support PO Box 5888, San Mateo, CA 94402-0888 U.S.A. This device complies with Part 15 of the FCC Rules and RSS- Gen of IC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of this device. Declaration of Conformity Trade Name : Model No. : Responsible Party : Address : Telephone No. : SONY PSP-3001 Sony Electronics Inc. 16530 Via Esprillo, San Diego, CA 92127 U.S.A 858-942-2230 01PSP-1001 EN.book Page 3 Monday, April 18, 2011 3:04 PM masterpage:Left filename[I:\#Sagyou\#04\0418\4115361122\01EN\01EN02WAR.fm] 4 WARNINGS model name1[PSP-3001] [4-115-361-12(2)] A very small percentage of individuals may experience epileptic seizures or blackouts when exposed to certain light patterns or flashing lights. Exposure to certain patterns or backgrounds on a screen or when playing video games may trigger epileptic seizures or blackouts in these individuals. These conditions may trigger previously undetected epileptic symptoms or seizures in persons who have no history of prior seizures or epilepsy. If you, or anyone in your family, has an epileptic condition or has had seizures of any kind, consult your physician before playing. IMMEDIATELY DISCONTINUE use and consult your physician before resuming gameplay if you or your child experience any of the following health problems or symptoms: • dizziness, • altered vision, • eye or muscle twitches, • loss of awareness, • disorientation, • seizures, or • any involuntary movement or convulsion. RESUME GAMEPLAY ONLY ON APPROVAL OF YOUR PHYSICIAN. Use and handling of video games to reduce the likelihood of a seizure • Use in a well-lit area and keep the screen a safe distance from your face. • Avoid prolonged use of the PSP® system. Take a 15-minute break during each hour of play. • Avoid playing when you are tired or need sleep. Radio waves may affect electronic equipment or medical devices (for example, pacemakers), which may cause malfunctions and possible injuries. • If you use a pacemaker or other medical device, consult your physician or the manufacturer of your medical device before using the wireless LAN feature. • Do not use the wireless LAN feature in the following locations: – Areas where wireless LAN use is prohibited, such as in hospitals. Abide by medical institution regulations when using the system on their premises. – Areas near fire alarms, automatic doors and other types of automated equipment. The system software included within this product is subject to a limited license from Sony Computer Entertainment Inc. Refer to http://www.scei.co.jp/psp-eula for further details. Photosensitivity/Epilepsy/SeizuresRadio waves System software 01PSP-1001 EN.bo…

Text truncated - open the document above for the full version.

External Photos

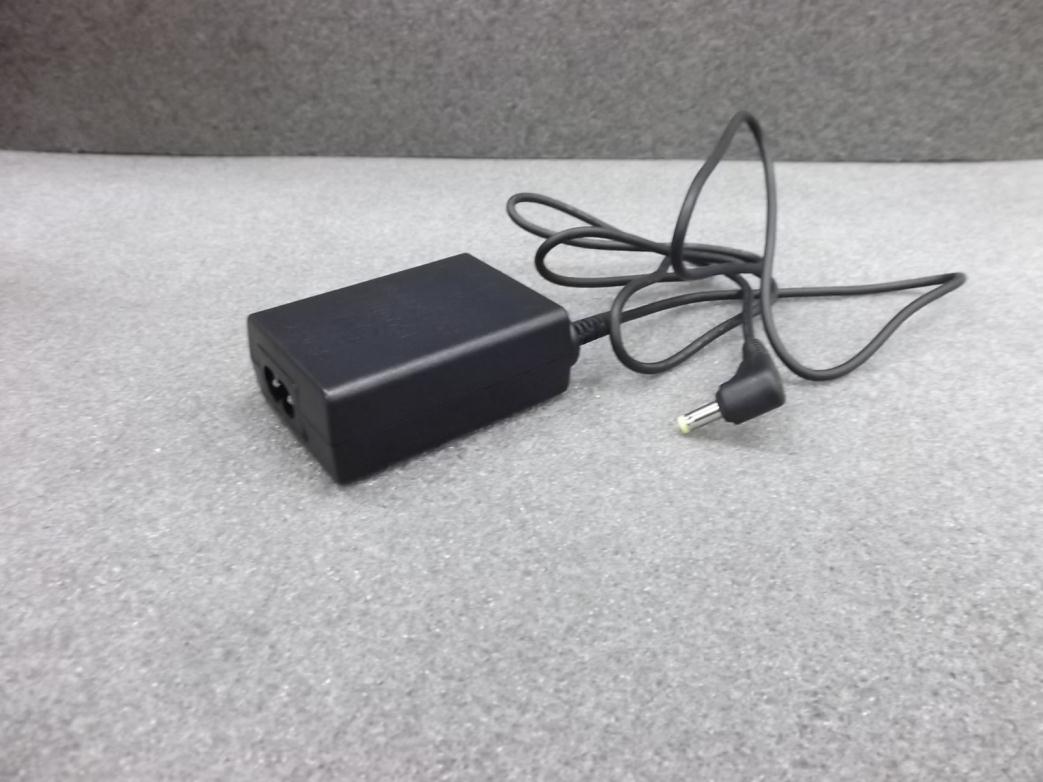

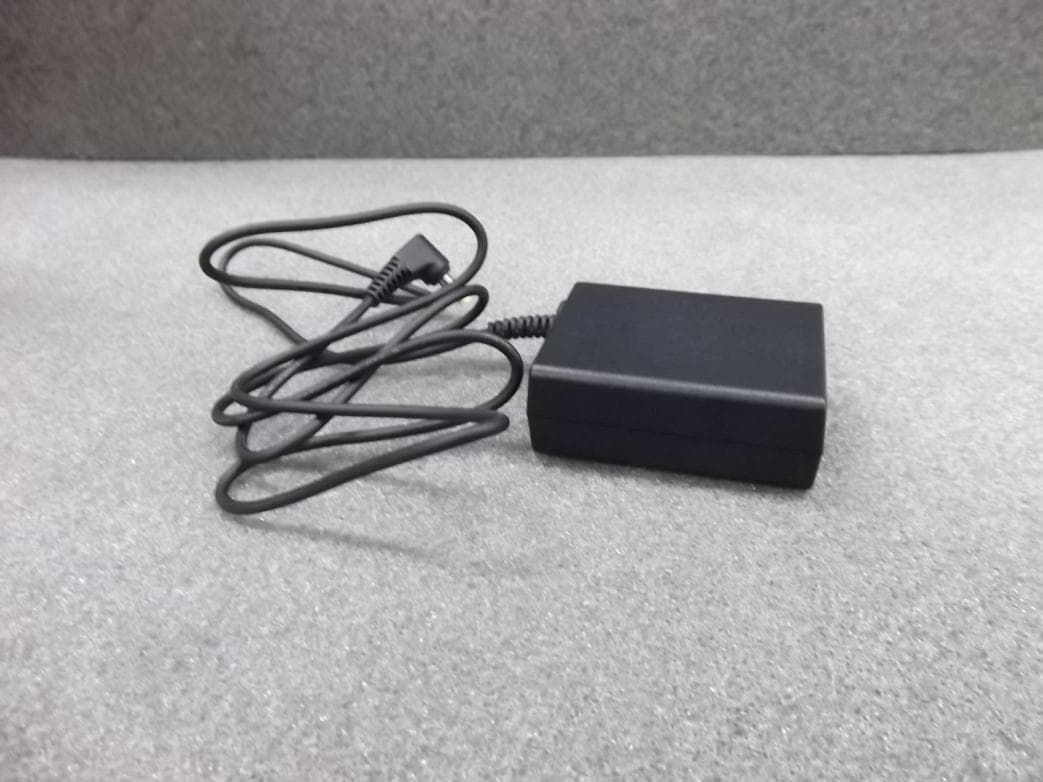

External Photo SCEI Confidential SCEI Confidential AC Adapter Side A AC Adapter Side B

ID Label/Location Info

Label Location : Inside of Battery Lid AK8PSP3001E Location of Label

Internal Photos

Internal Photo SCEI Confidential ANTENNA(Back Side) WLAN Board (Back Side) ANTENNAWLAN Board SCEI Confidential Wireless Board Photograph Foxconn WLAN Board With Shield Without Shield

RF Exposure Info

UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: Sony Computer Entertainment, Inc. Type of Equipment : PSP Model No. : PSP-3001 E FCC ID: AK8PSP3001E Sony Computer Entertainment, Inc. declares that Model : PSP-3001 E ⇒ complies with FCC radiation exposure requirement specified in the FCC Rules 2.1093(for portable)/2.1091 (for mobile). The “PSP-3001 E“ has 14.89 mW of conducted Peak Output power and 10.54 mW of EIRP. This kind of equipment is below 60/frequency[GHz] mW(TCB Exclusion List) so that SAR testing is excluded. The Following calculation is the reference data for 20cm distance. RF Exposure Calculations: ← The following information provides the minimum separation distance for the highest gain antenna provided with the “PSP-3001 E“ as calculate d from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 14.89 mW (Maximum peak output power) G = 0.71 Numerical Antenna gain; equal to-1.50dBi r =20.0 cm For: PSP-3001 ES =0.00210 mW/cm 2 No. : 31IE0068-HO-01-A RF Exposure / MPE Calculation

Test Report

Test report No. : 31IE0068-HO-01-A Page : 1 of 36 Issued date : April 21, 2011 FCC ID : AK8PSP3001E UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 RADIO TEST REPORT Test Report No. : 31IE0068-HO-01-A Applicant : Sony Computer Entertainment Inc. Type of Equipment : PSP Model No. : PSP-3001 E FCC ID : AK8PSP3001E Test regulation: FCC Part 15 Subpart C: 2010 Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the above regulation. 4. The test results in this report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Date of test: April 11 to 12, 2011 Representative test engineer: Takumi Shimada Engineer of WiSE Japan, UL Verification Service Approved by: Mitsuru Fujimura Leader of WiSE Japan, UL Verification Service 13-EM-F0429 NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://www.ul.com/japan/jpn/pages/services/emc/about/ma rk1/index.jsp#nvlap Test report No. : 31IE0068-HO-01-A Page : 2 of 36 Issued date : April 21, 2011 FCC ID : AK8PSP3001E UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 3 SECTION 3: Test specification, procedures & results ............................................................................ 4 SECTION 4: Operation of E.U.T. during testing .................................................................................... 7 SECTION 5: Conducted Emission ............................................................................................................ 8 SECTION 6: Radiated Spurious Emission ............................................................................................ 11 SECTION 7: Antenna Terminal Conducted Tests ................................................................................ 12 APPENDIX 1: Photographs of test setup ............................................................................................... 13 Conducted Emission ......................................................................................................................... 13 Radiated Spurious Emission ............................................................................................................. 14 Worst Case Position (Horizontal: X-axis/ Vertical:Y-axis) .............................................................. 15 APPENDIX 2: Data of EMI test .............................................................................................................. 18 Conducted Emission ......................................................................................................................... 18 6dB Bandwidth ................................................................................................................................. 20 Maximum Peak Output Power .......................................................................................................... 22 Radiated Spurious Emission ............................................................................................................. 23 Conducted Spurious Emission .......................................................................................................... 27 Conducted Emission Band Edge compliance ................................................................................... 31 Power Density ................................................................................................................................... 32 99%Occupied Bandwidth ................................................................................................................. 34 APPENDIX 3: Test instruments ............................................................................................................. 35 Test report No. : 31IE0068-HO-01-A Page : 3 of 36 Issued date : April 21, 2011 FCC ID : AK8PSP3001E UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name Sony Computer Entertainment Inc. Brand Name SONY Address 1-7-1 Konan, Minato-ku, Tokyo 108-0075, Japan Telephone Number +81-3-6748-6333 Facsimile Number +81-3-6748-6383 Contact Person Akiko Tsukada SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment PSP Model No. PSP-3001 E Serial No. 02-TSP1700U-0000205-PSPXXXX for Conducted Emission and Radiated Emission tests 02-TSP1700U-0000208-PSPXXXX for Antenna Terminal Conducted tests Rating DC 5V, AC Adaptor (AC 100V-240V) Country of Manufacture China Receipt Date of Sample April 9, 2011 Condition of EUT Production prototype (Not for sale: This sample is equivalent to mass-produced items.) Modification of EUT No modification by the test lab. 2.2 Product Description Radio Specification Wireless LAN Module (IEEE802.11b) Equipment Type Transceiver Frequency of Operation 2412-2462 MHz Clock Frequency 40MHz ITU Code G1D Type of Modulation DSSS Method of frequency generation Crystal Synthesizer Antenna model EBMGC5A245FB Antenna type Mono…

Text truncated - open the document above for the full version.

Test Report

Test report No. : 31IE0068-HO-01-A Page : 18 of 36 Issued date : April 21, 2011 FCC ID : AK8PSP3001E UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Conducted Emission DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.2 Semi Anechoic Chamber Date : 2011/04/12 Company : Sony Computer Entertainment Inc. Report No. : 31IE0068-HO-01 Kind of EUT : PSP Power : AC120V / 60Hz Model No. : F-PRO Temp./Humi. : 21deg.C / 35%RH Serial No. : 0000205 Engineer : Satofumi Matsuyama Mode / Remarks : Tx 11b 2412MHz 11Mbps LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data. CALCULATION:RESULT=READING+C.F(LISN LOSS+CABLE LOSS+ATTEN.LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV]<< QP/AV DATA >> L:QP:AV N:QP:AV .15M30M.2M.3M.5M.7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Frequency Reading LevelReading LevelCorr.ResultsResultsLimitLimitMarginMargin PhaseComment Frequency QPAVFactorQPAVQPAVQPAVPhaseComment [MHz][dBuV][dBuV][dB][dBuV][dBuV][dBuV][dBuV][dB][dB] PhaseComment 0.2002629.419.813.142.532.963.653.621.120.7N 0.4870816.39.313.129.422.456.246.226.823.8N 0.7258818.61.113.231.814.356.046.024.231.7N 1.3706314.5-0.513.327.812.856.046.028.233.2N 2.5231412.1-1.513.425.511.956.046.030.534.1N 20.3657015.512.614.229.726.860.050.030.323.2N 0.2024130.122.113.143.235.263.553.520.318.3L 0.4875218.211.713.131.324.856.246.224.921.4L 0.7393020.22.413.233.415.656.046.022.630.4L 1.3615616.50.413.329.813.756.046.026.232.3L 2.5417312.20.613.425.614.056.046.030.432.0L 20.7534017.313.814.231.528.060.050.028.522.0L Test report No. : 31IE0068-HO-01-A Page : 19 of 36 Issued date : April 21, 2011 FCC ID : AK8PSP3001E UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Conducted Emission Test place Head Office EMC Lab. No.2 Semi Anechoic Chamber Report No. 31IE0068-HO-01 Date 04/12/2011 Temperature/ Humidity 21 deg.C/ 35% RH Engineer Satofumi Matsuyama Mode 11b Tx 2412MHz 2437MHz 2462MHz Y scale [dBuV] Chart N L Test report No. : 31IE0068-HO-01-A Page : 20 of 36 Issued date : April 21, 2011 FCC ID : AK8PSP3001E UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 6dB Bandwidth Test place Head Office EMC Lab. No.6 Measurement Room Report No. 31IE0068-HO-01 Date 04/11/2011 Temperature/ Humidity 22 deg.C / 43 % RH Engineer Takumi Shimada Mode 11b Tx 11b Frequency 6dB Bandwidth Limit [MHz] [MHz] [kHz] 2412 10.339 >500 2437 10.317 >500 2462 10.317 >500 Test report No. : 31IE0068-HO-01-A Page : 21 of 36 Issued date : April 21, 2011 FCC ID : AK8PSP3001E UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 6dB Bandwidth 11b 2412MHz 2437MHz 2462MHz Test report No. : 31IE0068-HO-01-A Page : 22 of 36 Issued date : April 21, 2011 FCC ID : AK8PSP3001E UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Maximum Peak Output Power Test place Head Office EMC Lab. No.6 Measurement Room Report No. 31IE0068-HO-01 Date 04/11/2011 Temperature/ Humidity 22 deg.C / 43 % RH Engineer Takumi Shimada Mode 11b Tx Freq.ReadingCableAtten.Margin Loss [MHz][dBm][dB][dB][dBm][mW][dBm][mW][dB] 24121.260.509.9711.7314.8930.00100018.27 24370.300.509.9710.7711.9430.00100019.23 24620.510.509.9710.9812.5330.00100019.02 Sample Calculation: Result = Reading + Cable Loss (including the cable(s) customer supplied) + Attenuator RateReading Remar k [Mbps][dBm] 1-0.77 20.27 5.5-0.36 110.30* *: Worst Rate All comparizon were carried out on same frequency and measurement factors. Resul tLimit Test report No. : 31IE0068-HO-01-A Page : 23 of 36 Issued date : April 21, 2011 FCC ID : AK8PSP3001E UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Spurious Emission Test place Head Office EMC Lab. No.4 Semi Anechoic Chamber Report No. 31IE0068-HO-01 Date 04/12/2011 04/12/2011 Temperature/ Humidity 21 deg.C/ 35% RH 21 deg.C/ 35% RH Engineer Satofumi Matsuyama Katsunori Okai (Above 1GHz) (Below 1GHz) Mode 11b Tx 2412MHz PolarityFrequency Detector Reading Ant.Fac.LossGainResultLimitMarginRemark [MHz][dBuV][dB/m][dB][dB][dBuV/m] [dBuV/m][dB] Hori60.216 QP33.58.47.432.217.140.022.9 Hori98.462 QP46.410.08.032.232.243.511.3 Hori143.263 QP38.414.78.532.129.543.514.0 Hori431.995 QP41.918.110.632.138.546.07.5 Hori625.084 QP34.020.611.732.234.146.011.9 Hori902.381 QP33.424.213.031.339.346.06.7 Hori1624.297 PK44.126.22.133.139.373.934.6 Hori2390.000 PK47.627.22.532.245.173.928.8 Hori2398.583 PK56.327.22.532.253.873.920.1 Hori2400.000 PK54.827.22.532.252.373.921.6 Hori3217.000 PK42.128.62.931.941.773.932.2 NS Hori4824.000 PK47.630.95.231.452.373.921.6 Hori7236.000 PK44.035.76.232.453.573.920.4 NS Hori9648.000 PK44.837.87.033.256.473.917.5 Hori24120.000 PK46.737.9-0.931.652.173.921.8 NS Hori1624.297 AV31.926.22.133.127.153.926.8 Hori2390.000 AV34.727.22.532.232.253.921.7 Hori2398.583 AV46.527.22.532.244.053.99.9 Hori2400.000 AV44.727.22.532.242.253.911.7 Hori3217.000 AV29.728.62.931.929.353.924.6 NS Hori4824.000 AV35.230.95.231.439.953.914.0 Hori7236.000 AV31.935.76.232.441.453.912.5 NS Hori9648.000 AV33.037.87.033.244.653.99.3 Hori24120.000 AV35.237.9-0.931.640.653.913.3 NS Vert60.208 QP49.78.47.432.233.340.06.7 Vert94.381 QP51.49.37.932.236.443.57.1 Vert143.263 QP41.714.78.532.132.843.510.7 Vert431.995 QP40.218.110.632.136.846.09.2 Vert625.081 QP30.120.611.732.230.246.015.8 Vert902.383 QP29.124.213.031.335.046.011.0 Vert1624.273 PK45.526.22.133.140.773.933.2 Vert2390.000 PK45.627.22.532.243.173.930.8 Vert2398.587 PK55.927.22.532.253.…

Text truncated - open the document above for the full version.

Test Setup Photos

Test report No. : 31IE0068-HO-01-A Page : 13 of 36 Issued date : April 21, 2011 FCC ID : AK8PSP3001E UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 31IE0068-HO-01-A Page : 14 of 36 Issued date : April 21, 2011 FCC ID : AK8PSP3001E UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 31IE0068-HO-01-A Page : 15 of 36 Issued date : April 21, 2011 FCC ID : AK8PSP3001E UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: X-axis/ Vertical:Z-axis) X-axis Y-axis Z-axis Test report No. : 31IE0068-HO-01-A Page : 16 of 36 Issued date : April 21, 2011 FCC ID : AK8PSP3001E UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Configuration and peripherals : Standard Ferrite Core AC120V/60Hz AC120V/60Hz AC120V/60Hz 1 A DF H E G J I 6 8 7 9 2 3 4 5 B C * Cabling and setup were taken into consideration and test data was taken under worse case conditions. Test report No. : 31IE0068-HO-01-A Page : 17 of 36 Issued date : April 21, 2011 FCC ID : AK8PSP3001E UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Description of EUT and Support equipment No. Item Model number Serial number Manufacturer Remarks A PSP PSP-3001 E 02-TSP1700U-0000205-PSPXXXX *1) 02-TSP1700U-0000208-PSPXXXX *2) Sony Computer Entertainment Inc. EUT B Memory Stick Duo MSX-M512S - SONY - C Battery Pack PSP-S110 (PSP-S110 B) 10323WBB0098 SONY - D Laptop PC 2371-A3J KV-FCR55 IBM - E AC Adaptor 02K6808 11S02K6808Z1Z89H4BJ6YB IBM - F Hub FX-05Mini - PLANEX - G Adaptor for Hub RHF-050080-1 0643 PLANEX - H HP Remote Controller PSP-S120 - MITSUMI - I Headphones PSP-130 - SONY - J AC Adaptor ACC-195JUC - SONY EUT *1) Used for Conducted Emission and Radiated Emission tests *2) Used for Antenna Terminal Conducted tests List of cables used No. Name Length (m) Shield Cable Connector 1 USB Cable 0.5 Shielded Shielded 2 HP Remote Controller Cable 0.8 Shielded Shielded 3 Headphones Cable 1.1 Shielded Shielded 4 DC Cable 1.0 Shielded Shielded 5 AC Cable 1.5 Unshielded Unshielded 6 LAN Cable 3.0 Unshielded Unshielded 7 DC Cable 1.7 Unshielded Unshielded 8 DC Cable 1.8 Shielded Shielded 9 AC Cable 1.5 Unshielded Unshielded

Contact Information

Applicant

Kazuyuki Hori(Chief EMC/RF Compliance Specialist)
[email protected]81-50-3141-6220Fax: 81-50-3750-6540

Technical Contact

UL Japan, Inc.MItsuru Fujimura
[email protected]81-596-24-8116

4383-326 Asama-cho, Ise-shi · Japan

Test Firm

UL Japan, Inc. Head office EMC Lab.Tetsuya Hashimoto
[email protected]+81-596-24-8116Fax: +81-596-24-8095

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz14.90 mW
Confidentiality
Long Term
Grant Notes
Output power listed is Conducted. End-users must be provided with specific operating instructions for satisfying RF exposure compliance. The antenna of this device must not be co-located or used in conjunction with any other antenna or transmitter.
