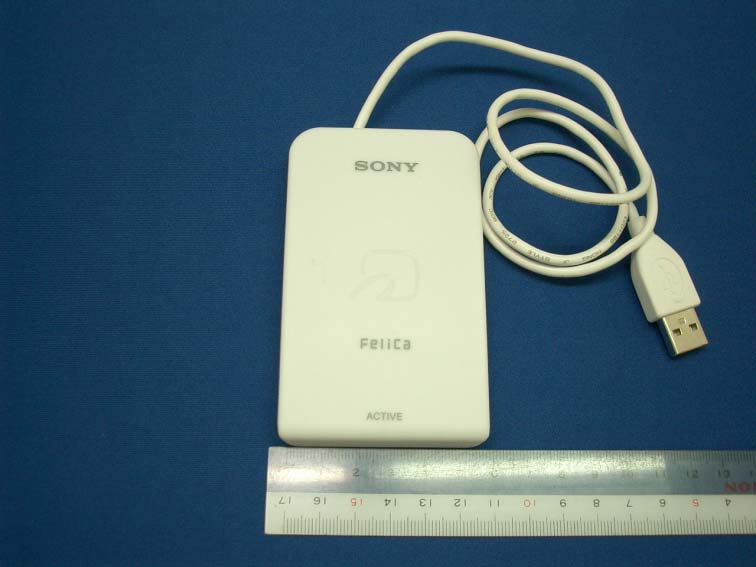

AK8RCS320Contactless IC Card Reader/ Writer

RC-S320 (US) 2-159-374-11(1) RC-S320(US) 2-159-374-11(1) 2-159-374-11 (1) Introduction This product is a contactless IC card Reader/Writer that connects to the USB port on your computer. This Reader/Writer provides the ability to write information to and read information from contactless IC cards using Sony’s FeliCa technology, such as the “wave” smart card. Sony’s FeliCa chip technology can be incorporated into contactless IC cards and devices. If you do not know whether your contactless IC card is compatible with the Reader/Writer, consult with an information source shown on your card about the compatibility. System Requirements You can use this Reader/Writer only in the United States. To use it, you need an Internet connection environment meeting the requirements below. sComputer hardware equipped with a USB port 1) sOperating system: Microsoft Windows 98 Microsoft Windows 98 Second Edition Microsoft Windows Millennium Edition Microsoft Windows 2000 Professional Microsoft Windows XP Home Edition Microsoft Windows XP Professional 1) The USB port operation must be guaranteed by the manufacturer of the computer hardware. Notes • Even if your computer environment meets the requirements above, the Reader/Writer may not operate properly depending on the configuration of your software and hardware. • Depending on the type of computer, a malfunction may occur when the computer goes into the standby mode while the Reader/Writer is operating. • Depending on the type of USB hub you are using, the Reader/ Writer may not operate properly. • Depending on the electrical environment in and around your computer, the Reader/Writer may not operate properly. The Reader/Writer uses the 13.56 MHz frequency band. When more than one Reader/Writer is in one location, leave one meter or more space between each Reader/Writer. In addition, make sure to keep the Reader/Writer away from any other wireless communication devices which use the same 13. 56 MHz frequency band. CAUTION You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Reader/Writer Customer Service Center If you have questions about this product or the features/applications of the Smart Card, please visit: http://www.my.sony.com/smartcard. Or call 1-877-669-SONY (7669). Declaration of Conformity Trade Name:SONY Model:RC-S320 Responsible Party: Sony Electronics Inc. Address:16450 W. Bernardo Dr, San Diego, CA 92127 U.S.A. Telephone Number: 858-942-2230 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTICE TO USERS Program/Documentation ©2004 Sony Corporation All rights reserved. This manual or the software described herein, in whole or in part, may not be reproduced, translated or reduced to any machine readable form without prior written approval from Sony Corporation. IN NO EVENT SHALL SONY CORPORATION BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES, WHETHER BASED ON TORT, CONTRACT, OR OTHERWISE, ARISING OUT OF OR IN CONNECTION WITH THIS MANUAL, THE SOFTWARE OR OTHER INFORMATION CONTAINED HEREIN OR THE USE THEREOF. Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein may also be governed by the terms of a separate user license agreement. Precautions Safety • To prevent fire or shock hazard, do not expose the unit to rain or moisture. • To avoid electrical shock, do not open the unit. Refer servicing to qualified personnel only. • Do not allow any liquid or solid object to fall into the unit. This may cause a fire or give an electric shock. If it happens, unplug the unit from the computer immediately and contact your dealer or the Reader/Writer Customer Service Center. If you leave the unit as it is, the computer connected to the unit may be damaged. • Do not give an extreme shock to the unit, or squeeze it strongly. This may cause a malfunction. • Do not pull the cable strongly, bend it, or crush it. The cable may be broken, and this may cause a malfunction. • Do not use or leave the unit: – In places subject to extreme high temperatures, for example near a radiator, heating vent, or in direct sunlight. – In places subject to mechanical vibration or shock. – Near any equipment that generates a strong magnetic field. – In places where corrosive gas is present. Maintenance • Clean the unit with a soft cloth or tissue paper. When the unit is very dirty, clean it with a soft cloth lightly moistened with a mild detergent solution and finish with a dry cloth. • Do not use alcohol, thinner, or benzine to clean the unit. If you do so, the finish of the unit may be damaged or the coating may come off. • When you use a chemical-impr…

Text truncated - open the document above for the full version.

Block Diagram for RC-S320 DDPU USB connector Ceramic resonator 12.00MHz Xtal 13.56MHz USB+D-D VDD RP, RM GND TP, TM LED Filter LPF ANT

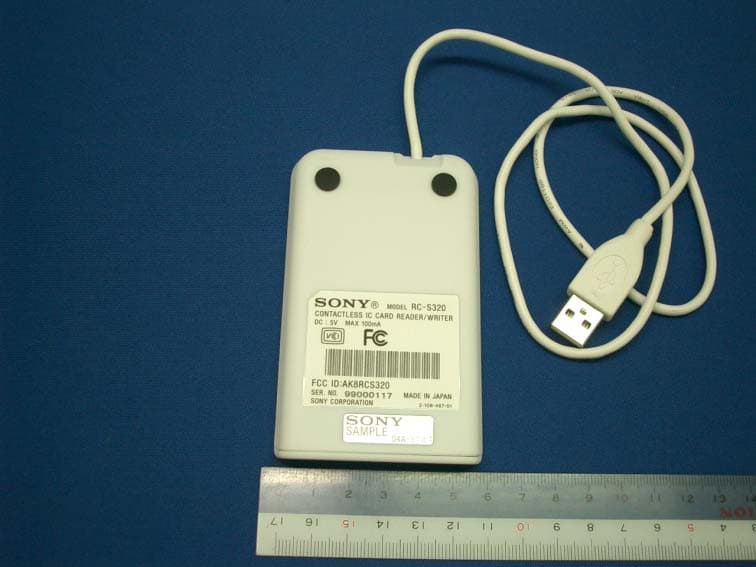

Label Position Bottom Side

Explanation for RC-S320 Kind of equipment: CONTACTLESS IC CARD READER/WRITER Model number: RC-S320 FCC ID: AK8RCS320 <Overview> This is the USB Reader/Writer which corresponds to Sony developed contact-free IC card "FeliCa" technology. It is available for various service which adopt "FeliCa" technology, such as electronic money service "Edy" and new credit service "eLIO" that is exclusive use for cybernation. <Product specifications> Communication distance 3 mm or less Communication speed 212kbps Operating frequency 13.56MHz ( ±50PPM) Modulation system ASK Bit coding Manchester coding Modulation bandwidth ±300kHz (at –30dB carrier level) Weight Approx 60g Dimensions Approx 100 x 60 x 11mm OS Windows98, 98SE, Me, 2000, XP Cable length Approx 70cm Power voltage, current DC 5V, 100mA

T E S T R E P O R T REPORT NUMBER : ANKK−104154 APPLICANT : Sony Corporation MODEL NUMBER : RC-S320 FCC ID : AK8RCS320 REGULATION : FCC Part15C Section 15.207 Section 15.209 1, Oaza Sunayama, Hasaki−machi, Kashima−gun Ibaraki−ken, 314−0255 Japan Tel.: +81 479 40 1097 Fax.: +81 479 46 1788 Akzo Nobel K. K. EMC Division Kashima Site Akzo Nobel Report No. ANKK−104154 FCC ID : AK8RCS320 Page 2 of 21 (Version 5.2) TABLE OF CONTENTS Page ABBREVIATIONS ............................................................................................................................ 3 SECTION 1. TEST CERTIFICATION ....................................................................................... 4 SECTION 2. CONCLUSION ...................................................................................................... 5 SECTION 3. EQUIPMENT UNDER TEST................................................................................ 6 SECTION 4. SUPPORT EQUIPMENT USED ........................................................................... 7 SECTION 5. CABLE (S) USED .................................................................................................. 8 SECTION 6. CONSTRUCTION OF EQUIPMENT.................................................................... 9 SECTION 7. OPERATING CONDITIONS............................................................................... 10 SECTION 8. TEST PROCEDURE(S) ....................................................................................... 11 SECTION 9. EVALUATION OF TEST RESULTS .................................................................. 15 SECTION 10. INSTRUMENTS USED FOR FINAL TEST ....................................................... 19 SECTION 11. MEASUREMENT UNCERTAINTY .................................................................... 20 SECTION 12. DESCRIPTION OF TEST LABORATORY ......................................................... 21 Annex A Restricted Band of Operation Akzo Nobel Report No. ANKK−104154 FCC ID : AK8RCS320 Page 3 of 21 (Version 5.2) ABBREVIATIONS LISN = Line Impedance Stabilization Network AMN = Artificial Mains Network ANT = Antenna BBA = Broadband Antenna DIP = Dipole Antenna AMP = Amplifier ATT = Attenuator EUT = Equipment Under Test AE = Associated Equipment Q−P = Quasi−peak AVG = Average Akzo Nobel Report No. ANKK−104154 FCC ID : AK8RCS320 Page 4 of 21 (Version 5.2) SECTION 1. TEST CERTIFICATION APPLICANT INFORMATION Company : Sony Corporation Address Gotenyama Hills 4-7-35 Kitashinagawa Shinagawa-ku, Tokyo 140-0001 Japan Telephone number : +81 3 5448 4847 Fax number : +81 3 5448 2160 DESCRIPTION OF TEST ITEM Kind of equipment : Contactless IC Card Reader/Writer Condition of equipment : Pre-Production Type : Tabletop Trademark : SONY FCC ID AK8RCS320 Model number : RC-S320 Serial number : 99000117 TEST PERFORMED Location : Kashima No. 1 Test Site (FCC Reg. No.:90433) EUT received : June 14, 2004 Test started : June 16, 2004 Test completed : June 17, 2004 Regulation : FCC Part15 Subpart C Section 15.207 / 15.209 Intentional Radiators Test setup : ANSI C63.4-2001 Report issue date : July 1, 2004 Test engineer : Yasuhiro Kase Report approved by : Takeshi Yamanaka [Site Manager] On the basis of the measurements made, the equipment tested is capable of operation in compliance with the requirements of Part 15 of the FCC Rules under normal use and maintenance. Note a. The test result of this report is effective for equipment under test itself and under the test configuration described on the report. b. This test report does not assure that whether the test result taken in other testing laboratory is compatible or reproducible to the test result on this report or not. c. This test report shall not be reproduced except in full, without issuer’s permission. Akzo Nobel Report No. ANKK−104154 FCC ID : AK8RCS320 Page 5 of 21 (Version 5.2) SECTION 2. CONCLUSION This test report clearly shows that the EUT is in compliance with the FCC Part15C Section15.207 & Section15.209 specification. The minimum margins to the limits are as follows: AC Conducted Emission 16.8 dB at 0.1756 MHz Spurious Emissions - Radiated Emission Test 0.2 dB at 81.36 MHz Note : See Section 9 for details. Akzo Nobel Report No. ANKK−104154 FCC ID : AK8RCS320 Page 6 of 21 (Version 5.2) SECTION 3. EQUIPMENT UNDER TEST The equipment under test (EUT) consisted of the following equipment. Indication in the following left side column corresponds to Section 6. Symbol Item Model No. Serial No. FCC ID / DoC Manufacturer Remarks A) Contactless IC Card Reader/Writer RC-S320 99000117 AK8RCS320 SONY Power ratings of EUT : DC INPUT 5V, Max 100[mA] 3.1 Overview of EUT : Carrier Frequency : 13.56 MHz ± 50ppm Modulation Method : ASK RF Output Power : 44.9dBuV/m (at 3.0 m) 3.2 Port(s)/Connector(s) : Port name Connector type Connector pin Remarks USB A type 4 pin USB 2.0(Low Speed) 3.3 RF Operation Frequency : Oscillator Operating Board name Remarks 13.56 MHz 13.56 MHz Main Board ± 50ppm 12 MHz 12 MHz Main Board Akzo Nobel Report No. ANKK−104154 FCC ID : AK8RCS320 Page 7 of 21 (Version 5.2) SECTION 4. SUPPORT EQUIPMENT USED The EUT was supported by the following equipment during the test. Indication in the following left side column corresponds to Section 6. Symbol Item Model No. Serial No. FCC ID / DoC Manufacturer Remarks B) Computer PCG-9312 283124303201388 DoC SONY C) Printer P12PB 0E11397879 BKM9A8P12PB EPSON D) AC Adapter PCGA-AC19V1 0044D0192264 N.A. SONY Power ratings of Computer’s AC Adapter : AC 100 −240V, 50/60 Hz, 1.6 A Akzo Nobel Report No. ANKK−104154 FCC ID : AK8RCS320 Page 8 of 21 (Version 5.2) SECTION 5. CABLE (S) USED The following cable(s) was used for the test. Indication number in the following left side column corresponds to Section 6. Number Name Length Shield Connector Core 1) USB cable 0.70 m Yes Metal 2) Centronics cable 2.30 m Yes Metal 3) Power cable for Computer(DC) 1.70 m Yes Fixed x 1 4) Power cable for Computer(AC) 0.70 m None…

Text truncated - open the document above for the full version.

SetUp Photographs Akzo Nobel Report No. ANKK−104154 FCC ID : AK8RCS320 Page 2 of 4 PHOTOGRAPHS OF MAXIMUM DISTURBANCE SET−UP 1. AC Conducted Emission (Section15.207) Test setup in accordance with ANSI C63.4−2001 Front view Side view Akzo Nobel Report No. ANKK−104154 FCC ID : AK8RCS320 Page 3 of 4 2. Spurious Emission – Radiated (Section15.209) 30MHz-1000MHz Test setup in accordance with ANSI C63.4−2001 Front view Rear view Akzo Nobel Report No. ANKK−104154 FCC ID : AK8RCS320 Page 4 of 4 3. Spurious Emission – Radiated (Section15.209) 0.009MHz-30MHz Test setup in accordance with ANSI C63.4−2001 Front view Rear view
