AK8RCS360Contactless IC Card Reader/Writer

RC-S360/S_RC-S360/SH 4-265-509-01(1) RC-S360/S_RC-S360/SH 4-265-509-01(1) ˎ ˎ ˎ ˎ FeliCa TypeA TypeB IC USB / Operating Instructions RC-S360/S RC-S360/SH © 2010 Sony Corporation Printed in Japan 4-265-509-01(1) IC Contactless IC Card Reader/Writer FeliCa IC ˎ ˎ ˎ ˎ http://www.sony.co.jp/Products/felica/     For the customers in the U.S.A. NOT APPLICABLE IN CANADA,INCLUDING THE PROVINCE OF QUEBEC. POUR LES CONSOMMATEURS AUX ÉTATS-UNIS. NON APPLICABLE AU CANADA,Y COMPRIS LA PROVINCE DE QUÉBEC. Trade Name: Sony Corporation Model Number: RC-S360/S, RC-S360/SH For the customers in Canada This Class B digital apparatus complies with Canadian ICES-003. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met. Pour les clients au Canada Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. L’utilisation doit répondre aux deux conditions suivantes : (1) ce matériel ne doit pas provoquer de brouillage et (2) il doit accepter tout brouillage, même celui qui est susceptible d’affecter son fonctionnement. La mention « IC: » devant le numéro de certification/ homologation signifie uniquement que les spécifications techniques d’Industrie Canada sont remplies. For the customers in Europe Hereby, Sony Corporation, declares that this RC-S360/S / RC-S360/SH is in compliance with the essential requirements and other relevant provisions of the Directive 1999/5/EC. For details, please access the following URL: http://www.compliance.sony.de/ Pour les clients en Europe Par la présente Sony Corporation déclare que l’appareil RC-S360/S / RC-S360/SH est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE. Pour toute information complémentaire, veuillez consulter l’URL suivante: http://www.compliance.sony.de/ Für Kunden in Europa Hiermit erklärt Sony Corporation, dass sich das Gerät RC-S360/S / RC-S360/SH in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Weitere Informationen erhältlich unter: http://www.compliance.sony.de/ Per i clienti in Europa Con la presente Sony Corporation dichiara che questo RC-S360/S / RC-S360/SH è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Per ulteriori dettagli, si prega di consultare il seguente URL: http://www.compliance.sony.de/ Para los clientes de Europa Por medio de la presente Sony Corporation declara que el RC-S360/S / RC-S360/SH cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Para mayor información, por favor consulte el siguiente URL: http://www.compliance.sony.de/ Voor de klanten in Europa Hierbij verklaart Sony Corporation dat het toestel RC-S360/S / RC-S360/SH in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG. Nadere informatie kunt u vinden op: http://www.compliance.sony.de/ For kunder i Europa Härmed intygar Sony Corporation att denna RC-S360/S / RC-S360/SH står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG. För ytterligare information gå in på följande hemsida: http://www.compliance.sony.de/ Para os clientes da Europa Sony Corporation declara que este RC-S360/S / RC-S360/SH está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE. Para mais informacoes, por favor consulte a seguinte URL: http://www.compliance.sony.de/ For kunder i Europa Undertegnede Sony Corporation erklærer herved, at følgende udstyr RC-S360/S / RC-S360/SH overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. For yderligere information gå ind på følgende hjemmeside: http://www.compliance.sony.de/ Euroopassa oleville asiakkaille Sony Corporation vakuuttaa täten että RC-S360/S / RC-S360/SH tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen. Halutessasi lisätietoja, käy osoitteessa: http://www.compliance.sony.de/ For kundene i Europa Sony Corporation erklærer herved at utstyret RC-S360/S / RC-S360/SH er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF. For flere detaljer, vennligst se: http://www.compliance.sony.de/ Για τους πελάτες στην Ευρώπη Με την παρούσα η Sony Corporation δηλώνει ότι RC-S360/S / RC-S360/SH συμμορφώνεται προς της ουσιώδεις απαιτήσεις και τις λοιπές σχετικές διατάξεις της οδηγίας 1999/5/ΕΚ. Για λεπτομέρειες παρακαλούμε όπως ελένξετε την ακόλουθη σελίδα του διαδικτύου: http://www.compliance.sony.de/ За клиентите в Европа С настоящето Сони Корпорация декларира, че този RC-S360/S / RC-S360/SH отговаря на основните изисквания и другите съответстващи клаузи на Директива 1999/5/ЕС. Подробности може да намерите на Интернет страницата : http://www.compliance.sony.de/. Pro zákazníky v Evropě Sony Corporation tímto prohlašuje, že tento RC-S360/S / RC-S360/SH je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES. Podrobnosti lze získat na následující URL: http://www.compliance.sony.de/ Euroopa klientidele Sony Corporation kinnitab käesolevaga seadme RC-S360/S / RC-S360/SH vastavust 1999/5/EÜ direktiivi põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. Üksikasjalikum info: http://www.compliance.sony.de/. Európai vásárlóink fi gyelmébe Alulírott, Sony Corporation nyilatkozom, hogy a(z) RC-S360/S / RC-S360/SH megfelel a vonatkozó alapvető követelményeknek és az 1999/5/EC irányelv egyéb előírásainak. További információkat a következő weboldalon találhat: http://www.compliance.s…

Text truncated - open the document above for the full version.

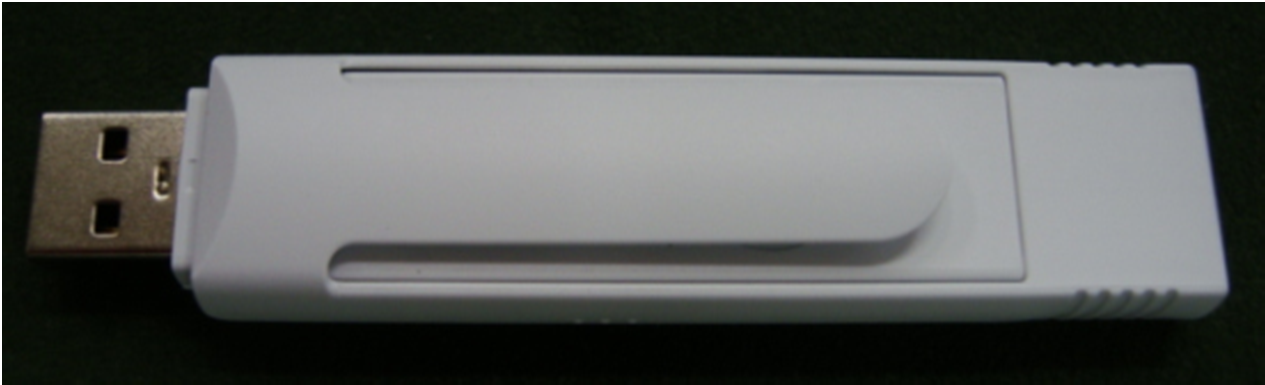

RC-S360/S External Photograph RC-S360/SH External Photograph

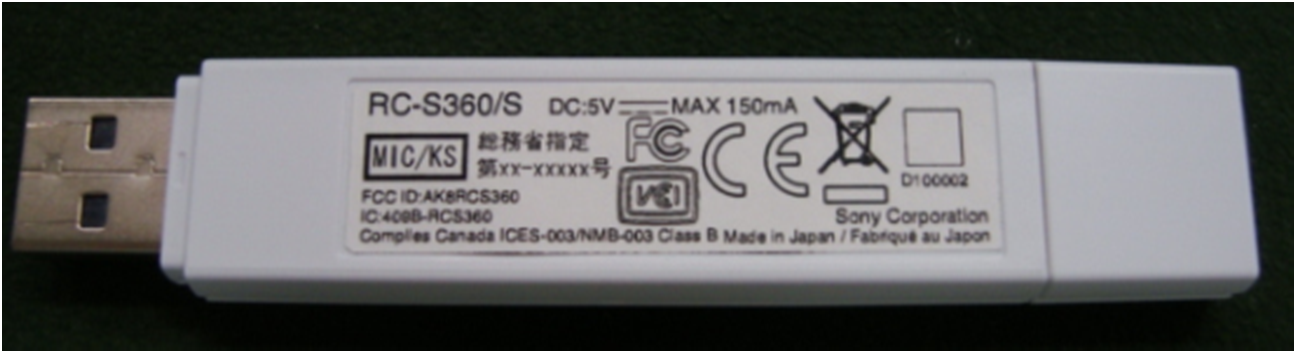

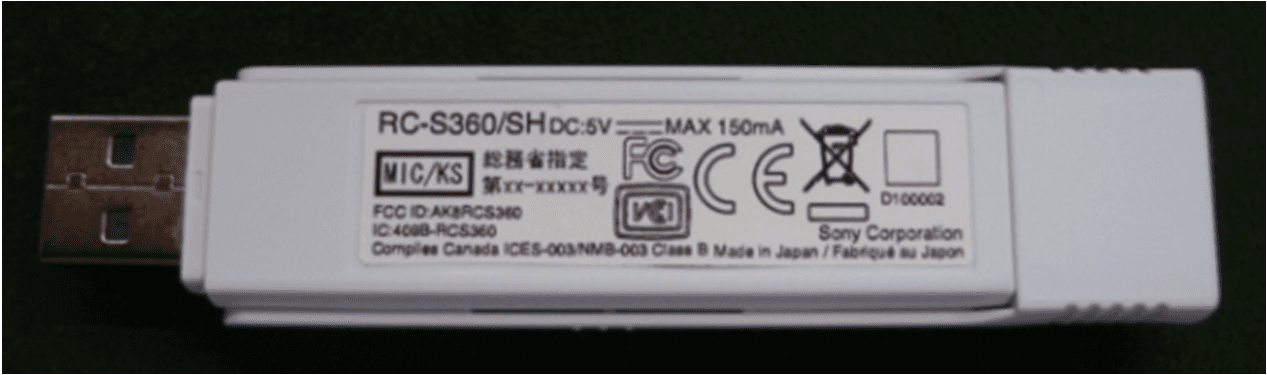

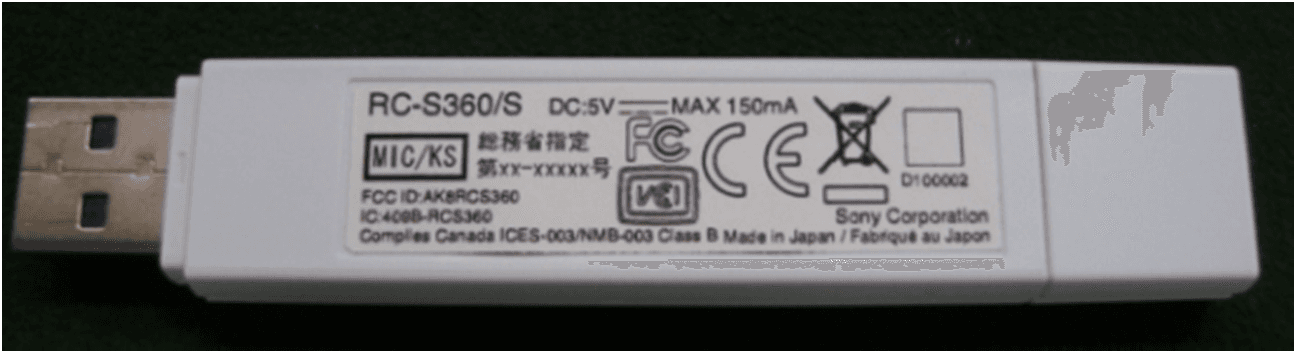

RC-S360/S Label-ID Instructions fig2 ： assembling label-ID fig1 ： detailed label-ID serial number bar codeserial number character RC-S360/SH Label-ID Instructions fig2 ： assembling label-ID fig1 ： detailed label-ID serial number bar codeserial number character

RC-S360/S,/SH Internal Photograph （ 1/2 ） RC-S360/S,/SH Internal Photograph （ 2/2 ）

Test report No. : 31AE0016-SH-01-E Page : 2 of 22 Issued date : October 28, 2010 FCC ID : AK8RCS360 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ........................................................................................3 SECTION 2: Equipment under test (E.U.T.) ..........................................................................3 SECTION 3: Test specification, procedures & results ...........................................................4 SECTION 4: Operation of E.U.T. during testing....................................................................6 SECTION 5: Conducted emission ............................................................................................7 SECTION 6: Radiated emission (Fundamental, spurious and outside the allocated bands)8 SECTION 7: 20dB bandwidth & Occupied bandwidth (99%)..............................................9 SECTION 8: Frequency tolerances ..........................................................................................9 Contents of appendixes .............................................................................................................10 APPENDIX 1: Photographs of test setup...............................................................................11 APPENDIX 2: Test data ..........................................................................................................14 APPENDIX 3: Test instruments .............................................................................................22 Test report No. : 31AE0016-SH-01-E Page : 3 of 22 Issued date : October 28, 2010 FCC ID : AK8RCS360 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : Sony EMCS Corporation Kisarazu TEC Address : 8-4 Shiomi Kisarazu-shi, Chiba, 292-0834 Japan Telephone Number : +81-438-37-3982 Facsimile Number : +81-438-37-4705 Contact Person : Yuuki Fujiwara SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Contactless IC Card Reader/Writer Model Number : RC-S360/S Serial Number : D200001 Rating : DC4.75 to 5.25V Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Receipt Date of Sample : October 18, 2010 Modification of EUT : No modification by the test lab. 2.2 Product description Model: RC-S360/S (referred to as the EUT in this report) is a Contactless IC Card Reader/Writer. Clock frequencies: CPU: 27.12MHz RC-S360/S has similar model, RC-S360/SH. Both print boards are equivalent. A difference of RC-S360/S and RC-S360/SH is a shape of non-inductive case. <Radio part> Equipment type : Transceiver Frequency of operation : 13.56MHz Type of modulation : ASK Antenna type : Loop Antenna connector type : None ITU code : A1D Operation temperature range : +5 to +35 deg.C. FCC 15.31 (e) The RFID transmitter has a regulator which regulates the supplied voltage of DC 5V to DC 3.4V. Therefore, the equipment complies power supply regulation. FCC Part 15.203 The antenna is not removable from the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 31AE0016-SH-01-E Page : 4 of 22 Issued date : October 28, 2010 FCC ID : AK8RCS360 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 3: Test specification, procedures & results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2010, final revised on October 13, 2010 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.209 Radiated emission limits, general requirements Section 15.215 Additional provisions to the general radiated emission limitations. Section 15.225 Operation within the bands 13.110-14.010MHz. The EUT complies with FCC Part 15 Subpart B: 2010. Refer to the test report: 31AE0016-SH-01-G. 3.2 Procedures & Results Item Test Procedure Specification Remarks DeviationWorst Margin Results Conducted emission ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC Section15.207 - N/A 10.6dB Freq: 13.56192MHz Detector: Quasi-Peak Phase: N Complied Electric field strength of Fundamental emission ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section15.225 (a) Radiated N/A 60.4dB Polarization: Vertical Complied Electric field strength of Outside the allocated bands ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section15.225 (b)(c) Radiated N/A 41.7dB Freq: 13.553MHz Polarization: Vertical Complied Electric field strength of Spurious emission ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section15.209 FCC Section15.225 (d) Radiated N/A 5.4dB Freq: 786.480MHz Polarization: Horizontal Complied 20dB bandwidth ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section15.215 (c) Radiated N/A - Complied Frequency tolerance ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section15.225 (e) Radiated N/A - Complied Note: UL Japan’s EMI Work Procedures No.QPM05 and QPM15. 3.3 Addition to standard Item Test Procedure Specification Remarks Worst Margin Results Occupied Bandwidth (99%) ANSI C63.4:2003 13. Measurement of intentional radiators, RSS-Gen 4.6.1 RSS-Gen 4.6.1 Radiated - Complied Note: UL Japan’s EMI Work Procedures No.QPM05 and QPM15. * Other than above, no addition, exclusion nor deviation has been made from the standard. Test report No. : 31AE0016-SH-01-E Page : 5 of 22 Issued date : October 28, 2010 FCC ID : AK8RCS360 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 64…

Text truncated - open the document above for the full version.

UL Japan, Inc. Shonan No1 Semi-Anechoic Chamber Company : Sony Corporation Report No. : 31AE0016-SH-01-E Equipment: Contactless IC Card Reader/WriterRegulation: FCC Part15 SupartC 15.225 Model: RC-S360/STest Distance: 3m Sample No.: D200001Date: 2010/10/19 Power: DC5VTemperature: 22deg.C Mode: Transmitting (13.56MHz)Humidity: 52% Remarks: Vertical polarization (antenna angle) of the worst case: 0deg ENGINEER : Shinichi Takano Field strength No.FREQANTLOSS AMPLIMIT FactorGAIN(3m) Ho rVerHorVerHorVer [MHz][dBuV] [dBuV] [dB/m] [dB][dB] [dBuV/m][dBuV/m][dBuV/m][dB][dB] 113.56057.668.720.16.531.852.463.5123.971.560.4 Calculation:Result[dBuV/m]=Reading[dBuV]+Ant.Fac[dB/m]+Loss(Cable+ATT)[dB]-Gain(AMP)[dB] Field strength of 13.553MHz to 13.567MHz Limit(3m) = 84dBuV/m + 40log 30m/3m = 124dBuV/m (FCC15.225(a)) Outside Field strength No.FREQANT LOSS AMPLIMIT FactorGAIN(3m) HorVerHorVerHorVer [MHz][dBuV] [dBuV][dB/m][dB][dB][dBuV/m][dBuV/m][dBuV/m][dB][dB] 113.11029.329.320.16.531.824.124.169.545.445.4 213.41029.636.820.16.531.824.431.680.556.148.9 313.55342.354.020.16.531.837.148.890.553.441.7 413.56739.050.520.16.531.833.845.390.556.745.2 513.71029.634.220.16.531.824.429.080.556.151.5 614.01029.229.320.06.531.823.924.069.545.645.5 Calculation:Result[dBuV/m]=Reading[dBuV]+Ant.Fac[dB/m]+Loss(Cable+ATT)[dB]-Gain(AMP)[dB] Outside filed strength frequencies ･filed strength band Fc±7kHz:13.553MHz to 13.567MHz ･Outside filde strength Fc±150kHz:13.410MHz to 13.710MHz ･Outside filde strength Fc±450kHz:13.110MHz to 14.010MHz Fc = 13.56MHz Limits (3m) ･13.410MHz to 13.553MHz and 13.567MHz to 13.710MHz : 50.5dBuV/m + 40log30m/3m = 90.5dBuV/m (FCC15.225(b)) ･13.110MHz to 14.010MHz and 13.710MHz to 14.010MHz : 40.5dBuV/m + 40log30m/3m = 80.5dBuV/m (15.225(c)) ･Below 13.110MHz and Above 14.010MHz : 29.5dBuV/m + 40log30m/3m = 69.5dBuV/m (FCC15.225(d)and FCC15.209) Data of Field Strength and Outside Fileld Strength: FCC15.225(a)(b)(c) T/R Reading T/R Reading MARGINRESULT RESULTMARGIN 20dB bandwidth & Occupied bandwidth (99%): FCC 15.215(c) UL Japan. Inc. Shonan No1 Shield room COMPANY : Sony Corporation REPORT No. : 31AE0016-SH-01-E Equipment : Contactless IC Card Reader/Writer REGULATION : FCC Part 15 Subpart C 15.215(c) MODEL NUMBER : RC-S360/S DATE : 2010/10/19 SERIAL NUMBER : D200001 TEMP./HUMI : 27 ̊C/41% POWER : DC5V TEST MODE : Transmitting(13.56MHz) ENGINEER : Shinichi Takano 20dB Bandwidth: 3.00kHz OBW(99%): 2.19kHz UL Japan, Inc. Shonan No5 Shield room Company: Sony CorporationReport No.: 31AE0016-SH-01-E Equipment : Contactless IC Card Reader/Writer Regulation : FCC Part15 SupartC 15.225 (e) Model: RC-S360/S Sample No.: D200001Date: 2010/10/19 Power: DC5VTemperature: 26deg.C Mode: Transmitting (13.56MHz) Humidity: 39% ENGINEER : Makoto Hosaka Temperature Variation: -30deg.C OriginalMeasureFrequencyFrequency Limit FrequencyFrequencyErrortorerance (MHz)(MHz)(MHz)(%)(%) startup13.5613.5602190.00021900.001620.01 after 2minutes13.5613.5602490.00024900.001840.01 after 5minutes13.5613.5602440.00024400.001800.01 after 10minutes13.5613.5602400.00024000.001770.01 Temperature Variation: -20deg.C OriginalMeasureFrequencyFrequency Limit FrequencyFrequencyErrortorerance (MHz)(MHz)(MHz)(%)(%) startup13.5613.5602450.00024500.001810.01 after 2minutes13.5613.5602270.00022700.001670.01 after 5minutes13.5613.5602120.00021200.001560.01 after 10minutes13.5613.5602070.00020700.001530.01 Temperature Variation: -10deg.C OriginalMeasureFrequencyFrequency Limit FrequencyFrequencyErrortorerance (MHz)(MHz)(MHz)(%)(%) startup13.5613.5602470.00024700.001820.01 after 2minutes13.5613.5601850.00018500.001360.01 after 5minutes13.5613.5601640.00016400.001210.01 after 10minutes13.5613.5601590.00015900.001170.01 Temperature Variation: 0deg.C OriginalMeasureFrequencyFrequency Limit FrequencyFrequencyErrortorerance (MHz)(MHz)(MHz)(%)(%) startup13.5613.5602320.00023200.001710.01 after 2minutes13.5613.5601320.00013200.000970.01 after 5minutes13.5613.5601100.00011000.000810.01 after 10minutes13.5613.5601030.00010300.000760.01 Test Conditions Test Conditions Data of Frequency Tolerance: FCC 15.225(e) Test Conditions Test Conditions Temperature Variation: 10deg.C OriginalMeasureFrequencyFrequency Limit FrequencyFrequencyErrortorerance (MHz)(MHz)(MHz)(%)(%) startup13.5613.5601820.00018200.001340.01 after 2minutes13.5613.5600740.00007400.000550.01 after 5minutes13.5613.5600510.00005100.000380.01 after 10minutes13.5613.5600450.00004500.000330.01 Temperature Variation: 20deg.C OriginalMeasureFrequencyFrequency Limit FrequencyFrequencyErrortorerance (MHz)(MHz)(MHz)(%)(%) startup13.5613.5601310.00013100.000970.01 after 2minutes13.5613.5601120.00011200.000830.01 after 5minutes13.5613.5601160.00011600.000860.01 after 10minutes13.5613.5601460.00014600.001080.01 Temperature Variation: 30deg.C OriginalMeasureFrequencyFrequency Limit FrequencyFrequencyErrortorerance (MHz)(MHz)(MHz)(%)(%) startup13.5613.5600210.00002100.000150.01 after 2minutes13.5613.559965-0.0000350-0.000260.01 after 5minutes13.5613.559951-0.0000490-0.000360.01 after 10minutes13.5613.559954-0.0000460-0.000340.01 Temperature Variation: 40deg.C OriginalMeasureFrequencyFrequency Limit FrequencyFrequencyErrortorerance (MHz)(MHz)(MHz)(%)(%) startup13.5613.5600140.00001400.000100.01 after 2minutes13.5613.559940-0.0000600-0.000440.01 after 5minutes13.5613.559931-0.0000690-0.000510.01 after 10minutes13.5613.559929-0.0000710-0.000520.01 Temperature Variation: 50deg.C OriginalMesureFrequencyFrequency Limit FrequencyFrequencyErrortorerance (MHz)(MHz)(MHz)(%)(%) startup13.5613.559963-0.0000370-0.000270.01 after 2minutes13.5613.559926-0.0000740-0.000550.01 after 5minutes13.5613.559927-0.0000730-0.000540.01 after 10minutes13.5613.559929-0.0000710-0.000520.01 Test Conditions Test Conditions Test Conditions Test Conditions Test Conditions Company : Sony Corporation Report No. : 31AE0016-SH-01-E UL Japan, Inc. Shonan No5 Shield room Company: Sony CorporationReport No.: 31AE0016-SH-01-E Equipment: Contactles…

Text truncated - open the document above for the full version.

Test report No. : 31AE0016-SH-01-E Page : 11 of 22 Issued date : October 28, 2010 FCC ID : AK8RCS360 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 1: Photographs of test setup Conducted emission Test report No. : 31AE0016-SH-01-E Page : 12 of 22 Issued date : October 28, 2010 FCC ID : AK8RCS360 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radiated emission 9kHz-30MHz Loop antenna: Horizontal Loop antenna: Vertical 30MHz-1000MHz Test report No. : 31AE0016-SH-01-E Page : 13 of 22 Issued date : October 28, 2010 FCC ID : AK8RCS360 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-check of the worst position X-axis Y-axis Z-axis
