AK8RCS380Contactless IC Card Reader/Writer

RC-S380 4-440-698-01(1) RC-S380 4-440-698-01(1)     FeliCa TypeA TypeB IC USB / Operating Instructions RC-S380 © 2012 Sony Corporation Printed in Japan 4-440-698-01(1) IC Contactless IC Card Reader/Writer FeliCa IC     http://www.sony.co.jp/Products/felica/     For the customers in the U.S.A. NOT APPLICABLE IN CANADA,INCLUDING THE PROVINCE OF QUEBEC. POUR LES CONSOMMATEURS AUX ÉTATS-UNIS. NON APPLICABLE AU CANADA,Y COMPRIS LA PROVINCE DE QUÉBEC. Trade Name: Sony Corporation Model Number: RC-S380 For the customers in Canada This Class B digital apparatus complies with Canadian ICES-003. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met. Pour les clients au Canada Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. L’utilisation doit répondre aux deux conditions suivantes : (1) ce matériel ne doit pas provoquer de brouillage et (2) il doit accepter tout brouillage, même celui qui est susceptible d’affecter son fonctionnement. La mention « IC: » devant le numéro de certification/ homologation signifie uniquement que les spécifications techniques d’Industrie Canada sont remplies. For the customers in Europe Hereby, Sony Corporation, declares that this RC-S380 is in compliance with the essential requirements and other relevant provisions of the Directive 1999/5/EC. For details, please access the following URL: http://www.compliance.sony.de/ Pour les clients en Europe Par la présente Sony Corporation déclare que l’appareil RC-S380 est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE. Pour toute information complémentaire, veuillez consulter l’URL suivante: http://www.compliance.sony.de/ Für Kunden in Europa Hiermit erklärt Sony Corporation, dass sich das Gerät RC-S380 in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Weitere Informationen erhältlich unter: http://www.compliance.sony.de/ Per i clienti in Europa Con la presente Sony Corporation dichiara che questo RC-S380 è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Per ulteriori dettagli, si prega di consultare il seguente URL: http://www.compliance.sony.de/ Para los clientes de Europa Por medio de la presente Sony Corporation declara que el RC-S380 cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Para mayor información, por favor consulte el siguiente URL: http://www.compliance.sony.de/ Voor de klanten in Europa Hierbij verklaart Sony Corporation dat het toestel RC-S380 in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG. Nadere informatie kunt u vinden op: http://www.compliance.sony.de/ For kunder i Europa Härmed intygar Sony Corporation att denna RC-S380 står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG. För ytterligare information gå in på följande hemsida: http://www.compliance.sony.de/ Para os clientes da Europa Sony Corporation declara que este RC-S380 está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE. Para mais informacoes, por favor consulte a seguinte URL: http://www.compliance.sony.de/ For kunder i Europa Undertegnede Sony Corporation erklærer herved, at følgende udstyr RC-S380 overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. For yderligere information gå ind på følgende hjemmeside: http://www.compliance.sony.de/ Euroopassa oleville asiakkaille Sony Corporation vakuuttaa täten että RC-S380 tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen. Halutessasi lisätietoja, käy osoitteessa: http://www.compliance.sony.de/ For kundene i Europa Sony Corporation erklærer herved at utstyret RC-S380 er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF. For flere detaljer, vennligst se: http://www.compliance.sony.de/ Για τους πελάτες στην Ευρώπη Με την παρούσα η Sony Corporation δηλώνει ότι RC-S380 συμμορφώνεται προς της ουσιώδεις απαιτήσεις και τις λοιπές σχετικές διατάξεις της οδηγίας 1999/5/ΕΚ. Για λεπτομέρειες παρακαλούμε όπως ελένξετε την ακόλουθη σελίδα του διαδικτύου: http://www.compliance.sony.de/ За клиентите в Европа С настоящето Сони Корпорация декларира, че този RC-S380 отговаря на основните изисквания и другите съответстващи клаузи на Директива 1999/5/ЕС. Подробности може да намерите на Интернет страницата : http://www.compliance.sony.de/. Pro zákazníky v Evropě Sony Corporation tímto prohlašuje, že tento RC-S380 je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES. Podrobnosti lze získat na následující URL: http://www.compliance.sony.de/ Euroopa klientidele Sony Corporation kinnitab käesolevaga seadme RC-S380 vastavust 1999/5/EÜ direktiivi põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. Üksikasjalikum info: http://www.compliance.sony.de/. Európai vásárlóink fi gyelmébe Alulírott, Sony Corporation nyilatkozom, hogy a(z) RC-S380 megfelel a vonatkozó alapvető követelményeknek és az 1999/5/EC irányelv egyéb előírásainak. További információkat a következő weboldalon találhat: http://www.compliance.sony.de/ Klientiem Eiropā Ar šo Sony Corporation deklarē, ka RC-S380 atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem. Plašāka informācija ir pieejama: http://www.compliance.sony.de/ Klientams Europoje Šiuo Sony Corporation deklaruoja, kad šis RC-S380 a…

Text truncated - open the document above for the full version.

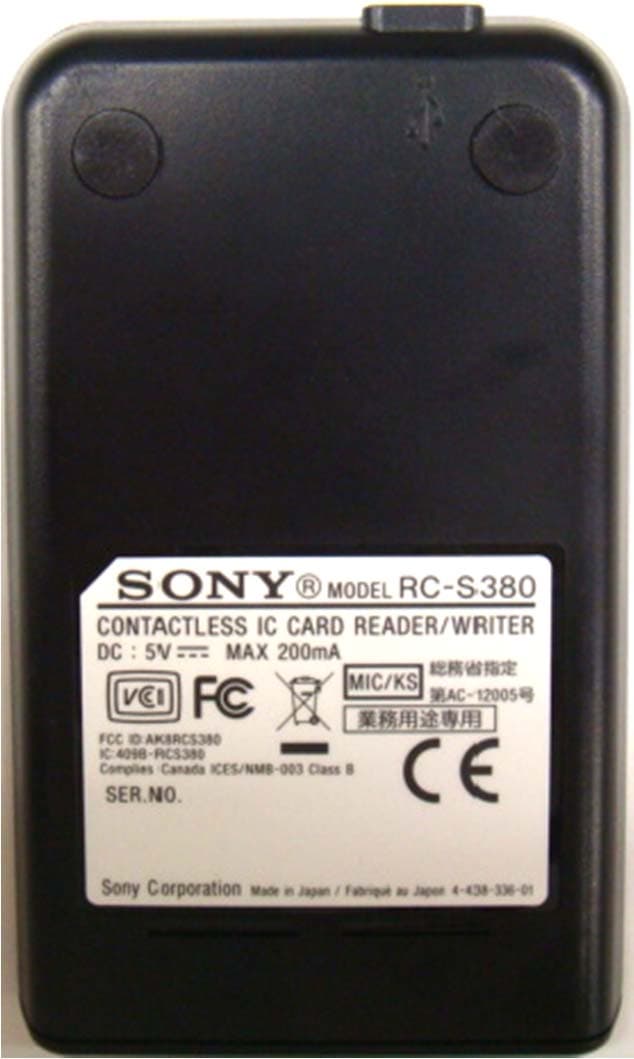

RC-S380 External Photograph

fig2 ： assembling label-ID fig1 ： detailed label-ID serial number bar code RC-S380 Label-ID Instructions Serial No.

RC-S380 Internal Photograph （ 1/2 ） RC-S380 Internal Photograph （ 2/2 ）

Test report No. : 32IE0295-SH-01-A Page : 1 of 23 Issued date : June 15, 2012 FCC ID : AK8RCS380 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 RADIO TEST REPORT Test Report No.: 32IE0295-SH-01-A Applicant : Sony Corporation Type of Equipment : Contactless IC Card Reader / Writer Model No. : RC-S380 FCC ID : AK8RCS380 Test regulation : FCC Part15 Subpart C: 2012 Test result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. Date of test: May 30 and June 1, 2012 Tested by: Hikaru Shirasawa Engineer of WiSE Japan, UL Verification Service Approved by : Toyokazu Imamura Leader of EMC Service, UL Verification Service RTL02610 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". 13-EM-F0429 Test report No. : 32IE0295-SH-01-A Page : 2 of 23 Issued date : June 15, 2012 FCC ID : AK8RCS380 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 32IE0295-SH-01-A Revision Test report No. Date Page revised Contents - (Original) 32IE0295-SH-01-A June 15, 2012 - - Test report No. : 32IE0295-SH-01-A Page : 3 of 23 Issued date : June 15, 2012 FCC ID : AK8RCS380 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ........................................................................................ 4 SECTION 2: Equipment under test (E.U.T.) .......................................................................... 4 SECTION 3: Test specification, procedures & results ............................................................ 5 SECTION 4: Operation of E.U.T. during testing .................................................................... 7 SECTION 5: Conducted emission ........................................................................................... 9 SECTION 6: Radiated emission (Fundamental, spurious and outside the allocated bands) .................................................................................................................................................. 10 SECTION 7: 20dB bandwidth & Occupied bandwidth (99%) ............................................ 11 SECTION 8: Frequency tolerances ........................................................................................ 11 Contents of APPENDIXES ...................................................................................................... 12 APPENDIX 1: Data of radio tests .......................................................................................... 13 APPENDIX 2: Test instruments ............................................................................................ 20 APPENDIX 3: Photographs of test setup .............................................................................. 21 Test report No. : 32IE0295-SH-01-A Page : 4 of 23 Issued date : June 15, 2012 FCC ID : AK8RCS380 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : Sony EMCS Corporation Kisarazu Site Brand SONY Address : 8-4 Shiomi Kisarazu-shi, Chiba, 292-0834 Japan Telephone Number : +81-438-37-3982 Facsimile Number : +81-438-37-4705 Contact Person : Yuuki Fujiwara SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Contactless IC Card Reader / Writer Model Number : RC-S380 Serial Number : Refer to clause 4.2 Rating : DC4.75 to 5.25V Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Receipt Date of Sample : May 28, 2012 Modification of EUT : No modification by the test lab. 2.2 Product description Model: RC-S380 (referred to as the EUT in this report) is a Contactless IC Card Reader / Writer. Clock frequency(ies) in the system : 27.12MHz, 16.00MHz <Radio part> Equipment type : Transceiver Frequency of operation : 13.56MHz Type of modulation : ASK Antenna type : Loop Antenna connector type : None ITU code : A1D Operation temperature range : +5 to +35 deg.C. FCC 15.31 (e) The RFID transmitter has a regulator which regulates the supplied voltage of DC 5V to DC 3.3V. Therefore, the equipment complies power supply regulation. FCC Part 15.203 The antenna is not removable from the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 32IE0295-SH-01-A Page : 5 of 23 Issued date : June 15, 2012 FCC ID : AK8RCS380 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 3: Test specification, procedures & results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2012, final revised on March 30, 2012 and effective April 30, 2012 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.225 : Operation within the band 13.110-14.010MHz The EUT complies wit…

Text truncated - open the document above for the full version.

Test report No. : 32IE0295-SH-01-A UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Conducted emission 21 Test report No. : 32IE0295-SH-01-A UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radiated emission 9kHz-30MHz Front Loop antenna: Horizontal Loop antenna: Vertical 30MHz-1000MHz 22 Test report No. : 32IE0295-SH-01-A UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-check of the worst position X-axis Y-axis Z-axis 23/23
