AK8RFT001Vehicle Audio Video Transmitter

H:\Data Disk\2581681411\258168141MEXR5U\00US+00COV-U.fmmasterpage:Right Operating Instructions Mode d’emploi © 2005 Sony Corporation 2-581-681-41 (1) MEX-R5 2-581-681-41 (1) MEX-R5 Owner’s Record The model and serial numbers are located on the bottom of the unit. Record these numbers in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product. Model No. MEX-R5 Serial No. For installation and connections, see the supplied installation/connections manual. En ce qui concerne l’installation et les connexions, consulter le manuel d’installation/raccordement fourni. US FR Multi Disc Player 00US+00cov-U.book Page 1 Friday, May 27, 2005 9:58 AM 2 01US01INT-U.fm MEX-R5 2-581-681-41 (1) masterpage:Left Warning To prevent fire or shock hazard, do not expose the unit to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. CAUTION The use of optical instruments with this product will increase eye hazard. As the laser beam used in this CD/DVD player is harmful to eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only. Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. Warning if your car’s ignition has no ACC position After turning the ignition off, be sure to press and hold (OFF) on the unit until the display disappears. Otherwise, the display does not turn off and this causes battery drain. CAUTION Laser radiation when open. DO NOT STARE INTO BEAM. - This label is located on the drive unit’s internal chassis. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. Operation is subject to the following two conditions; – this device may not cause interference. – this device must accept any interference, including interference that may cause undesired operation of the device. 00US+00cov-U.book Page 2 Friday, May 27, 2005 9:58 AM 3 00US+00COV-UTOC.fmmasterpage:Right MEX-R5 2-581-681-41 (1) Table of Contents Welcome! . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Playable discs . . . . . . . . . . . . . . . . . . . . . . . . 5 Getting Started Resetting the unit . . . . . . . . . . . . . . . . . . . . . . 8 Setting the clock . . . . . . . . . . . . . . . . . . . . . . 8 DEMO mode . . . . . . . . . . . . . . . . . . . . . . . . . 8 Detaching the front panel . . . . . . . . . . . . . . . 8 Inserting the disc in the unit . . . . . . . . . . . . . 9 Location of controls and basic operations . . . . . . . . . . . . . . . . . . . . . . . . 10 Menu displays . . . . . . . . . . . . . . . . . . . . . . . 13 Player Playing discs . . . . . . . . . . . . . . . . . . . . . . 15 Resuming playback — Resume play . . . . . . . . . . . . . . . . . . . 17 Viewing the disc information — Time/text information . . . . . . . . . . . 17 Searching a specific point on a disc — Scan . . . . . . . . . . . . . . . . . . . . . . . . 18 Using the menus on DVDs . . . . . . . . . . . . . 19 Using PBC functions — PBC (Playback control) . . . . . . . . . . 19 Playing in various modes — Repeat play/Shuffle play/ Search play . . . . . . . . . . . . . . . . . . . . . . . 20 Various DVD operations Changing the audio channels . . . . . . . . . . . 22 Changing the angles . . . . . . . . . . . . . . . . . . 23 Displaying the subtitles . . . . . . . . . . . . . . . 24 Magnifying pictures . . . . . . . . . . . . . . . . . . 24 Changing the picture quality — Picture EQ . . . . . . . . . . . . . . . . . . . . 25 Locking discs — Parental control . . . . . . . . . . . . . . . . . 26 Settings and Adjustments Using the Setup menu . . . . . . . . . . . . . . . . . 28 Setting the display language or sound track — Language setup . . . . . . . . . . . . . . . . . 29 Setting the screen — Screen setup . . . . . . . . . . . . . . . . . . . 30 Custom settings — Custom setup . . . . . . . . . . . . . . . . . . . 31 Audio settings — Audio setup . . . . . . . . . . . . . . . . . . . . 32 Radio Storing automatically — BTM . . . . . . . . . . . . . . . . . . . . . . . . . 33 Storing manually. . . . . . . . . . . . . . . . . . . . . 33 Receiving the stored stations . . . . . . . . . . . 33 Tuning automatically . . . . . . . . . . . . . . . . . 33 Receiving a station through a list — list-up. . . . . . . . . . . . . . . . . . . . . . . . . 33 Other functions Adjusting the sound characteristics . . . . . . 34 Adjusting the equalizer curve — EQ7 Tune . . . . . . . . . . . . . . . . . . . . . 34 Labeling a station/disc . . . . . . . . . . . . . . . . 35 Adjusting unit menu items — SYSTEM MENU . . . . . . . . . . . . . . . 35 Using optional equipment . . . . . . . . . . . . . . 37 Switching the front/rear output — Zone × Zone . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

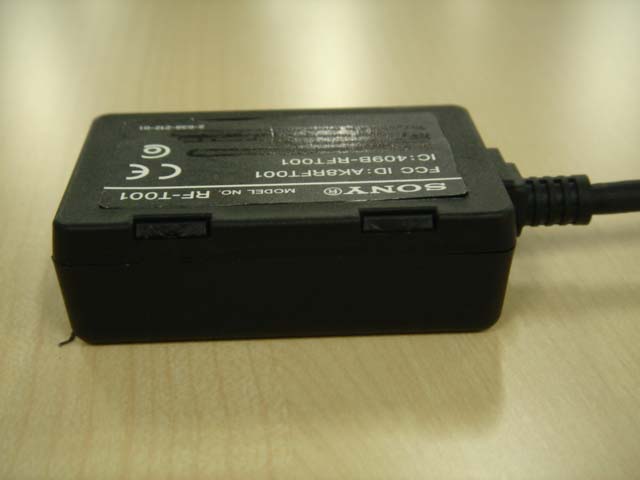

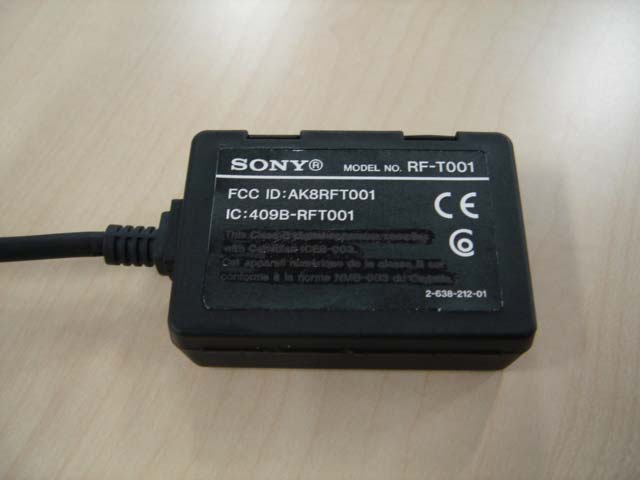

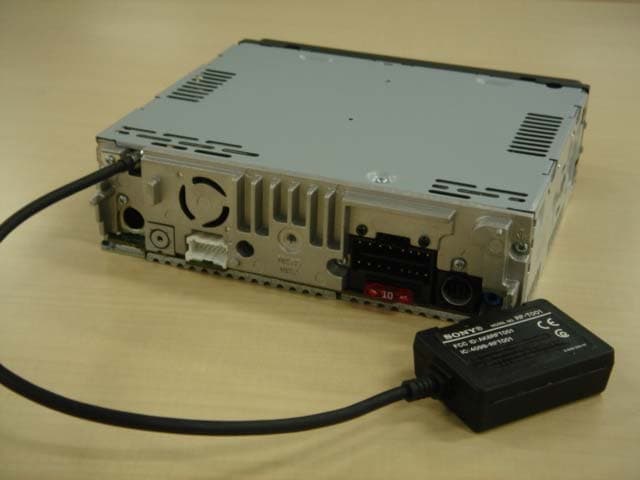

Sony Corporation FCC ID: AK8RFT001 External Photo Front of Transmitter Rear of Transmitter Sony Corporation FCC ID: AK8RFT001 External Photo Side of Transmitter Top Side of Transmitter Sony Corporation FCC ID: AK8RFT001 External Photo Transmitter with Multi Disc Player (MEX-R5)

Sony Corporation FCC ID: AK8RFT001 Internal Photo Transmitter Module Transmitter Module 2 Sony Corporation FCC ID: AK8RFT001 Internal Photo Rear of Transmitter Module with Shield Right Side View of Transmitter Module Sony Corporation FCC ID: AK8RFT001 Internal Photo Left Side View of Transmitter Module Rear of Transmitter Module Sony Corporation FCC ID: AK8RFT001 Internal Photo Transmitter Module cover opened Transmitter Module cover opened 2

Test report No. : 25EE0212-HO-1 Page : 2 of 17 Issued date : June 1, 2005 Revised date : June 9, 2005 FCC ID : AK8RFT001 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) CONTENTS PAGE SECTION 1: Client information...................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ................................................................................. 3 SECTION 3: Test specification, procedures & results .................................................................. 4 SECTION 4: Operation of E.U.T. during testing........................................................................... 6 SECTION 5: Spurious Emission...................................................................................................... 7 SECTION 6: -20dB Bandwidth ....................................................................................................... 7 APPENDIX 1: Photographs of test setup........................................................................................ 8 Spurious Emission (Transmitter) ............................................................................................................................8 Worst Case Position (X-axis:Horizontal / X-axis:Vertical)...................................................................................9 APPENDIX 2:Test instruments ...................................................................................................... 10 APPENDIX 3: Data of EMI test ..................................................................................................... 11 Radiated Emission(Transmitter/below 1GHz)..................................................................................................... 11 Radiated Emission (Transmitter/above 1GHz)....................................................................................... 14 -20dB Bandwidth....................................................................................................................................................17 Test report No. : 25EE0212-HO-1 Page : 3 of 17 Issued date : June 1, 2005 Revised date : June 9, 2005 FCC ID : AK8RFT001 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) SECTION 1: Client information Company Name : Sony EMCS Corporation Address : Shinagawa INTERCITY C Tower, 2-15-3 Konan Minato-ku, Tokyo, 108-6201 Japan Telephone Number : +81-3-5769-5650 Facsimile Number : +81-3-5769-5962 Contact Person : Kengo Nakamura SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : AV Transmitter Module Model No. : RF-T001 Serial No. : U-18 (for RF-T001) Country of Manufacture : Japan Receipt Date of Sample : April 8, 2005 Condition of EUT : Production model 2.2 Product Description Model No: RF-T001(referred to as the EUT in this report) is the AV Transmitter Module. Clock frequency in the system 8MHz, 6.5MHz, and 6MHz Equipment Type Transmitter Frequency band Lower limit 2400MHz Upper limit 2483.5MHz Bandwidth 18MHz Type of Modulation FM Antenna Type Inverted-F Antenna Gain -1 dBi max Mode of Operation Simplex Method of frequency generation Synthesizer ITU code F3D Power Supply DC 5V from the main set Operating voltage DC3.3V FCC 15.31 (e) This EUT provides stable voltage(DC5.0V) from Host, and it is constantly converted into and provided with DC3.3V for the Operational voltage within RF Module regardless of input voltage. Therefore, this EUT complies with the requirement. FCC Part 15.203 Antenna requirement It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. Test report No. : 25EE0212-HO-1 Page : 4 of 17 Issued date : June 1, 2005 Revised date : June 9, 2005 FCC ID : AK8RFT001 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part15 Subpart C : 2005 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.249 Operation within the bands 902-928MHz, 2400-2483.5MHz, 5725-5875MHz, and 24.0-24.25GHz : 2005 3.2 Procedures and results No. Item Test Procedure Specification Deviation Worst margin *0) Results 1 Conducted Emission ANSI C63.4:2003 Section 15.207(a) N/A N/A *1) N/A 2 Radiated Emission ANSI C63.4:2003 Section 15.249 N/A Fundamental emission 18.9dB 2414.0MHz, Horizontal, PK Spurious emission 3.0dB(39.668MHz, Vertical, QP) Complied 3 -20dB bandwidth ANSI C63.4:2003 Section 15.215 N/A N/A Complied 4 Frequency Stability ANSI C63.4:2003 Section 15.249(b) N/A N/A *2) N/A Note: UL Apex’s EMI Work Procedures No.QPM05. *0) The result is rounded off to the second decimal place. Therefore, there may be 0.1 difference for the result. *1) The test is excluded since the length of DC Cable is less than 3m. *2) The test is excluded since EUT is not the fixed and point to point operation system. Uncertainty: *In case of the margin below the EMC Head Office’s uncertainty. The data listed in this report meets the limits unless the uncertainty is taken into consideration. Spurious Emission (Radiated) The measurement uncertainty (with a 95% confidence level) for this test using Biconical antenna is ±4.5dB(3m)/ ±4.7dB(10m). The measurement uncertainty (with a 95% confidence level) for this test using Logperiodic antenna is ±5.2dB(3m)/ ±3.8dB(10m). The measurement uncertainty (with a 95% confidence level) for this test using Horn antenna is ±6.6dB. Other test except Conducted Emission and Spurious Emission (Radiated) The mea…

Text truncated - open the document above for the full version.

Test report No. : 25EE0212-HO-1 Page : 8 of 17 Issued date : June 1, 2005 Revised date : June 9, 2005 FCC ID : AK8RFT001 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) APPENDIX 1: Photographs of test setup Spurious Emission (Transmitter) Front Rear Test report No. : 25EE0212-HO-1 Page : 9 of 17 Issued date : June 1, 2005 Revised date : June 9, 2005 FCC ID : AK8RFT001 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) Worst Case Position (X-axis:Horizontal / X-axis:Vertical) X-axis Y-axis Z-axis
