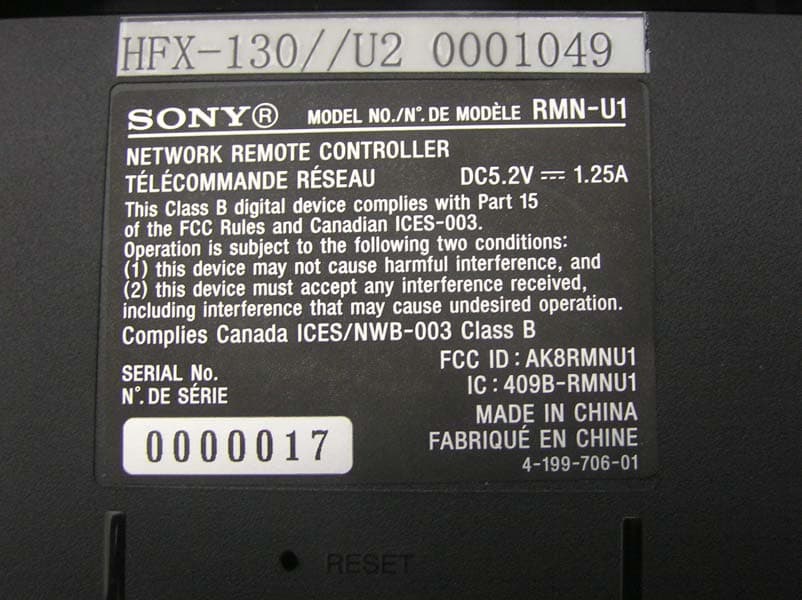

External Photo Sony Corporation Network Remote Controller [Model: RMN-U1] Front Rear External Photo Sony Corporation Network Remote Controller [Model: RMN-U1] Top Bottom External Photo Sony Corporation Network Remote Controller [Model: RMN-U1] Right Left External Photo Sony Corporation Network Remote Controller [Model: RMN-U1] Label

Internal Photo Sony Corporation Network Remote Controller [Model: RMN-U1] Front Rear Antennapart Internal Photo Sony Corporation Network Remote Controller [Model: RMN-U1] Location RF part without shield

Test report No. : 30IE0007-YK-01-D Page : 1 of 54 Issued date : May 27, 2010 Revised date : December 3, 2010 FCC ID : AK8RMNU1 UL Japan, Inc. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 / Facsimile: +81 465 77 2112 SAR TEST REPORT Test Report No. : 30IE0007-YK-01-D Applicant : Sony EMCS Corporation Kisarazu TEC Type of Equipment : Network Remote Controller Model No. : RMN-U1 FCC ID : AK8RMNU1 Test Standard : FCC 47CFR §2.1093, Supplement C (Edition 01-01) to OET Bulletin 65 Test Result : Complied Maximum SAR(1g) Value : 1.09 W/kg (Body, 2462MHz (11b, 2Mbps)) 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above standards. 4. The test results in this test report are traceable to the national or international standards. Date of test: April 19, 20 and 21, 2010 Tested by: Hiroshi Naka Engineer of EMC Service Approved by: Toyokazu Imamura Manager of EMC Service MF060b (06.08.09) Test report No. : 30IE0007-YK-01-D Page : 2 of 54 Issued date : May 27, 2010 FCC ID : AK8RMNU1 UL Japan, Inc. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 / Facsimile: +81 465 77 2112 CONTENTS PAGE SECTION 1: Customer information ..........................................................................3 SECTION 2: Equipment under test (E.U.T)..............................................................3 SECTION 3: Test standards and test results.............................................................4 3.1 Requirements for compliance testing defined by the FCC ........................................... 4 3.2 Exposure limit .............................................................................................................. 4 3.3 Procedure and result ..................................................................................................... 4 3.4 Test location ................................................................................................................. 4 3.5 Confirmation before SAR testing ................................................................................. 5 3.6 Confirmation after SAR testing .................................................................................... 5 3.7 Measurement procedure ............................................................................................... 5 3.8 Test setup of EUT.........................................................................................................5 SECTION 4: Operation of E.U.T. during testing......................................................6 4.1 Operating modes for SAR testing................................................................................. 6 SECTION 5: Uncertainty assessment.........................................................................6 5.1 Measurement uncertainty.............................................................................................. 6 SECTION 6: Confirmation before/after testing ........................................................7 6.1 Assessment for the conducted power of EUT .............................................................. 7 SECTION 7: Measurement results .............................................................................8 7.1 Body SAR..................................................................................................................... 8 APPENDIX 1: Photographs of test setup......................................................................9 Appendix 1-1 Photograph of EUT and antenna position..................................................................... 9 Appendix 1-2 Photograph of test setup ............................................................................................... 10 APPENDIX 2: SAR Measurement data........................................................................12 Appendix 2-1 Evaluation procedure.................................................................................................... 12 Appendix 2-2 Measurement data......................................................................................................... 13 APPENDIX 3: Test instruments ....................................................................................29 Appendix 3-1 Equipment used ............................................................................................................ 29 Appendix 3-2 Dosimetry assessment setup ......................................................................................... 30 Appendix 3-3 Configuration and peripherals ...................................................................................... 30 Appendix 3-4 System components ...................................................................................................... 31 Appendix 3-5 Test system specification .............................................................................................. 32 Appendix 3-6 Simulated tissues composition...................................................................................... 32 Appendix 3-7 Simulated tissues parameter confirmation .................................................................... 33 Appendix 3-8 System validation data .................................................................................................. 33 Appendix 3-9 Validation uncertainty .................................................................................................. 34 Appendix 3-10 Validation measurement data ....................................................................................... 35 Appendix 3-11 Calibration certificate: Dipole (D2450V2) ................................................................... 36 Appendix 3-…

Text truncated - open the document above for the full version.

Test report No. : 30IE0007-YK-01-D Page : 12 of 54 Issued date : May 27, 2010 FCC ID : AK8RMNU1 UL Japan, Inc. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 / Facsimile: +81 465 77 2112 APPENDIX 2: SAR Measurement data Appendix 2-1: Evaluation procedure The SAR evaluation was performed with the following procedure: Step 1: Measurement of the E-field at a fixed location above the central position of flat phantom was used as a reference value for assessing the power drop. Step 2: The SAR distribution at the exposed side of head or body position was measured at a distance of each device from the inner surface of the shell. The area covered the entire dimension of the antenna of EUT and suitable horizontal grid spacing of EUT. Based on these data, the area of the maximum absorption was determined by splines interpolation. Step 3: Around this point found in the Step 2 (area scan), a volume of 30mm(X axis)u30mm(Y axis)u30mm(Z axis) was assessed by measuring 7u7u7 points under 3GHz. And for any secondary peaks found in the Step2 which are within 2dB of maximum peak and not with this Step3 (Zoom scan) is repeated. On the basis of this data set, the spatial peak SAR value was evaluated under the following procedure: (1) The data at the surface were extrapolated, since the center of the dipoles is 1mm away from the tip of the probe and the distance between the surface and the lowest measuring point is 2mm. The extrapolation was based on a least square algorithm [4]. A polynomial of the fourth order was calculated through the points in z- axes. This polynomial was then used to evaluate the points between the surface and the probe tip. (2) The maximum interpolated value was searched with a straightforward algorithm. Around this maximum the SAR values averaged over the spatial volumes (1g or 10g) were computed by the 3D-Spline interpolation algorithm. The 3D-Spline is composed of three one-dimensional splines with the “Not a knot"-condition (in x, y and z-directions) [4], [5]. The volume was integrated with the trapezoidal-algorithm. One thousand points (10u10u10) were interpolated to calculate the average. (3) All neighboring volumes were evaluated until no neighboring volume with a higher average value was found. Step 4: Re-measurement of the E-field at the same location as in Step 1 for the assessment of the power drift. Step 5: Repeat Step 1-Step 4 with other condition or/and setup of EUT. Test report No. : 30IE0007-YK-01-D Page : 13 of 54 Issued date : May 27, 2010 FCC ID : AK8RMNU1 UL Japan, Inc. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 / Facsimile: +81 465 77 2112 Appendix 2-2: Measurement data Step 1: Worst setup position search Step 1-1 Top (distance=0mm) Communication System: 802.11b (1Mbps); Frequency: 2437 MHz(6ch); Duty Cycle: 1:1 DUT: Network remote controller; Type: RMN-U1; Serial: 6 Medium: M2450; Medium parameters used: f = 2450 MHz; ı = 2 mho/m; İ r = 51.6; ȡ = 1000 kg/m 3 DASY4 Configuration: - Probe: EX3DV4 - SN3540; ConvF(7.87, 7.87, 7.87); Calibrated: 2009/06/26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn626; Calibrated: 2010/02/10 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1059, Phantom section: Flat Section - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 Area Scan:180x60,step=15 (121x41x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.979 mW/g Zoom Scan:30x30x30,step=5 (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 16.2 V/m; Power Drift = -0.056 dB Peak SAR (extrapolated) = 1.56 W/kg SAR(1 g) = 0.634 mW/g; SAR(10 g) = 0.242 mW/g Maximum value of SAR (measured) = 1.08 mW/g Additional information: position of distance of DUT to SAM: 0mm (2mm to liquid), liquid depth: 151mm ambient temperature: 23.8 deg.C; liquid temperature: (before) 22.3 deg.C. /(after) 22.3 deg.C. (2010.0420,3S/R, Tested by H. Naka) Test report No. : 30IE0007-YK-01-D Page : 14 of 54 Issued date : May 27, 2010 FCC ID : AK8RMNU1 UL Japan, Inc. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 / Facsimile: +81 465 77 2112 Appendix 2-2: Measurement data (cont’d) Step 1: Worst setup position search (cont’d) Step 1-2 Bottom (distance=0mm) Communication System: 802.11b (1Mbps); Frequency: 2437 MHz(6ch); Duty Cycle: 1:1 DUT: Network remote controller; Type: RMN-U1; Serial: 6 Medium: M2450; Medium parameters used: f = 2450 MHz; ı = 2.02 mho/m; İ r = 51.6; ȡ = 1000 kg/m 3 DASY4 Configuration: - Probe: EX3DV4 - SN3540; ConvF(7.87, 7.87, 7.87); Calibrated: 2009/06/26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn626; Calibrated: 2010/02/10 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1059, Phantom section: Flat Section - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 Area Scan:180x60,step=15 (121x41x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.024 mW/g Zoom Scan:30x30x30,step=5 (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.65 V/m; Power Drift = -0.2 dB Peak SAR (extrapolated) = 0.029 W/kg SAR(1 g) = 0.014 mW/g; SAR(10 g) = 0.00656 mW/g Maximum value of SAR (measured) = 0.021 mW/g Additional information: position of distance of DUT to SAM: 0mm (2mm to liquid), liquid depth: 151mm ambient temperature: 23.0 deg.C; liquid temperature: (before) 225 deg.C. /(after) 22.4 deg.C. (2010.0421,3S/R, Tested by H. Naka) Test report No. : 30IE0007-YK-01-D Page : 15 of 54 Issued date : May 27, 2010 FCC ID : AK8RMNU1 UL Japan, Inc. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 / Facsimile: +81 465 77 2112 Appendix 2-2: Measurement data (cont’d) Step 1: Worst setup position search (cont…

Text truncated - open the document above for the full version.

FCC ID : AK8RMNU1 Test report No. : 30IE0007-YK-01-B Page : 1 of 78 Issued date : May 27, 2010 Revised date : December 3, 2010 UL Japan, Inc. Yamakita EMC Lab. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 RADIO TEST REPORT Test Report No.: 30IE0007-YK-01-B Applicant : Sony EMCS Corporation Kisarazu TEC Type of Equipment : Network Remote Controller Model No. : RMN-U1 FCC ID : AK8RMNU1 Test regulation : FCC Part15 Subpart C: 2010 Test result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. Date of test: April 8, 9, 12 and 14, 2010 Representative test engineer: Akira Sato Engineer of EMC Service Approved by: Toyokazu Imamura Manager of EMC Service MF060b (06.08.09) FCC ID : AK8RMNU1 Test report No. : 30IE0007-YK-01-B Page : 2 of 78 Issued date : May 27, 2010 UL Japan, Inc. Yamakita EMC Lab. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 Table of Contents Page 1 Applicant information 3 2 Equipment under test (E.U.T.) 3 3 Test specification, procedures and results 4 4 System test configuration 7 5 Conducted emission 8 6 6dB bandwidth & Occupied bandwidth (99%) 8 7 Maximum peak output power 8 8 Out of band emissions (Antenna port conducted) 8 9 Out of band emissions (Radiated) 9 10 Peak power density 10 Contents of Appendixes 11 APPENDIX 1: Photographs of test setup 12 APPENDIX 2: Test data 16 APPENDIX 3: Test instruments 78 FCC ID : AK8RMNU1 Test report No. : 30IE0007-YK-01-B Page : 3 of 78 Issued date : May 27, 2010 Revised date : December 3, 2010 UL Japan, Inc. Yamakita EMC Lab. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 1 Applicant information Company Name : SONY EMCS Corporation Kisarazu TEC Address : Shinagawa INTERCITY C Tower, 2-15-3 Konan, Minato-ku, Tokyo, 108-6201 Japan Telephone Number : +81-3-5769-5640 Facsimile Number : +81-3-5769-5915 Contact Person : Shigeru Higai Sony EMCS Corporation Kisarazu TEC is on behalf of the applicant: Sony corporation. 2 Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Network Remote Controller Model No. : RMN-U1 Serial No. : 5 Rating : DC3.7V (Internal battery), DC5.2V (AC adaptor: AC120V/60Hz) Country of Mass-production : China Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. Receipt Date of Sample : April 8, 2010 2.2 Product description Model: RMN-U1 (referred to as the EUT in this report) is a Network Remote Controller. Clock frequency : Real Time Clock: 32.768kHz, Audio Clock: 11.2896MHz, IR μCOM: 8MHz, Wireless Module: 38.4MHz, CODEC: 11.2896MHz, Charge PUMP: 1MHz, Main CPU: 500MHz, DD converter: 2.25MHz & 400kHz & 700kHz & 1MHz & 2MHz Equipment type : Transceiver Frequency of operation : 2412-2462MHz Bandwidth & channel spacing : 20MHz & 5MHz Type of modulation : IEEE802.11b: DSSS (DBPSK, DQPSK, CCK) IEEE802.11g: OFDM (BPSK, QPSK, 16QAM, 64QAM) Antenna type : Chip Antenna connector type : None Antenna gain : 2.51dBi ITU code : D1D, G1D Operation temperature range : 0 ~ +40 deg.C. FCC 15.31 (e) This EUT provides stable voltage (DC1.8V and DC3.3V) constantly to RF transmitter regardless of input voltage. Therefore, this EUT complies with the requirement. FCC Part 15.203 The antenna is not removable from the EUT. Therefore, the equipment complies with the antenna requirement. FCC ID : AK8RMNU1 Test report No. : 30IE0007-YK-01-B Page : 4 of 78 Issued date : May 27, 2010 UL Japan, Inc. Yamakita EMC Lab. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 3 Test specification, procedures and results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2010, final revised on January 22, 2010 and effective March 1, 2010 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.209 Radiated emission limits, general requirements Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz The EUT complies with FCC Part 15 Subpart B: 2010. Refer to the test report 30IE0007-YK-01-A. 3.2 Procedures & Results ItemTest Procedure SpecificationRemarksDeviationWorst Margin Results Conducted emission ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC 15.207 -N/A 11.5dB (0.2076MHz, QP, Tx 2437MHz, IEEE802.11g) Complied 6dB bandwidth "Guidance on Measurement for Digital Transmission Systems Section 15.247" & ANSI C63.4:2003 13. Measurement of intentional radiators FCC 15.247 (a)(2) ConductedN/A Complied Maximum peak Output power "Guidance on Measurement for Digital Transmission Systems Section 15.247" & ANSI C63.4:2003 13. Measurement of intentional radiators FCC 15.247 (b)(3) ConductedN/A * See data. Complied Out of band emission & Restricted band edges "Guidance on Measurement for Digital Transmission Systems Section 15.247" & ANSI C63.4:2003 13. Measurement of intentional radiators FCC 15.109, 15.247 (d) & 15.209 Conducted / Radiated N/A 3.1dB (2483.5MHz, AV, Horizontal, Tx 2462MHz, IEEE802.11g, without charging cradle) Complied Power density "Guidance on Measurement for Digital Transmission Systems Section 15.247" & ANSI C63.4:2003 13. Measurement of intentional radiators FCC 15.247 (e) ConductedN/A * See data. Complied Note: UL Japan’s EMI Work Procedures No.QPM05 and QPM15. FCC ID : AK8RMNU1 Test report No. : 30IE0007-YK-01-B Page : 5 of 78 Issued date : M…

Text truncated - open the document above for the full version.

Data of Conducted Disturbance Test UL Japan, Inc. YAMAKITA No.2 Shielded room 4GRQTV0Q+';-$ #RRNKECPV5QP['/%5%QTRQTCVKQP-KUCTC\W6'% 6[RGQH'SWKROGPV0GVYQTM4GOQVG%QPVTQNNGT /QFGN0Q4/07 5GTKCN0Q 2QYGT&%8 #%8*\ /QFG6TCPUOKVVKPI /*\ D 4GOCTMU &CVG 2JCUG5KPING2JCUG 6GORGTCVWTG͠'PIKPGGT ;CUWOCUC1YCMK *WOKFKV[㧑 .KOKV(%%2CTV%h %+5242WD 0Q(4'34'#&+0) 0 4'#&+0) . .+50%#$.'#66'04'57.6.+/+65/#4)+0 32#832#8(#%614.15532#832#832#8 =/*\?=F$Ǵ8?=F$Ǵ8?=F$?=F$?=F$?=F$?=F$Ǵ8?=F$Ǵ8?=F$?                                                                                    %#.%7.#6+104'#&+0) .+50(#%614 %#$.'.155 #66'0 50+.ع5.- -.05 .#+:#1%ع'.$#%%%- +/'ع4'8+'%'464/ 5%5'  16 Data of Conducted Disturbance Test UL Japan, Inc. YAMAKITA No.2 Shielded room 4GRQTV0Q+';-$ #RRNKECPV5QP['/%5%QTRQTCVKQP-KUCTC\W6'% 6[RGQH'SWKROGPV0GVYQTM4GOQVG%QPVTQNNGT /QFGN0Q4/07 5GTKCN0Q 2QYGT&%8 #%8*\ /QFG6TCPUOKVVKPI /*\ D 4GOCTMU &CVG 2JCUG5KPING2JCUG 6GORGTCVWTG͠'PIKPGGT ;CUWOCUC1YCMK *WOKFKV[㧑 .KOKV(%%2CTV%h %+5242WD =F$Ǵ8? (TGSWGPE[=/*\? 3غWCUK2GCM˜#XGTCIG          17 Data of Conducted Disturbance Test UL Japan, Inc. YAMAKITA No.2 Shielded room 4GRQTV0Q+';-$ #RRNKECPV5QP['/%5%QTRQTCVKQP-KUCTC\W6'% 6[RGQH'SWKROGPV 0GVYQTM4GOQVG%QPVTQNNGT /QFGN0Q4/07 5GTKCN0Q 2QYGT&%8 #%8*\ /QFG6TCPUOKVVKPI /*\ D 4GOCTMU &CVG 2JCUG5KPING2JCUG 6GORGTCVWTG͠'PIKPGGT ;CUWOCUC1YCMK *WOKFKV[㧑 .KOKV(%%2CTV%h %+5242WD .KOKV0QPG 'OKUUKQP.GXGN=F$Ǵ8?2*#5'0 (TGSWGPE[=/*\?          'OKUUKQP.GXGN=F$Ǵ8?2*#5'. (TGSWGPE[=/*\?          18 Data of Conducted Disturbance Test UL Japan, Inc. YAMAKITA No.2 Shielded room 4GRQTV0Q+';-$ #RRNKECPV5QP['/%5%QTRQTCVKQP-KUCTC\W6'% 6[RGQH'SWKROGPV 0GVYQTM4GOQVG%QPVTQNNGT /QFGN0Q4/07 5GTKCN0Q 2QYGT&%8 #%8*\ /QFG6TCPUOKVVKPI /*\ D 4GOCTMU &CVG 2JCUG5KPING2JCUG 6GORGTCVWTG͠'PIKPGGT ;CUWOCUC1YCMK *WOKFKV[㧑 .KOKV(%%2CTV%h %+5242WD .KOKV0QPG 'OKUUKQP.GXGN=F$Ǵ8?2*#5'0 (TGSWGPE[=/*\?          'OKUUKQP.GXGN=F$Ǵ8?2*#5'. (TGSWGPE[=/*\?          19 Data of Conducted Disturbance Test UL Japan, Inc. YAMAKITA No.2 Shielded room 4GRQTV0Q+';-$ #RRNKECPV5QP['/%5%QTRQTCVKQP-KUCTC\W6'% 6[RGQH'SWKROGPV 0GVYQTM4GOQVG%QPVTQNNGT /QFGN0Q4/07 5GTKCN0Q 2QYGT&%8 #%8*\ /QFG6TCPUOKVVKPI /*\ D 4GOCTMU &CVG 2JCUG5KPING2JCUG 6GORGTCVWTG͠'PIKPGGT ;CUWOCUC1YCMK *WOKFKV[㧑 .KOKV(%%2CTV%h %+5242WD .KOKV0QPG 'OKUUKQP.GXGN=F$Ǵ8?2*#5'0 (TGSWGPE[=/*\?          'OKUUKQP.GXGN=F$Ǵ8?2*#5'. (TGSWGPE[=/*\?          20 Data of Conducted Disturbance Test UL Japan, Inc. YAMAKITA No.2 Shielded room 4GRQTV0Q+';-$ #RRNKECPV5QP['/%5%QTRQTCVKQP-KUCTC\W6'% 6[RGQH'SWKROGPV0GVYQTM4GOQVG%QPVTQNNGT /QFGN0Q4/07 5GTKCN0Q 2QYGT&%8 #%8*\ /QFG6TCPUOKVVKPI /*\ I 4GOCTMU &CVG 2JCUG5KPING2JCUG 6GORGTCVWTG͠'PIKPGGT ;CUWOCUC1YCMK *WOKFKV[㧑 .KOKV(%%2CTV%h %+5242WD 0Q(4'34'#&+0) 0 4'#&+0) . .+50%#$.'#66'04'57.6.+/+65/#4)+0 32#832#8(#%614.15532#832#832#8 =/*\?=F$Ǵ8?=F$Ǵ8?=F$?=F$?=F$?=F$?=F$Ǵ8?=F$Ǵ8?=F$?                                                                                 …
