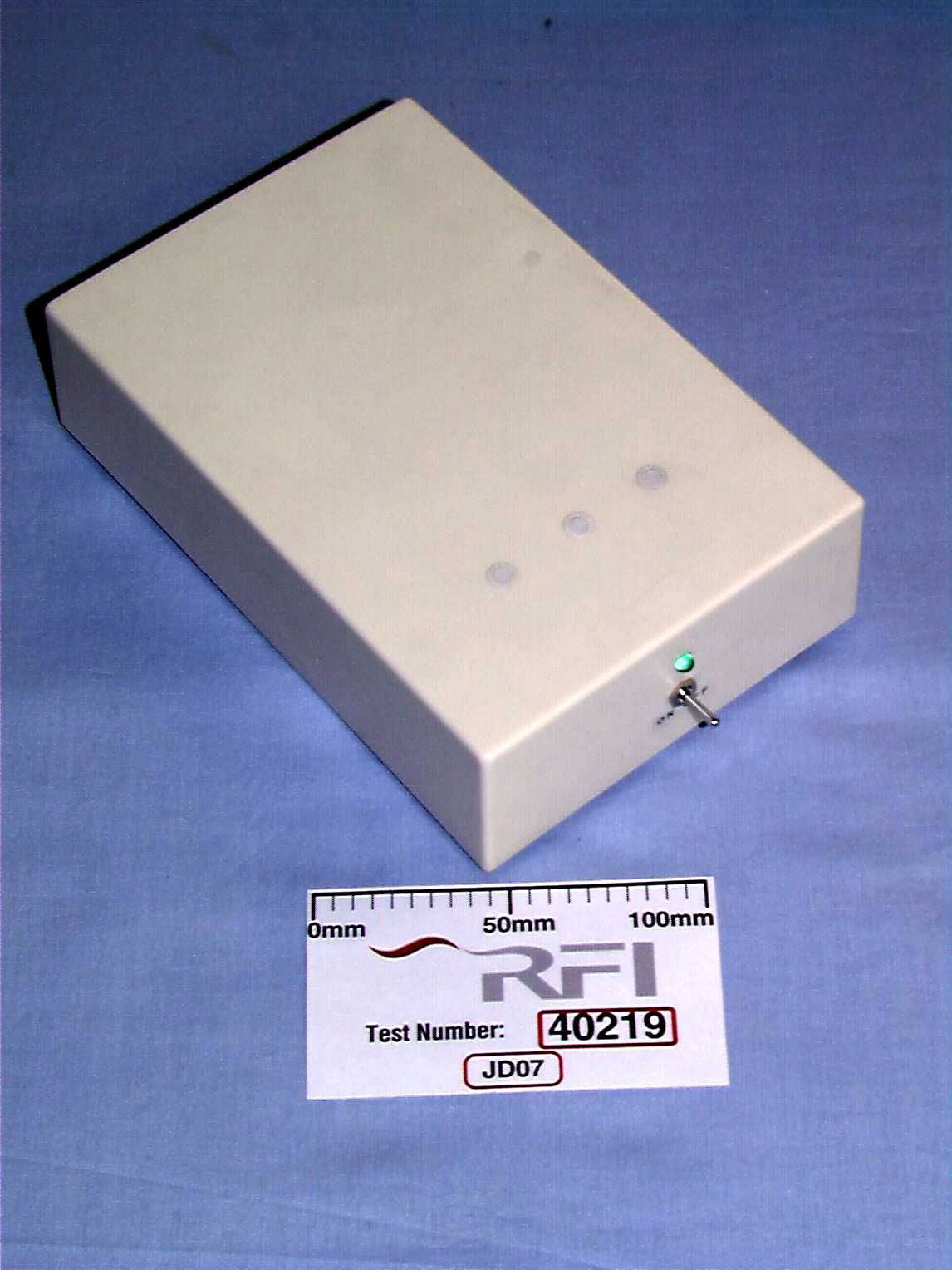

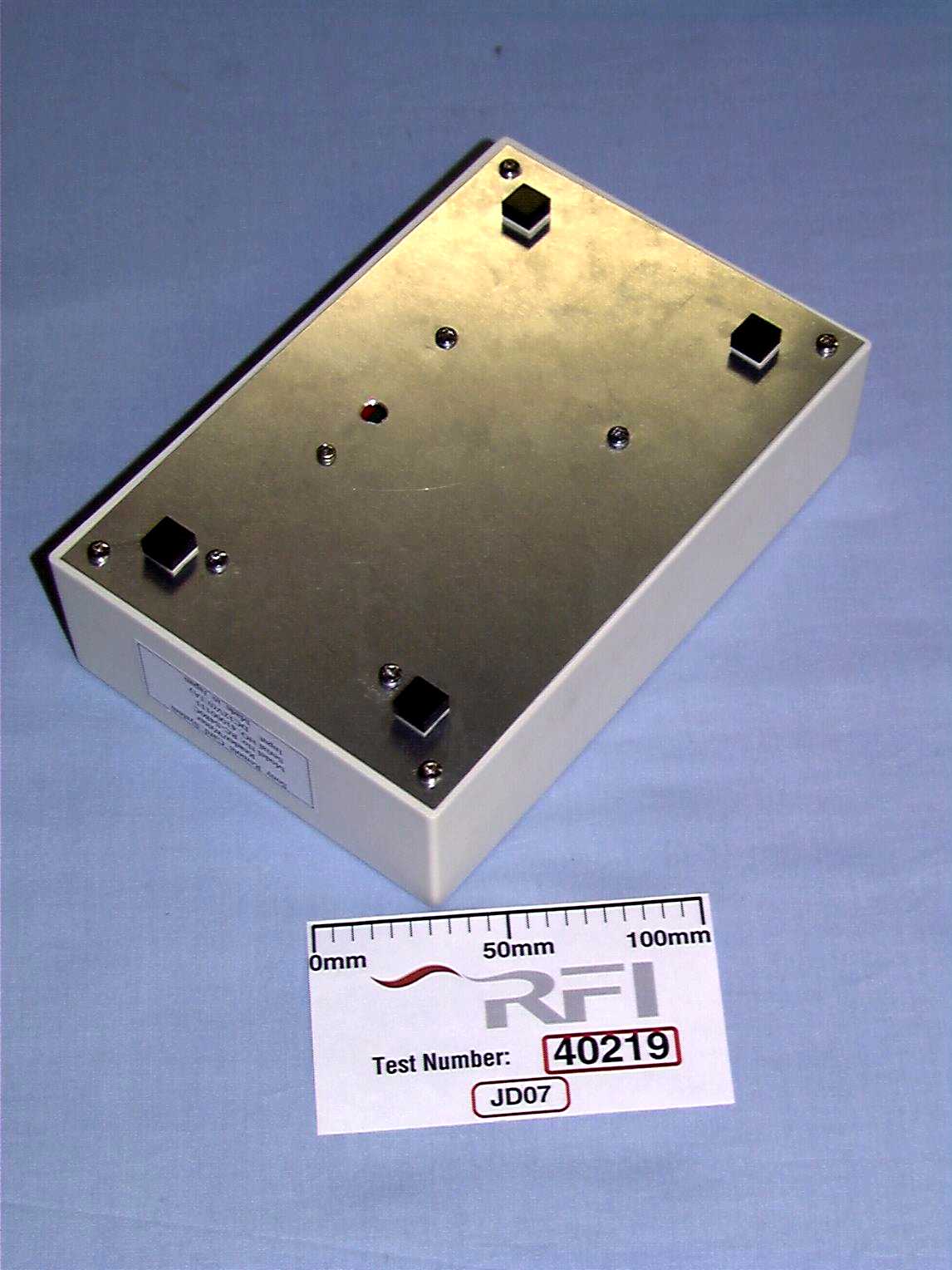

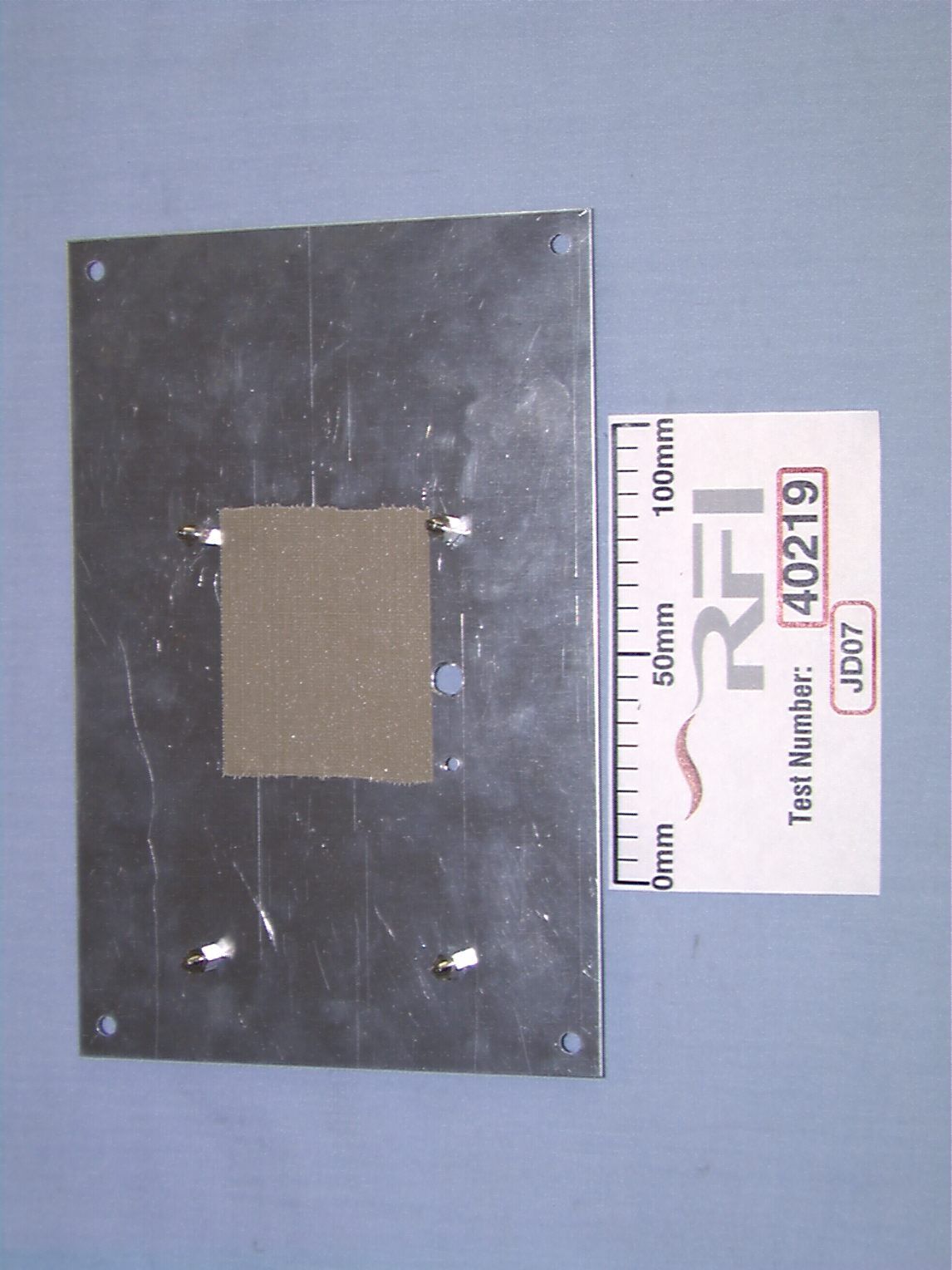

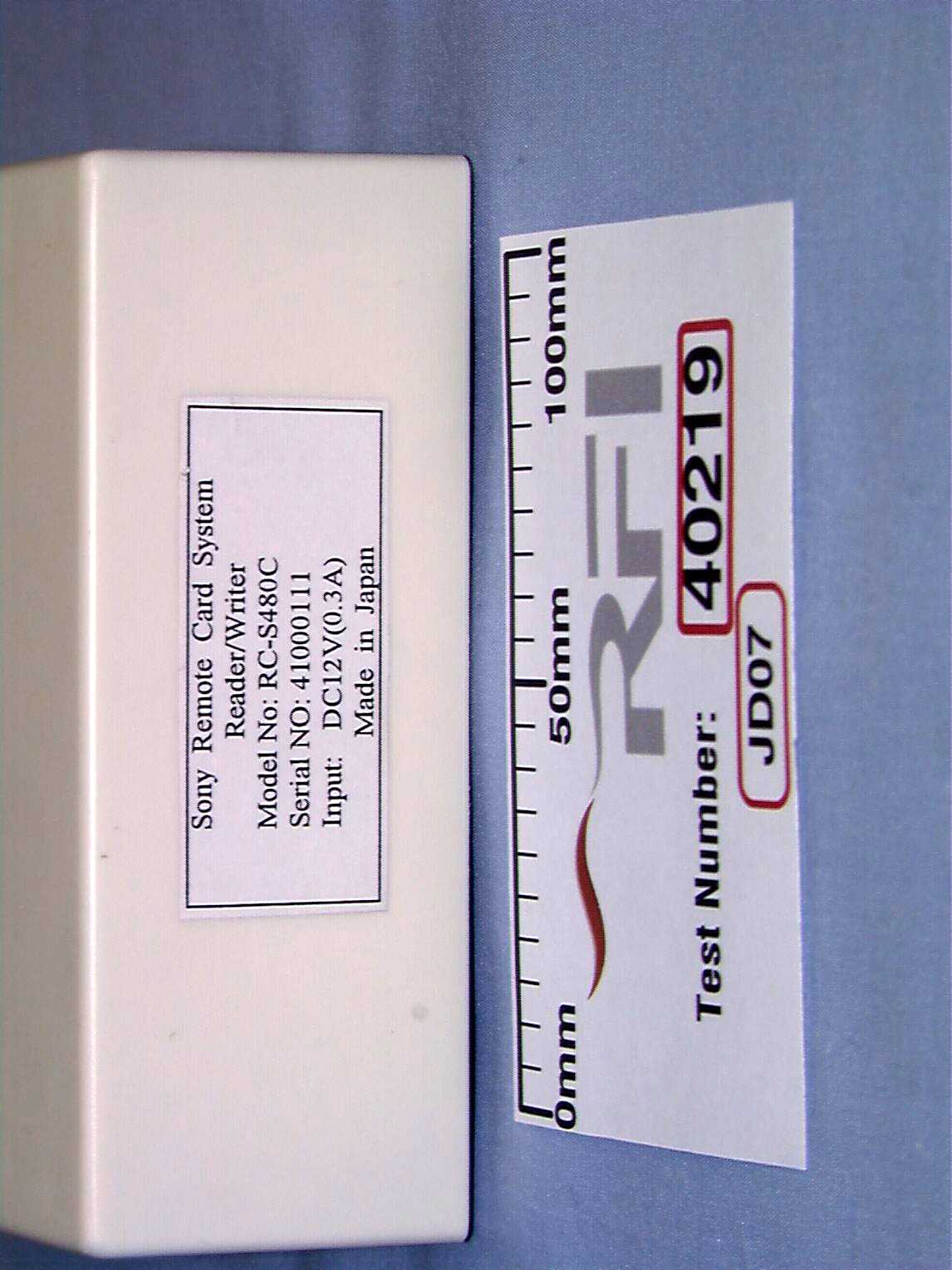

AK8S480CSony Remote Card System Reader/Writer

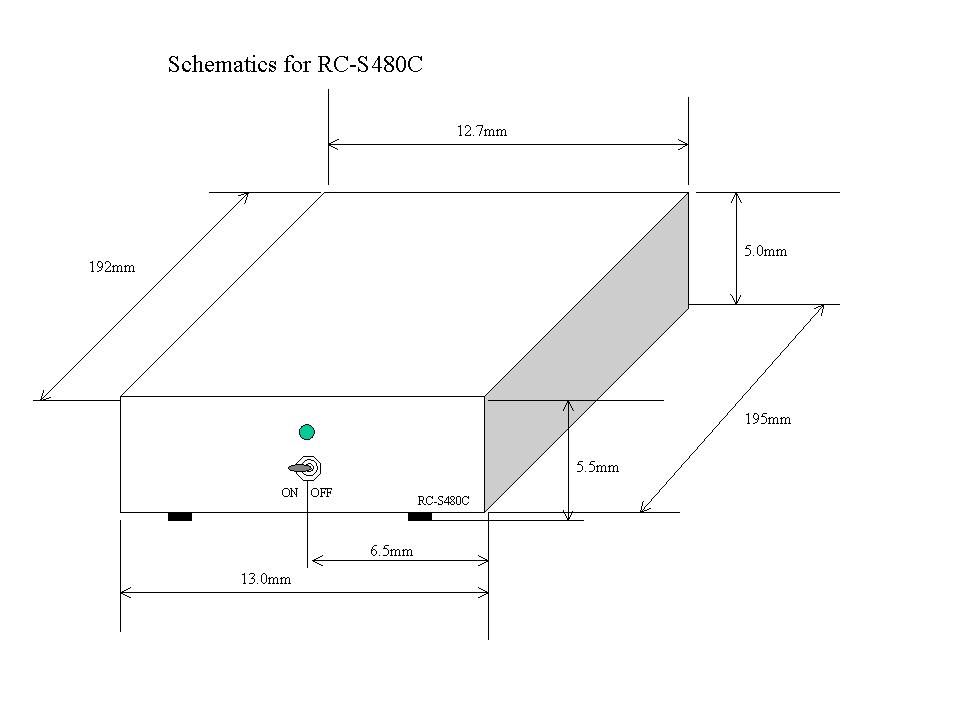

 Sony Confidential Reader/Writer RC-S480C Users Manual (Version 1.50)  Sony Corporation 30 November 1999 Contents 1 Definition1 2 General1 2.1Basic Specification1 2.1.1Dimensions1 FeliCa : Reader/Writer RC-S480 Users Manual Sony Confidential ii Version 1.50 2.1.2Specification Table1 2.1.3Encryption Technique1 3 Reader/Writer Operation2 3.1Connection with Controller2 3.2Transaction Overview2 3.2.1Communication Protocol2 3.2.2Re-sending Protocol2 3.2.3ACK/NACK Packet2 3.2.4Mutual Authentication3 3.2.5Encryption and Decryption3 4 Communication Commands3 4.1General3 4.2Reader/Writer Internal Operation Commands3 4.2.1Attention Command3 4.2.2Authentication 1 Command3 4.2.3Authentication 2 Command3 4.2.4Disconnect Command3 4.2.5Change Reader/Writer Access Key Command5 4.2.6Self-Diagnosis Command5 4.2.7Check Firmware Version Command5 4.2.8Change Communication Mode Command5 4.2.9Kill Module Command5 4.2.10Reader/Writer Reset Command5 4.2.11Firmware Maintenance Command5 4.3Card Operation Command5 4.3.1Polling Command5 4.3.2Request Service Command5 4.3.3Request Response Command5 4.3.4Mutual Authentication Command5 4.3.5Read Block Command6 4.3.6Write Block Command6 4.3.7Release Command6 4.3.8Read Without Encryption Command6 4.3.9Write Without Encryption Command6 4.4Card Management Command7 4.4.1Register Issue ID Command7 4.4.2Register Area Command7 4.4.3Register Service Command7 4.4.4Register Manufacture ID Command7 4.4.5Card Self-Diagnosis Common Security Key Command7 5Fundamental Specifications8 5.1Operating Temperature8 5.2Storage Temperature8 5.3Humidity8 5.4Cold and Heat Shock8 5.5Shock8 5.6Vibration8 5.7Spurious Emissions8 FeliCa : Reader/Writer RC-S480 Users Manual Sony Confidential iii Version 1.50 5.8Bump8 5.9Electrostatic Discharge8 5.10Multiple cards8 5.11Anti-Collision8 6Reader/Write Specification Table9 6.1B-antenna Reader/Writer9 6.1.1B-antenna Reader/Writer Specification Table9 6.1.2B-antenna Reader/Writer Schematic Drawing13 6.2C-antenna Reader/Writer15 6.2.1C-antenna Reader/Writer Specification Table15 6.2.2C-antenna Reader/Writer Schematic Drawing17 List of Table Table 1Reader/Writer Internal Operation Command4 Table 2Card Operation Command4 Table 3Card Management Command4 Table 4Pin Assignment of Interface Connector CN211 List of Figures Fig.1 Communication Protocol and Packet Structure2 Fig.2 Printed Model No. (B-antenna)9 Fig.3 RF/Control Board Attached to External Board10 Fig.4 Pin Assignment of Connectors CN1-211 Fig.5 RF/Control Board13 Fig.6 Antenna Board (B-antenna)14 Fig.7 Printed Model No. (C-antenna)15 Fig.8 Antenna Board (C-antenna)17 FeliCa : Reader/Writer RC-S480 Users Manual Sony Confidential 1 Version 1.50 1Definition In this document, following words are used in the following sense. Controller - An external computer, a gate controller or equivalent equipment directly connected to Reader/Writer through specified wired interface. Reader/Writer - The equipment, specified in this document, for Sony Remote Card System: FeliCa Card - A Contactless Smart Card for Sony Remote Card System: FeliCa 2General 2.1Basic Specification Reader/Writer consists of 3 parts – an antenna board, an RF/control board and the cable that connects the antenna board and the RF/control board. 2.1.1Dimensions The dimension of each type is described in Chapter 6. The tolerance is ±0.5mm. 2.1.2Specification Table Communication with Card data transfer rate: 250kbps or 211.875kbps carrier frequency: 13.56MHz (±50ppm) modulation: Receive - ASK, Manchester Coding : Transmit - ASK(12±2%), Manchester Coding modulation bandwidth: ±300kHz (-30dB relative to carrier level) radiation level : less than 2000μV/m at 10m distance (C-antenna) : less than 300μV/m at 10m distance (B-antenna) Communication method : half-duplex, CRC16 Power Supply (see Chapter 6) Digital Processing Unit (DPU) IC CXD8680R (designed by Sony) CXD8680R has 32 bit CPU core, 8 kbyte ROM, 3 kbyte SRAM, 2 kbyte Block Erasable Flash Memory and 4x32 kbyte Flash Memory inside. Controller Interface (serial interface) number of ports : 1 (one) signal level : CMOS logic level baud rate for operation: 7.2kbps ~ 1.2288Mbps (7.2, 8.192, 9.6, 14.4, 16.384, 19.2, 28.8, 32.768, 38.4, 57.6, 65.536, 76.8, 115.2, 131.072, 153.6, 230.4, 262.144, 460.8, 524.288, 921.6, 1048.576, 1228.8 kbps) communication method : half-duplex, check sum 2.1.3Encryption Technique All communications to and from the Card, with the exception of Polling Command, are encrypted. All the communications to and from the Controller, with the exception of the Attention Command, are encrypted. 3 kinds of Encryption algorithm, Single-DES 56bit, Triple-DES 56bit and SEAC (Sony Encryption Algorithm for Card) 64bit, can be applied. 3Reader/Writer Operation FeliCa : Reader/Writer RC-S480 Users Manual Sony Confidential 2 Version 1.50 3.1Connection with Controller The pin assignment is described in Chapter 6. 3.2Transaction Overview 3.2.1Communication Protocol There are two communication protocols, namely, data link level and application level protocol. Either ACK or NACK packet is returned in every packet transfer. ACK indicates a successful transfer, NACK means unsuccessful. Fig. 1 : Communication Protocol and Packet Structure 3.2.2Re-sending Protocol Reader/Writer supports the re-sending procedure in Controller interface. Re-sending handling is triggered or required in the two cases below : 1. NACK packet is returned. 2. Neither ACK nor NACK response comes. (time out) Controller should re-send the same packet within 5ms after receiving NACK or detecting time out. 3.2.3ACK / NACK Packet ACK / NACK packet format is as follows : ACK : LEN = 00h & LCS = ffh without Packet Data part and DCS NACK : LEN = ffh & LCS = 00h without Packet Data part and DCS Reader/WriterController Max. 2ms Command Packet ACK ACK Max. 2ms Response Packet 00FF00 LEN LCS PD0PDnPD1DCS 00 ... Postamble Packet Data Checksum Packet Data Packet Lengt…

Text truncated - open the document above for the full version.

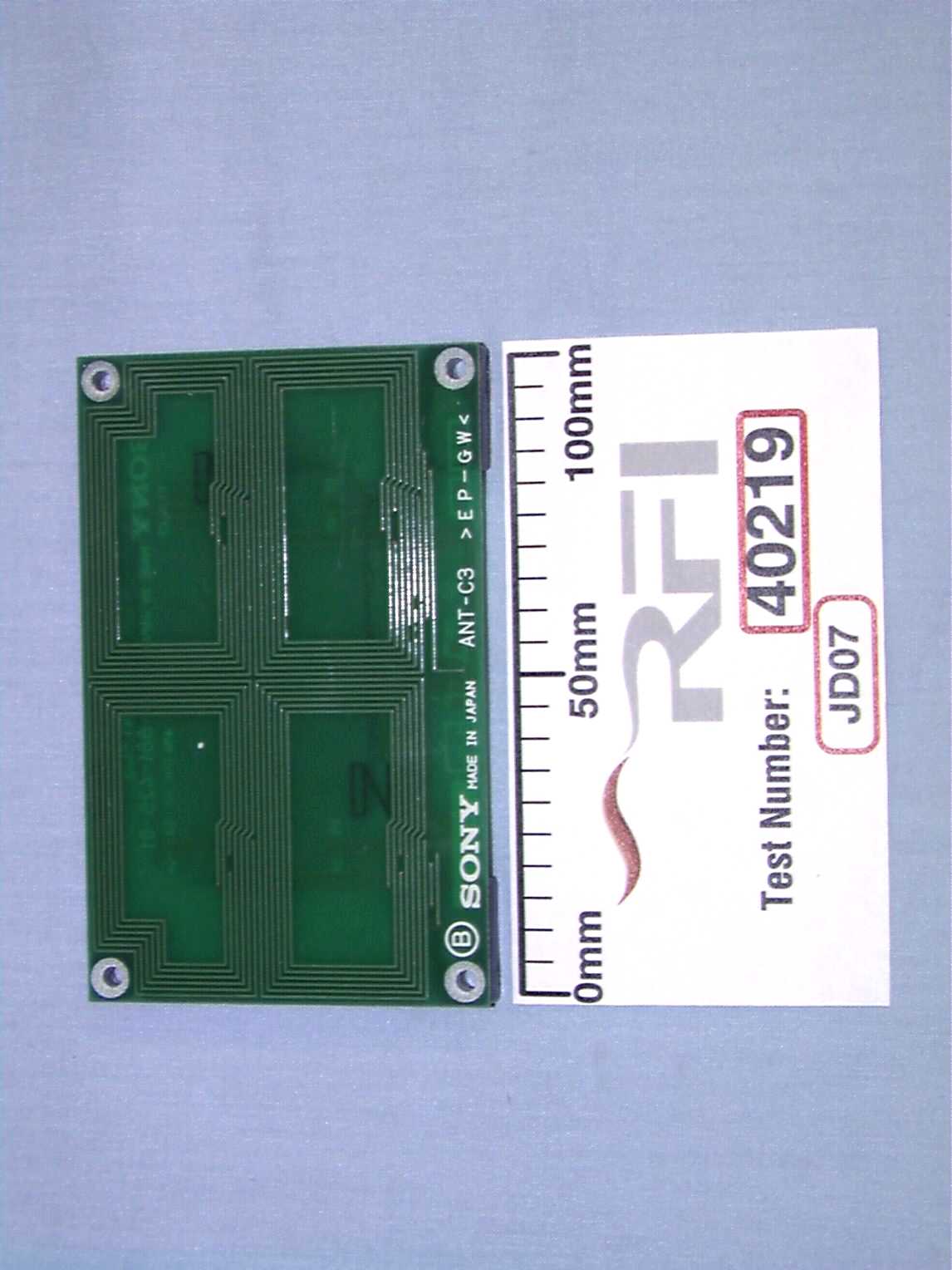

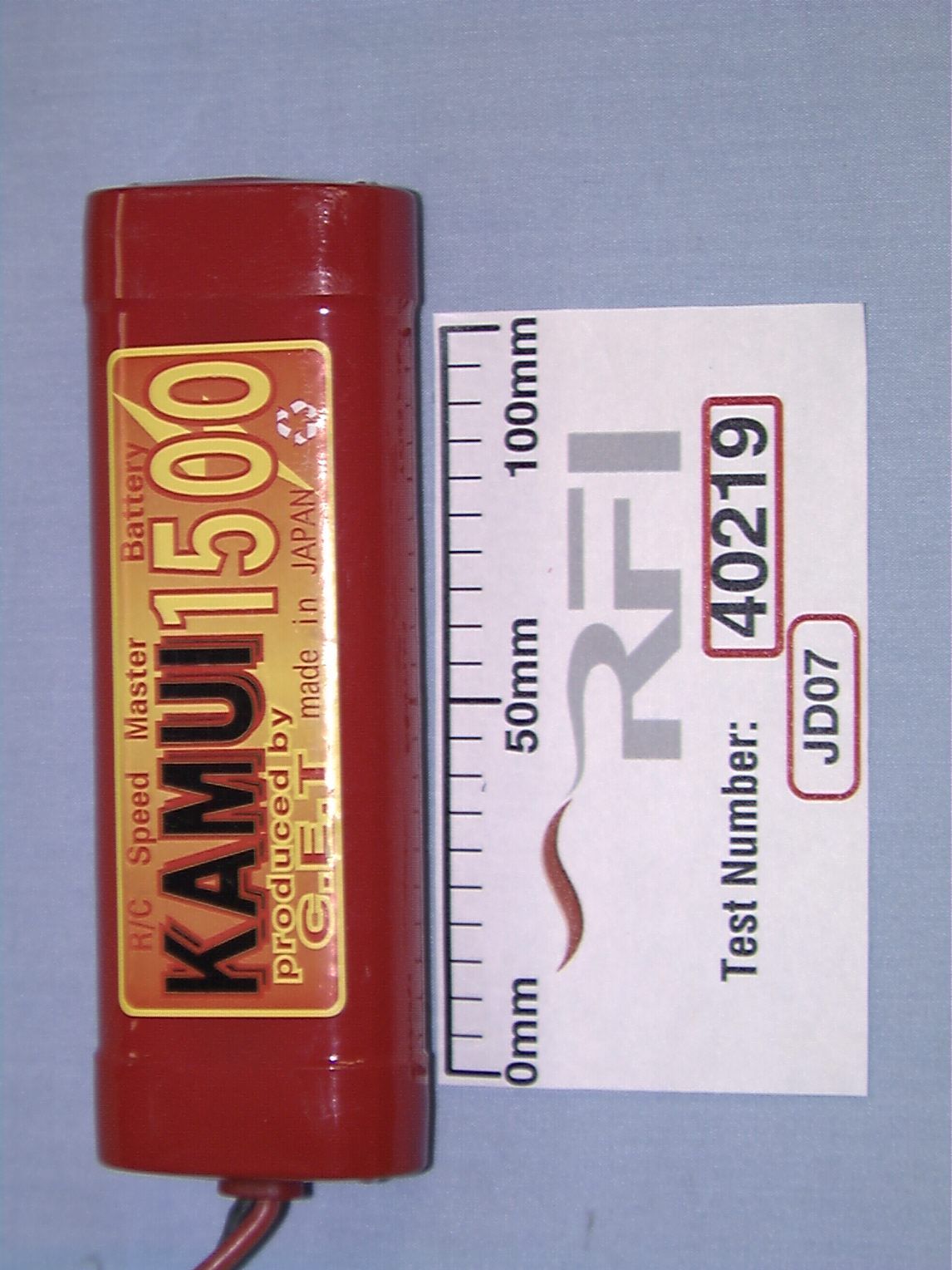

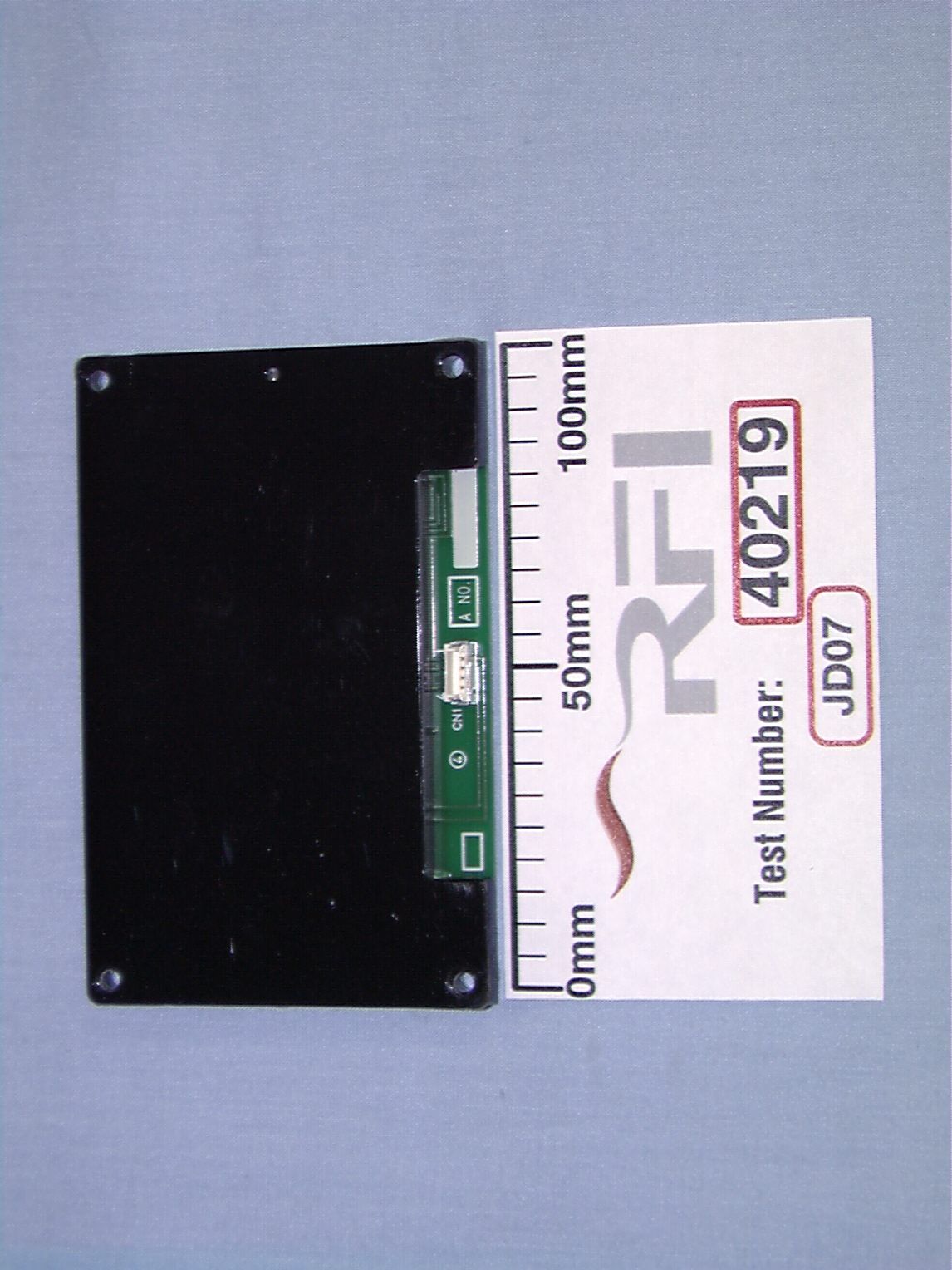

Digital Processing Unit Signal Processing Unit Memory DC-DC Converter Antenna Unit TuningCircuit 11V (only for Power Amp.) 13.56MHz Oscillator Clock 5V 12 or 5V MAX662 CXD8680R CXA3175Q RD *WD *R/W Series Regulator 5V EXT DC (typ. 12V) EXT CPU(CMOS 5V) PQ20VZ51 Power Amp. & Modulation EN/*INH Block Diagram of RC-S480 Detector Low Pass Filter Band Pass Filter Amplifier Threshold Detector Serial I/O Parallel I/O (20 bit) EXT DC (5V)

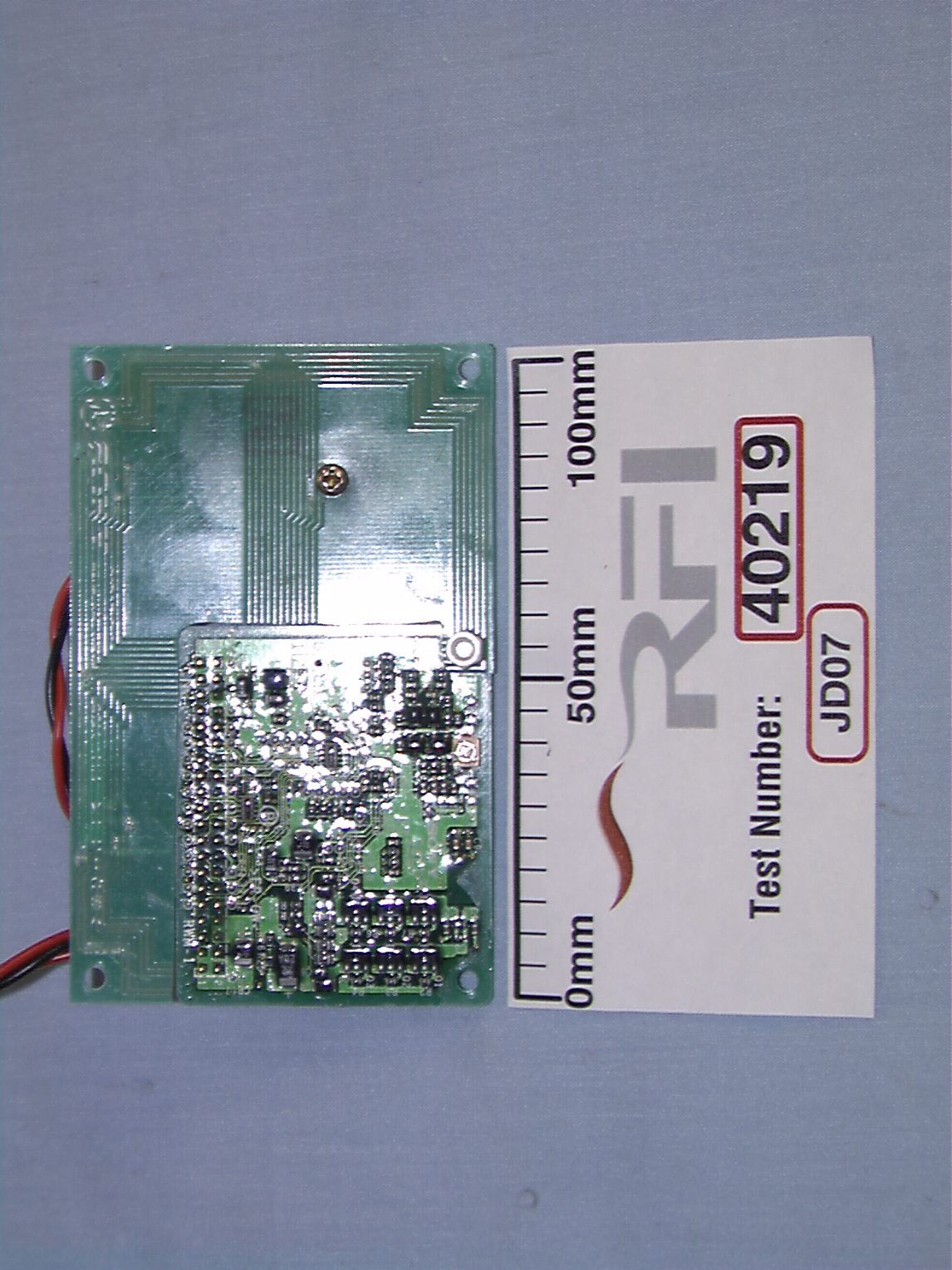

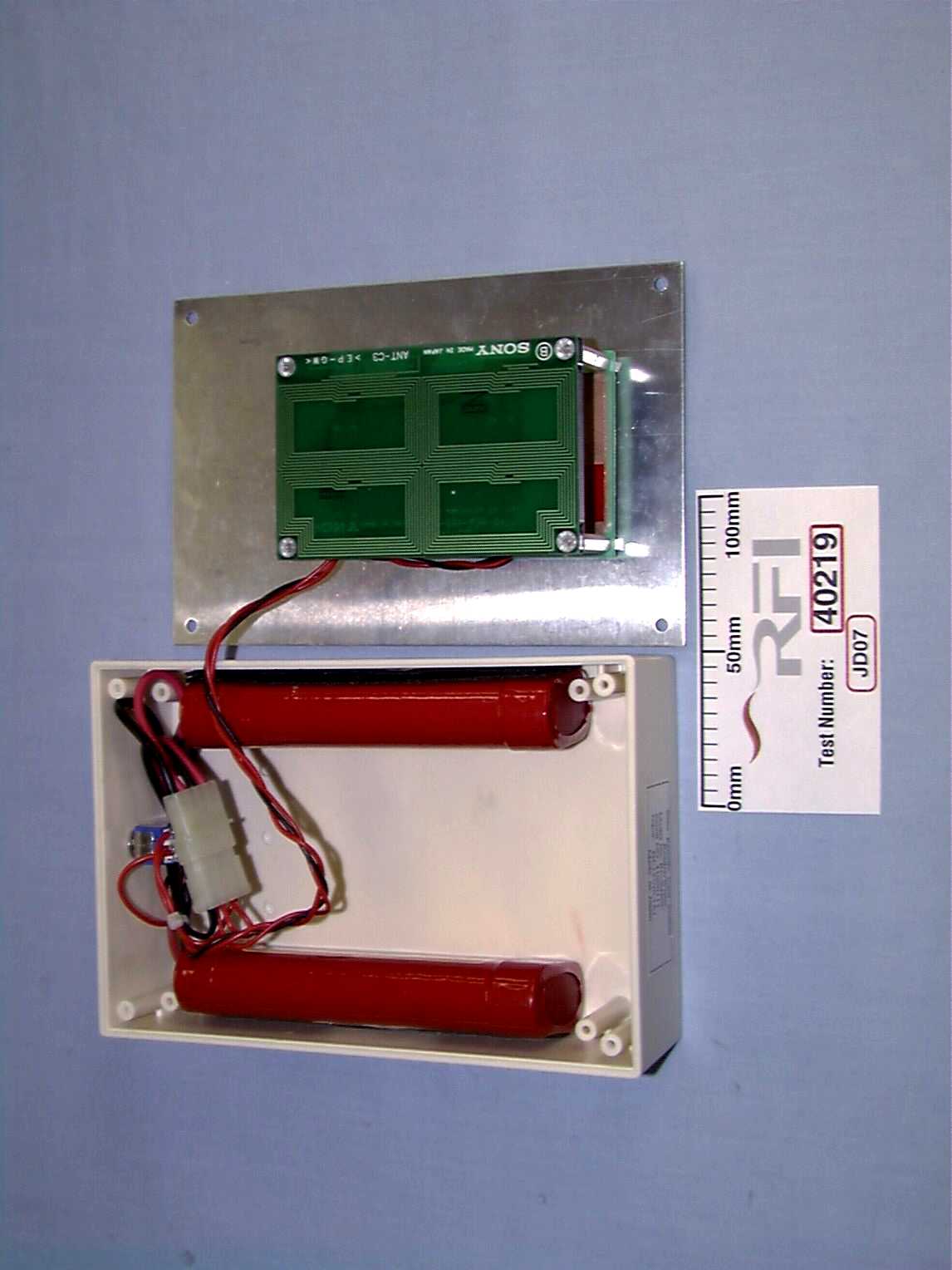

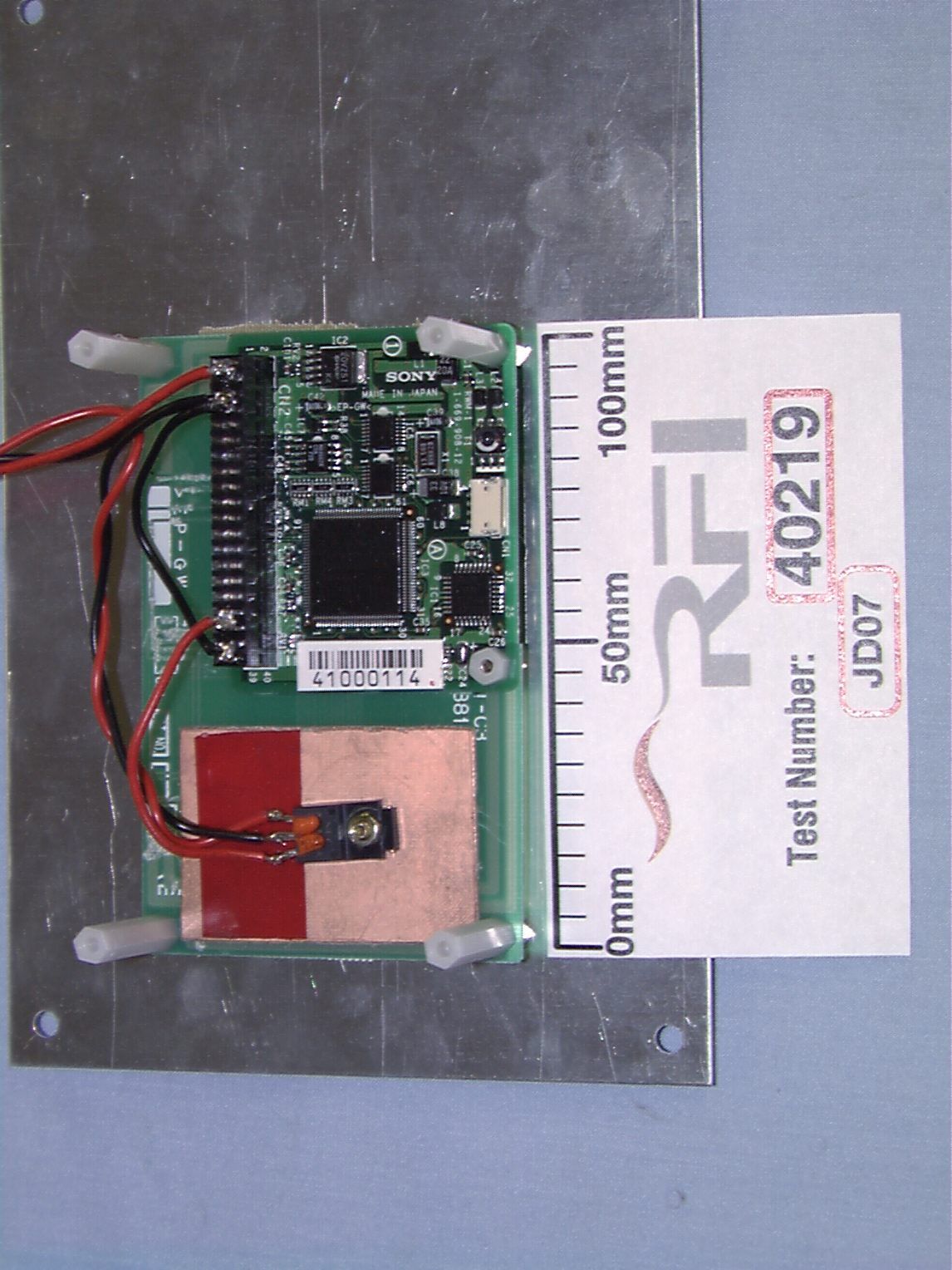

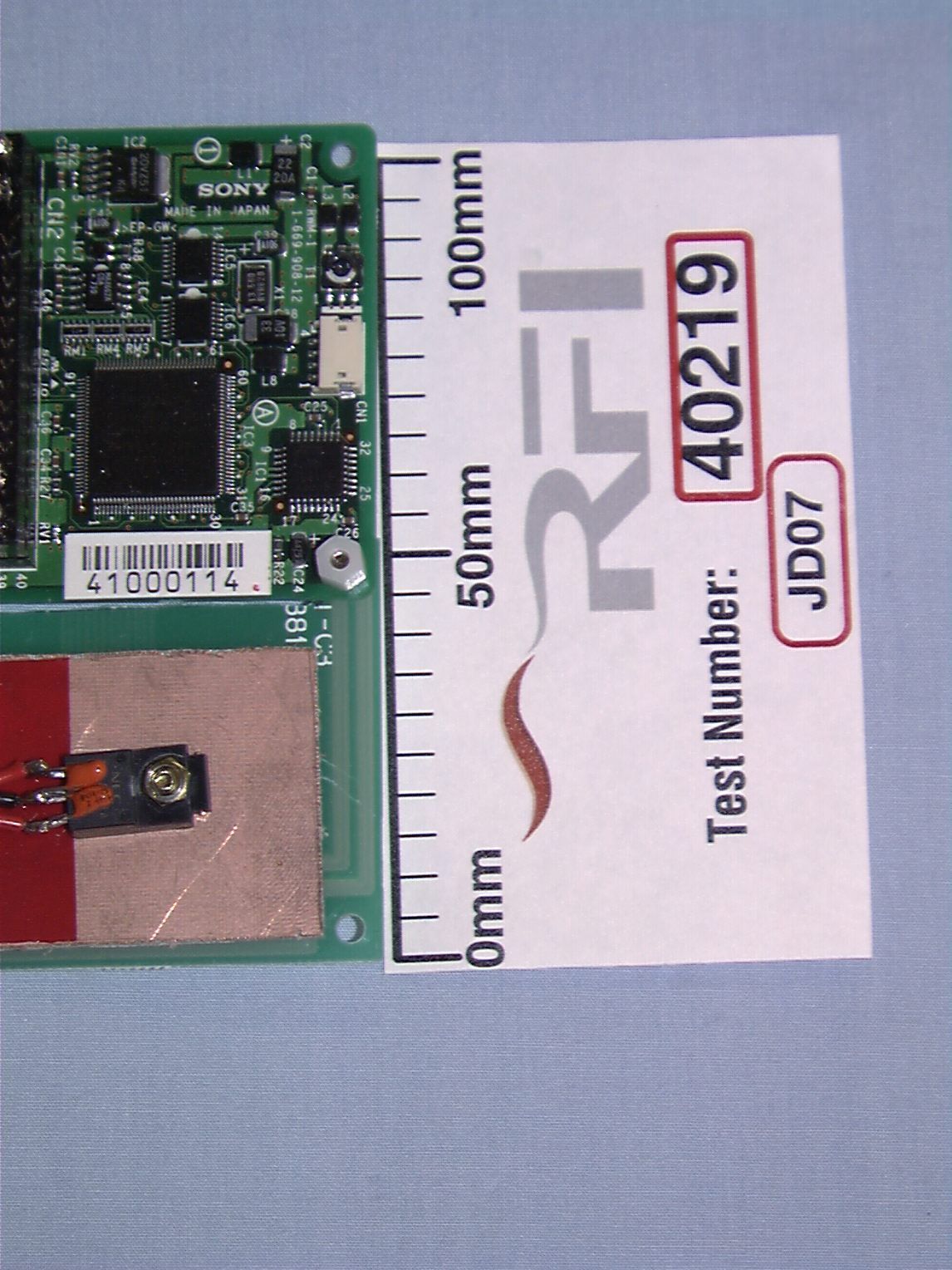

Operational Description - Model RC-S480C - Version 1.0 Sony Corporation RC-S480C Operational Description Reader/Writer Operation After turning on the power switch, the Reader/Writer transmits 13.56MHz 10% ASK polling signal with the specified intensity until receiving a response from a contactless card. After receiving the response from a card the device starts to communicate with the card by using the same frequency and modulation. Though the reader/writer is a self- operating device according to the program installed in the FLASH memory, it can be connected to a host computer (Controller) for more complicated applications by taking out the reader/writer from the enclosure. For the connection to a host computer, refer to the initialization and communication protocols described below. 1Connection with Controller •Interface Connector : HKP-40M1 (Honda Tsushin Kogyo Co., Ltd.) The interface connector is a 40-pin double row C-antenna connector located at the lower edge of the RF/Control board. The pitch of connector pins is 2.54mm.Connector pins are gilded. The left end of the bottom row of connector pins is No. 1. Pin assignment of the connector (CN2) is shown in Fig. 1 and Table 1. 12V:DC input port (for RF power amplifier) 5V:DC input port GND:Ground port SI, SO:Serial Data I/O (CMOS 5V) DA0-7:Parallel Data I/O (CMOS 5V) DA0-7 are connected to PG0-7 of DPU IC CXD8680R. In order to control DA0-7, it is necessary to load other program code to RF/Control board. (see “Reader/Writer Programmer’s Reference Manual“) DB0-7:Parallel Data I/O (CMOS 5V) DB0-7 are connected to PH0-7 of DPU IC CXD8680R. In order to control DB0-7, it is necessary to load other program code to RF/Control board. (see “Reader/Writer Programmer’s Reference Manual“) HS0-3:Parallel Data I/O (CMOS 5V) HS0-2 are connected to PF4-6 of DPU IC CXD8680R, and HS3 is connected to both PF7 and PF2. In order to control HS0-3, it is necessary to load other program code to RF/Control board. (see “Reader/Writer Programmer’s Reference Manual“) Mode:No connection in usual operation. Only in loading program, high level voltage (5V) shall be applied to the pin before RF/Control board is powered on •Power voltage :DC12V (CN2 pin1 and 3) :DC5V (CN2 pin34 and 36) voltage allowance :DC12V +4V, -0.5V :DC5V ±0.5V current :DC12V≈ 90mA :DC5V≈150mA voltage ripple allowance:100mV (peak-to-peak) The Reader/Writer can be operated in the voltage range of 5 - 11.5V and the voltage ripple > 100mV for DC12V, however operating distance cannot be assured in such condition. •External Interface RC-S480C Operational Description serial 1 port : CMOS logic level (5V) software selectable, non-inverted or inverted, and baud rate (default setting : non-inverted, 115.2kbps) parallel 20bit I/O port : CMOS logic level (5V) Fig.1 : Pin Assignment of Connectors CN1-2 Pin No.Pin AssignmentPin AssignmentPin No. 112VNo Connection2 312VNo Connection4 5No ConnectionGND6 7No ConnectionGND8 9DA0SI10 11DA1SO12 13DA2No Connection14 15DA3MODE16 17DA4DB018 19DA5DB120 21DA6DB222 23DA7DB324 25HS0DB426 27HS1DB528 29HS2DB630 31HS3DB732 33No Connection5V34 35No Connection5V36 37GNDNo Connection38 39GNDNo Connection40 Table 1 : Pin Assignment of Interface Connector CN2 Modu., Demodu. & Power Amp. *R/W RD *WD GND 5V CARRIER *CARRIER 12V RFIN+ RFIN- RFOUT+ RFOUT- EN/*INH Controller *WD *R/W CARRIER *CARRIER EN/*INH RDSI SO MODE DA[0-7] DB[0-7] HS[0-3] GND 5V to Antenna HS[0-3] DA[0-7] SI 12V SO 12V GND GND GND HS0 HS3 HS1 HS2 5V 5V GND DA3 DA1 DA0 DA4 DA6 DA2 DA7 DA5 MODE DB2 DB4 DB7 DB[0-7] DB0 DB3 DB6 DB1 DB5 CN1 1 2 3 4 CN2 CON40A 1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 RC-S480C Operational Description 2 Transaction Overview 2.1 Communication Protocol There are two communication protocols, namely, data link level and application level protocol. Either ACK or NACK packet is returned in every packet transfer. ACK indicates a successful transfer, NACK means unsuccessful. Fig. 2 : Communication Protocol and Packet Structure 2.2 Re-sending Protocol Reader/Writer supports the re-sending procedure in Controller interface. Re-sending handling is triggered or required in the two cases below : 1. NACK packet is returned. 2. Neither ACK nor NACK response comes. (time out) Controller should re-send the same packet within 5ms after receiving NACK or detecting time out. 2.3ACK / NACK Packet ACK / NACK packet format is as follows : ACK : LEN = 00h & LCS = ffh without Packet Data part and DCS NACK : LEN = ffh & LCS = 00h without Packet Data part and DCS 2.4 Mutual Authentication Mutual Authentication is a process that is performed between Controller and Reader/Writer to authenticate each other mutually in order to avoid the fraud usage. This authentication is based on the following elements : 1. two 8byte (64bit) keys 2. three pass authentication model (ISO 9758) 3. cryptography algorithm mentioned in section 3.2.5. 2.5 Encryption and Decryption The cryptography algorithm is used for the following three stages : 1. mutual authentication between Controller and Reader/Writer 2. mutual authentication between Reader/Writer and Card 4. commands and data encryption through Reader/Writer Reader/WriterController Max. 2ms Command Packet ACK ACK Max. 2ms Response Packet 00FF00 LEN LCS PD0PDnPD1DCS 00 ... Postamble Packet Data Checksum Packet Data Packet Length Checksum Start of Packet Code Packet Length Preamble Command or Response Code RC-S480C Operational Description 3Communication Commands 3.1General In this section, the communication commands between Controller and Reader /Writer are described. Table 1-3 shows all commands between Controller and general Reader/Writer. All commands are categorized into 3 groups as follows : 1. Reader/Writer internal operation command 2. Card operation command 3. Card management command Card management command group is for issue Reader/Writer and not for general Reader/Writer . 3.2Reader/Writer Internal Ope…

Text truncated - open the document above for the full version.

DescriptionQtyManufacturer PCB,(RWM-1) Combined1/4 Sanno Electric Pin,Connector 4P (SMD 1.5mm)1 JST Pin,Connector 40P1 Honda Commu. Cap,Chip Tantalum Elect 33MF 10V 1 Cap,Chip Tantalum Elect 22MF 20V 2 Cap,Chip Tantalum Elect 10MF 10V 4 Cap,Chip Tantalum Elect 4.7MF 20V 1 Cap,Chip Tantalum Elect 4.7MF 10V 1 Cap,Chip Tantalum Elect 2.2MF 35V 1 Cap,Chip Tantalum Elect 1.0MF 25V 1 Cap,Chip Trimmer1 MURATA Cap,Chip Ceramic 3pF CH2 Cap,Chip Ceramic 15pF CH1 Cap,Chip Ceramic 18pF CH1 Cap,Chip Ceramic 22pF CH2 Cap,Chip Ceramic 47pF CH2 Cap,Chip Ceramic 270pF CH4 Cap,Chip Ceramic 330pF CH2 Cap,Chip Ceramic 1000pF B5 Cap,Chip Ceramic 0.01MF F2 Cap,Chip Ceramic 0.1MF F14 Cap,Chip Ceramic 0.22MF F2 Res,Chip 22 1/10W 5.0%2 Res,Chip 39 1/10W 5.0%1 Res,Chip 47 1/10W 5.0%1 Res,Chip 3.3 1/16W 5.0%6 Res,Chip 100 1/16W 5.0%1 Res,Chip 1.0K 1/16W 5.0%6 Res,Chip 1.5K 1/16W 5.0%1 Res,Chip 3.3K 1/16W 5.0%6 Res,Chip 10K 1/16W 5.0%11 Res,Chip 1M 1/16W 5.0%1 Res,Chip 1.0K 1/16W 0.5%1 Res,Chip 7.5K 1/16W 0.5%1 Network Resistor (Chip) 47K5 KOA Inductor 2.2UH 5.0%2 TDK Inductor 22UH 5.0%4 TDK Inductor 3.3UH 5.0% M1 TDK Inductor 22UH 5.0% M1 TDK Inductor 47UH 5.0% M1 TDK Coil S4-S2/330331 MITSUMI Diode,MA715-TX2 MATSUSHITA Transistor,2SC4175-T1B3B41 NEC Transistor,2SC3617-T1TL6 NEC Crystal 13.56MHz1 Я IC,CXD8680R1 SONY IC,MAX662ACSA1 MAXIM IC,TC74AC00FS(EL)2 TOSHIBA IC,PQ20VZ5U1 SHARP IC,PST9343UR1 MITSUMI IC,CXA3175Q1 SONY PCB,(ANT-C1Z) Combined1/4 Sanno Electric Core,Ferrite (C)1 TDK Cap,Chip Ceramic 120pF B8 Pin,Connector 4P (SMD 1.5mm)1 JST Tape (C Front),Double Stick1 Nichibei Parts Tape (C Rear),Double Stick1 Nichibei Parts Spacer (C1)2 JTM Spacer (C2)2 JTM Plate (C),Iron1 Ohta Wire Kit RC-S430C1 Asahi Comm. Reference No. & Note CN1 CN2 C38 C2,28 C39,42,48,49 C47 C24 C27 C43 C13 C16,17 C40 C41 C18,19 C14,15 C4,5,11,12 C20,21 C8,9,10,22,23 C6,7 C1,25,26,29,30,31,32,33,34,35,36,37,44,101 C45,46 R8,9 R10 R11 R2,3,4,5,6,7 R22 R20,21,23,37,38,102 R12 R13,16,17,18,19,24 R27,28,29,30,31,32,33,34,35,39,101 R36 R26 R25 RM1,2,3,4,5 L2,3 L4,5,6,7 L9 L1 L8 T1 D1,2 Q7 Q1,2,3,4,5,6 X1 IC3 IC4 IC5,6 IC2 IC7 IC1 C1,2,3,4,5,6,7,8 CN1

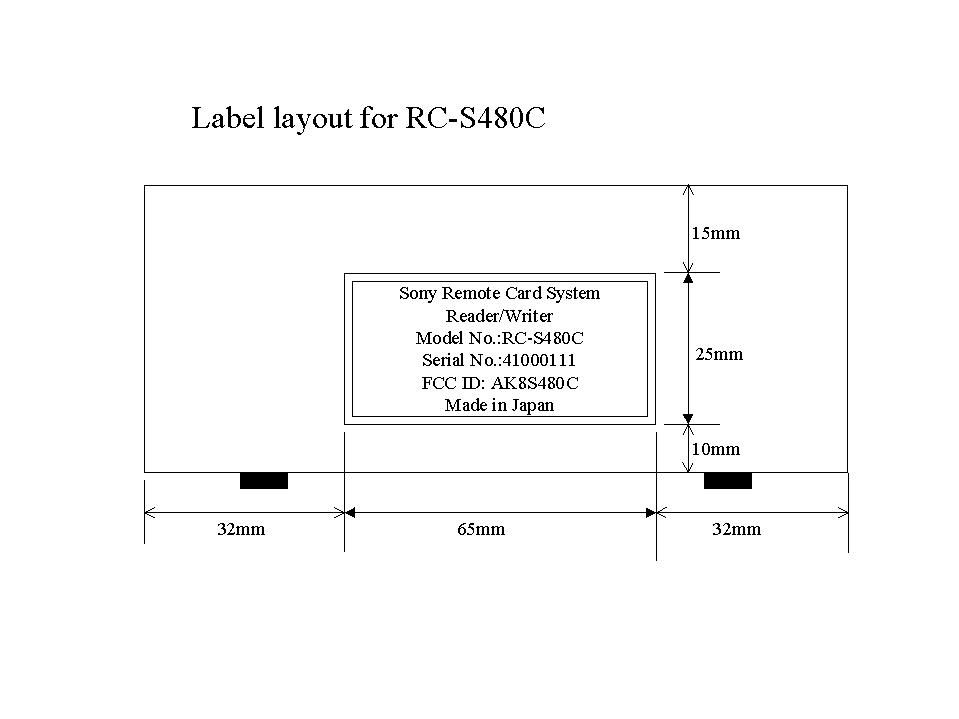

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ TESTING 0644 TEST REPORT FROM RADIO FREQUENCY INVESTIGATION LTD. Test Of: Sony Corporation. RC-S480C Smart Card Reader To: FCC Part 15 Subpart C Clause 15.225: 1998 Test Report Serial No: RFI\EMCB1\RP40219D This Test Report Is Issued Under The Authority Of Brian Watson Technical Director: Checked By: Tested By:Release Version No: PDF01 Issue Date: 10 February 2000Test Date: 20 January 2000 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. Furthermore, the date of creation must match the issue date stated above. This report may be copied in full. RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No: RFI\EMCB1\RP40219D EMC DepartmentPage 2 of 26 Issue Date: 10 February 2000 Test Of:Sony Corporation. RC-S480C Smart Card Reader To:FCC Part 15 Subpart C Clause 15.225: 1998 This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No: RFI\EMCB1\RP40219D EMC DepartmentPage 3 of 26 Issue Date: 10 February 2000 Test Of:Sony Corporation. RC-S480C Smart Card Reader To:FCC Part 15 Subpart C Clause 15.225: 1998 Table of Contents 1. Client Information......................................................................................................4 2. Equipment Under Test (EUT).....................................................................................5 3. Test Specification, Methods And Procedures..........................................................7 4. Deviations From The Test Specification...................................................................8 5. Operation Of The EUT During Testing......................................................................9 6. Summary Of Test Results........................................................................................10 7. Measurements, Examinations And Derived Results..............................................11 8. Measurement Uncertainty........................................................................................16 Appendix 1. Test Equipment Used...............................................................................17 Appendix 2. Measurement Methods............................................................................18 Appendix 3. Test Configuration Drawings..................................................................21 Appendix 4. Graphical Test Results............................................................................24 Appendix 5. Photographs of EUT.................................................................................25 RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No: RFI\EMCB1\RP40219D EMC DepartmentPage 4 of 26 Issue Date: 10 February 2000 Test Of:Sony Corporation. RC-S480C Smart Card Reader To:FCC Part 15 Subpart C Clause 15.225: 1998 1. Client Information Company Name: Sony Corporation. Address: 6-7-35 Kitashinagawa Shinagawaku Tokyo 141-0001-Japan Contact Name: Mr. Toshimichi Okita. RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No: RFI\EMCB1\RP40219D EMC DepartmentPage 5 of 26 Issue Date: 10 February 2000 Test Of:Sony Corporation. RC-S480C Smart Card Reader To:FCC Part 15 Subpart C Clause 15.225: 1998 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification Of Equipment Under Test (EUT) Brand Name: Sony Corporation Model Name or Number: RC-S480C Unique Type Identification: None Stated by Client Serial Number: 41000111 Country of Manufacture: Japan FCC ID Number: Awaiting Certification Date of Receipt: 20 January 2000 2.2. Description Of EUT The equipment under test is a smart card reader. 2.3. Modifications Incorporated In EUT The EUT has not been modified from what is described by the Model Name and Unique Type Identification stated above. 2.4. Additional Information Related To Testing Power Supply Requirement: Internal battery supply of + 12 V Intended Operating Environment: Residential and Commercial Weight: 0.5 kg Dimensions: 190 mm (L) x 125 mm (W) x 50 mm (H) Interface Ports: None RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No: RFI\EMCB1\RP40219D EMC DepartmentPage 6 of 26 Issue Date: 10 February 2000 Test Of:Sony Corporation. RC-S480C Smart Card Reader To:FCC Part 15 Subpart C Clause 15.225: 1998 2.5. Support Equipment The following support equipment was used to exercise the EUT during testing: Description: Smart Card (Support Tag) Brand Name: Sony Model Name or Number: None Stated by Client Serial Number: None Stated by Client FCC ID Number: None Stated by Client Cable Length And Type: No Direct Connection (Air link) Connected to Port: Not applicable RADIO FREQUENCY INVESTIGATION LTD.TEST REPORT S.No: RFI\EMCB1\RP40219D EMC DepartmentPage 7 of 26 Issue Date: 10 February 2000 Test Of:Sony Corporation. RC-S480C Smart Card Reader To:FCC Part 15 Subpart C Clause 15.225: 1998 3. Test Specification, Methods And Procedures 3.1. Test Specification Reference: FCC Part 15 Subpart C Clause 15.225: 1998 Title: Code of Federal Regulations, Part 15 (47CFR15) Radio Frequency Devices: Digital Devices. Comments: A description of the test facility used for this test is on file with, and has been accepted by, the Federal Communications Commission as required by Section 2.948 of Federal Rules. Purpose of Test: To determine whether the equipment complied with the applicable requirements of the specification for the purposes of certification. 3.2. Methods And Procedures The methods and procedures used were as detailed in: ANSI C63.2 (1987) Title…
