AK8SGPT211USTablet Device

 Important product information Owner’s Record The model number and serial number are located on the rear panel of your tablet device. Record the model and serial numbers in the space provided here, and keep in a secure location. Refer to the model and serial numbers when you call your Sony Service Center. Model Number: Serial Number: Regulatory Information (USA) If you have questions about this product, you can write to the Sony Customer Information Service Center at 12451 Gateway Blvd., Fort Myers, FL 33913, USA or find Sony Customer Service on the Web site at: http://esupport.sony.com/EN/VAIO/ for customers in USA or http://www.sony.ca/support/ for customers in Canada. Declaration of Conformity Trade Name: SONY Model No.:SGPT211US/S, SGPT211CA/S Responsible Party:Sony Electronics Inc. Address:16530 Via Esprillo, San Diego, CA 92127 U.S.A. Telephone No.: (For FCC-related matters only) 858-942-2230 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.  GB The following FCC statements apply only to the version of this model manufactured for sale in the USA. Other versions may not comply with FCC technical regulations, and the FCC statements are not applicable in Canada, including the Province of QUEBEC. FCC Information (USA) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. Only peripherals (input/output devices, terminals, printers, etc.) that comply with FCC Class B limits may be attached to this product. Operation with noncompliant peripherals is likely to result in interference to radio and television reception. All cables used to connect peripherals must be shielded and grounded. Operation with cables connected to peripherals that are not shielded and grounded may result in interference to radio and television reception. For customers in USA and Canada The following FCC statements apply only to the version of this model manufactured for sale in the USA. Other versions may not comply with FCC technical regulations, and the FCC statements are not applicable in Canada, including the Province of QUEBEC.  FCC/IC Radio Frequency Exposure The available scientific evidence does not show that any health problems are associated with using low power wireless devices. There is no proof, however, that these low power wireless devices are absolutely safe. Low power Wireless devices emit low levels of radio frequency energy (RF) in the microwave range while being used. Whereas high levels of RF can produce health effects (by heating tissue), exposure to low level RF that does not produce heating effects causes no known adverse health effects. Many studies of low level RF exposures have not found any biological effects. Some studies have suggested that some biological effects might occur, but such findings have not been confirmed by additional research. The following models (Table 1) have been tested and found to comply with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. Table 1 Product NameFCC IDIC Number SGPT211US/S SGPT211CA/S AK8SGPT211US AK8SGPT211US 409B-SGPT211US 409B-SGPT211US (FCC) Please refer to the SAR test report that was uploaded at FCC website. (IC) Please refer to the information that consult Safety Code 6, obtainable from Health Canada’s Website. This device and its antenna(s) must not be co-located or operating with any other antenna or transmitter except Grant condition. Users are not permitted to modify this transmitter device. Any unauthorized changes made to this device could void your authority to operate this device. IC RSS-10 (Canada) This radio apparatus complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device. IC RSS-10 (Canada) This device complies with RSS-310 of Industry Canada. Operation is subject to the condition that this device does not cause harmful interference.  GB Industry Canada Notice This Class B digital apparatus complies with Canadian ICES-003. Telephone Consumer Protection Act of 1991 (United States) For models with the wireless WAN function only The Telephone Consumer Protection Act of 1991 make…

Text truncated - open the document above for the full version.

ST-XXX 0-000-000-00(1) Quick Start Guide © 2011 Sony Corporation Printed in Japan 123456701 Press the buttons to open the bottom cover. Slide off the upper cover.Insert a SIM card.Press and hold the  (power) button for three seconds. Connect your tablet device to the Internet and sign up for or register your Google account. Orient the notches as show, and then slide the battery back in. Close the bottom cover. Tablet Device SGPT1 Series Getting Started Make sure to turn off your tablet device. ST-XXX 0-000-000-00(1) Charging the Battery Plug the AC adapter into the charge connector of your tablet device. In the box  AC adapter  AC power cord  MicroSD memory card (2GB)  SIM card (TBD)  Lithium-ion battery pack  Quick Start Guide (this document) Accessing the Help Guide  From your tablet device: Touch [Appli] - [Help Guide].  From a PC browser: http://esupport.sony.com/

Sony Corporation Nagano Business Center 5432 Toyoshina, Azumino-shi, Nagano, 399-8282 JAPAN Date: May 18, 2011 UL CCS 47173 Benicia Street, Fremont, CA 94538 Reference: Applicant: Sony Corporation FCC ID: AK8SGPT211US To whom it may concern: We, the undersigned, hereby authorize Naoki Sakamoto of Application Section, WiSE Japan, UL Verification Service, UL Japan, Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Japan, Inc. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. The application for the subject equipment has not been submitted to another TCB for certification. Sincerely Yours, Ryui Tatsumi Product safety Sec. QA Dept. No.1 VAIO&Mobile Business Group senior manager

Sony Corporation Nagano Business Center 5432 Toyoshina, Azumino-shi, Nagano, 399-8282 JAPAN Date: May 26, 2011 UL CCS 47173 Benicia Street, Fremont, CA 94538 Reference: Applicant: Sony Corporation FCC ID: AK8SGPT211US To whom it may concern: We, Sony Corporation, hereby declare, for FCC ID: AK8SGPT211US, this device contains FCC pre certified WAN module (Ericsson F5521gw) with FCC ID: VV7-MBMF5521GW1. All conducted test of antenna port were performed on the module. The results are available in the following test report. ・WAN module (Ericsson F5521gw) Test Report No.: 1-2205-01-05/10-A Sincerely Yours, Ryui Tatsumi Product safety Sec. QA Dept. No.1 VAIO&Mobile Business Group senior manager

Sony Corporation Nagano Business Center 5432 Toyoshina, Azumino-shi, Nagano, 399-8282 JAPAN UL CCS 47173 Benicia Street, Fremont, CA 94538 Subject: Request for Confidentiality FCC ID: AK8SGPT211US To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Parts List Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days from the date of grant: External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Ryui Tatsumi Product safety Sec. QA Dept. No.1 VAIO&Mobile Business Group senior manager June 1, 2011

External Photo (1) Lid Close (2) Lid Open

This device has two label configuration •Label A : SGPT211US/S, SGPT212US/S, SGPT211CA/S, SGPT212CA/S •Label B : SGPT211JP/S, SGPT212JP/S Label Location A Battery compartment Label A AK8SGPT211US SGPT211US/S Label A 8SGUS To find the label •Remove the battery cover on the bottom side of the device •The label is located under the cover 409B-SGPT211US cover •User can confirm a label, because a user attaches battery at the time of the product purchase Battery compartment Label Location B Label B Label B AK8SGPT211US SGPT211JP/S 409B-SGPT211US To find the label •Remove the battery cover on the bottom side of the device•Remove the battery cover on the bottom side of the device •Remove the battery •The label is located in the battery compartment •User can confirm a label, because a user attaches battery at the time of the product purchase

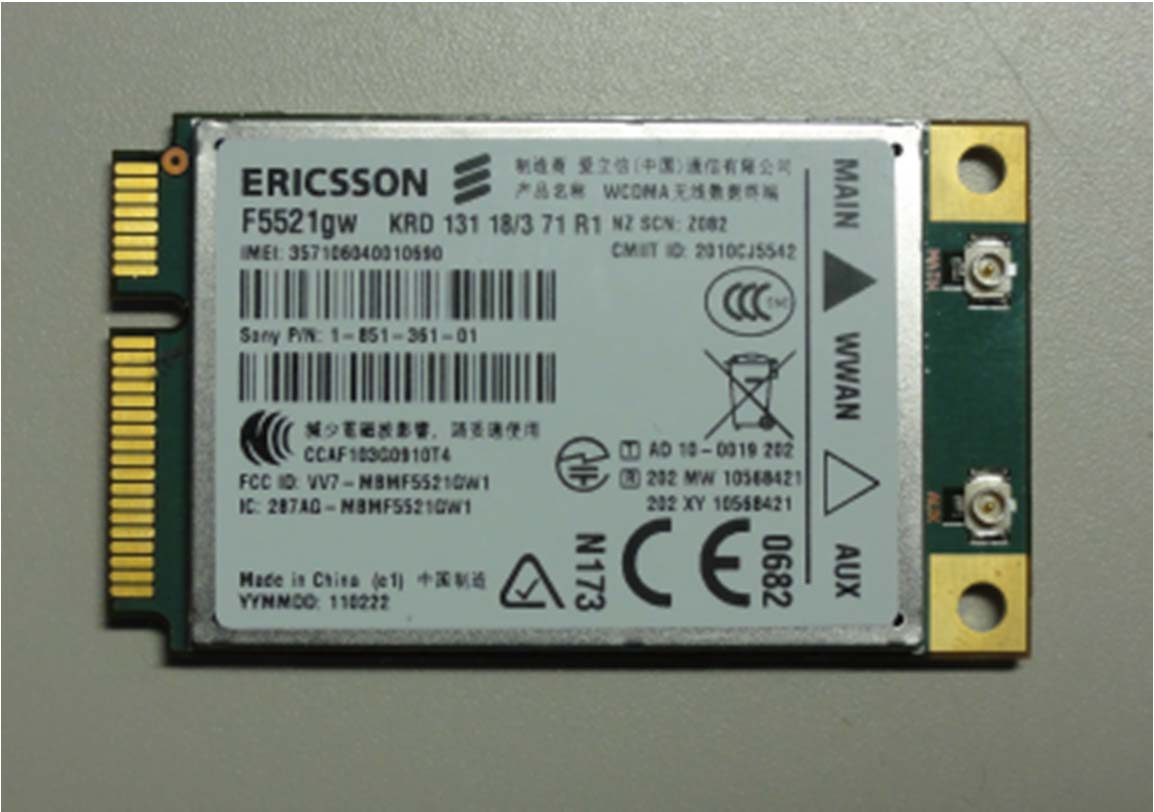

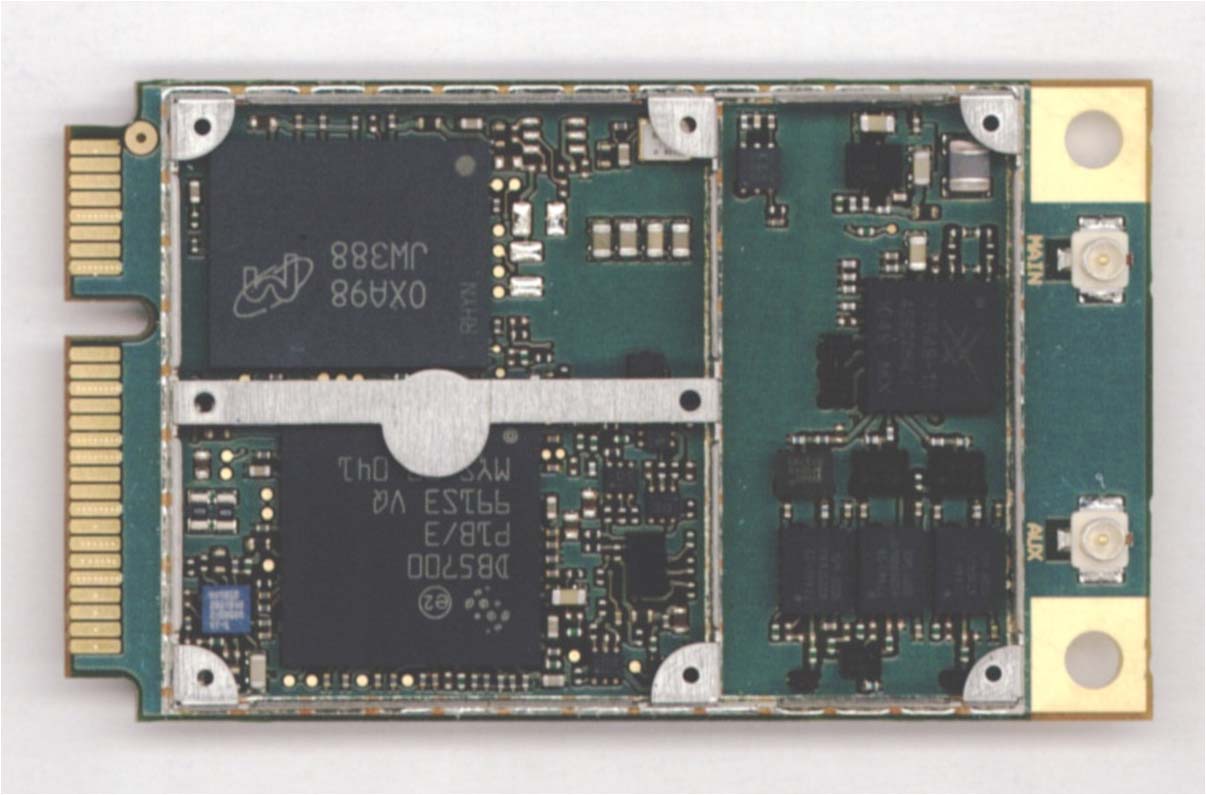

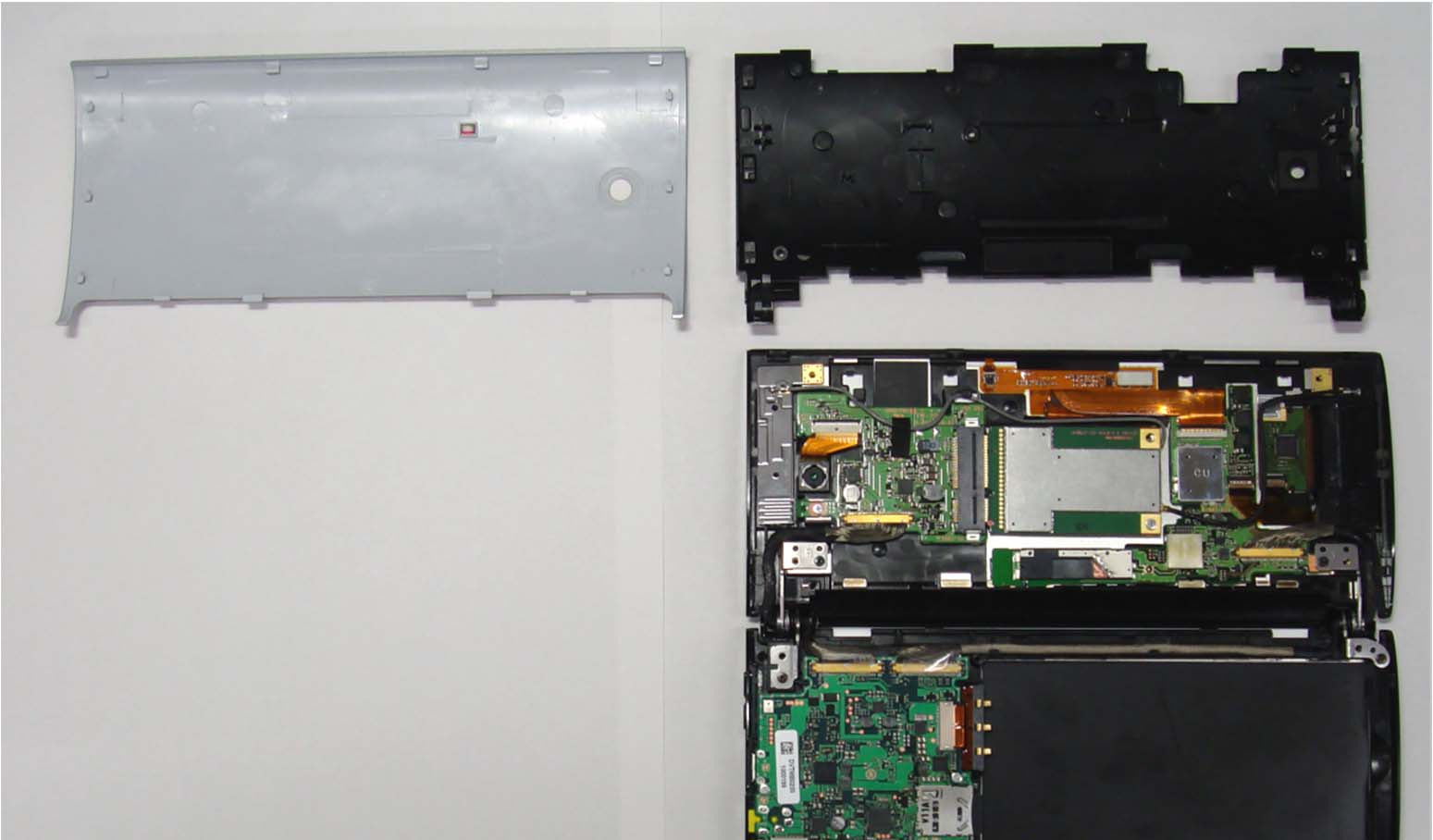

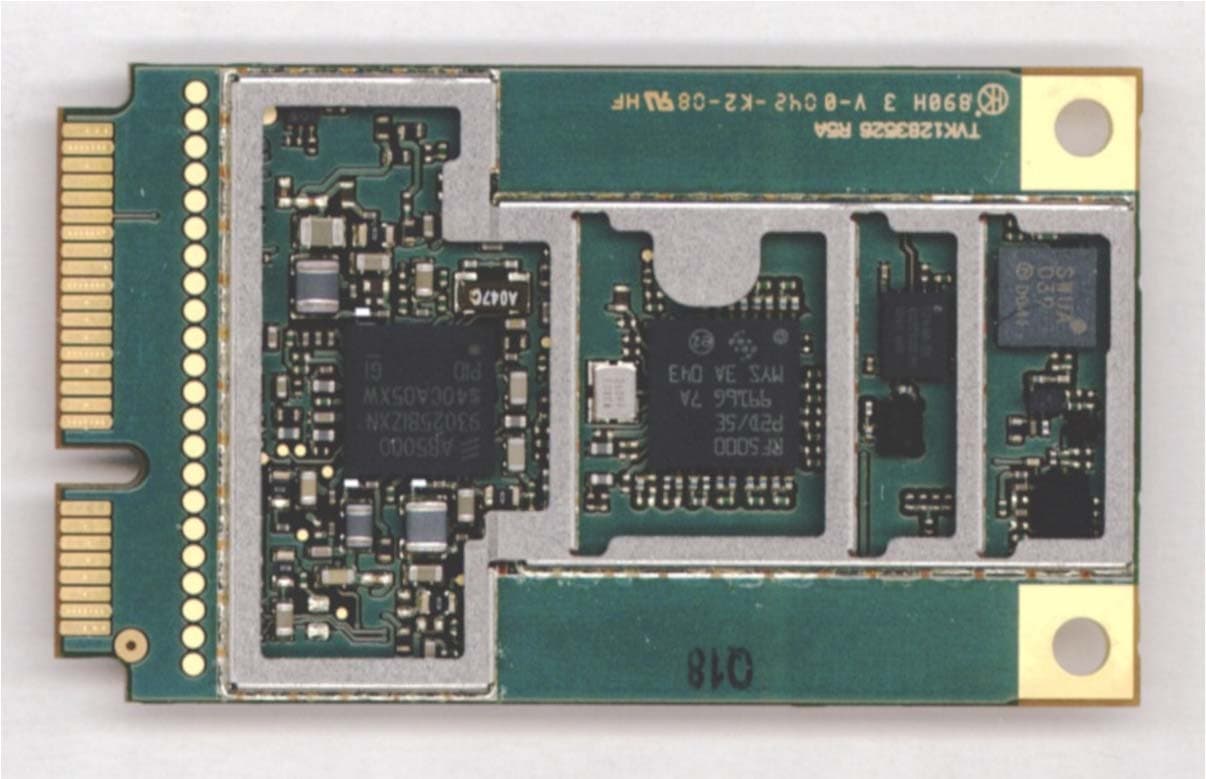

(1) Device internal and Antenna layout WLAN/BT Module WLAN/BT Antenna WWAN ModuleWWAN Antenna Internal Photo (2) WWAN Module Front with Shielding Rear with Shielding Front without Shielding Rear without Shielding (3) WLAN/BT Module Front with ShieldingRear Front without Shielding

Test report No. : 31HE0013-HO-F-R1 Page : 86 of 151 FCC ID : AK8SGPT211US Issued date : May 23, 2011 Revised date : May 31, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 3 : Test instruments Test report No. : 31HE0013-HO-F-R1 Page : 87 of 151 FCC ID : AK8SGPT211US Issued date : May 23, 2011 Revised date : May 31, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 1. Equipment used Control No. Instrument Manufacturer Model No Serial No Test Item Calibration Date * Interval(month) MURC-02 WirelessCommunication Test Set Agilent E5515C GB47050683 Power measurement SAR 2009/10/20 * 36 MCC-116 Microwave Cable 1G- 26.5GHz Suhner SUCOFLEX104 290221/4 Power measurement 2010/08/05 * 12 MAT-20 Attenuator(10dB)(above1 GHz) HIROSE ELECTRIC CO.,LTD. AT-110 - Power measurement 2011/01/06 * 12 MAT-22 Attenuator(10dB) 1- 18GHz Orient Microwave BX10-0476-00 - Power measurement 2011/03/14 * 12 MPD-01 PowerDivider DC to 26.5GHz Agilent 11636B 52258 Power measurement 2011/03/17 * 12 MPM-08 Power Meter Anritsu ML2495A 6K00003338 Power measurement 2010/09/10 * 12 MPSE-11 Power seter Anritsu MA2441B 011737 Power measurement 2010/09/10 * 12 MPM-01 Power Meter Agilent E4417A GB41290639 SAR 2011/02/01 * 12 MPSE-01 Power Sensor Agilent E9300B US40010300 SAR 2011/01/28 * 12 MPSE-03 Power sensor Agilent E9327A US40440576 SAR 2011/02/02 * 12 MAT-15 Attenuator(30dB) Agilent 8498A US40010300 SAR 2011/02/16 * 12 MSG-10 Signal Generator Agilent N5181A MY47421098 SAR 2010/09/08 * 12 MPA-12 MicroWave System Amplifier Agilent 83017A MY39500780 SAR 2011/03/10 * 12 MHDC-11 Dual Directional Coupler Hewlett Packard 778D 16605 SAR Pre Check MNA-01 Network Analyzer Agilent/HP E8358A US41080381 SAR 2010/08/19 * 12 MDPK-01 Dielectric probe kit Agilent 85070D 702 SAR 2010/10/25 * 12 MNCK-01 Type N Calibration Kit Agilent 85032F MY41495257 SAR 2010/08/10 * 12 MPB-03 Dosimetric E-Field Probe Schmid&Partner Engineering AG EX3DV3 3507 SAR 2011/03/16 * 12 MDAE-01 Data Acquisition Electronics Schmid&Partner Engineering AG DAE3 V1 509 SAR 2010/07/07 * 12 MPF-02 2mmOval Flat Phantom ERI 4.0 Schmid&Partner Engineering AG QD VA 001B (ERI4.0) 1045 SAR Pre Check COTS-MSAR-02 DASY5 Schmid&Partner Engineering AG DASY52 V52.6 - SAR - COTS-MSAR-02 S-Parameter Network Analyzer Agilent - - SAR - MDA-05 Dipole Antenna Schmid&Partner Engineering AG D900V2 155 SAR 2010/12/06 * 24 MDA-06 Dipole Antenna Schmid&Partner Engineering AG D1800V2 2d040 SAR 2010/12/09 * 24 MDA-07 Dipole Antenna Schmid&Partner Engineering AG D2450V2 713 SAR 2010/09/06 * 36 MOS-05 Thermo-Hygrometer Custom CTH-190 810201 SAR 2010/04/21 * 12 MOS-10 Digtal thermometer HANNA Checktemp-2 MOS-10 SAR 2010/08/02 * 12 MBM-13 Barometer Sunoh SBR121 837 SAR 2011/03/14 * 36 MSL900 Daily check Target value ± 5% MSL1800 Daily check Target value ± 5% MSL2450 Daily check Target value ± 5% SAR room Daily check Ambient Noise<0.012W/kg The expiration date of the calibration is the end of the expired month. As for some calibrations performed after the tested dates, those test equipment have been controlled by means of an unbroken chains of calibration As for some calibrations performed after the tested dates, those test equipment have been controlled by means of an unbroken chains of calibrations. Test report No. : 31HE0013-HO-F-R1 Page : 88 of 151 FCC ID : AK8SGPT211US Issued date : May 23, 2011 Revised date : May 31, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 2. Dosimetry assessment setup These measurements were performed with the automated near-field scanning system DASY4 from Schmid & Partner Engineering AG (SPEAG). The system is based on a high precision robot (working range greater than 0.9 m), which positions the probes with a positional repeatability of better than +/- 0.02 mm. Special E- and H-field probes have been developed for measurements close to material discontinuity, the sensors of which are directly loaded with a Schottky diode and connected via highly resistive lines to the data acquisition unit. The SAR measurements were conducted with the dosimetry probe EX3DV3, SN: 3507 (manufactured by SPEAG), designed in the classical triangular configuration and optimized for dosimetric evaluation. The probe has been calibrated according to the procedure described in [2] with accuracy of better than +/-10%. The spherical isotropy was evaluated with the procedure described in [3] and found to be better than +/-0.25 dB. The phantom used was the SAM Twin Phantom as described in FCC supplement C, IEEE P1528 and CENELEC EN50361. Test report No. : 31HE0013-HO-F-R1 Page : 89 of 151 FCC ID : AK8SGPT211US Issued date : May 23, 2011 Revised date : May 31, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 3. Configuration and peripherals The DASY5 system for performing compliance tests consist of the following items: 1. A standard high precision 6-axis robot (Stäubli RX family) with controller and software. An arm extension for accommodating the data acquisition electronics (DAE). 2. An isotropic field probe optimized and calibrated for the targeted measurement. 3. A data acquisition electronic (DAE), which performs the signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection, etc. The unit is battery powered with standard or rechargeable batteries. The signal is optically transmitted to the EOC. 4. The Electro-optical converter (EOC) performs the conversion between optical and electrical of the signals for the digital communication to the DAE and for the analog signal from the optical surface detection. The EOC is connected to the me…

Text truncated - open the document above for the full version.

Test report No. : 31HE0013-HO-F-R1 Page : 126 of 151 FCC ID : AK8SGPT211US Issued date : May 23, 2011 Revised date : May 31, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 21. System Validation Dipole (D2450V2,S/N: 713) Test report No. : 31HE0013-HO-F-R1 Page : 127 of 151 FCC ID : AK8SGPT211US Issued date : May 23, 2011 Revised date : May 31, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 31HE0013-HO-F-R1 Page : 128 of 151 FCC ID : AK8SGPT211US Issued date : May 23, 2011 Revised date : May 31, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 31HE0013-HO-F-R1 Page : 129 of 151 FCC ID : AK8SGPT211US Issued date : May 23, 2011 Revised date : May 31, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 31HE0013-HO-F-R1 Page : 130 of 151 FCC ID : AK8SGPT211US Issued date : May 23, 2011 Revised date : May 31, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 31HE0013-HO-F-R1 Page : 131 of 151 FCC ID : AK8SGPT211US Issued date : May 23, 2011 Revised date : May 31, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 31HE0013-HO-F-R1 Page : 132 of 151 FCC ID : AK8SGPT211US Issued date : May 23, 2011 Revised date : May 31, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 31HE0013-HO-F-R1 Page : 133 of 151 FCC ID : AK8SGPT211US Issued date : May 23, 2011 Revised date : May 31, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 31HE0013-HO-F-R1 Page : 134 of 151 FCC ID : AK8SGPT211US Issued date : May 23, 2011 Revised date : May 31, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 31HE0013-HO-F-R1 Page : 135 of 151 FCC ID : AK8SGPT211US Issued date : May 23, 2011 Revised date : May 31, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 22. Dosimetric E-Field Probe Calibration (EX3DV3,S/N: 3507) Test report No. : 31HE0013-HO-F-R1 Page : 136 of 151 FCC ID : AK8SGPT211US Issued date : May 23, 2011 Revised date : May 31, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 31HE0013-HO-F-R1 Page : 137 of 151 FCC ID : AK8SGPT211US Issued date : May 23, 2011 Revised date : May 31, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 31HE0013-HO-F-R1 Page : 138 of 151 FCC ID : AK8SGPT211US Issued date : May 23, 2011 Revised date : May 31, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 31HE0013-HO-F-R1 Page : 139 of 151 FCC ID : AK8SGPT211US Issued date : May 23, 2011 Revised date : May 31, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 31HE0013-HO-F-R1 Page : 140 of 151 FCC ID : AK8SGPT211US Issued date : May 23, 2011 Revised date : May 31, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 31HE0013-HO-F-R1 Page : 141 of 151 FCC ID : AK8SGPT211US Issued date : May 23, 2011 Revised date : May 31, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 31HE0013-HO-F-R1 Page : 142 of 151 FCC ID : AK8SGPT211US Issued date : May 23, 2011 Revised date : May 31, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 31HE0013-HO-F-R1 Page : 143 of 151 FCC ID : AK8SGPT211US Issued date : May 23, 2011 Revised date : May 31, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 31HE0013-HO-F-R1 Page : 144 of 151 FCC ID : AK8SGPT211US Issued date : May 23, 2011 Revised date : May 31, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 31HE0013-HO-F-R1 Page : 145 of 151 FCC ID : AK8SGPT211US Issued date : May 23, 2011 Revised date : May 31, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 31HE0013-HO-F-R1 Page : 146 of 151 FCC ID : AK8SGPT211US Issued date : May 23, 2011 Revised date : May 31, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 23. References [1]ANSI, ANSI/IEEE C95.1-1992: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz, The Instit…

Text truncated - open the document above for the full version.

Test report No. : 31HE0013-HO-F-R1 Page : 33 of 151 FCC ID : AK8SGPT211US Issued date : May 23, 2011 Revised date : May 31, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 2 : SAR Measurement data Test report No. : 31HE0013-HO-F-R1 Page : 34 of 151 FCC ID : AK8SGPT211US Issued date : May 23, 2011 Revised date : May 31, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 1. Evaluation procedure The evaluation was performed with the following procedure: Step 1: Measurement of the E-field at a fixed location above the ear point or central position of flat phantom was used as a reference value for assessing the power drop. Step 2: The SAR distribution at the exposed side of head or body position was measured at a distance of each device from the inner surface of the shell. The area covered the entire dimension of the antenna of EUT and the horizontal grid spacing was 15 mm x 15 mm . Based on these data, the area of the maximum absorption was determined by spline interpolation. Step 3: Around this point found in the Step 2 (area scan) , a volume of 30mm x 30mm x 30mm was assessed by measuring 7 x 7 x 7 points. And for any secondary peaks found in the Step2 which are within 2dB of maximum peak and not with this Step3 (Zoom scan) is repeated. On the basis of this data set, the spatial peak SAR value was evaluated under the following procedure: (1). The data at the surface were extrapolated, since the center of the dipoles is 1mm(EX3DV3) away from the tip of the probe and the distance between the surface and the lowest measuring point is 1.3 mm. The extrapolation was based on a least square algorithm [4]. A polynomial of the fourth order was calculated through the points in z-axes. This polynomial was then used to evaluate the points between the surface and the probe tip. (2). The maximum interpolated value was searched with a straightforward algorithm. Around this maximum the SAR values averaged over the spatial volumes (1 g or 10 g) were computed by the 3D-Spline interpolation algorithm. The 3D- Spline is composed of three one-dimensional splines with the “Not a knot"-condition (in x, y and z-directions) [4], [5]. The volume was integrated with the trapezoidal-algorithm. One thousand points (10 x 10 x 10) were interpolated to calculate the average. (3). All neighboring volumes were evaluated until no neighboring volume with a higher average value was found. Step 4: Re-measurement of the E-field at the same location as in Step 1. Test report No. : 31HE0013-HO-F-R1 Page : 35 of 151 FCC ID : AK8SGPT211US Issued date : May 23, 2011 Revised date : May 31, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 2. Measurement data i)GSM850 SGPT211US/S GSM850 GPRS 2slots Body Opened lid Long edge 5mm 824.2MHz Communication System: Generic GSM; Communication System Band: GSM 850 (824.0 - 849.0 MHz); Frequency: 835 MHz;Duty Cycle: 1:4.2 Medium parameters used: f = 835 MHz; σ = 0.96 mho/m; ε r = 54.5; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration: Probe: EX3DV3 - SN3507; ConvF(10.49, 10.49, 10.49); Calibrated: 2011/03/16 Sensor-Surface: 2mm (Mechanical Surface Detection) Electronics: DAE3 Sn509; Calibrated: 2010/07/07 Phantom: ELI 4.0; Type: QDOVA001BA; Measurement SW: DASY52, Version 52.6 (1); SEMCAD X Version 14.4.2 (2595) Area Scan (51x131x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.232 mW/g Zoom Scan (7x7x7) 2 (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.900 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.279 W/kg SAR(1 g) = 0.189 mW/g; SAR(10 g) = 0.131 mW/g Maximum value of SAR (measured) = 0.237 mW/g Test Date = 03/27/2011 Ambient Temperature = 24.5 degree.c Liquid Temperature = Before 23.0 degree.C , After 23.0 degree.C Test report No. : 31HE0013-HO-F-R1 Page : 36 of 151 FCC ID : AK8SGPT211US Issued date : May 23, 2011 Revised date : May 31, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SGPT211US/S GSM850 GPRS 2slots Body Opened lid short edge 5mm 824.4MHz Communication System: Generic GSM; Communication System Band: GSM 850 (824.0 - 849.0 MHz); Frequency: 835 MHz;Duty Cycle: 1:4.2 Medium parameters used: f = 835 MHz; σ = 0.96 mho/m; ε r = 54.5; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration: Probe: EX3DV3 - SN3507; ConvF(10.49, 10.49, 10.49); Calibrated: 2011/03/16 Sensor-Surface: 2mm (Mechanical Surface Detection) Electronics: DAE3 Sn509; Calibrated: 2010/07/07 Phantom: ELI 4.0; Type: QDOVA001BA; Measurement SW: DASY52, Version 52.6 (1); SEMCAD X Version 14.4.2 (2595) Area Scan (51x131x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.052 mW/g Zoom Scan (7x7x7) 2 (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.456 V/m; Power Drift = -0.20 dB Peak SAR (extrapolated) = 0.065 W/kg SAR(1 g) = 0.040 mW/g; SAR(10 g) = 0.026 mW/g Maximum value of SAR (measured) = 0.053 mW/g Test Date = 03/27/2011 Ambient Temperature = 24.5 degree.c Liquid Temperature = Before 23.0 degree.C , After 23.0 degree.C Test report No. : 31HE0013-HO-F-R1 Page : 37 of 151 FCC ID : AK8SGPT211US Issued date : May 23, 2011 Revised date : May 31, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SGPT211US/S GSM850 GPRS 2slots Body Opened lid Back 5mm 824.4MHz Communication System: Generic GSM; Communication System Band: GSM 850 (824.0 - 849.0 MHz); Frequency: 835 MHz;D…

Text truncated - open the document above for the full version.

Test report No. : 31HE0013-HO-F-R1 Page : 2 of 151 FCC ID : AK8SGPT211US Issued date : May 23, 2011 Revised date : May 31, 2011 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 1: Customer information .......................................................................…

Text truncated - open the document above for the full version.
