AK8SNCACFW1802.11b Wireless LAN CF Card

SNCA-CFW1 Page 1 of 7 WIRELESS CARD User's Manual SNCA-CFW1 SNCA-CFW1 Page 2 of 7 FCC Compliance This equipment has been tested and found to comply with the limits for a Class B Peripheral, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment dose cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This equipment has been tested to comply with the limits for a Class B peripheral, pursuant to Subpart B of Part 15 of FCC Rules. Only peripherals (Network camera) certified (DoC) or verified to comply with Class B limits may be attached to this equipment. Operation with non-certified (DoC) or non-verified personal computer and/or peripherals is likely to result in Interference to radio and TV reception. The connection of a unshielded equipment interface cable to this Equipment will invalidate the FCC Certification of this device and may cause interference levels which Exceed the limits established by FCC for equipment. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. For mobile devices without co-location condition FCC RF Radiation Exposure Statement: This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device was not tested FCC RF Exposure (SAR) limits. User must be keep distance at least 20cm separation distance from the antenna to the body of the user or a nearby person. This device cannot be used with handheld PDAs (personal digital assistants), desktop or laptop computers. Use in other configurations may not ensure compliance with FCC RF exposure guidelines. Canadian Warning Statement: This Class B digital apparatus complies with Canada RSS-210. Cet appareil numérique de la classe B est conforme à la norme CNR-210 du Canada This device complies with Part 15 of the FCC Rules. Operation is subject to following two conditions:(1) this device may not cause harmful interference. and (2) this device must accept any interference received, including interference that may cause undesired operation. SNCA-CFW1 Page 3 of 7 DGT Warning Statement: 低功率電波輻性電機管理辦法 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅 自變更頻率、加大功率或變更原設計之特性及功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象 時，應立即停用，並改善至無干擾時方得繼續使用。 前項合法通信，指依電信規定作業之無線電信。低功率射頻電機須忍受合法通 信或工業、科學及醫療用電波輻射性電機設備之干擾。 Limitation for use in the EU This device can operate indoors or outdoors in all countries of the European Community using the 2.4GHz band: Channels 1 – 13, except where noted below: * In Italy the end-user must apply for a license from the national spectrum authority to operate this device outdoors. * In Belgium outdoor operation is only permitted using the 2.46 – 2.4835GHz band: Channel 13. * In France outdoor operation is only permitted using the 2.4 – 2.454 GHz band: Channels 1 – 7. SNCA-CFW1 Page 4 of 7 1.Introduction SONY Wireless Network Adapter offers performance comparable to Ethernet Local Area Network (LAN) system, without the limitations of network cables. It allows you to connect Network camera to a Local Area Network from anywhere within the wireless coverage area. It also enables you to roam throughout the network while remaining connected to the LAN. Package Contents Make sure the following materials are available before beginning: SNCA-CFW1 Wireless LAN Card System Requirements This Wireless LAN Card only operate with SONY Network camera. Laptop PC, Desktop PC, PDA or other peripherals cannot work properly. option a) External polarity antenna with 1m long cable 2. Installation guide 802.11b Wireless LAN Card Before insert Wireless LAN card, make sure Network camera's power switch is off. After insert Wireless LAN card into CF slot, power on Network Camera's Power switch. Network configuration a) Install Utility Software into PC. b) Connect PC and Network Camera by Ethernet cross cable. c) After insert Wireless LAN card, switch on Network Camera. d) Start utility program. e) Setting IP address. f) Setting SSID. g) Setting WEP External polarity antenna Wireless LAN card has external antenna connector. External antenna can expand communication distance. Installation a) Setting Antenna. b) Use 1m long cable, connect Antenna connector and Wireless LAN card external connector. c) By Utility software, select "External antenna". SNCA-CFW1 Page 5 of 7 3. Specifications WIRELESS CARD (model name : SNCA-CFW1) Absolute Maximum Ratings Supply Voltage -0.3 to 3.6V (max.) Storage Temperature -25 to 60 degree (All temperature references refer to ambient conditions) Operating Conditions Supply Voltage range 3.0 to 3.6V Temperature Range -20 to 55 degree Electrical Specifications Current consumption Transmit mode 380mA max. Receiving mode 300mA max. Center Frequency Range 2412 to 2462MHz (11ch) Antenna Gain(Internal) 2.14dBi max. (External-polarity) 6.4 dBi max.(include Cable Loss 2.8dB) Transmitter power +15dBm max. E.I.R.P. +17.14dBm max. Receiving Sensitivity -76dBm max. (FER 8e-2 at 11Mbps) Data rate 11, 5.5, 2, 1Mbps External polarity antenna (Model name: ) Storage Temperature -30 to 70 degree Operating Temperature Range -20 to 60 degree F…

Text truncated - open the document above for the full version.

Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: AK8SNCACFW1 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Antenna Specification Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Best Regards, Tsutomu Hibino Assistant Manager Camera Products Department Image Sensing Products Division Broadband Communication Company Sony Corporation Professional Solution Network Company November 10, 2004

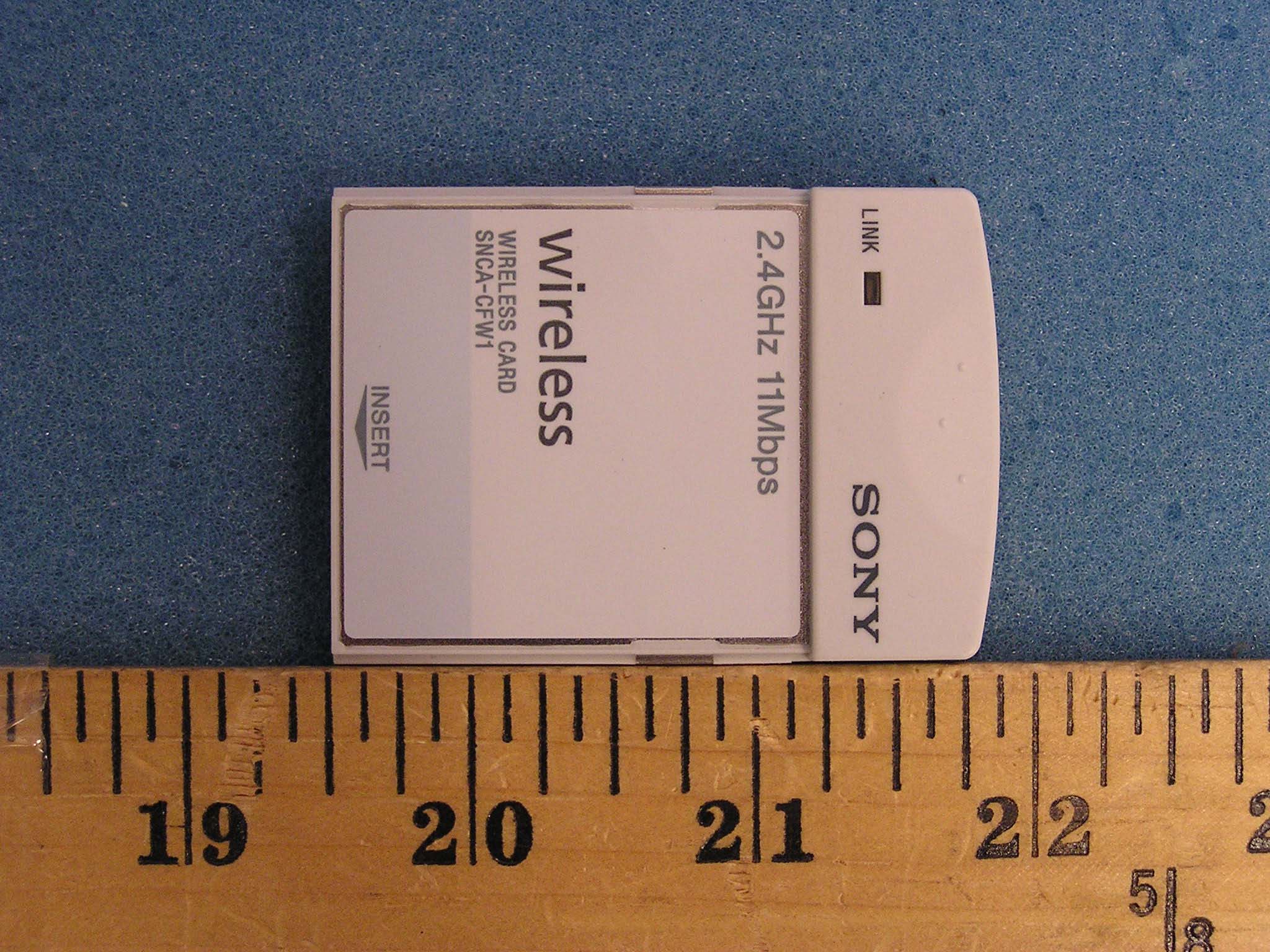

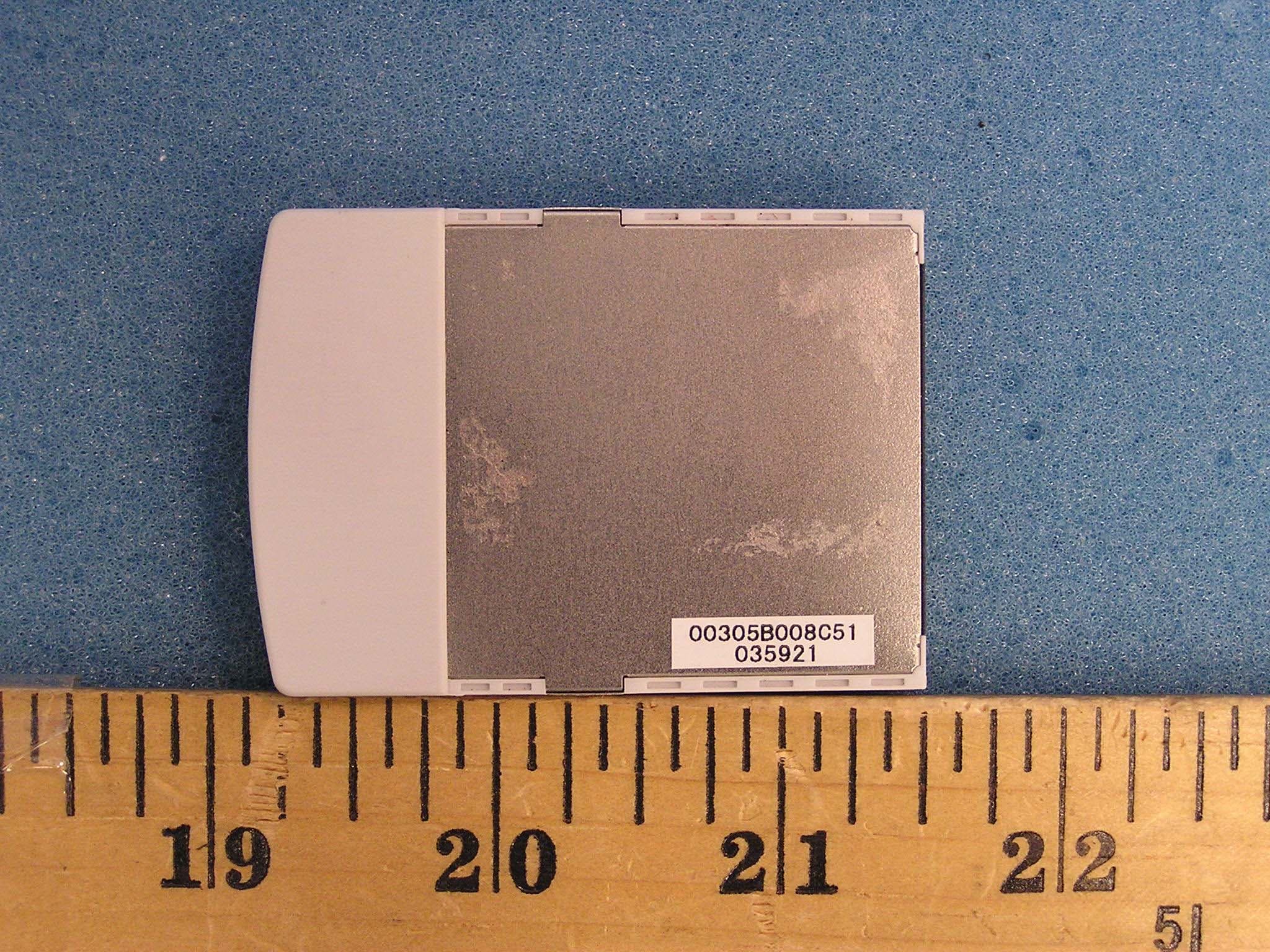

1 Mike Kuo From: Claire Hoque Sent: December022004Thursday 12:01 PM To: Mike Kuo Cc: Kathy Yao; Mika Kaneko Subject: RE: Sony Corporation, FCC ID: AK8SNCACFW1, Assessment NO.: AN04T4377, Notice#1 External Photos(revised).pdf Internal Photos(revised).pdf FCC ID LABEL(revised).pdf 04I3037-1 FCC DTS Report(revis... User Manual(revised).pdf Request for confidentiality le... Hi Mike, Here are the answers. Question #1: The EUT contains in this application is a CF card. Please remove the PCMCIA adaptor photos from the external photos. <answer>external photos are revised as attached. Question #2: Please provide additional internal photos by removing the metal plate and remove the antenna cable from the internal photo since this cable is not applicable to the EUT and it is for testing purpose. <answer>internal photos are revised as attached. Question #3: On the proposed FCC ID label format , please remove the PCMCIA adaptor from the label location. <answer>FCC ID label format is revised as attached. Question #4: Only one external antenna specification is submitted with 6.4 dBi gain with 2.8dBi cable loss. Section 3 of user manual includes two optional external antennas, one is polarity antenna with 2.14dBi gain and the other one with non-polarity antenna with 9dBi gain. Please submit additional antenna specification for 2.14dBi polarity antenna and 9 dBi non-polarity antenna. <answer>2.14dBi polarity external antenna is not existed. Attached please find the revised manual. Question #5: Test report described the 6.4 dBi antenna as slot antenna but the antenna specification file indicates the antenna is loop antenna. Please explain. <answer>It should be loop antenna, test report is revised. Question #6 : Only 2.14dBi internal antenna and 6.4dBi slot/loop antenna were tested during radiated spurious emission tests. Please provide additional radiated emission test data for 2.14dBi polarity antenna and 9 dBi non-polarity antenna. <answer>There are only two antennas, 2.14dBi internal antenna and 6.4dBi external loop antenna. Question #7 : Since the internal 2.14 dBi antenna is mounted on the PCB of CF card with external antenna connector to connect external optional antenna. When the external antenna is used, will internal and external antenna transmit simultaneously ? If yes, please provide co-located emission test data. If not, please provide technical information to justify non co-located transmission. <answer>There is a switch inside to select the internal/internal antenna, therefore, no co-location is occurred. Please refer to Block Diagram. Question #8 : Request for long term and short term confidentiality are checked on the TCB application form. Please provide request for confidentiality letter. <answer>Sony has withdrawn Short Term Confidentiality. Attached please find the revised Confidentiality letter. Question #9 : In request for short term confidentiality including the test setup photo, please remove the test setup photo from the test report. <answer>Sony has withdrawn Short Term Confidentiality. Thanks, Claire

PROPOSED FCC ID LABEL AND LOCATION Sony Corporation This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: AK8SNCACFW1 FCC ID LABEL LOCATION

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR WIRELESS CARD MODEL NUMBER: SNCA-CFW1 FCC ID: AK8SNCACFW1 REPORT NUMBER: 04I3037-1 ISSUE DATE: NOVEMBER 12, 2004 Prepared for SONY CORPORATION 6-7-35 KITASHINAGAWA SHINAGAWA-KU TOKYO, 141-0001 JAPAN Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 04I3037-1 DATE: NOVEMBER 12, 2004 EUT: WIRELESS CARD FCC ID:AK8SNCACFW1 Page 2 of 78 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Revisions Revised By REPORT NO: 04I3037-1 DATE: NOVEMBER 12, 2004 EUT: WIRELESS CARD FCC ID:AK8SNCACFW1 Page 3 of 78 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS............................................................................................. 4 2. TEST METHODOLOGY .................................................................................................................. 5 3. FACILITIES AND ACCREDITATION .......................................................................................... 5 4. CALIBRATION AND UNCERTAINTY.......................................................................................... 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 5 5. EQUIPMENT UNDER TEST............................................................................................................6 5.1. DESCRIPTION OF EUT ..............................................................................................................6 5.2. MAXIMUM OUTPUT POWER .................................................................................................... 6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ............................................................................. 6 5.4. SOFTWARE AND FIRMWARE .................................................................................................... 6 5.5. WORST-CASE CONFIGURATION AND MODE......................................................................... 7 5.6. DESCRIPTION OF TEST SETUP ................................................................................................ 8 6. TEST AND MEASUREMENT EQUIPMENT .............................................................................. 10 7. LIMITS AND RESULTS ................................................................................................................. 11 7.1. CHANNEL TESTS FOR THE 2400 TO 2483.5 MHz BAND ...................................................... 11 7.1.1. 6 dB BANDWIDTH ........................................................................................................... 11 7.1.2. 99% BANDWIDTH............................................................................................................ 15 7.1.3. PEAK OUTPUT POWER .................................................................................................. 19 7.1.4. MAXIMUM PERMISSIBLE EXPOSURE ........................................................................ 24 7.1.5. AVERAGE POWER........................................................................................................... 27 7.1.6. PEAK POWER SPECTRAL DENSITY ............................................................................ 28 7.1.7. CONDUCTED SPURIOUS EMISSIONS.......................................................................... 32 7.2. RADIATED EMISSIONS.............................................................................................................39 7.2.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ................................................. 39 7.2.2. TRANSMITTER ABOVE 1 GHz FOR 2400 TO 2483.5 MHz BAND WITH 2.14 dBi DIPOLE ANTENNA .......................................................................................................................... 42 7.2.3. TRANSMITTER ABOVE 1 GHz FOR 2400 TO 2483.5 MHz BAND WITH 6.4 dBi LOOP ANTENNA.............................................................................................................................. 51 7.2.4. WORST-CASE RADIATED EMISSIONS BELOW 1 GHz WITH 2.14dBi DIPOLE ANTENNA ......................................................................................................................................... 60 7.2.5. WORST-CASE RADIATED EMISSIONS BELOW 1 GHz WITH 6.4dBi LOOP ANTENNA ......................................................................................................................................... 64 7.3. POWERLINE CONDUCTED EMISSIONS ................................................................................ 68 8. SETUP PHOTOS .............................................................................................................................. 72 REPORT NO: 04I3037-1 DATE: NOVEMBER 12, 2004 EUT: WIRELESS CARD FCC ID:AK8SNCACFW1 Page 4 of 78 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: SONY CORPORATION 6-7-35 KITASHINAGAWA SHINAGAWA-KU TOKYO, 141-0001 JAPAN EUT DESCRIPTION: WIRELESS CARD MODEL: SNCA-CFW1 SERIAL NUMBER: 00305B008C4C035912 DATE TESTED: NOVEMBER 7 to NOVEMBER 10, 2004 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE…

Text truncated - open the document above for the full version.

REPORT NO: 04I3037-1 DATE: NOVEMBER 12, 2004 EUT: WIRELESS CARD FCC ID:AK8SNCACFW1 Page 72 of 78 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 04I3037-1 DATE: NOVEMBER 12, 2004 EUT: WIRELESS CARD FCC ID:AK8SNCACFW1 Page 73 of 78 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED EMISSION MEASUREMENT SET-UP WITH 2.14dBi DIPOLE ANTENNA RADIATED FRONT PHOTO REPORT NO: 04I3037-1 DATE: NOVEMBER 12, 2004 EUT: WIRELESS CARD FCC ID:AK8SNCACFW1 Page 74 of 78 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED BACK PHOTO REPORT NO: 04I3037-1 DATE: NOVEMBER 12, 2004 EUT: WIRELESS CARD FCC ID:AK8SNCACFW1 Page 75 of 78 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED EMISSION MEASUREMENT SET-UP WITH 6.4dBi SLOT ANTENNA RADIATED FRONT PHOTO REPORT NO: 04I3037-1 DATE: NOVEMBER 12, 2004 EUT: WIRELESS CARD FCC ID:AK8SNCACFW1 Page 76 of 78 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED BACK PHOTO REPORT NO: 04I3037-1 DATE: NOVEMBER 12, 2004 EUT: WIRELESS CARD FCC ID:AK8SNCACFW1 Page 77 of 78 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 04I3037-1 DATE: NOVEMBER 12, 2004 EUT: WIRELESS CARD FCC ID:AK8SNCACFW1 Page 78 of 78 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT LINE CONDUCTED BACK PHOTO
