AK8SNCM1WNetwork Camera

3-857-706-11 (1) Network Camera © 2004 Sony Corporation SNC-M1/M1W User’s Guide Software Version 1.0 2 O wner's R ec ord The model and serial numbers are located on the bottom. Record the serial number in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product. Model N o.____________________ Serial N o.____________________ To prevent fire or s hock ha z a rd, do not expos e the unit to ra in or moisture. To avoid elec trica l s hock , do not open the c a binet. R efer s ervicing to qua lified personnel only. A C power adaptor Model N o.:3A -211DA05 (EN G ELECT RI C C O., LTD.) CAU T ION :T his unit is for use only with the supplied AC power adaptor. U se with other AC power adaptors may cause hazards such as a fire. WA R N IN G T his unit has no power switch. Disconnect device of this unit is the mains plug of the AC adaptor. T he mains plug on this equipment must be used to disconnect mains power. Please ensure that the socket outlet is installed near the equipment and shall be easily accessible. I n the event of abnormal operations, disconnect the mains plug. C aution T his installation should be made by a qualified service personnel and should conform to all local codes. C aution T he apparatus shall not be exposed to dripping or splashing and no objects filled with liquid, such as vases, shall be placed on the apparatus. F or cus tomers in the U.S.A . T his equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC R ules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. T his equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference wll not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: –Reorient or relocate the receiving antenna. –Increase the separation between the equipment and receiver. –Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. –Consult the dealer or an experienced radio/TV technician for help. I f you have any questions about this product, you may call: Sony's B usiness I nformation C enter (B I C) at 1-800-686-SON Y (7669) or Write to: Sony C ustomer I nformation Services C enter 6900-29, Daniels Parkway, PMB 330 Fort Myers, Florida 33912 T his device complies with Part 15 of the F CC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WA R N IN G Decla ration of C onformity (For S N C -M1 only) Trade Name: SON Y Model N o:SNC-M1 Responsible Party:Sony Electronics Inc. A ddress: 16450 W. Bernardo Dr, San Diego, CA 92127 U .S.A . Telephone N o:858-942-2230 1) To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. 2) This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. C aution 3 You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. The shielded interface cable recommended in this manual must be used with this equipment in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules. For customers in Canada This Class B digital apparatus complies with Canadian ICES-003. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. The term “IC:” before the radio certification number only signifies that industry Canada technical specifications were met. For customers in Europe Hereby, Sony Corporation, declares that this SNC-M1W is in compliance with the essential requirements and other relevant provisions of the Directive 1999/5/EC. For details, please access the follwing URL: http://www.compliance.sony.de/ ATTENTION The electromagnetic fields at specific frequencies may influence the picture of the unit. Voor de klanten in Nederland • Dit apparaat bevat een vast ingebouwde batterij die niet vervangen hoeft te worden tijdens de levensduur van het apparaat. • Raadpleeg uw leverancier indien de batterij toch vervangen moet worden. De batterij mag alleen vervangen worden door vakbekwaam servicepersoneel. • Gooi de batterij miet weg maar lever deze in als klein chemisch afval (KCA). • Lever het apparaat aan het einde van de levensduur in voor recycling, de batterij zal dan op correcte wijze verwerket worden. NOTICE TO USERS © 2004 Sony Corporation. All rights reserved. This manual or the software described herein, in whole or in part, may not be reproduced, translated or reduced to any machine readable form without prior written approval from Sony Corporation. SONY CORPORATION PROVIDES NO WARRANTY WITH REGARD TO THIS MANUAL, THE SOFTWARE OR OTHER INFORMATION CONTAINED HEREIN AND HEREBY EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE WITH REGARD TO THIS MANUAL, THE SOFTWARE OR SUCH OTHER INFORMATION. IN NO EVENT SHALL SONY CORPORATION BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES, WHETHER BASED ON TORT, CONTRACT, OR OTHERWISE, ARISING OUT OF OR IN CONNECTION WITH THIS MANUAL, THE SOFTWARE OR OTHER INFORMATION CONTAINED HEREIN OR THE USE THE…

Text truncated - open the document above for the full version.

Exclusive Certification Corp. 4F-2, No. 28, Lane 78, Xing-Ai Rd. Nei-hu, Taipei City 114 Taiwan R.O.C 11478284-2F Tel: 886-2-2792-3366 Fax: 886-2-2792-1100 To whom it may concern The enclosed documents constitute a formal submittal and application for a Grant of Equipment Authorization pursuant to Subpart C of Part 15 of FCC rules (CFR47) regarding Network Camera for the Sony model SNC-M1W. Data within this report demonstrates that the equipment tested complied with the FCC limits for intentional radiators. Exclusive Certificate Corp. (ECC), as duly authorized agent prepared this submittal. A copy of the letter of our appointment as agent is enclosed. If there are any questions or if further information is needed, please contact ECC for assistance. Ivy Chen TEL: +886-2-2792-3366 # 204 FAX: +886-2-2792-1100 E-mail: [email protected]

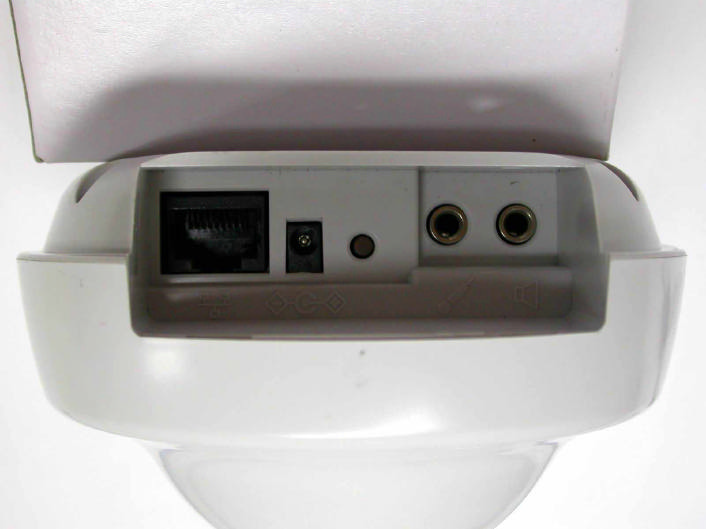

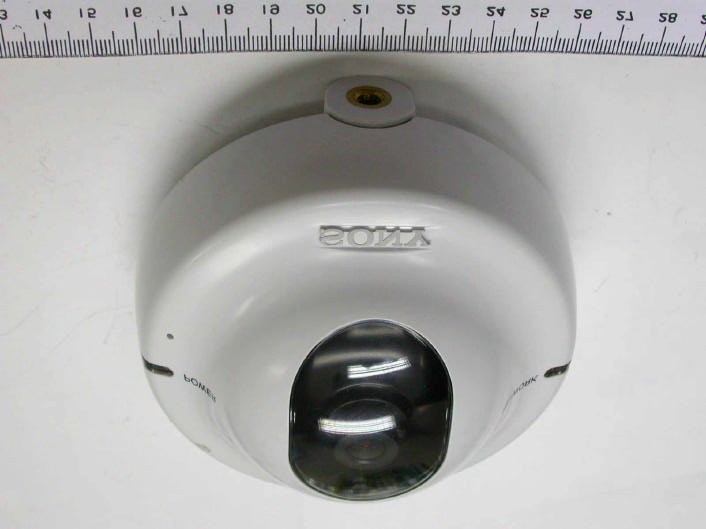

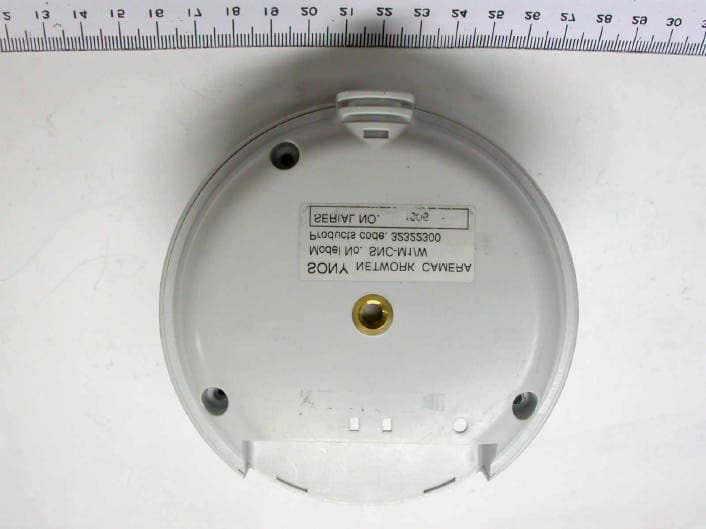

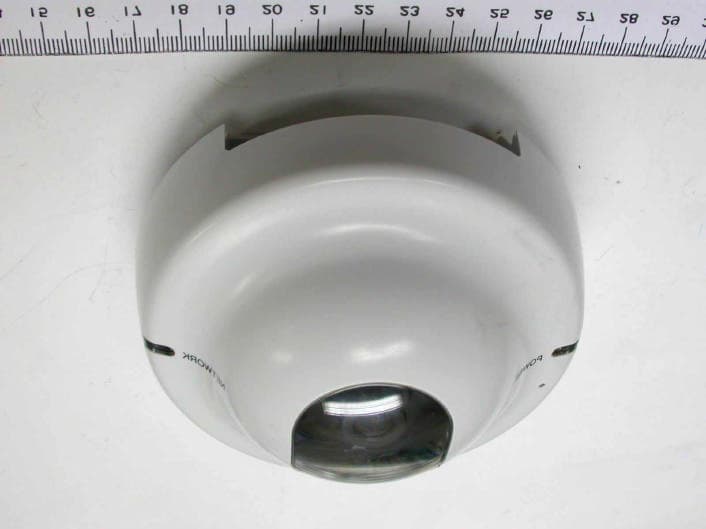

External Photos

Internal Photos

MB801T CIRCUIT DESCRIPTION HOST MAC BASE BAND TNETW1130 RADIO ANTENNA RF SWITCH CONTROL MAC (Media Access Control) Unit with Baseband Process Unit (U1) The TNETW1130 MAC implements the IEEE Std 802.11 MAC sublayer using both dedicated hardware and embedded firmware. The MAC hardware implements real-time functions, including access protocol management, encryption, decryption, and direct memory access (DMA) transferring of data between the baseband processor and the host. The eCPU runs firmware that manages the flow of commands and data to/from the host, performs scan-and-join operations, and maintains TX and RX queues, as well as a WEP key table stored in internal RAM. The eCPU can override many of the MAC functions that are performed automatically by hardware during normal operation. The baseband processor includes two primary interfaces: radio and MAC. The radio interface provides analog differential signals for transmitting and receiving data by means of 2.4-GHz or 5-GHz radios. The radio interface also includes programmable RX AGC, TX power control, and antenna diversity. The MAC interface ensures that decoded and descrambled RX data is transferred to the MAC for further processing. The MAC interface also allows the MAC to transfer MAC protocol data units (MPDUs) to the baseband processor for encoding and transmission. The baseband processor provides a serial interface through which the MAC accesses registers within the baseband processor core. The baseband processor also provides CCA information to the MAC. RC2422B RF Transceiver Dual-Mode 802.11b/g IQ/IF Transceiver with Dual VCO Synthesizers(U8) The RC2422 is a fully integrated IQ transceiver specifically for use in 802.11 b/g applications. The RC2422 is designed to perform the IQ conversion at 374MHz IF as well as provide an RFLO and control logic to the RFFE (Radio Frequency Front End). The RC2422 also has an internal IQ DC offset calibration function for the receive IQ interface. Combined with the Radia integrated RFFE, the RC2422 completes the Radia WLAN two-chip radio. The RC2422 incorporates all of the system blocks from the modem to the RFFE except for the IF filtering and the reference crystal. The ASIC uniquely incorporates an internal PLL reference oscillator where only a crystal is needed, and also provides a clock output for base-band/MAC ASICs. RC2422 includes two synthesizers with VCOs, IQ modulator, IQ demodulator, anti aliasing filters, IF amplifiers, receive AGC circuit, transmit power control and serial interface. RC2326 Dual-Mode 802.11b/g RFFE ISM band(U2) The RC2326 is a fully integrated Dual Mode Radio Frequency Front End (RFFE) designed specifically for use in 802.11 b/g applications. The RC2326 is designed to perform RF up and down conversions in the unlicensed ISM band. Combined with the Radia RC2422 IF/IQ Tranceiver/Synthesizer, The RC2326 completes the Radia WLAN two-chip radio. The RC2326 incorporates all of the RF blocks for both the “b/g” band except for low cost ceramic filters. The ASIC includes the LNA, PA, mixer, bias circuitry, RX gain control, transmit coupler detector, and T/R switches. High integration and internal RF matching enhances performance and greatly reduce external part count. The only external needed for operation are RF filters and external low power DC switching FETs. Power Regulator(U5,U10,U15) Mini PCI Connector

1.1. Test Result of RF Exposure Evaluation . Product: Network Camear . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD . Test Mode: Normal Operation 1.1.1. Antenna Gain The maximum Gain is 3.0 dBi. 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance Modulation Standard: IEEE 802.11b Test Date: Oct. 08, 2004 Temperature: 24 Humidity: 59 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 14.66 0.0116 06 2437 15.04 0.0127 11 2462 15.52 0.0141 The MPE is calculated as 0.0127 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 13, 2004 1 of 48 FCC ID: AK8SNCM1W FCC Test Report: FI04100201-A FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart C † The test result refers exclusively to the test presented test model / sample., † Without written approval of Exclusive Certification Corp. the test report shall not be reproduced except in full. Applicant Sony Corporation Address Gate City Osaki West Tower Osaki East Tec. 1-11-1 Osaki Shinagawa-Ku, Tokyo, 141-0032 Japan Manufacture Topco corporation Address No.8, Wu-Chung Rd., Wu-Ku industrial Park, Wu-Ku Hsiang, Taipei Hsien, 248, Taiwan R.O.C. Equipment Network Camera Model No. SNC-M1W FCC ID AK8SNCM1W Trade Name Sony Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 13, 2004 2 of 48 FCC ID: AK8SNCM1W FCC Test Report: FI04100201-A Contents 1. Report of Measurements and Examinations..................................................................................4 1.1. List of Measurements and Examinations............................................................................4 1.2. Antenna Requirements......................................................................................................5 1.3. Test of Conducted Emission..............................................................................................6 1.4. Test of Radiated Emission.................................................................................................8 1.5. 6dB Bandwidth.................................................................................................................9 1.6. Maximum Peak Output Power...........................................................................................9 1.7. Band Edges Measurement..............................................................................................10 1.8. Power Spectral Density...................................................................................................10 1.9. Restricted Bands of Operation..........................................................................................11 1.10. Labeling Requirement......................................................................................................11 1.11. RF Exposure..................................................................................................................12 2. Test Configuration of Equipment under Test................................................................................14 2.1. Test Mode and Test Software...........................................................................................14 2.2. Description of Test System..............................................................................................14 2.3. Connection Diagram of Test System................................................................................15 2.4. Feature of Equipment under Test.....................................................................................15 2.5. RF Module Specifications................................................................................................16 2.6. History of this test report.................................................................................................15 3. General Information of Test.......................................................................................................17 4. Test Result and Data.................................................................................................................18 4.1. Antenna Requirement.....................................................................................................18 4.2. Test Result of Conducted Emission..................................................................................19 4.3. RF Portion......................................................................................................................26 4.4. 6dB Bandwidth Measurement Data..................................................................................32 4.5. Peak Output Power Measurement Data...........................................................................35 4.6. Band Edges Measurement Data......................................................................................38 4.7. Power Spectral Density Measurement Data......................................................................40 5. List of Measuring Equipment Used.............................................................................................40 Appendix A. Photographs of EUT........................................................................... .........A1 ~ A10 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 13, 2004 3 of 48 FCC ID: AK8SNCM1W FCC Test Report: FI04100201-A CERTIFICATE OF COMPLIANCE according to FCC Rules and Regulations Part 15 Subpart C Applicant Sony Corporation Address Gate City Osaki West Tower Osaki East Tec. 1-11-1 Osaki Shinagawa-Ku, Tokyo, 141-0032 Japan Manufacture Topco corporation Address No.8, Wu-Chung Rd., Wu-Ku industrial Park, Wu-Ku Hsiang, Taipei Hsien, 248, Taiwan R.O.C. Equipment Network Camera Model No. SNC-M1W FCC ID AK8SNCM1W I HEREBY CERTIFY THAT : The measurements shown in this test report were made in accordance with the procedures given in ANSI C63.4. The equipment was passed the test performed according to FCC Rules and Regulations Part 15 Subpart C (2002). The test was carried out on Oct. 08, 2004 at Exclusive Certification Corp. Signature Anson Chou / Manager Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 13, 2004 4 of 48 FCC ID: AK8SNCM1W FCC Test Report: FI04100201-A 1. Report of Measurements and Examinations 1.1. List of Measurements and Examinations FCC Rule . Description of Test Result 15.203 . Antenna Requirement Pass 15.207 . Conducted Emission Pass 15.209 . Radiated Emission Pass…

Text truncated - open the document above for the full version.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 13, 2004 26 of 48 FCC ID: AK8SNCM1W FCC Test Report: FI04100201-A 4.3. RF Portion 4.3.1. Test Result of Conducted Emission Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 13, 2004 27 of 48 FCC ID: AK8SNCM1W FCC Test Report: FI04100201-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 13, 2004 28 of 48 FCC ID: AK8SNCM1W FCC Test Report: FI04100201-A 4.3.2. Test Result of Radiated Emission Modulation Standard: IEEE 802.11b a) Emission frequencies below 1 GHz Channel LO Test Date: Oct. 08, 2004 Temperature: 24 Humidity: 59% Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 290.93 H 54.56 -12.56 41.99 46.00 -4.01 Peak 165 1.0 99.84 V 56.23 -17.47 38.77 43.50 -4.73 Peak 125 1.0 124.09 V 55.52 -15.74 39.78 43.50 -3.72 Peak 105 1.0 911.73 V 39.58 3.32 42.91 46.00 -3.09 Peak 150 1.0 935.98 V 39.07 3.96 43.03 46.00 -2.97 Q.P. 140 1.0 Notes: 1. Result = Meter Reading + Corrected Factor 2. Corrected Factor = Antenna Factor + Cable Loss – Amplifier b) Emission frequencies above 1 GHz Channel LO Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 1845.0 H 54.72 -2.84 51.87 74 -22.13 Peak 130 1.5 2038.0 H 57.06 -1.81 55.25 74 -18.75 Peak 176 1.0 2038.0 H 46.10 -1.80 44.30 54 -9.70 Ave. 182 1.0 2605.5 H 50.57 0.20 50.77 74 -23.23 Peak 100 1.0 4825.4 H 55.15 7.22 62.37 74 -11.63 Peak 190 1.5 4825.4 H 33.28 7.26 40.53 54 -13.47 Ave. 195 1.5 1845.0 V 54.45 -3.48 50.97 74 -23.03 Peak 135 1.5 2038.0 V 57.89 -2.51 55.37 74 -18.63 Peak 196 1.0 2038.0 V 50.98 -2.50 48.48 54 -5.52 Ave. 180 1.0 4081.0 V 46.61 4.91 51.53 74 -22.47 Peak 200 1.5 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 13, 2004 29 of 48 FCC ID: AK8SNCM1W FCC Test Report: FI04100201-A Modulation Standard: IEEE 802.11b a) Emission frequencies below 1 GHz Channel MID Test Date: Oct. 08, 2004 Temperature: 24 Humidity: 59% Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 290.93 H 54.26 -12.56 41.69 46.00 -4.37 Peak 150 1.0 124.09 V 55.26 -15.74 39.52 43.50 -3.98 Peak 110 1.0 935.98 V 38.97 3.96 42.93 46.00 -3.07 Peak 140 1.0 Notes: 1. Result = Meter Reading + Corrected Factor 2. Corrected Factor = Antenna Factor + Cable Loss – Amplifier b) Emission frequencies above 1 GHz Channel MID Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 2053.00 H 54.00 -1.75 52.25 74 -21.75 Peak 182 1.0 1845.00 V 53.10 -3.48 49.62 74 -24.38 Peak 136 1.5 2053.00 V 55.69 -2.45 53.24 74 -20.76 Peak 185 1.0 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 13, 2004 30 of 48 FCC ID: AK8SNCM1W FCC Test Report: FI04100201-A Modulation Standard: IEEE 802.11b a) Emission frequencies below 1 GHz Channel HI Test Date: Oct. 08, 2004 Temperature: 24 Humidity: 59% Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 502.39 H 48.02 -6.22 41.80 46.00 -4.20 Peak 260 1.0 91.73 V 38.96 3.32 42.29 46.00 -3.71 Peak 148 1.0 124.09 V 55.03 -15.74 39.29 43.50 -4.21 Peak 120 1.0 935.98 V 39.02 3.96 42.98 46.00 -3.02 Peak 125 1.0 Notes: 1. Result = Meter Reading + Corrected Factor 2. Corrected Factor = Antenna Factor + Cable Loss – Amplifier b) Emission frequencies above 1 GHz Channel HI Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 1845.0 H 54.32 -2.84 51.48 74 -22.52 Peak 145 1.5 2079.0 H 52.28 -1.66 50.62 74 -23.38 Peak 192 1.0 2605.5 H 50.08 0.20 50.28 74 -23.72 Peak 100 1.0 2079.0 V 53.10 -2.36 50.74 74 -23.26 Peak 185 1.0 2293.5 V 52.18 -1.62 50.56 74 -23.44 Peak 260 1.5 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 13, 2004 31 of 48 FCC ID: AK8SNCM1W FCC Test Report: FI04100201-A 4.3.3. Photographs of Radiated Emission Test FRONT VIEW REAR VIEW Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 13, 2004 32 of 48 FCC ID: AK8SNCM1W FCC Test Report: FI04100201-A 4.4. 6dB Bandwidth Measurement Data Modulation Standard: IEEE 802.11b Test Date: Sep. 30, 2004 Temperature: 28 Humidity: 57% a) Channel 01: 6dB Emission Bandwidth is 12.2 MHz b) Channel 06: 6dB Emission Bandwidth is 12.1 MHz c) Channel 11: 6dB Emission Bandwidth is 12.1 MHz Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 13, 2004 33 of 48 FCC ID: AK8SNCM1W FCC Test Report: FI04100201-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 13, 2004 34 of 48 FCC ID: AK8SNCM1W FCC Test Report: FI04100201-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 13, 2004 35 of 48 FCC ID: AK8SNCM1W FCC Test Report: FI04100201-A 4.5. Peak Output Power Measurement Data Modulation Standard: IEEE 802.11b Test Date: Sep. 30, 2004 Temperature: 28 Humidity: 57% a) Channel 01: Output Peak Power is 14.66 dBm or 29.242 mW b) Channel 06: Output Peak Power is 15.04 dBm or 31.915 mW c) Channel 11: Output Peak Power is 15.52 dBm or 35.645 mW Note: Conducted Power = Reading Value + Cable Loss Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 13, 2004 36 of 48 FCC ID: AK8SNCM1W FCC Test Report: FI04100201-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Oct. 13, 2004 37 of 48 FCC ID: AK8SNCM1W FCC Test Report: FI04100201-A Exclusive Certification Corp. Tel:886-2…

Text truncated - open the document above for the full version.

Test Setup Photos
