AK8SPPA2470Cordless Telephone With Answering System

Dear Joe: In your e-mail dated Jan. 08, 2001, you asked: 1) Provide any correspondence between the TCB and the test lab to verify that the TCB reviewed the application and made any corrections. CCS: MS Word document to outline the review records has been upload to FCC. 2) Please provide confirmation from the applicant indicating that the .399 mW output power on the handset and the 57 mW output power on the base unit is acceptable and within design specifications. If it is not, you will have to re-measure everything and re- determine if the device is eligible for TCB approval. CCS: During the application review, CCS asked for confirmation of output power for Base unit and handset unit. Confirmation has been given by applicant. Please refer to answer to your question #1. However, on Jan. 02, 2001, applicant request to change the output power for the handset. On Jan. 03, 2001, TCB advised the applicant that changing the output power required Class II permissive change. Please refer to the e-mail below: Dear Mike, The original application is 0.399mW and TCB limitation is 15mW. The production sample can generate power strength between 0.399mW and 15mW or not. If it is't permission. Have you any document or paper? These papers will prove that the behavior violate FCC rules. The SONY need a paper regarding to this action. Thanks. Jack Tsai ----- Original Message ----- From: Mike Kuo To: 'jack' Sent: Wednesday, January 03, 2001 10:25 AM Subject: RE: AK8SPPA2470 Dear Jack: If there is any change request on the Grant conditions, FCC Class II permissive change required. Sony should never base the design of the products in accordance to TCB limitation. Sony can always file the application directly to FCC for the equipment over 15mW. Best Regards Mike Kuo -----Original Message----- From: jack [mailto:[email protected]] Sent: Tuesday, January 02, 2001 4:21 AM To: Mike Kuo Subject: AK8SPPA2470 Dear Mike, The "out is EIRP , the maximum output for handset is 0.339 mW peak EIRP" appear at the bottom of the Grant of Equipment Authorization. Sony would change this condition for handset is 0.339 mW peak EIRP. The output power is too low. So, may I apply Class II Permissive Change. Have you good idea. Best regards, Jack Tsai As the result, Sony has made the changes in handset output power. New test data has been provided. Test report has uploaded to FCC. 3) Redo the power spectral density with the sweep = (span/3 kHz). CCS: Due to output power is changed. New tests have been performed. 4) Please correct the following output power discrepancies/issues. CCS: TCB Grant has been modified in accordance to new handset output power. Handset EIRP = 106.21dBuV/m = 12.53 mW Base EIRP = 112.8 dBuV/m = 57.16 mW Best Regards Mike Kuo / Compliance Certification Services

Dear Joe: In your e-mail dated Jan. 08, 2001, you asked : 1) Provide any correspondence between the TCB and the test lab to verify that the TCB reviewed the application and made any corrections. CCS: 1) Application was submitted on 11/29/2000. 2) Administrative and Technical review were made on 11/30/2000. 3) TCB requested for additional information on Nov. 30 From: certadm [[email protected]] To: [email protected] Cc: [email protected] Subject: Sony Corporation, FCC ID:AK8SPPA2470,AN00T1138 Notice content ------------- Question #1: Please provide operational description as required per section 2.1 031(b)(4) of FCC rules. Question #2: As required under 15.247(b)(4) of FCC rules, please provide information to comply the requirements in section 1.1307(b)(1) of FCC rules. 4) On December 08, 2000, received answer to Nov. 30 questions. Operational description does not contian information to justify that device meet spread spectrum definitions and RF exposure information can not be justified as well. Acrobat Document 5) TCB request for additional information on Dec. 14, 2000. In this e-mail, asked for more technical information to support that the device complied with Spread spectrum definition. Disclose TCB limitation in certifying device operates 15.247 2.4 GHz band for portable device, ask for EIRP value in relation to duty cycle etc. From: Mike Kuo Sent: Thursday, December 14, 2000 12:10 AM To: 'jack' Cc: Mike Kuo Subject: RE: AK8SPPA2470, AN00T1138 Dear Jack: Based upon the information provided, some of questions are still not address : Question #1: From the theory of operation provided, there is no technical information to determine that this device meet the definition of a direct sequence spread system. Please provide technical information to show that the device comply with definition of DSSS. Question #2: RF exposure information : as you indicated in the e-mail, the ERP of device is 57.16mW with 50% duty cycle. What is the value of EIRP ? Question #3: On Nov. 15,2000, FCC published TCB limitation and review procedures to all TCBs for evaluating RF exposures compliance. Cordless telephone is considered as Portable device under FCC definitions. TCB can only certify 15.247 portable device under the following conditions 1) the device and its antenna operate at more than 2.5 cm from a person's body with the peak conducted and peak radiated (EIRP) output power not exceeding 50mW for the 2.4GHz band; 2) the device and its antenna operate at less than 2.5 cm from a person's body and the peak conducted with peak radiated (EIRP) output power not exceeding 15mW for the 2.4GHz band. Cordless telephone normally is operated under no. 2 condition. I will make the final determination once I received your reply to this e-mail. If your device can not comply with condition no.2 requirement, this application has to submit to FCC for approval. Best Regards Mike Kuo / Compliance Certification Services 6)On Dec. 18, 2000, received answers to Dec. 14 questions. Two files were received. Operational Description and re-confirmed EIRP for base station is 57mW and handset is 0.399mW. From: jack [[email protected]] Sent: Tuesday, December 18, 2000 6:29 AM To: [email protected] Subject: AK8SPPA2470, AN00T1138 Dear mike The attachment AK8SPPA2470-Q1 is for your required. (DSSS question) A attachment AK8SPPA2470-Q2 describe EIRP and ERP. yur can refer to our report on page 24/72. (G=1.6 for ERP, G=1 for EIRP) According to page 24/72 of our report, the EIRP is 57.16mW for the base unit and 0.399 mW for Handset. The output power of handset is less than 15mW for no 2. Regarding question 1, the FCC have never require this message until today. Today, I check "generic search of FCC OET" that all TCB LAB have never grant 2.4GHz DSS cordless phone including your company. So, I think this case which is first of you company. Anyway, this case is in need of grent. THANKS! Jack Tsai 7)On Dec. 18,2000, TCB explain the TCB limitation once again. From: Mike Kuo Sent: Monday, December 18, 2000 6:15 PM To: 'jack' Subject: RE: Grant of FCC Dear Jack : The Grant condition of K7GG2488 states " Output is EIRP. Maximum output for the handset is 87 mW peak EIRP, operating with a 50% duty factor (TDM) for ensuring SAR compliance. " But I December 14 question to you are : Question #2: RF exposure information : as you indicated in the e-mail, the ERP of device is 57.16mW with 50% duty cycle. What is the value of EIRP ? Question #3: On Nov. 15,2000, FCC published TCB limitation and review procedures to all TCBs for evaluating RF exposures compliance. Cordless telephone is considered as Portable device under FCC definitions. TCB can only certify 15.247 portable device under the following conditions 1) the device and its antenna operate at more than 2.5 cm from a person's body with the peak conducted and peak radiated (EIRP) output power not exceeding 50mW for the 2.4GHz band; 2) the device and its antenna operate at less than 2.5 cm from a person's body and the peak conducted with peak radiated (EIRP) output power not exceeding 15mW for the 2.4GHz band. Question #2:You need to provide the value of EIRP by considering 50% duty cycle to me. If the answer from Question #2 is less 15mW, I ( as TCB ) can certify the device without SAR evaluation. There is nothing wrong with my question and I did not say I can not certify this device. In order to make the decision to certify it or not, you have to answer all three questions. Best Regards Mike Kuo P.S. For your information, I had conference calls with all TCBs and FCC this morning. FCC once again mentioned the Spread Spectrum device requirements. If the test result complied with 15.247 technical requirements, but it does not mean that device is complied with the definition of Direct Sequence Spread Spectrum device. In general, all system must utilize a minimum 11:1 spreading rate to data rate ratio. The definition of Direct Sequence Systems can be found in Page 362 of FCC CFR 47 Part 2.1 and Sprect Spe…

Text truncated - open the document above for the full version.

Sony statement in explaining the reason to change output power for handset. From: tsao <[email protected]> To: 'jack' <[email protected]> Cc: ' • •• ' <[email protected]>; ' ••• •• ' <[email protected]>; ' •••••• ' <[email protected]>; ' •• ••• ' <[email protected]> Sent: Friday, January 12, 2001 3:03 PM > Hi Jack > > We have wrote down the reason that requested by TCB. Pls forward the below > contect to TCB to check. > And tell us the TCB's response. Thank you very much. > > Reason: > The output power of the handset that we applied for the first time was > 0.399mW. However, we found it not good enough to use. The distance it > could transmit was short, and had loud noise. Thus, we adjusted the output > power of the handset. Even though, it's still under 15mW which met the > specification of TCB. > > After our adjustment, the technical specification of SPP-A2470 is as > follows: > 1 • Handset Output Power is under 15mW. > 2. Base Output Power is under 57mW. > 3.Operating Frequency : 2.405~2.475GHz > 4.Operating Channel : 40 Channels. > 5 • Spread Method : Direct Sequence Spread - Spectrum > 6 • Operating Temperature: 0 • ~35 • > 7 • Humidity : Under 80% > > Tsao > > > > > > ************************ > Sony Industries Taiwan Co.,Ltd. > Quality Assurance Dept. > Tsao Hui-Ling > > Tel: +886-7-841-1501 ext:5616 > Fax: +886-7-831-7460 > ************************

To: jack; Mike Kuo Subject: RE: AK8SPPA2470, AN00T1138 -----Original Message----- From: jack [mailto:[email protected]] Sent: Thursday, December 19 , 2000 5:56 PM To: Mike Kuo Subject: AK8SPPA2470, AN00T1138 Dear Mike, For your required, he Sony correct IMPORTANT NOTE. IMPORTANT NOTE: In order to comply with FCC RF exposure compliance requirements, please observe the following guidelines to operate this device to protect body from exposing to RF electromagnetic energy. .Avoid direct body contact with transmitting antenna during telephone conversation. .Do not replace or modify the transmitting antenna under any situation. ************************ Sony Industries Taiwan Co.,Ltd. Quality Assurance Dept. Tsao Hui-Ling Tel: +886-7-841-1501 ext:5616 Fax: +886-7-831-7460 ************************ &#12288; ************************************************ From: &#20313; &#21843;&#26126; (YU,CHI MING)> Products Engineering Center(&#21830;&#21697;&#35373;&#35336;&#20013;&#24515;&#65289; Sony Industries Taiwan Co.,Ltd phone:+886-7-335-2360(ext:6601) fax:+886-7-335-2349 Mailto:[email protected] It is good or not. Best regard, Jack Tsai

TCB RF Exposure Review Procedure Statement FCC ID:AK8SPPA2470 Transmitter Category Device Type Product Category Approval and Review Procedures Used Specific Procedures: VI Part 15 portable Transmitter DSSS base and handset cordless phone Section C(iii) Section N SP(2), SP(3), SP(5), SP(6), SP(7), SP(8) and SP(9) Grant Condition : This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. This device must transmit with a source-based time-averaging duty factor notexceeding 47.5% End-users must be provided with specific operating instructions for satisfying RF exposurecompliance SP2 Output power verified :Page 24 of test report. Measured 10.98dBm.(12.53mW) for handset at Channel 40; Measured 17.571dBm(57.164mw) for base atChannel 1.Cable loss: Not applicableAntenna Gain: 1Duty Cycle : 47.5% ( page 27 of test report)Installation Instruction : Not applicable SP3 Manufacturer statement to add operating instruction in the user manual for RF exposure information SP5 Operates in single 2.4GHz band SP6 Devices are cordless base unit and handset. Not a transmitter module. SP7 No antenna installation is required and allowed. SP8 Manufacturer has provided a guide in how to operate the device to avoid RF exposure to human. SP9 Within A4 of TCB scope, complied with TCB limitations. Met RF exposure review and procedures. Reviewed by Mike KuoCompliance Certification ServicesJan. 17,2001

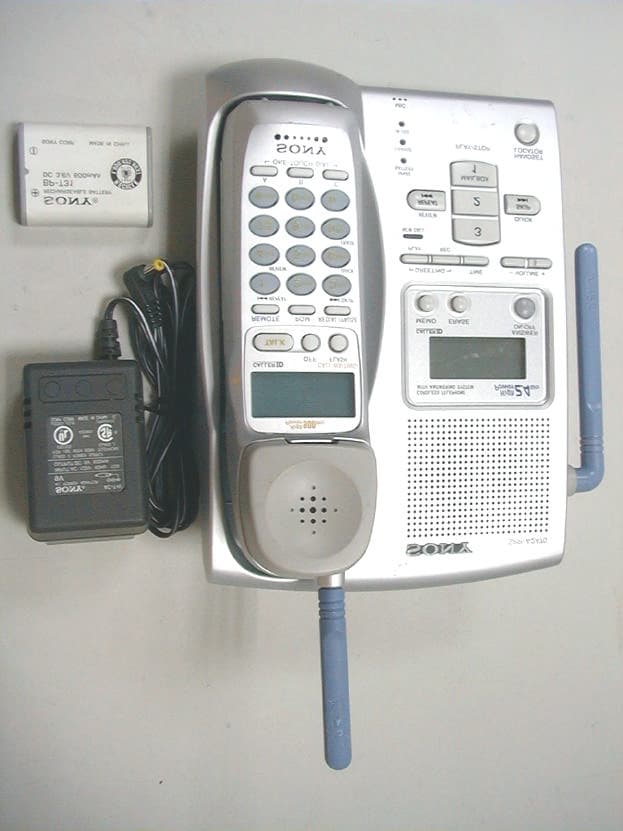

EXHIBIT F Photographs of EUT (External)

List of Exhibit EXHIBIT A Sample Label EXHIBIT B Test Report EXHIBIT C User Manual EXHIBIT D Circuit Diagram EXHIBIT E Block Diagram EXHIBIT F Photographs of EUT EXHIBIT A Sample Label LABEL Format: This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation *Privacy of communication may not be ensured when using this phone Model No.:SPP–A2470 FCC ID:AK8SPPA2470 LABEL Size: 79.5 x 31.5 mm LABEL Position: LABEL Format : Model No.:SPP–A2470 FCC ID:AK8SPPA2470 LABEL Size: 23 x 5.9 mm LABEL Position: LABEL

EXHIBIT F Photographs of Base

EXHIBIT F Photographs of Base

To: jack; Mike Kuo Subject: RE: AK8SPPA2470, AN00T1138 -----Original Message----- From: jack [mailto:[email protected]] Sent: Thursday, December 19 , 2000 5:56 PM To: Mike Kuo Subject: AK8SPPA2470, AN00T1138 Dear Mike, For your required, he Sony correct IMPORTANT NOTE. IMPORTANT NOTE: In order to comply with FCC RF exposure compliance requirements, please observe the following guidelines to operate this device to protect body from exposing to RF electromagnetic energy. .Avoid direct body contact with transmitting antenna during telephone conversation. .Do not replace or modify the transmitting antenna under any situation. ************************ Sony Industries Taiwan Co.,Ltd. Quality Assurance Dept. Tsao Hui-Ling Tel: +886-7-841-1501 ext:5616 Fax: +886-7-831-7460 ************************ &#12288; ************************************************ From: &#20313; &#21843;&#26126; (YU,CHI MING)> Products Engineering Center(&#21830;&#21697;&#35373;&#35336;&#20013;&#24515;&#65289; Sony Industries Taiwan Co.,Ltd phone:+886-7-335-2360(ext:6601) fax:+886-7-335-2349 Mailto:[email protected] It is good or not. Best regard, Jack Tsai

Test Repot ------------------------------------------------------------------------------------ 1/72 Report No.: S2515389 Test date: 11/07/2000, Training Research Co., Ltd., TEL:886-2-26935155, Fax:886-2-26934440 MEASUREMENT REPORT of CORDLESS TELEPHONE Applicant: Sony Corporation Model No.:SPP-A2470 EUT:Cordless Telephone with Answering System FCC ID:AK8SPPA2470 Report No.:S2515389 Test by : Training Research Co., Ltd. TEL : 886-2-26935155 FAX : 886-2-26934440 2, Lane 194, Huan-Ho Street, Hsichih, Taipei Hsien 221, Taiwan, R.O.C. Test Repot ------------------------------------------------------------------------------------ 3/72 Report No.: S2515389 Test date: 11/07/2000, Training Research Co., Ltd., TEL:886-2-26935155, Fax:886-2-26934440 Tables of Contents I. GENERAL ............................................................................................................................. 5 1.1 Introduction ........................................................................................................................ 5 1.2 Description of EUT ............................................................................................................ 5 1.3 Description of Support Equipment ...................................................................................... 5 1.4 Configuration of System Under Test .................................................................................... 6 1.5 Verify the Frequency and Channel ...................................................................................... 7 1.5.1 Verify the Frequency Pairs ............................................................................................... 7 1.6 Test Procedure ................................................................................................................... 8 1.7 Location of the Test Site ..................................................................................................... 8 1.8 General Test Condition ....................................................................................................... 8 II. Section 15.207: Power line conducted emissions for AC powered units ............................ 9 2.1 Test Condition & Setup ..................................................................................................... 9 2.2 List of Test Instruments ...................................................................................................... 9 2.3 Test Configuration ............................................................................................................ 10 2.4 Test Result of Conducted Emissions .................................................................................. 12 2.4.1 Base Station Transmit Only ............................................................................................ 12 III. Section 15.247(a)(2): Bandwidth for direct sequence system ............................................ 17 3.1 Test Condition & Setup .................................................................................................... 17 3.2 Test Instruments Configuration .......................................................................................... 17 3.3 List of Test Instruments ..................................................................................................... 17 3.4 Test Result of Bandwidth .................................................................................................. 18 IV. Section 15.247(a) (2) : Power Output .................................................................................. 22 4.1 Test Condition & Setup .................................................................................................... 22 4.2 List of Test Instruments ..................................................................................................... 23 4.3 Test Result of Fundamental Emission ................................................................................. 24 Test Repot ------------------------------------------------------------------------------------ 4/72 Report No.: S2515389 Test date: 11/07/2000, Training Research Co., Ltd., TEL:886-2-26935155, Fax:886-2-26934440 V. Section 15.247(c) (2) : Spurious Emissions (Radiated) .................................................... 25 5.1 Test Condition & Setup .................................................................................................. 25 5.2 List of Test Instruments ................................................................................................... 26 5.2.1 Duty Cycle Factor Measurement ................................................................................. 26 5.3 Test Instruments Configuration ........................................................................................ 28 5.4 Test Result of Second Harmonic ..................................................................................... 30 5.5 Test Result of Spurious Radiated Emissions ..................................................................... 31 5.5.1 Base and Handset Station Transmit Only ...................................................................... 31 VI. Section 15.247(d) : Power Spectral Density ..................................................................... 55 6.1 Test Condition & Setup .................................................................................................. 55 6.2 Test Instruments Configuration ........................................................................................ 56 6.3 List of Test Instruments.................................................................................................... 56 6.4 Required of Carrier Frequency ....................................................................................... 57 6.5 Test Result of Power Spectral Density ............................................................................ 59 VII. Section 15.247(e): Processing Gain .…

Text truncated - open the document above for the full version.

Test Repot ------------------------------------------------------------------------------------ 31/72 Report No.: S2515389 Test date: 11/07/2000, Training Research Co., Ltd., TEL:886-2-26935155, Fax:886-2-26934440 5.5 Test Result of Spurious Radiated Emissions 5.5.1 Base and handset station transmit only The highest peak values of radiated emissions form the EUT at various antenna heights, antenna polarizations, EUT orientation, etc. are recorded on the following. Model No.: SPP-A2470 EUT: Cordless Telephone with Answering System Test Conditions:Testing room : Temperature : 26 ° C Humidity : 73 % RH Testing site : Temperature : 31 ° C Humidity : 75 % RH Table 8 Open Field Radiated Emissions For 30MHz 1GHz [Channel 1, Base Horizontal] Radiated Emission FCC Class B ( 3 m ) Frequency (MHz) Amplitude (dBμV/m) Ant. H. (m) Table ( ) Correction Factors (dB) Corrected Amplitude (dBμV/m) Limit (dBμV/m) Margin (dB) 131.07123.882.44128-14.6238.5043.50-5.00 211.20524.881.00121-14.1939.0743.50-4.43 220.80526.681.00128-15.4642.1446.00-3.86 262.14225.431.001-15.7241.1546.00-4.85 364.80523.521.0091-18.3641.8846.00-4.12 624.00919.211.00141-23.2342.4446.00-3.56 *** Note: 1. Margin = Corrected Amplitude – Limit. 2. Peak Amplitude – Correction Factors = Corrected Amplitude Test Repot ------------------------------------------------------------------------------------ 32/72 Report No.: S2515389 Test date: 11/07/2000, Training Research Co., Ltd., TEL:886-2-26935155, Fax:886-2-26934440 Table 9 Open Field Radiated Emissions For 1GHz 18GHz [Channel 1, Base Horizontal] Radiated Emission FCC Class B ( 3 m ) Frequency (GHz) Amplitude (dBμV/m) Ant. H. (m) Table ( ) Correction Factors ( dB ) Duty Cycle ( dB ) Corrected Amplitude (dBμV/m) Limit (dBμV/m) Margin (dB) 7.21436.071.00699.72-6.46 39.33 54.00-14.67 9.62120.611.00719.72-6.46 23.87 54.00-30.13 *** Note: 1. Margin = Corrected - Limit. 2. Peak Amplitude + Correction Factor + Duty Cycle = Corrected Test Repot ------------------------------------------------------------------------------------ 33/72 Report No.: S2515389 Test date: 11/07/2000, Training Research Co., Ltd., TEL:886-2-26935155, Fax:886-2-26934440 Table 10 Open Field Radiated Emissions For 30MHz 1GHz [Channel 1, Base Vertical] Radiated Emission FCC Class B ( 3 m ) Frequency (MHz) Amplitude (dBμV/m) Ant. H. (m) Table ( ) Correction Factors (dB) Corrected Amplitude (dBμV/m) Limit (dBμV/m) Margin (dB) 48.00317.541.0023-15.7333.2740.00-6.73 65.53726.871.0036-10.1036.9740.00-3.03 201.60420.792.4858-13.7434.5343.50-8.97 643.20817.031.0027-24.0141.0446.00-4.96 662.40917.781.006-24.3842.1646.00-3.84 681.60917.381.0039-24.5041.8846.00-4.12 *** Test Repot ------------------------------------------------------------------------------------ 34/72 Report No.: S2515389 Test date: 11/07/2000, Training Research Co., Ltd., TEL:886-2-26935155, Fax:886-2-26934440 Table 11 Open Field Radiated Emissions For 1GHz 18GHz [Channel 1, Base Vertical] Radiated Emission FCC Class B ( 3 m ) Frequency (GHz) Amplitude (dBμV/m) Ant. H. (m) Table ( ) Correction Factors ( dB ) Duty Cycle ( dB ) Corrected Amplitude (dBμV/m) Limit (dBμV/m) Margin (dB) 1.64559.501.0056-8.67-6.46 44.37 54.00-9.63 7.21433.741.002079.72-6.46 37.00 54.00-17.00 9.62122.951.003319.72-6.46 26.21 54.00-27.79 *** Test Repot ------------------------------------------------------------------------------------ 35/72 Report No.: S2515389 Test date: 11/07/2000, Training Research Co., Ltd., TEL:886-2-26935155, Fax:886-2-26934440 Table 12 Open Field Radiated Emissions For 30MHz 1GHz [Channel 21, Base Horizontal] Radiated Emission FCC Class B ( 3 m ) Frequency (MHz) Amplitude (dBμV/m) Ant. H. (m) Table ( ) Correction Factors (dB) Corrected Amplitude (dBμV/m) Limit (dBμV/m) Margin (dB) 131.07123.862.47126-14.6238.4843.50-5.02 211.20524.791.00114-14.1938.9843.50-4.52 220.80526.701.00131-15.4642.1646.00-3.84 364.80523.611.00150-18.3641.9746.00-4.03 384.00522.081.0099-18.9541.0346.00-4.97 624.00919.021.00140-23.2342.2546.00-3.75 *** Test Repot ------------------------------------------------------------------------------------ 36/72 Report No.: S2515389 Test date: 11/07/2000, Training Research Co., Ltd., TEL:886-2-26935155, Fax:886-2-26934440 Table 13 Open Field Radiated Emissions For 1GHz 18GHz [Channel 21, Base Horizontal] Radiated Emission FCC Class B ( 3 m ) Frequency (GHz) Amplitude (dBμV/m) Ant. H. (m) Table ( ) Correction Factors ( dB ) Duty Cycle ( dB ) Corrected Amplitude (dBμV/m) Limit (dBμV/m) Margin (dB) 7.32231.951.001569.72-6.46 35.21 54.00-18.79 9.76120.311.00289.72-6.46 23.57 54.00-30.43 *** Test Repot ------------------------------------------------------------------------------------ 37/72 Report No.: S2515389 Test date: 11/07/2000, Training Research Co., Ltd., TEL:886-2-26935155, Fax:886-2-26934440 Table 14 Open Field Radiated Emissions For 30MHz 1GHz [Channel 21, Base Vertical] Radiated Emission FCC Class B ( 3 m ) Frequency (MHz) Amplitude (dBμV/m) Ant. H. (m) Table ( ) Correction Factors (dB) Corrected Amplitude (dBμV/m) Limit (dBμV/m) Margin (dB) 48.00315.471.0024-15.7331.2040.00-8.80 65.53726.211.0033-10.1036.3140.00-3.69 201.60420.792.4526-13.7434.5343.50-8.97 220.80420.161.0096-15.1835.3446.00-10.66 364.80618.381.0047-18.1336.5146.00-9.49 662.40918.131.0028-24.3842.5146.00-3.49 681.60917.581.0017-24.5042.0846.00-3.92 *** Test Repot ------------------------------------------------------------------------------------ 38/72 Report No.: S2515389 Test date: 11/07/2000, Training Research Co., Ltd., TEL:886-2-26935155, Fax:886-2-26934440 Table 15 Open Field Radiated Emissions For 1GHz 18GHz [Channel 21, Base Vertical] Radiated Emission FCC Class B ( 3 m ) Frequency (GHz) Amplitude (dBμV/m) Ant. H. (m) Table ( ) Correction Factors ( dB ) Duty Cycle ( dB ) Corrected Amplitude (dBμV/m) Limit (dBμV/m) Margin (dB) 1.70157.191.00256-8.67-6.46 42.06 54.00-11.94 7.32235.611.00339.72-6.46 38.87 54.00-15.13 9.76123.481.001949.72-6.46 26.74 54.00-27.26 *** Test Repot -…

Text truncated - open the document above for the full version.

Test Repot ------------------------------------------------------------------------------------ 17/72 Report No.: S2515389 Test date: 11/07/2000, Training Research Co., Ltd., TEL:886-2-26935155, Fax:886-2-26934440 Section 15.247(a)(2): Bandwidth for Direct Sequence System. 3.1 Test Condition & Setup The transmitter bandwidth measurements were performed in an anechoic chamber. The EUT was placed on a wooded table, which is 0.8 meters height. The EUT was set to transmit continuously. Various channels were also investigated to find the maximum occupied bandwidth. The minimum 6 dB bandwidth shall be at least 500 KHz. Make the measurement with the spectrum analyzer's resolution bandwidth (RBW) = 100 KHz. Set the span>> RBW. The detector function was set to peak and hold mode to clearly observe the components. Setting up procedure is written on Appendix A. 3.2 Test Instruments Configuration RS232 PC RF Out Handset BaseHorn Antenna P.S.A serial port from notebook computer to control the EUT at maximal power output and channel Number. Fig 10. Test Configuration of bandwidth for direct sequence system 3.3 List of Test Instruments Instrument NameModel No.BrandSerial No.Last timeNext time EMI Receiver8546AH P3520A0024210/18/0010/18/01 RF FilterSection85460AH P3448A0021710/18/0010/18/01 Horn Antenna3115EMCO9704 – 517808/15/0008/15/01 Resulution Bandwidth:100KHz Video Bandwidth:100KHz HP85460A Spectrum Analyzer Test Repot ------------------------------------------------------------------------------------ 18/72 Report No.: S2515389 Test date: 11/07/2000, Training Research Co., Ltd., TEL:886-2-26935155, Fax:886-2-26934440 3.4 Test Result of Bandwidth Bandwidth of Channel 1 Bandwidth of Base: 1.63 MHz Bandwidth of Handset: 1.60 MHz The min. 6 dB BW at least: 500 KHz Bandwidth of Channel 21 Bandwidth of Base: 1.63 MHz Bandwidth of Handset: 1.58 MHz The min. 6 dB BW at least: 500 KHz Bandwidth of Channel 40 Bandwidth of Base: 1.60 MHz Bandwidth of Handset: 1.60 MHz The min. 6 dB BW at least: 500 KHz Note: 1. The data in the above table are summarizing the following attachment spectrum analyzer hard copy. 2. The attachments follow page. Test Repot ------------------------------------------------------------------------------------ 19/72 Report No.: S2515389 Test date: 11/07/2000, Training Research Co., Ltd., TEL:886-2-26935155, Fax:886-2-26934440 Test Repot ------------------------------------------------------------------------------------ 20/72 Report No.: S2515389 Test date: 11/07/2000, Training Research Co., Ltd., TEL:886-2-26935155, Fax:886-2-26934440 Test Repot ------------------------------------------------------------------------------------ 21/72 Report No.: S2515389 Test date: 11/07/2000, Training Research Co., Ltd., TEL:886-2-26935155, Fax:886-2-26934440 Test Repot ------------------------------------------------------------------------------------ 22/72 Report No.: S2515389 Test date: 11/07/2000, Training Research Co., Ltd., TEL:886-2-26935155, Fax:886-2-26934440 Section 15.247(B) : Power Output 4.1 Test Condition & Setup The EUT was placed in a anechoic chamber and scanned at 3 meter distance to determine its emission characteristics. The physical arrangement of the EUT was varie…

Text truncated - open the document above for the full version.
