3-225-949-11 (1) ©2000 Sony Corporation Operating Instructions SPP-A2480 Cordless Telephone with Answering System US 2 US IMPORTANT SAFETY INSTRUCTIONS When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: 1. Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool. 2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. 3. Do not use the telephone to report a gas leak in the vicinity of the leak. 4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions. SAVE THESE INSTRUCTIONS Owner’s Record The model and the serial numbers are located at the bottom of the unit. Record the serial number in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product. Model No. SPP-A2480 Serial No. ________________ 3 US INFORMATION FOR GENERAL TELEPHONES 1. This equipment complies with Part 68 of the FCC rules. On the bottom of this equipment is a label that contains, among other information, the FCC certification number and ringer equivalence number (REN) for this equipment. If requested, this information must be provided to the telephone company. 2. The applicable certification jack (connector) USOC-RJ11C is used for this equipment. 3. This equipment is designed to be connected to the telephone network or premises wiring using a compatible modular jack that is Part 68 compliant. The FCC compliant telephone cord and modular plug is provided with this equipment. 4. The REN is used to determine the quantity of devices that may be connected to the telephone line. Excessive RENs on the telephone line may result in the devices not ringing in response to an incoming call. Typically, the sum of the RENs should not exceed five (5.0).To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company. 5. If this equipment (SPP-A2480) causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn’t practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary. 6. The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens the telephone company will provide advance notice so you can make necessary modifications to maintain uninterrupted service. 7. If trouble is experienced with this equipment (SPP-A2480), for repair or warranty information, please contact Sony Direct Response Center: Tel 1-800-222-7669. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved. 8. All repairs will be performed in an authorized Sony service station. 9. This equipment cannot be used to party lines or coin lines. 10.This equipment is hearing aid compatible. If your telephone is equipped with automatic dialers When programming emergency numbers and (or) making test calls to emergency numbers: 1. Remain on the line and briefly explain to the dispatcher the reason for the call. 2. Perform such activities in the off-peak hours, such as early morning or late evenings. Caution You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/ TV technician for help. 4 US Table of contents Table of contents Getting Started 6 Read this first 7Step 1: Checking the package contents 8Step 2: Setting up the base phone 11Step 3: Preparing the battery pack 13Step 4: Entering the area code 17Step 5: Setting up the phone services 20Step 6: Setting the day and time 22Identifying the parts Basics 26 Making calls 31Redialing 33 Receiving calls Telephone Features 37One-touch dialing 37Storing phone numbers and names 39Changing a stored name and/or phone number 40Making calls with one-touch dialing 41Phone Directory 41Storing phone numbers and names 42Changing a stored name and/or phone number 43Erasing a memory location 44Making calls from the Phone Directory 46Transferring the Phone Directory memory 48Switching the phones during a call 48To switch from the base phone to the cordless handset 48To switch from the cordless handset to the base phone 49Talking between the phones (Intercom) 49To talk from the cordless handset to the base phone 50To talk from the base phone to …

Text truncated - open the document above for the full version.

SONY Corporation Shinagawa INTERCITY C Tower 2-15-3 Konan Minato-ku, Tokyo, 108-6201 Japan Telephone: +81-3-5769-5358 Fax: +81-3-5769-5360 Description of Security CODE The subject device’s 31 independent channels, auto scan at link establishment and smart channel hopping combine to find the clearest channels at all times, automatically. Spread spectrum technology ensures the highest level of security available in a cordless phone. The spread spectrum technique provides better security than other solutions since only the receiver has a copy of the pre-assigned spreading code, making interception virtually impossible. The transmitting signal diluted over a large bandwidth with power density at any point being very light, so the signal goes unnoticed by other systems since they are not tuned to receive it. This telephone has 16129 kinds of scrambled security code. This code is programmed in a factory to each product. The user can not change this code manually. This is complying with FCC part 15.247 requirements.

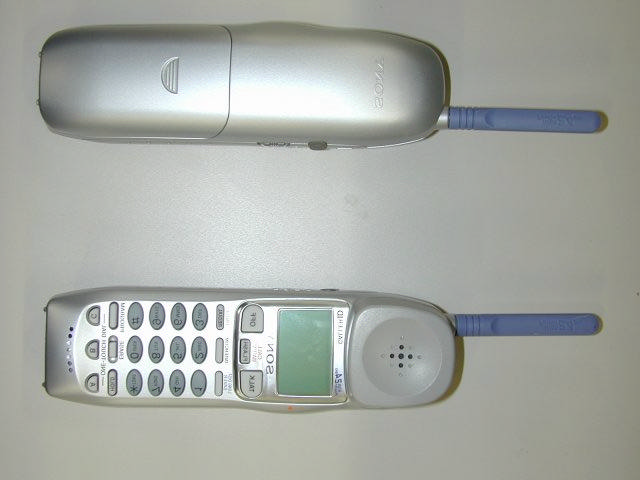

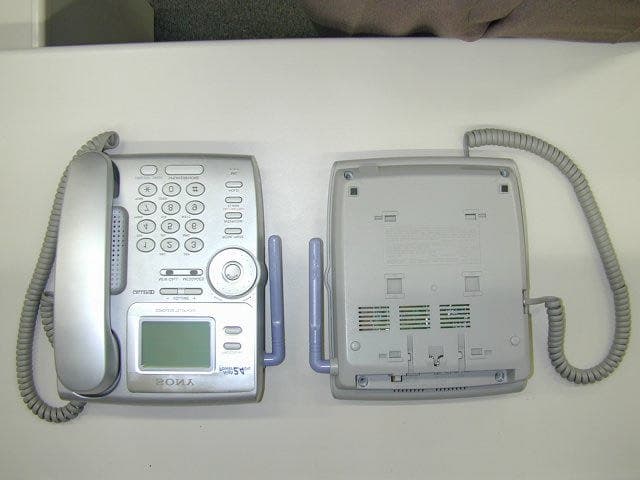

Sony CorporationFCC ID: AK8SPPA2480 EXTERNAL PHOTOGRAPHS (Model No. SPP-A2480) Job # J20027358FCC Part 15.247 Sony CorporationFCC ID: AK8SPPA2480 EXTERNAL PHOTOGRAPHS (Model No. SPP-A2480) Job # J20027358FCC Part 15.247 Sony CorporationFCC ID: AK8SPPA2480 EXTERNAL PHOTOGRAPHS (Model No. SPP-A2480) Job # J20027358FCC Part 15.247 Sony CorporationFCC ID: AK8SPPA2480 EXTERNAL PHOTOGRAPHS (Model No. SPP-A2480) Job # J20027358FCC Part 15.247 Sony CorporationFCC ID: AK8SPPA2480 EXTERNAL PHOTOGRAPHS (Model No. SPP-A2480) Job # J20027358FCC Part 15.247 Sony CorporationFCC ID: AK8SPPA2480 EXTERNAL PHOTOGRAPHS (Model No. SPP-A2480) Job # J20027358FCC Part 15.247 Sony CorporationFCC ID: AK8SPPA2480 EXTERNAL PHOTOGRAPHS (Model No. SPP-A2480) Job # J20027358FCC Part 15.247 Sony CorporationFCC ID: AK8SPPA2480 EXTERNAL PHOTOGRAPHS (Model No. SPP-A2480) Job # J20027358FCC Part 15.247

Sony CorporationFCC ID: AK8SPPA2480 EXTERNAL PHOTOGRAPHS (Model No. SPP-A2430) Job # J20027358FCC Part 15.247 Sony CorporationFCC ID: AK8SPPA2480 EXTERNAL PHOTOGRAPHS (Model No. SPP-A2430) Job # J20027358FCC Part 15.247 Sony CorporationFCC ID: AK8SPPA2480 EXTERNAL PHOTOGRAPHS (Model No. SPP-A2430) Job # J20027358FCC Part 15.247

LABELS

Sony CorporationFCC ID: AK8SPPA2480 INTERNAL PHOTOGRAPHS (Model SPP-A2480) Job # J20027358FCC Part 15.247 Sony CorporationFCC ID: AK8SPPA2480 INTERNAL PHOTOGRAPHS (Model SPP-A2480) Job # J20027358FCC Part 15.247 Sony CorporationFCC ID: AK8SPPA2480 INTERNAL PHOTOGRAPHS (Model SPP-A2480) Job # J20027358FCC Part 15.247 Sony CorporationFCC ID: AK8SPPA2480 INTERNAL PHOTOGRAPHS (Model SPP-A2480) Job # J20027358FCC Part 15.247 Sony CorporationFCC ID: AK8SPPA2480 INTERNAL PHOTOGRAPHS (Model SPP-A2480) Job # J20027358FCC Part 15.247 Sony CorporationFCC ID: AK8SPPA2480 INTERNAL PHOTOGRAPHS (Model SPP-A2480) Job # J20027358FCC Part 15.247 Sony CorporationFCC ID: AK8SPPA2480 INTERNAL PHOTOGRAPHS (Model SPP-A2480) Job # J20027358FCC Part 15.247 Sony CorporationFCC ID: AK8SPPA2480 INTERNAL PHOTOGRAPHS (Model SPP-A2480) Job # J20027358FCC Part 15.247 Sony CorporationFCC ID: AK8SPPA2480 INTERNAL PHOTOGRAPHS (Model SPP-A2480) Job # J20027358FCC Part 15.247 Sony CorporationFCC ID: AK8SPPA2480 INTERNAL PHOTOGRAPHS (Model SPP-A2480) Job # J20027358FCC Part 15.247

Fchannel = 2440.5 MHz Channel Frequency (Nominal) =2440.50MHz Bit Error Rate = 1.00E-04 Required S/N for BER =11.0dB System Losses =2.0 dB Desired Signal Strength at Receiver (-50.3dBm Jammer to Signal Ratio Jammer Frequency (MHz)Jammer Power (J) (dBm)J / S (dB)Processing Gain (dB) 2439.00-29.8020.533.5 2439.05-31.8018.531.5 2439.10-33.1317.230.2 2439.15-34.6315.728.7 2439.20-36.1514.227.2 2439.25-37.8012.525.5 2439.30-39.8010.523.5 2439.35-41.808.521.5 2439.40-43.636.719.7 2439.45-45.634.717.7 2439.50-47.303.016.0 2439.55-48.961.314.3 2439.60-50.300.013.0 2439.65-51.13-0.812.2 2439.70-51.63-1.311.7 2439.75-51.80-1.511.5 2439.80-51.80-1.511.5 2439.85-51.80-1.511.5 2439.90-51.63-1.311.7 2439.95-51.63-1.311.7 2440.00-51.13-0.812.2 2440.05-51.13-0.812.2 2440.10-50.96-0.712.3 2440.15-50.80-0.512.5 2440.20-50.300.013.0 2440.25-50.130.213.2 2440.30-51.13-0.812.2 2440.31-51.30-1.012.0 2440.33-51.30-1.012.0 2440.34-50.130.213.2 2440.35-49.460.813.8 2440.36-48.631.714.7 2440.362-48.302.015.0 2440.37-48.801.514.5 2440.39-50.80-0.512.5 2440.40-51.60-1.311.7 2440.45-50.63-0.312.7 2440.500-50.63-0.312.7 2440.55-50.63-0.312.7 2440.60-50.63-0.312.7 2440.65-50.96-0.712.3 2440.70-51.13-0.812.2 2440.75-51.13-0.812.2 2440.80-51.13-0.812.2 2440.85-51.63-1.311.7 Page 1 Fchannel = 2440.5 MHz 2440.90-51.46-1.211.8 2440.95-51.63-1.311.7 2441.00-51.63-1.311.7 2441.05-51.46-1.211.8 2441.10-50.63-0.312.7 2441.15-49.630.713.7 2441.20-47.962.315.3 2441.25-46.463.816.8 2441.30-44.306.019.0 2441.35-42.637.720.7 2441.40-40.809.522.5 2441.45-39.1311.224.2 2441.50-37.4612.825.8 2441.55-35.9614.327.3 2441.60-34.4615.828.8 2441.65-33.1317.230.2 2441.70-32.1318.231.2 2441.75-31.3019.032.0 2441.80-30.3020.033.0 2441.85-29.1321.234.2 2441.90-28.4621.834.8 2441.95-27.8022.535.5 2442.00-27.1323.236.2 = Minimum Processing Gain = measure d center frequency Test Setup: Device under test = slave mode, transmitter = master mode IC used: Control Board: LXT820B2 Tesla REV 10B FPGA basied BMC: EPF10K100ARC240-2 Serial number: 03 Code Date: 12/9/99, 11:48 am. (Meelan rev1) MCU date code: 11/22/99 RF Board: 24.0 MHz Clock Frequency : LXT820 DV REV 2A Device under test: 23.998646 MHz (-56.4 ppm) serial number: 03 Transmitter: 23.998936 MHz (-44.3 ppm) Page 2 Fchannel = 2440.5 MHz Processing Gain Vs CW Ja 10.0 15.0 20.0 25.0 30.0 35.0 40.0 2439.002439.202439.402439.602439.802440.002440.20 Ja m Processing Gain (dB) Page 3 Fchannel = 2440.5 MHz Page 4 Fchannel = 2440.5 MHz n Vs CW Jammer Frequency: Alpine test Fixture 002440.202440.402440.602440.802441.002441.202441.402441.602441.802442.00 Jammer Frequency (MHz) Processing Gain (dB) Page 5 Fchannel = 2440.5 MHz Page 6

Intertek Testing Services FCC Part 15.247 Test Report Sony Corporation DSSS Cordless Telephone Models: SPP-A2480 & SPP-A2430 FCC ID: AK8SPPA2480 Job # J20027358 Report # 2002358 Number of Pages: 83+ Supporting Documents Date of Report: October 12, 2000 This report shall not be reproduced except in full, without written approval of Intertek Testing Services. This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. The results contained in this report were derived from measurements performed on the identified test samples. Any implied performance of other samples on this report is dependent on the representative of the samples tested. k:\..\fcc\15247ds.cerFCC Part 15 DSSS Cert, Ver 8/98 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification ii Table of Contents 1.0Summary of Tests.................................................................................................................................1 2.0General Description.............................................................................................................................2 2.1Product Description..................................................................................................................2 2.2Related Submittal(s) Grants.....................................................................................................2 2.3Justification...............................................................................................................................3 2.4Test Facility...............................................................................................................................3 3.0System Test Configuration..................................................................................................................4 3.1Support Equipment...................................................................................................................4 3.2Block Diagram of Test Setup...................................................................................................4 3.3Test Methodology.....................................................................................................................5 3.4Software Exercise Program.......................................................................................................5 3.5Mode of Operation During Test...............................................................................................5 3.6Modifications Required for Compliance..................................................................................5 3.7Additions, deviations and exclusions from standards..............................................................5 4.0Measurement Results...........................................................................................................................6 4.1Conducted Output Power at Antenna Terminals......................................................................6 4.26 dB RF Bandwidth..................................................................................................................8 4.3Power Density.........................................................................................................................15 4.4Out-of-band conducted emissions..........................................................................................28 4.5Out-of-band radiated emissions..............................................................................................66 4.6Transmitter radiated emissions in Restricted Bands..............................................................67 4.7AC Line conducted emission..................................................................................................74 4.8Radiated emissions from Digital Section of Transceiver (Transmitter), ..............................77 4.9Radiated emissions from Receiver Section of Transceiver (L.O. Radiation), ......................79 4.10Processing Gain......................................................................................................................80 4.11RF Exposure Requirement .....................................................................................................81 5.0List of test equipment.........................................................................................................................82 6.0Miscellaneous Information or Other Comments............................................................................83 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 2 2.0General Description 2.1Product Description The Models SPP-A2480 & SPP- A2430 is a DSSS Cordless Telephones intended to operate in a 2.4 GHz frequency range. Both models have identical RF modules. The different is only the caller ID option (model SPP-A2430 does not have this option). A production version of the sample was received on October 2, 2000 in good condition. Overview of Models SPP-A2480 & SPP-A2430 ApplicantSONY Corporation Trade Name & Model No.SONY, SPP-A2480 & SPP-A2430 FCC IdentifierAK8SPPA2480 Use of ProductCordless Telephone Manufacturer & Model of Spread Spectrum Module SONY Corporation Frequency Range (MHz)2407,5 – 2473.5 Rated RF Output60 Mw Type of TransmissionDirect Sequence Spread Spectrum Modulation methodFSK Base band transfer rate720 kbps Number of Channel(s)23 Chip rate15 chips/bit Data transfer rate48 kbps Antenna Gain-2 - +2 dBi Antenna RequirementThe EUT uses a permanently connected antenna. Manufacturer name & addressSONY Corp. Shinagawa INTERCITY C Tower 2-15-3 Konan Minato-ku, Tokyo, 108-6201 Japan *Actual value dependant on the frequency. 2.2Related Submittal(s) Grant…

Text truncated - open the document above for the full version.

Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 28 4.4Out-of-band antenna conducted emissions, FCC 15.247(c): In any 100 kHz bandwidth outside the EUT passband, the RF power shall be at least 20 dB below that of the maximum in-band 100 kHz emission. Refer to the following plots for out-of-band conducted emissions data: Plot a.4a.1 – a.4a.7: Low Channel Emissions (Base) Plot a.4b.1 – a.4b.5: Middle Channel Emissions (Base) Plot a.4c.1 – a.4c.6: High Channel Emissions (Base) Plot b.4a.1 – b.4a.8: Low Channel Emissions (Handset) Plot b.4b.1 – b.4b.5: Middle Channel Emissions (Handset) Plot b.4c.1 – b.4c.6: High Channel Emissions (Handset) Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 29 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 30 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 31 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 32 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 33 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 34 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 35 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 36 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 37 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 38 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 39 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 40 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 41 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 42 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 43 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 44 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 45 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 46

Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 47 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 48 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 49 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 50 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 51 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 52 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 53 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 54 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 55 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 56 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 57 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 58 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 59 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 60 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 61 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 62 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 63 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 64 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 65

Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 66 4.5Out-of-band radiated emissions ( for emissions in 4.4 above that are less than 20 dB below a carrier), FCC 15.247(c): For out-of-band emissions that are close to or that exceed the 20 dB attenuation requirement described in the specification, radiated measurements were performed at a 3 m separation distance to determine whether these emissions complied with the 20 dB attenuation requirement. [x]Not required. All out-of-band conducted emissions are more than 20 dB below a carrier [ ]See attached data sheet Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 67 4.6Transmitter Radiated Emissions in Restricted Bands, Radiated emission measurements were performed from 30 MHz to 25000 MHz. Spectrum analyzer resolution bandwidth is 100 kHz or greater for frequencies from 30 MHz to 1000 MHz, and 1 MHz for frequencies above 1000 MHz. The EUT was positioned on a non-conductive turntable, 0.8m above the ground plane on an open test site. The radiated emission was measured at 3 m distance. To maximize emissions, the system was rotated through 360°, the antenna height was varied from 1m to 4 m, and the antenna polarization was changed. Data is included of the worst case configuration (the configuration which resulted in the highest emission levels). A sample calculation, configuration photographs and data tables of the emissions are included. All measurements were performed with peak and average detectors unless otherwise specified. The data on the following pages (data sheets ## 1 to 6) list the significant emission frequencies, the limit and the margin of compliance. In addition, the field strength in the restricted bands: 2483.5 MHz to 2500 MHz and 2310 MHz to 2390 MHz was calculated as follows: E f = E 0 - delta where E 0 is the field strength at the fundamental frequency (high or low channels); “delta” is the difference in conducted emissions between the level at the fundamental frequency and the highest level in the restricted band. The results are presented in the Table 6. Table 6 Base Frequency, MHz Field Strength, E 0 dB(uV/m) * delta, dB Field Strength, E f dB(uV/m) Limit (average), dB(uV/m) Margin, dB 2407.5104.754.6 **50.154.0-3.9 2473.5110.557.8 ***52,754.0-1.3 Handset 2407.5106.257.3 ****48.954.0-5.1 2473.5107.356.2 *****51.154.0-2.9 * see data sheets on the next pages ** from Plots: a.4a.3 and a.4a.5 *** from Plots: a.4c.4 and a.4c.5 **** from Plots: b.4a.3 and b.4a.5 ***** from Plots: b.4c.3 and b.4c.5 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 68 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 69 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 70 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., DSSS Cordless Phone, FCC ID: AK8SPPA2480Date of Test: October 4-9, 2000 Report # 20027358FCC Part 15.247 DSSS Certification 71 Intertek Testing Services 1365 Adams Court, Menlo Park, CA 94025 Sony Corp., D…
