AK8SPPA9171Cordless Telephone with Answering System

List of Exhibit EXHIBIT A Sample Label EXHIBIT B Test Report EXHIBIT C User Manual EXHIBIT D Circuit Diagram EXHIBIT E Block Diagram EXHIBIT F Photographs of EUT EXHIBIT A Sample Label LABEL Format: This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation *Privacy of communication may not be ensured when using this phone Model No.:SPP-A9171 FCC ID:AK8SPPA9171 LABEL Size: 80 x 32 mm LABEL Position: LABEL Format : Model No.:SPP- A9171 FCC ID:AK8SPP A9171 LABEL Size: 23 x 5.9 mm LABEL Position: LABEL

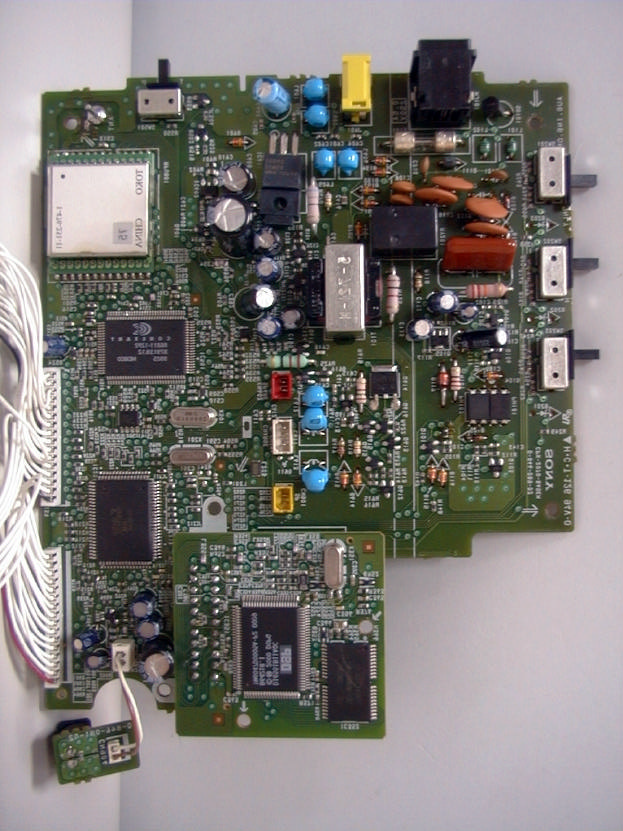

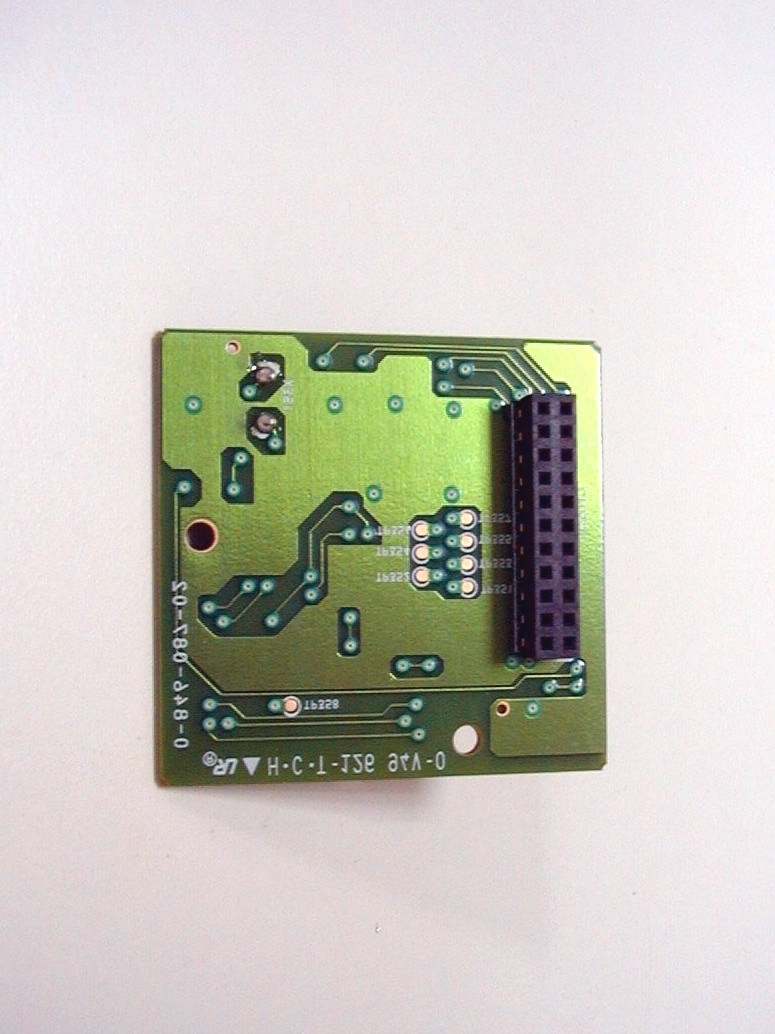

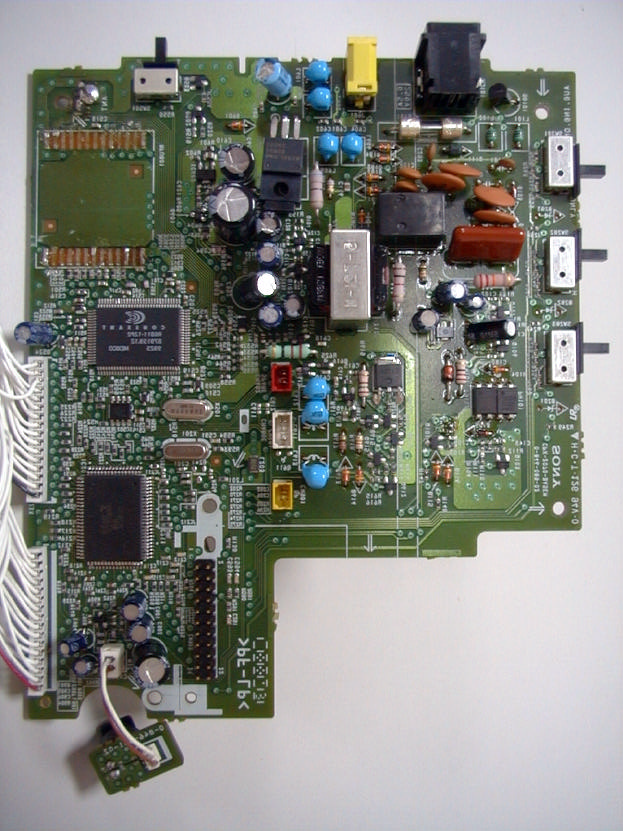

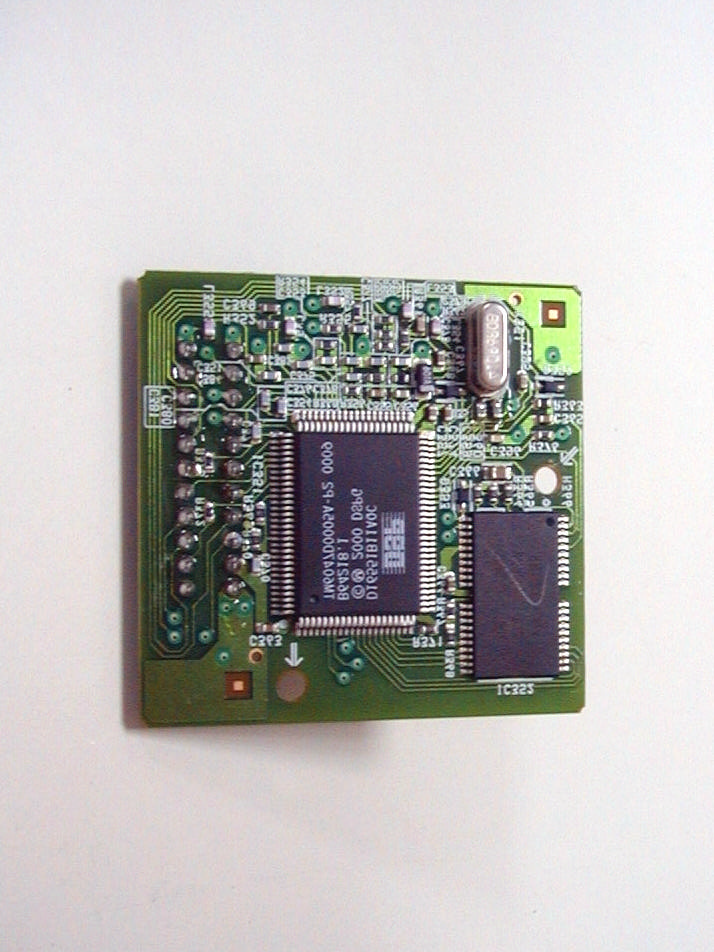

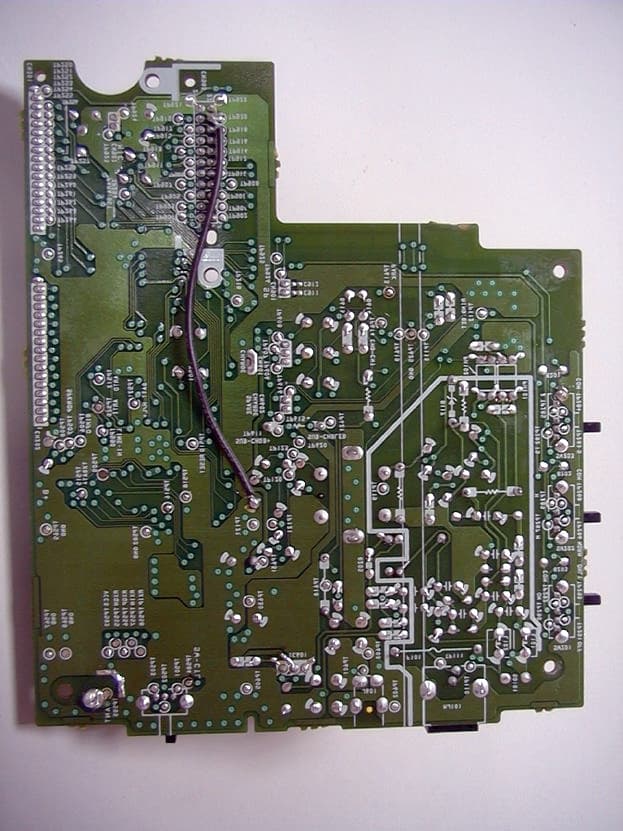

EXHIBIT F Photographs of Base

EXHIBIT F Photographs of Handset

Test Repot ------------------------------------------------------------------------------------ 6/63 Report No.: S2515759, Cordless Phone with Answering System, FCC Part 15 Class B Test date: 05/25/2000, Training Research Co., Ltd., TEL:886-2-26935155, Fax:886-2-26934440 1.4 Configuration of System Under Test BASE AC ADAPTER BASE PC HANDSETTO PSTN Simulator Fig. 1 Configuration of system under test The tests below are run with the DCT transmitter set at high power in TDD mode .A serial port from a computer to the DCT UUT is needed to force selection of output power level and channel number. The setting up procedure was recorded in Appendix A. 1.5 Verify the Frequency and Channel 1.5.1 Verify the Frequency Pairs ChannelBase(MHz)Handset(MHz)ChannelBase(MHz)Handset(MHz) 1903.74903.7411915.50915.50 2904.80904.8012916.80916.80 3906.00906.0013918.00918.00 4907.20907.2014919.20919.20 5908.40908.4015920.40920.40 6909.60909.6016921.60921.60 7910.80910.8017922.80922.80 8912.00912.0018924.00924.00 9913.20913.2019925.20925.20 10914.88914.7220925.80926.12 Note: 1. This is for sure that all frequencies are in 902 MHz to 928 MHz. 2. Section 15.31(m): Measurements on intentional radiators or receivers shall be performed at three frequencies for operating frequency range over 10 MHz. (The locations of these frequencies one near the top, one near the middle and one near the bottom.) 3. After test, the EUT operating frequencies are in 903.74 MHz to 926.12 MHz. So all the items as followed in testing report are need to test these three frequencies: top: channel 1, middle: channel 10, bottom: channel 20. 120V AC SOURCE RS-232 ADAPTER Test Repot ------------------------------------------------------------------------------------ 9/63 Report No.: S2515759, Cordless Phone with Answering System, FCC Part 15 Class B Test date: 05/25/2000, Training Research Co., Ltd., TEL:886-2-26935155, Fax:886-2-26934440 2.3 Test configuration Conducted emissions test placement (idle only) Test Repot ------------------------------------------------------------------------------------ 10/63 Report No.: S2515759, Cordless Phone with Answering System, FCC Part 15 Class B Test date: 05/25/2000, Training Research Co., Ltd., TEL:886-2-26935155, Fax:886-2-26934440 Conducted emissions test placement (operating only) Test Repot ------------------------------------------------------------------------------------ 23/63 Report No.: S2515759, Cordless Phone with Answering System, FCC Part 15 Class B Test date: 05/25/2000, Training Research Co., Ltd., TEL:886-2-26935155, Fax:886-2-26934440 5.3Test Instruments Configuration Pig 1 Front View of the Test Configuration ( BASE ) Pig 2 Rear View of the Test Configuration ( BASE ) Test Repot ------------------------------------------------------------------------------------ 24/63 Report No.: S2515759, Cordless Phone with Answering System, FCC Part 15 Class B Test date: 05/25/2000, Training Research Co., Ltd., TEL:886-2-26935155, Fax:886-2-26934440 Pig 1 Front View of the Test Configuration (HANDSET) Pig 2 Rear View of the Test Configuration (HANDSET) The test configuration for frequency between 1 GHz to 18 GHz is same as above.
