AK8SRSXB3Personal Audio System

SRS-XB3 UC7 (US/CaFR/LaES) 4-587-047-11(1) EnglishPersonal Audio System Before operating the system, please read this guide thoroughly and retain it for future reference. Owner’s Record The serial number is located inside of the cap on the rear side of the product. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No. SRS-XB3 Serial No. For customers in the USA Please register this product on line at http://www.sony.com/productregistration Proper registration will enable us to send you periodic updates about new products, services and other important announcements. Registering your product will also allow us to contact you in the unlikely event that the product needs adjustment or modification. Thank you. WARNING To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. To reduce the risk of fire, do not cover the ventilation opening of the appliance with newspapers, tablecloths, curtains, etc. Do not expose the appliance to naked flame sources (for example, lighted candles). To reduce the risk of fire or electric shock, do not expose this apparatus to dripping or splashing, and do not place objects filled with liquids, such as vases, on the apparatus. Do not install the appliance in a confined space, such as a bookcase or built-in cabinet. Do not expose the batteries (battery pack or batteries installed) to excessive heat such as sunshine, fire or the like for a long time. As the main plug of AC adaptor is used to disconnect the AC adaptor from the mains, connect it to an easily accessible AC outlet. Should you notice an abnormality in it, disconnect it from the AC outlet immediately. The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off. Dispose of used battery promptly, according to local environmental laws and guidelines in force. Battery may explode if mistreated. Do not recharge, disassemble or dispose of in fire. CAUTION You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. For customers in the USA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20 cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). This equipment must not be co-located or operated in conjunction with any other antenna or transmitter. If your skin touches the AC adaptor or this product for a long time when the power is on, it may cause a low temperature injury. For customers in the USA and Canada For the state of California, USA only Perchlorate Material - special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate Perchlorate Material : Lithium battery contains perchlorate For customers in Canada This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Important Safety Instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11) Only use attachments/accessories specified by the manufacturer. 12) Use only with t…

Text truncated - open the document above for the full version.

SONY Sony Corporation 1-7-1 Konan Minato-Ku, Tokyo 108-0075 Japan Date: October. 16 th , 2015 Federal Communications Commission Authorization and Evaluation Division FCC ID: AK8SRSXB3 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, Kazunaga Kinjo Senior Product Safety Manager SVP/SVS Section, Products Compliance Department, Quality & Environmental Division, Sony Corporation Tel: +81-50-3750-7634 Fax: +81-50-3750-6573 E-mail: [email protected]

SONY AGENCY AUTHORIZATION LETTER FCC ID: AK8SRSXB3 Date: October. 16 th , 2015 To whom it may concern: We, the undersigned, hereby authorize Audix Technology (ShenZhen) Co.,Ltd to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Audix within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months form original date. If you have any Questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Kazunaga Kinjo Senior Product Safety Manager SVP/SVS Section, Products Compliance Department, Quality & Environmental Division, Sony Corporation Tel: +81-50-3750-7634 Fax: +81-50-3750-6573 E-mail: [email protected]

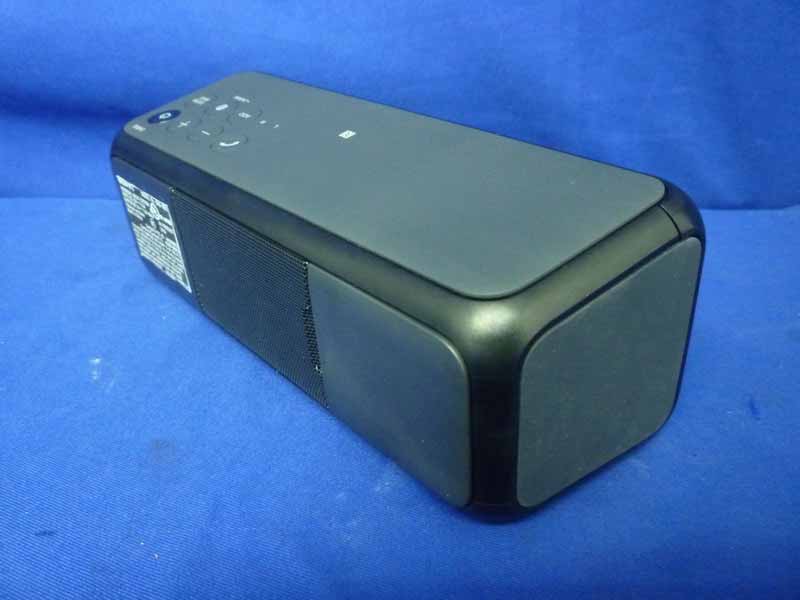

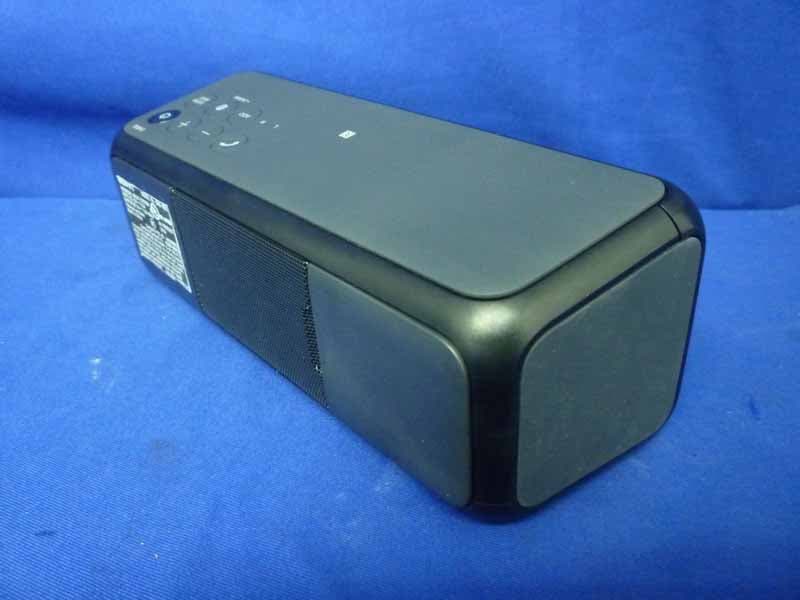

R AUDIX Technology (Shenzhen) Co., Ltd. IC:409B-SRSXB3 page 14-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-I15114 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT

SRS-XB3 FCC ID/IC ID 文字高さ 1.6mm 1.6mm 41mm 29mm Location

R AUDIX Technology (Shenzhen) Co., Ltd. IC:409B-SRSXB3 page 14-3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-I15114 Figure 5 General Appearance of the EUT Figure 6 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. IC:409B-SRSXB3 page 14-4 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-I15114 Figure 7 Inside of the EUT Figure 8 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. IC:409B-SRSXB3 page 14-5 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-I15114 Figure 9 Inside of the EUT Figure 10 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. IC:409B-SRSXB3 page 14-6 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-I15114 Figure 11 Inside of the EUT Figure 12 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. IC:409B-SRSXB3 page 14-7 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-I15114 Figure 13 RF Module Figure 14 RF Module R AUDIX Technology (Shenzhen) Co., Ltd. IC:409B-SRSXB3 page 14-8 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-I15114 Figure 15 RF Module Figure 16 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. IC:409B-SRSXB3 page 14-9 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-I15114 Figure 17 Adaptor Figure 18 Adaptor

Product Name：Personal Audio System Model Number: SRS-XB3 FCC ID: AK8SRSXB3 RADIO FRREQUENCY EXPOSURE COMPLIANCE RESULT : Test Standard : FCC KDB Publication 447498 D01 V05R02 Clause 4.3.1, The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f (GHz) ] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. According to the actual measurement, max. power of channel, including tune-up tolerance =3.209mW min. test separation distance= 5mm √f (GHz) =1.55 The test result is 0.99479 ≤ 3.0 for 1-g SAR ≤ 7.5 for 10-g SAR, hence the EUT is excluded from SAR evaluation according to FCC KDB Publication 447498 D01: General RF Exposure Guidance V05.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:AK8SRSXB3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15289 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Sony Corporation Personal Audio System Model No.: SRS-XB3 FCC ID: AK8SRSXB3 Prepared for : Sony Corporation 1-7-1 Konan, Minato-ku, Tokyo 108-0075 Japan Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ACS-F15289 Date of Test Oct.05~21, 2015 Date of Report Oct.30, 2015 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:AK8SRSXB3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15289 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS .......................................................... 1-1 1.1. Description of Standards and Results .................................................................................. 1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ............................................................................................... 2-1 2.2. Tested Supporting System Details ....................................................................................... 2-2 2.3. Block Diagram of connection between EUT and simulators ............................................... 2-2 2.4. Test information ................................................................................................................... 2-2 2.5. Test Facility ......................................................................................................................... 2-3 2.6. Measurement Uncertainty (95% confidence levels, k=2) .................................................... 2-3 3. POWER LINE CONDUCTED EMISSION TEST ....................................................... 3-1 3.1. Test Equipments ................................................................................................................... 3-1 3.2. Block Diagram of Test Setup ............................................................................................... 3-1 3.3. Power Line Conducted Emission Test Limits ...................................................................... 3-1 3.4. Configuration of EUT on Test ............................................................................................. 3-2 3.5. Operating Condition of EUT ............................................................................................... 3-2 3.6. Test Procedure ..................................................................................................................... 3-2 3.7. Power Line Conducted Emission Test Results .................................................................... 3-2 4. RADIATED EMISSION MEASUREMENT ................................................................. 4-1 4.1. Test Equipment .................................................................................................................... 4-1 4.2. Block Diagram of Test Setup ............................................................................................... 4-1 4.3. Radiated Emission Limit Standard: ..................................................................................... 4-2 4.4. EUT Configuration on Test ................................................................................................. 4-2 4.5. Operating Condition of EUT ............................................................................................... 4-2 4.6. Test Procedure ..................................................................................................................... 4-2 4.7. Radiated Emission Test Results ........................................................................................... 4-3 5. CONDUCTED SPURIOUS EMISSIONS ...................................................................... 5-1 5.1. Test Equipment .................................................................................................................... 5-1 5.2. Limit ..................................................................................................................................... 5-1 5.3. Test Procedure ..................................................................................................................... 5-1 5.4. Test result ............................................................................................................................. 5-1 6. 20 DB BANDWIDTH TEST ........................................................................................... 6-1 6.1. Test Equipment .................................................................................................................... 6-1 6.2. Limit ..................................................................................................................................... 6-1 6.3. Test Results .......................................................................................................................... 6-1 7. CARRIER FREQUENCY SEPARATION TEST ........................................................ 7-1 7.1. Test Equipment .................................................................................................................... 7-1 7.2. Limit ..................................................................................................................................... 7-1 7.3. Test Results. ......................................................................................................................... 7-1 8. NUMBER OF HOPPING FREQUENCY TEST .......................................................... 8-1 8.1. Test Equipment .................................................................................................................... 8-1 8.2. Limit .....................................................…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:AK8SRSXB3 page 14-1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15289 14. PHOTOGRAPH OF TEST 14.1.Photos of Power Line Conducted Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:AK8SRSXB3 page 14-2 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15289 14.2.Photos of Radiated Emission Test 30-1000MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:AK8SRSXB3 page 14-3 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15289 Above 1000MHz
