AK8SVF13NA1ULPersonal Computer

Personal Computer VAIO Fit 13A Model: SVF13NA1UL How to Use Windows 8: The Basics User account Switching from a Local Account to a Microsoft Account About User Account Types Power Controlling the Power State of Your VAIO Computer (Sleep Mode/Shutdown) Restarting Your VAIO Computer Entering Sleep Mode, Shutting Down, or Restarting Using Sleep Mode Display About the Start Screen and Menu Opening the Desktop Internet Installing Apps from Windows Store Password Switching from a Local Account to a Microsoft Account About User Account Types Apps Searching/Starting Apps, Settings, or Files Switching Apps Viewing Running Apps Installing Apps from Windows Store Opening the App Menu Closing Apps Switching User Accounts Windows Opening Windows Help and Support Menu About the Start Screen and Menu Opening Control Panel Opening the Desktop Opening the Charms Windows 8 Controlling the Power State of Your VAIO Computer (Sleep Mode/Shutdown) Restarting Your VAIO Computer Using Sleep Mode Store Installing Apps from Windows Store Switching User Accounts Help and Support Opening Windows Help and Support Parts Description VAIO computer Parts and Controls on the Back Parts and Controls on the Bottom Parts and Controls on the Sides Parts and Controls on the Front Setup VAIO computer About the LCD Screen Rotation Using Your VAIO Computer in Viewer Mode Checking Supplied Items Using Your VAIO Computer in Tablet Mode Setting Up an Appropriate Work Environment Power Connecting a Power Source Charging the Battery Pack Turning On Your VAIO Computer Controlling the Power State of Your VAIO Computer (Sleep Mode/Shutdown) Battery Charging the Battery Pack Notes on Using the Battery Pack Display About the LCD Screen Rotation Using Your VAIO Computer in Viewer Mode Using Your VAIO Computer in Tablet Mode Supplied items Checking Supplied Items Touch panel Using Your VAIO Computer in Tablet Mode Windows 8 Controlling the Power State of Your VAIO Computer (Sleep Mode/Shutdown) Network / Internet Internet Using the Antivirus App for Your VAIO Computer Connecting to the Internet with a Wired Connection (LAN port equipped models) About the Internet Connection Services About the Network (LAN) Disabling the Wi-Fi(R) (Wireless LAN) Function Notes on Using the Wi-Fi(R) (Wireless LAN) Function Stopping Wi-Fi(R) (Wireless LAN) Communications About the Wi-Fi(R) (Wireless LAN) Standards Installing Apps from Windows Store Starting Wi-Fi(R) (Wireless LAN) Communications About a Security Key for Wi-Fi(R) (Wireless LAN) LAN Connecting to the Internet with a Wired Connection (LAN port equipped models) About the Internet Connection Services About the Network (LAN) About the Wi-Fi(R) (Wireless LAN) Standards About a Security Key for Wi-Fi(R) (Wireless LAN) Wi-Fi About the Internet Connection Services Disabling the Wi-Fi(R) (Wireless LAN) Function Notes on Using the Wi-Fi(R) (Wireless LAN) Function Stopping Wi-Fi(R) (Wireless LAN) Communications About the Wi-Fi(R) (Wireless LAN) Standards Starting Wi-Fi(R) (Wireless LAN) Communications About a Security Key for Wi-Fi(R) (Wireless LAN) Apps Installing Apps from Windows Store Store Installing Apps from Windows Store Connections VAIO computer Using the LAN Port (LAN port equipped models) Power Connecting a Power Source Display Changing the Resolution (Size) of the Screen Image on an HDMI-Connected Device Notes on the LCD screen Using the Multiple Monitors Function Selecting Display Modes Connecting a TV with an HDMI Input Port HDMI Changing the Resolution (Size) of the Screen Image on an HDMI-Connected Device Connecting a TV with an HDMI Input Port Peripheral device Connecting a High-Quality Digital Sound Output Device between Your VAIO Computer and a TV Changing the Sound Output Device Notes on the LCD screen Using the Multiple Monitors Function Selecting Display Modes Connecting a TV with an HDMI Input Port CD/DVD/BD Connecting an External Drive Audio Connecting External Speakers/Headphones/Headset Connecting a High-Quality Digital Sound Output Device between Your VAIO Computer and a TV Changing the Sound Output Device Speakers Connecting External Speakers/Headphones/Headset Headphones Connecting External Speakers/Headphones/Headset Optical digital output Connecting a High-Quality Digital Sound Output Device between Your VAIO Computer and a TV Internet Connecting to the Internet with a Wired Connection (LAN port equipped models) About the Internet Connection Services About the Network (LAN) Disabling the Wi-Fi(R) (Wireless LAN) Function Notes on Using the Wi-Fi(R) (Wireless LAN) Function Stopping Wi-Fi(R) (Wireless LAN) Communications About the Wi-Fi(R) (Wireless LAN) Standards Starting Wi-Fi(R) (Wireless LAN) Communications About a Security Key for Wi-Fi(R) (Wireless LAN) LAN Connecting to the Internet with a Wired Connection (LAN port equipped models) About the Internet Connection Services About the Network (LAN) About the Wi-Fi(R) (Wireless LAN) Standards About a Security Key for Wi-Fi(R) (Wireless LAN) Using the LAN Port (LAN port equipped models) Wi-Fi About the Internet Connection Services Disabling the Wi-Fi(R) (Wireless LAN) Function Notes on Using the Wi-Fi(R) (Wireless LAN) Function Stopping Wi-Fi(R) (Wireless LAN) Communications About the Wi-Fi(R) (Wireless LAN) Standards Starting Wi-Fi(R) (Wireless LAN) Communications About a Security Key for Wi-Fi(R) (Wireless LAN) BLUETOOTH About the BLUETOOTH(R) Function Communicating with Another BLUETOOTH(R) Device such as a Mouse About BLUETOOTH(R) Security Notes on Using the BLUETOOTH(R) Function Stopping BLUETOOTH(R) Communications USB Charging a USB Device Connecting a USB Device Settings User account Switching from a Local Account to a Microsoft Account VAIO computer Viewing the System Information Booting Your VAIO Computer from External Devices Customizing Your VAIO Computer Updating Your VAIO Computer Keeping Your VAIO Computer in Optimum Condition (VAIO Care) Using VAIO Update About the ASSIST Button Power Notes on Sleep Mode Selecting…

Text truncated - open the document above for the full version.

Sony Corporation 1-7-1 Konan, Minato-ku, Tokyo, 108-0075 Tel +81-3-6748-2111 Date: October 14, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for confidentiality FCC ID: AK8SVF13NA1UL To whom it may concern: Short-term confidentiality Pursuant to DA 04-1705 of the Commission’s pubic notice, in order to comply with the marketing regulations in 47CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until February 25, 2014. 1. Internal Photographs 2. External Photographs 3. User’s manual 4. Test Set up photos Permanent confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Schematics 3. Operational Description 4. Tune up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Applicant : Sony Corporation Address : 1-7-1 Konan, Minato-ku, Tokyo 108-0075, Japan Signature : Name and Job Title. : Ryui Tatsumi / Section Manager E-mail : [email protected]

Sony Corporation 1-7-1 Konan, Minato-ku, Tokyo, 108-0075 Tel +81-3-6748-2111 Date: 2013/8/26 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: AK8SVF13NA1UL Product name: Personal Computer To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model SVF13NA1UL to the FCC Rules and Regulations. Sporton International Inc. Address : No. 52, Hwa Ya 1st Road., Kwei-Shan Hsiang, TaoYuan Hsien Taiwan R.O.C. Name : Wayne Hsu Job Title : Vice Manager e-mail : [email protected] We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Sony Corporation Address : 1-7-1 Konan, Minato-ku, Tokyo 108-0075, Japan Signature : _________________________________ Name and Job Title. : Ryui Tatsumi / Section Manager E-mail : [email protected] Tel. : (81)263-71-8924

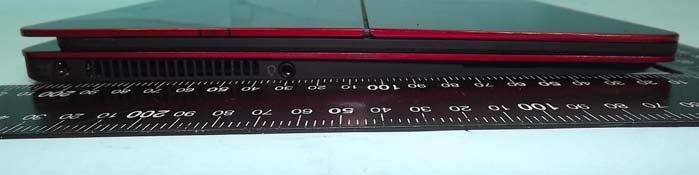

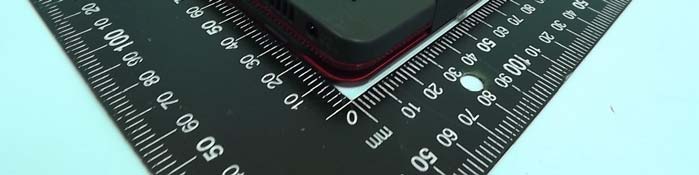

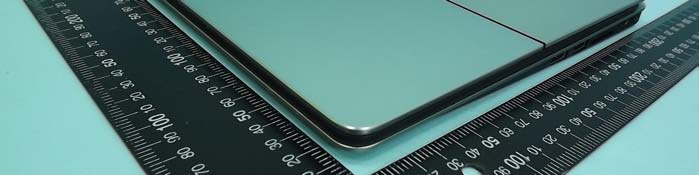

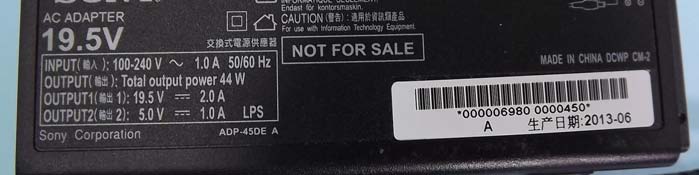

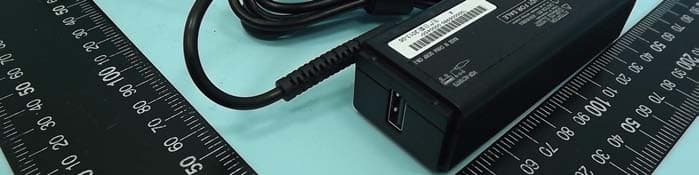

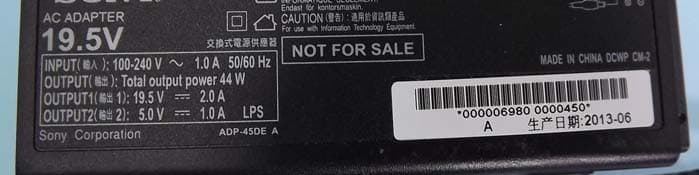

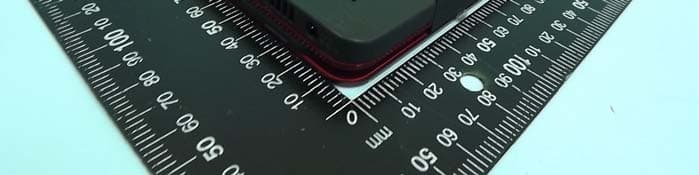

FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B1 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B2 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B3 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B4 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B5 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B6 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B7 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B8 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B9 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973

4-R0.5 189 11 1 1 4-485-780-ABOVE IRX-7660 MN LABEL 7660(U) 現地調達 COUNTRY OF ORIGIN(CHINA) LOCALLY PROCURED PART 原産国(中国) 設計/製造委託モデル専用部品 ABOVE 1 1 P/N RELEASE K,S MN LABEL 7660(U) 本図番 PART No. X-XXX-XXX-XX （本図番末尾、上記参照のこと） (SUFFIX OF PART NO., Reference on the ABOVE) MADE IN CHINA NEW SONY ID TYPE HR SVXXXXXXXX TYPE FACE Sony Logotype A WRITTEN LETTER PERSONAL COMPUTERMODEL LETTER HIGHT L=10H=1.5 （機種名、上記参照のこと） (MODEL NO., Reference on the ABOVE) H=1.5 清刷参照 (Reproduction proof)NEW SONY ID TYPE HRC H=1.3 NEW SONY ID TYPE HR H=1.2H=1.0 19.5 V 特定マーク φ=4.63清刷り参照 機種名 MODEL No. NOTE 2) Block copy has to be drawn twice which are specified in SS-00259-01. 3) This parts should be delivered in sheet the size of actual parts. 7) This part should no t contain any substances 7. STM-1077 shall be satisfied. 6) Each characteristi cs specified in item 5) Approval label of UL-969. 4) Unless otherwise desig ned. line width is 0.35mm. which contains 10 parts in a sheet. 1) Block copy must be corrected. 2) 版下は2倍寸で作成のこと。 3) シート状にて納入とし、1シート10枚とする。 注 1) 版下校正を必ず受けること。 7) この部品には、SS-00259-01に指定する物質を6) ソニー部品設計基準STM-1077第7項を満足すること。5) UL-969承認ラベルのこと。 4) 指定無き罫線幅は0.35mmとする。 含んだ材料は、使用してはならない。 the business partners that Sony approves as Green Partners. 8) Purchase recycled resins and wire rods only from 認定取引先から調達すること。 8) 再生樹脂・被覆電線はグリーンパートナー EC EXXXXX 末尾 SUFFIX 機種名 MODEL No. 備考 REMARKS -01-11 FCC ID A VAIO 共通設計部門・3部 VAIO 共通設計部門・3部 13 7 24 13 7 24 A アクリル系感圧性接着剤（リンテック社製 PA-T1相当品）Acrylic pressure sensitive adhesive(LINTEC Co., PA-T1) ポリエステルフィルム 白 t=0.05/Polyester film white t=0.05mm シリコン含浸剥離紙/Peel paper soaked in silicon solution. 材料構成図(MATERIAL STRUCTURE) 印刷面/Printing ポリプロピレンフィルム(matt) t=0.025艶無しラミネート※Polypropylene film laminate(matt)(t=0.025) mat H=1.9H=1.2 清刷参照 (Reproduction proof) AK8SVF13NA1EL 409B-SVF13NA1EL 13 7 24 西村 西村 IC US SVF13NA1ELSVF13NA1UL AK8SVF13NA1UL 409B-SVF13NA1UL ABOVE Factory ID:CS20 6850 Black PANTONE 8403C Background color Text color MP FI1 Sony Confidential <Display Rear> Please follow MRN. CNRUTWKR Slant Tolerance Slant ≦１° BARCODE LABEL UNIT (PRODUCT_SERIAL_SERVICE) (CDS) BLACK Unit Center YYYY ‐ LABEL (15X3.5) UNIT (CDS) QTY1 BLACK YYYY ‐ LABEL (15X3.5) UNIT (CDS) QTY1 BLACK YYYY ‐ LABEL (15X3.5) UNIT (CDS) QTY1 BLACK YYYY ‐ LABEL (15X3.5) UNIT (CDS) QTY1 BLACK YYYY ‐ Please put cover the Guid line. *Please confirm with "MP Sku ‐ Module List" based on the "MODULE Release Notice(MRN)" information.

FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B9 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B10 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B11 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B12 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B13 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B14 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 WiFi and Bluetooth combo module FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B15 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B16 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 NFC module FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B17 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B18 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 NFC Ant. FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B19 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B20 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B21 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B22 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B23 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B24 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B25 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B26 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B27 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B28 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B29 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B30 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B31 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B32 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B33 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B34 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B35 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B36 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B37 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 WiFi and Bluetooth Ant. FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B38 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP372646 SPORTON International Inc. PAGE NUMBER : B39 OF B39 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973

FCC Test Report Report No. : FR372646 SPORTON INTERNATIONAL INC. Page No. : 1 of 16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 CO-LOCATION 1.1 Transmitter Radiated Unwanted Emissions 1.1.1 Transmitter Radiated Unwanted Emissions Limit Restricted Band Emissions Limit Frequency Range (MHz) Field Strength (uV/m) Field Strength (dBuV/m) Measure Distance (m) 0.009~0.490 2400/F(kHz) 48.5 - 13.8 300 0.490~1.705 24000/F(kHz) 33.8 - 23 30 1.705~30.0 30 29 30 30~88 100 40 3 88~216 150 43.5 3 216~960 200 46 3 Above 960 500 54 3 Note 1: Test distance for frequencies at or above 30 MHz, measurements may be performed at a distance other than the limit distance provided they are not performed in the near field and the emissions to be measured can be detected by the measurement equipment. When performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade (inverse of linear distance for field-strength measurements, inverse of linear distance-squared for power-density measurements). Note 2: Test distance for frequencies at below 30 MHz, measurements may be performed at a distance closer than the EUT limit distance; however, an attempt should be made to avoid making measurements in the near field. When performing measurements below 30 MHz at a closer distance than the limit distance, the results shall be extrapolated to the specified distance by either making measurements at a minimum of two or more distances on at least one radial to determine the proper extrapolation factor or by using the square of an inverse linear distance extrapolation factor (40 dB/decade). The test report shall specify the extrapolation method used to determine compliance of the EUT. Un-restricted Band Emissions Limit RF output power procedure Limit (dB) Peak output power procedure 20 Average output power procedure 30 Note 1: If the peak output power procedure is used to measure the fundamental emission power to demonstrate compliance to requirements, then the peak conducted output power measured within any 100 kHz outside the authorized frequency band shall be attenuated by at least 20 dB relative to the maximum measured in-band peak PSD level. Note 2: If the average output power procedure is used to measure the fundamental emission power to demonstrate compliance to requirements, then the power in any 100 kHz outside of the authorized frequency band shall be attenuated by at least 30 dB relative to the maximum measured in-band average PSD level. 1.1.2 Measuring Instruments Refer a test equipment and calibration data table in this test report. FCC Test Report Report No. : FR372646 SPORTON INTERNATIONAL INC. Page No. : 2 of 16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Test Procedures Test Method Measurements may be performed at a distance other than the limit distance provided they are not performed in the near field and the emissions to be measured can be detected by the measurement equipment. When performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade (inverse of linear distance for field-strength measurements, inverse of linear distance-squared for power-density measurements). Measurements in the frequency range 10 GHz - 18GHz are typically made at a closer distance 1m, because the instrumentation noise floor is typically close to the radiated emission limit. Measurements in the frequency range above 18 GHz - 25GHz are typically made at a closer distance 0.5m, because the instrumentation noise floor is typically close to the radiated emission limit. The average emission levels shall be measured in [duty cycle • 98 or duty factor]. For the transmitter unwanted emissions shall be measured using following options below: Refer as FCC KDB 558074, clause 10.1 for unwanted emissions into non-restricted bands. Refer as FCC KDB 558074, clause 10.2 for unwanted emissions into restricted bands. Refer as FCC KDB 558074, clause 10.2.3.3 and 8.2.1 Option 1 (spectral trace averaging) Refer as FCC KDB 558074, clause 10.2.3.3 and 8.2.1 Option 2 (slow sweep speed). Refer as ANSI C63.10, clause 4.2.3.2.3 (Reduced VBW). VBW • 1/T, where T is pulse time. Refer as ANSI C63.10, clause 4.2.3.2.4 average value of pulsed emissions. Refer as FCC KDB 558074, clause 10.2.3.2 and 8.1.1 measurement procedure peak limit. Refer as FCC KDB 558074, clause 10.2.3.1 measurement procedure Quasi-Peak limit. For radiated measurement, refer as FCC KDB 558074, clause 10.2.1. Refer as ANSI C63.10, clause 6.4 for radiated emissions from below 30 MHz. Refer as ANSI C63.10, clause 6.5 for radiated emissions from 30 MHz to 1000 MHz. Refer as ANSI C63.10, clause 6.6 for radiated emissions from above 1 GHz. For conducted and cabinet radiation measurement, refer as FCC KDB 558074, clause 10.2.2. For conducted unwanted emissions into non-restricted bands (relative emission limits). Devices with multiple transmit chains: Refer as FCC KDB 662911, when testing out-of- band and spurious emissions against relative emission limits, tests may be performed on each output individually without summing or adding 10 log(N) if the measurements are made relative to the in-band emissions on the individual outputs. For conducted unwanted emissions into restricted bands (absolute emission limits). Devices with multiple transmit chains using options given below: (1) Measure and sum the spectra across the outputs or (2) Measure and add 10 log(N) dB FCC KDB 558074 FCC Test Report Report No. : FR372646 SPORTON INTERNATIONAL INC. Page No. : 3 of 16 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.4 Test Setup Transmitter Radiated Unwanted Emissions Magnetic field tests shall be perform ed in the frequency range of 9 kHz to 30 MHz using a calibrated loop antenna. Electric field tests shall be performed …

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR372646AR SPORTON INTERNATIONAL INC. Page No. : 1 of 32 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : Personal Computer Brand Name : SONY Model No. : SVF13NA1UL FCC ID : AK8SVF13NA1UL Standard : 47 CFR FCC Part 15.225 Operating Band : 13.553 – 13.567 MHz (channel freq. 13.56 MHz) Equipment Class : DXX Applicant Manufacturer : Sony Corporation 1-7-1 Konan, Minato-ku, Tokyo 108-0075, Japan NFC Module : SONY / RC-S640/IC The product sample received on Aug. 08, 2013 and completely tested on Oct. 16, 2013. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Assistant Manager FCC Test Report Report No. : FR372646AR SPORTON INTERNATIONAL INC. Page No. : 2 of 32 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION ............................................................................................................... 5 1.1 Information ........................................................................................................................................ 5 1.2 Accessories ...................................................................................................................................... 6 1.3 Support Equipment ........................................................................................................................... 6 1.4 Testing Applied Standards ................................................................................................................ 7 1.5 Testing Location Information ............................................................................................................. 7 1.6 Measurement Uncertainty ................................................................................................................. 7 2 TEST CONFIGURATION OF EUT .................................................................................................... 8 2.1 The Worst Case Modulation Configuration ........................................................................................ 8 2.2 Test Channel Frequencies Configuration ........................................................................................... 8 2.3 The Worst Case Measurement Configuration .................................................................................... 8 2.4 Test Setup Diagram .......................................................................................................................... 9 3 TRANSMITTER TEST RESULT ..................................................................................................... 11 3.1 AC Power-line Conducted Emissions .............................................................................................. 11 3.2 Emission Bandwidth ........................................................................................................................ 17 3.3 Field Strength of Fundamental Emissions and Spectrum Mask ........................................................ 19 3.4 Transmitter Radiated Unwanted Emissions ..................................................................................... 21 3.5 Frequency Stability.......................................................................................................................... 30 4 TEST EQUIPMENT AND CALIBRATION DATA ............................................................................. 32 APPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR372646AR SPORTON INTERNATIONAL INC. Page No. : 3 of 32 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.1834550MHz 43.36 (Margin 10.97dB) - AV 59.02 (Margin 5.31dB) - QP FCC 15.207 Complied 3.2 15.215(c) Emission Bandwidth 20dB Bandwidth 2.84 [kHz] F L : 13.55855 MHz F H : 13.56139 MHz Fall in band F L • 13.553 MHz F H ” 13.567 MHz Complied 3.3 15.225(a)~(d) Field Strength of Fundamental Emissions and Spectrum Mask Fundamental Emissions quasi peak:53.69 dBuV/m at 3m Device complies with spectrum mask – refer to test data 124 dBuV/m at 3 Complied 3.4 15.225(d) Transmitter Radiated Unwanted Emissions [dBuV/m at 3m]: 256.980MHz 44.21 (Margin 1.79dB) - QP FCC 15.209 Complied 3.5 15.225(e) Frequency Stability 22.12 ppm ± 0.01% (100ppm) Complied FCC Test Report Report No. : FR372646AR SPORTON INTERNATIONAL INC. Page No. : 4 of 32 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR372646AR Rev. 01 Initial issue of report Oct. 16, 2013 FCC Test Report Report No. : FR372646AR SPORTON INTERNATIONAL INC. Page No. : 5 of 32 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range Modulation Ch. Frequency (MHz) Channel Number Field Strength (dBuV/m) 13.553 – 13.567 MHz ISO 14443-2 (ASK) 13.56 1 53.69 Note 1: Field strength performed quasi peak level at 3m. 1.1.2 Antenna Information Antenna Category Equipment placed on the market without antennas Integral antenna (antenna permanently attached) External antenna (dedicated antennas) 1.1.3 Type of EUT Identify …

Text truncated - open the document above for the full version.
