Date: March 29, 2013 Subject: Ad Hoc Mode Function Declaration FCC ID: AK8SVF15AA1QL To Whom it may concern, We, Sony Corporation, declare that the device (FCC ID: AK8SVF15AA1QL) 1. is acting as slave with Ad Hoc Mode supported on 2.4GHz band. 2. is not able to operate in non-US/IC frequencies, country code selection will be disable. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Applicant : Sony Corporation Address : 1-7-1 Konan, Minato-ku, Tokyo 108-0075, Japan Signature : _________________________________ Name and Job Title. : Ryui Tatsumi / Section Manager E-mail : [email protected] Te l . : (81)263-71-8924

Date: 2013/3/29 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Product Certification Representative Authorization Letter FCC ID: AK8SVF15AA1QL Product name: Personal Computer To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model SVF15AA1QL to the FCC Rules and Regulations. Sporton International Inc. Address : No. 52, Hwa Ya 1st Road., Kwei-Shan Hsiang, TaoYuan Hsien Taiwan R.O.C. Name : Wayne Hsu Job Title : Vice Manager e-mail : [email protected] We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant :Sony Corporation Address :1-7-1 Konan, Minato-ku, Tokyo 108-0075, Japan Signature : _________________________________ Name and Job Title. :Ryui Tatsumi / Section Manager E-mail :[email protected] Te l . :(81)263-71-8924

Date: April 8, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for confidentiality FCC ID: AK8SVF15AA1QL To whom it may concern: Short-term confidentiality Pursuant to DA 04-1705 of the Commission’s public notice, in order to comply with the marketing regulations in 47CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until October 5, 2013. 1. Internal Photographs 2. External Photographs 3. User’s manual 4. Test Set up photos Permanent confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Schematics 3. Operational Description 4. Tune up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Applicant : Sony Corporation Address : 1-7-1 Konan, Minato-ku, Tokyo 108-0075, Japan Signature : _________________________________ Name and Job Title. : Ryui Tatsumi / Section Manager E-mail : [email protected]

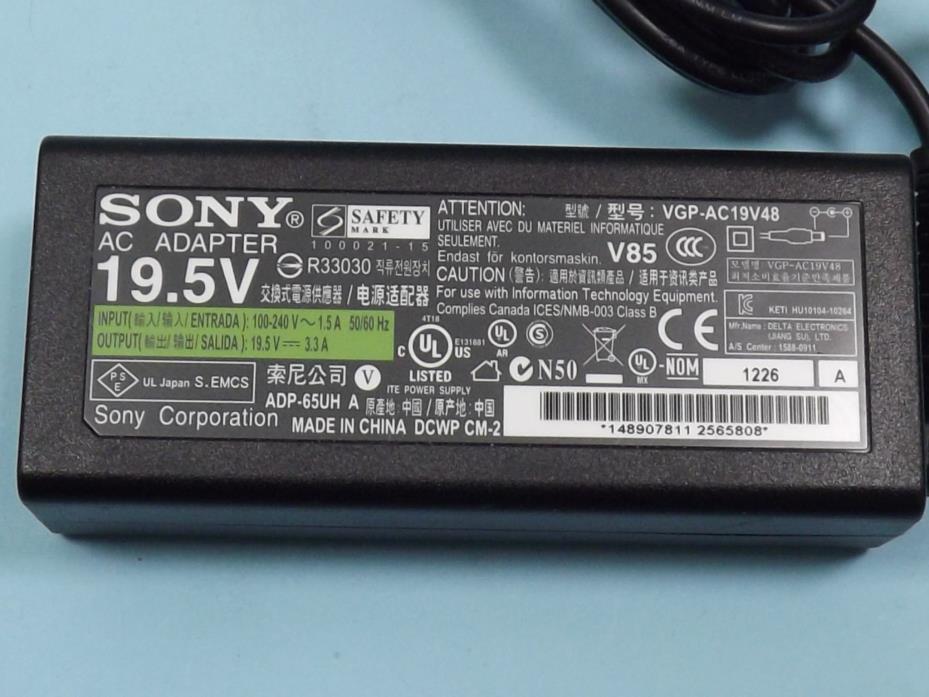

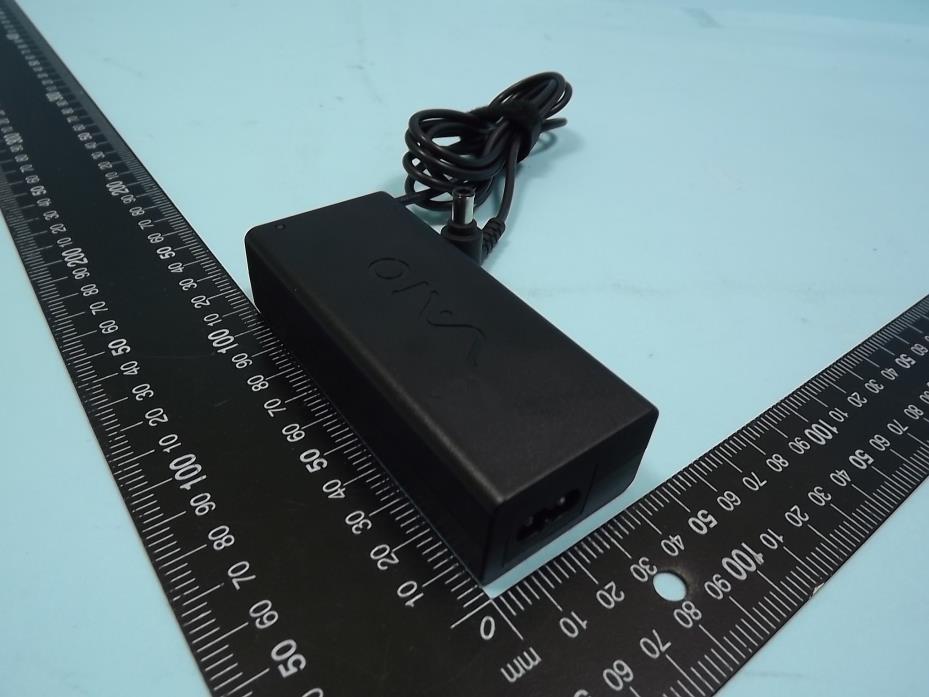

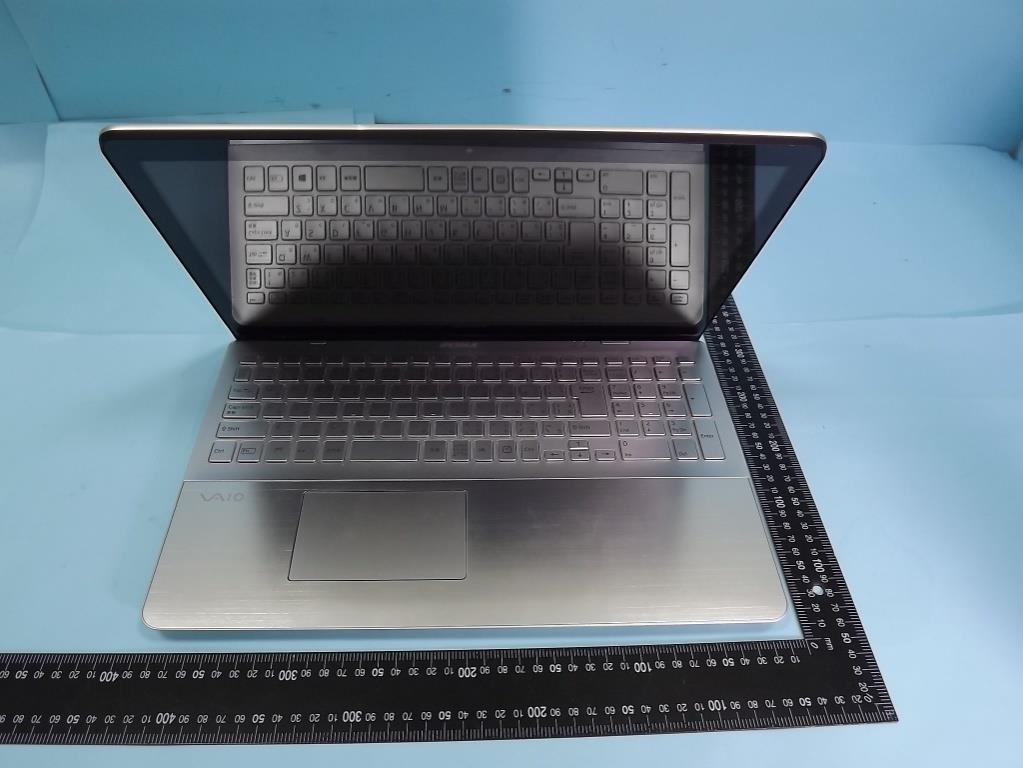

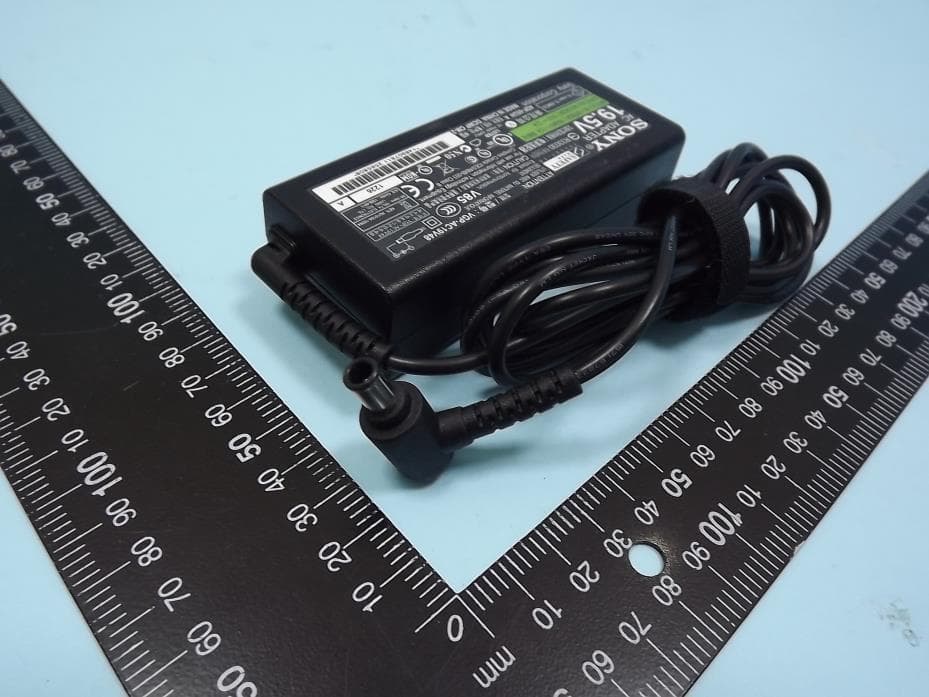

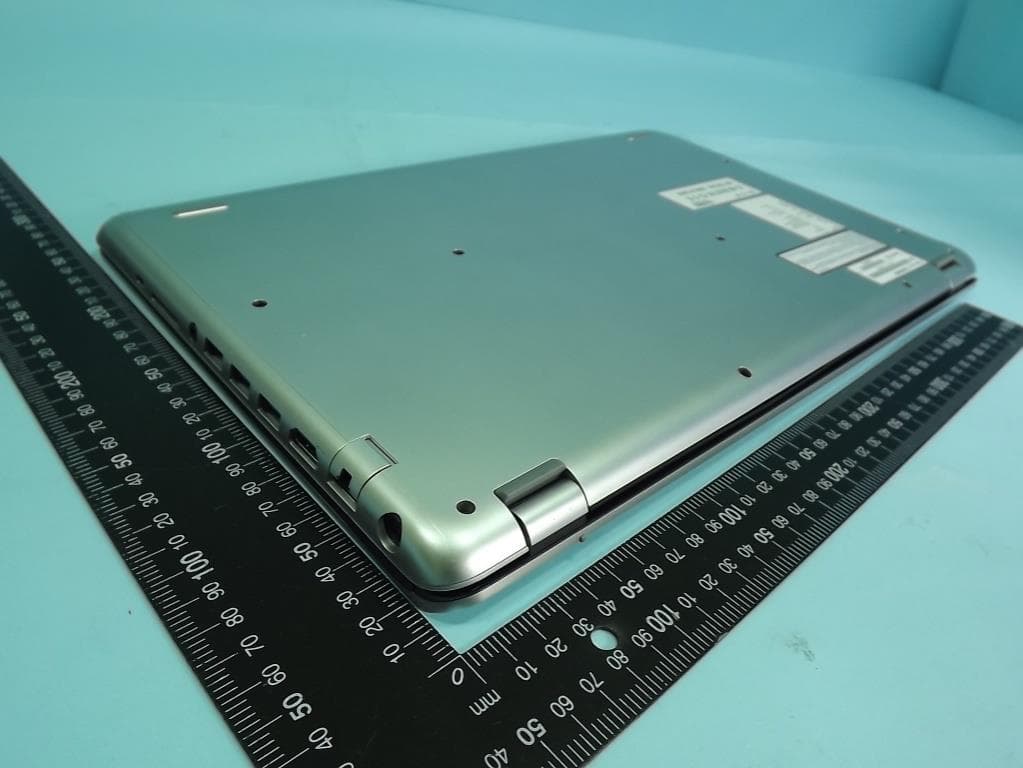

FCC Test Report Report No. : FR312619 SPORTON International Inc. PAGE NUMBER : B1 OF B4 TEL : 886-3-327-3456 ISSUED DATE : Apr. 01, 2013 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC Test Report Report No. : FR312619 SPORTON International Inc. PAGE NUMBER : B2 OF B4 TEL : 886-3-327-3456 ISSUED DATE : Apr. 01, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : FR312619 SPORTON International Inc. PAGE NUMBER : B3 OF B4 TEL : 886-3-327-3456 ISSUED DATE : Apr. 01, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : FR312619 SPORTON International Inc. PAGE NUMBER : B4 OF B4 TEL : 886-3-327-3456 ISSUED DATE : Apr. 01, 2013 FAX : 886-3-327-0973

Labal Location(Imaga)

FCC Test Report Report No. : FR312619 SPORTON International Inc. PAGE NUMBER : B1 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Apr. 01, 2013 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC Test Report Report No. : FR312619 SPORTON International Inc. PAGE NUMBER : B2 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Apr. 01, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : FR312619 SPORTON International Inc. PAGE NUMBER : B3 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Apr. 01, 2013 FAX : 886-3-327-0973 WiFi and Bluetooth combo module FCC Test Report Report No. : FR312619 SPORTON International Inc. PAGE NUMBER : B4 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Apr. 01, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : FR312619 SPORTON International Inc. PAGE NUMBER : B5 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Apr. 01, 2013 FAX : 886-3-327-0973 WiFi and Bluetooth Antennas FCC Test Report Report No. : FR312619 SPORTON International Inc. PAGE NUMBER : B6 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Apr. 01, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : FR312619 SPORTON International Inc. PAGE NUMBER : B7 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Apr. 01, 2013 FAX : 886-3-327-0973 NFC Module FCC Test Report Report No. : FR312619 SPORTON International Inc. PAGE NUMBER : B8 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Apr. 01, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : FR312619 SPORTON International Inc. PAGE NUMBER : B9 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Apr. 01, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : FR312619 SPORTON International Inc. PAGE NUMBER : B10 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Apr. 01, 2013 FAX : 886-3-327-0973 NFC Ant. FCC Test Report Report No. : FR312619 SPORTON International Inc. PAGE NUMBER : B11 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Apr. 01, 2013 FAX : 886-3-327-0973

SPORTON INTERNATIONAL INC. Page Number : 1 of 34 TEL : 886-3-327-3456 Report Issued Date : Apr. 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : AK8SVF15AA1QL FCC SAR Test Report Report No. : FA312619 FCC SAR Test Report APPLICANT : Sony Corporation EQUIPMENT : Personal Computer BRAND NAME : SONY MODEL NAME : SVF15AA1QL, SVF15AAxxL(x:0-9,A-Z,blank) FCC ID : AK8SVF15AA1QL STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was completely tested on Mar. 31, 2013. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Eric Huang / Vice Manager Approved by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 34 TEL : 886-3-327-3456 Report Issued Date : Apr. 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : AK8SVF15AA1QL FCC SAR Test Report Report No. : FA312619 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 2.1 Testing Laboratory .................................................................................................................................................. 5 2.2 Applicant ................................................................................................................................................................ 5 2.3 Manufacturer .......................................................................................................................................................... 5 2.4 Application Details .................................................................................................................................................. 5 3. General Information ...................................................................................................................................................... 6 3.1 Description of Equipment Under Test (EUT) .......................................................................................................... 6 3.2 Maximum RF output power among production units .............................................................................................. 7 3.3 Product Photos....................................................................................................................................................... 8 3.4 Applied Standard .................................................................................................................................................... 8 3.5 Device Category and SAR Limits ........................................................................................................................... 8 3.6 Test Conditions ....................................................................................................................................................... 8 4. Specific Absorption Rate (SAR) ................................................................................................................................... 9 4.1 Introduction ............................................................................................................................................................ 9 4.2 SAR Definition ........................................................................................................................................................ 9 5. SAR Measurement System ..........................................................................................................................................10 5.1 E-Field Probe ........................................................................................................................................................ 11 5.2 Data Acquisition Electronics (DAE) .......................................................................................................................12 5.3 Robot ....................................................................................................................................................................12 5.4 Measurement Server .............................................................................................................................................12 5.5 Phantom ................................................................................................................................................................13 5.6 Device Holder........................................................................................................................................................14 5.7 Data Storage and Evaluation ................................................................................................................................15 5.8 Test Equipment List ...............................................................................................................................................17 6. Tissue Simulating Liquids ...........................................................................................................................................18 7. SAR System Verification .............................................................................................................................................19 7.1 Purpose of System Perform…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : A1 of A1 TEL : 886-3-327-3456 Report Issued Date : Apr. 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : AK8SVF15AA1QL FCC SAR Test Report Report No. : FA312619 Appendix A. Plots of System Performance Check The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/3/31 System Check_Body_2450MHz_130331 DUT: D2450V2-SN:736 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130331 Medium parameters used: f = 2450 MHz; σ = 2.015 mho/m; ε r = 53.957; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(7.1, 7.1, 7.1); Calibrated: 2012/6/21; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2012/6/12 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.8 (3);SEMCAD X Version 14.6.5 (6469) Configuration/Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 21.4 mW/g Configuration/Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 97.921 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 28.060 mW/g SAR(1 g) = 12.8 mW/g; SAR(10 g) = 5.89 mW/g Maximum value of SAR (measured) = 19.7 mW/g 0 dB = 19.7 mW/g = 25.89 dB mW/g

SPORTON INTERNATIONAL INC. Page Number : B1 of B1 TEL : 886-3-327-3456 Report Issued Date : Apr. 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : AK8SVF15AA1QL FCC SAR Test Report Report No. : FA312619 Appendix B. Plots of SAR Measurement The plots are shown as follows. Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/3/31 #01_WLAN2.4G_802.11b 1Mbps_Bottom_0cm_Ch6 DUT: 312619 Communication System: 802.11b; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130331 Medium parameters used: f = 2437 MHz; σ = 1.996 mho/m; ε r = 53.979; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(7.1, 7.1, 7.1); Calibrated: 2012/6/21; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2012/6/12 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.8 (3);SEMCAD X Version 14.6.5 (6469) Configuration/Ch6/Area Scan (151x171x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 1.48 mW/g Configuration/Ch6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 26.113 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 1.940 mW/g SAR(1 g) = 0.801 mW/g; SAR(10 g) = 0.334 mW/g Maximum value of SAR (measured) = 1.32 mW/g 0 dB = 1.32 mW/g = 2.41 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/3/31 #02_WLAN2.4G_802.11b 1Mbps_Bottom_0cm_Ch1 DUT: 312619 Communication System: 802.11b; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130331 Medium parameters used: f = 2412 MHz; σ = 1.959 mho/m; ε r = 54.047; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(7.1, 7.1, 7.1); Calibrated: 2012/6/21; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2012/6/12 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.8 (3);SEMCAD X Version 14.6.5 (6469) Configuration/Ch1/Area Scan (131x151x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 1.07 mW/g Configuration/Ch1/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 22.539 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 1.655 mW/g SAR(1 g) = 0.726 mW/g; SAR(10 g) = 0.313 mW/g Maximum value of SAR (measured) = 1.12 mW/g 0 dB = 1.12 mW/g = 0.98 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/3/31 #03_WLAN2.4G_802.11b 1Mbps_Bottom_0cm_Ch11 DUT: 312619 Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130331 Medium parameters used: f = 2462 MHz; σ = 2.032 mho/m; ε r = 53.942; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(7.1, 7.1, 7.1); Calibrated: 2012/6/21; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2012/6/12 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.8 (3);SEMCAD X Version 14.6.5 (6469) Configuration/Ch11/Area Scan (131x151x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 1.23 mW/g Configuration/Ch11/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 24.277 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 1.878 mW/g SAR(1 g) = 0.806 mW/g; SAR(10 g) = 0.340 mW/g Maximum value of SAR (measured) = 1.25 mW/g 0 dB = 1.25 mW/g = 1.94 dB mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/3/31 #04_WLAN2.4G_802.11b 1Mbps_Bottom_0cm_Ch11;Repeat DUT: 312619 Communication System: 802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130331 Medium parameters used: f = 2462 MHz; σ = 2.032 mho/m; ε r = 53.942; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3792; ConvF(7.1, 7.1, 7.1); Calibrated: 2012/6/21; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2012/6/12 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1029 - Measurement SW: DASY52, Version 52.8 (3);SEMCAD X Version 14.6.5 (6469) Configuration/Ch11/Area Scan (111x131x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (interpolated) = 1.33 mW/g Configuration/Ch11/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 18.125 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 1.854 mW/g SAR(1 g) = 0.799 mW/g; SAR(10 g) = 0.331 mW/g Maximum value of SAR (measured) = 1.28 mW/g 0 dB = 1.28 mW/g = 2.14 dB mW/g

SPORTON INTERNATIONAL INC. Page Number : C1 of C1 TEL : 886-3-327-3456 Report Issued Date : Apr. 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : AK8SVF15AA1QL FCC SAR Test Report Report No. : FA312619 Appendix C. DASY Calibration Certificate The DASY calibration certificates are shown as follows. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 D2450V2, serial no. 736 Extended Dipole Calibrations Referring to KDB 450824, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification Procedure of Extended Dipole Calibration> 1. Setup a Network Analyzer (Agilent N5230A) and set the start frequency and stop frequency to Network Analyzer according to the dipole frequency, at least +/- 200MHz around the calibration point. 2. Using calibration kit to perform Network Analyzer Open, Short and Load calibration. 3. Connect the dipole with the calibrated Network Analyzer. 4. Place the dipole underneath the phantom which is filled with head-simulating or body-simulating liquid. 5. Set the Network Analyzer frequency by the dipole calibration frequency. Monitor the return-loss and impedance results with Log Magnitude format and Smith Chart, respectively. 6. Record the result and compare with the prior calibration. Please check the Appendix C for detail records. <Justification of the extended calibration> D2450V2 – serial no. 736 2450 Head 2450 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 7.25.2011 -27.042 54.398 1.4805 -30.696 50.812 2.8262 7.25.2012 -27.950 -3.365 52.541 1.857 0.77343 0.707 -31.781 -3.535 50.572 0.24 1.5953 1.2309 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 <Dipole Verification Data> - D2450 V2, serial no. 736 (Date of Measurement : 7.25.2012) 2450 MHz - Head SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 2450 MHz – Body

FCC Test Report Report No. : FR312619 SPORTON INTERNATIONAL INC. Page No. : 1 of 8 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 CO-LOCATION 1.1 Transmitter Radiated Unwanted Emissions 1.1.1 Transmitter Radiated Unwanted Emissions Limit Restricted Band Emissions Limit Frequency Range (MHz) Field Strength (uV/m) Field Strength (dBuV/m) Measure Distance (m) 0.009~0.490 2400/F(kHz) 48.5 - 13.8 300 0.490~1.705 24000/F(kHz) 33.8 - 23 30 1.705~30.0 30 29 30 30~88 100 40 3 88~216 150 43.5 3 216~960 200 46 3 Above 960 500 54 3 Note 1: Test distance for frequencies at or above 30 MHz, measurements may be performed at a distance other than the limit distance provided they are not performed in the near field and the emissions to be measured can be detected by the measurement equipment. When performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade (inverse of linear distance for field-strength measurements, inverse of linear distance-squared for power-density measurements). Note 2: Test distance for frequencies at below 30 MHz, measurements may be performed at a distance closer than the EUT limit distance; however, an attempt should be made to avoid making measurements in the near field. When performing measurements below 30 MHz at a closer distance than the limit distance, the results shall be extrapolated to the specified distance by either making measurements at a minimum of two or more distances on at least one radial to determine the proper extrapolation factor or by using the square of an inverse linear distance extrapolation factor (40 dB/decade). The test report shall specify the extrapolation method used to determine compliance of the EUT. Un-restricted Band Emissions Limit RF output power procedure Limit (dB) Peak output power procedure 20 Average output power procedure 30 Note 1: If the peak output power procedure is used to measure the fundamental emission power to demonstrate compliance to requirements, then the peak conducted output power measured within any 100 kHz outside the authorized frequency band shall be attenuated by at least 20 dB relative to the maximum measured in-band peak PSD level. Note 2: If the average output power procedure is used to measure the fundamental emission power to demonstrate compliance to requirements, then the power in any 100 kHz outside of the authorized frequency band shall be attenuated by at least 30 dB relative to the maximum measured in-band average PSD level. 1.1.2 Measuring Instruments Refer a test equipment and calibration data table in this test report. FCC Test Report Report No. : FR312619 SPORTON INTERNATIONAL INC. Page No. : 2 of 8 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Test Procedures Test Method Measurements may be performed at a distance other than the limit distance provided they are not performed in the near field and the emissions to be measured can be detected by the measurement equipment. When performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade (inverse of linear distance for field-strength measurements, inverse of linear distance-squared for power-density measurements). Measurements in the frequency range 10 GHz - 18GHz are typically made at a …
