AK8SVT112A2WLPersonal Computer

Personal Computer VAIO Tap 11SVT1121 How to Use Hardware VAIO Components Parts and Controls on the Front Parts and Controls on the Sides Parts and Controls on the Back Parts and Controls of the Keyboard Notes on use Copyright 2013 Sony Corporation User Guide List of Topics Personal Computer VAIO Tap 11SVT1121 Troubleshooting Notes on use Copyright 2013 Sony Corporation User Guide List of Topics Personal Computer VAIO Tap 11SVT1121 Notes on useOctober 2012 Before use To make full use of your Help Guide, please read the following notes thoroughly. Please note that the contents of this website are subject to change without prior notice. Recommended system environment Basic operation of the Help Guide has been confirmed on the standard web browsers of the following smartphones: Web browser Android OS 2.3 or later Xperia series, NW-Z1000 series iOS 4 or later iPhone, iPod touch JavaScript JavaScript is used with Sony Help Guides for viewing convenience. If JavaScript is disabled in your web browser settings, your Help Guide may not be displayed correctly or may not operate properly. Style Sheets Cascading Style Sheets are used in designing Sony Help Guides. Your Help Guide layout may not be as intended if you view your Help Guide with style sheets disabled or on a web browser that is not compatible with style sheets. Cookies Sony Help Guides use cookies. To use services in the Help Guide, you need to set to allow all cookies or to enable cookies for the originating website only. Handling of personal information obtained from websites Sony may use cookies, web beacons or similar technologies to analyze customers' web browsing behavior to provide better- customized service for individual customers. Cookies, web beacon and similar technologies are used to make statistical analysis of customers while preserving anonymity, and information in such analysis may be linked to customers' personal information to provide better-customized service to users of our members-only websites. You are free to disable the link between your personal information and information obtained by cookies or anonymous information generated by web beacons. To do so, you need to change web browser settings and refuse to accept cookie-generated or similar data. Please note that, by doing so, you may not be able to make purchases or use services on members-only websites. Notes on use Copyright 2013 Sony Corporation User Guide Personal Computer VAIO Tap 11SVT1121 Parts and Controls on the Front Describes the features on the front of the VAIO computer, such as buttons and indicator lights. 1. Air exhaust vent 2. Infrared port 3. Built-in dual microphones 4. Battery off button 5. microSD memory card slot 6. Micro SIM Card slot 7.Charge indicator 8. Ambient light sensor 9. Built-in front camera indicator 0. Built-in front camera 1. Touch screen 2.(Windows) button 3. Charge port for Keyboard Note The air exhaust vent may get hot during use. Take care when touching it. Take care not to damage the front screen when handling your VAIO. Notes on the LCD screen The LCD screen is manufactured using high-precision technology. You may, however, see tiny black points and/or bright points (red, blue, or green) that continuously appear on the LCD screen. The ratio of defective pixels to all available pixels of the LCD screen is less than 0.0006 %. Also, depending on the viewing angle, uneven stripes of changes in color and luminance may appear. These are normal results of the LCD screen construction and do not indicate a malfunction. Take User Guide How to Use note that returns and replacements are not accepted. Related Topic Parts and Controls on the Sides Parts and Controls on the Back Notes on use Copyright 2013 Sony Corporation Personal Computer VAIO Tap 11SVT1121 Parts and Controls on the Sides Describes the features on the sides of the VAIO computer, such as connection ports. 1.USB port 2.HDMI output port (Micro) 3.DC IN port 1.Headset compatible headphone jack 2.Power indicator 3.Power button 4.VOL (Volume) buttons Related Topic Parts and Controls on the Front Parts and Controls on the Back Notes on use Copyright 2013 Sony Corporation User Guide How to Use Personal Computer VAIO Tap 11SVT1121 Parts and Controls on the Back Describes the features on the back of the VAIO computer, such as connection ports. Wifi model LTE/3G model 1.ASSIST button 2.Touch mark 3. Built-in rear camera 4. Air intake vent 5. Built-in rear camera indicator 6. A hole for the pen hook 7. Built-in stereo speakers 8. Stand Note The back part at the top near the air exhaust vent may become hot during use. Take care when touching it. Do not install your VAIO computer where the air intake vents or air exhaust vent may be blocked. Do not carry your VAIO computer by its stand; hold the sides. Related Topic Parts and Controls on the Front Parts and Controls on the Sides Notes on use Copyright 2013 Sony Corporation User Guide How to Use Personal Computer VAIO Tap 11SVT1121 Parts and Controls of the Keyboard Describes the features of the keyboard, such as keys, buttons and indicator lights. 1.Caps Lock key 2.Esc key 3. Function keys 4.Caps lock indicator 5.Battery indicator for Keyboard 6. Power and touch pad on/off switch for keyboard 7. Charge port for Keyboard (on Keyboard) 8.Delete key 9.Backspace key 0.Insert key 1.Pause / Break key 2.Prt Sc key 3.Shift key 4.Ctrl key 5.Charge indicator for Keyboard 6.Fn key 7.(Windows) key 8.Alt key 9. Touch pad 0. Space key User Guide How to Use 1. Applications key 2. Directional arrow keys Note Do not place magnetically sensitive items, such as credit cards, near the keyboard. It may cause data corruption by the magnetic components of the computer. Hint There is a raised dot on the F,J and 5 keys. After 10 minutes of idle time, the keyboard enters the power saving mode and all indicator lights turn off. For details on the keyboard shortcut keys, see Windows Help and Support. Notes on use Copyright 2013 Sony Corporation Federal Comm…

Text truncated - open the document above for the full version.

Sony Corporation 1-7-1 Konan Minato-ku, Tokyo, 108-0075 , Japan Date: 2013/8/5 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Product Certification Representative Authorization Letter FCC ID: AK8SVT112A2WL Product name: Personal Computer To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model SVT112A2WL to the FCC Rules and Regulations. Sporton International Inc. Address : No. 52, Hwa Ya 1st Road., Kwei-Shan Hsiang, TaoYuan Hsien Taiwan R.O.C. Name : Wayne Hsu Job Title : Vice Manager e-mail : [email protected] We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant :Sony Corporation Address :1-7-1 Konan, Minato-ku, Tokyo 108-0075, Japan Signature : _________________________________ Name and Job Title. :Ryui Tatsumi / Section Manager E-mail :[email protected] Te l . :81-263-71-8924

Sony Corporation 1-7-1 Konan, Minato-ku, Tokyo, 108-0075 Tel +81-3-6748-2111 Date: October 22, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for confidentiality FCC ID: AK8SVT112A2WL To whom it may concern: Short-term confidentiality Pursuant to DA 04-1705 of the Commission’s pubic notice, in order to comply with the marketing regulations in 47CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality for the following information to 180 days of Equipment Authorization: 1. Internal Photographs 2. External Photographs 3. User’s manual 4. Test Set up photos Permanent confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Schematics 3. Operational Description 4. Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Applicant : Sony Corporation Address : 1-7-1 Konan, Minato-ku, Tokyo 108-0075, Japan Signature : Name and Job Title. : Ryui Tatsumi / Section Manager E-mail : [email protected]

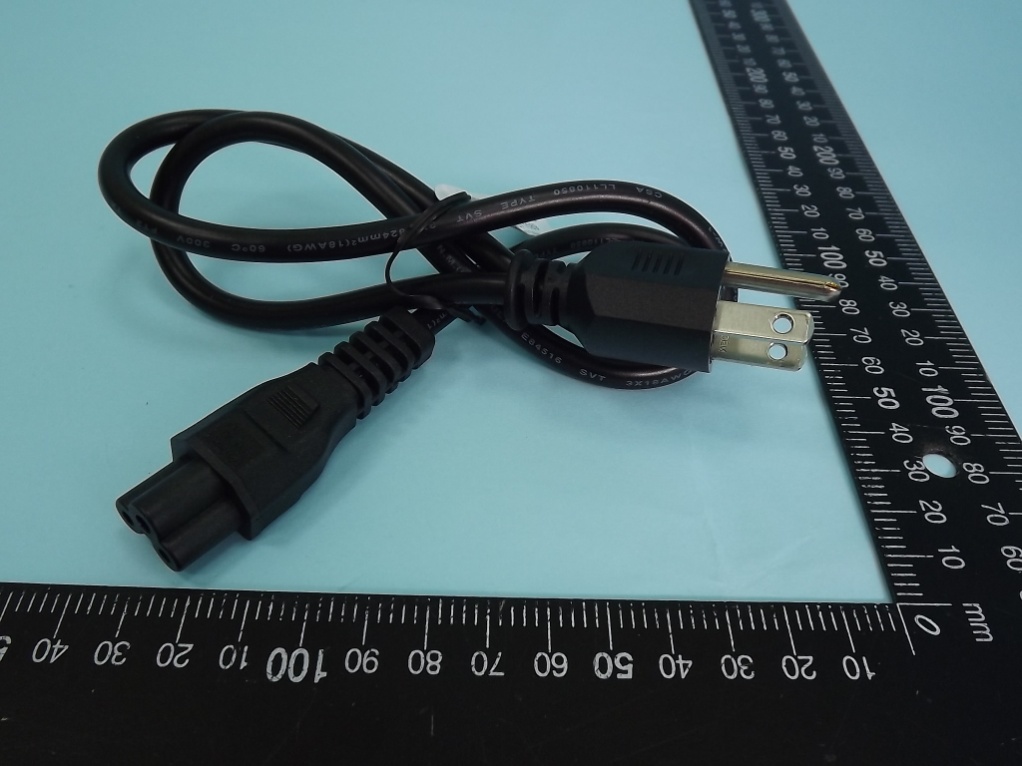

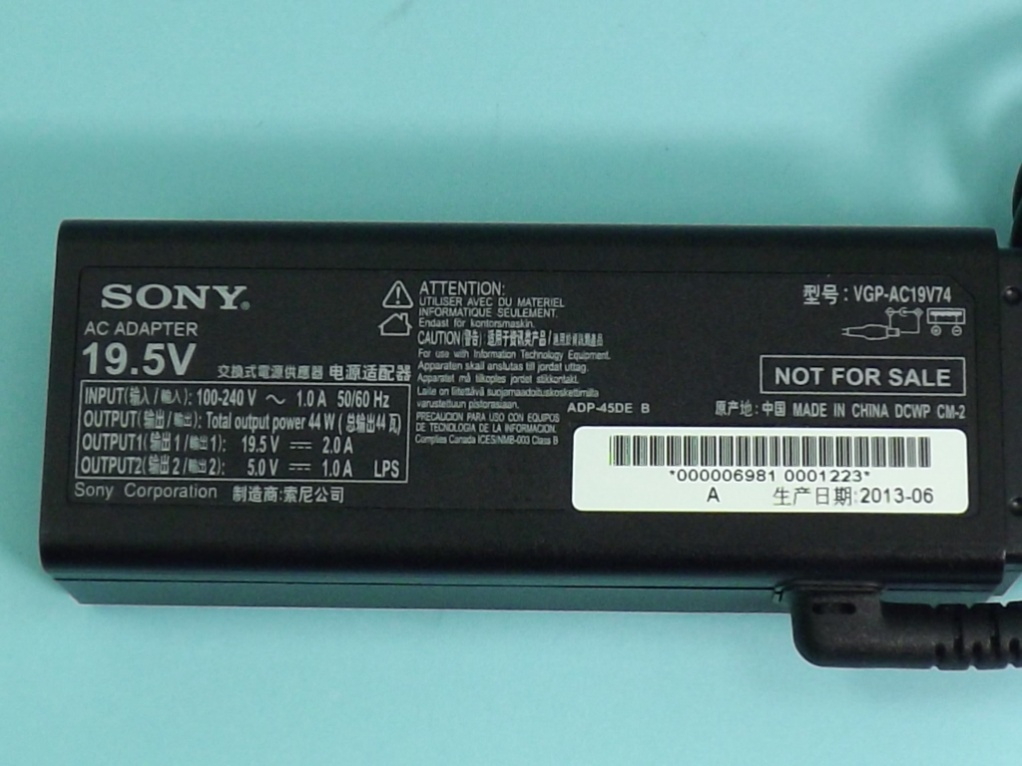

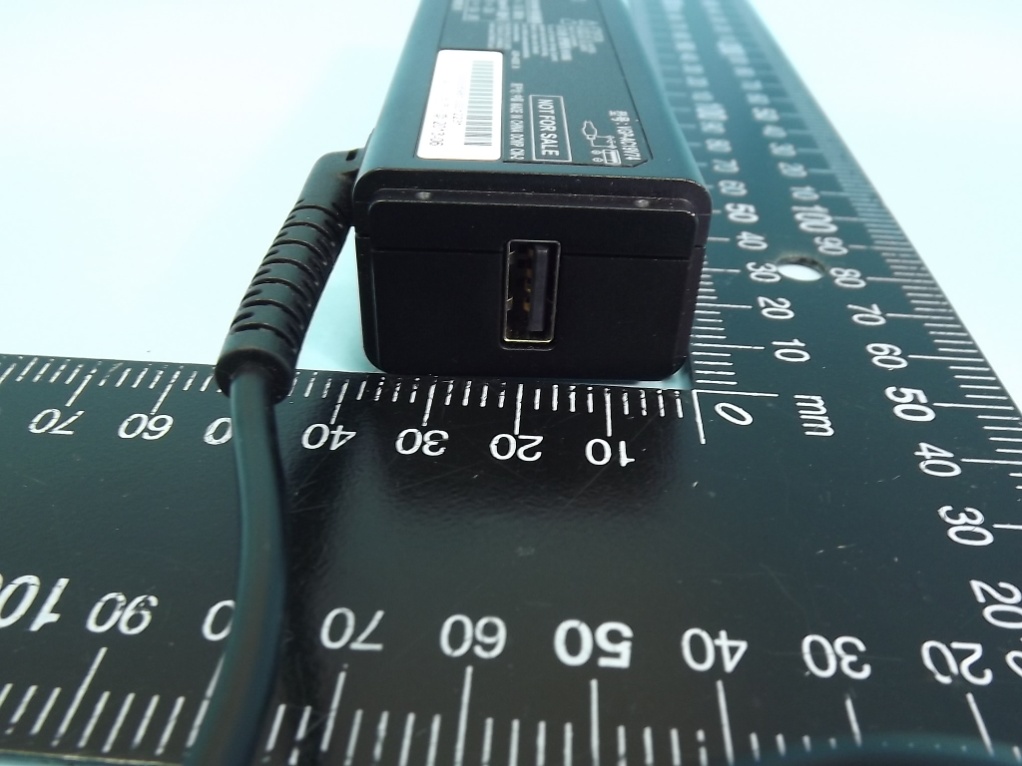

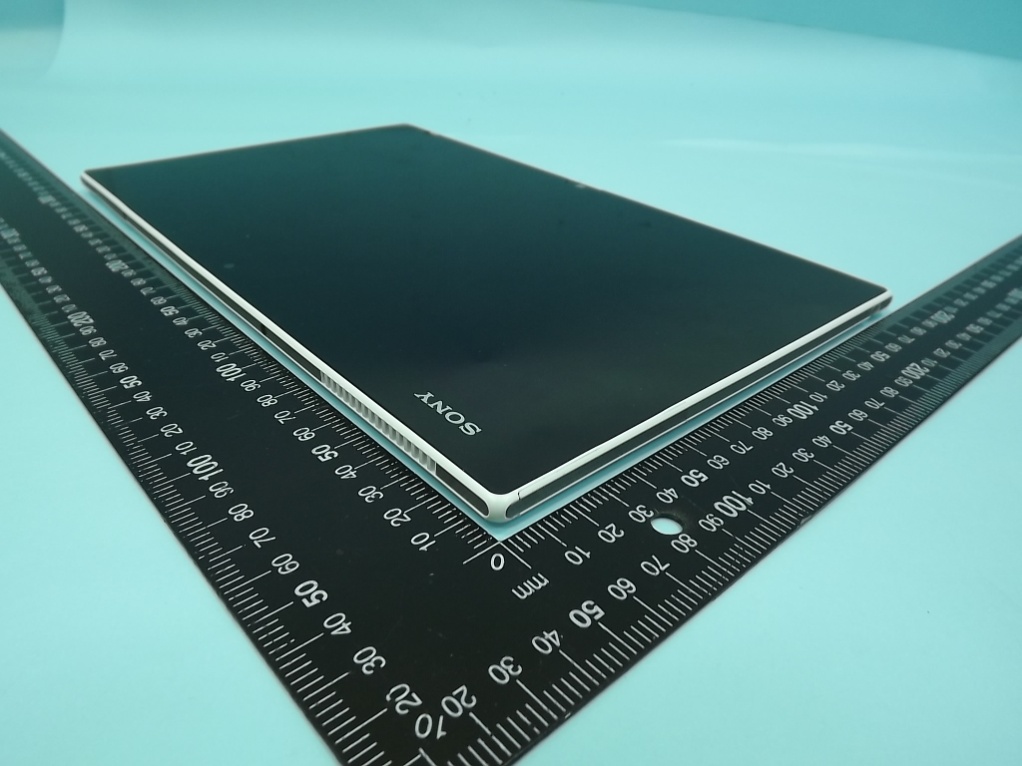

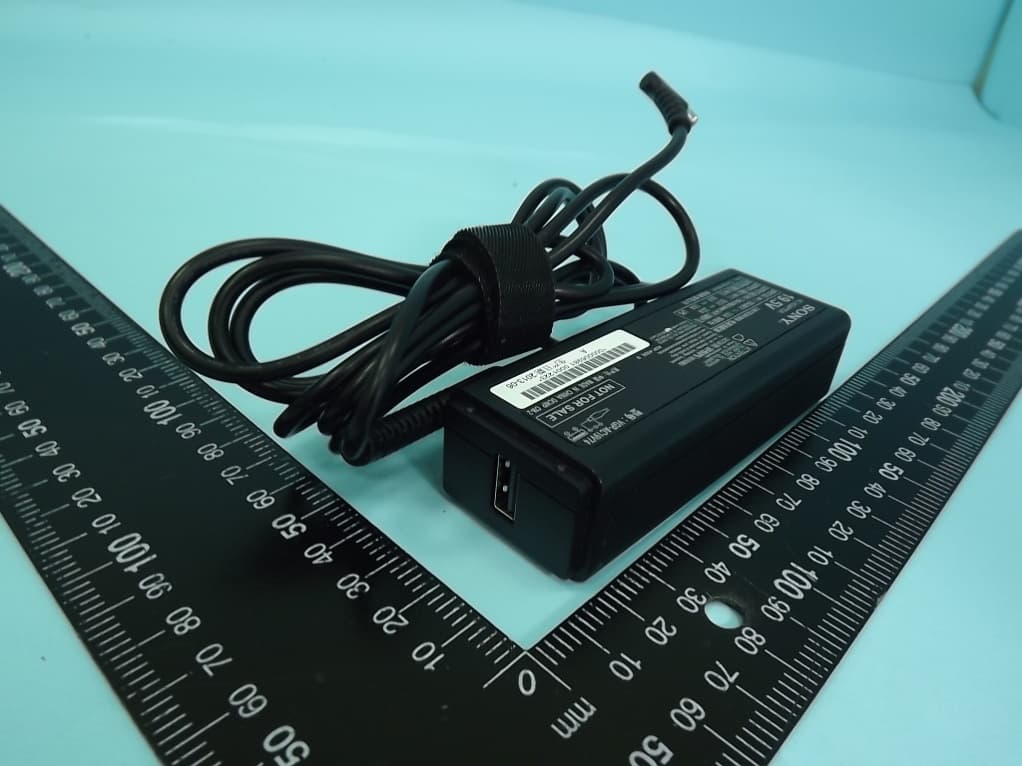

FCC Test Report Report No. : EP362716 SPORTON International Inc. PAGE NUMBER : B1 OF B19 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC Test Report Report No. : EP362716 SPORTON International Inc. PAGE NUMBER : B2 OF B19 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP362716 SPORTON International Inc. PAGE NUMBER : B18 OF B19 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP362716 SPORTON International Inc. PAGE NUMBER : B19 OF B19 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973

<Kirin1 Tabler-Rear > For WAN UB LOGO LABEL (SMALL) BARCODE LABEL (23X9) UNIT (PRODUCT_SERIAL_SERVICE_WAN) (CDS) IMEI number *Please confirm with "MP Sku-Module List" based on the "MODULE Release Notice(MRN)" information. MS8 GML Align to the concave edge. MN LABEL 6980 3 < Kirin1 Tabler-Stand > Align to the concave edge. *Please confirm with "MP Sku-Module List" based on the "MODULE Release Notice(MRN)" information.

FCC Test Report Report No. : EP362716 SPORTON International Inc. PAGE NUMBER : B2 OF B19 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP362716 SPORTON International Inc. PAGE NUMBER : B3 OF B19 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP362716 SPORTON International Inc. PAGE NUMBER : B4 OF B19 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP362716 SPORTON International Inc. PAGE NUMBER : B5 OF B19 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 NFC Module SRD Module FCC Test Report Report No. : EP362716 SPORTON International Inc. PAGE NUMBER : B6 OF B19 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP362716 SPORTON International Inc. PAGE NUMBER : B7 OF B19 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP362716 SPORTON International Inc. PAGE NUMBER : B8 OF B19 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 NFC Ant. FCC Test Report Report No. : EP362716 SPORTON International Inc. PAGE NUMBER : B9 OF B19 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 SRD Module FCC Test Report Report No. : EP362716 SPORTON International Inc. PAGE NUMBER : B10 OF B19 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP362716 SPORTON International Inc. PAGE NUMBER : B11 OF B19 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 WiFi and Bluetooth Combo Module FCC Test Report Report No. : EP362716 SPORTON International Inc. PAGE NUMBER : B12 OF B19 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP362716 SPORTON International Inc. PAGE NUMBER : B13 OF B19 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 WiFi and Bluetooth Combo Ant. FCC Test Report Report No. : EP362716 SPORTON International Inc. PAGE NUMBER : B14 OF B19 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP362716 SPORTON International Inc. PAGE NUMBER : B15 OF B19 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP362716 SPORTON International Inc. PAGE NUMBER : B16 OF B19 TEL : 886-3-327-3456 ISSUED DATE : Sep. 28, 2013 FAX : 886-3-327-0973

FCC Test Report Report No. : FR361716AR SPORTON INTERNATIONAL INC. Page No. : 1 of 33 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Equipment : Personal Computer Brand Name : SONY Model No. : SVT112A2WL FCC ID : AK8SVT112A2WL Standard : 47 CFR FCC Part 15.225 Operating Band : 13.553 – 13.567 MHz (channel freq. 13.56 MHz) Equipment Class : DXX Applicant Manufacturer : Sony Corporation 1-7-1 Konan, Minato-ku, Tokyo 108-0075, Japan The product sample received on Jun. 27, 2013 and completely tested on Jul. 26, 2013. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Assistant Manager FCC Test Report Report No. : FR361716AR SPORTON INTERNATIONAL INC. Page No. : 2 of 33 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION ............................................................................................................... 5 1.1 Information ........................................................................................................................................ 5 1.2 Accessories ...................................................................................................................................... 6 1.3 Support Equipment ........................................................................................................................... 6 1.4 Testing Applied Standards ................................................................................................................ 7 1.5 Testing Location Information ............................................................................................................. 7 1.6 Measurement Uncertainty ................................................................................................................. 7 2 TEST CONFIGURATION OF EUT .................................................................................................... 8 2.1 The Worst Case Modulation Configuration ........................................................................................ 8 2.2 Test Channel Frequencies Configuration ........................................................................................... 8 2.3 The Worst Case Measurement Configuration .................................................................................... 8 2.4 Test Setup Diagram .......................................................................................................................... 9 3 TRANSMITTER TEST RESULT ..................................................................................................... 11 3.1 AC Power-line Conducted Emissions .............................................................................................. 11 3.2 Emission Bandwidth ........................................................................................................................ 17 3.3 Field Strength of Fundamental Emissions and Spectrum Mask ........................................................ 19 3.4 Transmitter Radiated Unwanted Emissions ..................................................................................... 21 3.5 Frequency Stability.......................................................................................................................... 30 4 TEST EQUIPMENT AND CALIBRATION DATA ............................................................................. 32 APPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR361716AR SPORTON INTERNATIONAL INC. Page No. : 3 of 33 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.1863950MHz 29.82 (Margin 24.38dB) - AV 49.24 (Margin 14.96dB) - QP FCC 15.207 Complied 3.2 15.215(c) Emission Bandwidth 20dB Bandwidth 2.6 [kHz] F L : 13.55868 MHz F H : 13.56128 MHz Fall in band F L • 13.553 MHz F H ” 13.567 MHz Complied 3.3 15.225(a)~(d) Field Strength of Fundamental Emissions and Spectrum Mask Fundamental Emissions quasi peak: 61.26 dBuV/m at 3m Device complies with spectrum mask – refer to test data 124 dBuV/m at 3 Complied 3.4 15.225(d) Transmitter Radiated Unwanted Emissions [dBuV/m at 3m]: 39.700MHz 36.48 (Margin 3.52dB) - PK FCC 15.209 Complied 3.5 15.225(e) Frequency Stability 33.19 ppm ± 0.01% (100ppm) Complied FCC Test Report Report No. : FR361716AR SPORTON INTERNATIONAL INC. Page No. : 4 of 33 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR361716AR Rev. 01 Initial issue of report Sep. 28, 2013 FCC Test Report Report No. : FR361716AR SPORTON INTERNATIONAL INC. Page No. : 5 of 33 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range Modulation Ch. Frequency (MHz) Channel Number Field Strength (dBuV/m) 13.553 – 13.567 MHz ISO 14443-2 (ASK) 13.56 1 61.26 Note 1: Field strength performed quasi peak level at 3m. 1.1.2 Antenna Information Antenna Category Equipment placed on the market without antennas Integral antenna (antenna permanently attached) External antenna (dedicated antennas) 1.1.3 Type of EUT Identify EUT EUT Serial Number N/A Presentation of Equipment Production ; Pre-Production ; Prototype Type of EUT Stand-alone Combined (EUT where the radio part is fully i…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR362716 SPORTON INTERNATIONAL INC. Page No. : 1 of 20 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 CO-LOCATION 1.1 Transmitter Radiated Unwanted Emissions 1.1.1 Transmitter Radiated Unwanted Emissions Limit Restricted Band Emissions Limit Frequency Range (MHz) Field Strength (uV/m) Field Strength (dBuV/m) Measure Distance (m) 0.009~0.490 2400/F(kHz) 48.5 - 13.8 300 0.490~1.705 24000/F(kHz) 33.8 - 23 30 1.705~30.0 30 29 30 30~88 100 40 3 88~216 150 43.5 3 216~960 200 46 3 Above 960 500 54 3 Note 1: Test distance for frequencies at or above 30 MHz, measurements may be performed at a distance other than the limit distance provided they are not performed in the near field and the emissions to be measured can be detected by the measurement equipment. When performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade (inverse of linear distance for field-strength measurements, inverse of linear distance-squared for power-density measurements). Note 2: Test distance for frequencies at below 30 MHz, measurements may be performed at a distance closer than the EUT limit distance; however, an attempt should be made to avoid making measurements in the near field. When performing measurements below 30 MHz at a closer distance than the limit distance, the results shall be extrapolated to the specified distance by either making measurements at a minimum of two or more distances on at least one radial to determine the proper extrapolation factor or by using the square of an inverse linear distance extrapolation factor (40 dB/decade). The test report shall specify the extrapolation method used to determine compliance of the EUT. Un-restricted Band Emissions Limit RF output power procedure Limit (dB) Peak output power procedure 20 Average output power procedure 30 Note 1: If the peak output power procedure is used to measure the fundamental emission power to demonstrate compliance to requirements, then the peak conducted output power measured within any 100 kHz outside the authorized frequency band shall be attenuated by at least 20 dB relative to the maximum measured in-band peak PSD level. Note 2: If the average output power procedure is used to measure the fundamental emission power to demonstrate compliance to requirements, then the power in any 100 kHz outside of the authorized frequency band shall be attenuated by at least 30 dB relative to the maximum measured in-band average PSD level. 1.1.2 Measuring Instruments Refer a test equipment and calibration data table in this test report. FCC Test Report Report No. : FR362716 SPORTON INTERNATIONAL INC. Page No. : 2 of 20 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Test Procedures Test Method Measurements may be performed at a distance other than the limit distance provided they are not performed in the near field and the emissions to be measured can be detected by the measurement equipment. When performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade (inverse of linear distance for field-strength measurements, inverse of linear distance-squared for power-density measurements). Measurements in the frequency range 10 GHz - 18GHz are typically made at a closer distance 1m, because the instrumentation noise floor is typically close to the radiated emission limit. Measurements in the frequency range above 18 GHz - 25GHz are typically made at a closer distance 0.5m, because the instrumentation noise floor is typically close to the radiated emission limit. The average emission levels shall be measured in [duty cycle ≥ 98 or duty factor]. For the transmitter unwanted emissions shall be measured using following options below: Refer as FCC KDB 558074, clause 10.1 for unwanted emissions into non-restricted bands. Refer as FCC KDB 558074, clause 10.2 for unwanted emissions into restricted bands. Refer as FCC KDB 558074, clause 10.2.3.3 and 8.2.1 Option 1 (spectral trace averaging) Refer as FCC KDB 558074, clause 10.2.3.3 and 8.2.1 Option 2 (slow sweep speed). Refer as ANSI C63.10, clause 4.2.3.2.3 (Reduced VBW). VBW ≥ 1/T, where T is pulse time. Refer as ANSI C63.10, clause 4.2.3.2.4 average value of pulsed emissions. Refer as FCC KDB 558074, clause 10.2.3.2 and 8.1.1 measurement procedure peak limit. Refer as FCC KDB 558074, clause 10.2.3.1 measurement procedure Quasi-Peak limit. For radiated measurement, refer as FCC KDB 558074, clause 10.2.1. Refer as ANSI C63.10, clause 6.4 for radiated emissions from below 30 MHz. Refer as ANSI C63.10, clause 6.5 for radiated emissions from 30 MHz to 1000 MHz. Refer as ANSI C63.10, clause 6.6 for radiated emissions from above 1 GHz. For conducted and cabinet radiation measurement, refer as FCC KDB 558074, clause 10.2.2. For conducted unwanted emissions into non-restricted bands (relative emission limits). Devices with multiple transmit chains: Refer as FCC KDB 662911, when testing out-of-band and spurious emissions against relative emission limits, tests may be performed on each output individually without summing or adding 10 log(N) if the measurements are made relative to the in-band emissions on the individual outputs. For conducted unwanted emissions into restricted bands (absolute emission limits). Devices with multiple transmit chains using options given below: (1) Measure and sum the spectra across the outputs or (2) Measure and add 10 log(N) dB FCC KDB 558074 FCC Test Report Report No. : FR362716 SPORTON INTERNATIONAL INC. Page No. : 3 of 20 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.4 Test Setup Transmitter Radiated Unwanted Emissions Magnetic field tests shall be performed in the frequency range of 9 kHz to 30 MHz using a calibrated loop antenna. Electric field tests shall be performed in…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR362716AC SPORTON INTERNATIONAL INC. Page No. : A1 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. Test Photos FCC Test Report Report No. : FR362716AC SPORTON INTERNATIONAL INC. Page No. : A2 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW FCC Test Report Report No. : FR362716AC SPORTON INTERNATIONAL INC. Page No. : A3 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 SIDE VIEW FCC Test Report Report No. : FR362716AC SPORTON INTERNATIONAL INC. Page No. : A4 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR362716AC SPORTON INTERNATIONAL INC. Page No. : A5 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR362716AC SPORTON INTERNATIONAL INC. Page No. : A6 of A6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions above 1GHz FRONT VIEW REAR VIEW
