AK8SVT212A11LPersonal Computer

133Q_Safety_7620_US_Draft 0-000-000-00 (0) 0-000-000-00(0) 133Q_Safety_7620_US_Draft 0-000-000-00 (0) 133Q_Safety_7620_US_Draft 0-000-000-00 (0) 3 For customers in USA and Canada Pour les utilisateurs aux Etats-Unis et au Canada Owner’s Record The model number and serial number are located on the bottom, the back panel, or inside the back panel or the battery compartment of your VAIO® computer. Record the model and serial numbers in the space provided here, and keep in a secure location. The model and serial numbers will be required when calling the Sony Service Center. Model Number: Serial Number: Notice © 2013 Sony Electronics Inc. Reproduction in whole or in part without written permission is prohibited. All rights reserved. This manual and the software described herein, in whole or in part, may not be reproduced, translated, or reduced to any machine-readable form without prior written approval. SONY ELECTRONICS INC. PROVIDES NO WARRANTY WITH REGARD TO THIS MANUAL, THE SOFTWARE, OR OTHER INFORMATION CONTAINED HEREIN AND HEREBY EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE WITH REGARD TO THIS MANUAL, THE SOFTWARE, OR SUCH OTHER INFORMATION. IN NO EVENT SHALL SONY ELECTRONICS INC. BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, OR SPECIAL DAMAGES, WHETHER BASED ON TORT, CONTRACT, OR OTHERWISE, ARISING OUT OF OR IN CONNECTION WITH THIS MANUAL, THE SOFTWARE, OR OTHER INFORMATION CONTAINED HEREIN OR THE USE THEREOF. SONY CANNOT WARRANT THAT THE FUNCTIONS DESCRIBED IN THIS GUIDE WILL BE UNINTERRUPTED OR ERROR-FREE. SONY ALSO ASSUMES NO RESPONSIBILITY, AND SHALL NOT BE LIABLE FOR ANY DAMAGES TO, OR VIRUSES THAT MAY INFECT YOUR COMPUTER EQUIPMENT, OR OTHER PROPERTY ON ACCOUNT OF YOUR ACCESS TO, USE OF, OR BROWSING IN ANY DESCRIBED WEB SITE, OR YOUR DOWNLOADING OF ANY MATERIALS, DATA, TEXT, IMAGES, VIDEO, OR AUDIO FROM ANY DESCRIBED WEB SITE. WEB SITE INFORMATION IS OBTAINED FROM VARIOUS SOURCES AND MAY BE INACCURATE. COPIES OF COPYRIGHTED INFORMATION MAY ONLY BE MADE FOR LEGALLY PERMISSIBLE PURPOSES. Sony Electronics Inc. reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein is governed by the terms of a separate user license agreement. This product contains software owned by Sony and licensed by third parties. Use of such software is subject to the terms and conditions of license agreements enclosed with this product. Some of the software may not be transported or used outside the United States. Software specifications are subject to change without notice and may not necessarily be identical to current retail versions. Certain product(s) included with this computer may include features such as copy protection and content management technology. USE OF THE SOFTWARE PRODUCT(S) REQUIRES AGREEMENT TO APPLICABLE END USER AGREEMENTS AND FULL COMPLIANCE WITH APPLICABLE PRODUCT ACTIVATION PROCEDURES. Product activation procedures and privacy policies will be detailed during initial launch of the software product(s), or upon certain reinstallations of the software product(s), or reconfigurations of the computer, and may be completed by Internet or telephone (toll charges may apply). Updates and additions to software may require an additional charge. Subscriptions to online service providers may require a fee and credit card information. Financial services may require prior arrangements with participating financial institutions. 133Q_Safety_7620_US_Draft 0-000-000-00 (0) 4 Important information for Canadian customers: Your new VAIO® computer includes certain software versions or upgrades, and Internet services or offers that are available to U.S. customers only. Sony, VAIO, and the VAIO logo are trademarks or registered trademarks of Sony Corporation. All other trademarks are trademarks or registered trademarks of their respective owners. The Wireless LAN functionality, which is incorporated into selected models only, has passed Wi-Fi certification and complies with the interoperability specifications established by WFA (Wi-Fi Alliance). Reverse engineering or disassembly is prohibited. End User / Product Activation Requirements Certain software product(s) included with this computer may include features such as copy protection and content management technology. Use of the software product(s) requires agreement to applicable end user agreements and full compliance with applicable product activation procedures. Product activation procedures and privacy policies will be detailed during initial launch of the software product(s), or upon certain reinstallations of the software product(s) or reconfiguration of the computer, and may be completed by Internet or telephone (toll charges may apply). 133Q_Safety_7620_US_Draft 0-000-000-00 (0) 5 Safety Information and Caution For questions regarding your product or for the Sony Service Center nearest you, visit the Sony online support web site at http://esupport.sony.com/US/VAIO/ for customers in USA or at http://www.sony.ca/support/ for customers in Canada. For the State of California, USA only Perchlorate Material - special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate/ Perchlorate Material: Lithium battery contains perchlorate.  To prevent fire or shock hazard, do not expose your computer to rain or moisture.  To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.  Turning off your computer with the  (power) button does not disconnect the computer completely from mains voltage. To disconnect it completely, unplug the AC adapter or the power cable from mains. The socket-outlet shall be installed near the equipment and shall be easily accessible.  Do not use your computer directly on your lap. The temperature of the base of the unit will rise during normal operation and over time could result in discomfort or burns.  Do not place the AC adapter in…

Text truncated - open the document above for the full version.

User Guide How to Use List of Topics How to Use Personal Computer VAIO Tap 21 SVT212A11L How to Use Parts Description VAIO computer Parts and Controls on the Back Parts and Controls on the Sides Parts and Controls on the Front Keyboard Parts and Controls of the Keyboard Mouse Parts and Controls of the Mouse Setup VAIO computer Closing the Stand Setting the Stand Display Adjusting the Angle of the Screen Notifications Read this first Read This First Go to Page Top BackBack to Top © 2013 Sony Corporation Search User Guide How to Use Parts Description Setup Notifications List of Topics Print Personal Computer VAIO Tap 21 SVT212A11L Read This First Congratulations on your purchase of this VAIO(R) computer. About your VAIO computer’s configuration To find out about the configuration of your VAIO computer, visit the Sony online support website. See for more information. Some features, options, and supplied items may not be available on your VAIO computer. Features Available features vary depending on the model or options you selected. Not all features described in this manual are available depending on your model. Illustrations Illustrations, photos, or screenshots in this manual may look slightly different depending on the model or options you selected. Apps The preinstalled apps may vary depending on the model or options you selected. The apps described in this manual may not be preinstalled on your VAIO computer. Supplied manuals The following manuals are supplied with your VAIO computer. On-screen documentation User Guide - Introduction Version (Welcome) A preinstalled manual with limited information of your VAIO computer, focused on support and Internet connection. The User Guide - Introduction Version is replaced with a complete version of the User Guide (this manual), after update. User Guide (this manual) General information and operation instructions about your VAIO computer including support and troubleshooting information Printed documentation Quick Start Guide An overview of how to set up and get started with your VAIO computer Recovery, Backup and Troubleshooting Guide Information on how to recover and back up your VAIO computer, as well as troubleshooting information Other references Windows Help and Support A comprehensive resource for practical advice, tutorials, and demonstrations to help you learn to use your VAIO computer. To open Windows Help and Support, see Link Error. App help files App help files may be included with the preinstalled apps on your VAIO computer. You may be able to access the help files from the help menu. Back Back to Top Search Notice Copyright 2013 Sony Corporation. All rights reserved. This manual and the software described herein, in whole or in part, may not be reproduced, translated, or reduced to any machine-readable form without prior written approval. Sony Corporation provides no warranty with regard to this manual, the software, or other information contained herein and hereby expressly disclaims any implied warranties or merchantability or fitness for any particular purpose with regard to this manual, the software, or such other information. In no event shall Sony Corporation be liable for any incidental, consequential, or special damages, whether based on tort, contract, or otherwise, arising out of or in connection with this manual, the software, or other information contained herein or the use thereof. In the manual, the (TM) or (R) marks are not specified. Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein is governed by the terms of a separate user license agreement. Sony Corporation is not liable and will not compensate for any lost recordings made to your VAIO computer, external recording media, or recording devices or any relevant losses, including when recordings are not made due to reasons including the computer failure, or when the contents of a recording are lost or damaged as a result of the computer failure or repair undertaken to the computer. Sony Corporation will not restore, recover, or replicate the recorded contents made to the computer, external recording media, or recording devices under any circumstances. Features and specifications are subject to change without notice. Go to Page Top © 2013 Sony Corporation User Guide How to Use List of Topics Print Personal Computer VAIO Tap 21 SVT212A11L Welcome Congratulations on the purchase of this VAIO computer. This User Guide - Introduction Version provides you with limited information about your VAIO computer. To update this file to the complete version of the User Guide, see Updating the User Guide to the Latest Version for more information. Your VAIO computer may not support touch screen operations depending on the model you purchased. In such a case, use a mouse or a touch pad for computer operations. Content in this guide is subject to change without notice. Read This First Updating the User Guide to the Latest Version By updating this User Guide - Introduction Version through the Internet, you can get the complete version of the User Guide with detailed information on your VAIO computer. Once the User Guide is updated to the complete version, you can access it anytime even if you are offline. With the complete version of the User Guide, you can view information about: Parts description Feature and operating instructions Precautions Troubleshooting information Windows 8 basic operations To update the User Guide to the complete version To update this User Guide - Introduction Version to the complete version of the User Guide, open this file with your VAIO computer connected to the Internet. After a while, the file will be updated to the latest complete version of the User Guide automatically. To view the updated User Guide, exit this file and open the file again. Note Be sure to use VAIO Update before updating the User Guide to the complete version. Hint It …

Text truncated - open the document above for the full version.

Date: 2013/6/19 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Product Certification Representative Authorization Letter FCC ID: AK8SVT212A11L Product name: Personal Computer To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model SVT212A11L to the FCC Rules and Regulations. Sporton International Inc. Address : No. 52, Hwa Ya 1st Road., Kwei-Shan Hsiang, TaoYuan Hsien Taiwan R.O.C. Name : Wayne Hsu Job Title : Vice Manager e-mail : [email protected] We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant :Sony Corporation Address :1-7-1 Konan, Minato-ku, Tokyo 108-0075, Japan Signature : _________________________________ Name and Job Title. :Ryui Tatsumi / Section Manager E-mail :[email protected] Te l . :(81)263-71-8924

Date: June 19, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for confidentiality FCC ID: AK8SVT212A11L To whom it may concern: Short-term confidentiality Pursuant to DA 04-1705 of the Commission’s public notice, in order to comply with the marketing regulations in 47CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until December 18, 2013. 1. Internal Photographs 2. External Photographs 3. User’s manual 4. Test Set up photos Permanent confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Schematics 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Applicant : Sony Corporation Address : 1-7-1 Konan, Minato-ku, Tokyo 108-0075, Japan Signature : _________________________________ Name and Job Title. : Ryui Tatsumi / Section Manager E-mail : [email protected]

Date : August 3, 2013 UNII Declaration Letter We have declared below featured for FCC equipment authorization, Device FCC ID: AK8SVT212A11L (1) DFS Device -- Master , Client with Radar detection capability , Client without radar detection capability , N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 5745 – 5825 Yes , No Yes , No Yes , No Yes , No 5755 – 5795 Yes , No Yes , No Yes , No Yes , No 5180 – 5240 Yes , No Yes , No Yes , No Yes , No 5190 – 5230 Yes , No Yes , No Yes , No Yes , No 5210(VHT80) Yes , No Yes , No Yes , No Yes , No 5260 – 5320 Yes , No Yes , No Yes , No Yes , No 5270 – 5310 Yes , No Yes , No Yes , No Yes , No 5290 Yes , No Yes , No Yes , No Yes , No 5500 – 5700 Yes , No Yes , No Yes , No Yes , No 5510 - 5670 Yes , No Yes , No Yes , No Yes , No 5530 – 5690 Yes , No Yes , No Yes , No Yes , No (3) Country code selection ability - Yes , No If no, pls explain how was implemented : will use SW to lock it and let be not changed by user. (4) Meet 15.202 requirement - Yes , No , pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes can not be modified by end user or an installer. Apply , No Apply , (If apply , pls help to provide explanation on how it was implement (By hardware or software , and how software was controlled) We will use SW to lock it and the SW can be not changed by user.. Applicant : Sony Corporation Address : 1-7-1 Konan, Minato-ku, Tokyo 108-0075, Japan Signature : _________________________________ Name and Job Title. : Ryui Tatsumi / Section Manager

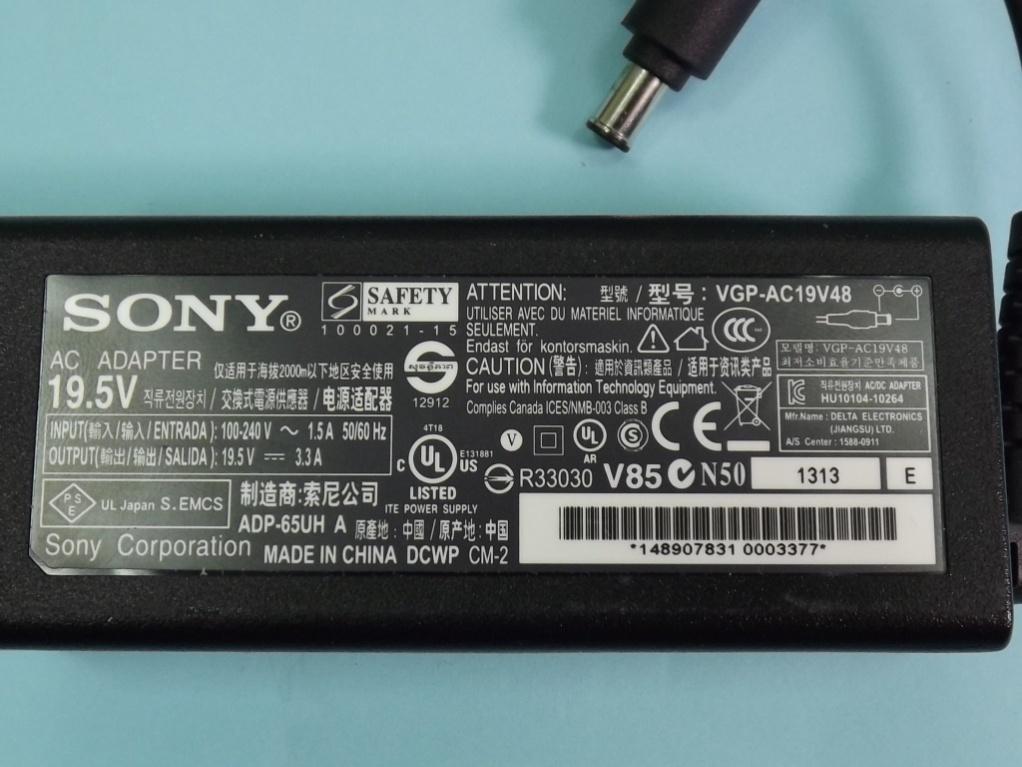

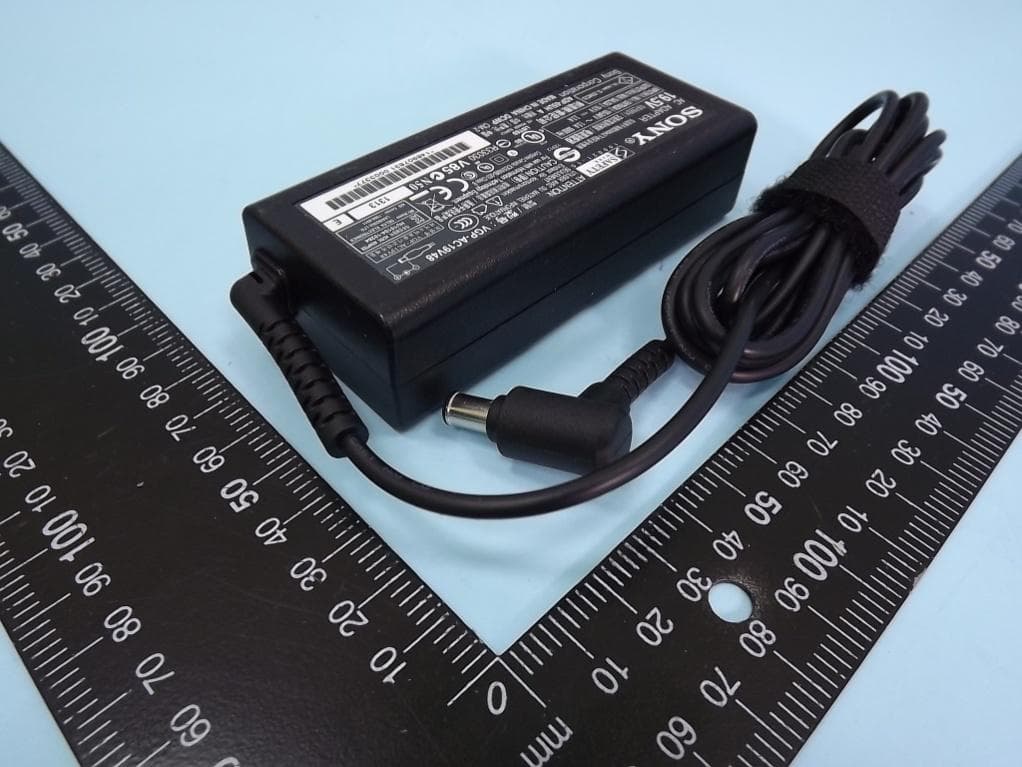

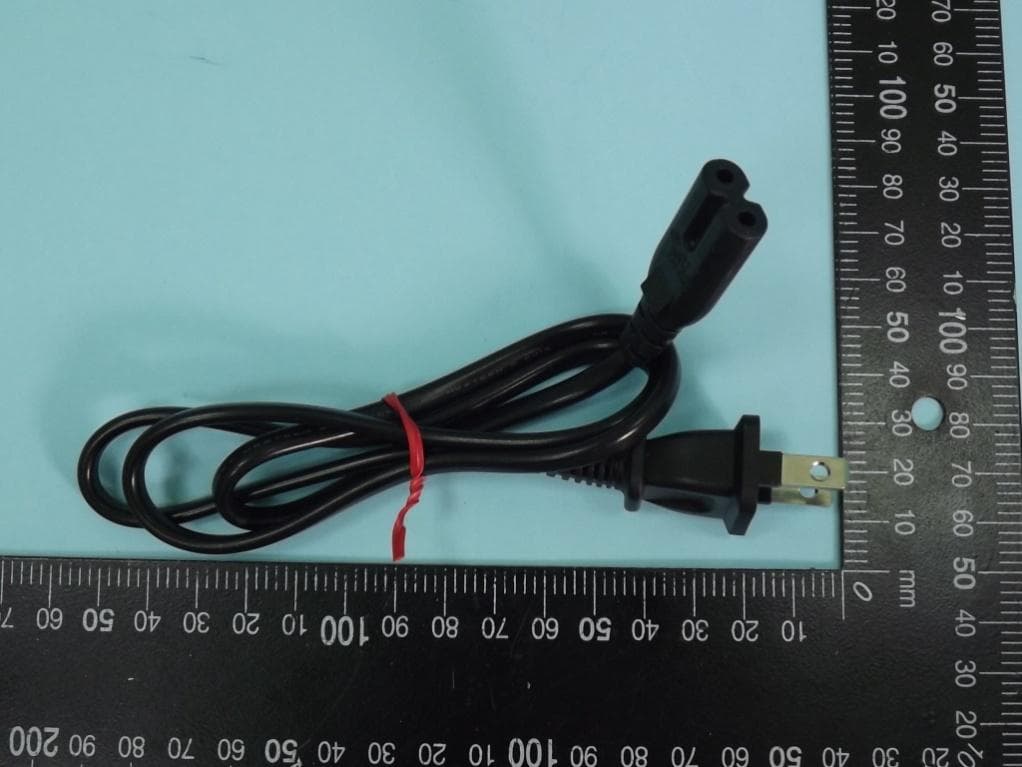

FCC Test Report Report No. : EP360615 SPORTON International Inc. PAGE NUMBER : B1 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Aug. 05, 2013 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT FCC Test Report Report No. : EP360615 SPORTON International Inc. PAGE NUMBER : B2 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Aug. 05, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP360615 SPORTON International Inc. PAGE NUMBER : B3 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Aug. 05, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP360615 SPORTON International Inc. PAGE NUMBER : B4 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Aug. 05, 2013 FAX : 886-3-327-0973

IW7 PVT Sony Confidential <Bottom> Please follow LABEL BOM. (Configuration Label, MS8 Label, SKU Label and Non FCC Label) ( MN Label ) Hinge Cover Stand Unit Center Slant Tolerance Slant ≦１°

FCC Test Report Report No. : EP360615 SPORTON International Inc. PAGE NUMBER : B4 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Aug. 05, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP360615 SPORTON International Inc. PAGE NUMBER : B5 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Aug. 05, 2013 FAX : 886-3-327-0973 NFC Module FCC Test Report Report No. : EP360615 SPORTON International Inc. PAGE NUMBER : B6 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Aug. 05, 2013 FAX : 886-3-327-0973 NFC Module FCC Test Report Report No. : EP360615 SPORTON International Inc. PAGE NUMBER : B7 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Aug. 05, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP360615 SPORTON International Inc. PAGE NUMBER : B8 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Aug. 05, 2013 FAX : 886-3-327-0973 NFC Ant. FCC Test Report Report No. : EP360615 SPORTON International Inc. PAGE NUMBER : B9 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Aug. 05, 2013 FAX : 886-3-327-0973 WiFi and Bluetooth Combo Module FCC Test Report Report No. : EP360615 SPORTON International Inc. PAGE NUMBER : B10 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Aug. 05, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP360615 SPORTON International Inc. PAGE NUMBER : B11 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Aug. 05, 2013 FAX : 886-3-327-0973 FCC Test Report Report No. : EP360615 SPORTON International Inc. PAGE NUMBER : B12 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Aug. 05, 2013 FAX : 886-3-327-0973 WiFi and Bluetooth Combo Ant. FCC Test Report Report No. : EP360615 SPORTON International Inc. PAGE NUMBER : B13 OF B13 TEL : 886-3-327-3456 ISSUED DATE : Aug. 05, 2013 FAX : 886-3-327-0973

FCC EMF Test Report Report No. : FA360615 SPORTON INTERNATIONAL INC. Page No. : 1 of 5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 FCC EMF Test Report Report No. : FA360615 SPORTON INTERNATIONAL INC. Page No. : 2 of 5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 600 4.9 - 6 1-10 600/ƒ 4.9/ƒ - 6 10-30 60 4.9/ƒ - 6 30-300 60 0.163 10* 6 300-1500 3.54 ƒ 0.5 0.0094 ƒ 0.5 ƒ/30 6 1500-15000 137 0.364 50 6 15000-150000 137 0.364 50 616000/ƒ 1.2 150000-300000 0.354 ƒ 0.5 9.4 x 10-4 ƒ 0.5 3.33 x 10-4 ƒ 616000/ƒ 1.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/ƒ 2.19/ƒ - 6 10-30 28 2.19/ƒ - 6 30-300 28 0.073 2* 6 300-1500 1.585 ƒ 0.5 0.0042 ƒ 0.5 ƒ/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10 -4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2 Note 1: ƒ is frequency in MHz. Note 2: For the applicable limit, see IC RSS-102 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   FCC EMF Test Report Report No. : FA360615 SPORTON INTERNATIONAL INC. Page No. : 3 of 5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure (5.8G) Transmitter Chains & Receiver Chains Information IEEE Std. 802.11 Protocol Number of Transmit Chains (N TX ) Number of Receive Chains (N RX ) Correlation Signals with Multiple N TX RF Output Power (dBm) Co-location ac(VHT20) 1 1 Uncorrelated 18.79 Yes ac(VHT40) 1 1 Uncorrelated 14.60 Yes ac(VHT80) 1 1 Uncorrelated 17.34 Yes ac(VHT20) 2 2 Uncorrelated 15.55 Yes ac(VHT40) 2 2 Uncorrelated 15.76 Yes ac(VHT80) 2 2 Uncorrelated 15.25 Yes Note 1: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) Note 2: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Power Level 1 RF Output Power (dBm) Modulation Mode N TX Chain- Port 1 Chain- Port 2 Sum Chain Gain (dBi) EIRP Power PD (S) (mW/cm²) VHT20,M0 1 18.79 - 18.79 -5.42 13.37 0.00432 VHT40,M0 1 14.60 - 14.60 -5.42 9.18 0.00165 VHT40,M0 1 17.34 - 17.34 -5.42 11.92 0.00310 VHT20,M0 2 12.20 12.85 15.55 -5.42 10.13 0.00205 VHT40,M0 2 12.95 12.55 15.76 -5.42 10.34 0.00215 VHT40,M0 2 12.46 12.00 15.25 -5.42 9.83 0.00191 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains FCC EMF Test Report Report No. : FA360615 SPORTON INTERNATIONAL INC. Page No. : 4 of 5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.4 Result of Maximum Permissible Exposure (5.2G~5.6G) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Power (dBm) Co-location 5150-5250 ac (VHT20) 5180-5240 36-48 [3] 1 15.33 Yes 5250-5350 5260-5320 52-64 [4] 1 15.57 5470-5725 5500-5720 100-144 [4] 1 16.57 straddle 5725 5720 144 1 9.84 5150-5250 ac (VHT40) 5190-5230 38-46 [2] 1 15.24 Yes 5250-5350 5270-5310 54-62 [2] 1 11.49 5470-5725 5510-5710 102-142 [4] 1 16.58 straddle 5725 5710 142 1 2.35 5150-5250 ac (VHT80) 5210 48 [1] 1 8.11 Yes 5250-5350 5290 58 [1] 1 10.90 5470-5725 5530-5690 106-138 [3] 1 13.46 straddle 5725 5690 138 1 -4.03 5150-5250 ac (VHT20) 5180-5240 36-48 [3] 2 13.34 Yes 5250-5350 5260-5320 52-64 [4] 2 13.78 5470-5725 5500-5720 100-144 [4] 2 16.57 straddle 5725 5720 144 2 7.45 5150-5250 ac (VHT40) 5190-5230 38-46 [2] 2 13.16 Yes 5250-5350 5270-5310 54-62 [2] 2 9.58 5470-5725 5510-5710 102-142 [4] 2 16.85 straddle 5725 5710 142 2 1.12 5150-5250 ac (VHT80) 5210 48 [1] 2 6.51 Yes 5250-5350 5290 58 [1] 2 9.68 5470-5725 5530-5690 106-138 [3] 2 16.87 straddle 5725 5690 138 2 -5.11 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Note 2: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 5GHz.) FCC EMF Test Report Report No. : FA360615 SPORTON INTERNATIONAL INC. Page No. : 5 of 5 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Worst Maximum Permissible Exposure Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode N TX Cha…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR360615 SPORTON INTERNATIONAL INC. Page No. : 1 of 12 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 CO-LOCATION 1.1 Transmitter Radiated Unwanted Emissions 1.1.1 Transmitter Radiated Unwanted Emissions Limit Restricted Band Emissions Limit Frequency Range (MHz) Field Strength (uV/m) Field Strength (dBuV/m) Measure Distance (m) 0.009~0.490 2400/F(kHz) 48.5 - 13.8 300 0.490~1.705 24000/F(kHz) 33.8 - 23 30 1.705~30.0 30 29 30 30~88 100 40 3 88~216 150 43.5 3 216~960 200 46 3 Above 960 500 54 3 Note 1: Test distance for frequencies at or above 30 MHz, measurements may be performed at a distance other than the limit distance provided they are not performed in the near field and the emissions to be measured can be detected by the measurement equipment. When performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade (inverse of linear distance for field-strength measurements, inverse of linear distance-squared for power-density measurements). Note 2: Test distance for frequencies at below 30 MHz, measurements may be performed at a distance closer than the EUT limit distance; however, an attempt should be made to avoid making measurements in the near field. When performing measurements below 30 MHz at a closer distance than the limit distance, the results shall be extrapolated to the specified distance by either making measurements at a minimum of two or more distances on at least one radial to determine the proper extrapolation factor or by using the square of an inverse linear distance extrapolation factor (40 dB/decade). The test report shall specify the extrapolation method used to determine compliance of the EUT. Un-restricted Band Emissions Limit RF output power procedure Limit (dB) Peak output power procedure 20 Average output power procedure 30 Note 1: If the peak output power procedure is used to measure the fundamental emission power to demonstrate compliance to requirements, then the peak conducted output power measured within any 100 kHz outside the authorized frequency band shall be attenuated by at least 20 dB relative to the maximum measured in-band peak PSD level. Note 2: If the average output power procedure is used to measure the fundamental emission power to demonstrate compliance to requirements, then the power in any 100 kHz outside of the authorized frequency band shall be attenuated by at least 30 dB relative to the maximum measured in-band average PSD level. 1.1.2 Measuring Instruments Refer a test equipment and calibration data table in this test report. FCC Test Report Report No. : FR360615 SPORTON INTERNATIONAL INC. Page No. : 2 of 12 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Test Procedures Test Method Measurements may be performed at a distance other than the limit distance provided they are not performed in the near field and the emissions to be measured can be detected by the measurement equipment. When performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade (inverse of linear distance for field-strength measurements, inverse of linear distance-squared for power-density measurements). Measurements in the frequency range 10 GHz - 18GHz are typically made at a closer distance 1m, because the instrumentation noise floor is typically close to the radiated emission limit. Measurements in the frequency range above 18 GHz - 25GHz are typically made at a closer distance 0.5m, because the instrumentation noise floor is typically close to the radiated emission limit. The average emission lev…

Text truncated - open the document above for the full version.
