C:\HT2020\AC\Data\UC2\5025229111\5025229111HTA9UC2\00COV- HTA9UC2\010COV_AC_UC2.fm masterpage: Cover HT-A9 5-025-229-11(1) Home Theatre System Système Home Cinema HT-A9 Operating Instructions US Manuel d’instructions FR Manual de instrucciones ES 010COV_AC_UC2.fm Page 1 Wednesday, November 25, 2020 2:48 PM 2 US HT-A9 5-025-229-11(1) C:\HT2020\AC\Data\UC2\5025229111\5025229111HTA9UC2\01GB-HTA9UC2\020REG.fm masterpage: Left Owner’s Record The model and serial numbers are located on the bottom of the control box. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding the speaker system. Model No. HT-A9 Serial No. To reduce the risk of fire or electric shock, do not expose this speaker system to rain or moisture. The AC adaptor and speaker system are not disconnected from the mains as long as they are connected to the AC outlets, even if the speaker system itself has been turned off. To reduce the risk of fire, do not cover the ventilation opening of the speaker system with newspapers, tablecloths, curtains, etc. Do not expose the speaker system to naked flame sources (for example, lighted candles). To reduce the risk of fire or electric shock, do not expose this speaker system to dripping or splashing, and do not place objects filled with liquids, such as vases, on the speaker system. As the mains plugs of the AC power cords and the AC power adaptor are used to disconnect the speaker system from the mains, connect the speaker system to an easily accessible AC outlet. Should you notice an abnormality in the speaker system, disconnect the mains plugs of the AC power cords and the AC power adaptor from the AC outlets immediately. Do not install the speaker system in a confined space, such as a bookcase or built-in cabinet. CAUTION Risk of explosion if the battery is replaced by an incorrect type. Do not expose batteries or appliances with battery-installed to excessive heat, such as sunshine and fire. Do not place this product close to medical devices. This product (including accessories) has magnet(s) which may interfere with pacemakers, programmable shunt valves for hydrocephalus treatment, or other medical devices. Do not place this product close to persons who use such medical devices. Consult your doctor before using this product if you use any such medical device. For the network connection of the speaker system, establish the connection via the router or LAN port with the router function. If these connections are not established, a security problem may occur. Indoor use only. For the control box and the speakers The nameplate is located on the bottom of the control box and the speakers. For the AC adaptor Labels for AC adaptor model number and serial number are located on the bottom of the AC adaptor. For customers in the U.S.A. NOTE: This speaker system has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference WARNING 010COV.book Page 2 Wednesday, November 25, 2020 3:33 PM 3 US C:\HT2020\AC\Data\UC2\5025229111\5025229111HTA9UC2\01GB-HTA9UC2\020REG.fm masterpage: Right HT-A9 5-025-229-11(1) in a residential installation. This speaker system generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this speaker system does cause harmful interference to radio or television reception, which can be determined by turning the speaker system off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the speaker system and receiver. – Connect the speaker system into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. Properly shielded and grounded cables and connectors must be used for connection to host computers and/or peripherals in order to meet FCC emission limits. If you have any questions about this speaker system: Visit: https://www.sony.com/ electronics/support Contact: Sony Customer Information Service Center at 1-800-222-SONY (7669) Write: Sony Customer Information Service Center 12451 Gateway Blvd., Fort Myers, FL 33913 Supplier’s Declaration of Conformity Trade Name: SONY Model No.: HT-A9 Responsible Party: Sony Electronics Inc. Address: 16535 Via Esprillo, San Diego, CA 92127 USA Telephone No.: 858-942-2230 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this speaker system. This speaker system must not be co- located or operated in conjunction with any other antenna or transmitter. This speaker system complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This speaker system should be installed and operated keeping the radiator at least 20 cm or more away from person’s body. Compliance with FCC requirement 15.407(c) and IC requirement RSS-247 Data transmission is always initiated by software, which is the passed down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets are initiated by the MAC. These are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. The…

Text truncated - open the document above for the full version.

Sony Global Manufacturing & Operations Corporation Date: January 6, 2021 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 Applicant: Sony Corporation FCC ID: AK8TMRA9WT To whom it may concern: We, the undersigned, hereby authorize Akiko Nishimura of Consumer Technology Division, UL Japan, Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Japan, Inc. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. The application for the subject equipment has not been submitted to another TCB for certification. Sincerely Yours, Hideo Nomura Sony Global Manufacturing & Operations Corporation

Sony Global Manufacturing & Operations Corporation Request for Confidentiality Date: January 6, 2021 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 Applicant : Sony Corporation FCC ID : AK8TMRA9WT To whom it may concern: Please be advised that the following information is to be held confidential on behalf of us, referring to the FCC rules 0.457 and 0.459: Block Diagram Theory of Operation Schematics The application contains technical information which we deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Hideo Nomura Sony Global Manufacturing & Operations Corporation

Sony Global Manufacturing & Operations Corporation Request for Short-Term Confidentiality Date: January 6, 2021 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 FCC ID : AK8TMRA9WT Applicant : Sony Corporation To whom it may concern: Please be advised that the following information is to be held in confidence for 180 days from the date of the Grant of Equipment Authorization and behalf of us, referring to the FCC rules 0.457 and 0.459: External Photos Internal Photos Test Setup Photos User Manual The application contains technical information, which we deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, ____________________________________ Hideo Nomura Sony Global Manufacturing & Operations Corporation

Sony Corporation Special Power of Attorney I, Kazuyuki Hori of Sony Corporation, hereby appoint Hideo Nomura of Sony Global Manufacturing & Operations Corporation to represent me to act on my behalf to do any and all of the following. Sign on my behalf the agency, anti-drug and confidentiality cover letters and apply to FCC for the products. The rights, powers and authority in fact to exercise any and all of the rights and powers herein granted shall Manufacturing & commence and be in full force from December 1, 2020 and continue to be effective unless specifically terminated by either party. Dated December 1, 2020 Kazuyuki Hori Company: Sony Corporation Country: Japan

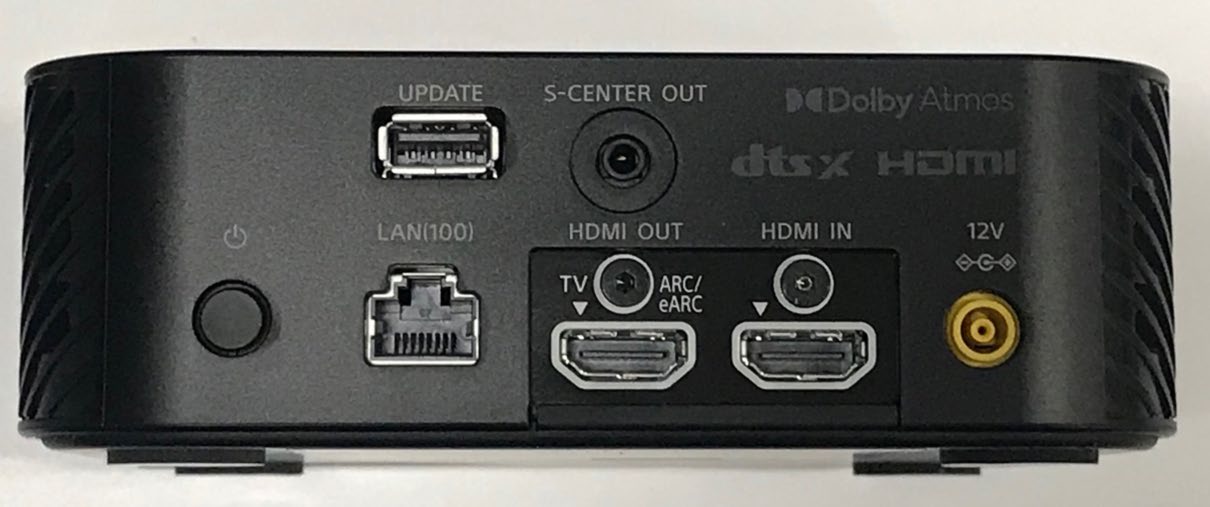

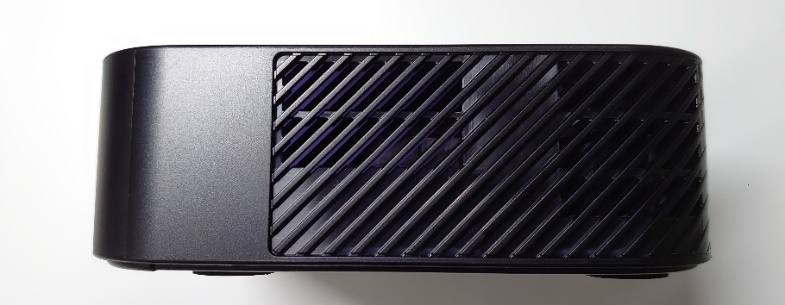

1 Sony Home Entertainment & Sound Products Inc. TMR-A9WT_ExternalPhoto FRONT REAR LEFT RIGHT BOTTOM TOP TMR-A9WT is powered by AC adapter at AC-M1215UC. AC-M1215UC

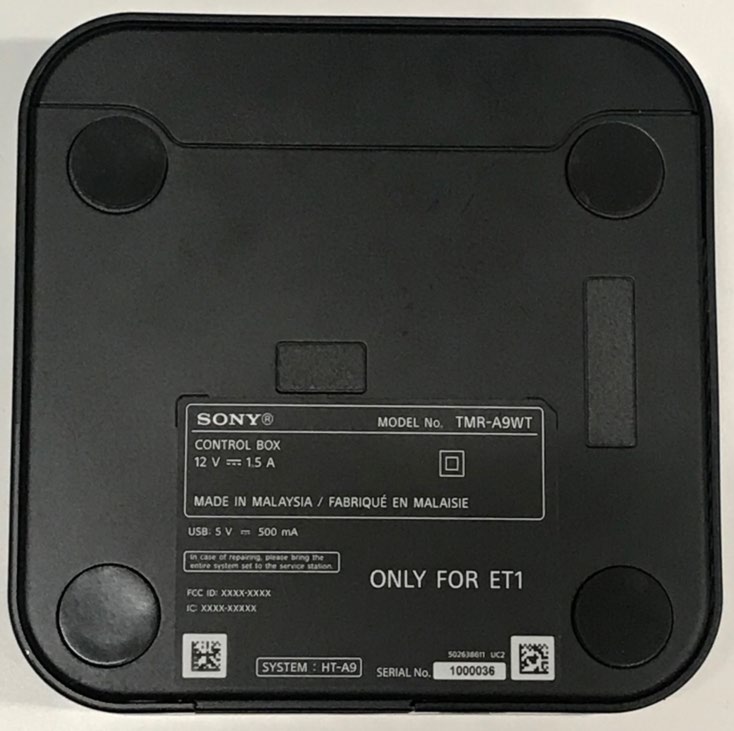

1 Sony Home Entertainment & Sound Products Inc. TMR-A9WT_LabelPosition LABEL, Bottom Side of Product

TMR-A9WT_Nameplate FCC ID: >1 point

1 Sony Home Entertainment & Sound Products Inc. InternalPhoto_AntennaPosition_TMR-A9WT Frontsidex 1 Rearsidex 2 2 Sony Home Entertainment & Sound Products Inc. InternalPhoto_RFModule Position_TMR-A9WT AT-49 1PJ 1 Sony Home Entertainment & Sound Products Inc. WM-BAC-AT-49_InternalPhoto WM-BAC-AT-49 WithShield Bottom WithoutShield

RF Exposure / MPE Calculation No. : 13554183S Applicant : Sony Corporation, Japan and Sony Group Companies Type of Equipment : CONTROL BOX Model No. : TMR-A9WT FCC ID : AK8TMRA9WT Sony Corporation, Japan and Sony Group Companies declares that Model: TMR-A9WT complies with FCC radiation exposure requirement specified in the FCC Rule 2.1091 (for mobile). RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “TMR-A9WT“ as calculated from (B) Limits for General Population / Uncontrolled Exposure of TABLE 1- LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) of §1.1310 Radiofrequency radiation exposure limits. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G ) / (4*π * r 2 ) S single : case of singe transmission P : Maximum avarage output power Bluetooth : Time average was used for the above value in consideration of 6-minutes time-average Other than Bluetooth：Burst power average was used for the above value in consideration of worst condition G：Numerical Antenna gain r: 20.0 cm NoModule model No.P(mW)GG(dBi) S single (mW/cm 2 ) 1 WM-BAC-AT-49Bluetooth2.692.2593.540.00121 2 WM-BAC-AT-49Bluetooth Low Energy3.262.2593.540.00147 3 WM-BAC-AT-49Wireless LAN 2.4 GHz band42.932.9114.640.02486 4 WM-BAC-AT-49Wireless LAN 5 GHz band 18.126.0537.820.02182 5 1PJWireless LAN 5 GHz band 13.682.9924.760.00814 Cases of simultaneous transmission - 1.Bluetooth + 3.Wireless LAN 2.4 GHz band + 5.Wireless LAN 5GHz band - 1.Bluetooth + 4.Wireless LAN 5 GHz band + 5.Wireless LAN 5 GHz band - 2.Bluetooth Low Energy + 3.Wireless LAN 2.4 GHz band + 5.Wireless LAN 5GHz band* Worst case - 2.Bluetooth Low Energy + 4.Wireless LAN 5 GHz band + 5.Wireless LAN 5 GHz band This calculation is S = ( (P 1 * G 1) + (P 2 * G 2) + (P 3 * G 3)) / (4* π * r 2 ) For: TMR-A9WT (Bluetooth Low Energy and Wireless LAN) S = 0.03447 mW /cm2 Even taking into account the tolerance, this device can be satisfied with the limits.
