AK8UTXB1UHF Synthesized Wireless Microphone

UTX-B1 2 Owner’s Record The model and serial numbers are located at the rear of the unit. Record the serial number in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product. Model No. UTX-B1 Serial No. Notice for customers in the U.S.A Use of Sony wireless devices is regulated by the Federal Communications Commission as described in Part 74 subpart H of the FCC regulations and users authorized thereby are required to obtain an appropriate license. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. IMPORTANT NOTICE To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user's authority to operate this device. Notice for customers in Canada Use of Sony wireless devices is regulated by the Industry Canada as described in their Radio Standard Specification RSS-123. A license is normally required. The local district office of Industry Canada should therefore be contacted. When the operation of the device is within the broadcast band, the license is issued on no-interference, no-protection basis with respect to broadcast signals. Operation of this device is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Date: October 18, 200 Federal Communications Commission Equipment Approval Services Dear Sir/Madame: Pursuant to Section 0.459 of the Commission’s Rules; we, Sony Corporation , hereby request confidentiality as below; FCC ID: AK8UTXB1 1. Schematics 2. Block Diagram The reason of Confidentiality request is that trade secrets and proprietary information are enclosed in the above data, and the public disclosure of the data is harmful for us and will be made unjustifiable benefits to competitors. Sincerely,

From: Kyozo Ouchi [[email protected]] Sent: Friday, October 18, 2002 4:23 AM To: Mike Kuo Subject: Re: SONY Corporation, FCC ID:AK8UTXB1, AN02T2291 Hi Mr. Kuo : I will inform you as follows; > Answer to Question #1 : Request for confidentiality letter has listed three > items: Schematic Diagram, Block Diagram and Technical description. > Schematic Diagram and Block Diagram can be considered as confidential > document but technical description can not be considered as confidential > document. I will attach the revised confidentiality letter that was deleted Technical description in accordance with your advice. > Answer to Question #2: Emission Designator is F3E. This information is > O.k.. However, you did not provide necessary bandwidth 110K justification > by using Carson rule ( 2M+2DK). What is value of M ( Max. modulation > frequency in hertz ) and the value of D ( Peak frequency deviation ) ? The value of M ( Max. modulation frequency in hertz ) = 15kHz and the value of D ( Peak frequency deviation ) = 40kHz then 2M + 2DK = 110kHz . Best Regards Kyozo Ouchi ----- Original Message ----- From: "Mike Kuo" <[email protected]> To: "'Kyozo Ouchi'" <[email protected]> Sent: Thursday, October 17, 2002 8:20 AM Subject: RE: SONY Corporation, FCC ID:AK8UTXB1, AN02T2291 > Hi Mr. Ouchi : > > Answer to Question #1 : Request for confidentiality letter has listed three > items: Schematic Diagram, Block Diagram and Technical description. > Schematic Diagram and Block Diagram can be considered as confidential > document but technical description can not be considered as confidential > document. > > The information contains in the technical description is same information > that contains in the operation Instruction. Please delete Technical > description from the request for confidentiality letter and provide revised > letter. > > Answer to Question #2: Emission Designator is F3E. This information is > O.k.. However, you did not provide necessary bandwidth 110K justification > by using Carson rule ( 2M+2DK). What is value of M ( Max. modulation > frequency in hertz ) and the value of D ( Peak frequency deviation ) ? > > Answer to Question #3: O.K. > > Best Regards > > Mike Kuo > > > -----Original Message----- > From: Kyozo Ouchi [mailto:[email protected]] > Sent: Wednesday, October 16, 2002 12:22 AM > To: Mike Kuo > Subject: Re: SONY Corporation, FCC ID:AK8UTXB1, AN02T2291 > > > I will inform you as follows; > Question#1: Sony request confidentislity,see attachment. > Question#2: emission desigator is F3E > necessary bandwidth: 110K > Question3: Sending ststement, see attached. > > Best Regards,----- Original Message ----- > From: "Mike Kuo" <[email protected]> > To: "'Kyozo Ouchi'" <[email protected]> > Sent: Friday, October 11, 2002 3:46 AM > Subject: FW: SONY Corporation, FCC ID:AK8UTXB1, AN02T2291 > > > > > > > > -----Original Message----- > > From: CERTADM > > Sent: Thursday, October 10, 2002 11:36 AM > > To: '[email protected]' > > Subject: SONY Corporation, FCC ID:AK8UTXB1, AN02T2291 > > > > > > Notice_content > > ------------- > > Question #1: Request for confidentiality box is not checked on the TCB > > application nor a request for confidentiality letter is provided. In the > > previous submission, request for confidentiality was requested. Please > > confirm once again that all documents provided will be available for > public > > disclosure. > > > > Question #2: Please provide emission designator information and justify > the > > necessary bandwidth by using carson rule (2M+2DK). > > > > Question #3: There is no RF exposure information provided in the user > > manual. Suggest wordings for this device may be " IMPORTANT NOTICE: To > > comply with the FCC RF exposure compliance requirements, no change to the > > antenna or the device is permitted. Any change to the antenna or the > device > > could result in the device exceeding the RF exposure requirements and void > > user's authority to operate this device." > > > > Best Regards > > > > Mike Kuo / TCB Certifier > > The items indicated above must be submitted before processing can continue > > on the above referenced application. Failure to provide the requested > > information within 60 days of the original e-mail date may result in > > application dismissal and forfeiture of the filing fee. Also, please note > > that partial responses increase processing time and should not be > submitted. > > Any questions about the content of this correspondence should be directed > to > > the e-mail address listed below the name of the sender.

Phto-1 External View Photo-2: Inside PC Board, Face A with Sealed Plate Phot-5: Inside PC Board, Face B without Sealed Plate Phto-6: Rear View

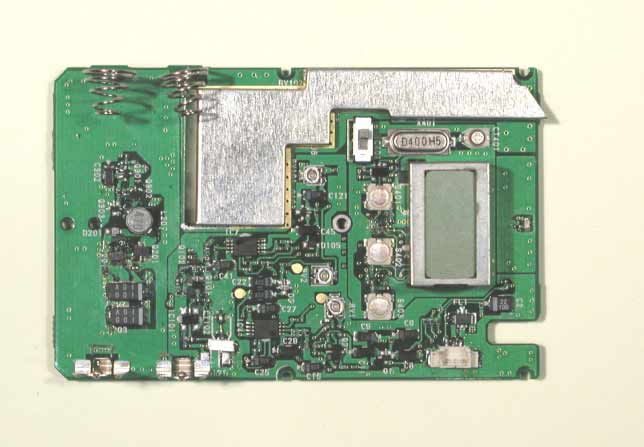

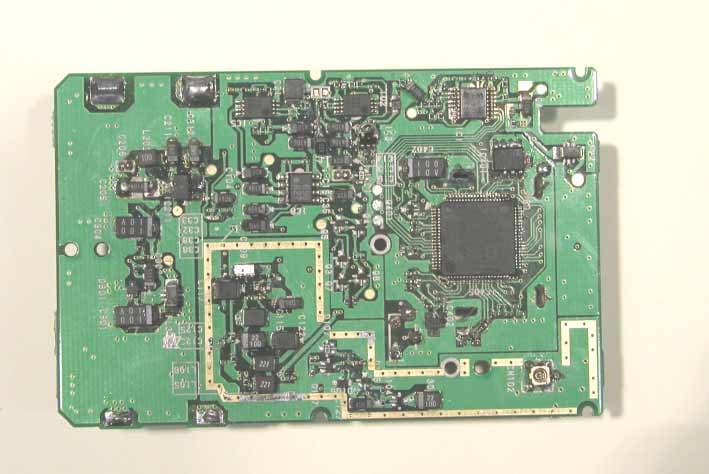

Phto-1 External View Photo-2: Inside PC Board, Face A with Sealed Plate Photo-3: Inside PC Board, Face A without sealed Plate Photo-4: Inside PC Boar, Face B with sealed Plate Phot-5: Inside PC Board, Face B without Sealed Plate Phto-6: Rear View

JAPAN QUALITY ASSURANCE ORGANIZATION 21-25, KINUTA 1-CHOME, SETAGAYA-KU, TOKYO 157-8573 JAPAN PHONE (03) 3416-0111, JQA J FAX (03) 3416-9691 JQA APPLICATION NO.: 400-20396 Issue Date : September 24, 2002 Page 1 of 70 EMI TEST REPORT JQA APPLICATION NO. : 400-20396 Model No. : UTX-B1 Type of Equipment : UHF Synthesized Transmitter Regulations Applied : CFR 47 FCC Rules and Regulations Part 74 FCC ID : AK8UTXB1 Applicant : Sony Corporation Address : 6-7-35, Kitashinagawa, Shinagawa-ku, Tokyo 141-0001, Japan Manufacturer : Sony Electronics of Korea Corporation Address : 974-6, Yangduk-dong, Masan, Kyoungsangnam-do, 630-728 Korea Received date of EUT : August 26, 2002 Final Judgment : Passed Test results in this report are obtained in use of equipment that is traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and Communication Research Laboratory (CRL) of Japan. The test results only respond to the tested sample. This report should not be reproduced except in full, without the written approval of JQA EMC Engineering Dept. Testing Div. C O P Y JQA Application No. :400-20396 FCC ID :AK8UTXB1 Model No. :UTX-B1 Issue Date :September 24, 2002 Standard :CFR 47 FCC Rules Part 74 Page 2 of 70 JQA QUALITY ASSURANCE ORGANIZATION TABLE OF CONTENTS Page 1 Documentation 1.1 Test Regulation 3 1.2 General Information 3 1.3 Test Condition 4 – 6 1.4 EUT Modifications / Deviation from Standard 7 1.5 Test results 8 1.6 Summary 9 1.7 Test Configuration / Operation of EUT 10 1.8 EUT Arrangement(Drawing) 11 1.9 Preliminary Test and Test-setup (Drawings) 12 – 17 1.10 EUT Arrangement (Photographs) 18 - 19 2 Test Data 2.1 RF Power Output 20 2.2 Modulation Characteristics 21 – 45 2.3 Radiated Emissions 46 – 55 2.4 Occupied Bandwidth 56 – 68 2.3 Frequency Stability 69 - 70 C O P Y JQA Application No. :400-20396 FCC ID :AK8UTXB1 Model No. :UTX-B1 Issue Date :September 24, 2002 Standard :CFR 47 FCC Rules Part 74 Page 3 of 70 JQA QUALITY ASSURANCE ORGANIZATION 1 DOCUMENTATION 1.1 TEST REGULATION FCC Rules and Regulations Part 74 Subpart H Low Power Auxiliary Stations Test procedure : RF power output, modulation characteristics, occupied bandwidth, field strength of spurious radiation and frequency stability tests were performed according to the procedures in FCC Rules and Regulations Part 2. 1.2 GENERAL INFORMATION 1.2.1 Test facility : 1) Test Facility located at EMC Engineering Dept. Testing Div. : - No.2 and 3 Anechoic Chambers(3 meters Site). - Shielded Enclosure. Expiration date of FCC test facility filing : May 27, 2005 2) EMC Engineering Dept. Testing Div. is recognized under the National Voluntary Laboratory accreditation Program for satisfactory compliance established in title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code : 200189-0 (Effective through : June 30, 2003) 1.2.2 Description of the Equipment Under Test (EUT) : 1) Type of Equipment : UHF Synthesized Transmitter 2) Product Type : Prototype 3) Category : Broadcast Transmitter worn body 4) EUT Authorization : Certification 5) FCC ID : AK8UTXB1 6) Trade Name : SONY 7) Model No. : UTX-B1 8) Operating Frequency Range : 758.125 MHz – 805.875 MHz 9) Highest Frequency Used in the EUT : 805.875 MHz 10) Bandwidth : 110 kHz 11) RF Output Power : 30/5 mW selectable 12) Serial No. : 001/002 13) Date of Manufacture : August, 2002 14) Power Rating : DC 3.0(Battery) 15) EUT Grounding : None 1.2.3 Definitions for symbols used in this test report : x - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. C O P Y JQA Application No. :400-20396 FCC ID :AK8UTXB1 Model No. :UTX-B1 Issue Date :September 24, 2002 Standard :CFR 47 FCC Rules Part 74 Page 4 of 70 JQA QUALITY ASSURANCE ORGANIZATION 1.3 TEST CONDITION 1.3.1 The measurement of the RF power output the Radiated Emission(30 MHz – 1000 MHz) x - was performed in the following test site. - was not applicable. Test location : Safety & EMC Center EMC Engineering Dept. Testing Div. 21-25, Kinuta 1-chome, Setagaya-ku, Tokyo 157-8573, Japan x - Anechoic Chamber No. 2 (3 meters) - Anechoic Chamber No. 3 (3 meters) Validation of Site Attenuation : 1) Last Confirmed Date :March, 2002 2) Interval :1 year Used test instruments : Type Model No. Manufacturer Serial No. Last Cal. Interval - Spectrum Analyzer 8560E Hewlett Packard 3240A00189 Nov. 2001 1 Year - Spectrum Analyzer 8566B Hewlett Packard 2140A01091 Mar. 2002 1 Year - RF Pre-selector 85685A Hewlett Packard 2648A00522 Oct. 2001 1 Year - Spectrum Analyzer 8566B Hewlett Packard 2747A05855 Apr. 2002 1 Year - RF Pre-selector 85685A Hewlett Packard 2091A00933 Apr. 2002 1 Year - Test Receiver ESV Rohde & Schwarz 872148/039 May 2002 1 Year x - Test Receiver ESVS10 Rohde & Schwarz 826148/002 May 2002 1 Year - Test Receiver ESVS10 Rohde & Schwarz 832699/001 May 2002 1 Year x - Antenna KBA-511 Kyoritsu Electrical 0-170-1 Nov. 2001 1 Year - Antenna KBA-511A Kyoritsu Electrical 0-201-13 Nov. 2001 1 Year x - Antenna KBA-611 Kyoritsu Electrical 0-147-14 Nov. 2001 1 Year x - Antenna KBA-611 Kyoritsu Electrical 0-210-5 Nov. 2001 1 Year - Biconical Antenna BBA9106 Schwarzbeck VHA91031150 Nov. 2001 1 Year - Biconical Antenna BBA9106 Schwarzbeck 11905078E0 Nov. 2001 1 Year - Log-Periodic Antenna UHALP9107 Schwarzbeck 11905079E0 Nov. 2001 1 Year - Log-Periodic Antenna UHALP9107 Schwarzbeck 11905110 Nov. 2001 1 Year x - RF Cable 5D-2W Fujikura 155-21-001E0 Feb. 2002 1 Year - RF Cable 5D-2W Fujikura 155-21-002E0 Feb. 2002 1 Year x - Power Meter 436A Hewlett Packard 1725A01930 Apr. 2002 1 Year x - Power Sensor 8482A Hewlett Packard 1650A00140 Apr. 2002 1 Year x - Signal Generator 6061A Gigatronics 5130593 Mar. 2002 1 Year C O P Y JQA Application No. :400-20396 FCC ID :AK8UTXB1 Model No. :UTX-B1 Issue Date :September 24, 2002 Standard :CFR 47 FCC Rules Part 74 Page 5 of 70 JQA QUALITY ASSURANCE ORGANIZATION 1.3.2 Th…

Text truncated - open the document above for the full version.

JQA Application No. :400-20396 FCC ID :AK8UTXB1 Model No. :UTX-B1 Issue Date :September 24, 2002 Standard :CFR 47 FCC Rules Part 74 Page 18 of 70 JQA QUALITY ASSURANCE ORGANIZATION 1.10 TEST ARRANGEMENT (PHOTOGRAPHS) PHOTOGRAPHS OF EUT CONFIGURATION FOR RADIATED EMISSIONS MEASUREMENT Photograph present configuration with maximum emission C O P Y JQA Application No. :400-20396 FCC ID :AK8UTXB1 Model No. :UTX-B1 Issue Date :September 24, 2002 Standard :CFR 47 FCC Rules Part 74 Page 19 of 70 JQA QUALITY ASSURANCE ORGANIZATION C O P Y
