AK8UTXP11UHF Synthesized Transmitter

Wireless Microphone System 3-870-284-11 (1) Operating Instructions UWP-V1/V2/V6 UWP-X7/X8 ©2008 Sony Corporation The supplied CD-ROM includes the Operating Instructions for the UWP-V1/ V2/V6/X7/X8 Wireless Microphone System (English, French, German, Italian, and Spanish versions). For more details, see “Using the CD-ROM Manual” on page 20. 2 For the UTX-B2/H2/P1 Transmitters Owner’s Record The model and serial numbers are located at the rear or on the bottom of the unit. Record the model and serial numbers in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product. Model No. _____________________ Serial No. _____________________ IMPORTANT The name plate is located on the bottom and the serial number is located inside the battery compartment (UTX-P1). IMPORTANT La plaquette signalétique est posée sur le dessous de l’appareil et le numéro de série dans le logement des piles (UTX-P1). WICHTIG Am Boden des Geräts befindet sich das Typenschild und die Seriennummer befindet sich innen im Batteriefach (UTX- P1). IMPORTANTE La targhetta con il nome si trova sul fondo e il numero di serie si trova all’interno del vano pile (UTX-P1). IMPORTANTE La placa de caracteristicas se encuentra en la parte inferior y el número de serie está en el interior del compartimiento de pilas (UTX-P1). Notice for customers in the U.S.A. Use of Sony wireless devices is regulated by the Federal Communications Commission as described in Part 74 subpart H of the FCC regulations and users authorized thereby are required to obtain an appropriate license. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate this device. This device complies with FCC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This device has very low levels of RF energy that it is deemed to comply without testing of specific absorption ratio (SAR). Notice for customers in Canada: Use of Sony wireless devices is regulated by the Industry Canada as described in their Radio Standard Specification RSS-123. A licence is normally required. The local district office of Industry Canada should therefore be contacted. When the operation of the device is within the broadcast band, the licence is issued on no-interference, noprotection basis with respect to broadcast signals. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. The term “IC” before the radio certification number only signifies that Industry Canada technical specifications were met. 3 Remarque à l’intention des utilisateurs au Canada: L’usage des appareils sans fil Sony est réglementé par l’Industrie Canada comme décrit dans leur Cahier des Normes Radioélectriques CNR-123. Une licence est normalement requise. Le bureau de l’Industrie Canada doit être contacté. Lorsque le fonctionnement de l’appareil respecte les limites de la bande de radiodiffusion, la licence est accordée sur la base d’une non-interférence, non- protection pour les signaux de radiodiffusion. L’utilisation doit répondre aux deux conditions suivantes : (1) ce matériel ne doit pas provoquer de brouillage et (2) il doit accepter tout brouillage, même celui qui est susceptible d’affecter son fonctionnement. La mention « IC: » devant le numéro de certification/ homologation signifie uniquement que les spécifications techniques d’Industrie Canada sont remplies. Für Kunden in Deutshland (UTX- B2/H2/P1) Entsorgungshinweis: Bitte werfen Sie nur entladene Batterien in die Sammelboxen beim Handel oder den Kommunen. Entladen sind Batterien in der Regel dann, wenn das Gerät abschaltet und signalisiert “Batterie leer” oder nach längerer Gebrauchsdauer der Batterien “nicht mehr einwandfrei funktioniert”. Um sicherzugehen, kleben Sie die Batteriepole z.B. mit einem Klebestreifen ab oder geben Sie die Batterien einzeln in einen Plastikbeutel. Notice for customers in Europe Notification aux clients européens Hinweis für die Kunden in Europa Avvertenza per gli utilizzatori in Europa Aviso para los clientes de Europa Nota para utilizadores da Europa Mededeling voor de klanten in Europa Att observera för kunder i Europa Meddelelse til kunderne i Europa Huomautus Euroopassa asuville asiakkaillemme Για τυς πελάτες στην Eυρώπη Hereby, Sony Corporation, declares that this UTX-B2/H2/P1 is in compliance with the essential requirements and other relevant provisions of the Directive 1999/5/ EC. U.K.854.125 - 862 MHz Germany790 - 814 MHz Norway800 - 820 MHz Luxembourg800 - 830 MHz, 854.125 - 862 MHz Belgium854.125 - 862 MHz Denmark800.100 - 819.900 MHz France798 - 830 MHz Italy800 - 820 MHz Sweden800 - 820 MHz Switzerland800 - 820 MHz Finland800.100 - 819.900 MHz Iceland800 - 814 MHz Turkey470 - 862 MHz 15 Configuration of the Packages UWP-V6 The UWP-V6 consists of a plug-on transmitter (UTX-P1), a body-pack transmitter (UTX- B2), a portable diversity tuner (URX-P2), and their accessories. When used in conjunction with a compact camcorder, the UWP-V6 makes a mobile system for ENG (Electronic News Gathering) or EFP (Electronic Field Production) purposes. Body-pack transmitter (UTX-B2) (1) Portable diversity tuner (URX-P2) (1) Supplied accessories Soft case (1) Plug-on transmitter (UTX-P1) (1) Shoe mount adapter (1) Belt clip (2) Wind screen (1) Holder clip (1) Stereo mini plug-BMP conversion cable (1) Operating Instructions (1) CD-ROM (1) (for U30, U42, CE62, and CE67 models) Warranty car…

Text truncated - open the document above for the full version.

JAPAN QUALITY ASSURANCE ORGANIZATION 21-25, KINUTA 1-CHOME, SETAGAYA-KU, TOKYO 157-8573 JAPAN PHONE +81-3-3416-0111, FAX +81-3-3416-9691 March 24, 2008 Compliance Certification Services 561F Monterey Road Morgan Hill, CA 95037-9001 U. S. A. Subject: Certification Application for Part 74 Equipment Authorization Applicant : Sony Corporation Product : UHF Synthesized Transmitter Model Number : UTX-P1(xx) ((xx) means channel number.) FCC ID : AK8UTXP11 Dear Sir/Madame: We are submitting application documents through electronic filing for Certification of FCC Part 74 Equipment Authorization with request of confidentiality for the above-mentioned product as an attached request letter. Application fee will be sent you in accordance with your instruction. We shall appreciate your immediate attention and approval. Sincerely, Katsunori Miura E-Mail: [email protected] EMC Engineering Dept. Japan Quality Assurance Organization FCC ID: AK8UTXP11 LIST OF SUBMITTED DOCUMENTS (March 24, 2008) (1) Exhibit A: Cover Letter and List of Submitted Documents (2) Exhibit B: Authorization Agreement (3) Exhibit C: Confidential Request Letter (4) Exhibit D: Label (5) Exhibit E: Technical Description (6) Exhibit F: Schematics (7) Exhibit G: Block Diagram (8) Exhibit H1: Parts List[UTX-P1(30)] (9) Exhibit H2: Parts List[UTX-P1(42)] (10) Exhibit J: External Photographs (11) Exhibit K: Internal Photographs (12) Exhibit L: User’s Manual (13) Exhibit M: Test Report (14) Exhibit N: EUT Setup Photographs (15) Section 2.1033(b)(8) requirement: N/A (16) Section 2.1033(b)(9) requirement: This product has been tested with new rules and is not affected by Sec.15.37. (17) Section 2.1033(b)(10)-(12) requirements: N/A (18) Section 2.1033(c) requirement: N/A

Sony Corporation, FCC ID: AK8UTXP11, Assessment NO.: AN08T7760, Notice#1 Inbox X Immediate X from [email protected] to [email protected], cc [email protected], date Thu, Apr 3, 2008 at 7:35 PM subject Sony Corporation, FCC ID: AK8UTXP11, Assessment NO.: AN08T7760, Notice#1 hide details Apr 3 (7 days ago) Reply Dear Mr. Miura, Review of this application. Please reply to the following items so that we can complete this application. Q1: The application letter indicates that the RM215 module is also included in this product. Is this correct? The module is not visible in the internal photos. If the module is included, please provide photos to show its location in the product. The photos should clearly show the closest distance between the RM215 antenna and UTPX11 antenna, or the distance should be included in your reply. Also revise the UPXP11 label to show the included module FCCID. If the module is not included, please revise the cover letter to remove the reference to the module. Q2: The antenna(s) for this device is not easily identifiable in the internal or external photos. Please provide additional or revised photos showing the antenna(s) and location in the device. Q3: It appears from the user manual that this device is for hand held operation. Please confirm that this device is for handheld operation only with separation between user's body and antenna(s) of more than 20 cm, and that it is not intended for body worn operation. Please add a statement to the user manual advising of the intended use. This item is not required if the RM215 module is not included. Q4: Rated output power and frequency tolerance was not entered in the application form. Please confirm that the rated output power should be 0.0724 W ERP and that the frequency tolerance should be 0.005% Q5: The test report describes the procedure for radiated measurements using a substitution method. Please confirm that the method used was consistent with the methods of ANSI/TIA/EIA-603-B-2002. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Best regards, Tim Dwyer Technical Reviewer Reply Reply to all Forward from miura-katsunori <[email protected]> to [email protected], cc <[email protected]>, date Thu, Apr 10, 2008 at 4:42 AM subject Re: Sony Corporation, FCC ID: AK8UTXP11, Assessment NO.: AN08T7760, Notice#1 hide details 4:42 AM (13 hours ago) Reply Dear Mr. Dwyer I am writing to you regarding your e-mail of April 4, 2008. For Q1 I am sorry, it was my misapprehension. The RF module(Model No.:RM-215) is not included in this product. I attach the correct document. Please confirm the file "Exhibit A Cover Letter_R". For Q2 I attach the antenna information. Please confirm the file "Exhibit K2 Antenna Location". For Q3 http://mail.google.com/mail/?ui=2&view=bsp&ver=ymdfwq781tpu http://mail.google.com/mail/?ui=2&view=bsp&ver=ymdfwq781tpu (1 of 2)4/10/2008 6:16:57 PM http://mail.google.com/mail/?ui=2&view=bsp&ver=ymdfwq781tpu I am sorry, it was my misapprehension. The RF module(Model No.:RM-215) is not included in this product. Therefore, it is not applicable. For Q4 I tried to enter the rated output power and frequency tolerance on the homepage of the CCS, but I could not enter these values. Could you tell me how to enter these values? And, could you enter to these value? The rated output power is 0.0186W. The frequency tolerance is 0.005% from the operational description. For Q5 I think that the measurement procedure is no problem. For the signatory on the authorization letter is different from contact name in the FCC database. I submit the authorization letter. Please confirm the attached file. This letter is authorization letter to the applicant (Atsushi Sano) in this time from the contact name (Ikuji Abe) in the FCC database. Could you respond by this method? Sincerely yours, Katsunori Miura * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * Katsunori Miura JAPAN QUALITY ASSURANCE ORGANIZATION TESTING DIV. EMC ENGINEERING DEPT. SAFETY & EMC CENTER Tel: +81-3-3416-0193 Fax: +81-3-3416-8290 * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * ----- Original Message ----- From: < [email protected]> To: < [email protected]> Cc: < [email protected]> Sent: Friday, April 04, 2008 8:35 AM Subject: Sony Corporation, FCC ID: AK8UTXP11, Assessment NO.: AN08T7760, Notice#1 - Show quoted text - 3 attachments — Download all attachments Exhibit A Cover Letter_R.pdf 20K View as HTML Download Exhibit K2 Antenna Location.pdf 44K View as HTML Download Exhibit Authorization Letter.pdf 300K View as HTML Download http://mail.google.com/mail/?ui=2&view=bsp&ver=ymdfwq781tpu (2 of 2)4/10/2008 6:16:57 PM

Appearance Photo Document UTX-P1 1/2 Fig.1 Front View Fig.2 Rear View Fig.3 Left View Fig.4 Right View Appearance Photo Document UTX-P1 2/2 Fig.5 Top View Fig.6 Bottom View

SONY UTX-P1 NAME PLATE

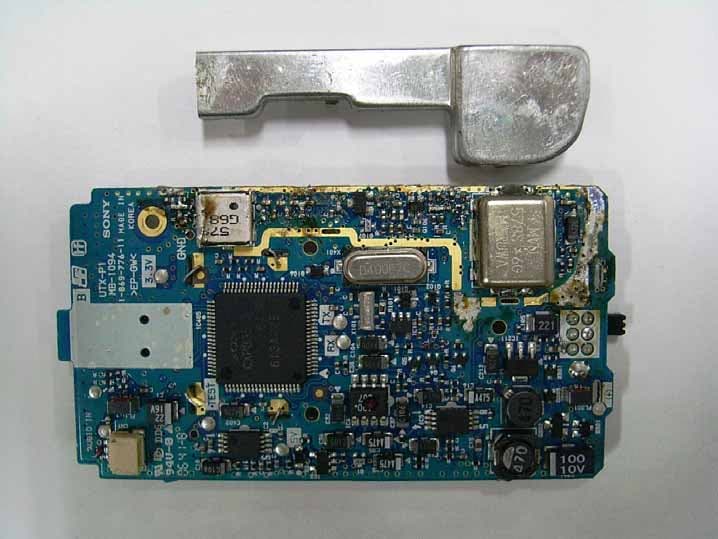

Inner structure Photo Document UTX-P1 1/2 Fig.1 Detach Front Case Fig.2 Detach Top & Rear Case Fig.3 Detach MB-1094 Fig.4 MB-1094(A) Inner structure Photo Document UTX-P1 2/2 Fig.5 MB-1094(B) <Detach shield Case>

JAPAN QUALITY ASSURANCE ORGANIZATION 21-25, KINUTA 1-CHOME, SETAGAYA-KU, TOKYO 157-8573 JAPAN PHONE (03) 3416-0111, JQA J FAX (03) 3416-9691 JQA File No. : 400-70644 Issue Date : March 5, 2008 Page 1 of 42 EMI TEST REPORT JQA File No. : 400-70644 Model No. : UTX-P1(xx) ((xx) means channel number.) (The channel numbers are described as Appendix 1.) Type of Equipment : UHF Synthesized Transmitter Regulations Applied : CFR 47 FCC Rules and Regulations Part 74 FCC ID : AK8UTXP11 Applicant : Sony Corporation Address : 6-7-35, Kitashinagawa, Shinagawa-ku, Tokyo 141-0001, Japan Manufacturer : Sony Electronics of Korea Corporation Address : 974-6, Yangduk-dong, Masan, Kyoungsangnam-do, 630-728 Korea Received date of EUT : January 8, 2008 Test Result : Passed Test results in this report are obtained in use of equipment that is traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and Communication Research Laboratory (CRL) of Japan. The test results only respond to the tested sample. This report should not be reproduced except in full, without the written approval of JQA EMC Engineering Dept. Testing Div. COPY JQA File No. :400-70644 FCC ID :AK8UTXP11 Model No. :UTX-P1(xx) Issue Date :March 5, 2008 Standard :CFR 47 FCC Rules Part 74 Page 2 of 42 TABLE OF CONTENTS Page 1 Documentation 1.1 Test Regulation 3 1.2 General Information 3 1.3 Test Condition 4 – 6 1.4 EUT Modifications / Deviation from Standard 7 1.5 Test results 8 1.6 Summary 9 1.7 Test Configuration / Operation of EUT 10 1.8 EUT Arrangement(Drawing) 11 1.9 Preliminary Test and Test-setup (Drawings) 12 – 17 1.10 EUT Arrangement (Photographs) 18 - 20 2 Test Data 2.1 RF Power Output 21 2.2 Modulation Characteristics 22 – 28 2.3 Radiated Emissions 29 – 30 2.4 Occupied Bandwidth 31 – 34 2.5 Frequency Stability 35 - 36 3 Appendix Details of Model number 37 – 38 Test instruments List 39 – 42 COPY JQA File No. :400-70644 FCC ID :AK8UTXP11 Model No. :UTX-P1(xx) Issue Date :March 5, 2008 Standard :CFR 47 FCC Rules Part 74 Page 3 of 42 1 DOCUMENTATION 1.1 TEST REGULATION FCC Rules and Regulations Part 74 Subpart H Low Power Auxiliary Stations Test procedure : RF power output, modulation characteristics, occupied bandwidth, field strength of spurious radiation and frequency stability tests were performed according to the procedures in FCC Rules and Regulations Part 2. 1.2 GENERAL INFORMATION 1.2.1 Test facility : 1) Test Facility located at EMC Engineering Dept. Testing Div. : - No.2 and 3 Anechoic Chambers(3 meters Site). - Shielded Enclosure. 2) EMC Engineering Dept. Testing Div. is accredited under the National Voluntary Laboratory accreditation Program for satisfactory compliance established in title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code : 200189-0 (Effective through : June 30, 2008) 1.2.2 Description of the Equipment Under Test (EUT) : 1) Type of Equipment : UHF Synthesized Transmitter 2) Product Type : Prototype 3) Category : Broadcast Transmitter Held to Face 4) EUT Authorization : Certification 5) FCC ID : AK8UTXP11 6) Trade Name : SONY 7) Model No. : UTX-P1(xx) 8) Operating Frequency Range : 566.125 MHz – 589 875 MHz and 638 125 MHz – 661.875 MHz 9) Highest Frequency Used in the EUT : 661.875 MHz 10) Necessary Bandwidth : 110 kHz (=2M+2D) (M: Maximum modulation = 15 kHz D: Peak frequency deviation = 40 kHz) * Peak frequency deviation is designed by manufacturer. 11) RF Output Power : 50 mW (Manufacturer defined) 12) Emission Designator : 110KF3E 13) Serial No. : None 14) Date of Manufacture : None 15) Power Rating : DC 3.0V(Battery) 16) EUT Grounding : None 1.2.3 Definitions for symbols used in this test report : x - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. COPY JQA File No. :400-70644 FCC ID :AK8UTXP11 Model No. :UTX-P1(xx) Issue Date :March 5, 2008 Standard :CFR 47 FCC Rules Part 74 Page 4 of 42 1.3 TEST CONDITION 1.3.1 The measurement of the RF power output the Radiated Emission(30 MHz – 1000 MHz) x - was performed in the following test site. - was not applicable. Test location : Safety & EMC Center EMC Engineering Dept. Testing Div. 21-25, Kinuta 1-chome, Setagaya-ku, Tokyo 157-8573, Japan x - Anechoic Chamber A (3 meters) - Anechoic Chamber B (3 meters) Validation of Site Attenuation : 1) Last Confirmed Date :March, 2007 2) Interval :1 year Used test instruments : Type Number of test instruments (Refer to Appendix) Test Receiver 11 Cable 38 Antenna 22, 24, 167, 168 RF Amplifier N/A Signal Generator 60 Power Meter 65 Power Sensor 66 Thermo-Hygrometer 204 COPY JQA File No. :400-70644 FCC ID :AK8UTXP11 Model No. :UTX-P1(xx) Issue Date :March 5, 2008 Standard :CFR 47 FCC Rules Part 74 Page 5 of 42 1.3.2 The measurement of the Radiated Emission(Above 1000 MHz) x - was performed in the following test site. - was not applicable. Test location : Safety & EMC Center EMC Engineering Dept. Testing Div. 21-25, Kinuta 1-chome, Setagaya-ku, Tokyo 157-8573, Japan x - Anechoic Chamber A (3 meters) - Anechoic Chamber B (3 meters) Validation of Site Attenuation : 1) Last Confirmed Date :March, 2007 2) Interval :1 year Used test instruments : Type Number of test instruments (Refer to Appendix) Test Receiver 13 Spectrum Analyzer N/A Cable 46, 195 Antenna 31 RF Amplifier 54 Band Reject Filter N/A High Pass Filter N/A Thermo-Hygrometer 204 COPY JQA File No. :400-70644 FCC ID :AK8UTXP11 Model No. :UTX-P1(xx) Issue Date :March 5, 2008 Standard :CFR 47 FCC Rules Part 74 Page 6 of 42 1.3.3 The measurement of the Modulation Characteristics and the Occupied Bandwidth x - was performed. - was not applicable. Used test instruments : Type Number of test instruments (Refer to Appendix) Test Receiver 13 Spectrum Analyzer N/A Function Generator 58 FM Linear Detector 68 Level Meter 69 Cable 47 Attenuator 82 Antenna 24 Thermo-Hygrometer 203 1.3.4 The measurement of the …

Text truncated - open the document above for the full version.

JQA File No. :400-70644 FCC ID :AK8UTXP11 Model No. :UTX-P1(xx) Issue Date :March 5, 2008 Standard :CFR 47 FCC Rules Part 74 Page 18 of 42 1.10 TEST ARRANGEMENT (PHOTOGRAPHS) PHOTOGRAPHS OF EUT CONFIGURATION FOR RADIATED EMISSIONS MEASUREMENT Photograph present configuration with maximum emission COPY JQA File No. :400-70644 FCC ID :AK8UTXP11 Model No. :UTX-P1(xx) Issue Date :March 5, 2008 Standard :CFR 47 FCC Rules Part 74 Page 19 of 42 PHOTOGRAPHS OF EUT CONFIGURATION FOR RADIATED EMISSIONS MEASUREMENT Photograph present configuration with maximum emission COPY JQA File No. :400-70644 FCC ID :AK8UTXP11 Model No. :UTX-P1(xx) Issue Date :March 5, 2008 Standard :CFR 47 FCC Rules Part 74 Page 20 of 42 PHOTOGRAPHS OF EUT CONFIGURATION FOR RADIATED EMISSIONS MEASUREMENT Photograph present configuration with maximum emission COPY
