AK8VGPUHDM10Hard Disk Drive

VGP-UHDM10_2-897-915- 11 (1) VGP-UHDM10_2-897-915- 11 (1)  2006 Sony Corporation / Printed in Japan Hard Disk DriveVGP-UHDM10 2-897-915- 11 (1) Operating Instructions http://www.sony.net/ 2 VGP-UHDM10_2-897-915-11(1) WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. For customers in the U.S.A. Owner’s Record The model number and the serial number are located on the bottom of the drive. Record the serial number in the space provided below. Refer to this number whenever you call your Sony dealer regarding this product. Model No. VGP-UHDM10 Serial No. ________________________________ FCC Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference using one or more of the following measures: –Reorient or relocate the receiving antenna. –Increase the separation between the equipment and receiver. –Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. –Consult the dealer or an experienced radio/TV technician for help. The shielded interface cable recommended in this manual must be used with this equipment in order to comply with the limits for a digital device pursuant to subpart B of Part 15 of FCC. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. For questions regarding your product or for the Sony Customer Information Service Center nearest you, call 1-888-476-6972 in the United States or 1-800- 961-7669 in Canada. The number below is for FCC related matters only. Declaration of Conformity Trade Name:SONY Model No.:VGP-UHDM10 Responsible Party:Sony Electronics Inc. Address:16530 Via Esprillo, San Diego, CA 92127 U.S.A. Telephone No.:858-942-2230 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For customers in Canada This Class B digital apparatus complies with Canadian ICES-003. AVERTISSEMENT Pour prévenir tout risque d’incendie ou d’électrocution, gardez cet appareil à l’abri de la pluie et de l’humidité. Pour les utilisateurs au Canada Cet apparell numérique de la classe B est confrme à la norme NMB-003 du Canada. Le fonctionnement de cet appareil est lié aux deux conditions suivantes : (1) cet appareil ne doit pas causer d’interférences et (2) cet appareil doit être capable de recevoir toutes les interférences, y compris celles susceptibles de provoquer un problème de fonctionnement. 3 VGP-UHDM10_2-897-915-11(1) Table of Contents Overview ................................................ 4 Special features ............................... 5 Compatible computers ..................... 5 Supplied Accessories .............................. 6 Locating the Controls and Connectors ... 7 Getting Started ........................................ 8 Installing the batteries ..................... 8 Connecting the drive...................... 10 About the power management function (power save function) ... 11 Disconnecting the drive from the computer ..................................... 12 Using Security Function ....................... 13 About the drive security function .. 13 About handling the wireless key ... 13 Setting the security function .......... 14 Using the drive (secure mode) ...... 16 Deactivating the security function . 17 Precautions ........................................... 18 Maintenance ......................................... 19 Getting Help ......................................... 20 Specifications ....................................... 20 If you lose a wireless key/ If the wireless key is broken ............. 22 Troubleshooting .................................... 23 Be careful not to lose the wireless keys Be careful not to lose the wireless key registered to the hard disk drive. If you lose both of the wireless keys, the hard disk drive cannot be recognized by your computer. See “If you lose a wireless key/If the wireless key is broken” (page 22). Make sure to backup the data with some other media Make sure to backup the data of the hard disk drive. If the data cannot be restored as a result of hard disk trouble, Sony will not accept any liability whatsoever. On battery replacement Replace all the batteries soon if the BATT indicator flashes. A malfunction may occur if you keep using the weak batteries. Alkaline batteries are recommended. When disconnecting the hard disk drive Make sure that the POWER indicator or ACCESS indicator goes off before disconnecting the drive. For details, refer to “Disconnecting the drive from the computer” (page 12). •VAIO and are trademarks of Sony Corporation. •Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and/or other countries. •All other names of systems, products and services are trademarks of their respective owners. •In the document, the ™ or ® marks are not specified. In this document, Microsoft ® Windows ® 2000 Professional are referred to as Windows 2000. Microsoft ® Windows ® XP Home Edition and Microsoft ® W…

Text truncated - open the document above for the full version.

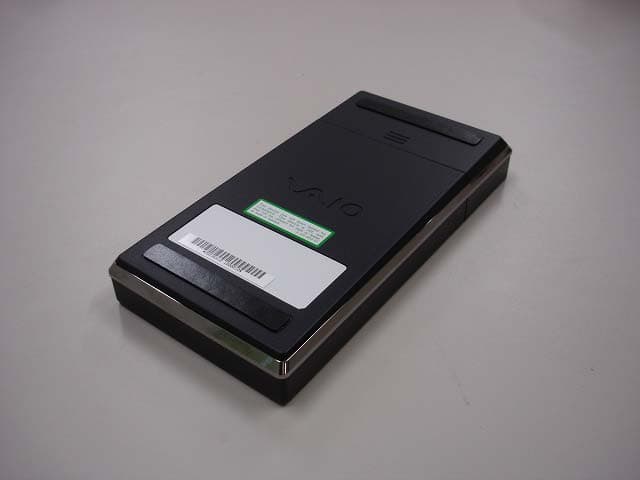

External photograph for VGP-UHDM10

4 2 2 2 234 ABCDEF ABCDEF 62345 XXXXXX (Bottom Side) Label Position for VGP-UHDM10 Label NOTE:2-condition statements defined in FCC15.19(a)(3) will be provided in Users Manual, because there is no enough space on the equipment to put a separate label for easily legible statements.

Internal photograph for VGP-UHDM10 Loop Antenna RF Circuit Internal photograph for VGP-UHDM10

Test report No. : 27AE0172-HO-A Page : 2 of 21 Issued date : September 12, 2006 FCC ID : AK8VGPUHDM10 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) CONTENTS PAGE SECTION 1: Client information............................................................................................................ 3 SECTION 2: Equipment under test (E.U.T.) .......................................................................................3 SECTION 3: Test specification, procedures & results ........................................................................ 4 SECTION 4: Operation of E.U.T. during testing ................................................................................ 7 SECTION 5: Conducted emission ......................................................................................................... 9 SECTION 6: Radiated emission (Fundamental , Spurious Emission and Spectrum Mask ) ........ 10 SECTION 7: -20dB Bandwidth ........................................................................................................... 11 SECTION 8: Frequency Tolerance ..................................................................................................... 11 SECTION 9: 99% Occupied Bandwidth ............................................................................................ 11 APPENDIX 1: Photographs of test setup............................................................................................ 12 Conducted emission ............................................................................................................................... 12 Radiated emission................................................................................................................................... 13 APPENDIX 2: Data of EMI test .......................................................................................................... 14 Conducted emission ............................................................................................................................... 14 Radiated emission(Fundamental emission and Spectrum Mask)...................................................... 15 Radiated emission (Spurious emission: below 30MHz) ...................................................................... 16 Radiated emission (Spurious emission: above 30MHz) ...................................................................... 17 –20dB Bandwidth ................................................................................................................................... 18 99% Occupied Bandwidth..................................................................................................................... 19 Frequency Tolerance ............................................................................................................................. 20 APPENDIX 3: Test instruments .......................................................................................................... 21 Test report No. : 27AE0172-HO-A Page : 3 of 21 Issued date : September 12, 2006 FCC ID : AK8VGPUHDM10 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) SECTION 1: Client information Company Name : Sony Corporation Brand or Trade name : SONY Address : 6-7-35 Kita-shinagawa, shinagawa-ku, Tokyo, 141-0001 Japan Telephone Number : +81- 3-5448-8716 Facsimile Number : +81- 3-5448-8981 Contact Person : Michio Kobayashi SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : HARD DISK DRIVE Model No. : VGP-UHDM10 Serial No. : DVT-073 Rating : DC5.0V Country of Manufacture : Japan Receipt Date of Sample : August 30, 2006 Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. 2.2 Product Description Model No: VGP-UHDM10 is the HARD DISK DRIVE. The clock frequencies of EUT are 6MHz, 13.56MHz, 24MHz and 480MHz. Equipment Type : Transceiver Frequency of Operation : 13.56 MHz Type of modulation : ASK Method of Frequency Generation : Crystal Antenna Type : Loop Antenna Antenna connecter type : Wire solder Antenna gain : -51dBi Test report No. : 27AE0172-HO-A Page : 4 of 21 Issued date : September 12, 2006 FCC ID : AK8VGPUHDM10 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part15 Subpart C : 2006 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 : Conducted limits Section 15.225 : Operation within the band 13.110-14.010MHz 3.2 Procedures and results No. Item Test Procedure Specification Remarks Deviation Worst margin Results 1 Conducted emission ANSI C63.4:2003 7. AC powerline conducted emission measurements <IC>RSS-Gen 7.2.2 Section 15.207 <IC>RSS-Gen 7.2.2 - N/A 9.7dB 0.15000MHz QP, L Complied 2 Electric Field Strength of Fundamental Emission ANSI C63.4:2003 13. Measurement of intentional radiators <IC>RSS-Gen 4.6 Section 15.225(a) <IC>RSS-210 A2.6 Radiated N/A 74.5dB Ant.: 0 deg. Complied 3 Spectrum Mask ANSI C63.4:2003 13. Measurement of intentional radiators <IC>RSS-Gen 4.7 Section 15.225(b)(c) <IC> RSS-210 A2.6 Radiated N/A 44.7dB 13.11MHz 14.01MHz Complied 4 Electric Field Strength of Spurious Emission ANSI C63.4:2003 13. Measurement of intentional radiators <IC>RSS-Gen 4.7 Section15.209, Section 15.225 (d) <IC>RSS-210 A2.6 Radiated N/A 0.2dB 40.680MHz Vertical Complied 5 Frequency Tolerance ANSI C63.4:2003 13. Measurement of intentional radiators <IC>RSS-Gen 4.5 Section15.225(e) <IC> RSS-210 A2.6 Radiated N/A See data Complied Note: UL…

Text truncated - open the document above for the full version.

Test report No. : 27AE0172-HO-A Page : 14 of 21 Issued date : September 12, 2006 FCC ID : AK8VGPUHDM10 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) APPENDIX 2: Data of EMI test Conducted emission DATA OF CONDUCTED EMISSION TEST UL Apex Co., Ltd. Head Office EMC Lab. No.4 Semi Anechoic Chamber Date : 2006/08/30 14:06:40 Company: Sony CorpirationReport No.:27AE0172-HO Kind of EUT : Hard Disk DrivePower:DC5.0V(PC:AC120V/60Hz) Model No. : VGP-UHDM10 Temp./Humi.:25deg.C / 60% Serial No. : DVT-073 Operator:Hiroka Umeyama Mode / Remarks : Transmitiing 13.56MHz + HDD RW LIMIT : FCC15C §15.207 (QP） FCC15C §15.207 (AV） CHART:WITH FACTOR,Peak hold data.Data is uncorrected. CALCURATION:RESULT=READING+C.F(LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV]<< QP/AV DATA >>L :QP :AV N :QP :AV .15M 30M .2M .3M .5M .7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 _ Frequency _ Reading Level _ Reading Level _ Corr. _ Results _ Results _ Limit _ Limit _ Margin _ Margin _ Phase _ Frequency _ QP _ AV _ Factor _ QP _ AV _ QP _ AV _ QP _ AV _ Phase _ [MHz ] _ [ dBuV ] _ [ dBuV ] _ [ dB] _ [dBuV] _ [dBuV] _ [dBuV] _ [dBuV] _ [dB] _ [dB] _ Phase _ 0.15000 _ 56 . 2 _ 42 . 8 _ 0.1 _ 56.3 _ 42.9 _ 66.0 _ 56.0 _ 9.7 _ 13.1 _ L _ 0.15000 _ 55 . 7 _ 43 . 2 _ 0.1 _ 55.8 _ 43.3 _ 66.0 _ 56.0 _ 10.2 _ 12.7 _ N _ 0.16600 _ 41 . 6 _ ---- _ 0.1 _ 41.7 _ ---- _ 65.2 _ ---- _ 23.5 _ ---- _ L _ 0.16600 _ 44 . 1 _ ---- _ 0.1 _ 44.2 _ ---- _ 65.2 _ ---- _ 21.0 _ ---- _ N _ 0.30188 _ 39 . 8 _ ---- _ 0.2 _ 40.0 _ ---- _ 60.2 _ ---- _ 20.2 _ ---- _ L _ 0.30188 _ 41 . 3 _ 31 . 2 _ 0.2 _ 41.5 _ 31.4 _ 60.2 _ 50.2 _ 18.7 _ 18.8 _ N _ 0.32240 _ 38 . 0 _ ---- _ 0.2 _ 38.2 _ ---- _ 59.6 _ ---- _ 21.4 _ ---- _ L _ 0.32240 _ 27 . 1 _ ---- _ 0.2 _ 27.3 _ ---- _ 59.6 _ ---- _ 32.3 _ ---- _ N _ 4.79564 _ 29 . 9 _ ---- _ 0.5 _ 30.4 _ ---- _ 56.0 _ ---- _ 25.6 _ ---- _ L _ 4.79564 _ 28 . 5 _ ---- _ 0.5 _ 29.0 _ ---- _ 56.0 _ ---- _ 27.0 _ ---- _ N _ 27.12415 _ 27 . 1 _ ---- _ 1.7 _ 28.8 _ ---- _ 60.0 _ ---- _ 31.2 _ ---- _ N _ 27.12415 _ 28 . 2 _ ---- _ 1.7 _ 29.9 _ ---- _ 60.0 _ ---- _ 30.1 _ ---- _ L Test report No. : 27AE0172-HO-A Page : 15 of 21 Issued date : September 12, 2006 FCC ID : AK8VGPUHDM10 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Radiated emission(Fundamental emission and Spectrum Mask) DATA OF MAGNETIC RADIATED EMISSION TEST UL Apex Co.,LTD. Head Office EMC Lab. No.1 Semi Anechoic Chamber Date : 2006/09/01 03:04:53 Applicant : Sony Corporation Report No. : 27AE0172-HO Kind of EUT : Hard Disk Drive Power : DC5.0V (PC:AC120V/60Hz) Model No. : VGP-UHDM10 Temp./ Humi. : 25deg.C / 60% Serial No. : DVT-073 Operator : Hiroka Umeyama Mode / Remarks : Transmitting 13.56MHz + HDD RW LIMIT : FCC15C §15.225 / RSS-Gen / RSS-210, 3m CHART : WITH FACTOR ANT TYPE : LOOP CALCULATION : READING + ANT FACTOR + LOSS( CABLE + ATTEN.-AMP.) Page: Frequency[Hz] [dBuV/m]<< QP DATA >> 90 deg:90 deg 45 deg:45 deg 0 deg:0 deg 12.56M14.56M 0 10 20 30 40 50 60 70 80 90 100 110 120 130 Freq.Reading DET Ant.FacLossGainResultLimitMargin Antenna Table Comment Freq.Reading DET Ant.FacLossGainResultLimitMargin Antenna Table Comment [MHz][dBuV] DET [dB/m][dB][dB][dBuV/m][dBuV/m][dB] Antenna [deg] Comment 13.1100028.3QP20.44.027.924.869.544.70deg168 13.4100028.3QP20.44.027.924.880.555.70deg168 13.5530040.4QP20.54.027.937.090.553.50deg168 13.5600052.8QP20.54.127.949.5124.074.50deg168 13.5600045.7QP20.54.127.942.4124.081.645deg136 13.5600050.1QP20.54.127.946.7124.077.390deg269 13.5670041.5QP20.54.127.938.290.552.30deg168 13.7100028.2QP20.54.127.924.980.555.60deg168 14.0100028.2QP20.54.127.924.869.544.70deg168 Test report No. : 27AE0172-HO-A Page : 16 of 21 Issued date : September 12, 2006 FCC ID : AK8VGPUHDM10 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Radiated emission (Spurious emission: below 30MHz) DATA OF MAGNETIC RADIATED EMISSION TEST UL Apex Co.,LTD. Head Office EMC Lab. No.1 Semi Anechoic Chamber Date : 2006/09/01 03:04:53 Applicant : Sony Corporation Report No. : 27AE0172-HO Kind of EUT : Hard Disk Drive Power : DC5.0V (PC:AC120V/60Hz) Model No. : VGP-UHDM10 Temp./ Humi. : 25deg.C / 60% Serial No. : DVT-073 Operator : Hiroka Umeyama Mode / Remarks : Transmitting 13.56MHz + HDD RW LIMIT : FCC15C §15.225 / RSS-Gen / RSS-210, 3m CHART : WITH FACTOR ANT TYPE : LOOP CALCULATION : READING + ANT FACTOR + LOSS( CABLE + ATTEN.-AMP.) Page: Freq.Reading DET Ant.FacLossGainResultLimitMargin Antenna Table Comment Freq.Reading DET Ant.FacLossGainResultLimitMargin Antenna Table Comment [MHz][dBuV] DET [dB/m][dB][dB][dBuV/m][dBuV/m][dB] Antenna [deg] Comment 27.1200028.4QP21.34.628.026.369.543.20deg170 27.1200036.8QP21.34.628.034.769.534.845deg193 27.1200038.9QP21.34.628.036.869.532.790deg148 Test report No. : 27AE0172-HO-A Page : 17 of 21 Issued date : September 12, 2006 FCC ID : AK8VGPUHDM10 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Radiated emission (Spurious emission: above 30MHz) DATA OF RADIATED EMISSION TEST UL Apex Co., Ltd. Head Office EMC Lab. No.4 Semi Anechoic Chamber Date : 2006/08/30 11:01:41 Company : Sony Corporation Report No. : 27AE0172-HO Kind of EUT : Hard Disk Drive Power : DC5.0V (PC:AC120V/60Hz) Model No. : VGP-UHDM10 Temp./Humi. : 25deg.C. / 60% Serial No. : DVT-073 Operator : Hiroka Umeyama Mode / Remarks : Transmitting 13.56MHz + HDD RW LIMIT : FCC15C §15.209, 3m, below1GHz / RSS-210 / RSS-Gen All other spurious emissions were less than 20dB for the limit. CHART:WITH FACTOR ANT TYPE：-30MHz LOOP,30-300MHz BICONICAL,300MH…

Text truncated - open the document above for the full version.

Test report No. : 27AE0172-HO-A Page : 12 of 21 Issued date : September 12, 2006 FCC ID : AK8VGPUHDM10 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) APPENDIX 1: Photographs of test setup Conducted emission Front Rear Test report No. : 27AE0172-HO-A Page : 13 of 21 Issued date : September 12, 2006 FCC ID : AK8VGPUHDM10 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Radiated emission Front Rear
