AK8VTE1001F1PlayStationR TV

masterpage:Right filename[F:\#Work#\SCE\VTE-1001 SG\_Sagyo data\4545105111\4545105111VTE1001\01GB\010COV.fm] Safety Guide Guide de Sécurité 4-545-105-11(1) VTE-1001 EN FR model name1[VTE-1001] [4-545-105-11(1) EN/FR] 010COV.book Page 1 Tuesday, June 10, 2014 7:09 PM masterpage:Left filename[F:\#Work#\SCE\VTE-1001 SG\_Sagyo data\4545105111\4545105111VTE1001\01GB\020WAR.fm] 2 model name1[VTE-1001] [4-545-105-11(1) EN/FR] To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. For your safety, use only a licensed or genuine Sony AC adaptor for the PlayStation ® TV system. Other types may cause fire, electrical shocks or a malfunction. FCC and IC notice This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated with at least 20 cm (8 in) and more between the radiator and person's body (excluding extremities: hands, wrists, feet and ankles). This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. The wireless controller complies with FCC/IC radiation exposure limits set forth for uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption rate (SAR). NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. WARNING 010COV.book Page 2 Tuesday, June 10, 2014 7:09 PM 3 masterpage:Right filename[F:\#Work#\SCE\VTE-1001 SG\_Sagyo data\4545105111\4545105111VTE1001\01GB\020WAR.fm] EN model name1[VTE-1001] [4-545-105-11(1) EN/FR] Photosensitivity/Epilepsy/Seizures A very small percentage of individuals may experience epileptic seizures or blackouts when exposed to certain light patterns or flashing lights. Exposure to certain patterns or backgrounds on a television screen or when playing video games may trigger epileptic seizures or blackouts in these individuals. These conditions may trigger previously undetected epileptic symptoms or seizures in persons who have no history of prior seizures or epilepsy. If you, or anyone in your family, has an epileptic condition or has had seizures of any kind, consult your physician before playing. IMMEDIATELY DISCONTINUE use and consult your physician before resuming gameplay if you or your child experience any of the following health problems or symptoms: • dizziness, • altered vision, • eye or muscle twitches, • loss of awareness, • disorientation, •seizures, or • any involuntary movement or convulsion. RESUME GAMEPLAY ONLY ON APPROVAL OF YOUR PHYSICIAN. If you have questions about this product, visit us.playstation.com/support or contact SCEA Consumer Services at 1-800-345-7669. You can also write to: Sony Computer Entertainment America LLC Consumer Services/Technical Support PO Box 5888, San Mateo, CA 94402-0888 U.S.A. This device complies with Part 15 of FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Declaration of Conformity Trade Name : Model No. : Responsible Party : Address : Telephone No. : SONY VTE-1001 Sony Electronics Inc. 16530 Via Esprillo San Diego, CA 92127 U.S.A. 858-942-2230 010COV.book Page 3 Tuesday, June 10, 2014 7:09 PM masterpage:Left filename[F:\#Work#\SCE\VTE-1001 SG\_Sagyo data\4545105111\4545105111VTE1001\01GB\020WAR.fm] 4 model name1[VTE-1001] [4-545-105-11(1) EN/FR] Use and handling of video games to reduce the likelihood of a seizure • Use in a well-lit area and keep as far away as possible from the television screen. • Avoid large screen televisions. Use the smallest television screen available. • Avoid prolonged use of the PS TV system. Take a 15-minute break during each hour of play. • Avoid playing when you are tired or need sleep. Radio waves Radio waves may affect electronic equipment or medical devices (for example, pacemakers), which may cause malfunctions and possible injuries. • If you use a pacemaker or other medical device, consult your doctor or the manufacturer of your medical device before using the wireless networking feature (Bluetooth ® and wireless LAN). • Do not use the wireless networking feature (Bluetooth ® and wireless LAN) in the following locations: – Areas where network features use is prohibited, such as in aircraft and hospitals. Abide by medical institution regulations when using the system on their premises. …

Text truncated - open the document above for the full version.

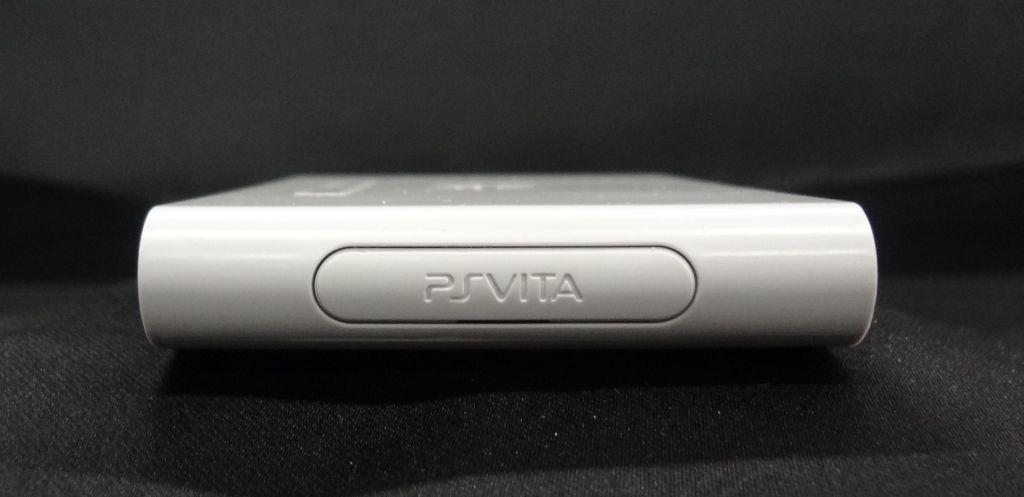

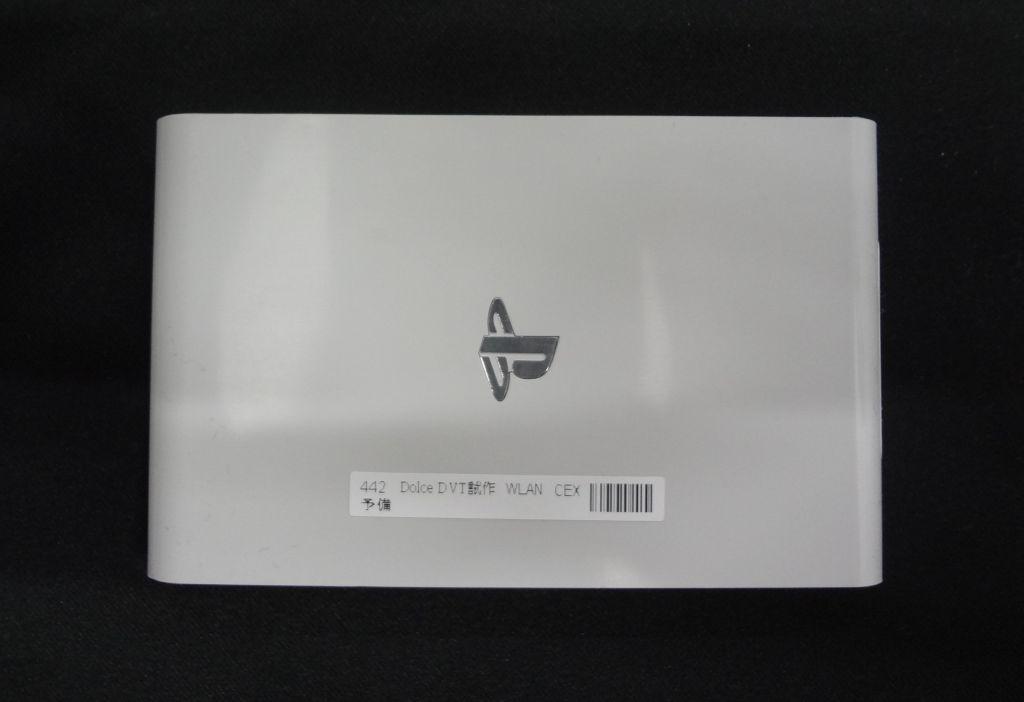

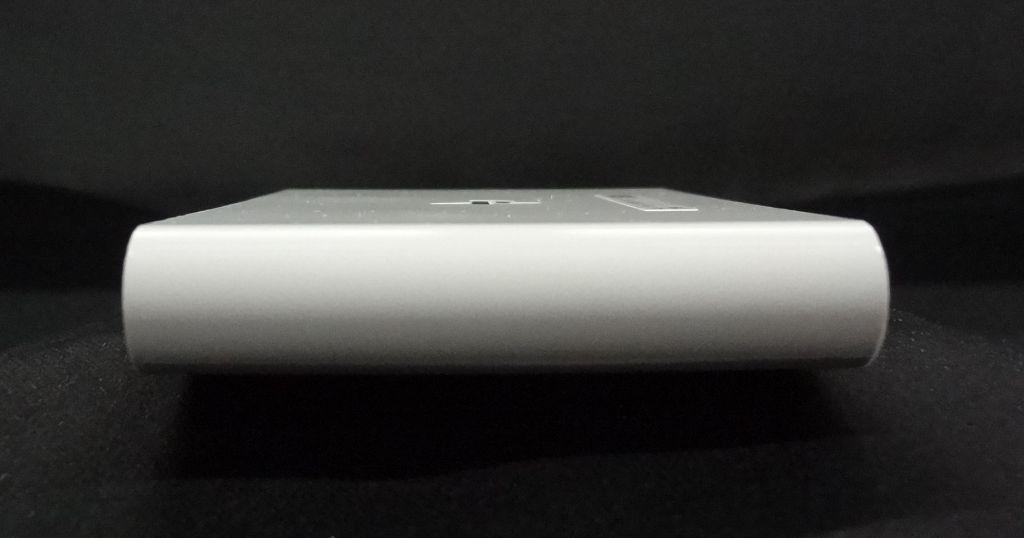

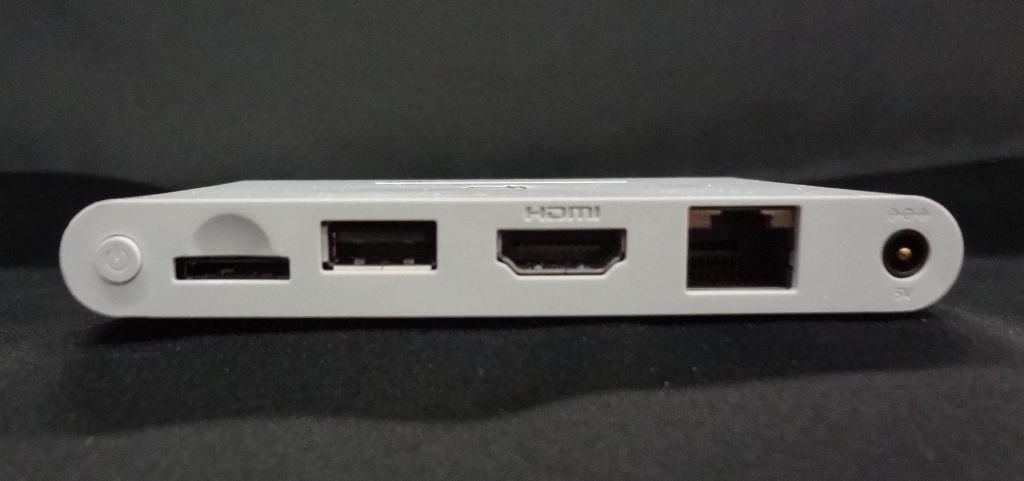

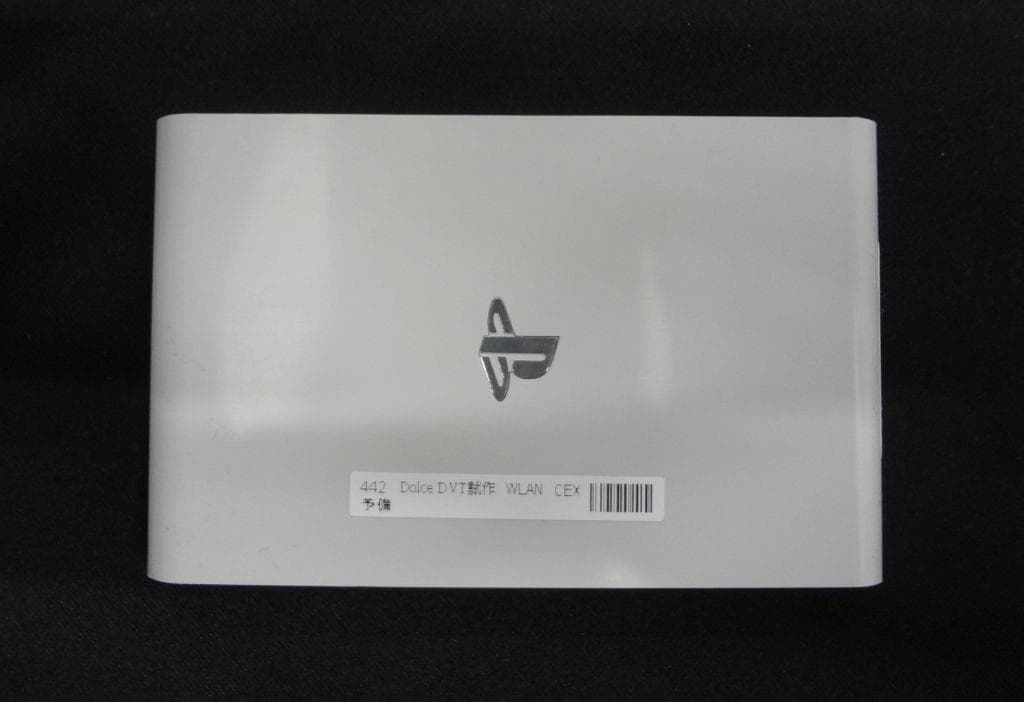

Front SCEI Confidential Back SCEI Confidential Right SCEI Confidential Left SCEI Confidential Top SCEI Confidential Bottom SCEI Confidential

Label（VTE-1001） SCEI Confidential XXXXXXXXXX XXXXXXXXXXXX Label Location（VTE-1001） SCEI Confidential XXXXXXXXXX XXXXXXXXXXXX

Upper SCEI Confidential WLAN ANTENNA BTANTENNA Bottom SCEI Confidential RF Module

Upper side Bottom side w/o Shield cover w/ Shield cover Wireless Module photo SCEI Confidential

Applicant: Sony Corporation Entertainment Inc. Type of Equipment : PlayStation® TV Model No. : VTE-1001 (Bluetooth part) FCC ID: AK8VTE1001F1 Sony Corporation Entertainment Inc. declares that Model : VTE-1001 (Bluetooth part) complies with FCC radiation exposure requirement specified in the FCC Rule 2.1091 (for mobile). RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “VTE-1001 (Bluetooth part)“ as calculate d from (B) Limits for General Population / Uncontrolled Exposure of TABLE 1- LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) of §1.1310 Radiofrequency radiation exposure limits. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 1.11 mW (Maximum averege output power) G = 0.88 Numerical Antenna gain; equal to-0.56 dBi r =20.0 cm For: VTE-1001 (Bluetooth part)S =0.00019 mW/cm 2 No. : 10348320H RF Exposure / MPE Calculation

Test report No. : 10348320H-F-R1 Page : 1 of 58 Issued date : June 6, 2014 Revised date : June 23, 2014 FCC ID : AK8VTE1001F1 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 13-EM-F0429 RADIO TEST REPORT Test Report No. : 10348320H-F-R1 Applicant : Sony Computer Entertainment Inc. Type of Equipment : PlayStation® TV Model No. : VTE-1001 FCC ID : AK8VTE1001F1 Test regulation : FCC Part 15 Subpart C: 2014 *Bluetooth part Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the above regulation. 4. The test results in this report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. 6. This report is a revised version of 10348320H-F. 10348320H-F is replaced with this report. Date of test: August 29 to September 5, 2013 Representative test engineer: Takumi Shimada Engineer Consumer Technology Division Approved by: Masanori Nishiyama Manager Consumer Technology Division NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://www.ul.com/japan/jpn/pages/services/emc/about/ma rk1/index.jsp#nvlap Test report No. : 10348320H-F-R1 Page : 2 of 58 Issued date : June 6, 2014 Revised date : June 23, 2014 FCC ID : AK8VTE1001F1 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10348320H-F Revision Test report No. Date Page revised Contents - (Original) 10348320H-F June 6, 2014 - - 1 10348320H-F-R1 June 23, 2014 P29 - 36 Correction: Data of Radiated Spurious Emission test. Test report No. : 10348320H-F-R1 Page : 3 of 58 Issued date : June 6, 2014 Revised date : June 23, 2014 FCC ID : AK8VTE1001F1 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 4 SECTION 3: Test specification, procedures & results ............................................................................ 6 SECTION 4: Operation of E.U.T. during testing .................................................................................... 9 SECTION 5: Conducted Emission .......................................................................................................... 12 SECTION 6: Radiated Spurious Emission ............................................................................................ 13 SECTION 7: Antenna Terminal Conducted Tests ................................................................................ 14 APPENDIX 1: Data of EMI test .............................................................................................................. 15 Conducted Emission ......................................................................................................................... 15 20dB Bandwidth and Carrier Frequency Separation ......................................................................... 19 Number of Hopping Frequency ........................................................................................................ 22 Dwell time ......................................................................................................................................... 24 Maximum Peak Output Power .......................................................................................................... 27 Radiated Spurious Emission ............................................................................................................. 29 Conducted Spurious Emission .......................................................................................................... 38 Conducted Emission Band Edge compliance ................................................................................... 50 99%Occupied Bandwidth ................................................................................................................. 52 APPENDIX 2: Test instruments ............................................................................................................. 54 APPENDIX 3: Photographs of test setup ............................................................................................... 56 Conducted Emission ......................................................................................................................... 56 Radiated Spurious Emission ............................................................................................................. 57 Worst Case Position (Horizontal: X-axis/ Vertical:Y-axis) .............................................................. 58 Test report No. : 10348320H-F-R1 Page : 4 of 58 Issued date : June 6, 2014 Revised date : June 23, 2014 FCC ID : AK8VTE1001F1 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name Sony Computer Entertainment Inc. Brand Name SONY Address 1-7-1 Konan, Minato-ku, Tokyo, 108-0075 Japan Telephone Number +81-3-6748-6333 Facsimile Number +81-3-6748-6383 Contact Person Kiyoto Sasaki SECTION 2: Equipment under test (E.U.T.)…

Text truncated - open the document above for the full version.

Test report No. : 10348320H-F-R1 Page : 56 of 58 Issued date : June 6, 2014 Revised date : June 23, 2014 FCC ID : AK8VTE1001F1 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 10348320H-F-R1 Page : 57 of 58 Issued date : June 6, 2014 Revised date : June 23, 2014 FCC ID : AK8VTE1001F1 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 10348320H-F-R1 Page : 58 of 58 Issued date : June 6, 2014 Revised date : June 23, 2014 FCC ID : AK8VTE1001F1 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: X-axis/ Vertical:Y-axis) X-axis Y-axis Z-axis End of Report
